Torque Converter Impeller To Pump Stator Interference Check: Procedure
- Position the front pump support with the splines up.

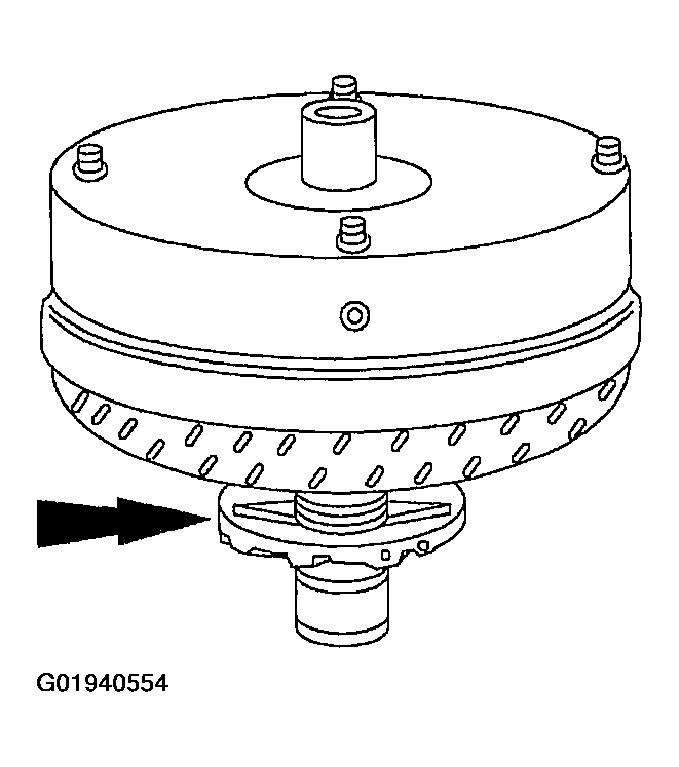

- Mount the torque converter on the front pump support with the splines on the one-way clutch inner race, engaging the mating splines of the front pump support.

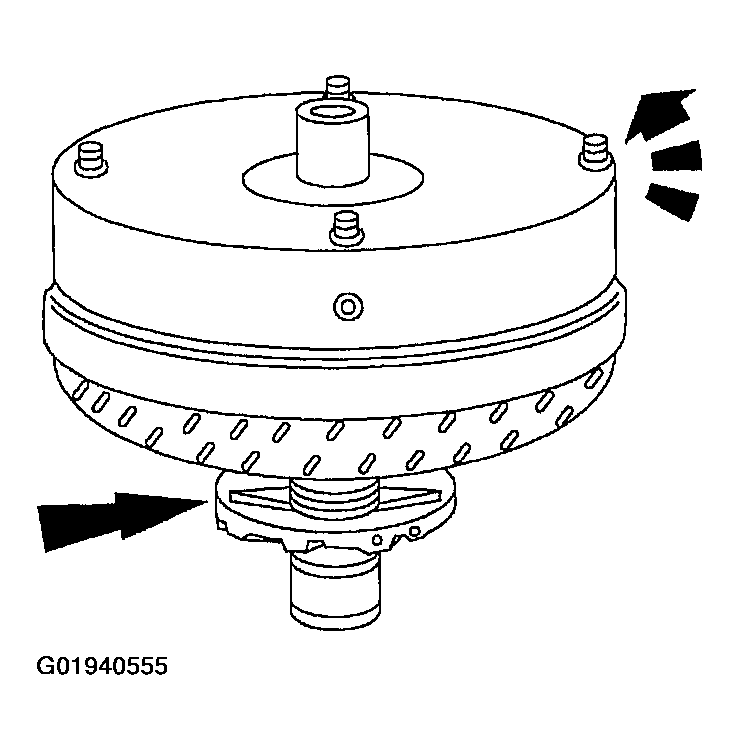

- Hold the front pump support stationary and rotate the torque converter counterclockwise.
- The torque converter should rotate freely with no signs of scraping.
- If there are signs of scraping, install a new or remanufactured torque converter.
NOTE:
Front pump support may remain in front pump support and gear during this test.
