Transmission Support CROSSMEMBER: Removal

  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING & CABLES .
  2. Raise the vehicle on a hoist.
  3. Remove the exhaust system. For further information, refer to EXHAUST SYSTEM .
  4. Support the transmission with a suitable jack.
  5. Remove the transmission support crossmember.
    1. Remove the nuts retaining the transmission support insulator to the transmission support crossmember.
    2. Remove the bolts retaining the transmission support crossmember to the body brackets. Remove the transmission support crossmember.

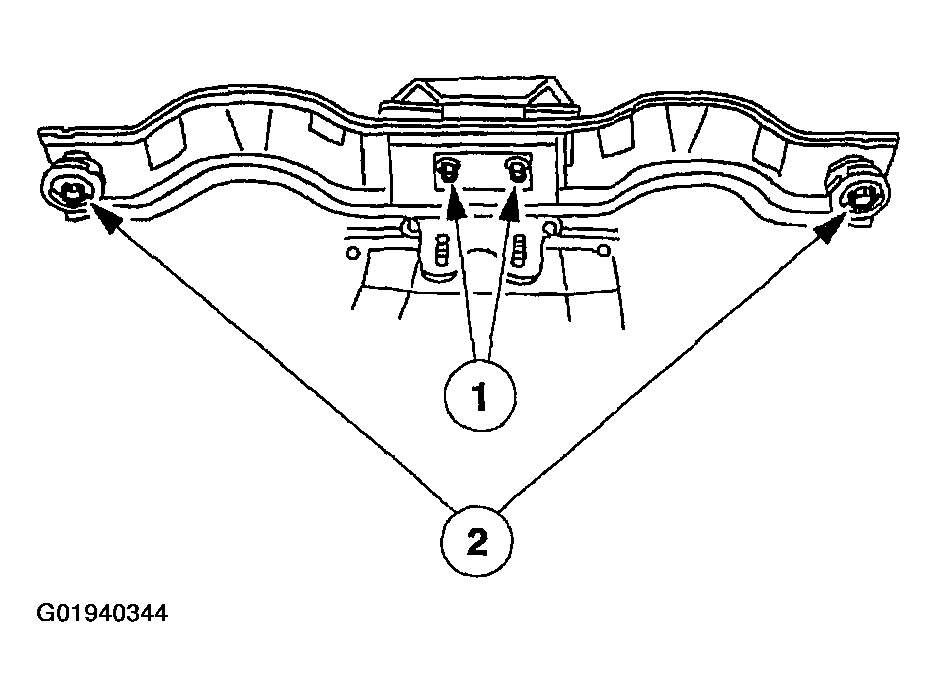

    Fig 1: Identifying Transmission Support Insulator Nuts & Transmission Support Crossmember Bolts
    G01940344Courtesy of FORD MOTOR CO.
