Vacuum Control Motors

WARNING: This page is about a different car, the 2002 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

Vacuum control motors are used to move the floor/panel and panel/defrost doors.

SYSTEM RESPONSE

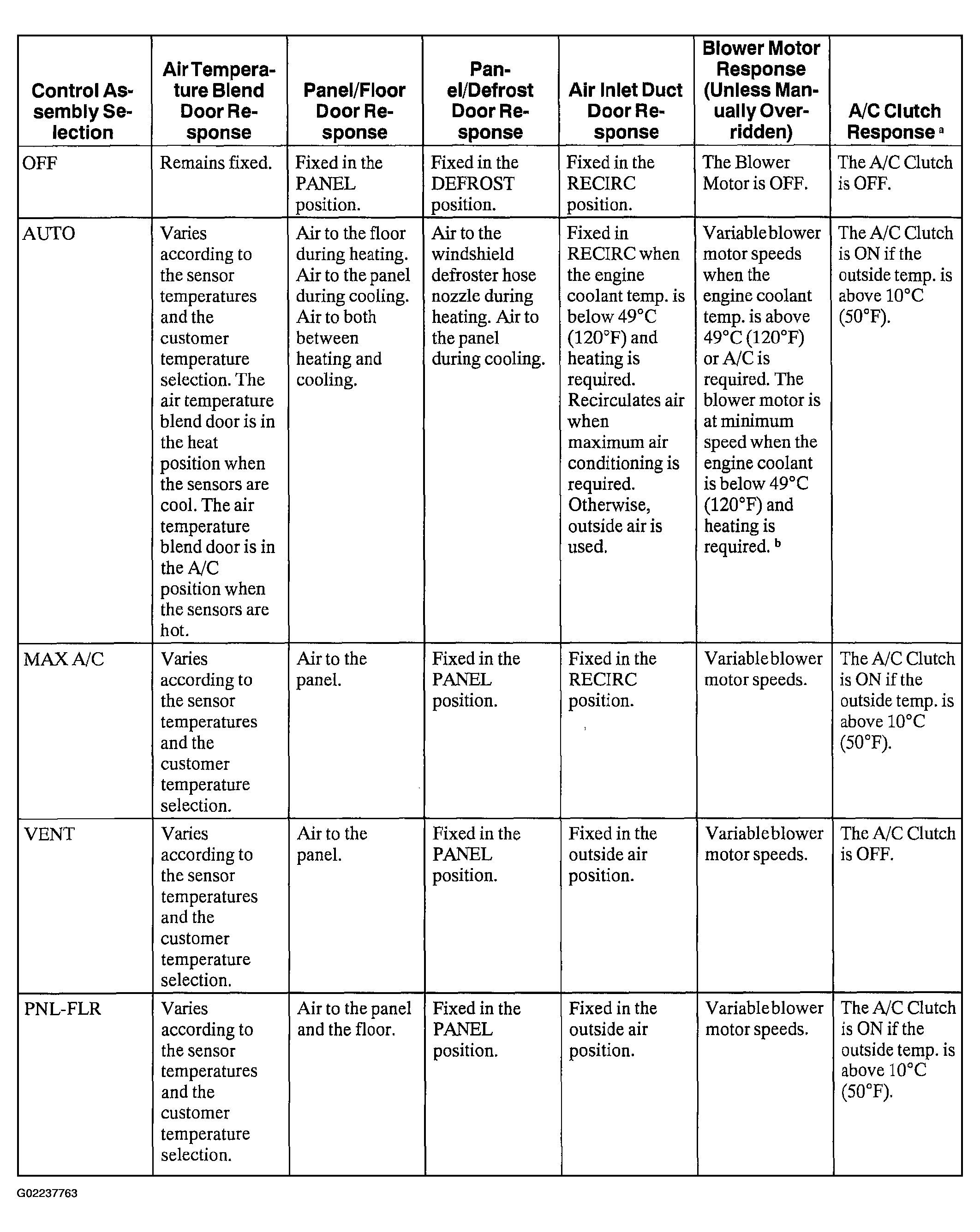

Fig 1: Control System Response Chart (1 Of 2)
G02237763Courtesy of FORD MOTOR CO.

SYSTEM RESPONSE

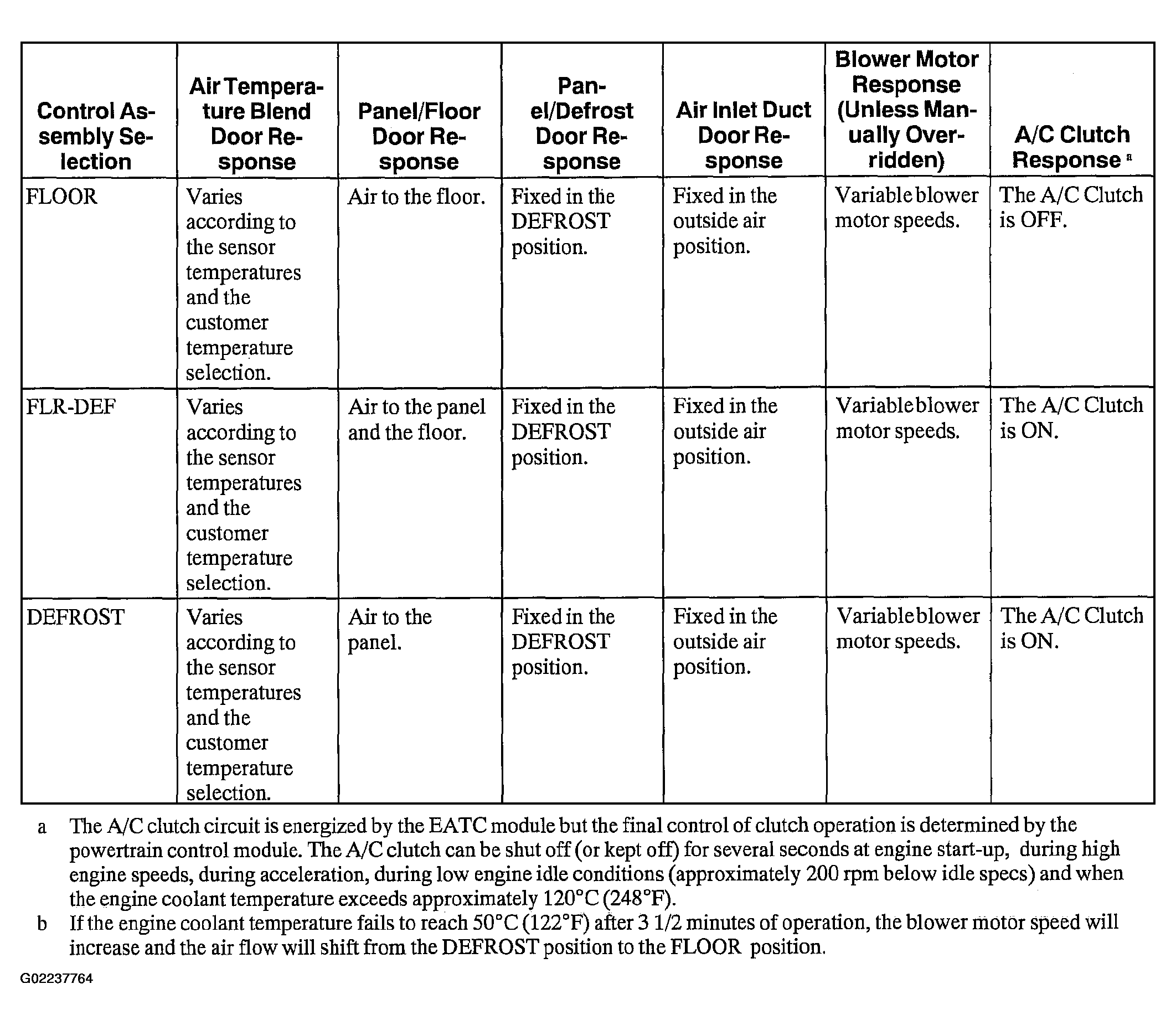

Fig 2: Control System Response Chart (2 Of 2)
G02237764Courtesy of FORD MOTOR CO.
