Valve Spring Free Length

  1. Measure the free length of each valve spring.
    • Refer to SPECIFICATIONS .
    • If out of specification, install new components as necessary.

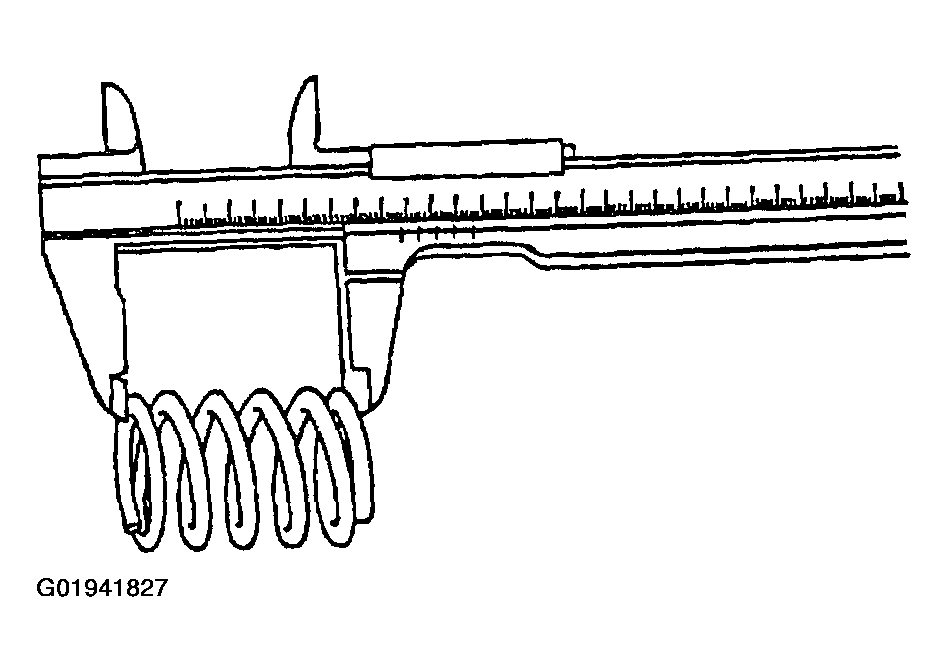

    Fig 1: Measuring Valve Spring Free Length
    G01941827Courtesy of FORD MOTOR CO.
