Reverse Servo Assembly: Removal

  1. Remove the main control valve body. For additional information, refer to MAIN CONTROL VALVE BODY .
  2. Using the special tool, remove the reverse band servo retaining ring.
    1. Compress the servo spring.
    2. Remove the reverse band servo retaining ring.

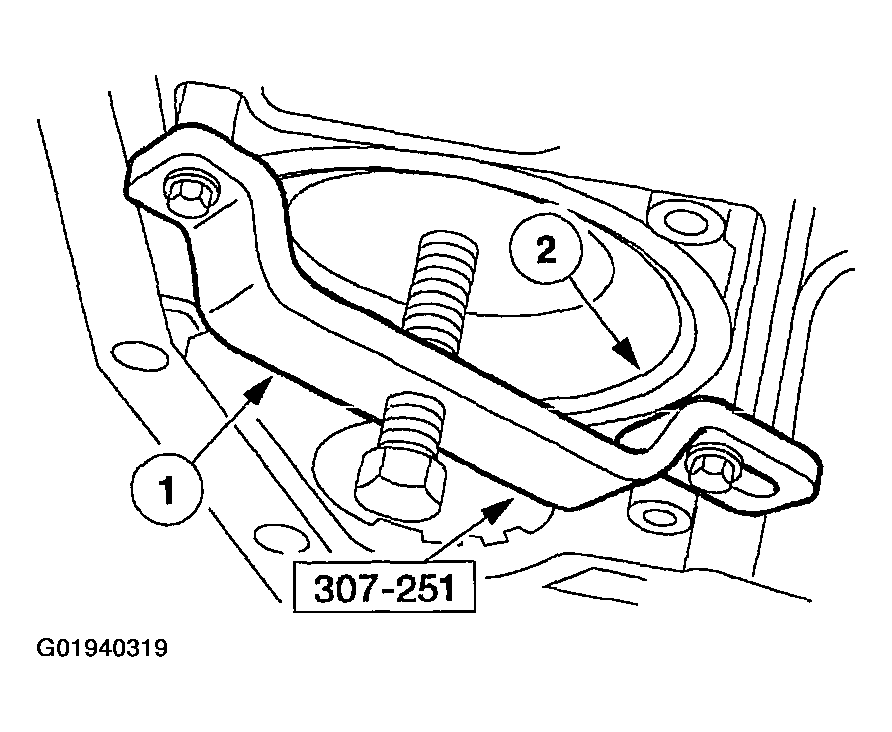

    Fig 1: Identifying Servo Spring & Reverse Band Servo Retaining Ring
    G01940319Courtesy of FORD MOTOR CO.
  3. Remove the reverse servo assembly.
    1. Remove the reverse band servo cover.
    2. Remove the reverse band servo piston and rod.
    3. Remove the reverse band servo spring.

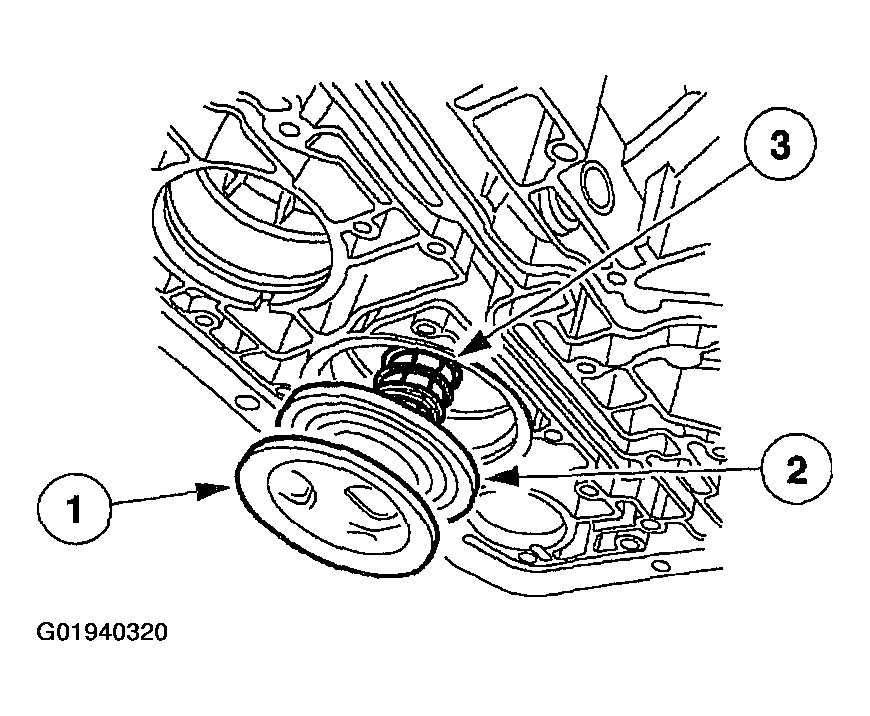

    Fig 2: Identifying Reverse Band Servo Cover, Reverse Band Servo Piston & Rod & Reverse Band Servo Spring
    G01940320Courtesy of FORD MOTOR CO.
