Wiper Control Module: Service and Repair

REMOVAL
1. Disconnect the battery ground cable.

CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.







2. Remove the tunnel brace trim cover.
1 Remove the pin-type retainers.
2 Remove the tunnel brace trim cover.

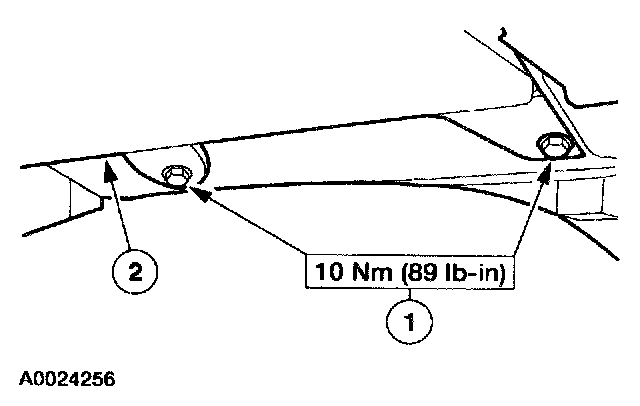

3. Remove the instrument panel ashtray.
1 Remove the bolts.
2 Remove the instrument panel ashtray.
^ Disconnect the electrical connector.

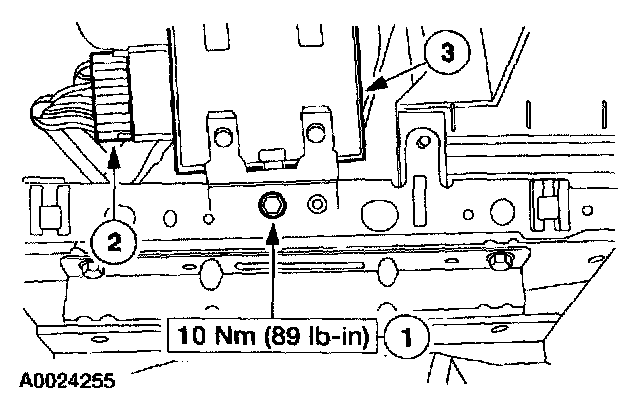

4. Remove the windshield wiper control module.
1 Remove the bolt.
2 Disconnect the electrical connector.
3 Remove the module.

INSTALLATION
1. To install, reverse the removal procedure.
