ABS Control Module Parameter Identification (PID) Index

ABS Control Module PID Index

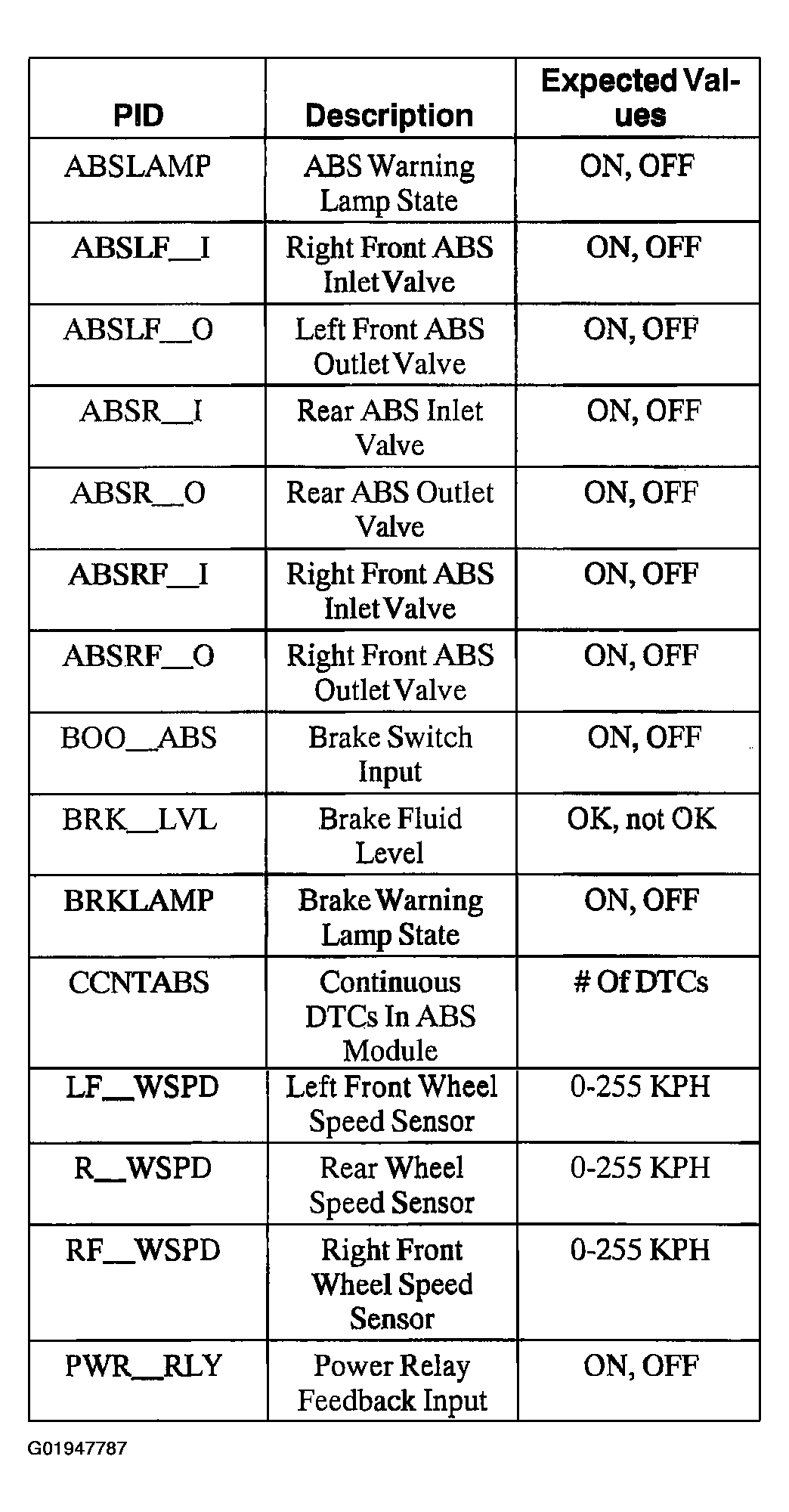

Fig 1: ABS Control Module PID Index
G01947787Courtesy of FORD MOTOR CO.
