WARNING: This page is about a different car, the 2003 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

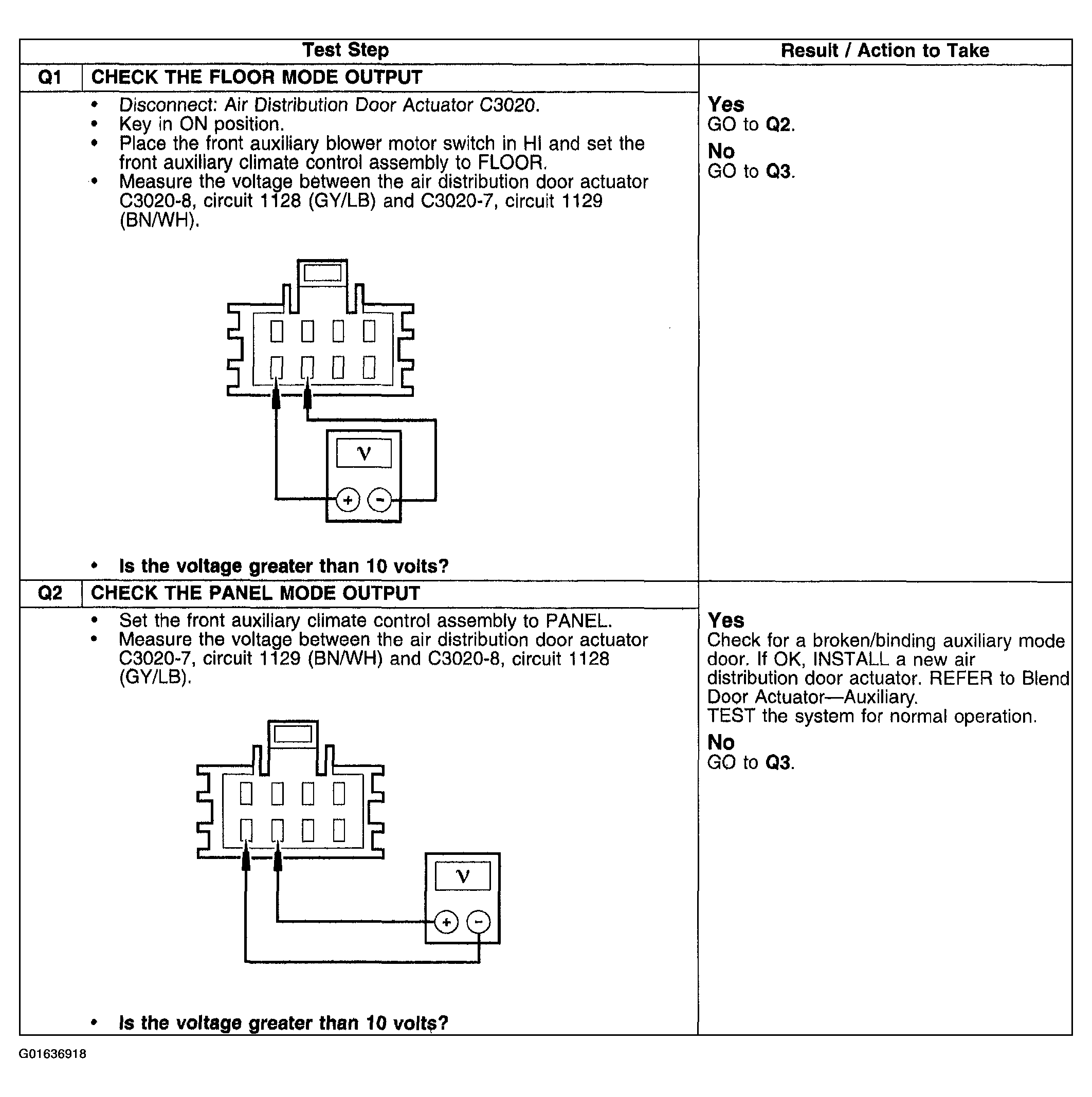

Fig 1: Pinpoint Test Q: The Panel/Floor Control Is Inoperative Using The Front Auxiliary Climate Controls (Steps Q1 & Q2)
Courtesy of FORD MOTOR CO.

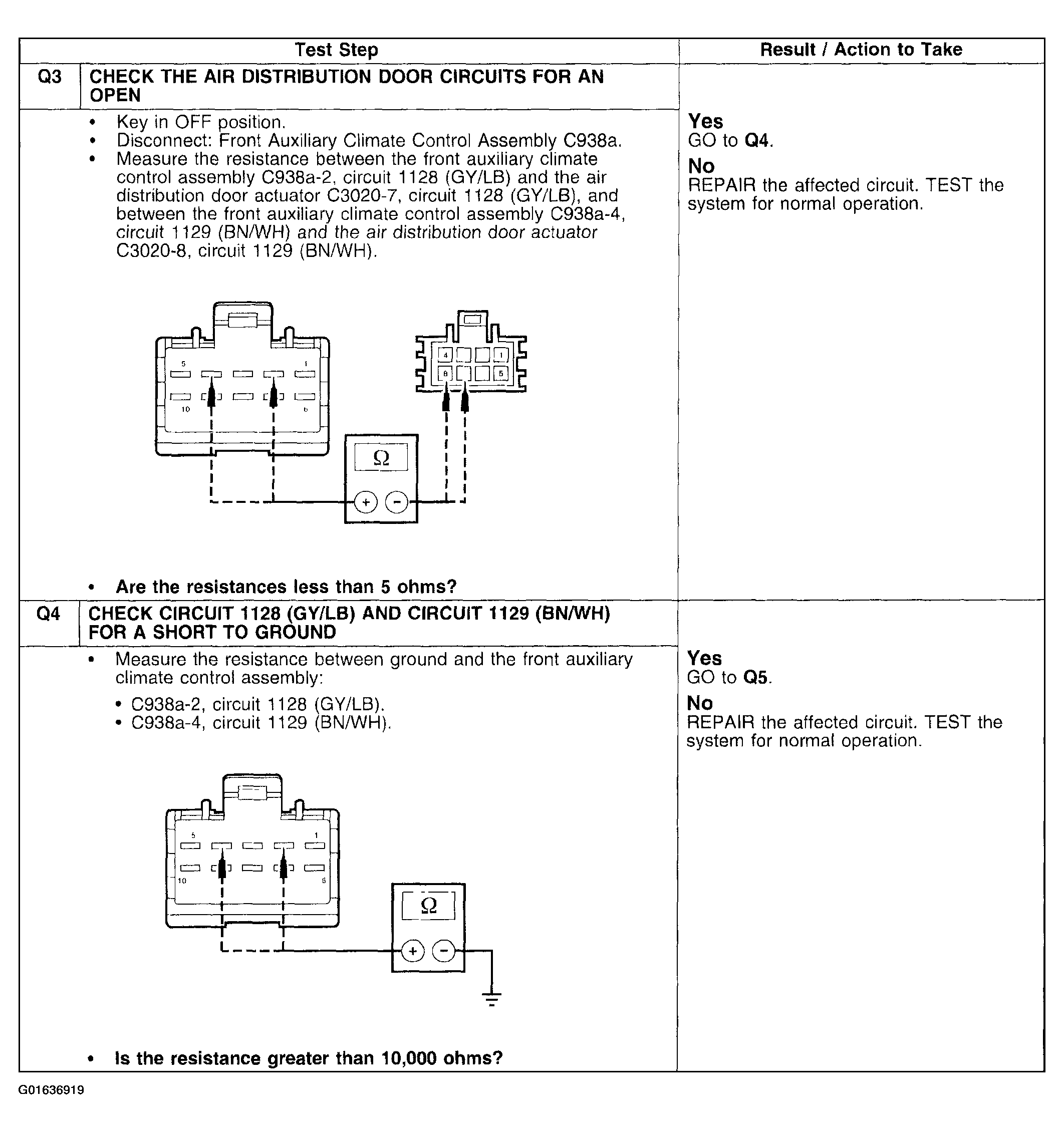

Fig 2: Pinpoint Test Q: The Panel/Floor Control Is Inoperative Using The Front Auxiliary Climate Controls (Steps Q3 & Q4)
Courtesy of FORD MOTOR CO.

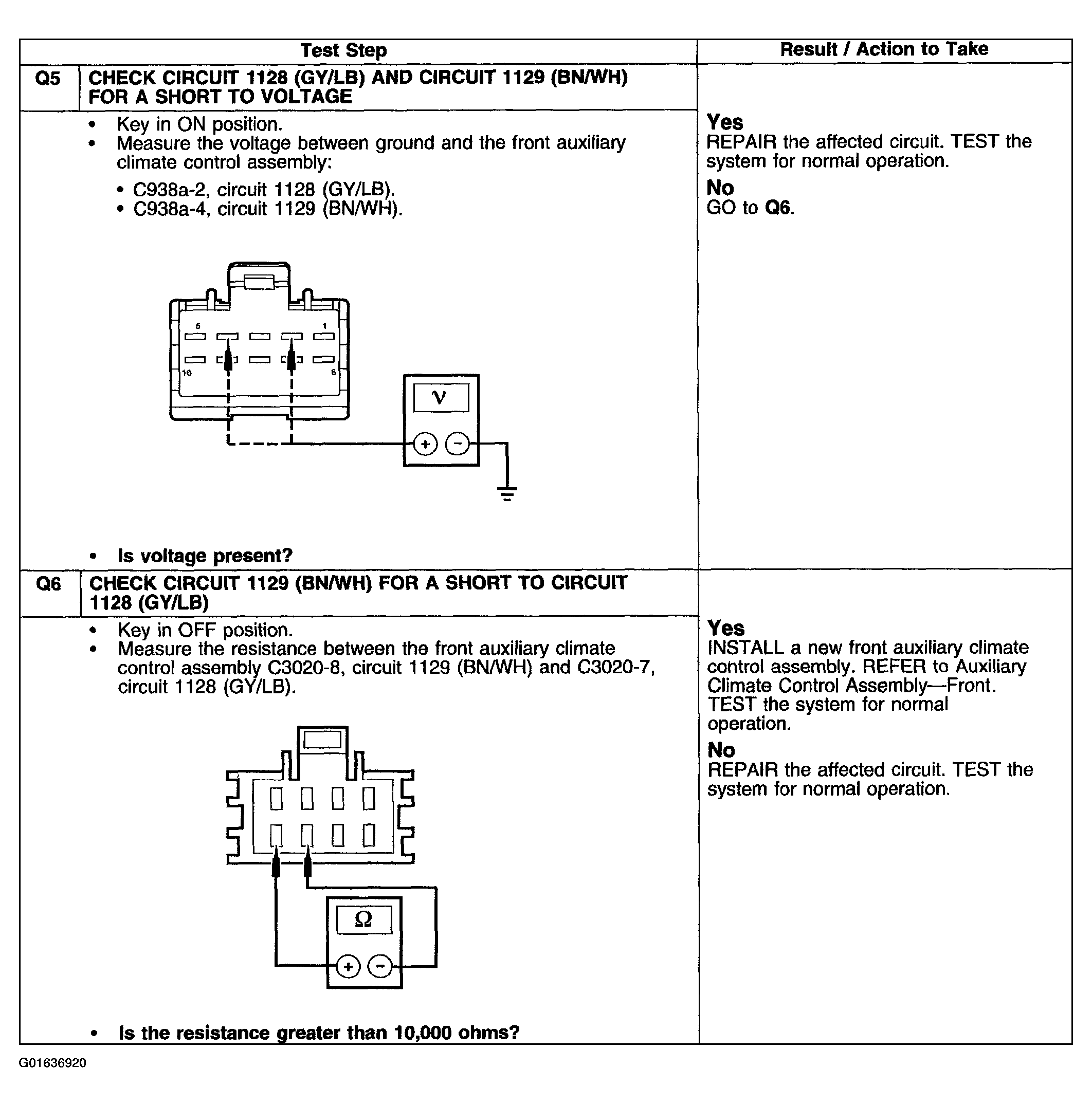

Fig 3: Pinpoint Test Q: The Panel/Floor Control Is Inoperative Using The Front Auxiliary Climate Controls (Steps Q5 & Q6)
