Component Locations
NOTE:

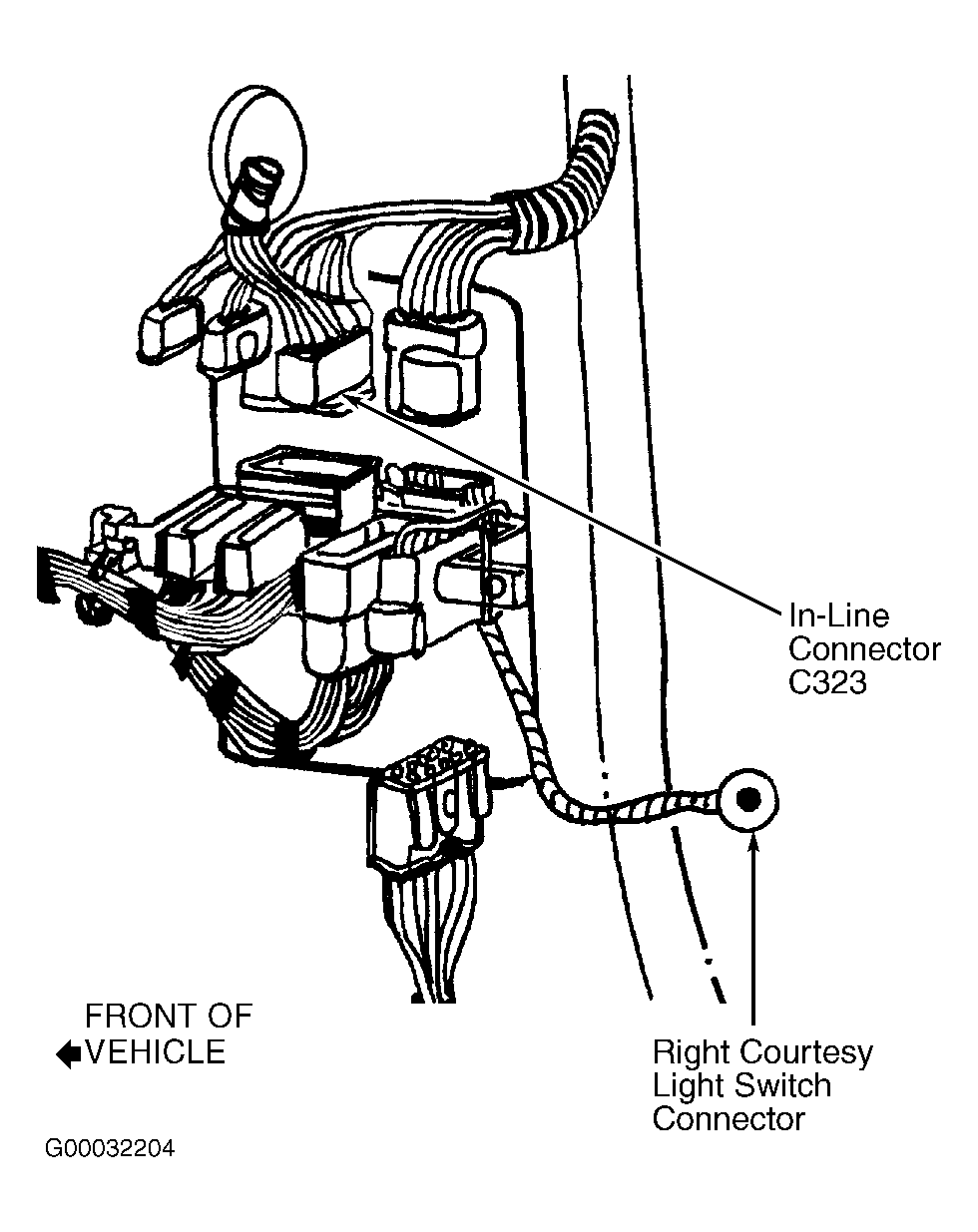

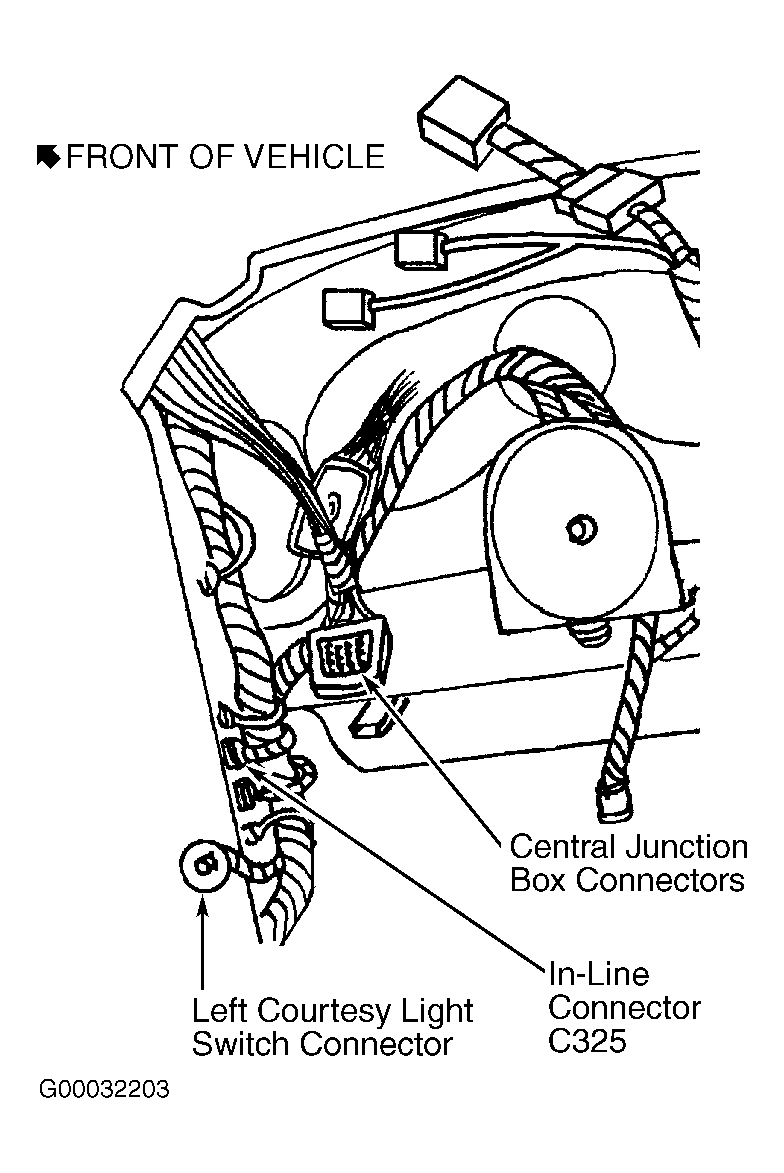

For location of Central Junction Box (CJB) connectors, in-line connector C325 and left courtesy light switch connector, refer to illustration. See Fig 1. For location of in-line connector C323 and right courtesy light switch connector, refer to illustration. See Fig 2.
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Battery Junction Box | Left Front Of Engine Compartment, On Top Of Wheelwell |
| Central Junction Box | Below Left Side Of Instrument Panel |
| In-Line Connector C323 | Behind Right Kick Panel |
| In-Line Connector C325 | Behind Left Kick Panel |
| Remote Keyless Entry Module | Behind Left Quarter Trim Panel ("B" Pillar) |
| Remote Keyless Entry System Program Connector | Base Of Steering Column |
