Connector Views

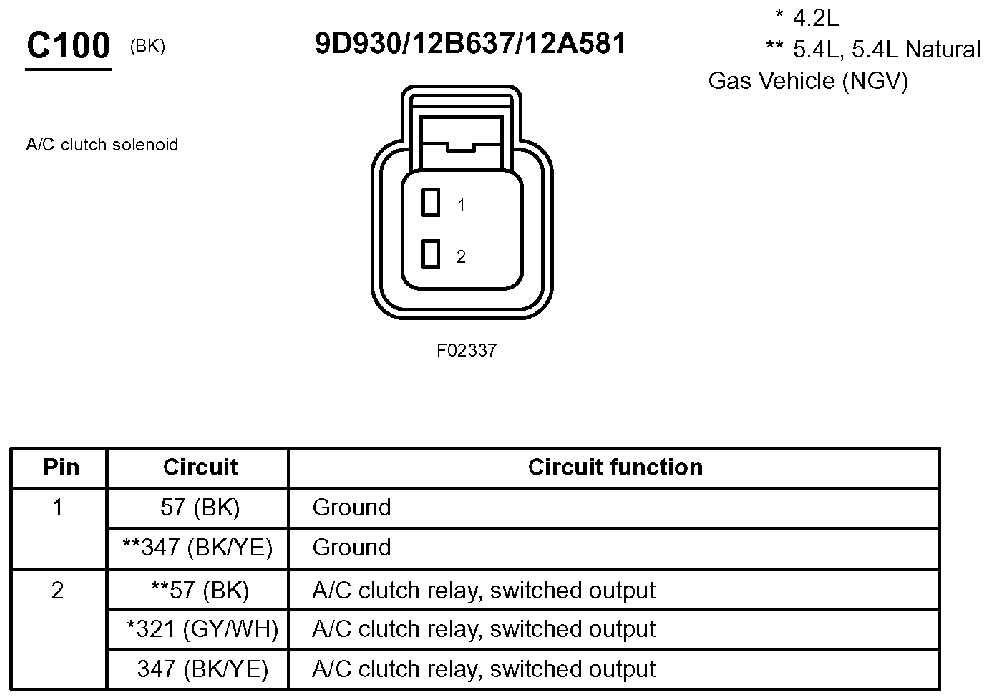

Fig 1: A/C Clutch Solenoid Connector End View (C100)

G07831062

Courtesy of FORD MOTOR CO.

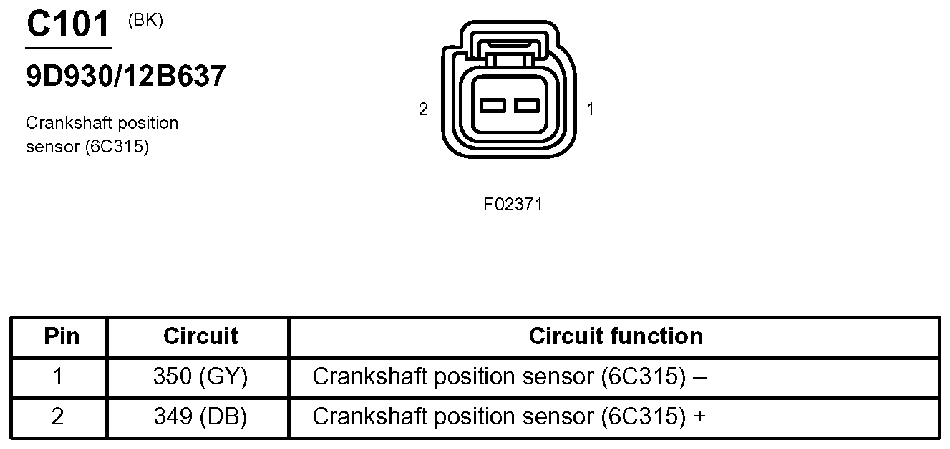

Fig 2: Crankshaft Position Sensor Connector End View (C101)

G07831063

Courtesy of FORD MOTOR CO.

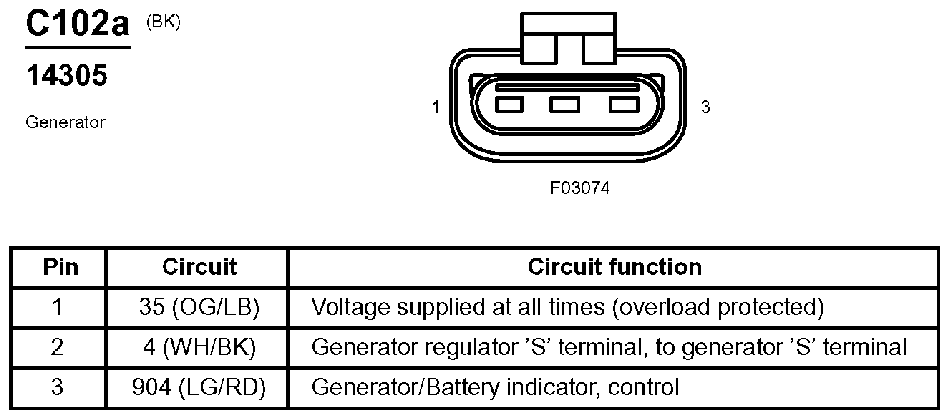

Fig 3: Generator Connector End View (C102a)

G07831064

Courtesy of FORD MOTOR CO.

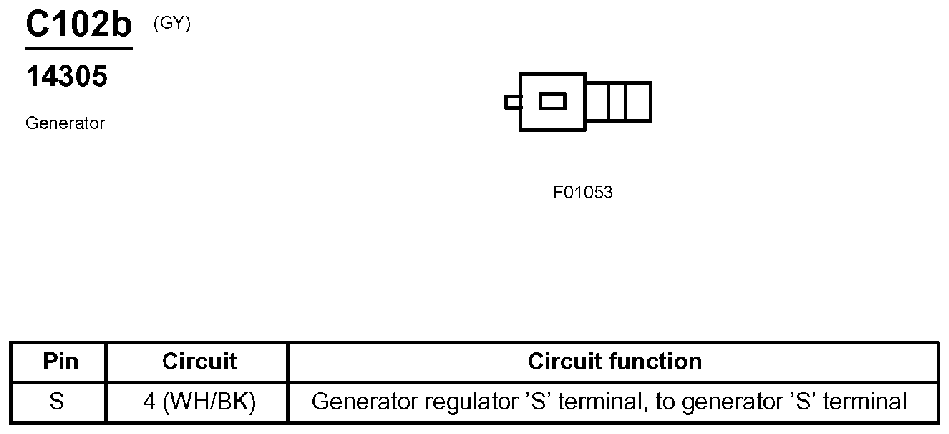

Fig 4: Generator Connector End View (C102b)

G07831065

Courtesy of FORD MOTOR CO.

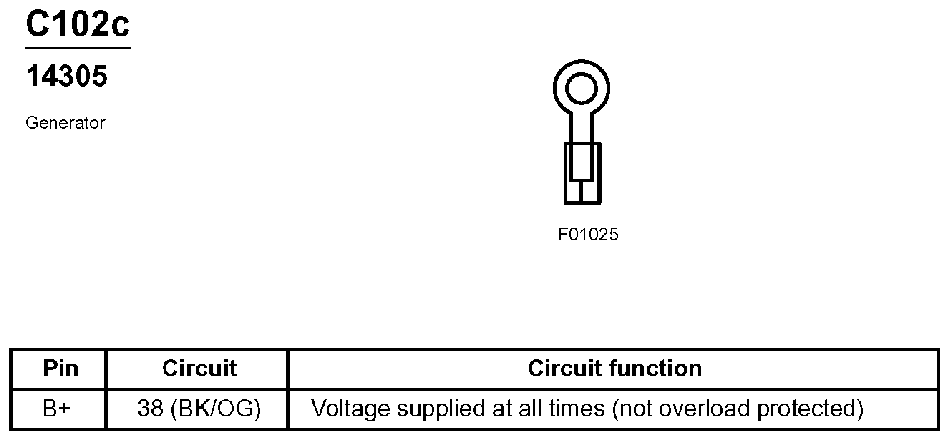

Fig 5: Generator Connector End View (C102c)

G07831066

Courtesy of FORD MOTOR CO.

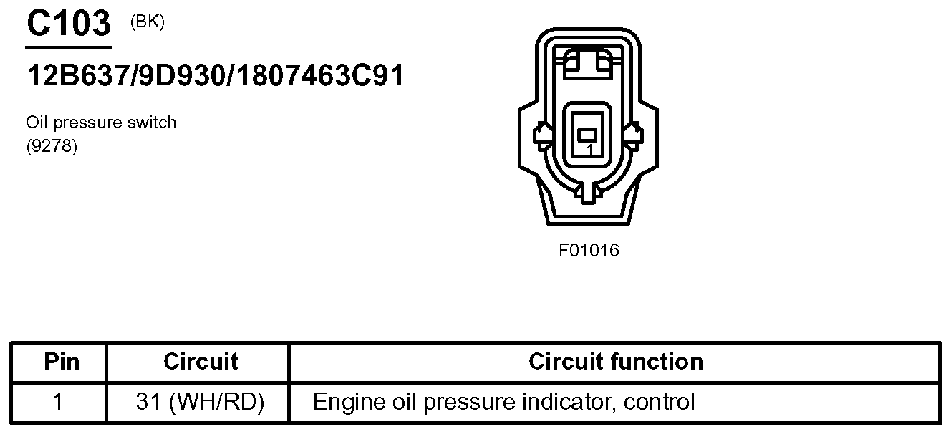

Fig 6: Oil Pressure Switch Connector End View (C103)

G07831067

Courtesy of FORD MOTOR CO.

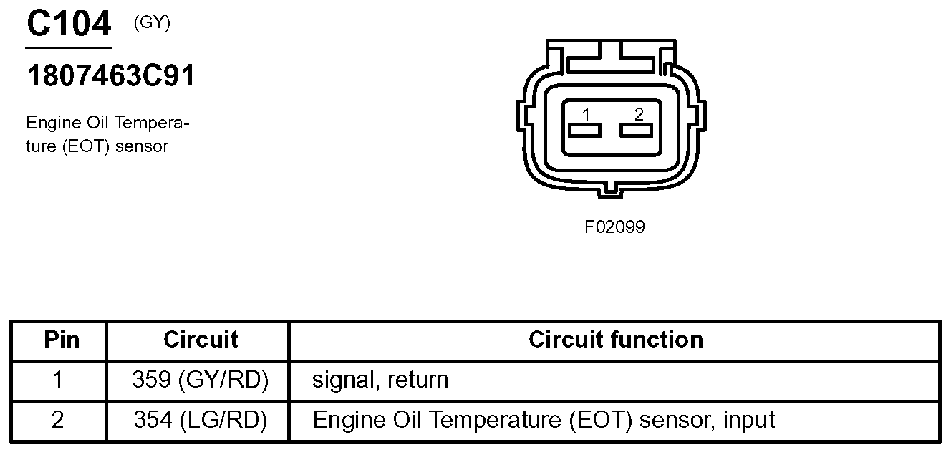

Fig 7: Engine Oil Temperature (EOT) Sensor Connector End View (C104)

G07831068

Courtesy of FORD MOTOR CO.

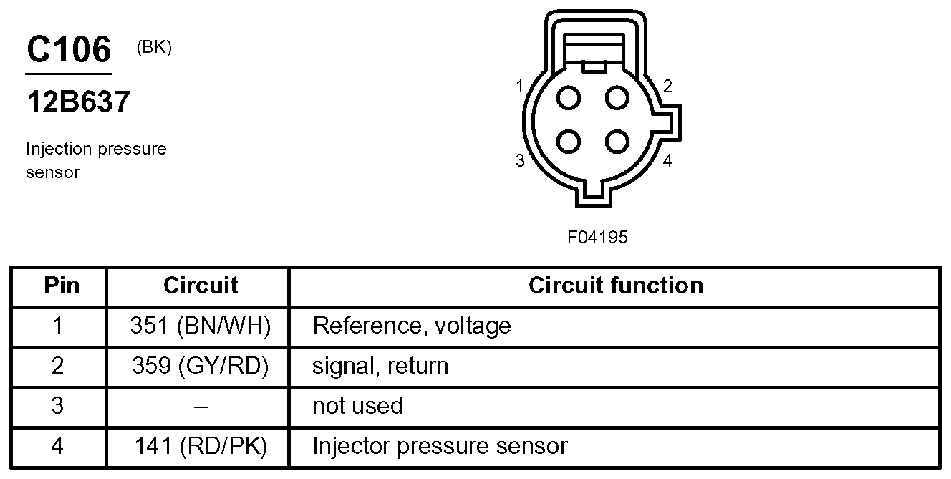

Fig 8: Injection Pressure Sensor Connector End View (C106)

G07831069

Courtesy of FORD MOTOR CO.

Fig 9: Cylinder-Head Temperature Sensor Connector End View (C107)

G07831070

Courtesy of FORD MOTOR CO.

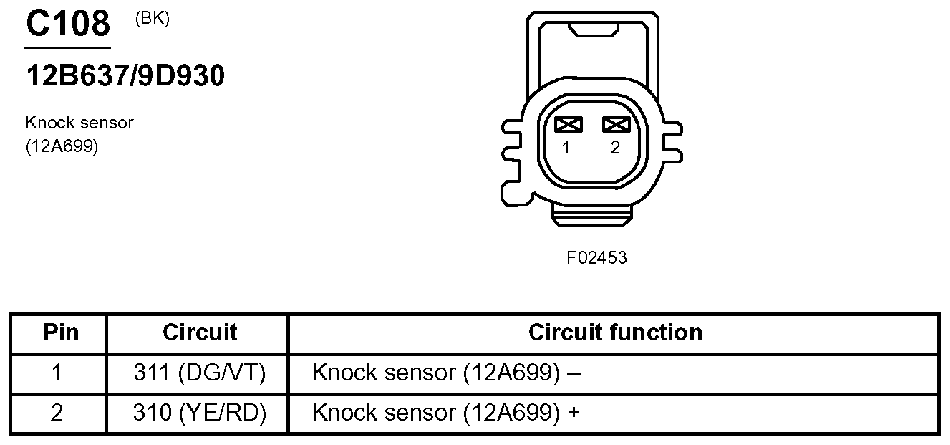

Fig 10: Knock Sensor Connector End View (C108)

G07831071

Courtesy of FORD MOTOR CO.

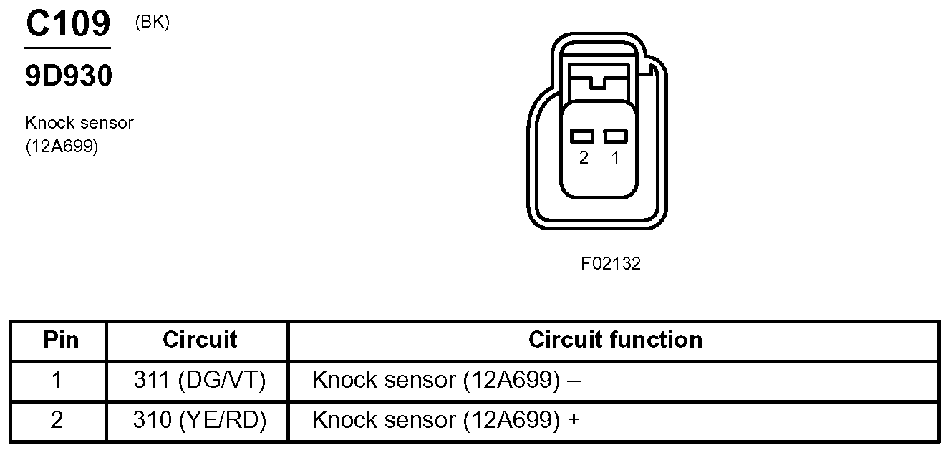

Fig 11: Knock Sensor Connector End View (C109)

G07831072

Courtesy of FORD MOTOR CO.

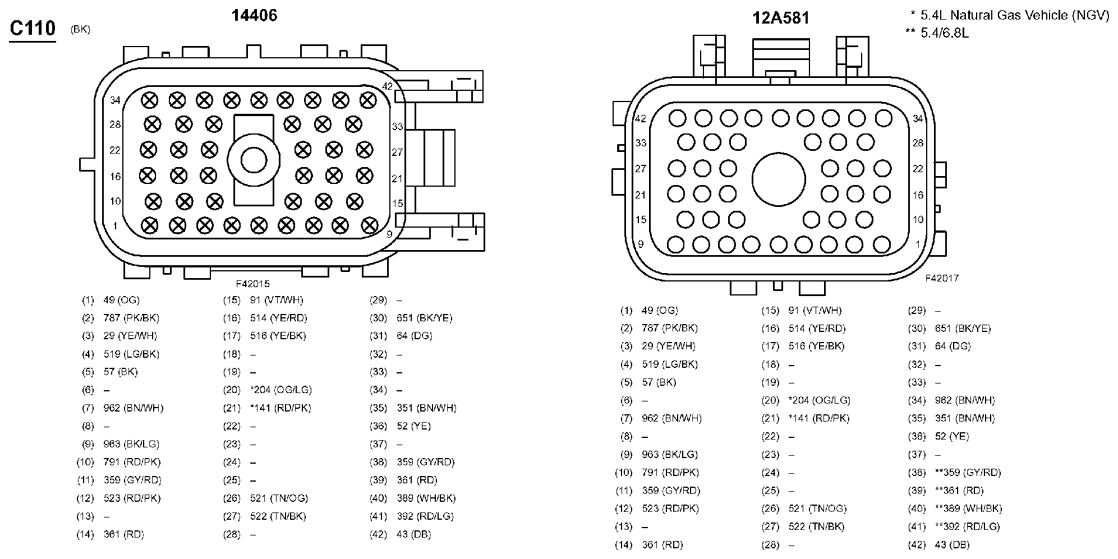

Fig 12: Inline Connector End View (C110)

G07831073

Courtesy of FORD MOTOR CO.

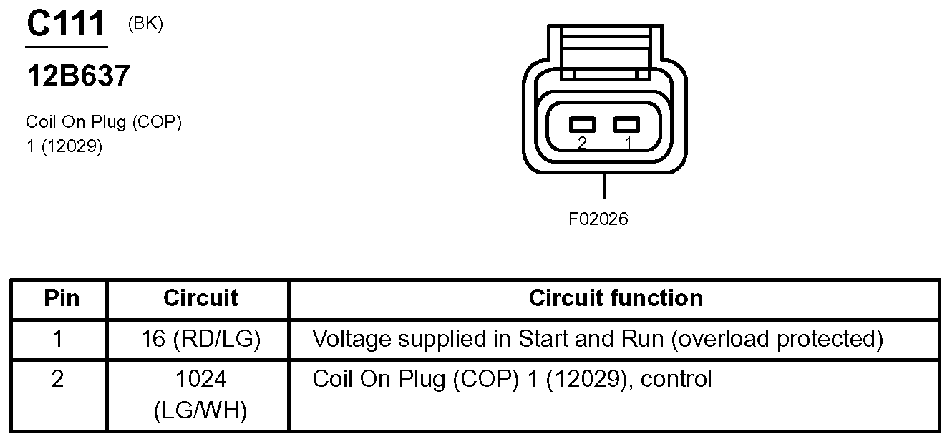

Fig 13: Coil On Plug (COP) 1 Connector End View (C111)

G07831074

Courtesy of FORD MOTOR CO.

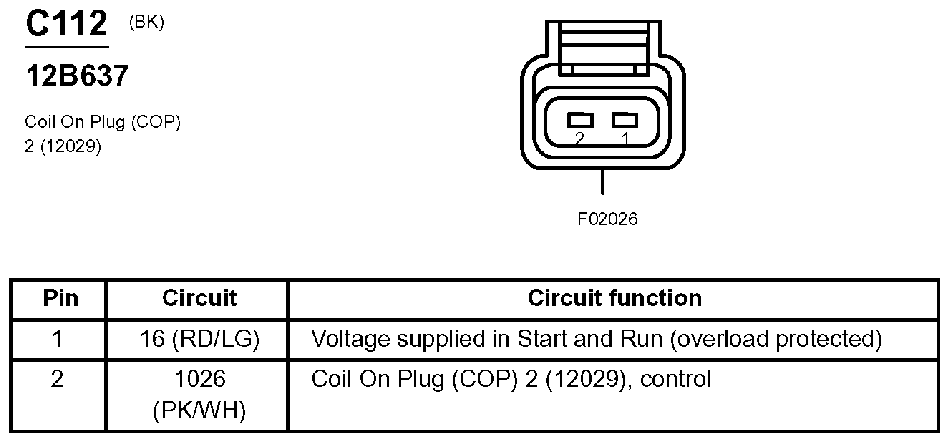

Fig 14: Coil On Plug (COP) 2 Connector End View (C112)

G07831075

Courtesy of FORD MOTOR CO.

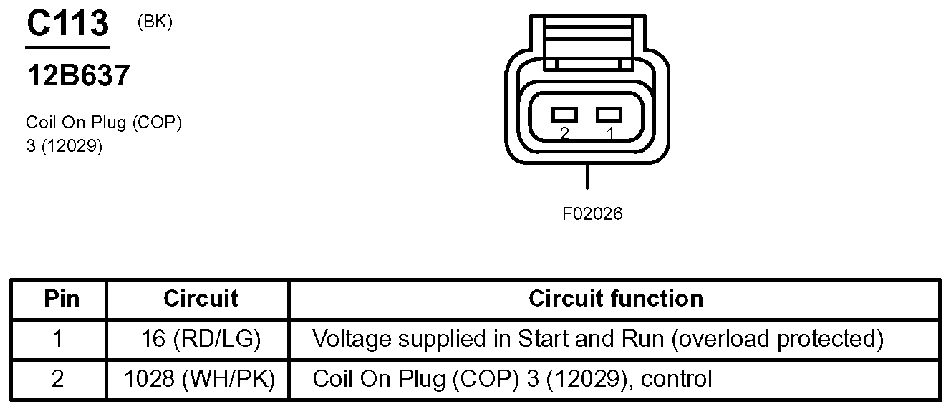

Fig 15: Coil On Plug (COP) 3 Connector End View (C113)

G07831076

Courtesy of FORD MOTOR CO.

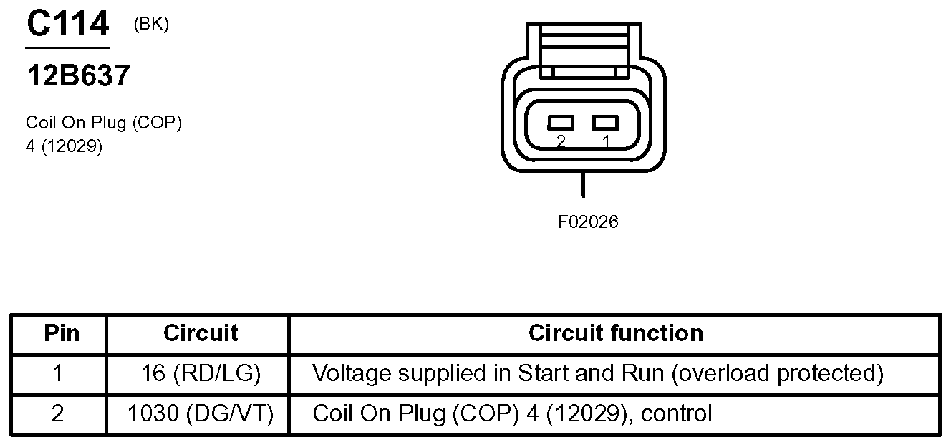

Fig 16: Coil On Plug (COP) 4 Connector End View (C114)

G07831077

Courtesy of FORD MOTOR CO.

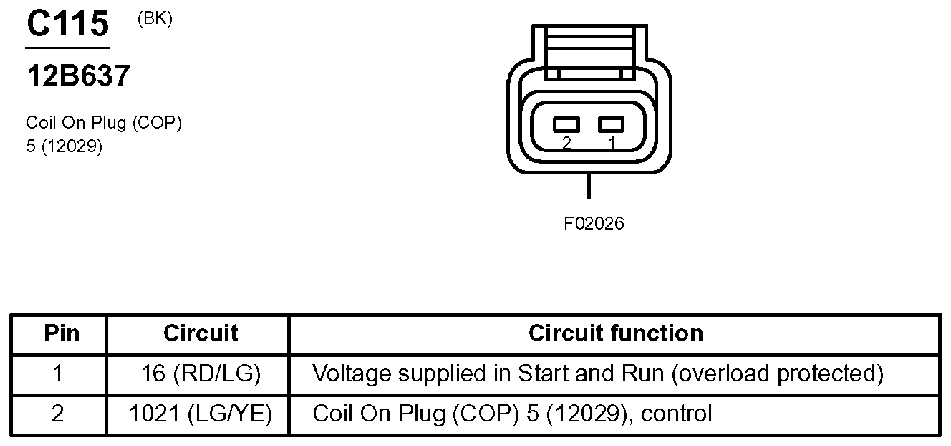

Fig 17: Coil On Plug (COP) 5 Connector End View (C115)

G07831078

Courtesy of FORD MOTOR CO.

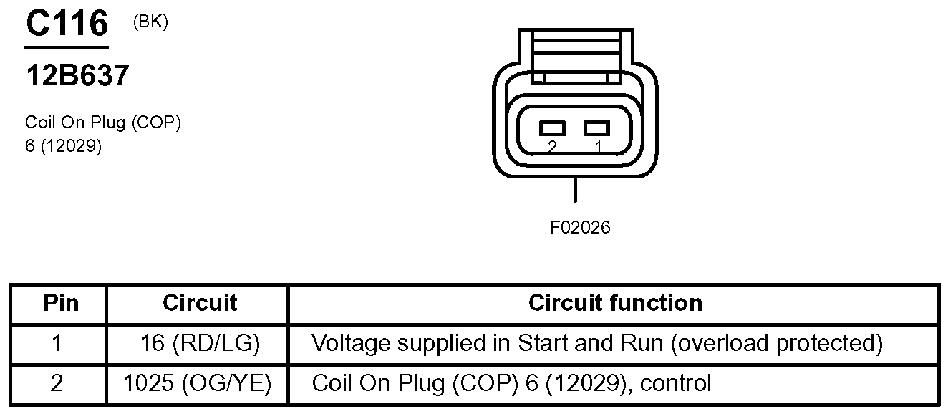

Fig 18: Coil On Plug (COP) 6 Connector End View (C116)

G07831079

Courtesy of FORD MOTOR CO.

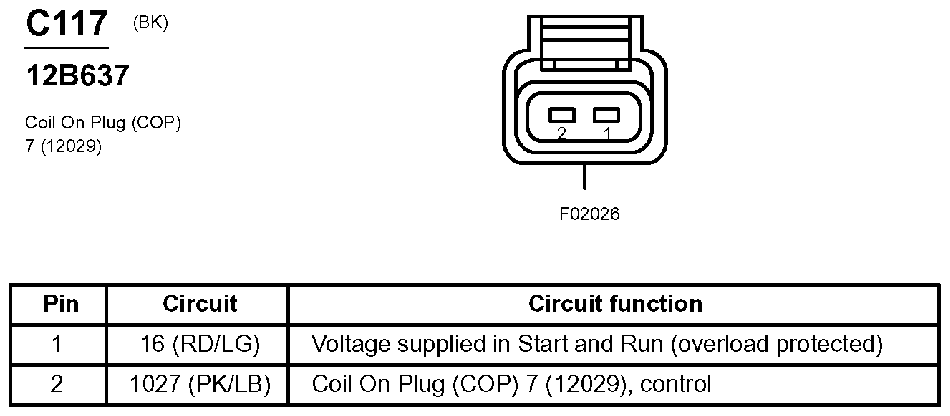

Fig 19: Coil On Plug (COP) 7 Connector End View (C117)

G07831080

Courtesy of FORD MOTOR CO.

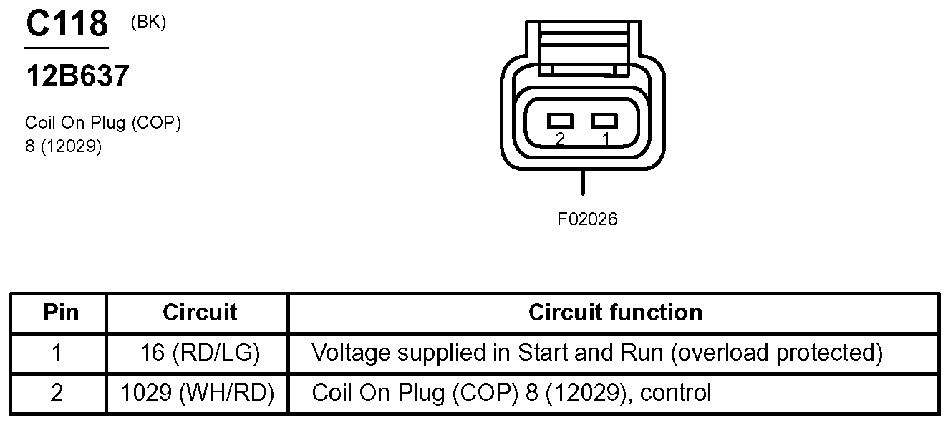

Fig 20: Coil On Plug (COP) 8 Connector End View (C118)

G07831081

Courtesy of FORD MOTOR CO.

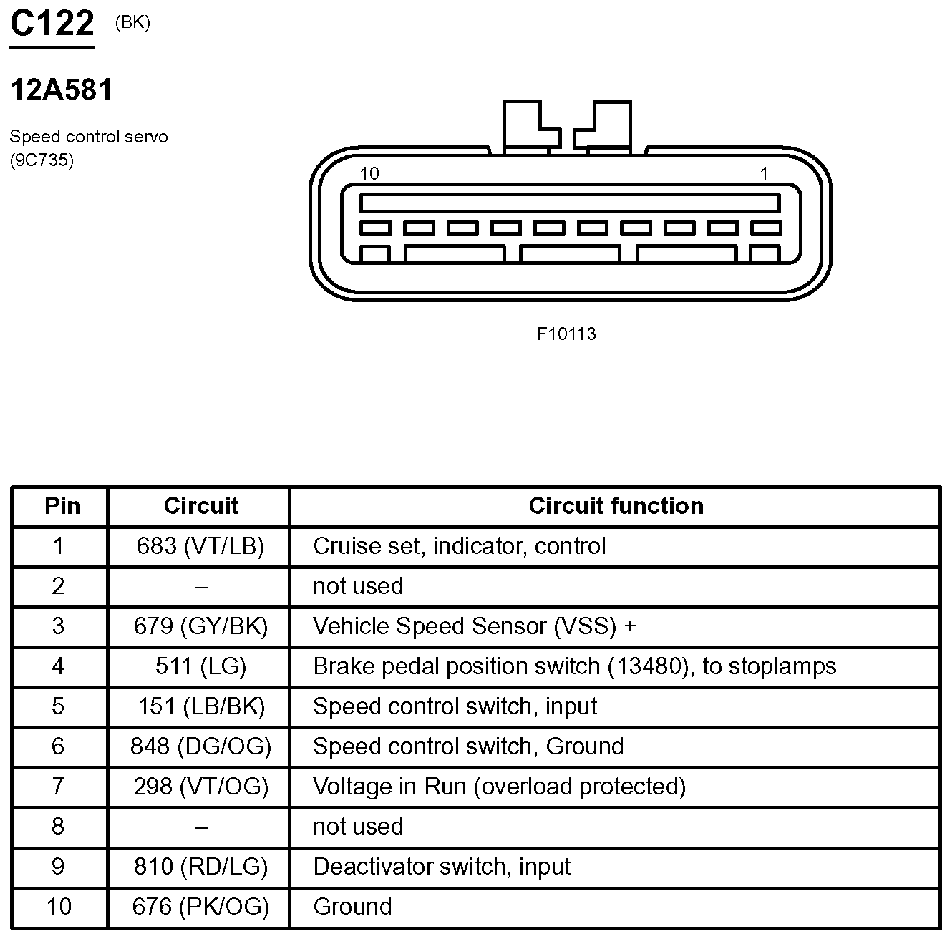

Fig 21: Speed Control Servo Connector End View (C122)

G07831082

Courtesy of FORD MOTOR CO.

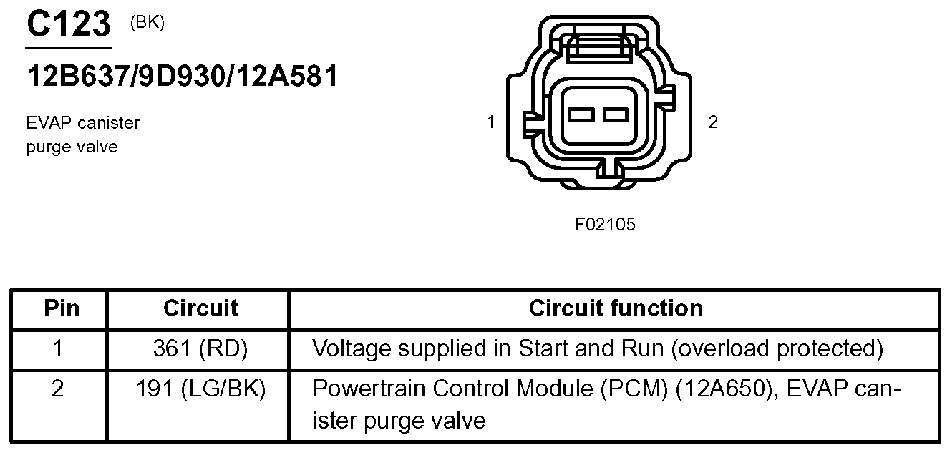

Fig 22: EVAP Canister Purge Valve Connector End View (C123)

G07831083

Courtesy of FORD MOTOR CO.

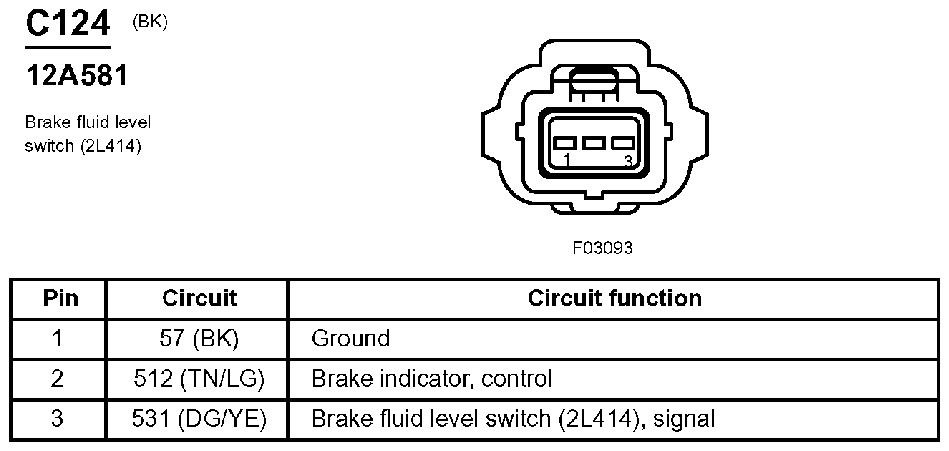

Fig 23: Brake Fluid Level Switch Connector End View (C124)

G07831084

Courtesy of FORD MOTOR CO.

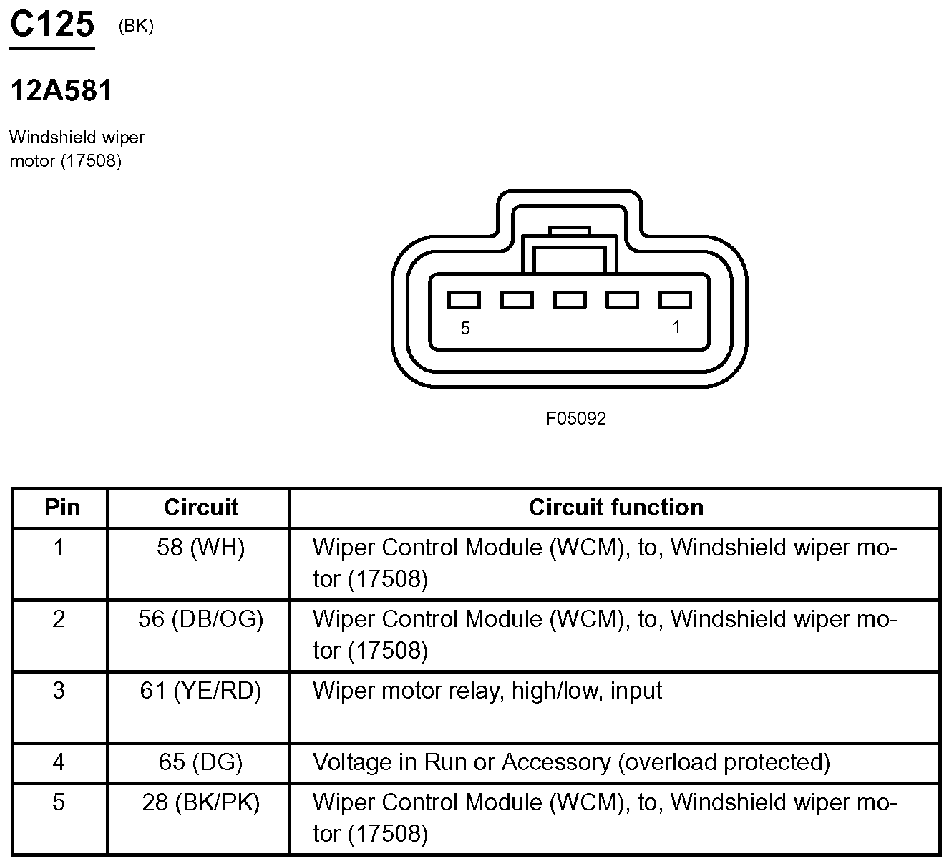

Fig 24: Windshield Wiper Motor Connector End View (C125)

G07831085

Courtesy of FORD MOTOR CO.

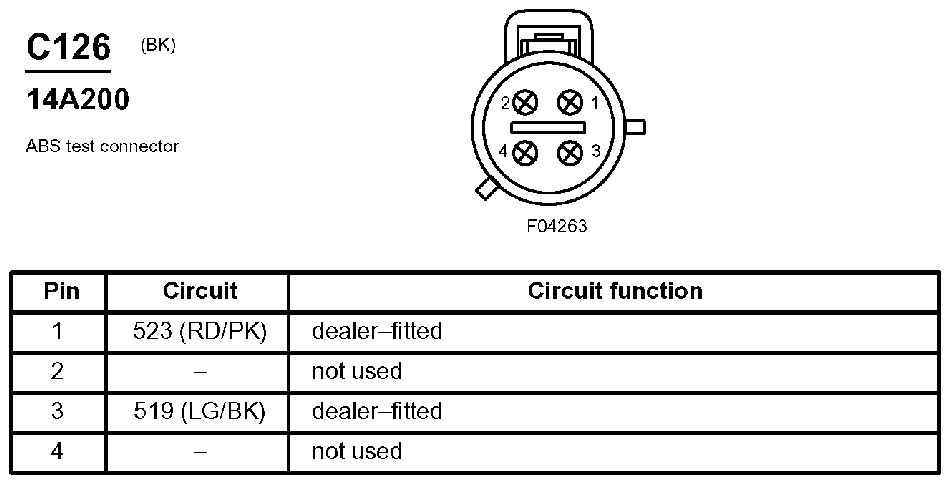

Fig 25: ABS Test Connector End View (C126)

G07831086

Courtesy of FORD MOTOR CO.

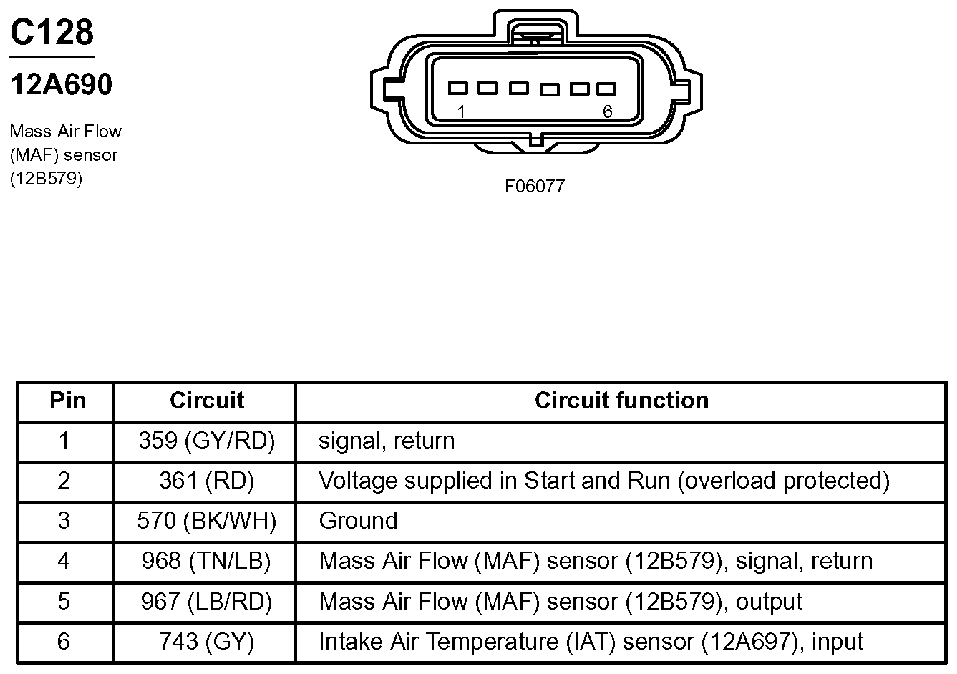

Fig 26: Mass Air Flow (MAF) Sensor Connector End View (C128)

G07831087

Courtesy of FORD MOTOR CO.

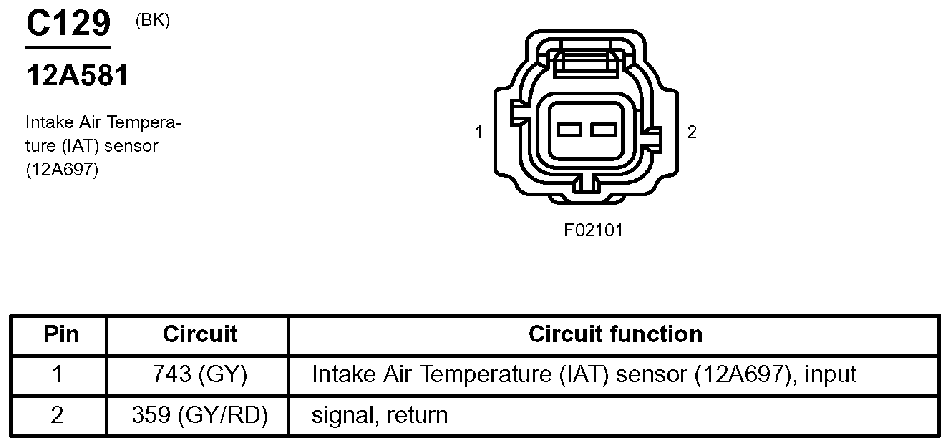

Fig 27: Intake Air Temperature (IAT) Sensor Connector End View (C129)

G07831088

Courtesy of FORD MOTOR CO.

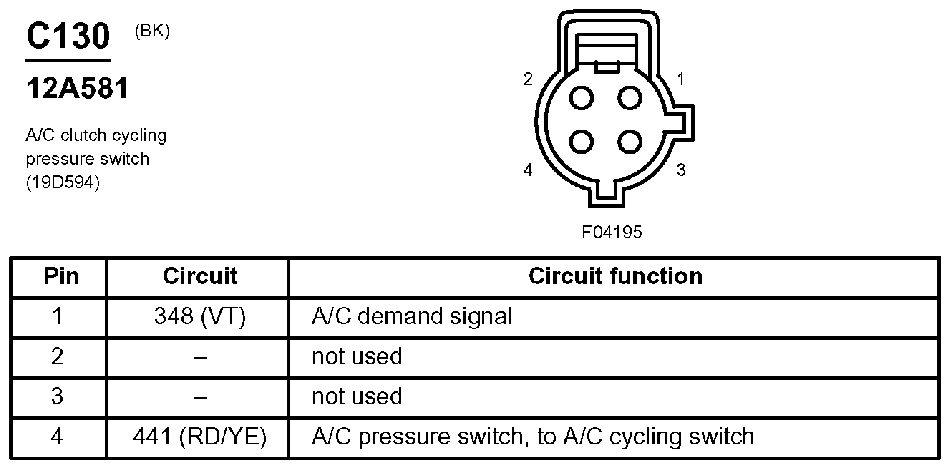

Fig 28: A/C Clutch Cycling Pressure Switch Connector End View (C130)

G07831089

Courtesy of FORD MOTOR CO.

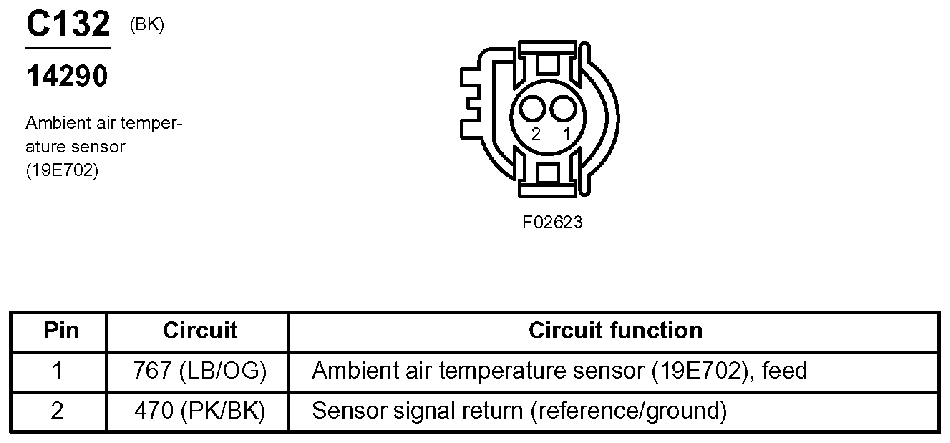

Fig 29: Ambient Air Temperature Sensor Connector End View (C132)

G07831090

Courtesy of FORD MOTOR CO.

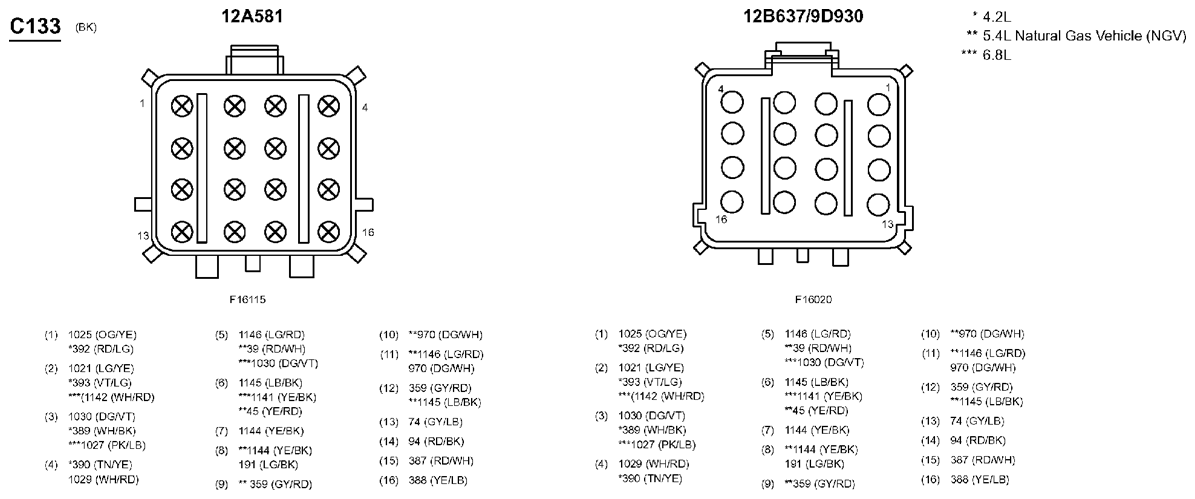

Fig 30: Inline Connector End View (C133)

G03775615

Courtesy of FORD MOTOR CO.

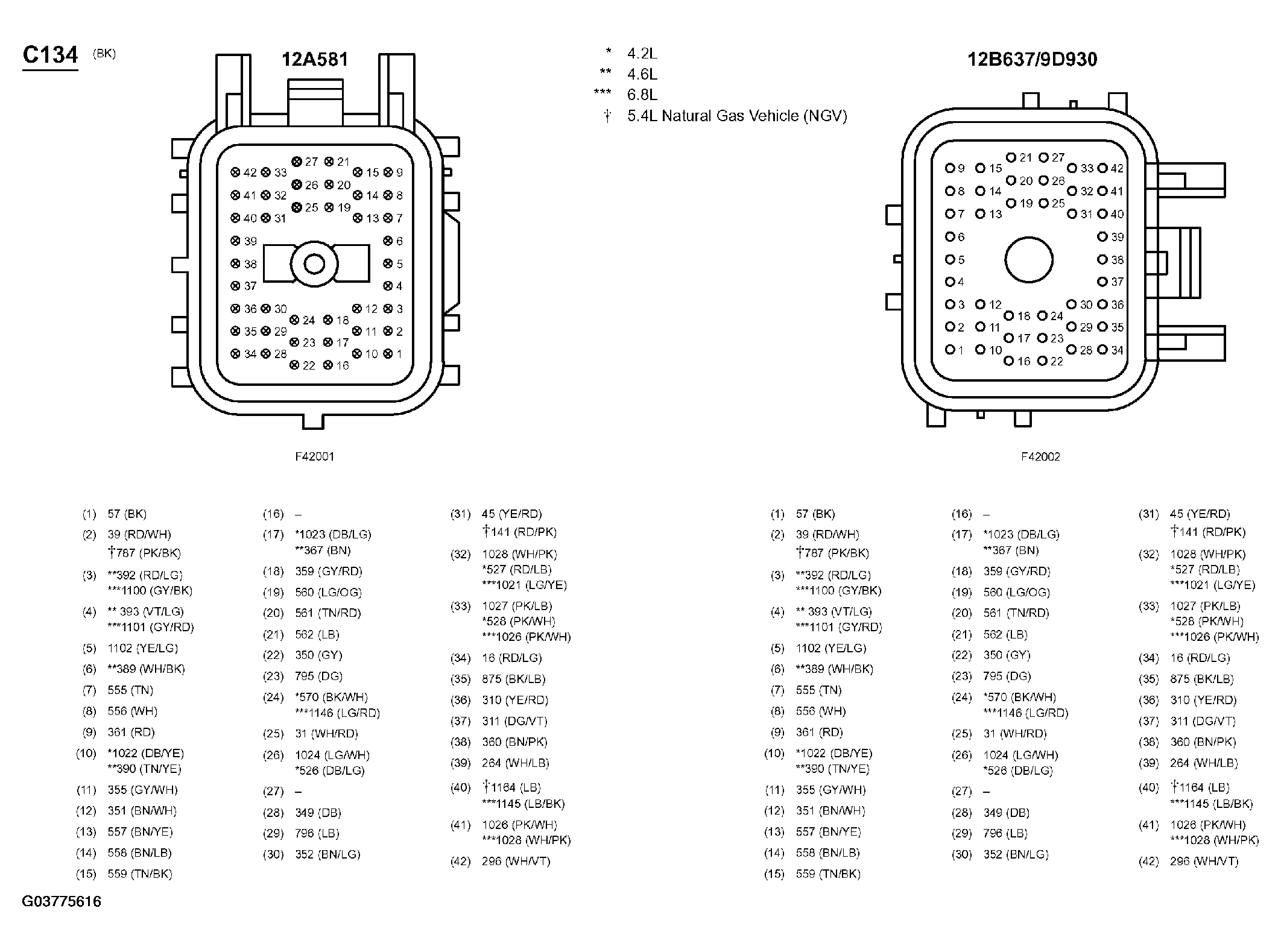

Fig 31: Inline Connector End View (C134)

G03775616

Courtesy of FORD MOTOR CO.

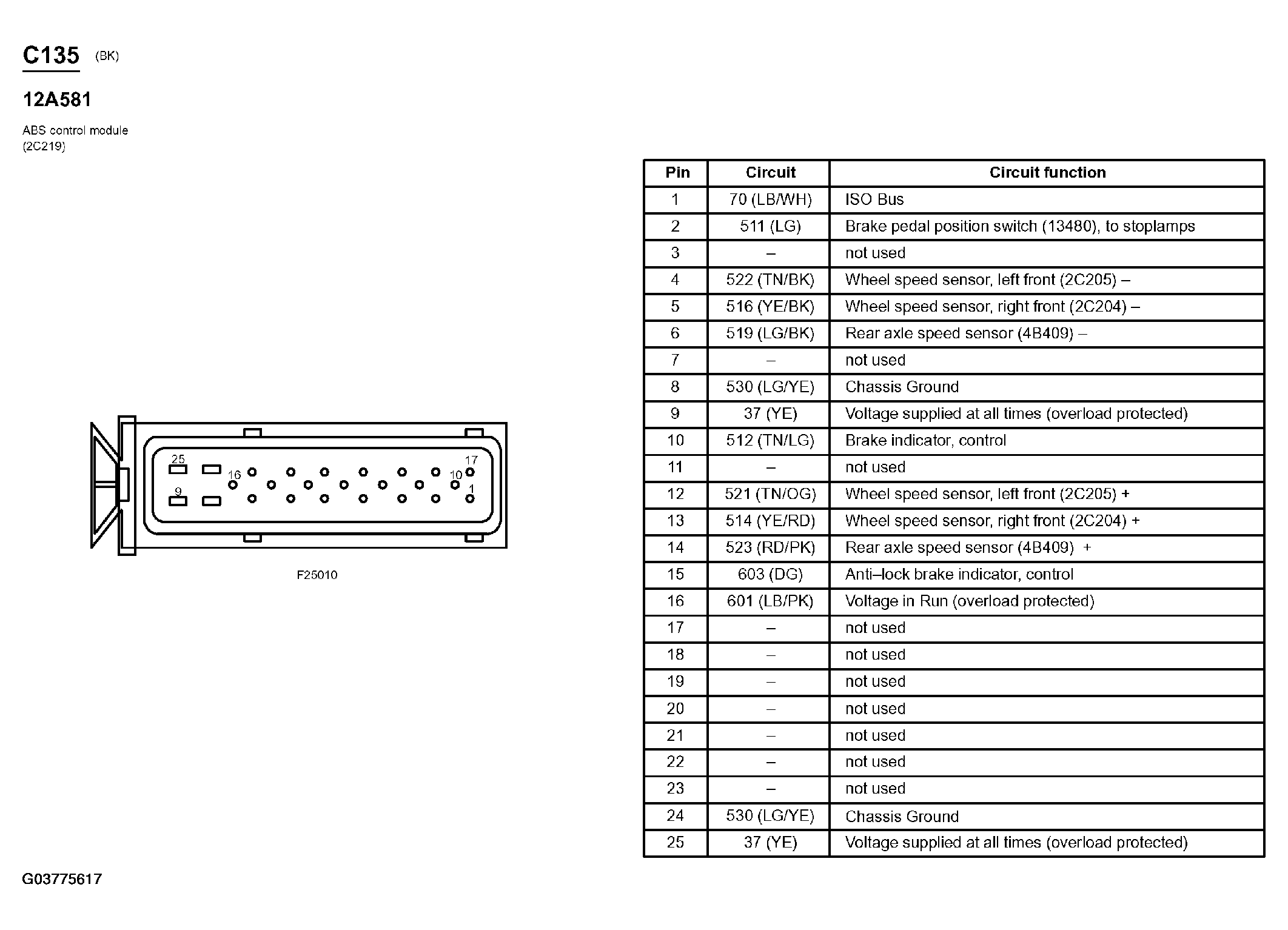

Fig 32: ABS Control Module Connector End View (C135)

G03775617

Courtesy of FORD MOTOR CO.

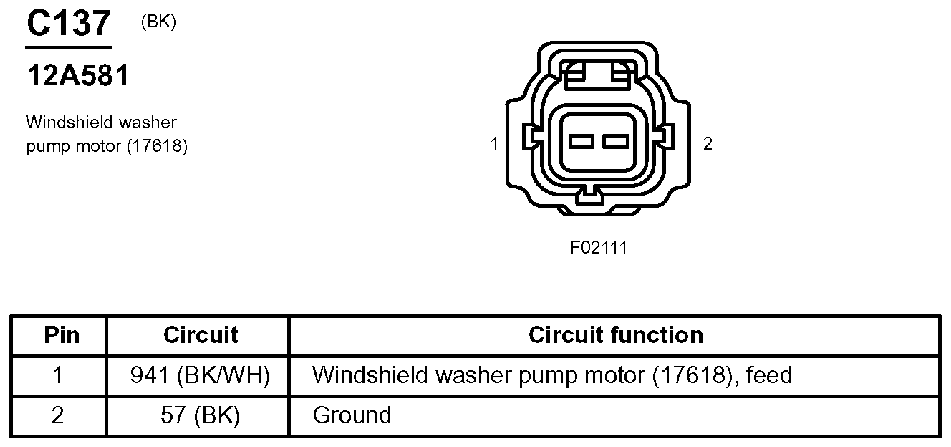

Fig 33: Windshield Washer Pump Motor Connector End View (C137)

G07831091

Courtesy of FORD MOTOR CO.

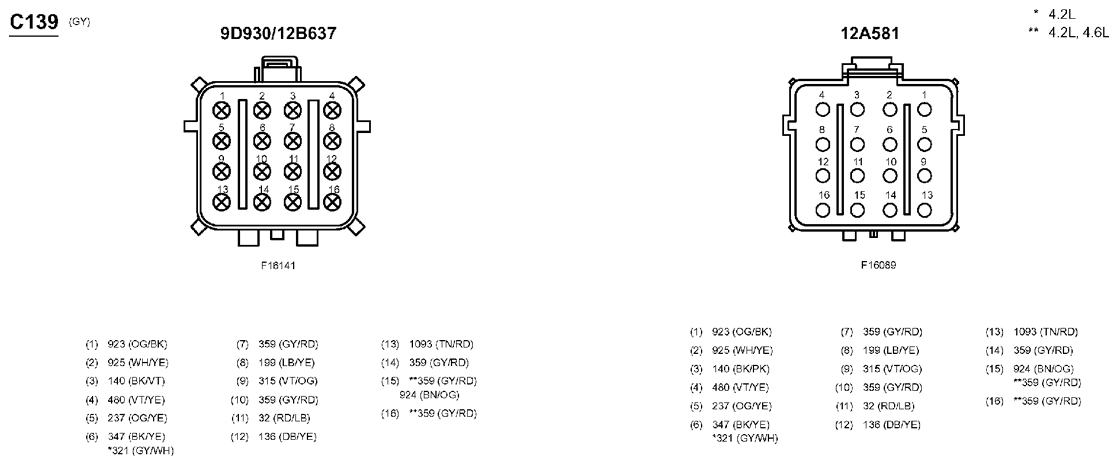

Fig 34: Inline Connector End View (C139)

G07831092

Courtesy of FORD MOTOR CO.

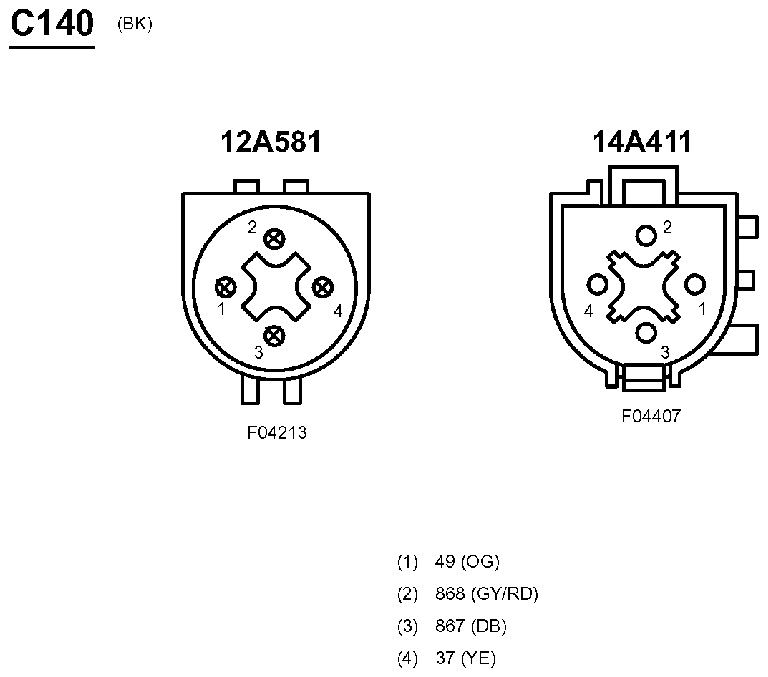

Fig 35: Inline Connector End View (C140)

G07831093

Courtesy of FORD MOTOR CO.

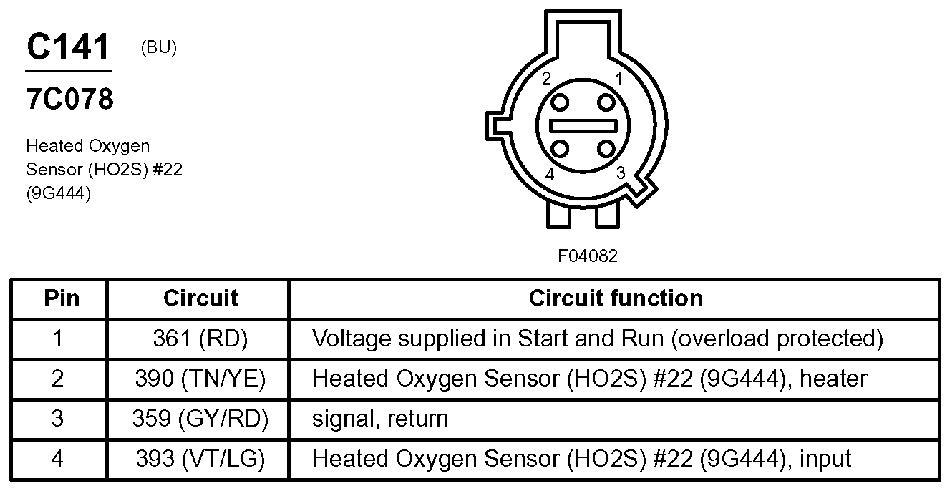

Fig 36: Heated Oxygen Sensor (HO2S) #22 Connector End View (C141)

G07831094

Courtesy of FORD MOTOR CO.

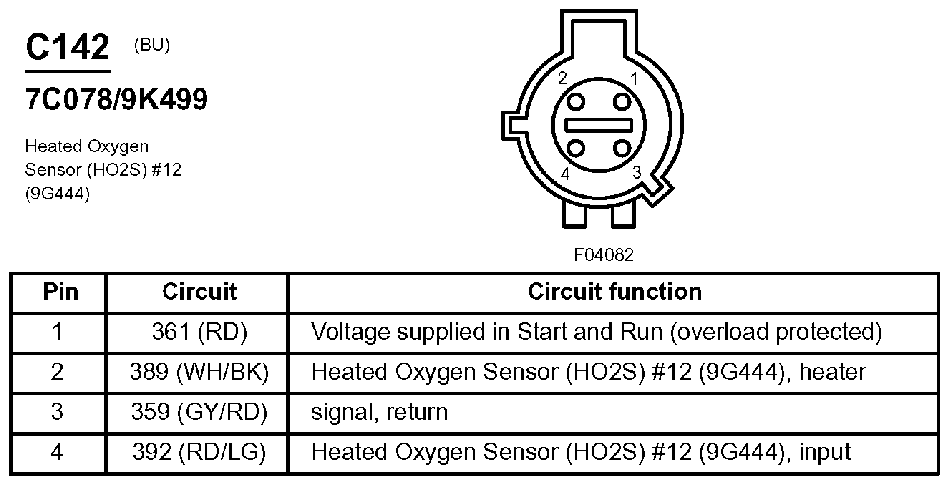

Fig 37: Heated Oxygen Sensor (HO2S) #12 Connector End View (C142)

G07831095

Courtesy of FORD MOTOR CO.

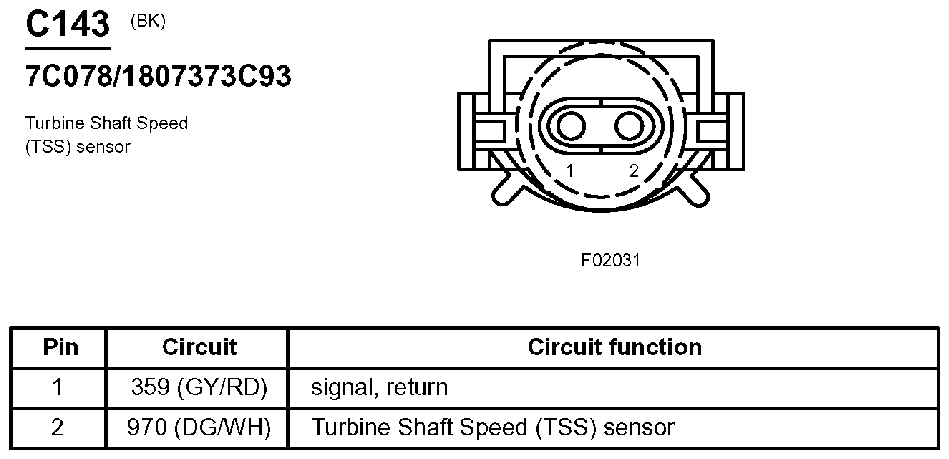

Fig 38: Turbine Shaft Speed (TSS) Sensor Connector End View (C143)

G07831096

Courtesy of FORD MOTOR CO.

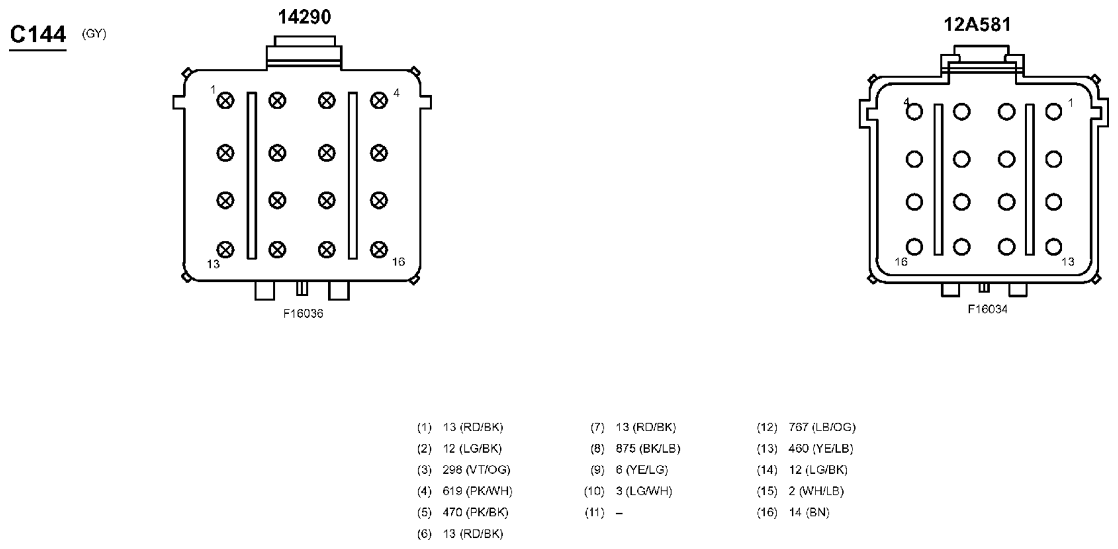

Fig 39: Inline Connector End View (C144)

G07831097

Courtesy of FORD MOTOR CO.

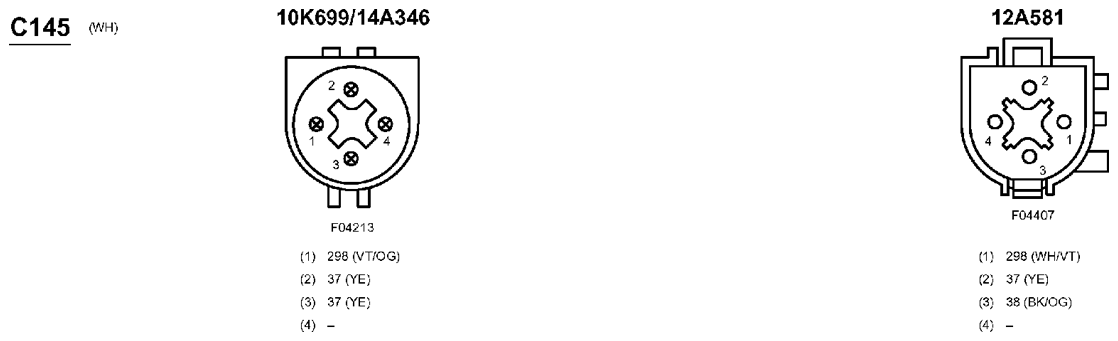

Fig 40: Inline Connector End View (C145)

G07831098

Courtesy of FORD MOTOR CO.

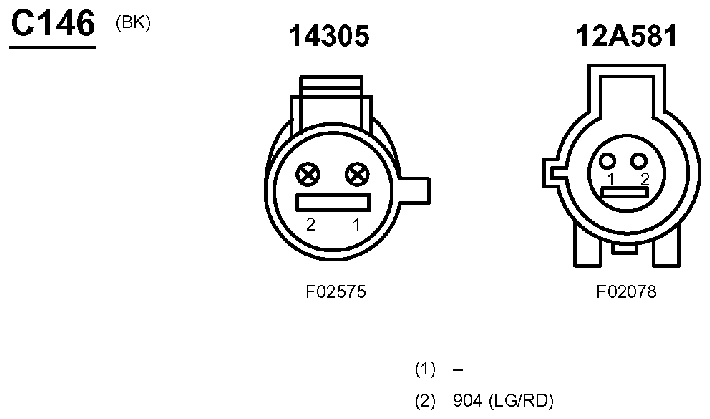

Fig 41: Inline Connector End View (C146)

G07831099

Courtesy of FORD MOTOR CO.

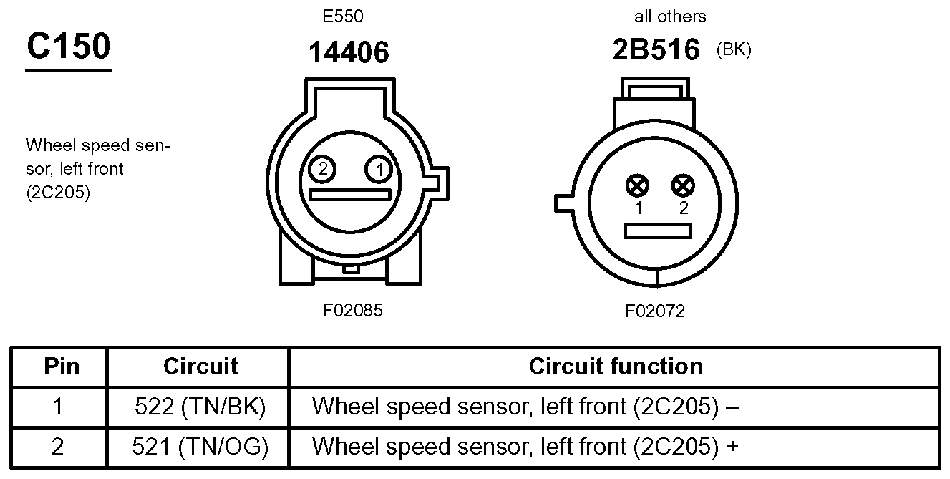

Fig 42: Wheel Speed Sensor, Left Front Connector End View (C150)

G07831100

Courtesy of FORD MOTOR CO.

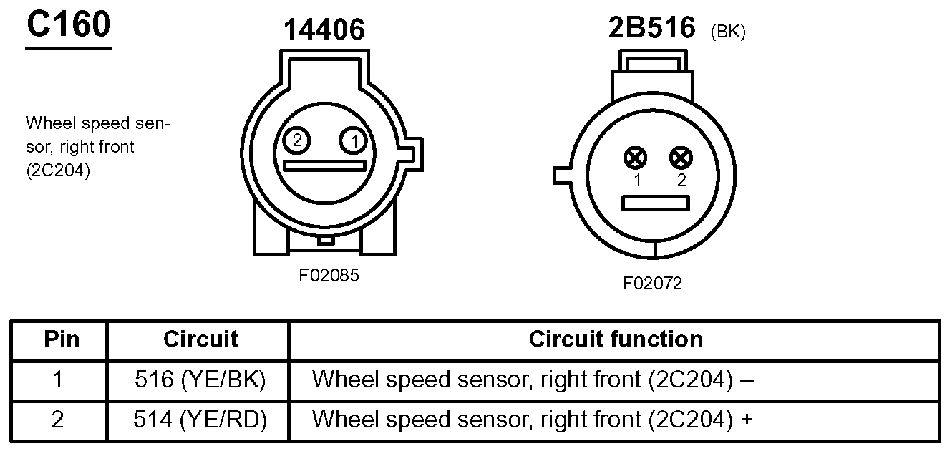

Fig 43: Wheel Speed Sensor, Right Front Connector End View (C160)

G07831101

Courtesy of FORD MOTOR CO.

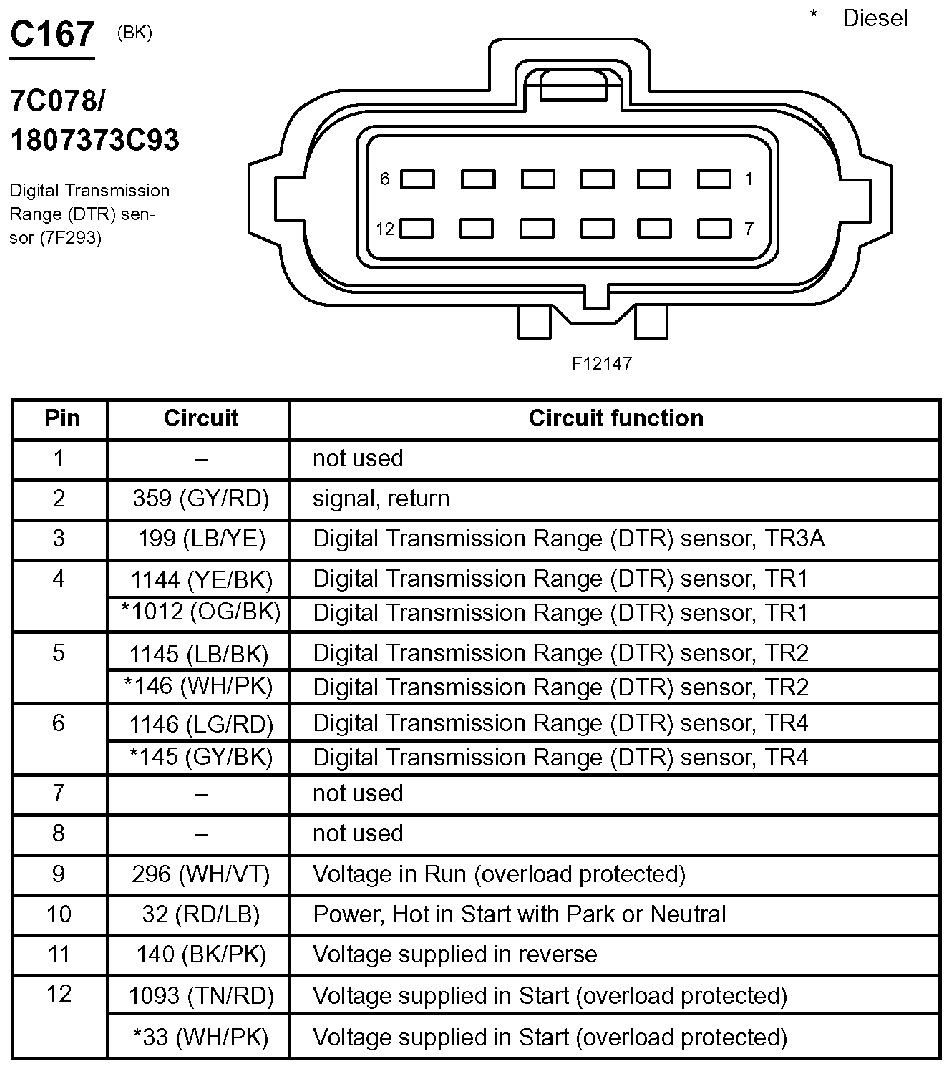

Fig 44: Digital Transmission Range (DTR) Sensor Connector End View (C167)

G07831102

Courtesy of FORD MOTOR CO.

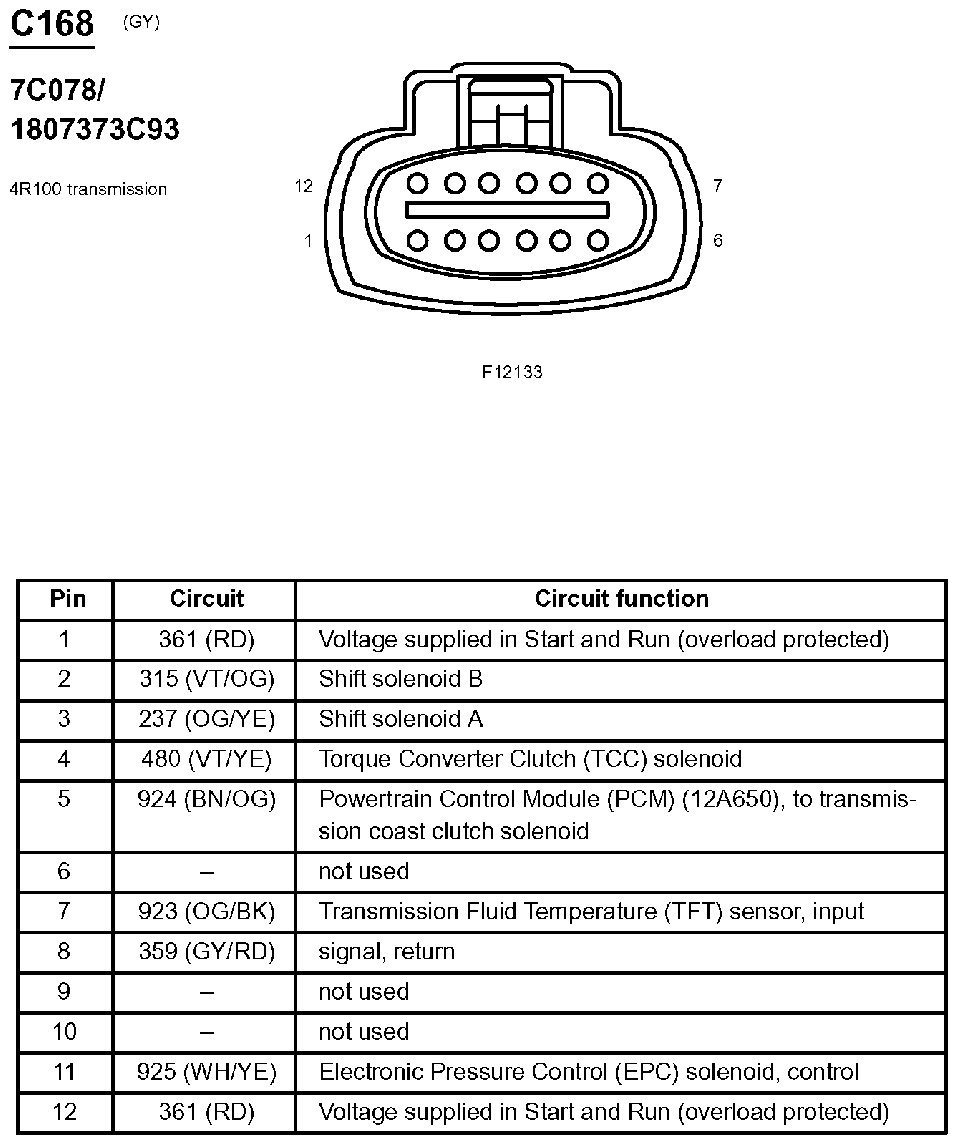

Fig 45: 4R100 Transmission Connector End View (C168)

G07831103

Courtesy of FORD MOTOR CO.

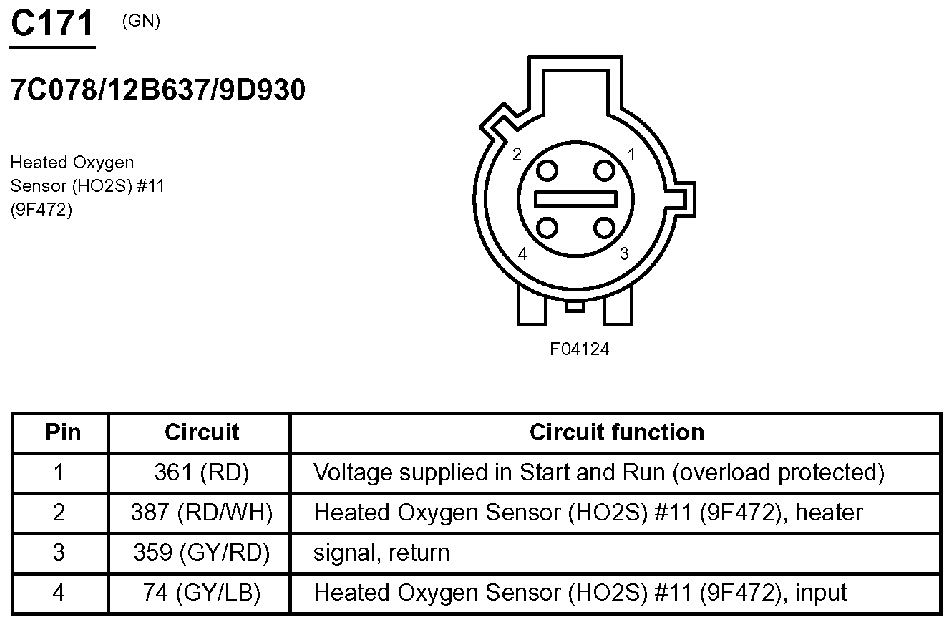

Fig 46: Heated Oxygen Sensor (HO2S) #11 Connector End View (C171)

G07831104

Courtesy of FORD MOTOR CO.

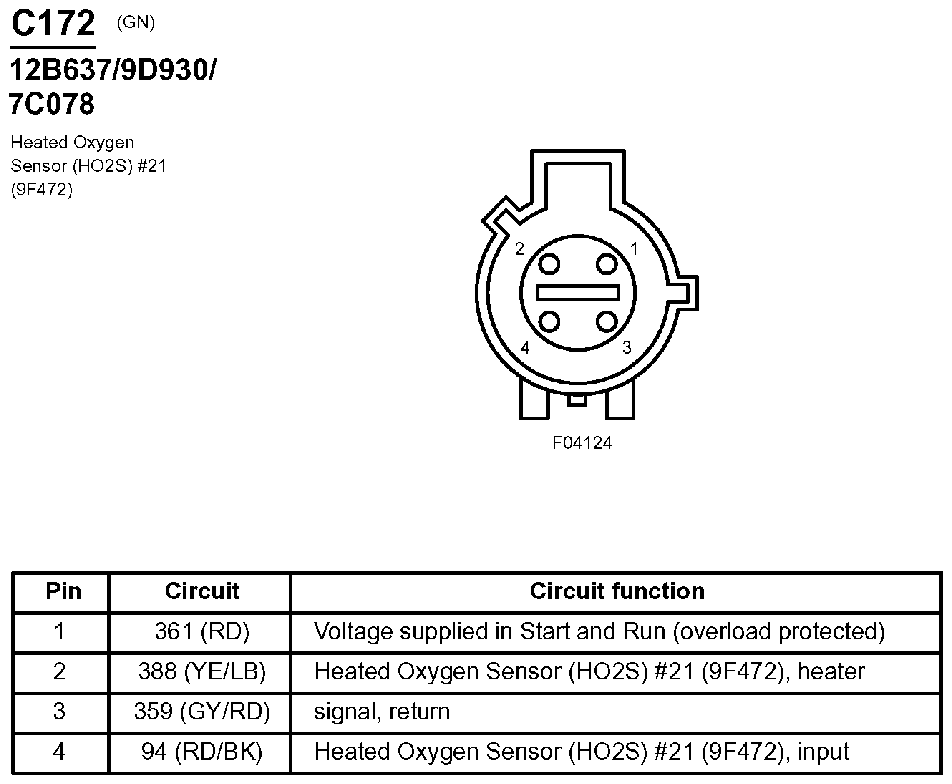

Fig 47: Heated Oxygen Sensor (HO2S) #21 Connector End View (C172)

G07831105

Courtesy of FORD MOTOR CO.

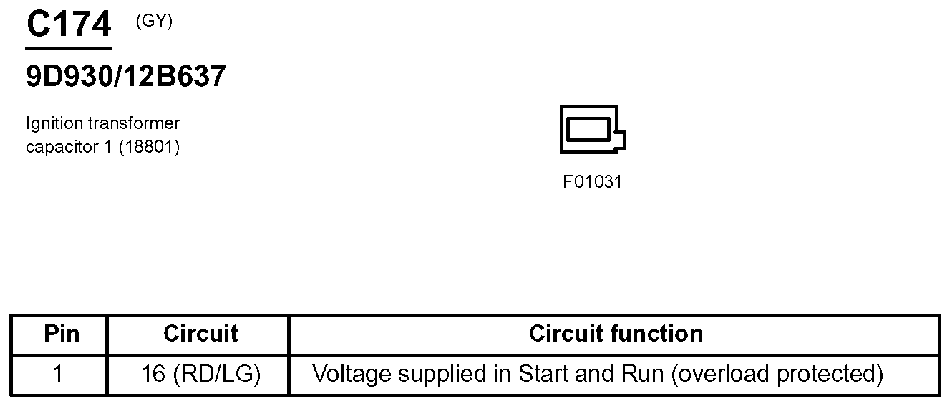

Fig 48: Ignition Transformer Capacitor 1 Connector End View (C174)

G07831106

Courtesy of FORD MOTOR CO.

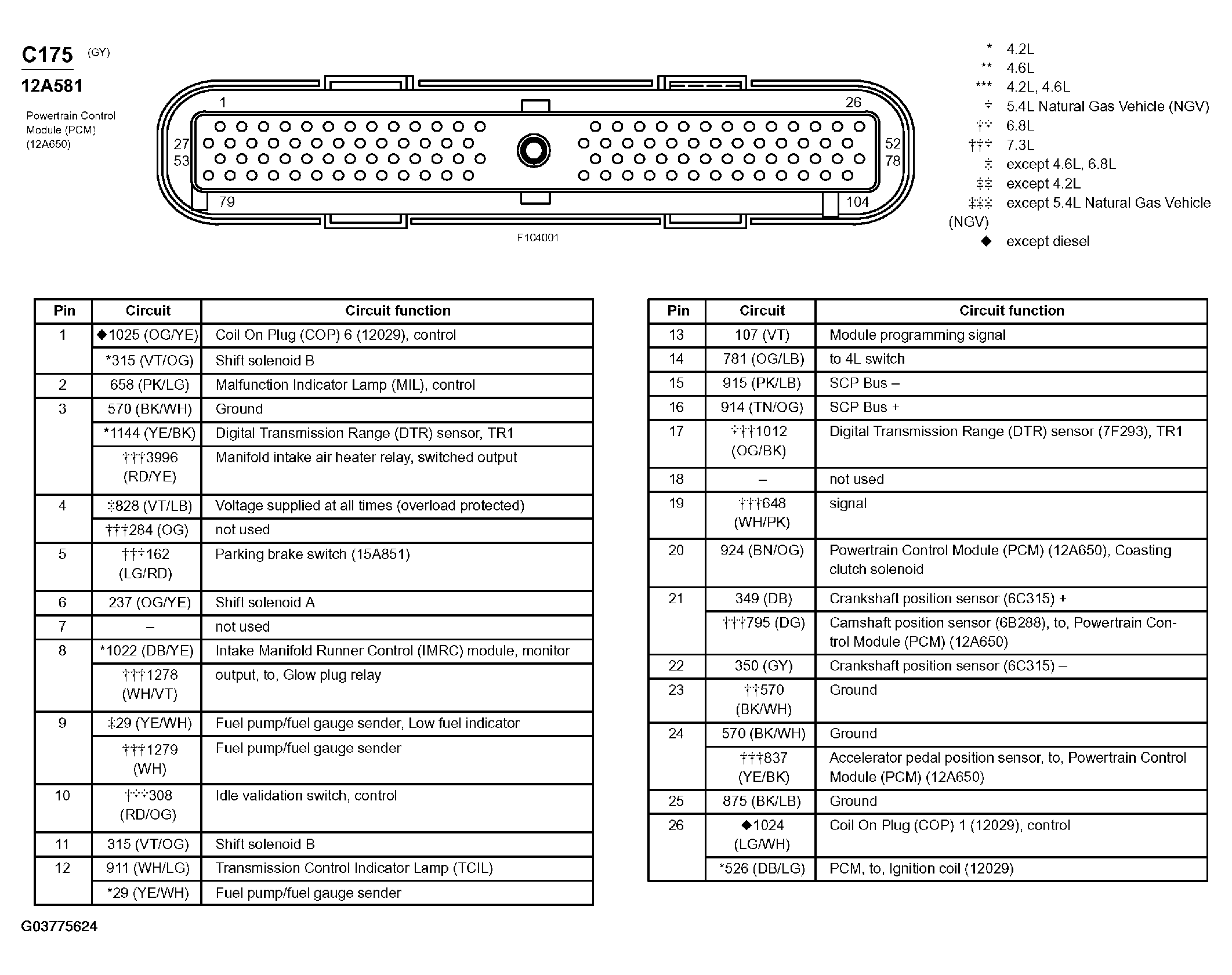

Fig 49: Powertrain Control Module (PCM) Connector End View (C175) (1 Of 4)

G03775624

Courtesy of FORD MOTOR CO.

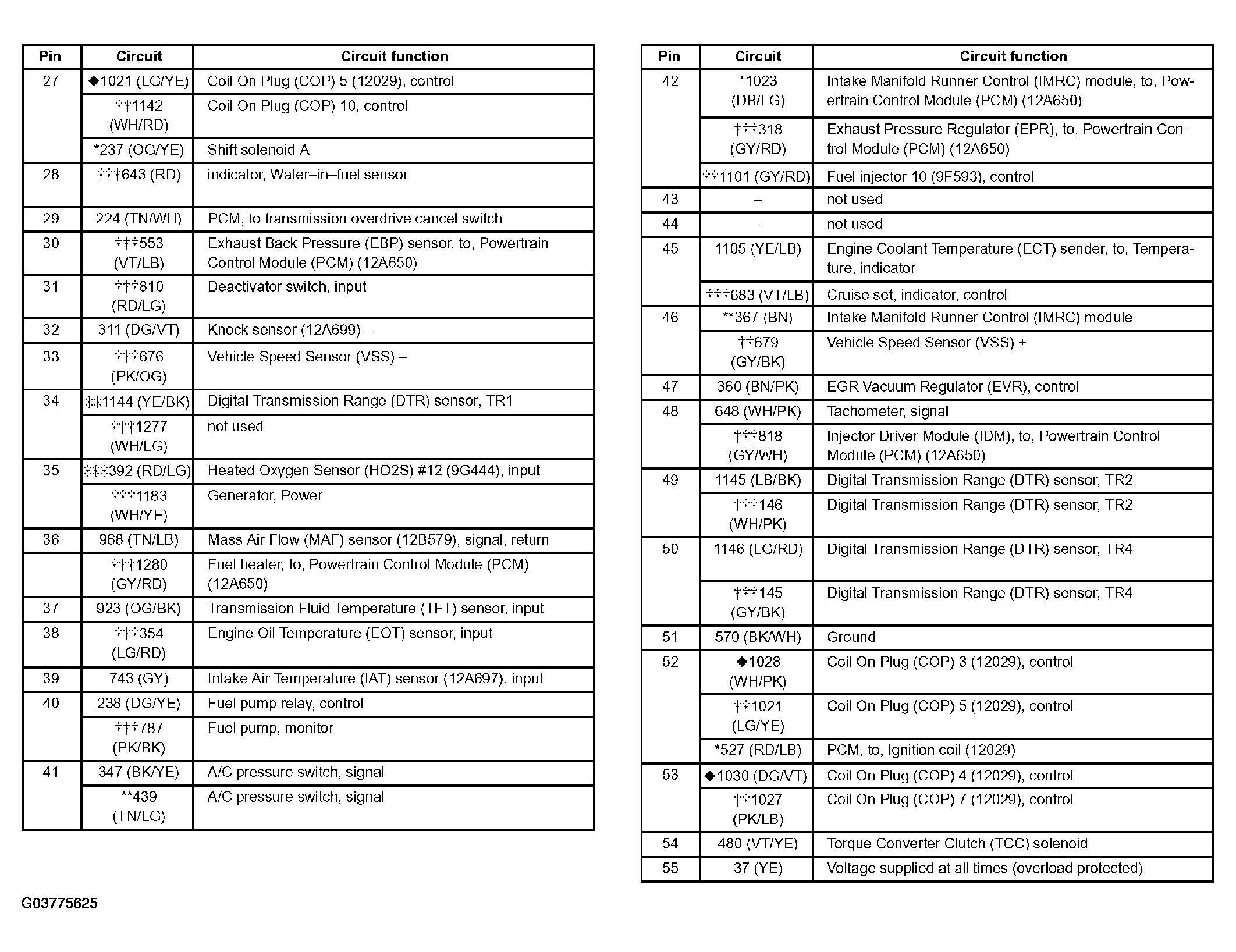

Fig 50: Powertrain Control Module (PCM) Connector End View (C175) (2 Of 4)

G03775625

Courtesy of FORD MOTOR CO.

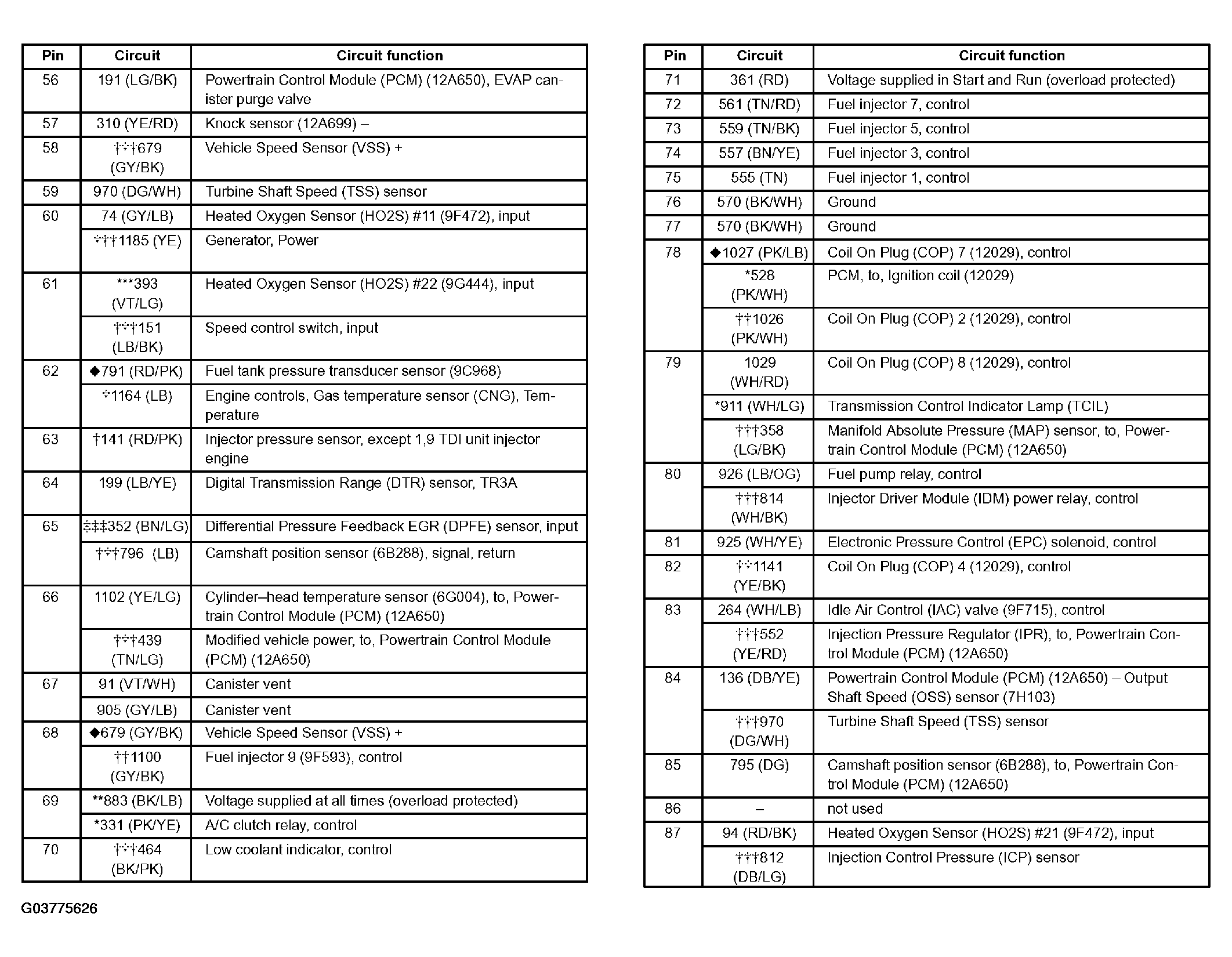

Fig 51: Powertrain Control Module (PCM) Connector End View (C175) (3 Of 4)

G03775626

Courtesy of FORD MOTOR CO.

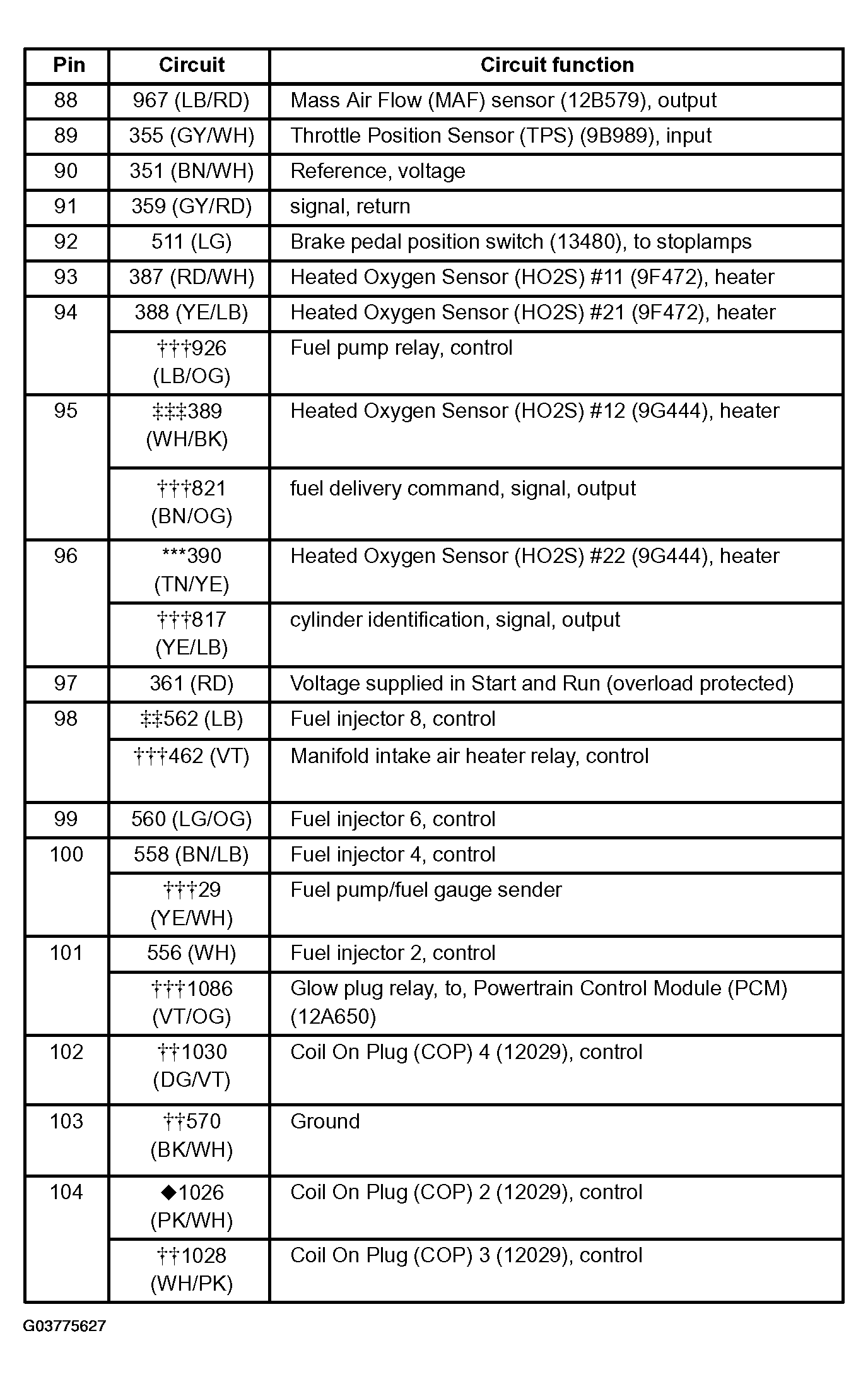

Fig 52: Powertrain Control Module (PCM) Connector End View (C175) (4 Of 4)

G03775627

Courtesy of FORD MOTOR CO.

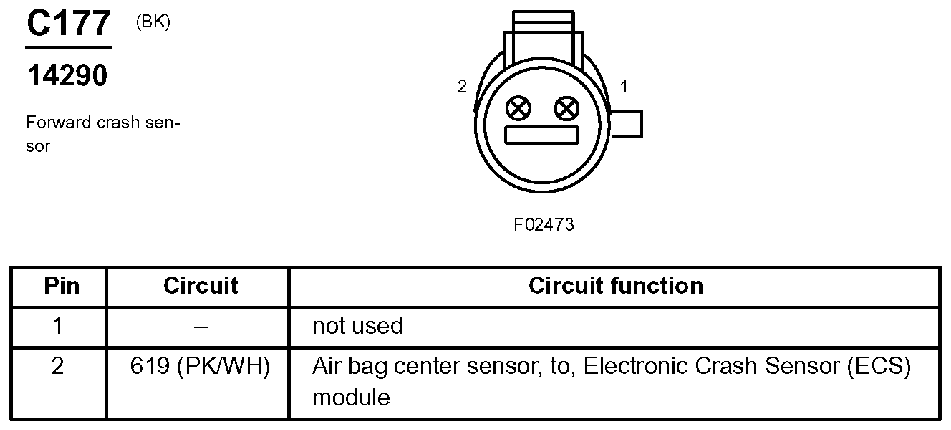

Fig 53: Forward Crash Sensor Connector End View (C177)

G07831107

Courtesy of FORD MOTOR CO.

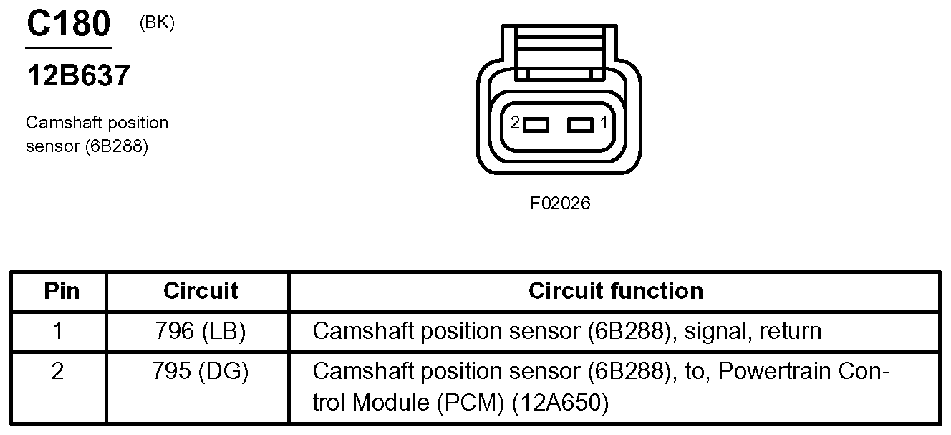

Fig 54: Camshaft Position Sensor Connector End View (C180)

G07831108

Courtesy of FORD MOTOR CO.

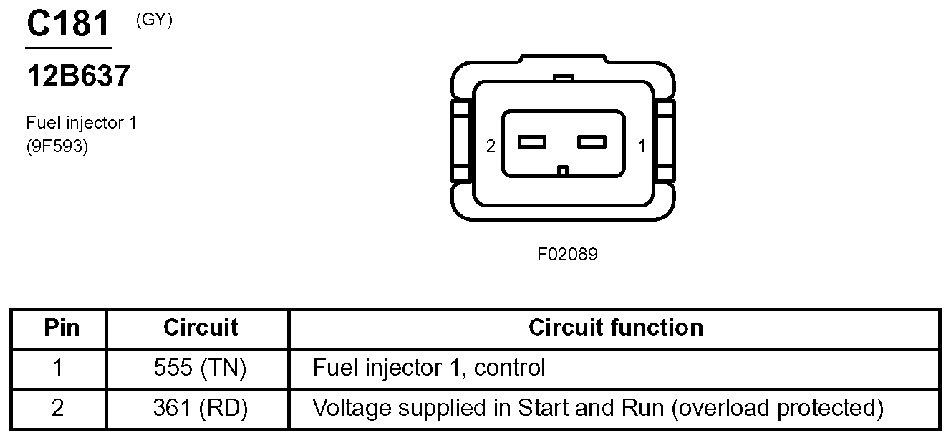

Fig 55: Fuel Injector 1 Connector End View (C181)

G07831109

Courtesy of FORD MOTOR CO.

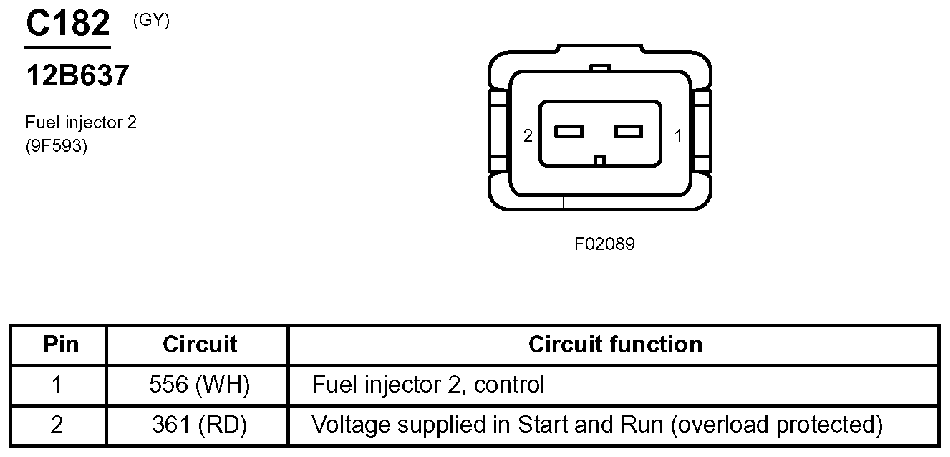

Fig 56: Fuel Injector 2 Connector End View (C182)

G07831110

Courtesy of FORD MOTOR CO.

Fig 57: Fuel Injector 3 Connector End View (C183)

G07831111

Courtesy of FORD MOTOR CO.

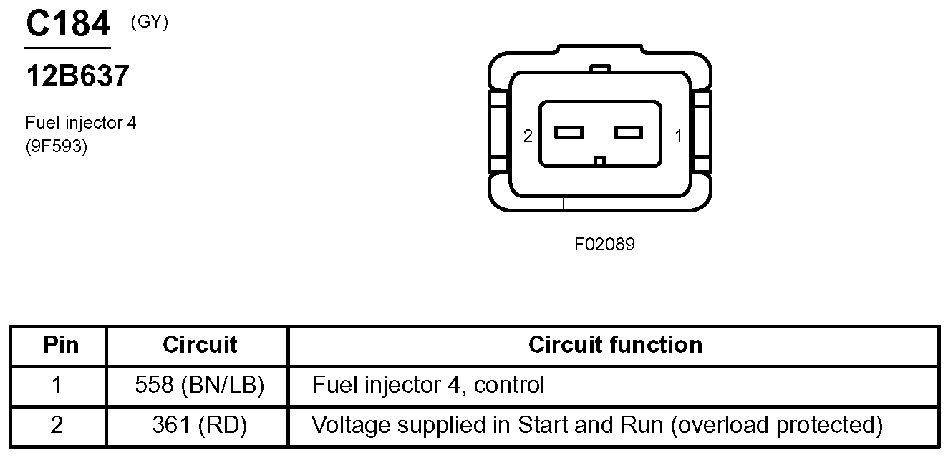

Fig 58: Fuel Injector 4 Connector End View (C184)

G07831112

Courtesy of FORD MOTOR CO.

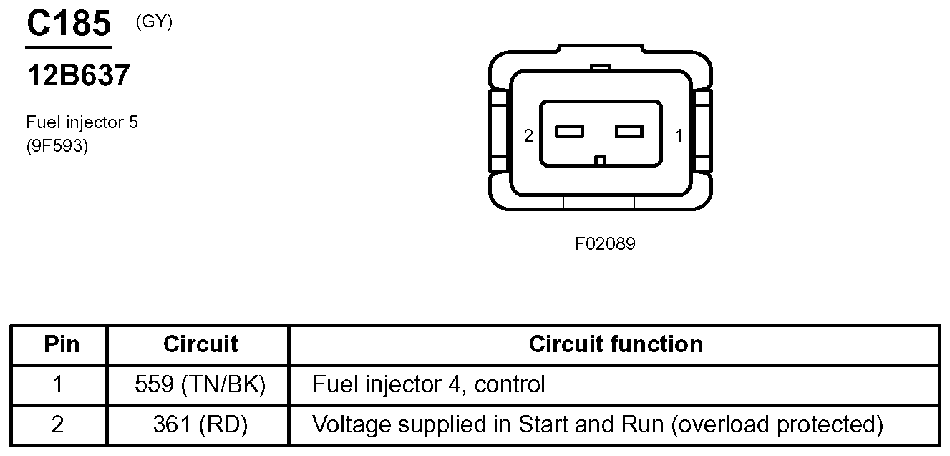

Fig 59: Fuel Injector 5 Connector End View (C185)

G07831113

Courtesy of FORD MOTOR CO.

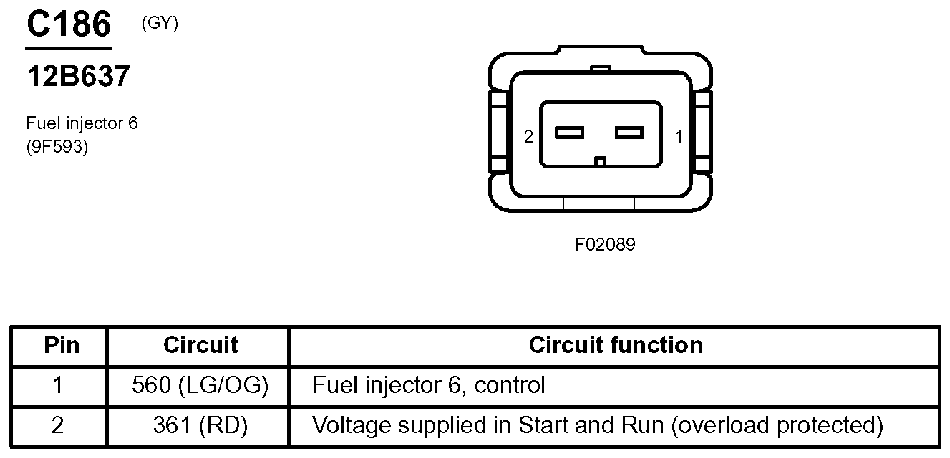

Fig 60: Fuel Injector 6 Connector End View (C186)

G07831114

Courtesy of FORD MOTOR CO.

Fig 61: Fuel Injector 7 Connector End View (C187)

G07831115

Courtesy of FORD MOTOR CO.

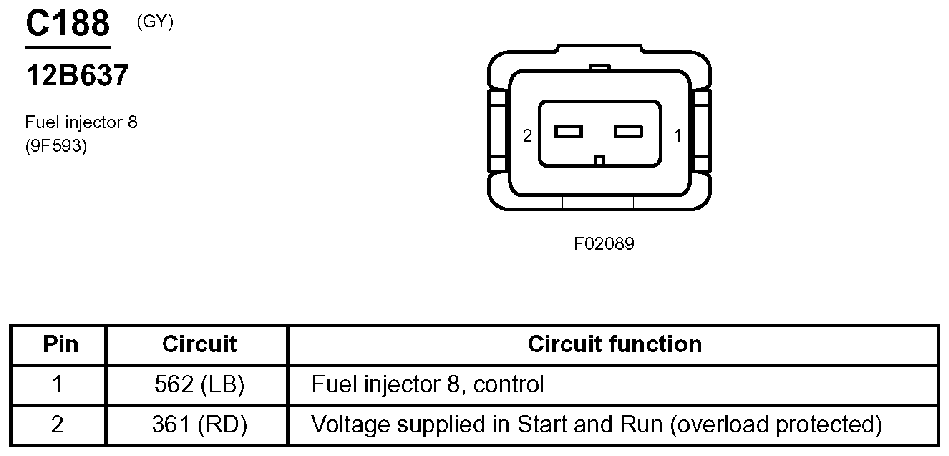

Fig 62: Fuel Injector 8 Connector End View (C188)

G07831116

Courtesy of FORD MOTOR CO.

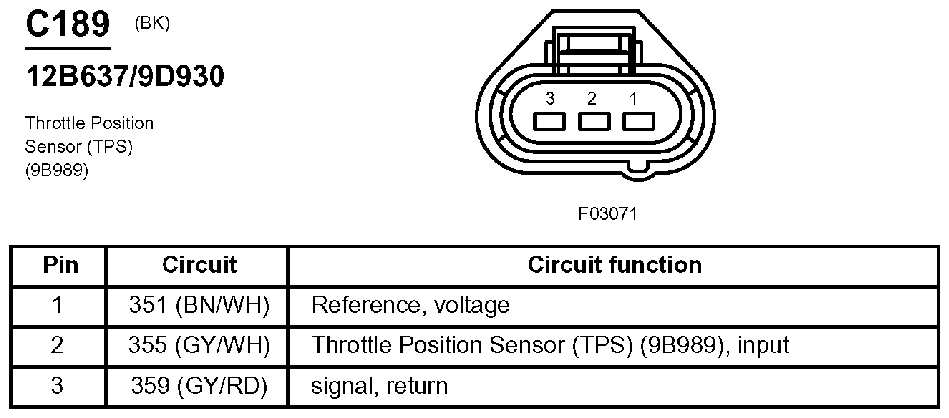

Fig 63: Throttle Position Sensor (TPS) Connector End View (C189)

G07831117

Courtesy of FORD MOTOR CO.

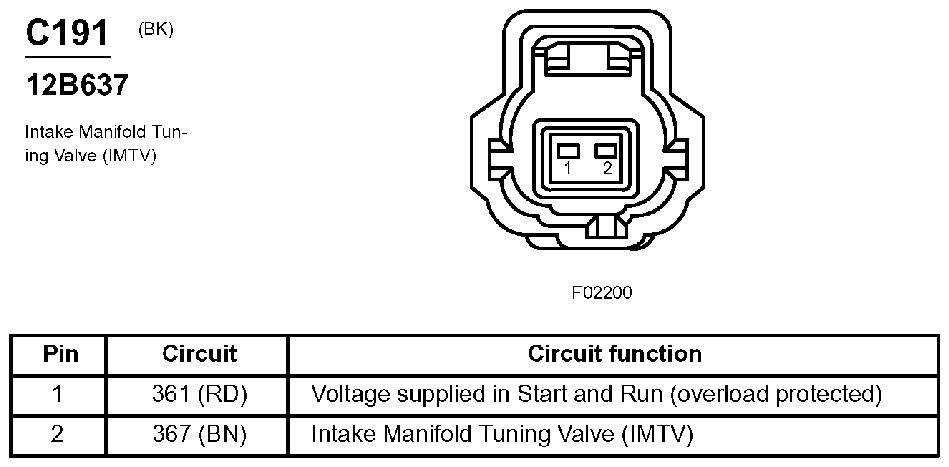

Fig 64: Intake Manifold Tuning Valve (IMTV) Connector End View (C191)

G07831118

Courtesy of FORD MOTOR CO.

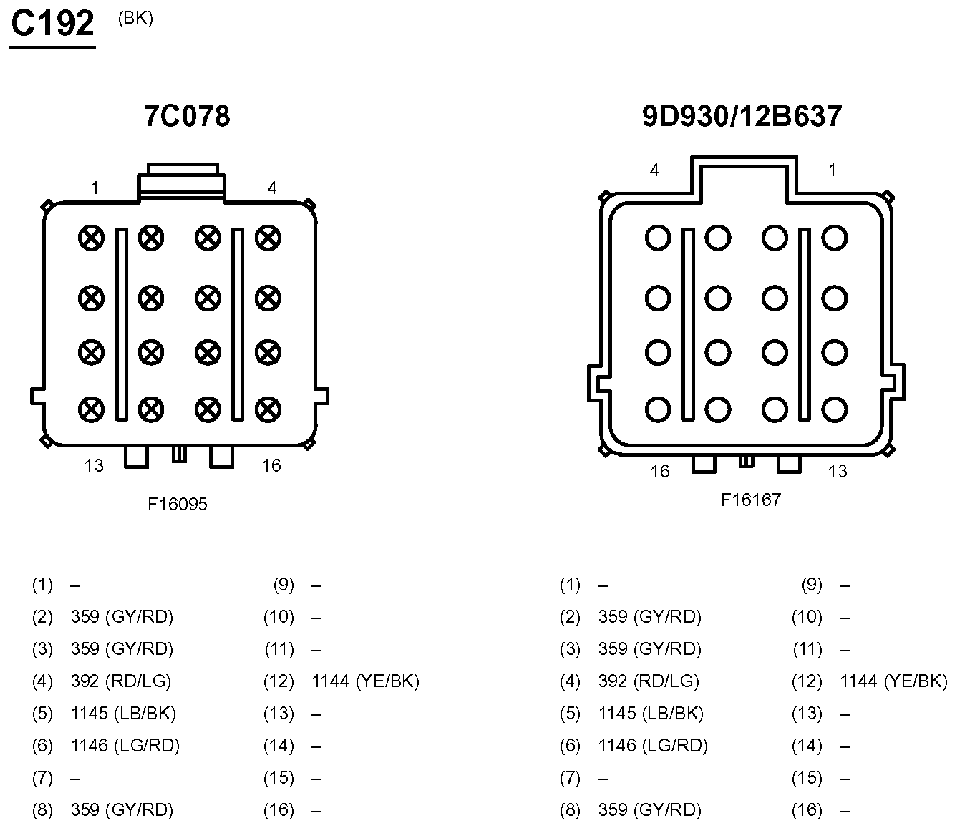

Fig 65: Inline Connector End View (C192)

G07831119

Courtesy of FORD MOTOR CO.

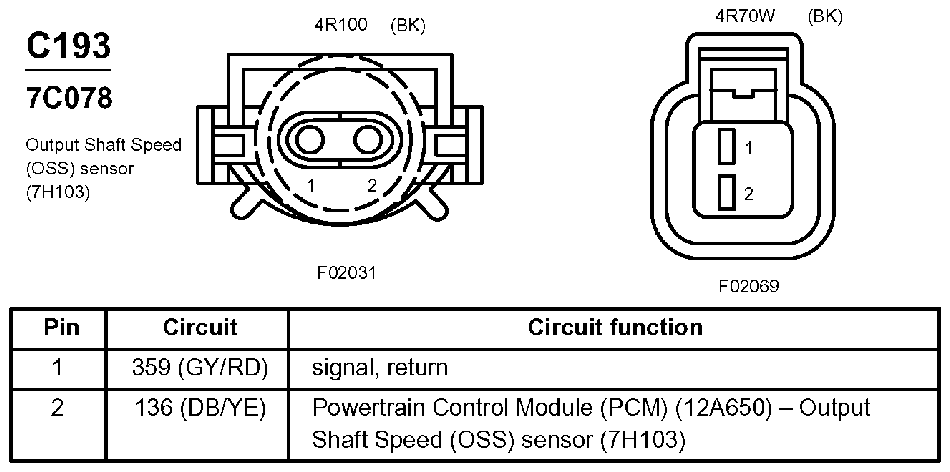

Fig 66: Output Shaft Speed (OSS) Sensor Connector End View (C193)

G07831120

Courtesy of FORD MOTOR CO.

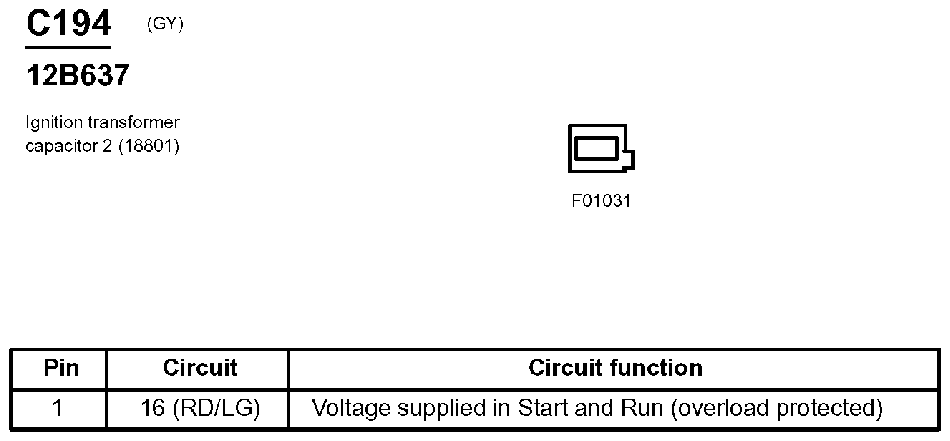

Fig 67: Ignition Transformer Capacitor 2 Connector End View (C194)

G07831121

Courtesy of FORD MOTOR CO.

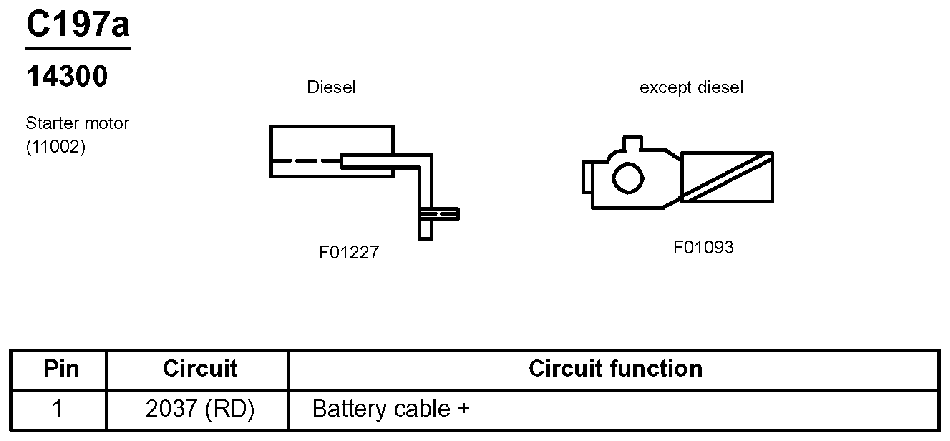

Fig 68: Starter Motor Connector End View (C197a)

G07831122

Courtesy of FORD MOTOR CO.

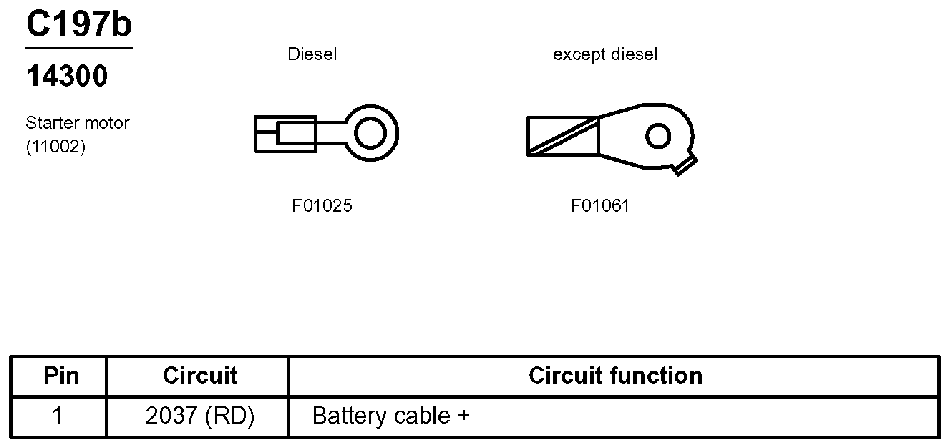

Fig 69: Starter Motor Connector End View (C197b)

G07831123

Courtesy of FORD MOTOR CO.

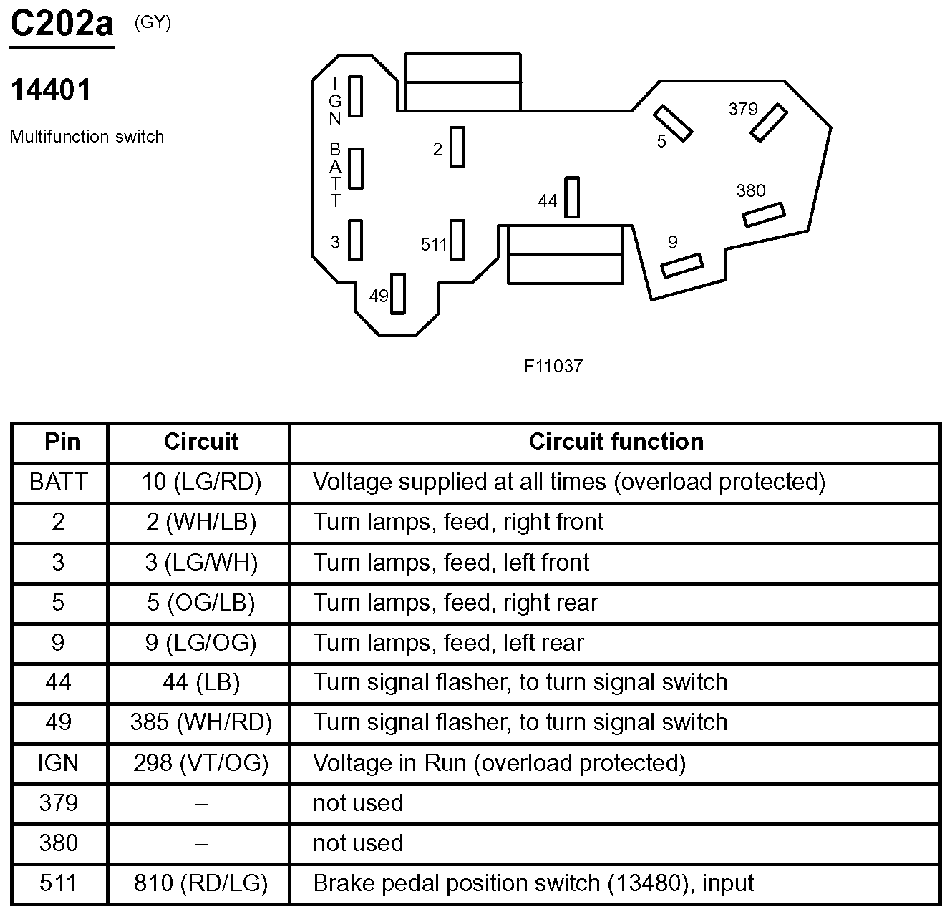

Fig 70: Multifunction Switch Connector End View (C202a)

G07831124

Courtesy of FORD MOTOR CO.

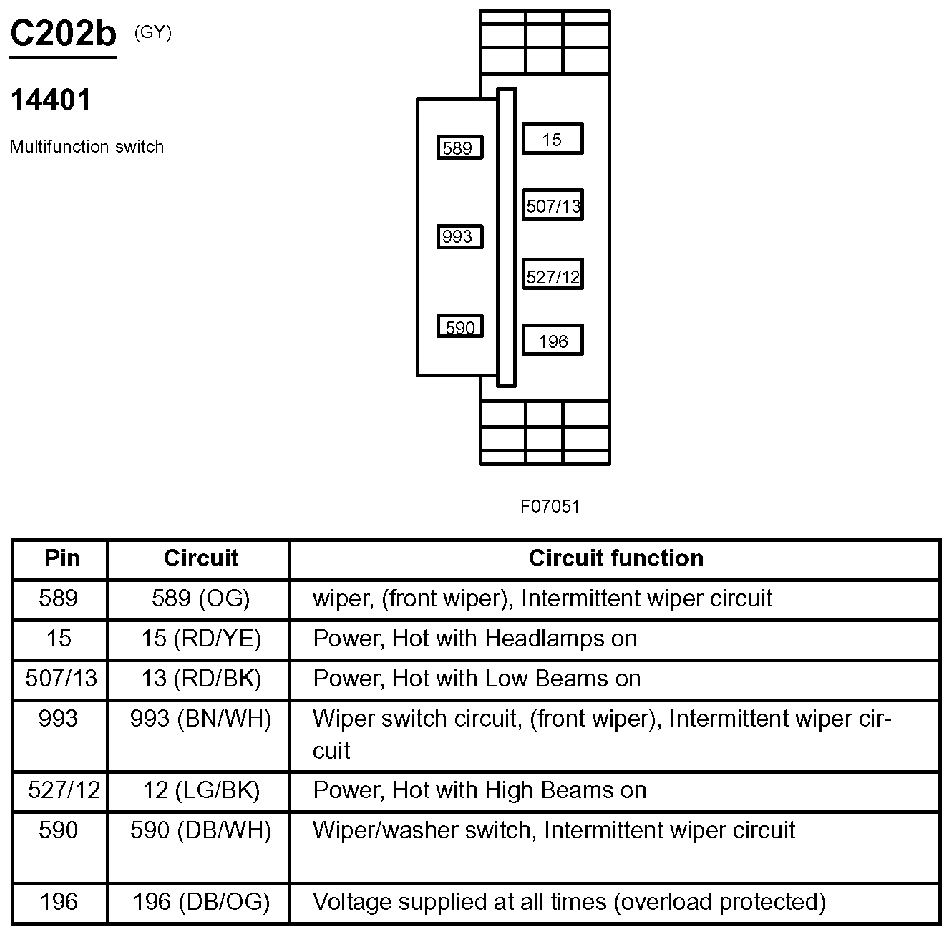

Fig 71: Multifunction Switch Connector End View (C202b)

G07831125

Courtesy of FORD MOTOR CO.

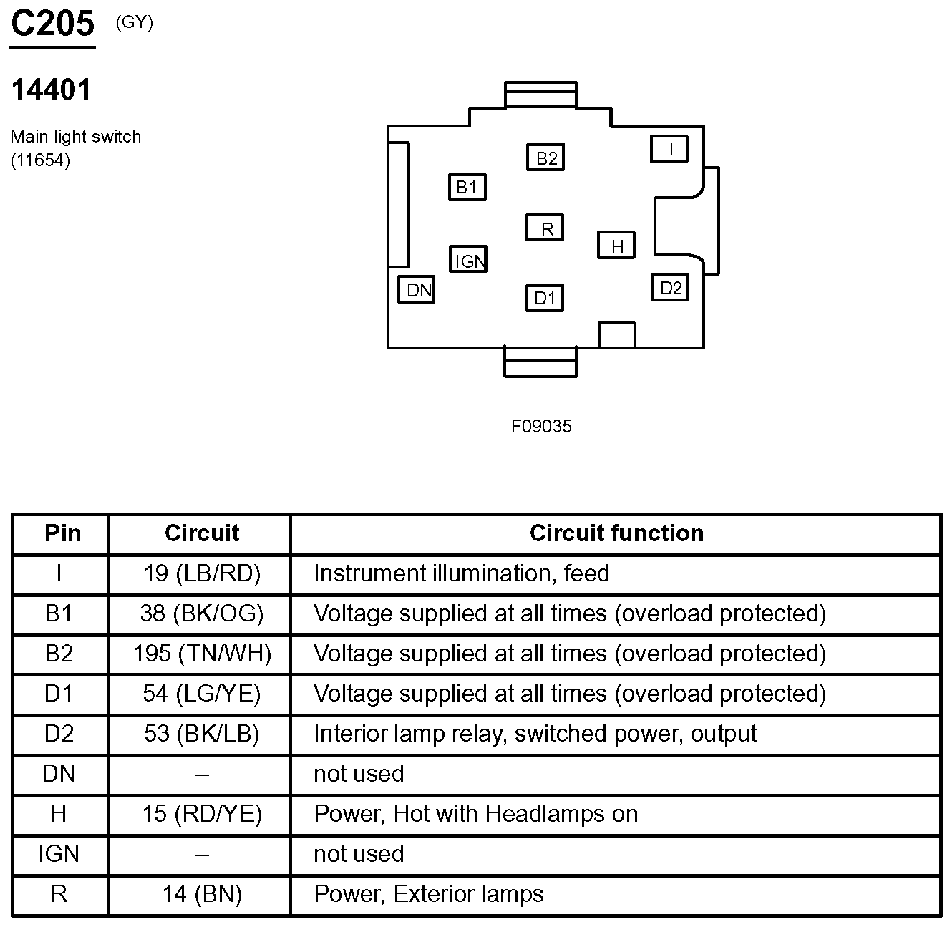

Fig 72: Main Light Switch Connector End View (C205)

G07831126

Courtesy of FORD MOTOR CO.

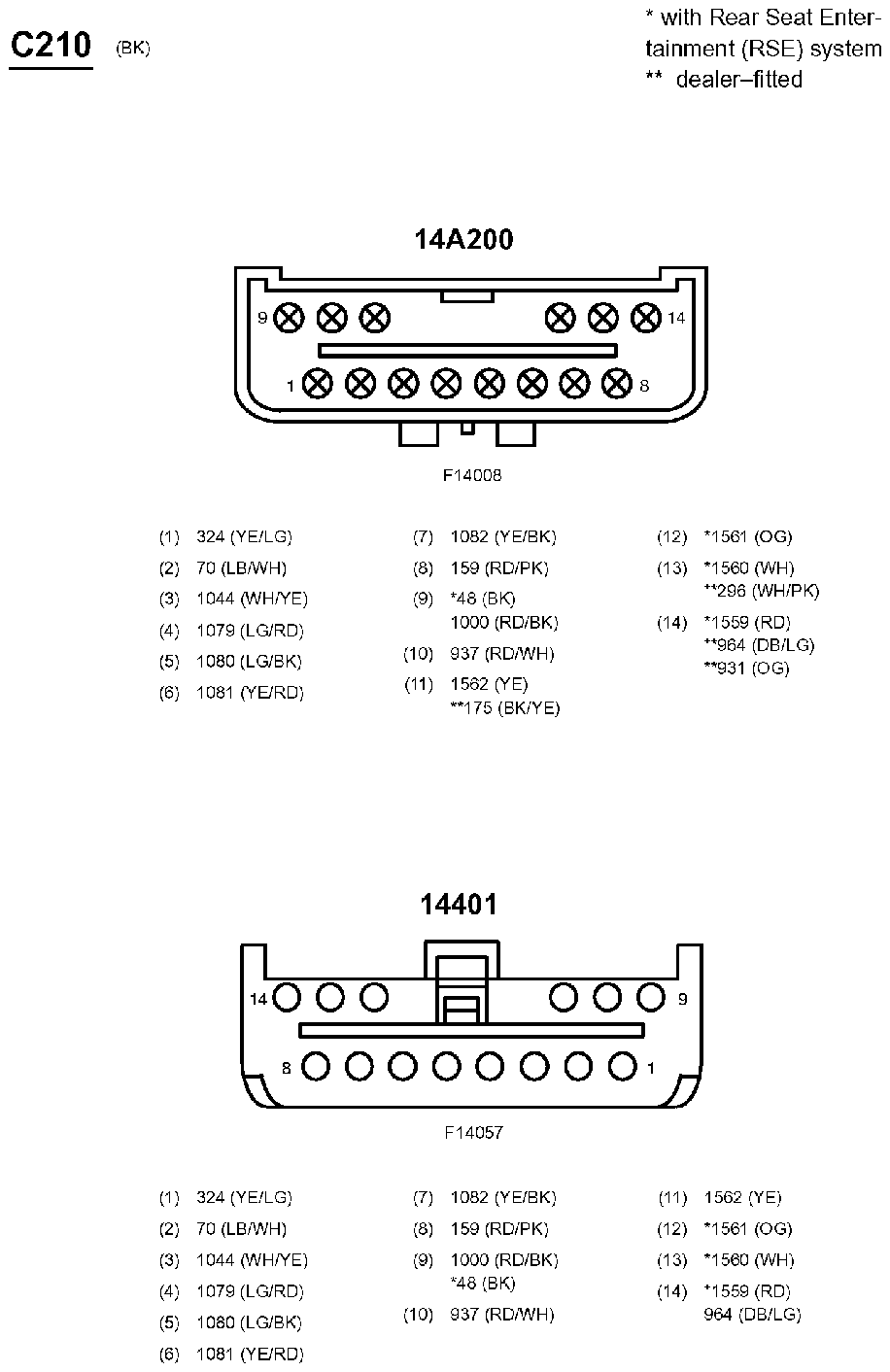

Fig 73: Inline Connector End View (C210)

G07831127

Courtesy of FORD MOTOR CO.

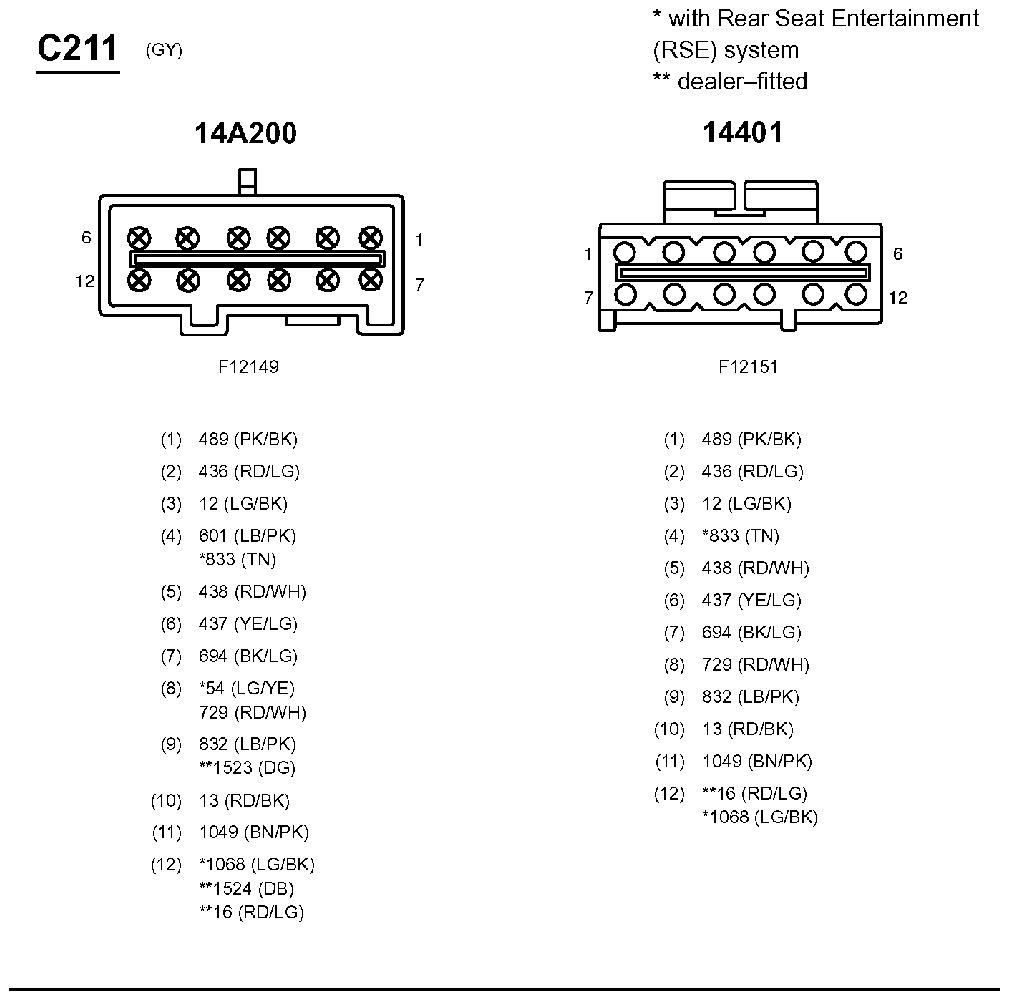

Fig 74: Inline Connector End View (C211)

G07831128

Courtesy of FORD MOTOR CO.

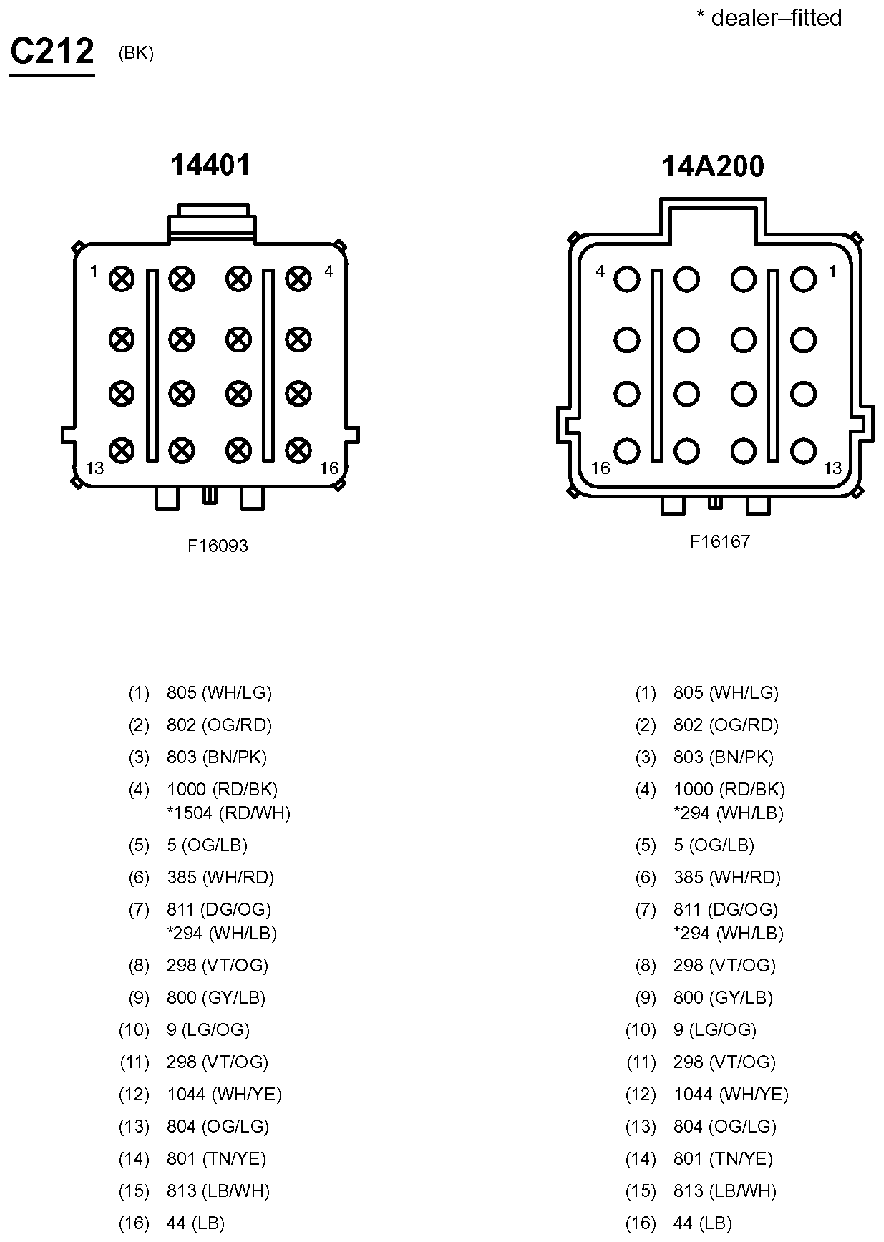

Fig 75: Inline Connector End View (C212)

G07831129

Courtesy of FORD MOTOR CO.

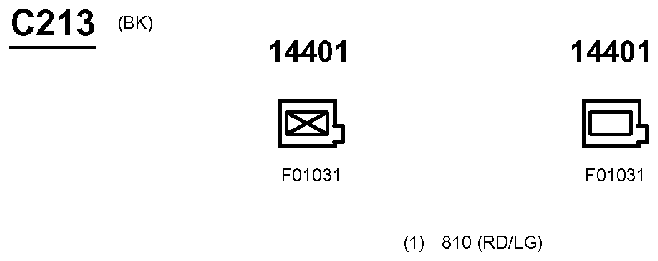

Fig 76: Inline Connector End View (C213)

G07831130

Courtesy of FORD MOTOR CO.

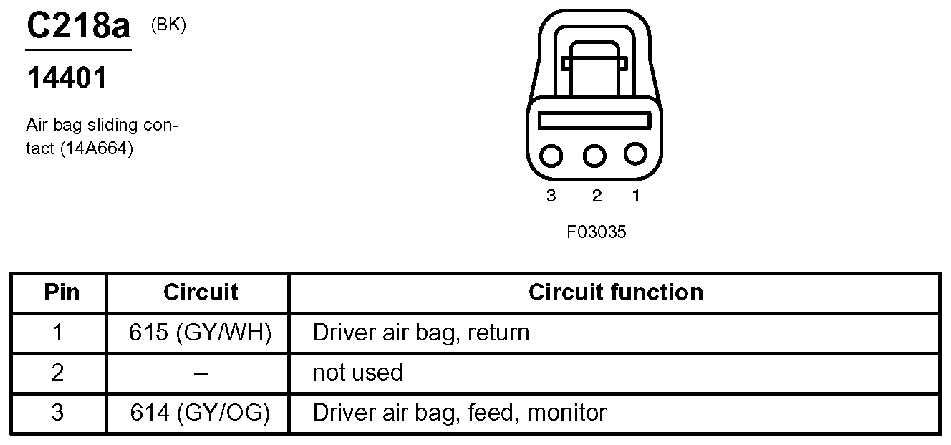

Fig 77: Air Bag Sliding Contact Connector End View (C218a)

G07831131

Courtesy of FORD MOTOR CO.

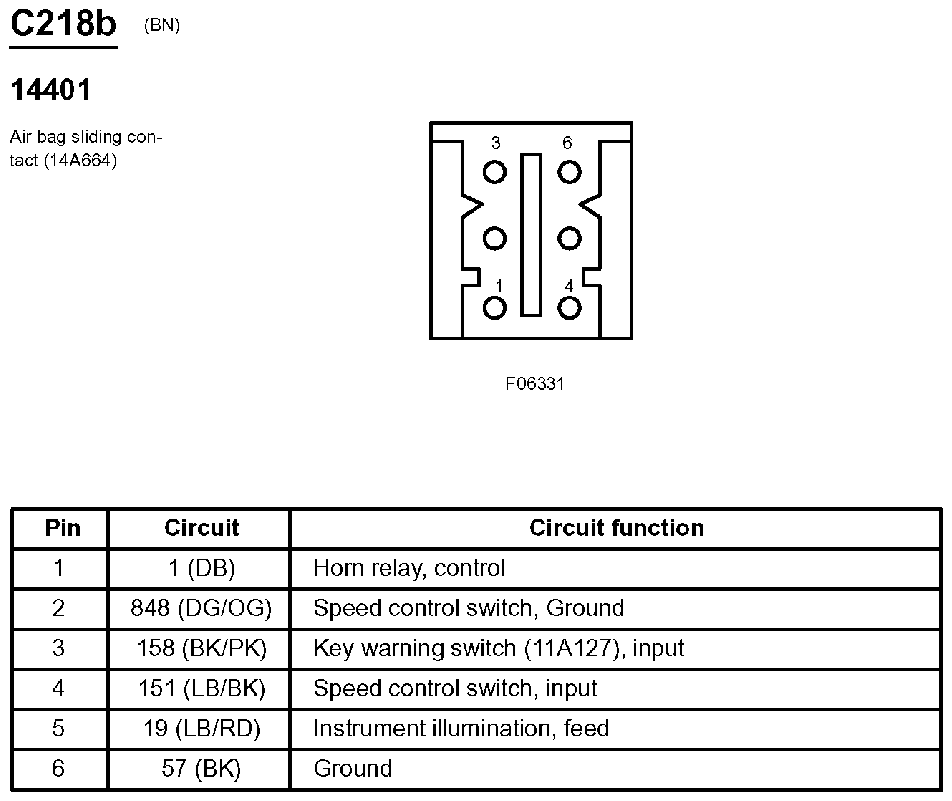

Fig 78: Air Bag Sliding Contact Connector End View (C218b)

G07831132

Courtesy of FORD MOTOR CO.

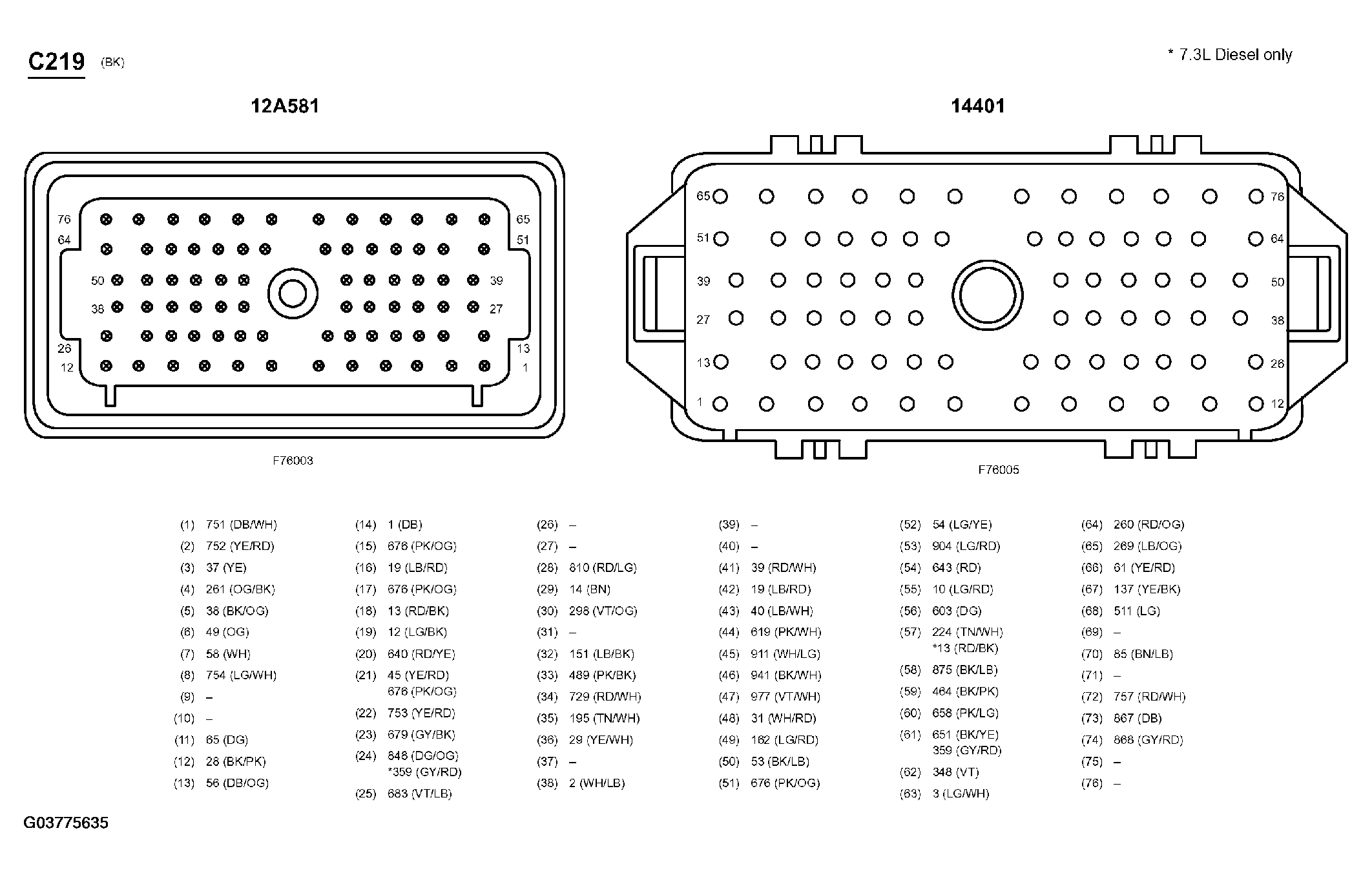

Fig 79: Inline Connector End View (C219)

G03775635

Courtesy of FORD MOTOR CO.

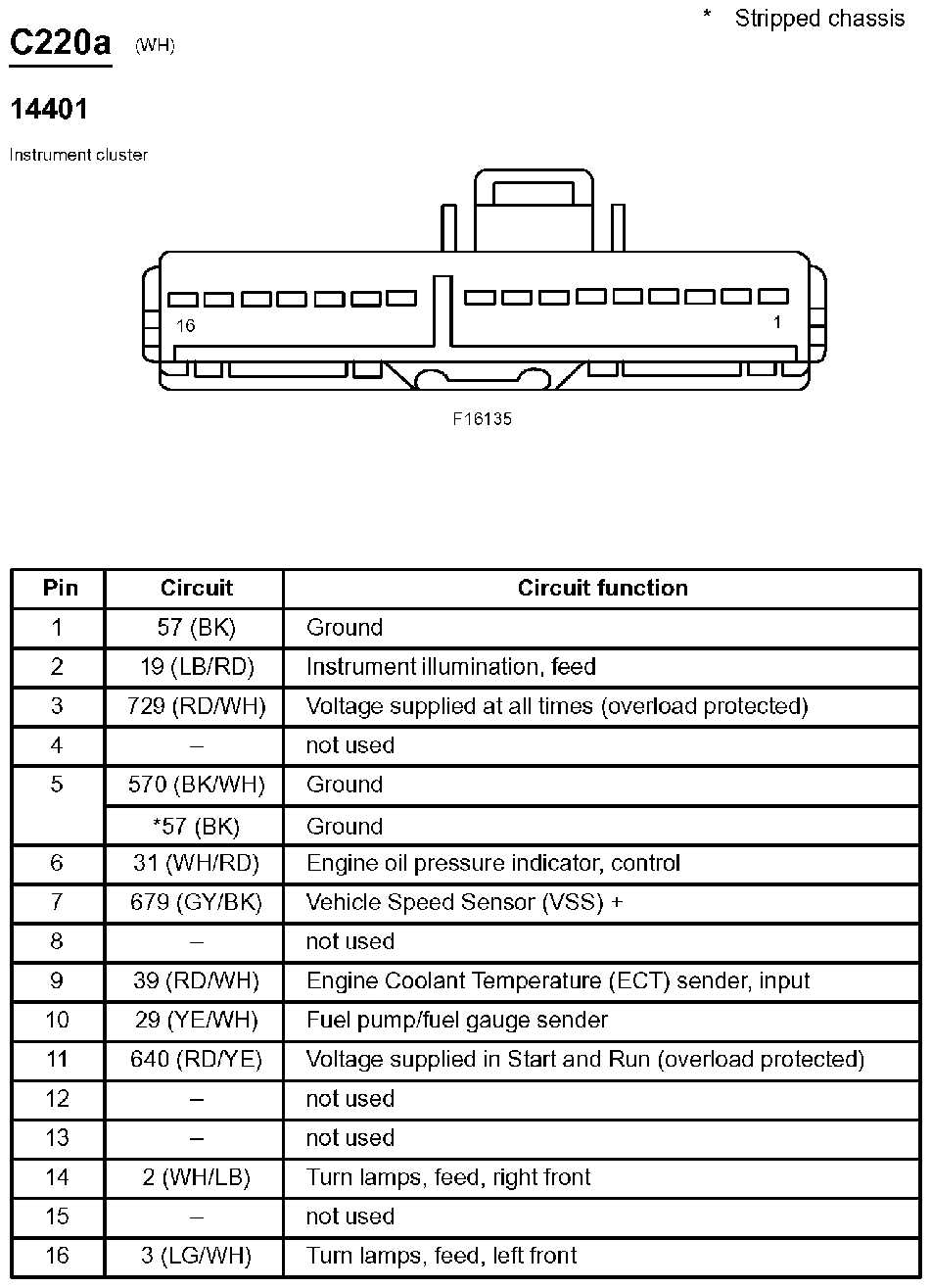

Fig 80: Instrument Cluster Connector End View (C220a)

G07831133

Courtesy of FORD MOTOR CO.

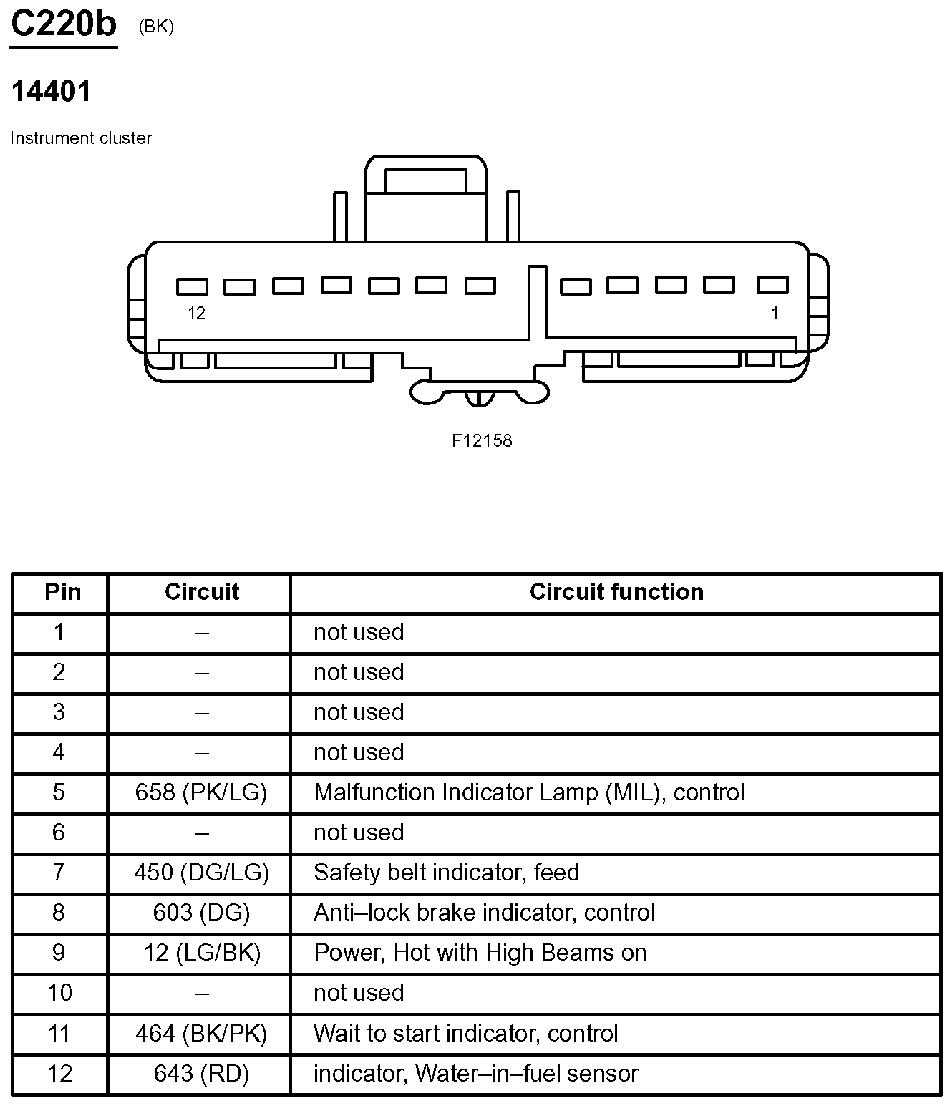

Fig 81: Instrument Cluster Connector End View (C220b)

G07831134

Courtesy of FORD MOTOR CO.

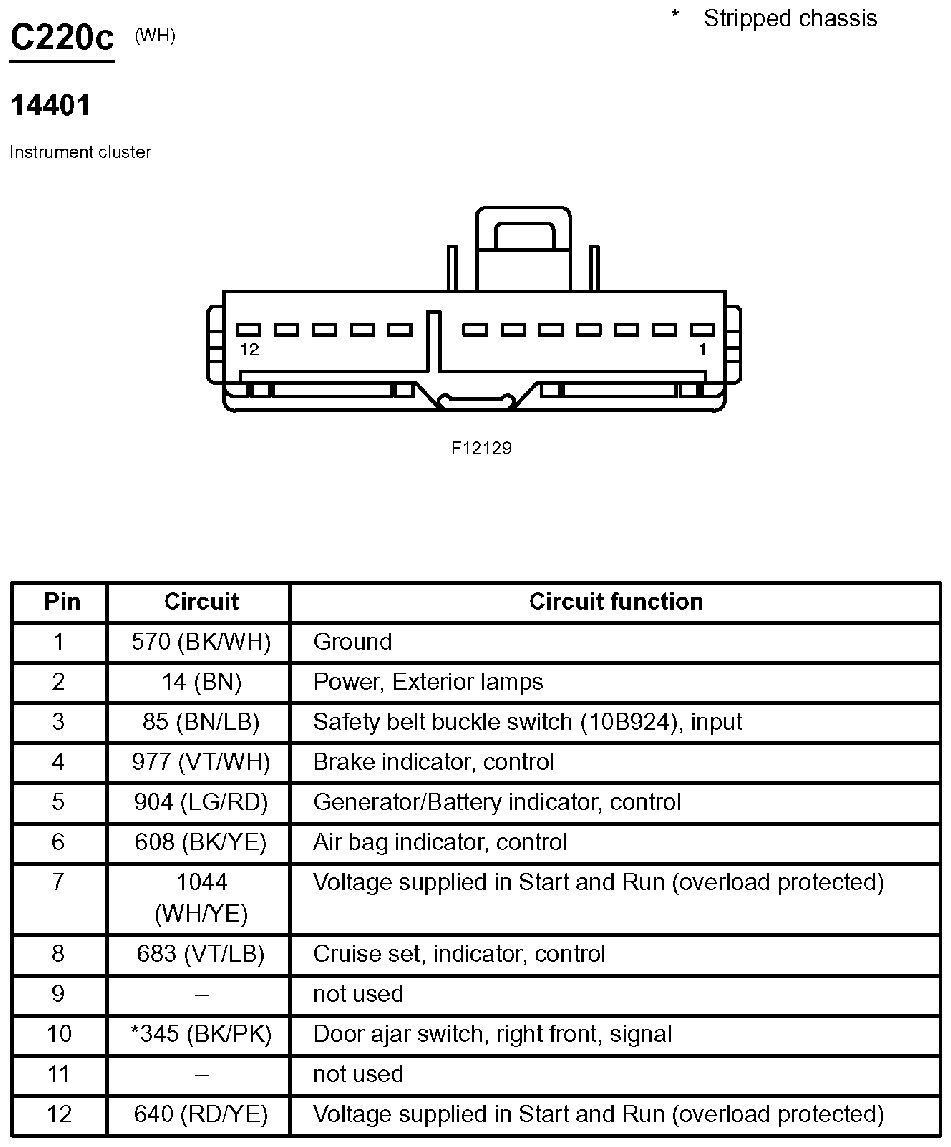

Fig 82: Instrument Cluster Connector End View (C220c)

G03775637

Courtesy of FORD MOTOR CO.

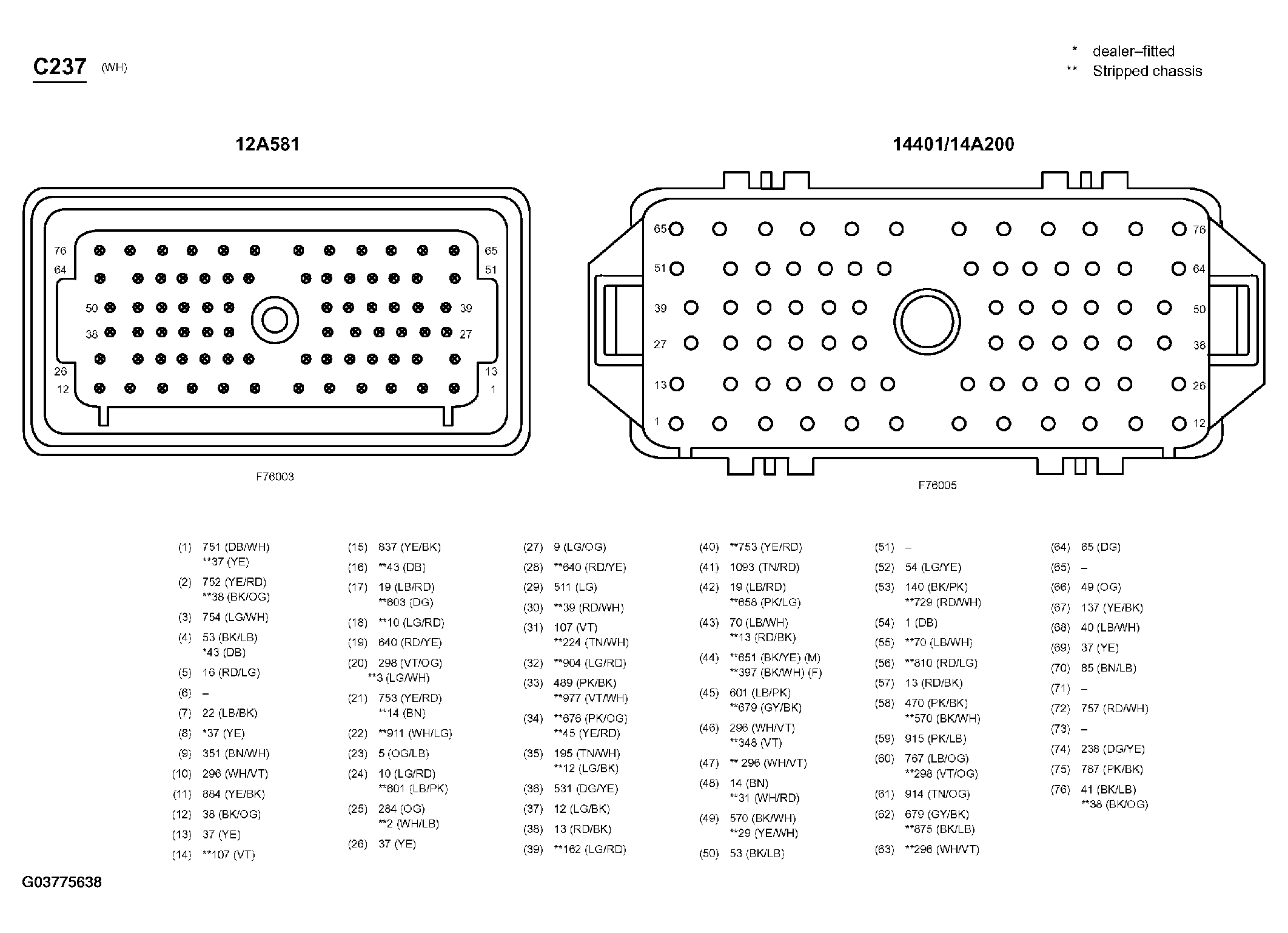

Fig 83: Inline Connector End View (C237)

G03775638

Courtesy of FORD MOTOR CO.

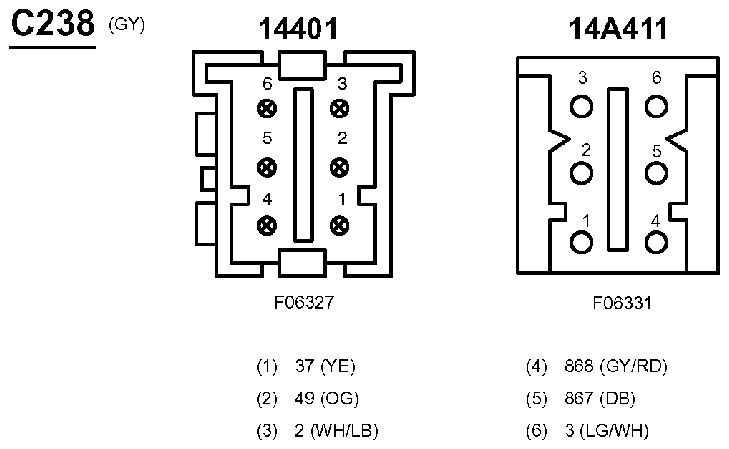

Fig 84: Inline Connector End View (C238)

G07831135

Courtesy of FORD MOTOR CO.

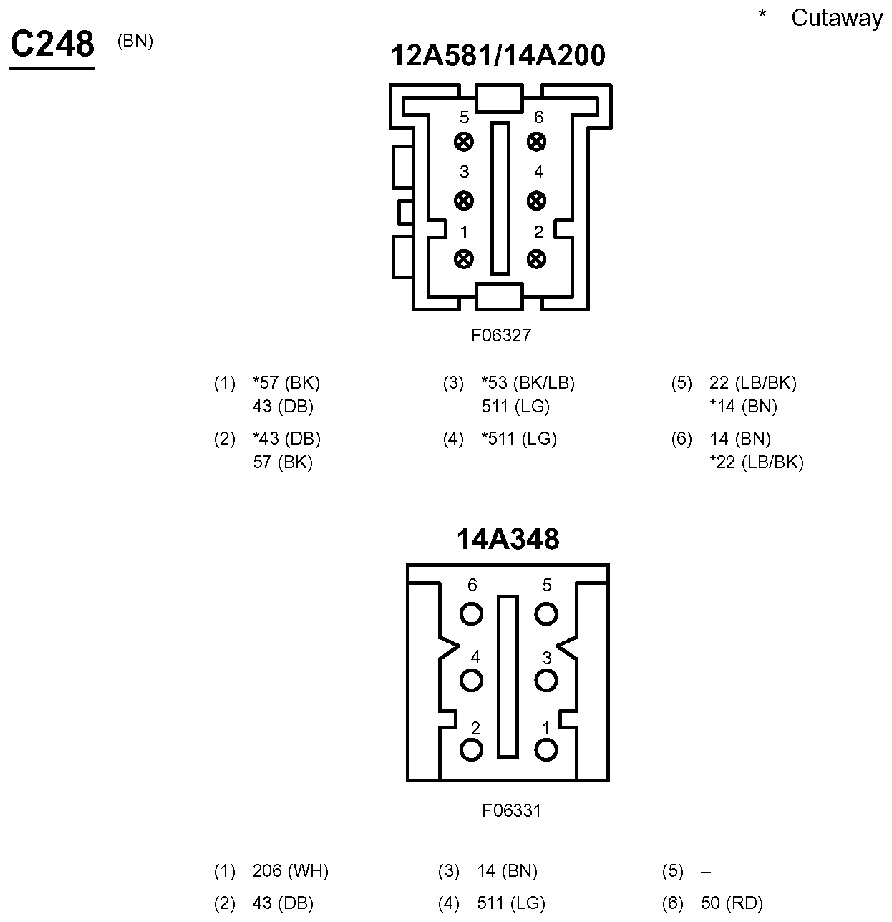

Fig 85: Inline Connector End View (C248)

G07831136

Courtesy of FORD MOTOR CO.

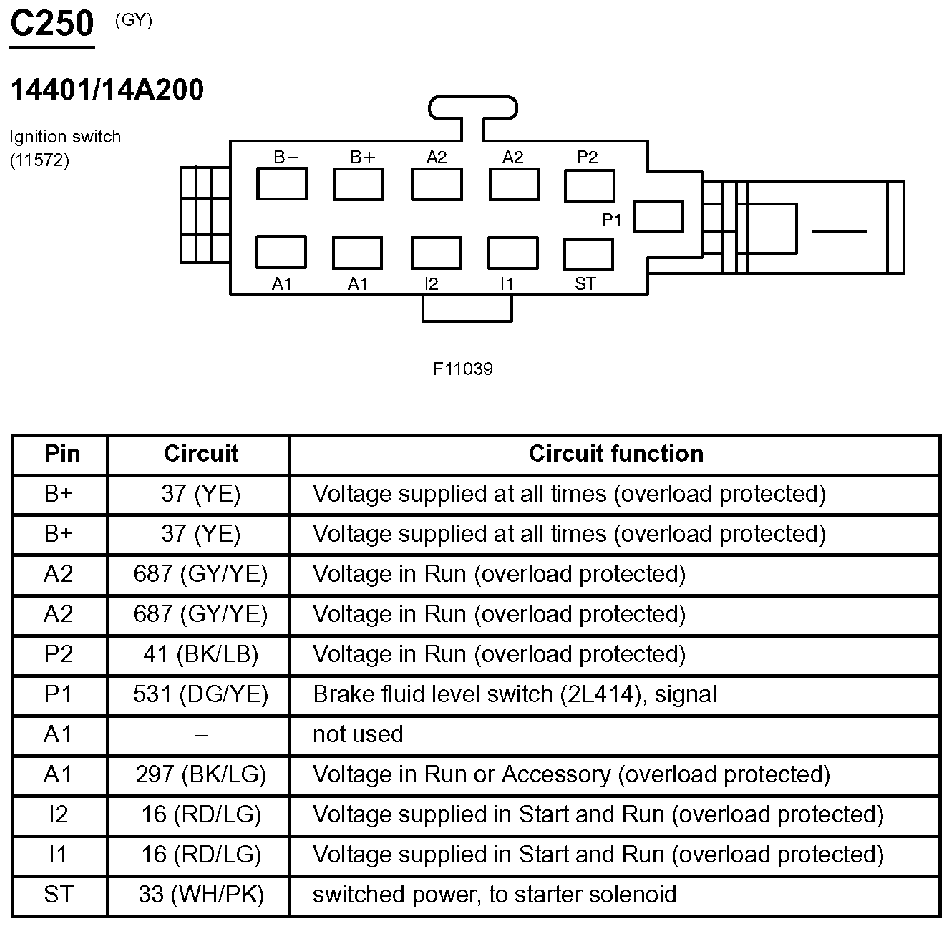

Fig 86: Ignition Switch Connector End View (C250)

G07831137

Courtesy of FORD MOTOR CO.

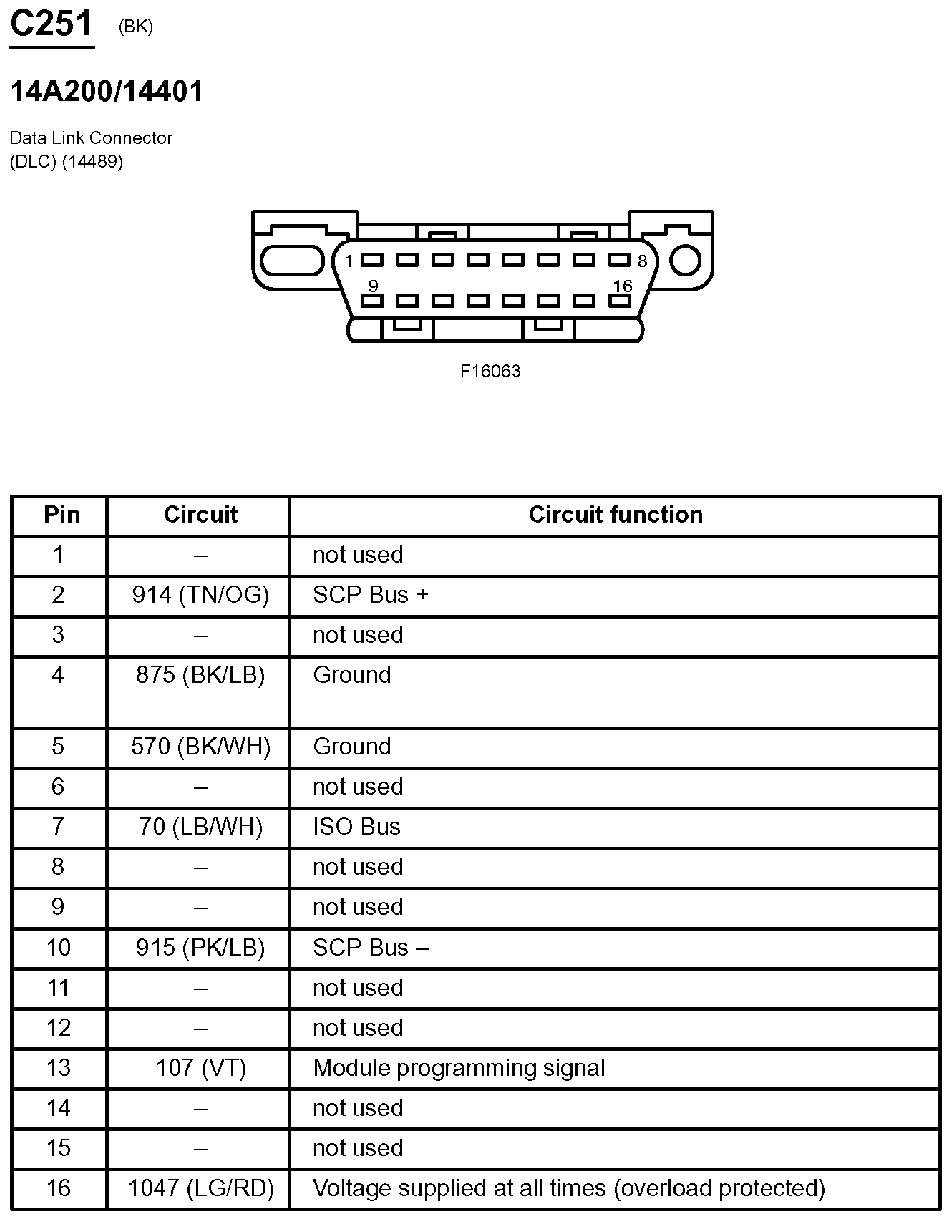

Fig 87: Data Link Connector (DLC) Connector End View (C251)

G07831138

Courtesy of FORD MOTOR CO.

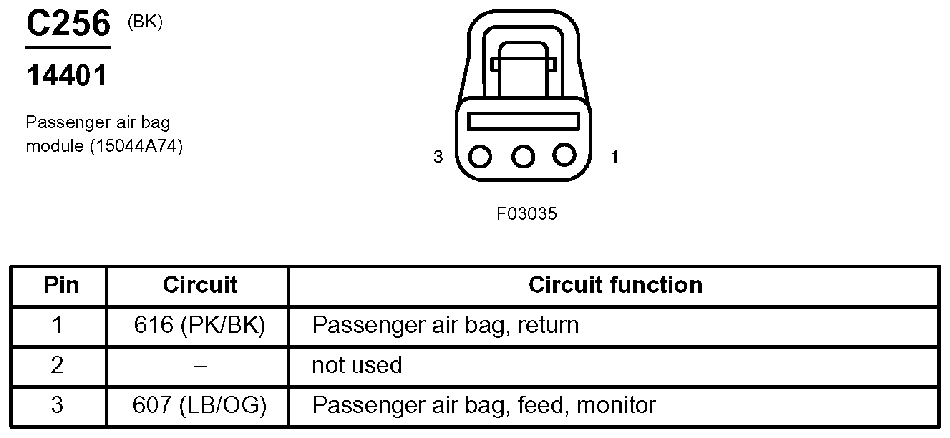

Fig 88: Passenger Air Bag Module Connector End View (C256)

G07831139

Courtesy of FORD MOTOR CO.

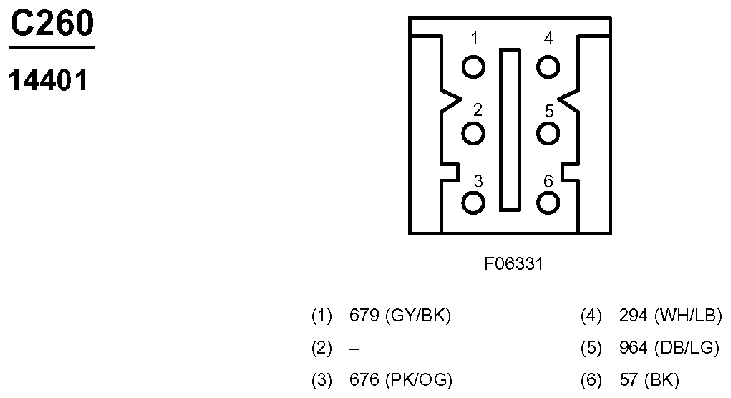

Fig 89: Inline Connector End View (C260)

G07831140

Courtesy of FORD MOTOR CO.

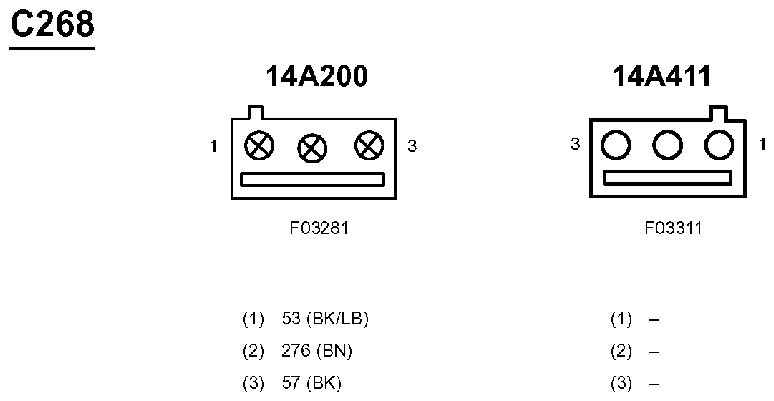

Fig 90: Inline Connector End View (C268)

G07831141

Courtesy of FORD MOTOR CO.

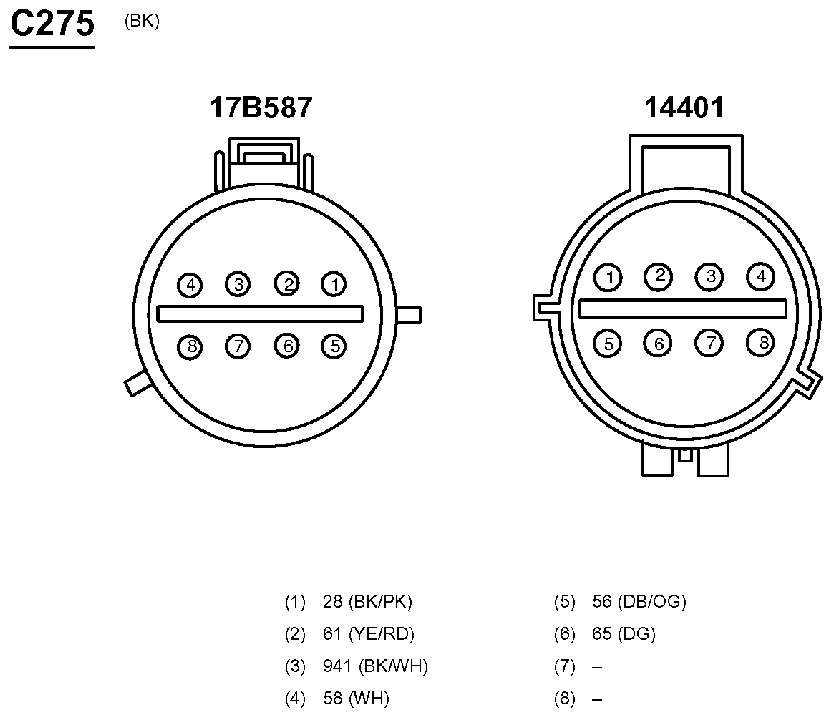

Fig 91: Inline Connector End View (C275)

G07831142

Courtesy of FORD MOTOR CO.

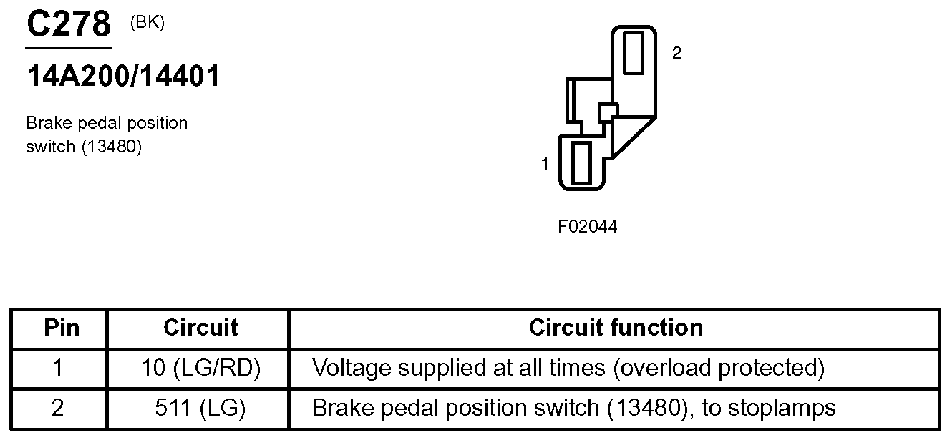

Fig 92: Brake Pedal Position Switch Connector End View (C278)

G07831143

Courtesy of FORD MOTOR CO.

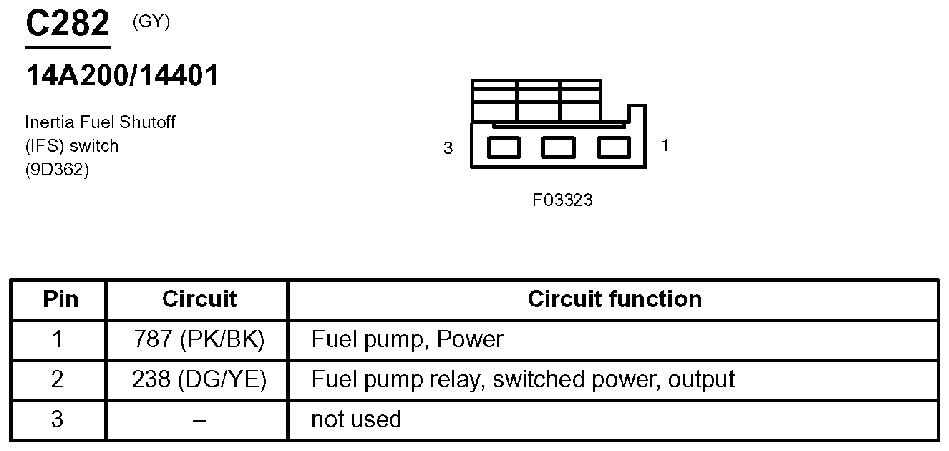

Fig 93: Inertia Fuel Shutoff (IFS) Switch Connector End View (C282)

G07831144

Courtesy of FORD MOTOR CO.

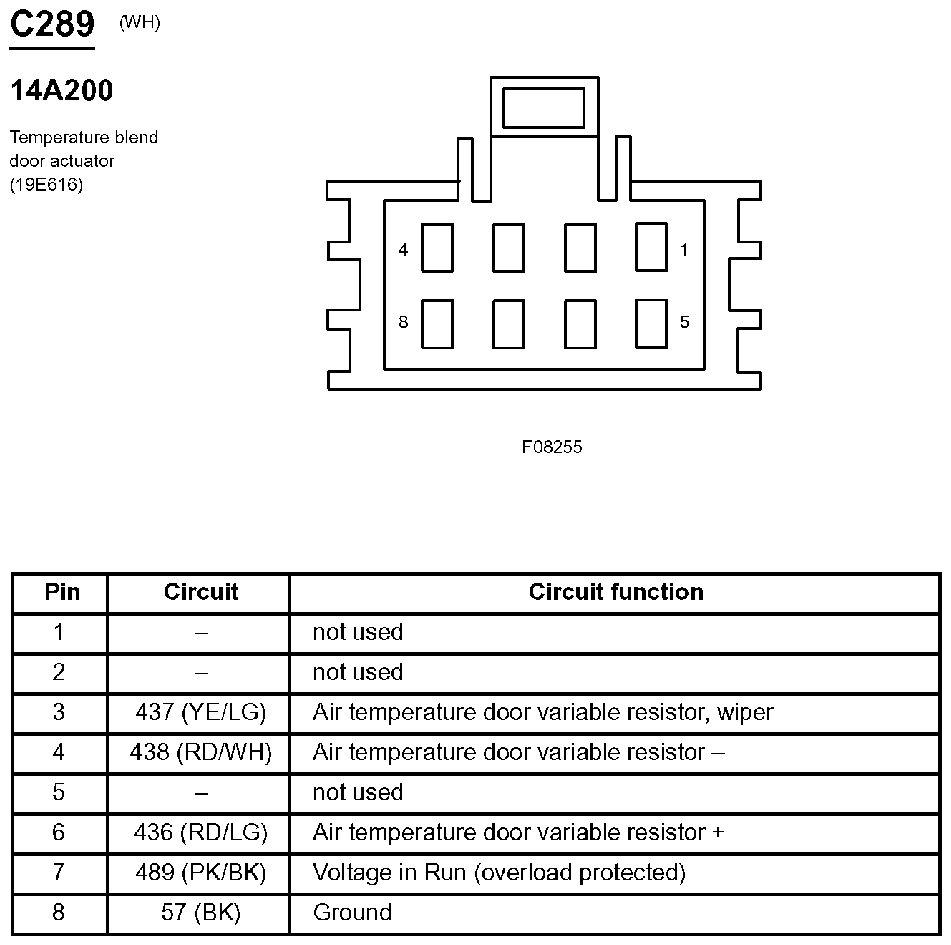

Fig 94: Temperature Blend Door Actuator Connector End View (C289)

G07831145

Courtesy of FORD MOTOR CO.

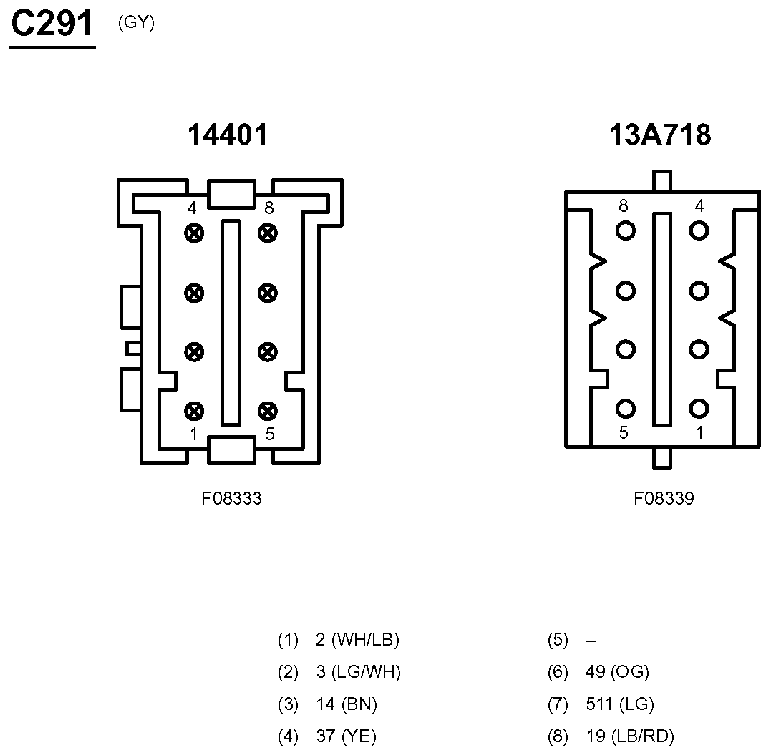

Fig 95: Inline Connector End View (C291)

G07831146

Courtesy of FORD MOTOR CO.

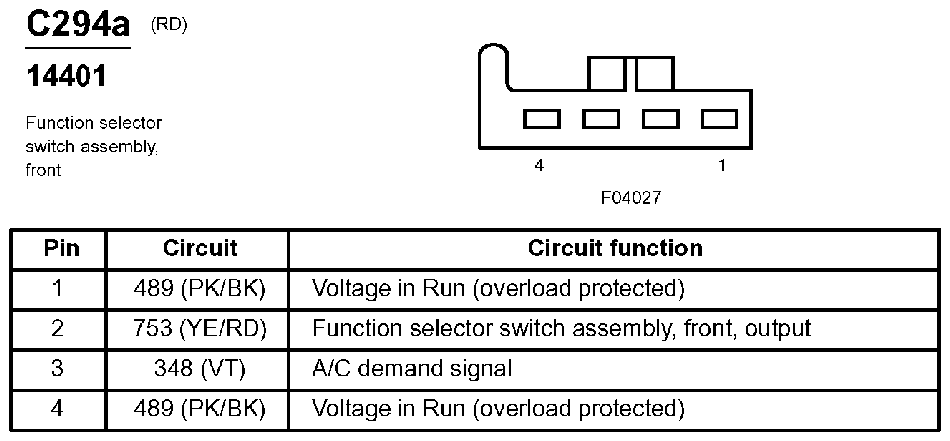

Fig 96: Function Selector Switch Assembly Front Connector End View (C294a)

G07831147

Courtesy of FORD MOTOR CO.

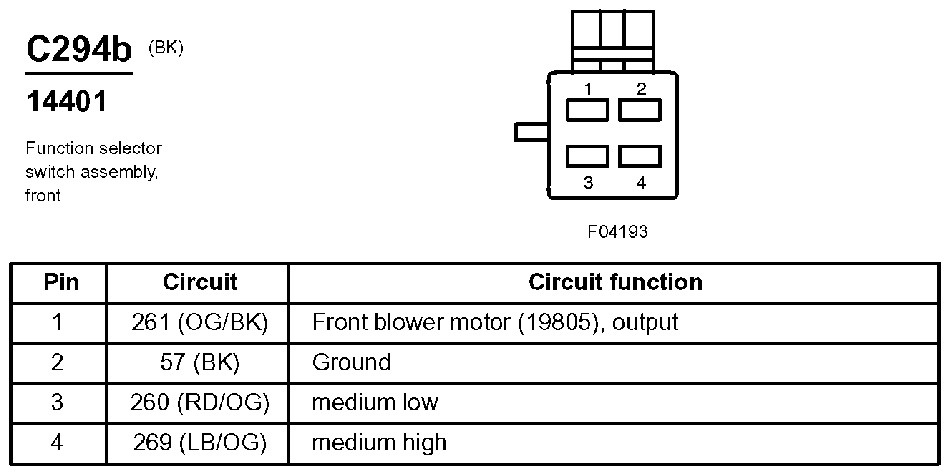

Fig 97: Function Selector Switch Assembly Front Connector End View (C294b)

G07831148

Courtesy of FORD MOTOR CO.

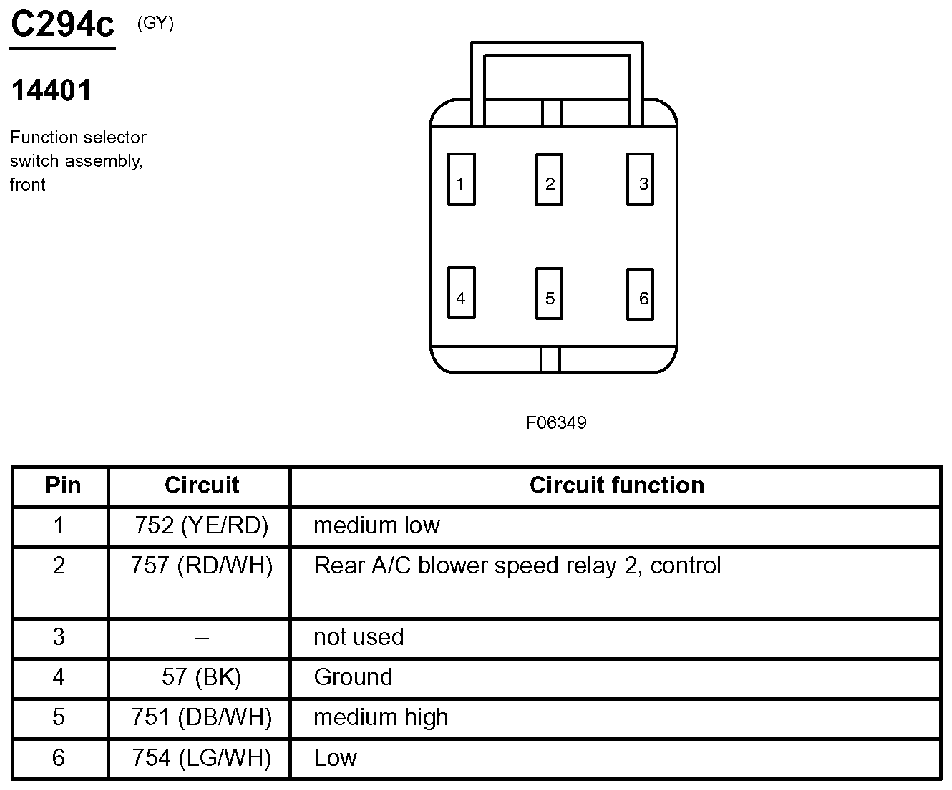

Fig 98: Function Selector Switch Assembly Front Connector End View (C294c)

G07831149

Courtesy of FORD MOTOR CO.

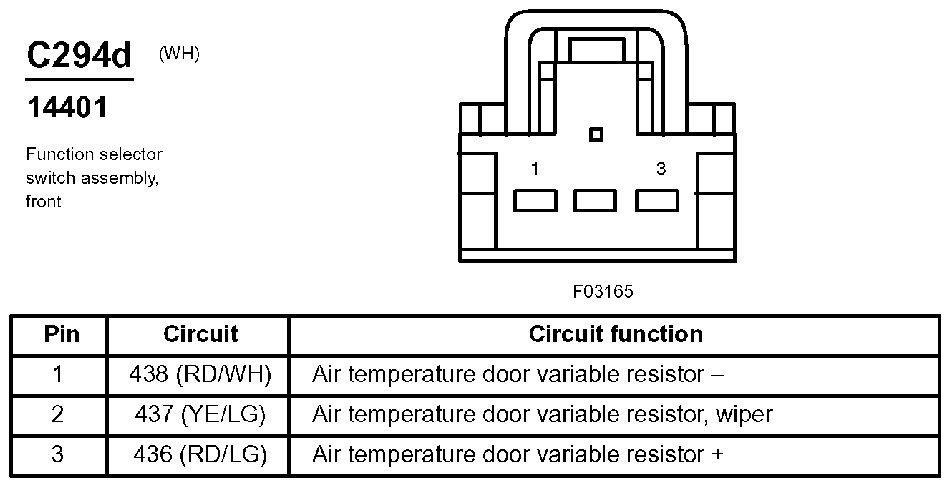

Fig 99: Function Selector Switch Assembly Front Connector End View (C294d)

G07831150

Courtesy of FORD MOTOR CO.

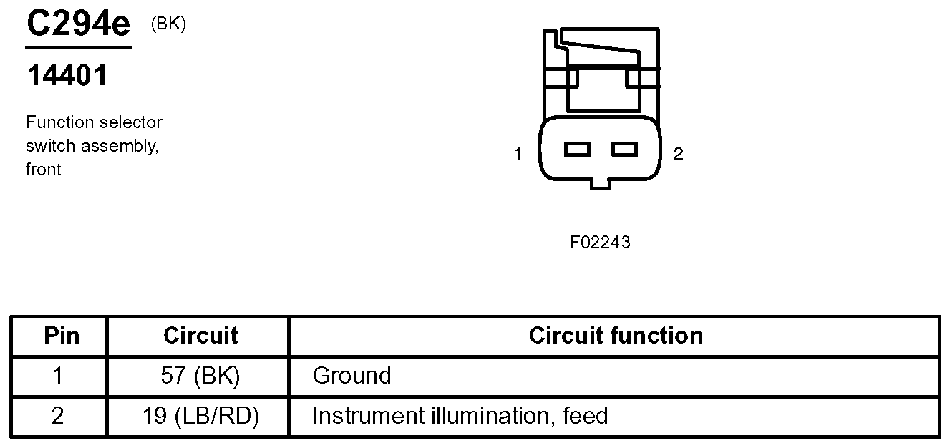

Fig 100: Function Selector Switch Assembly Front Connector End View (C294e)

G07831151

Courtesy of FORD MOTOR CO.

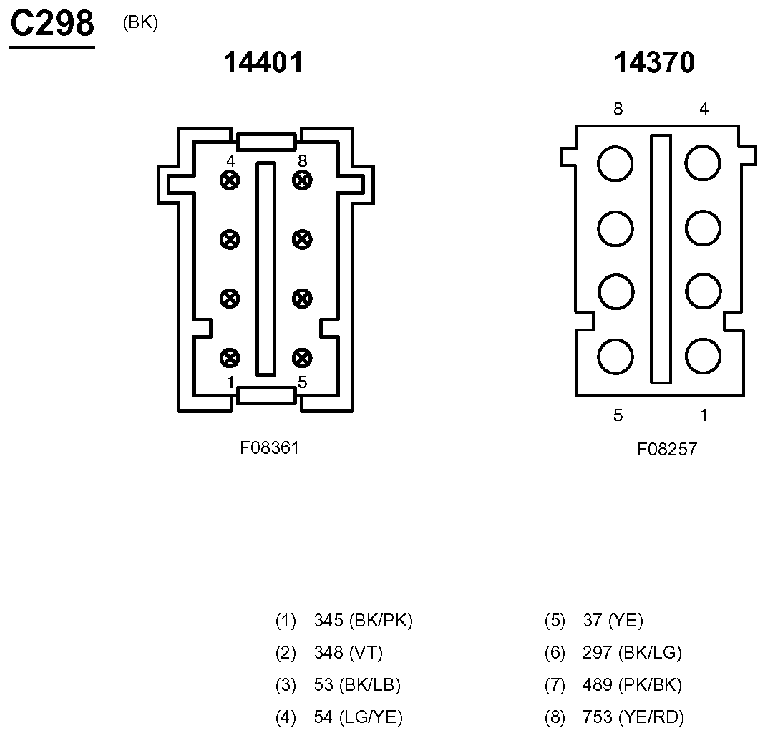

Fig 101: Inline Connector End View (C298)

G07831152

Courtesy of FORD MOTOR CO.

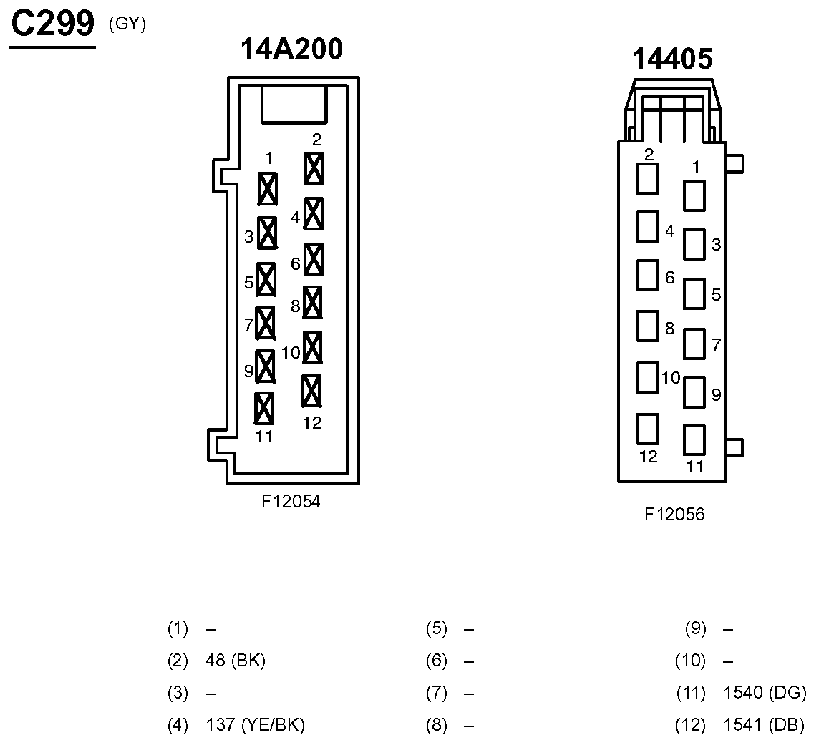

Fig 102: Inline Connector End View (C299)

G07831153

Courtesy of FORD MOTOR CO.

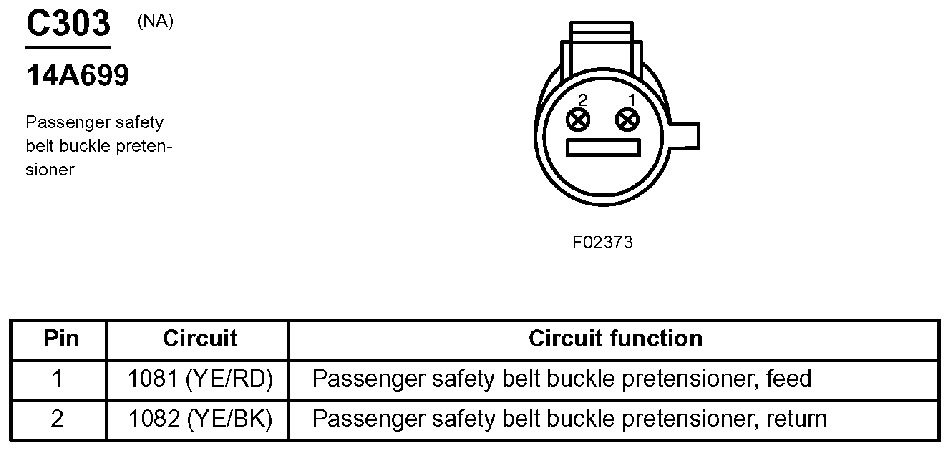

Fig 103: Passenger Safety Belt Buckle Pretensioner Connector End View (C303)

G07831154

Courtesy of FORD MOTOR CO.

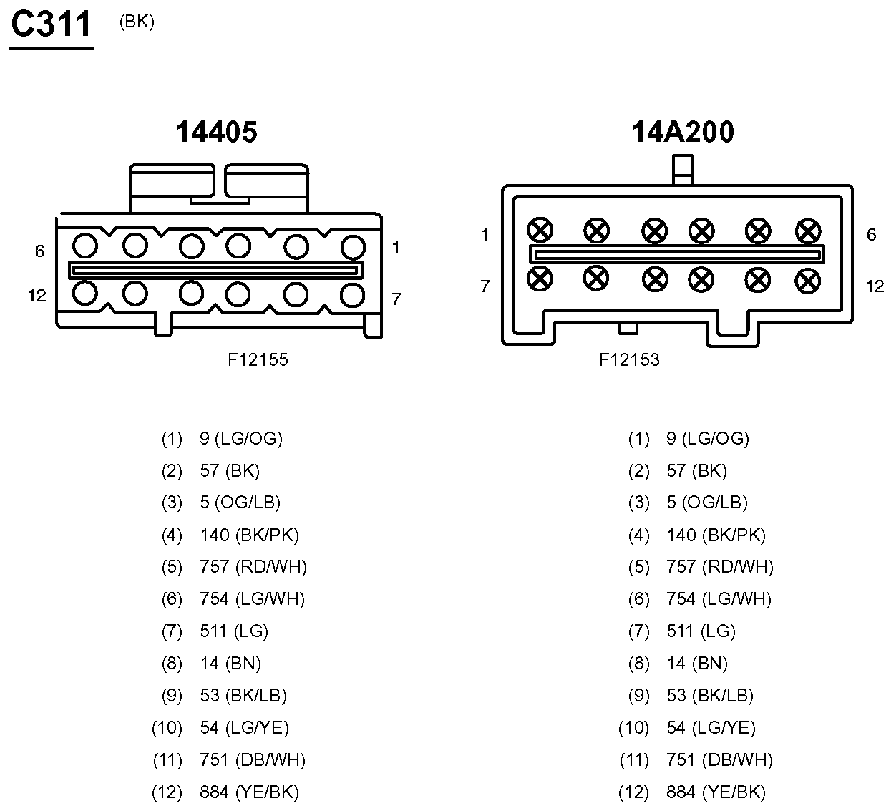

Fig 104: Inline Connector End View (C311)

G07831155

Courtesy of FORD MOTOR CO.

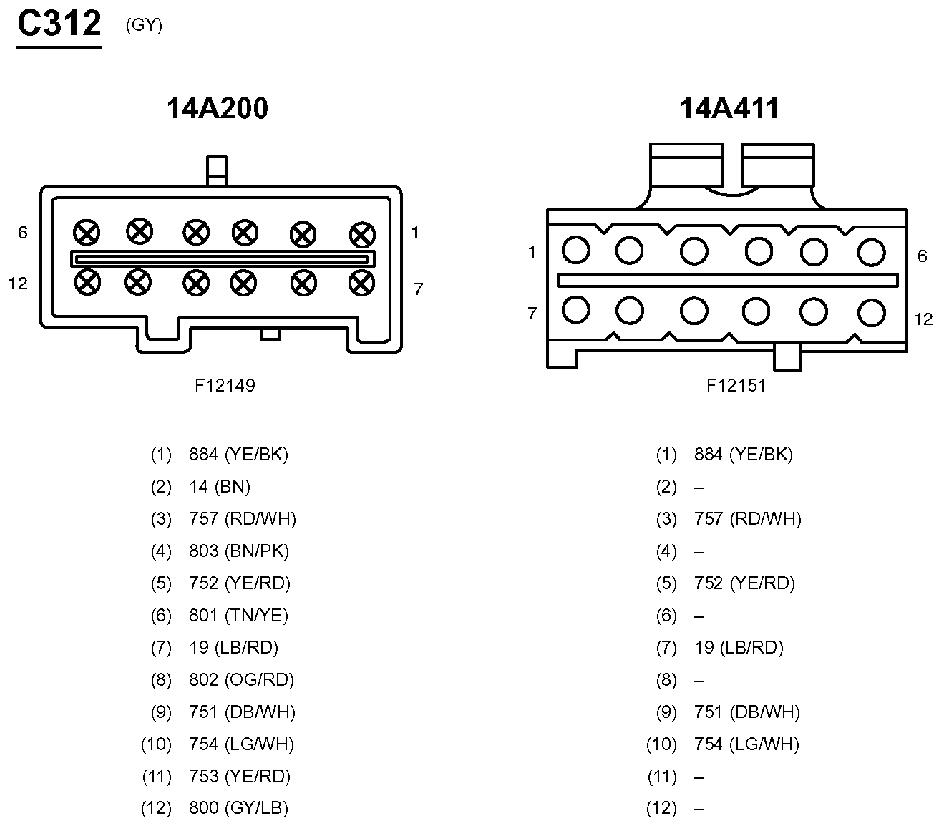

Fig 105: Inline Connector End View (C312)

G07831156

Courtesy of FORD MOTOR CO.

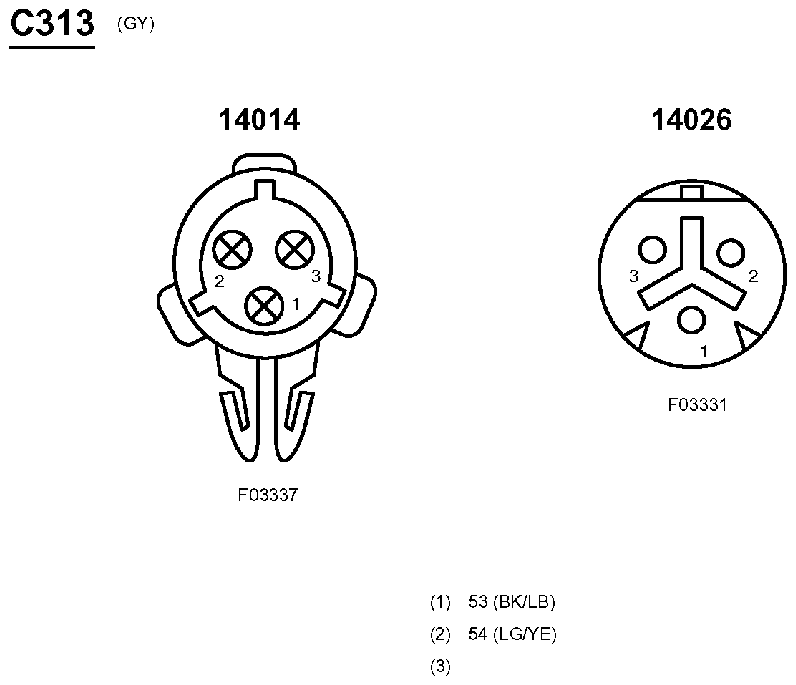

Fig 106: Inline Connector End View (C313)

G07831157

Courtesy of FORD MOTOR CO.

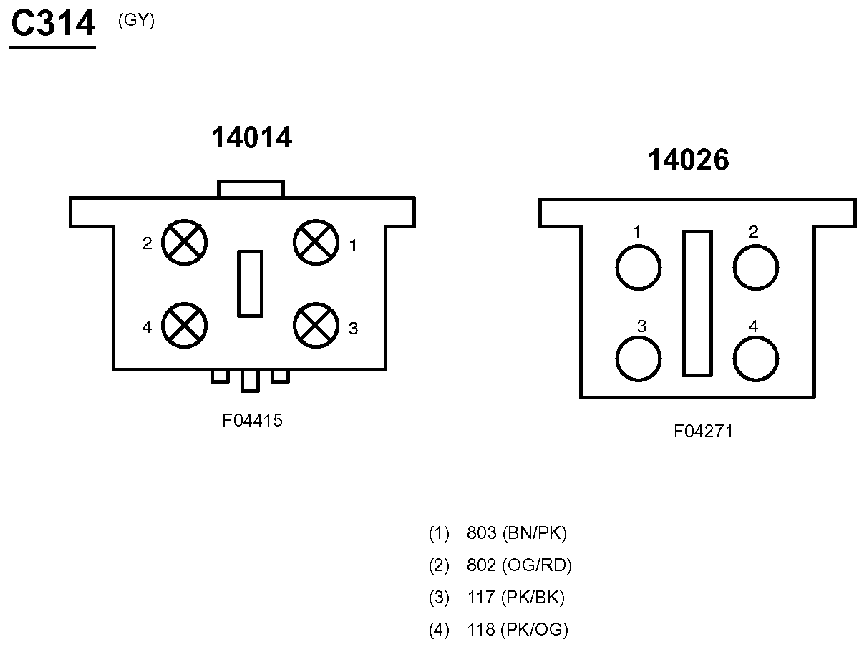

Fig 107: Inline Connector End View (C314)

G07831158

Courtesy of FORD MOTOR CO.

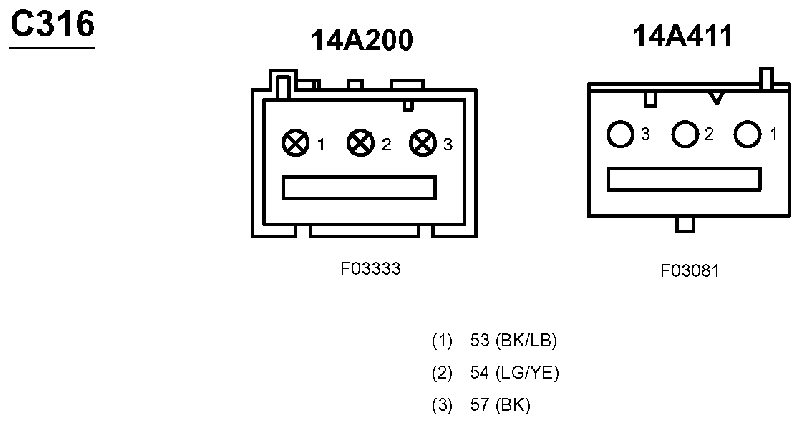

Fig 108: Inline Connector End View (C316)

G07831159

Courtesy of FORD MOTOR CO.

Fig 109: Driver Safety Belt Buckle Pretensioner Connector End View (C323)

G07831160

Courtesy of FORD MOTOR CO.

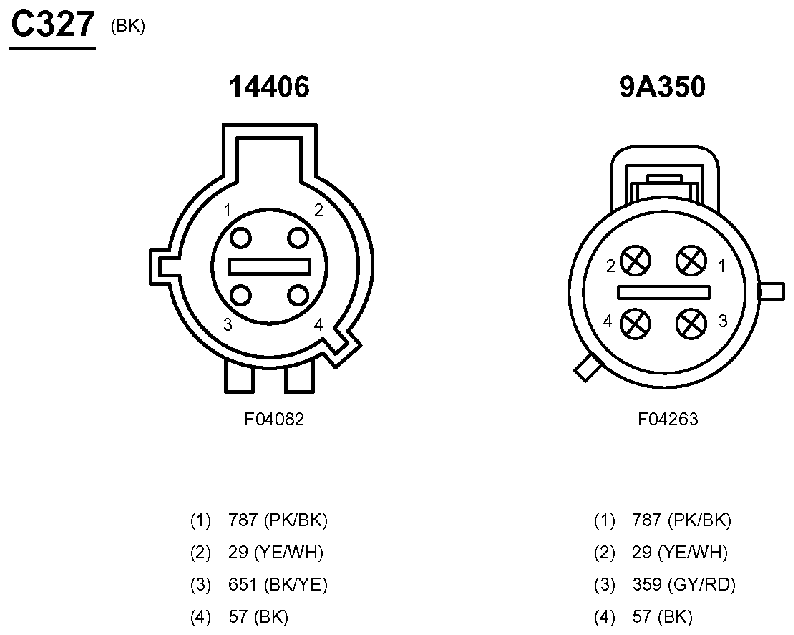

Fig 110: Inline Connector End View (C327)

G07831161

Courtesy of FORD MOTOR CO.

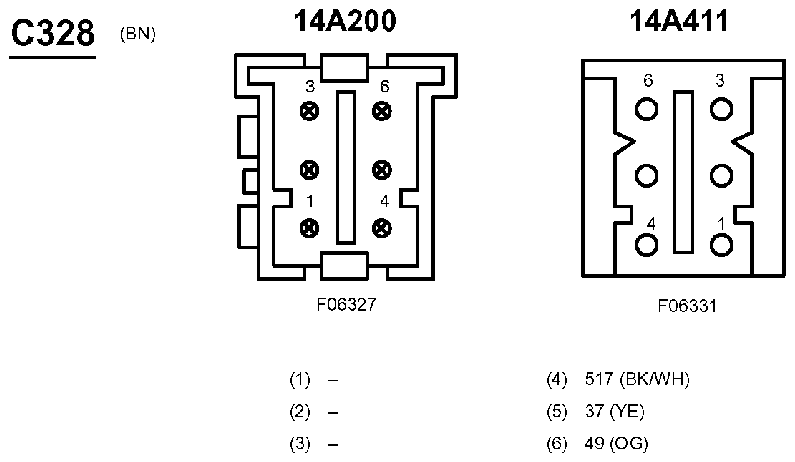

Fig 111: Inline Connector End View (C328)

G07831162

Courtesy of FORD MOTOR CO.

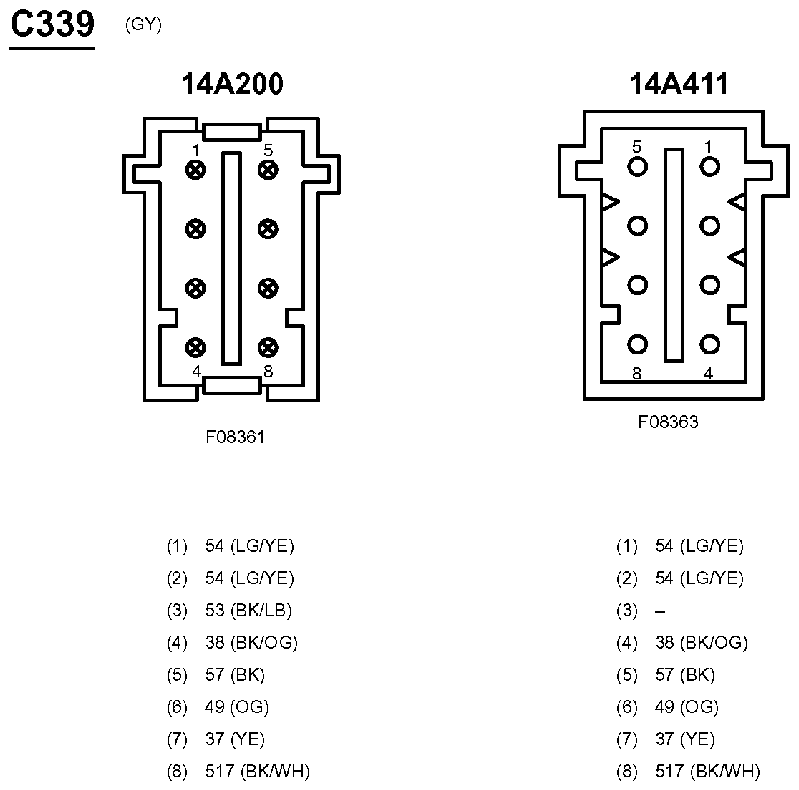

Fig 112: Inline Connector End View (C339)

G07831163

Courtesy of FORD MOTOR CO.

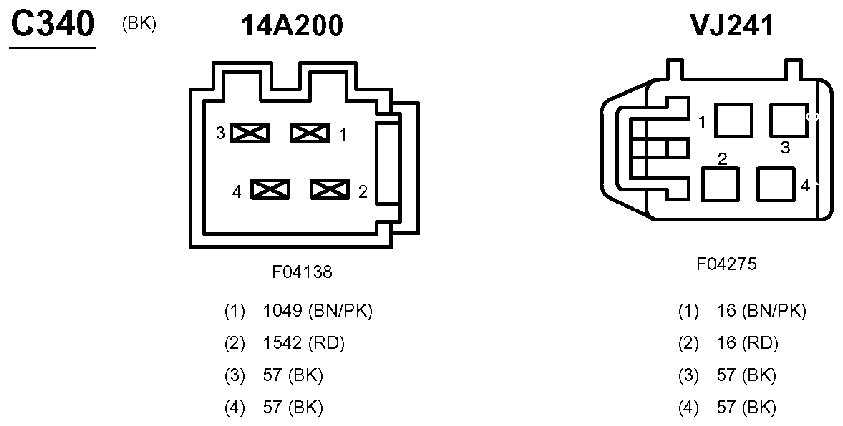

Fig 113: Inline Connector End View (C340)

G07831164

Courtesy of FORD MOTOR CO.

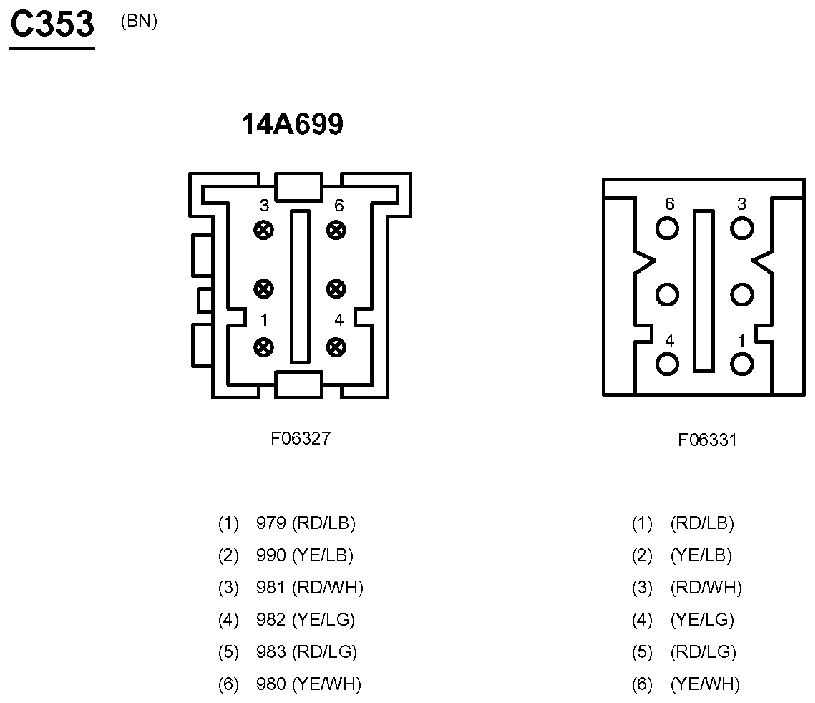

Fig 114: Inline Connector End View (C353)

G07831165

Courtesy of FORD MOTOR CO.

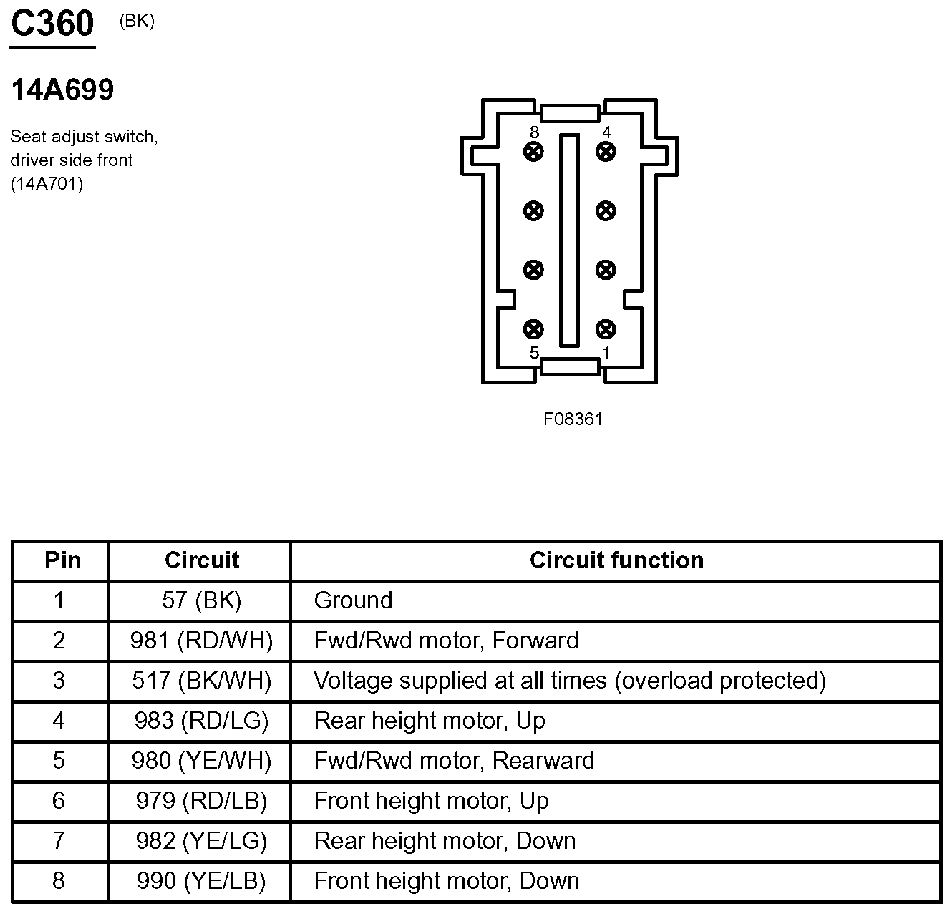

Fig 115: Seat Adjust Switch, Driver Side Front Connector End View (C360)

G07831166

Courtesy of FORD MOTOR CO.

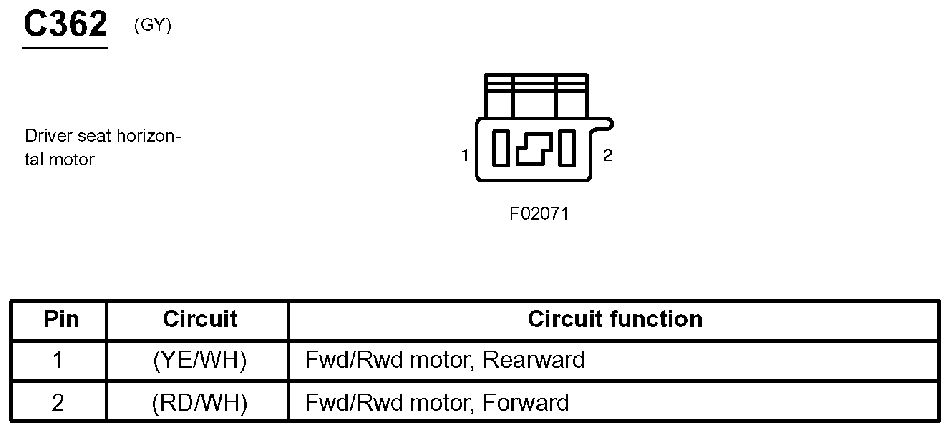

Fig 116: Driver Seat Horizontal Motor Connector End View (C362)

G07831167

Courtesy of FORD MOTOR CO.

Fig 117: Driver Seat Rear Height Motor Connector End View (C363)

G07831168

Courtesy of FORD MOTOR CO.

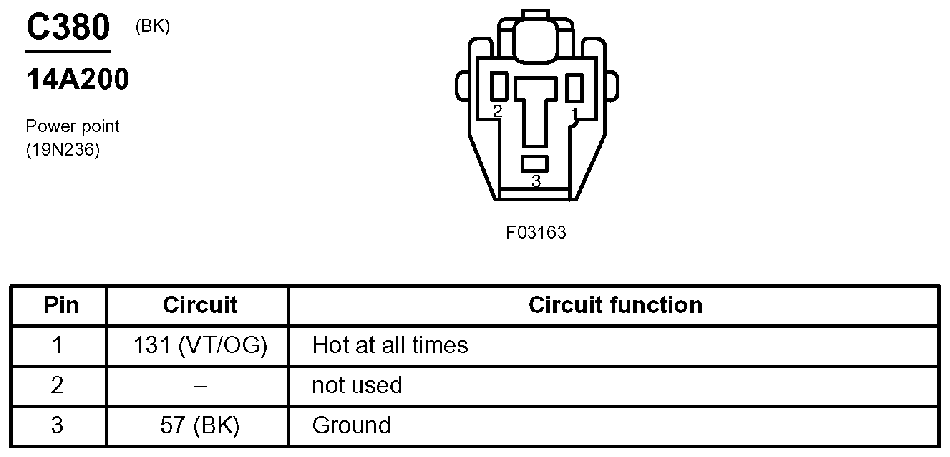

Fig 118: Power Point Connector End View (C380)

G07831169

Courtesy of FORD MOTOR CO.

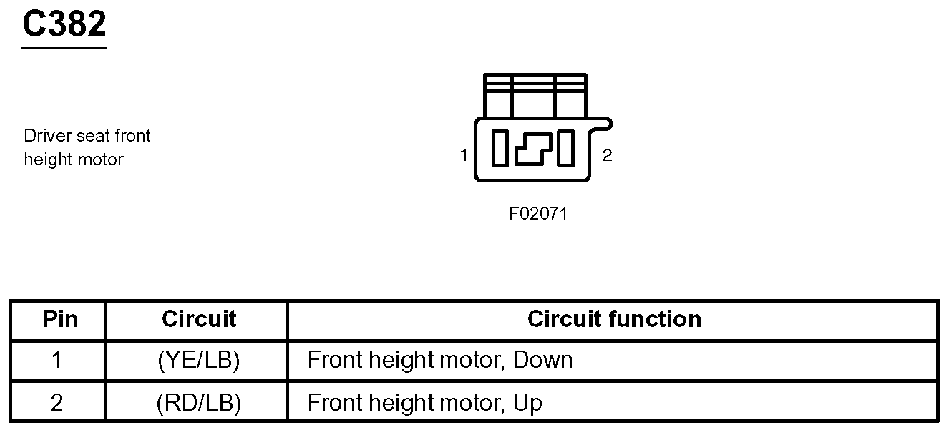

Fig 119: Driver Seat Front Height Motor Connector End View (C382)

G07831170

Courtesy of FORD MOTOR CO.

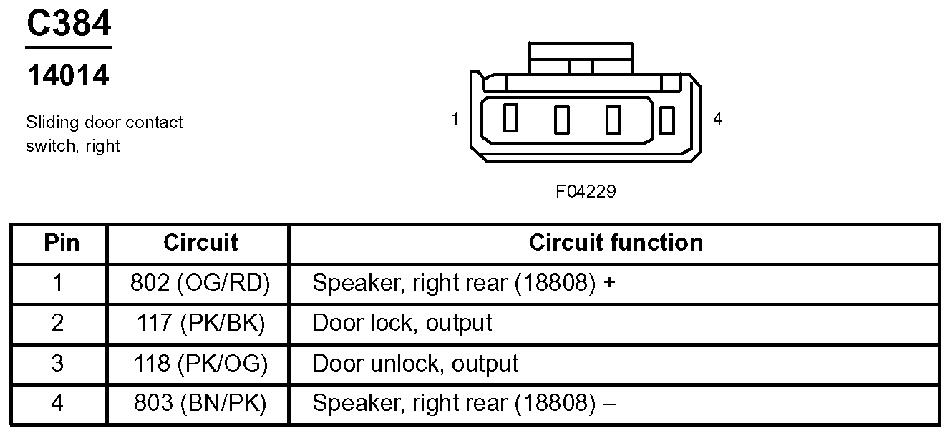

Fig 120: Sliding Door Contact Switch, Right Connector End View (C384)

G07831171

Courtesy of FORD MOTOR CO.

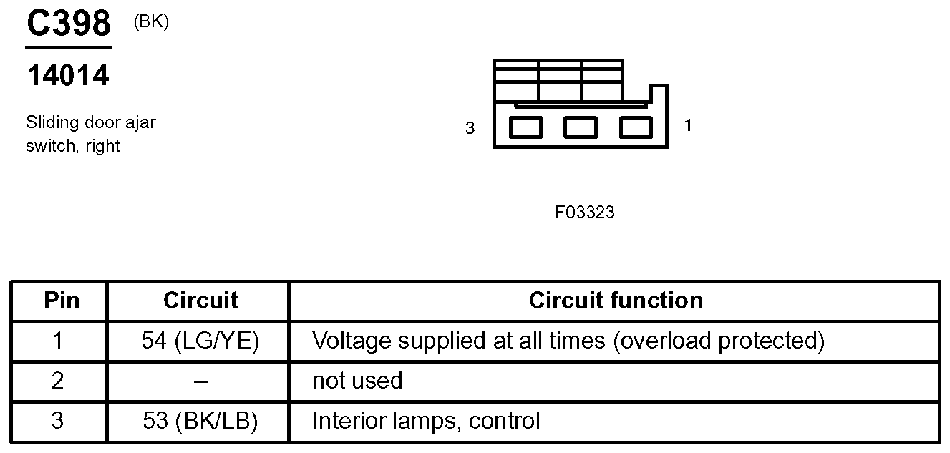

Fig 121: Sliding Door Ajar Switch, Right Connector End View (C398)

G07831172

Courtesy of FORD MOTOR CO.

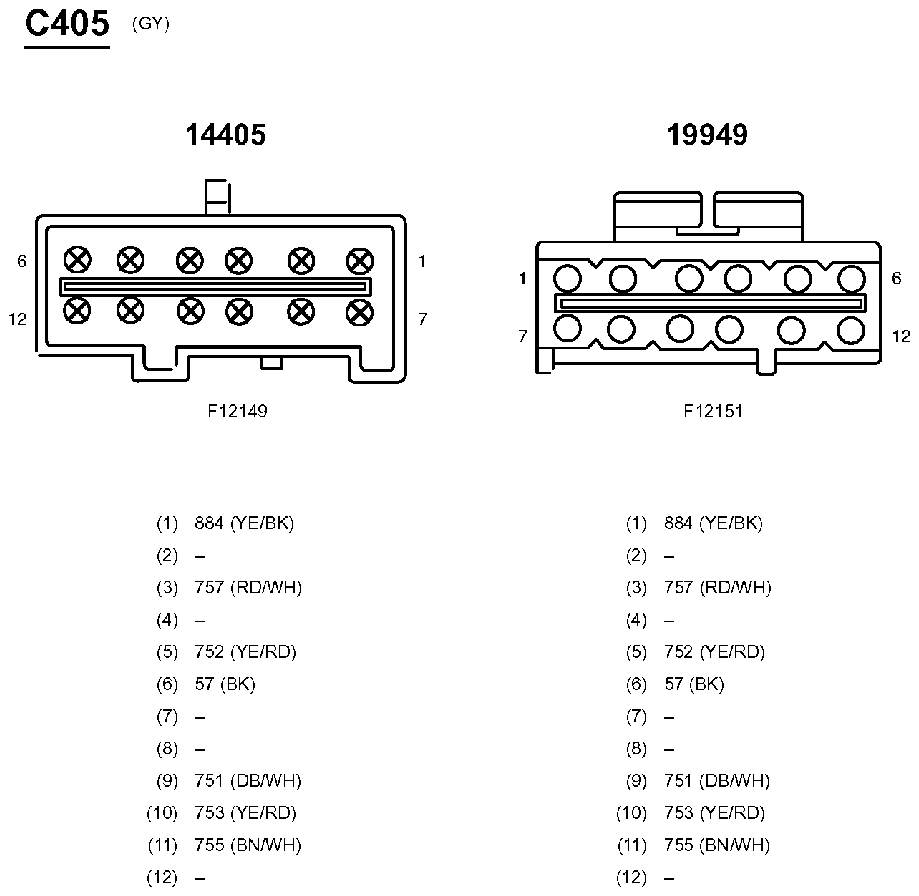

Fig 122: Inline Connector End View (C405)

G07831173

Courtesy of FORD MOTOR CO.

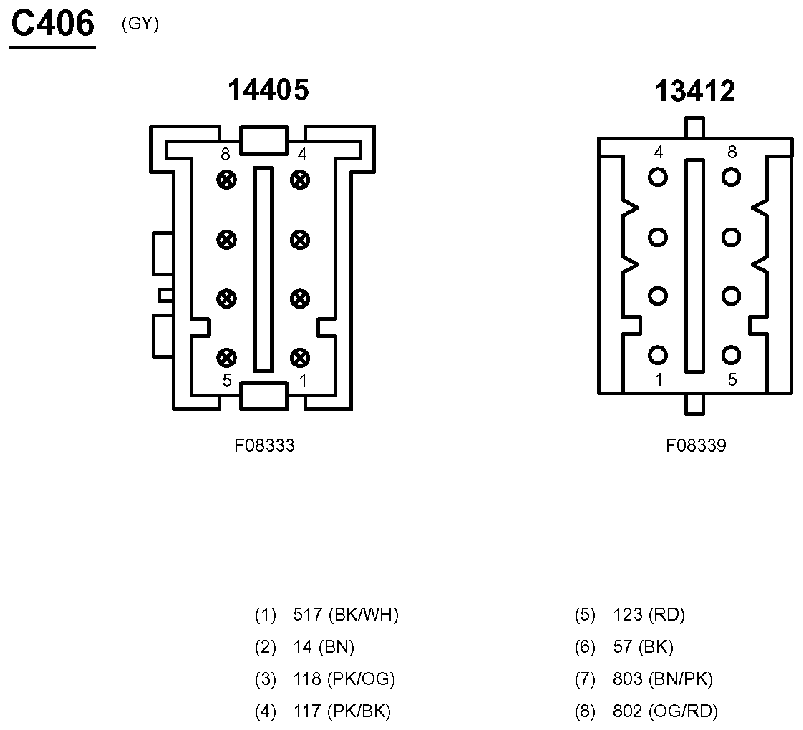

Fig 123: Inline Connector End View (C406)

G07831174

Courtesy of FORD MOTOR CO.

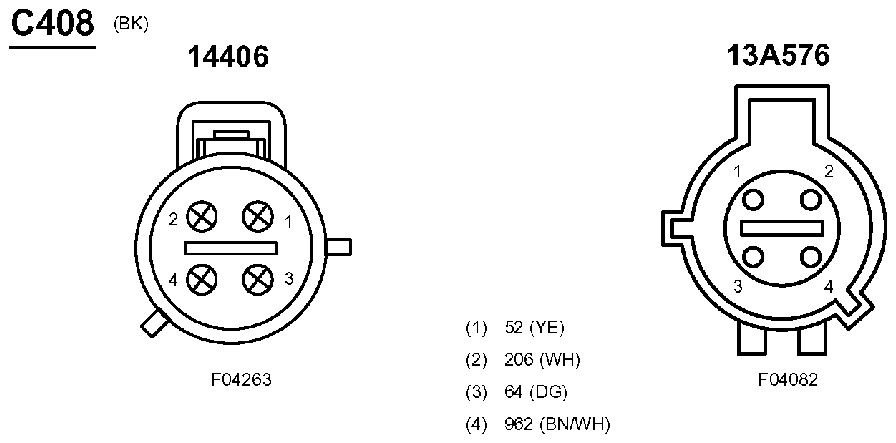

Fig 124: Inline Connector End View (C408)

G07831175

Courtesy of FORD MOTOR CO.

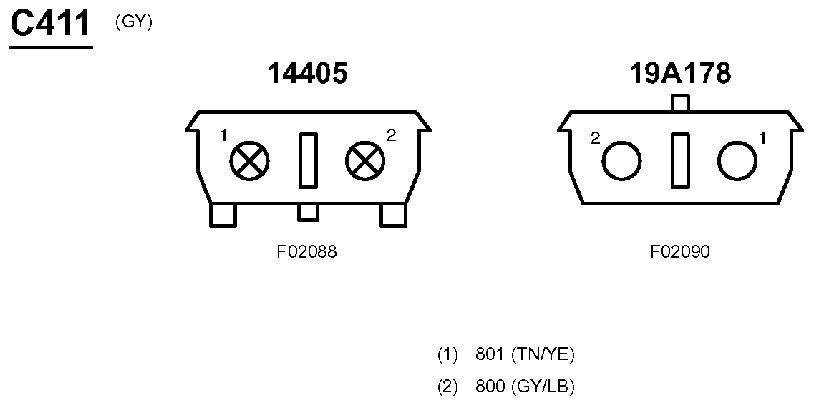

Fig 125: Inline Connector End View (C411)

G07831176

Courtesy of FORD MOTOR CO.

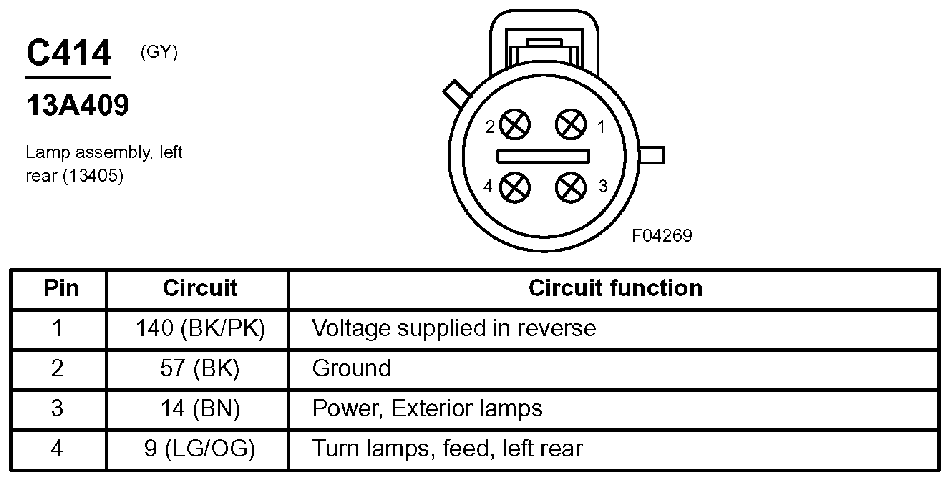

Fig 126: Lamp Assembly, Left Rear Connector End View (C414)

G07831177

Courtesy of FORD MOTOR CO.

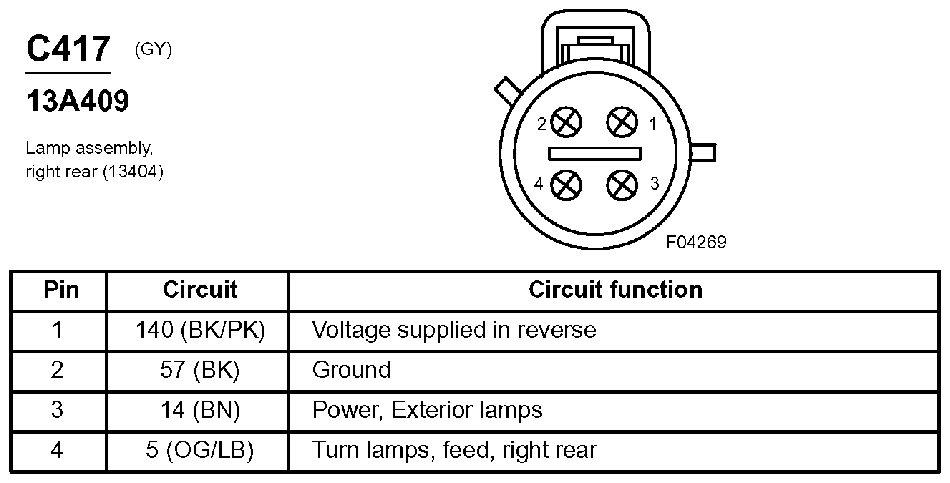

Fig 127: Lamp Assembly, Right Rear Connector End View (C417)

G07831178

Courtesy of FORD MOTOR CO.

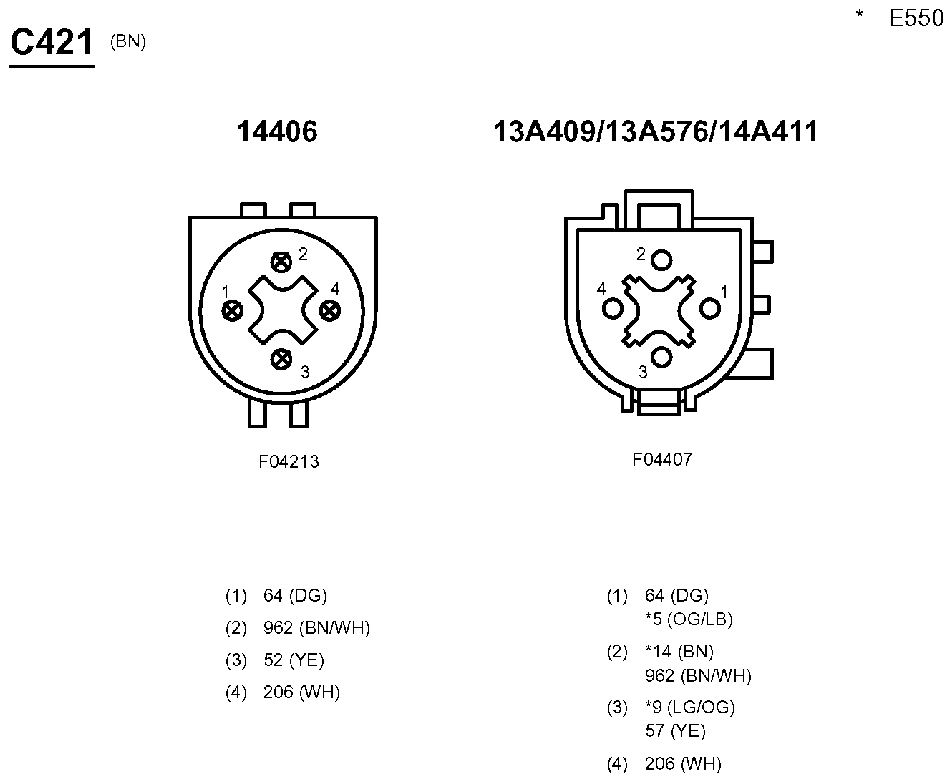

Fig 128: Inline Connector End View (C421)

G07831179

Courtesy of FORD MOTOR CO.

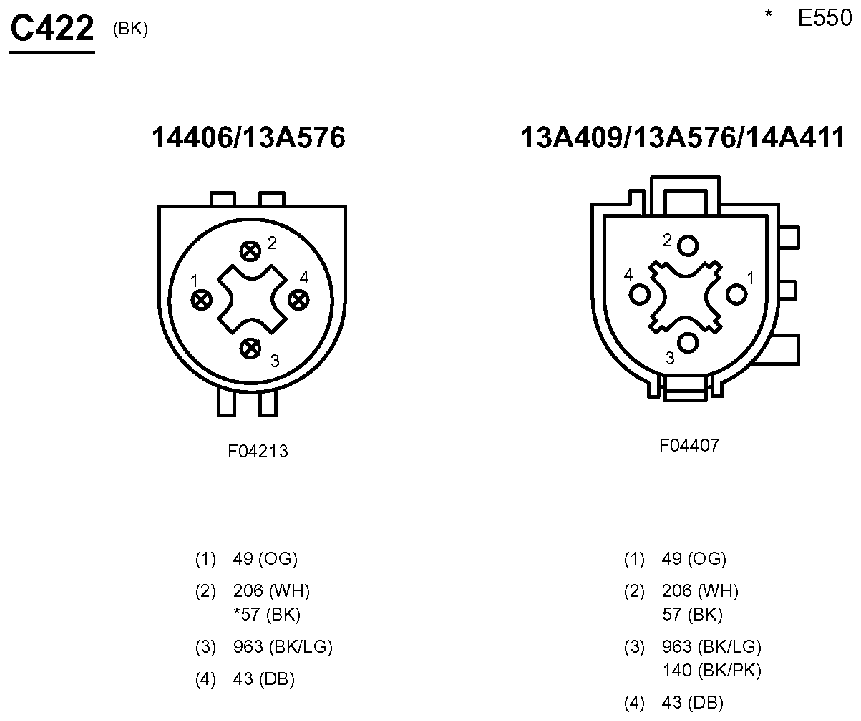

Fig 129: Inline Connector End View (C422)

G07831180

Courtesy of FORD MOTOR CO.

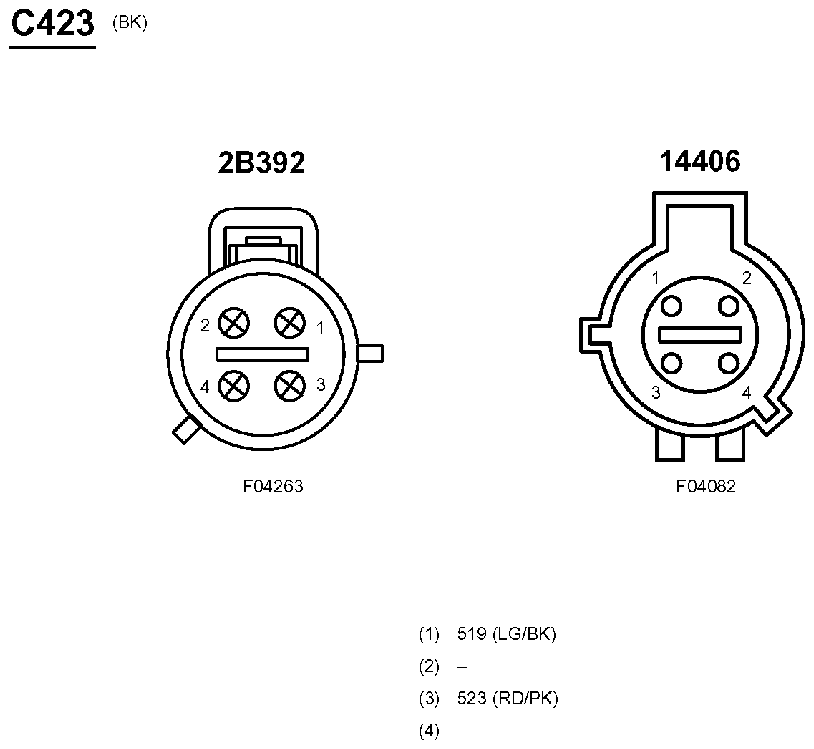

Fig 130: Inline Connector End View (C423)

G07831181

Courtesy of FORD MOTOR CO.

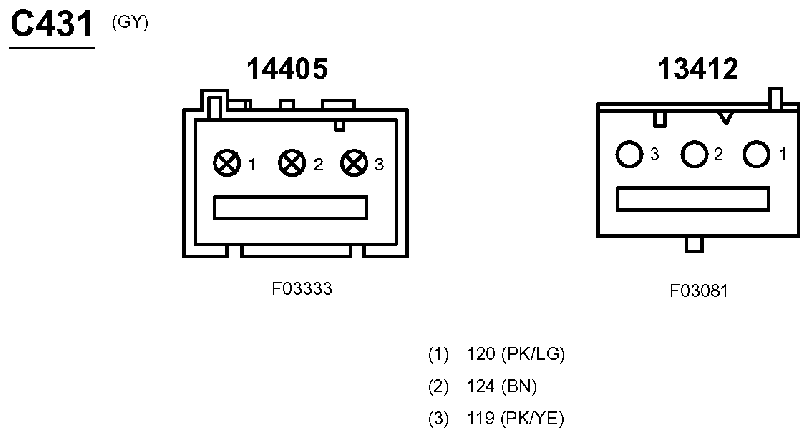

Fig 131: Inline Connector End View (C431)

G07831182

Courtesy of FORD MOTOR CO.

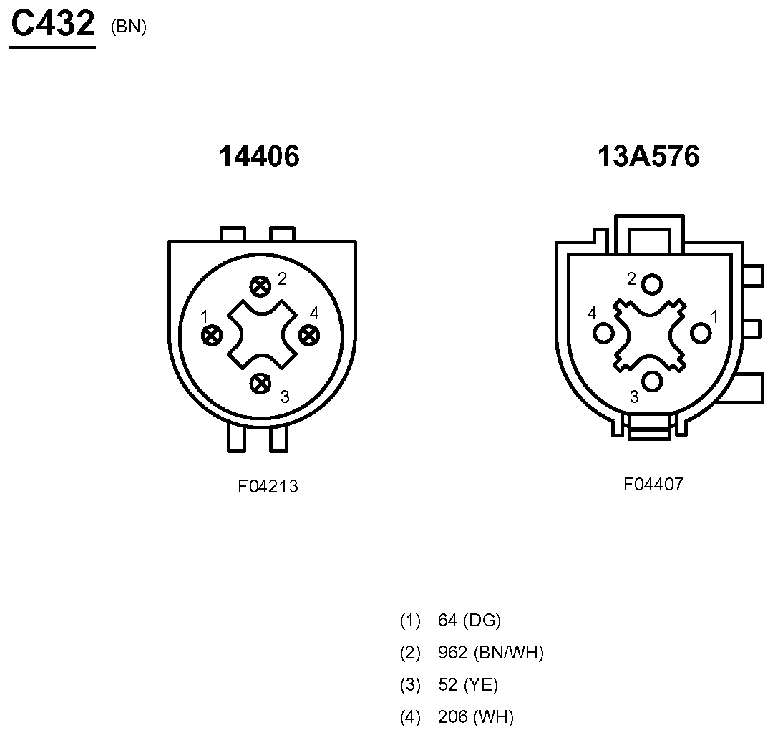

Fig 132: Inline Connector End View (C432)

G07831183

Courtesy of FORD MOTOR CO.

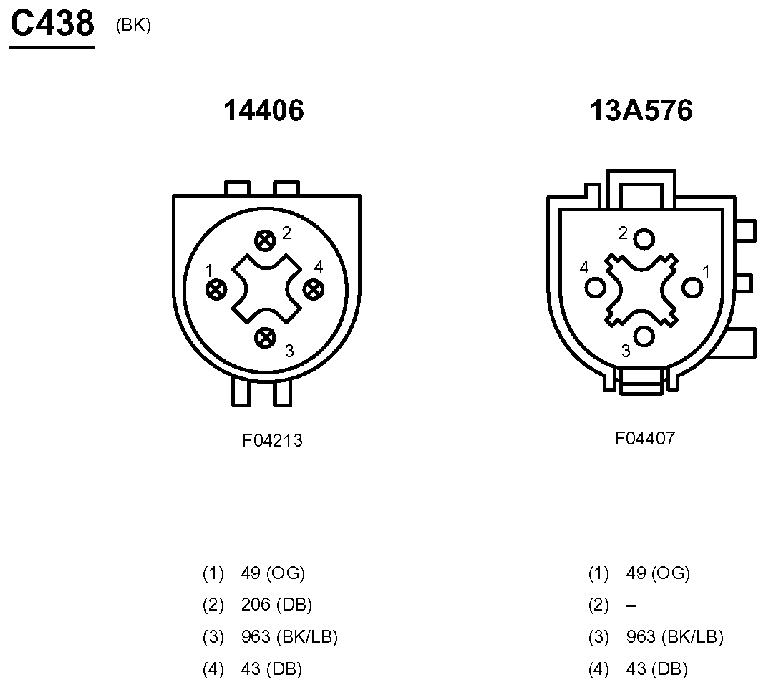

Fig 133: Inline Connector End View (C438)

G07831184

Courtesy of FORD MOTOR CO.

Fig 134: Evaporative Emission (EVAP) Canister Vent Valve Connector End View (C450)

G07831185

Courtesy of FORD MOTOR CO.

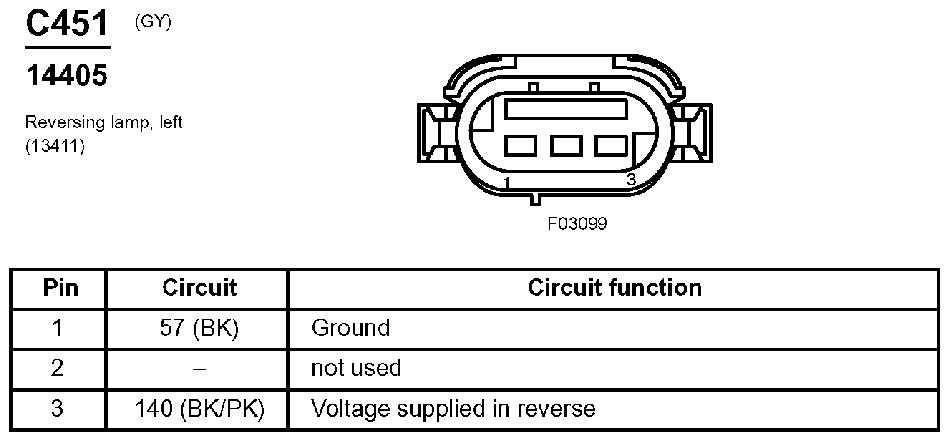

Fig 135: Reversing Lamp, Left Connector End View (C451)

G07831186

Courtesy of FORD MOTOR CO.

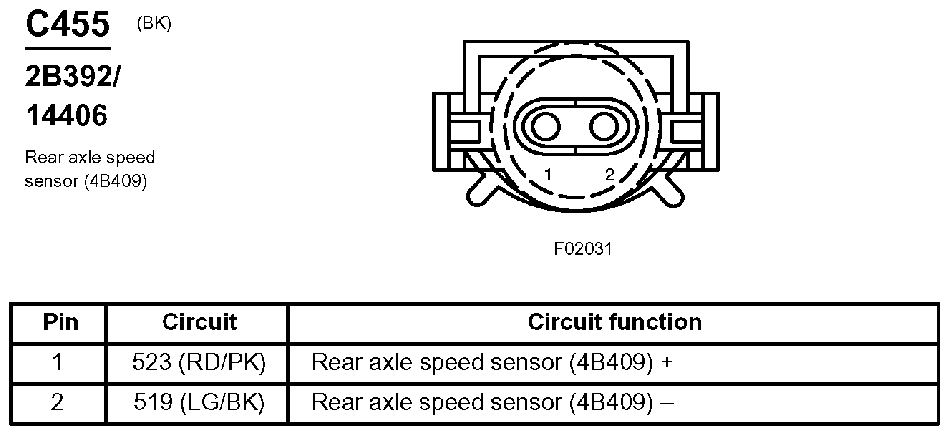

Fig 136: Rear Axle Speed Sensor Connector End View (C455)

G07831187

Courtesy of FORD MOTOR CO.

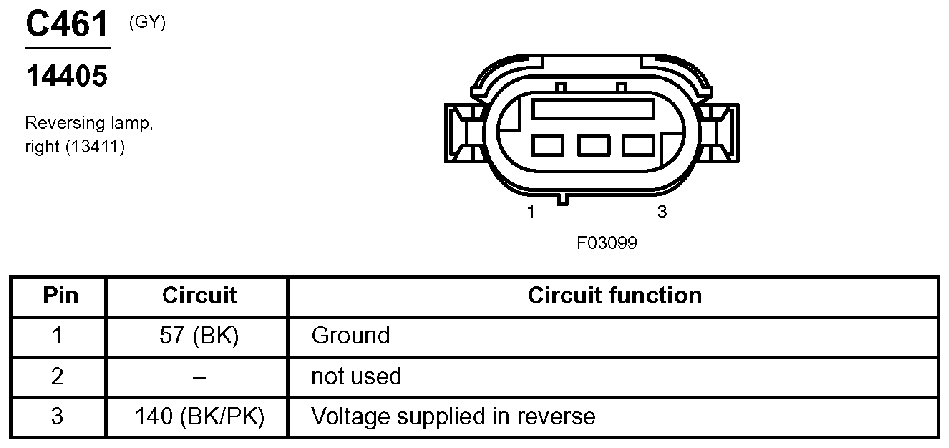

Fig 137: Reversing Lamp, Right Connector End View (C461)

G07831188

Courtesy of FORD MOTOR CO.

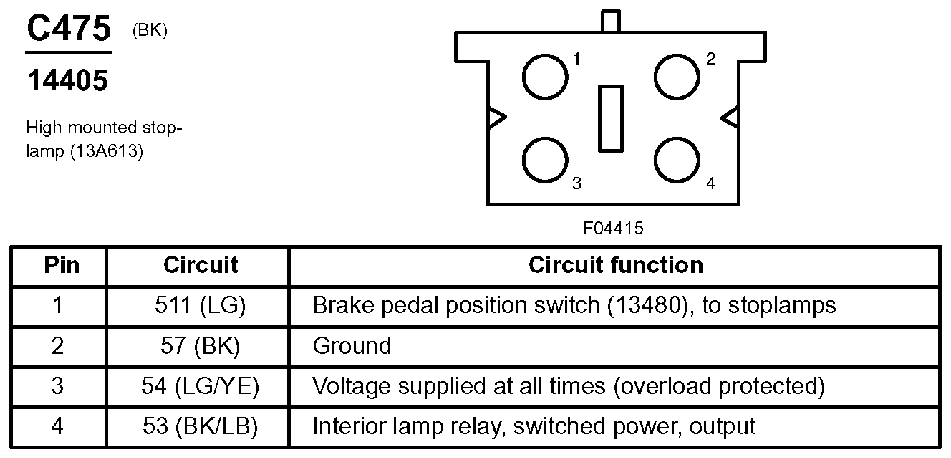

Fig 138: High Mounted Stoplamp Connector End View (C475)

G07831189

Courtesy of FORD MOTOR CO.

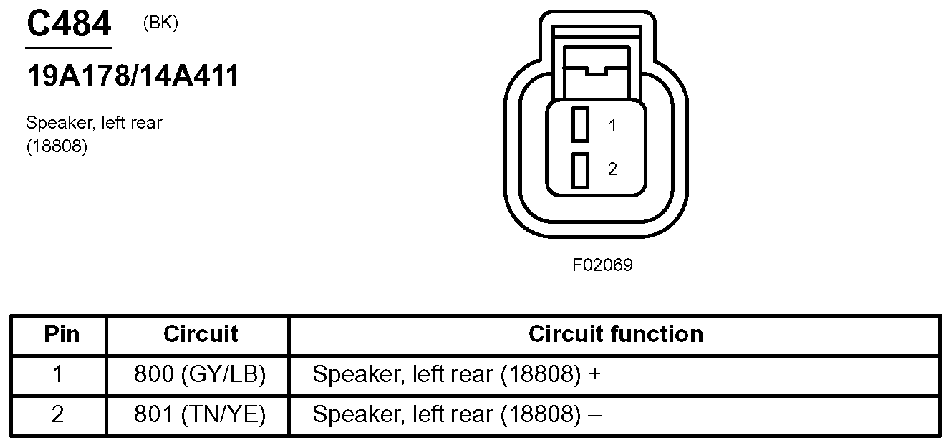

Fig 139: Speaker, Left Rear Connector End View (C484)

G07831190

Courtesy of FORD MOTOR CO.

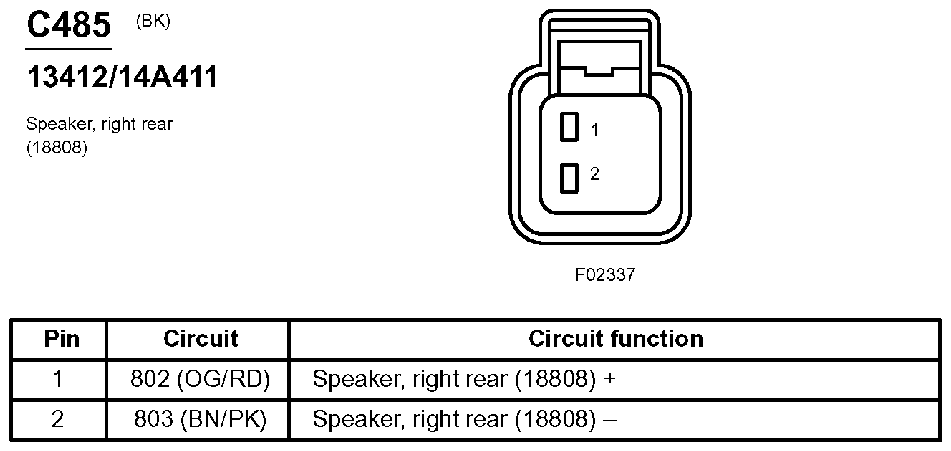

Fig 140: Speaker, Right Rear Connector End View (C485)

G07831191

Courtesy of FORD MOTOR CO.

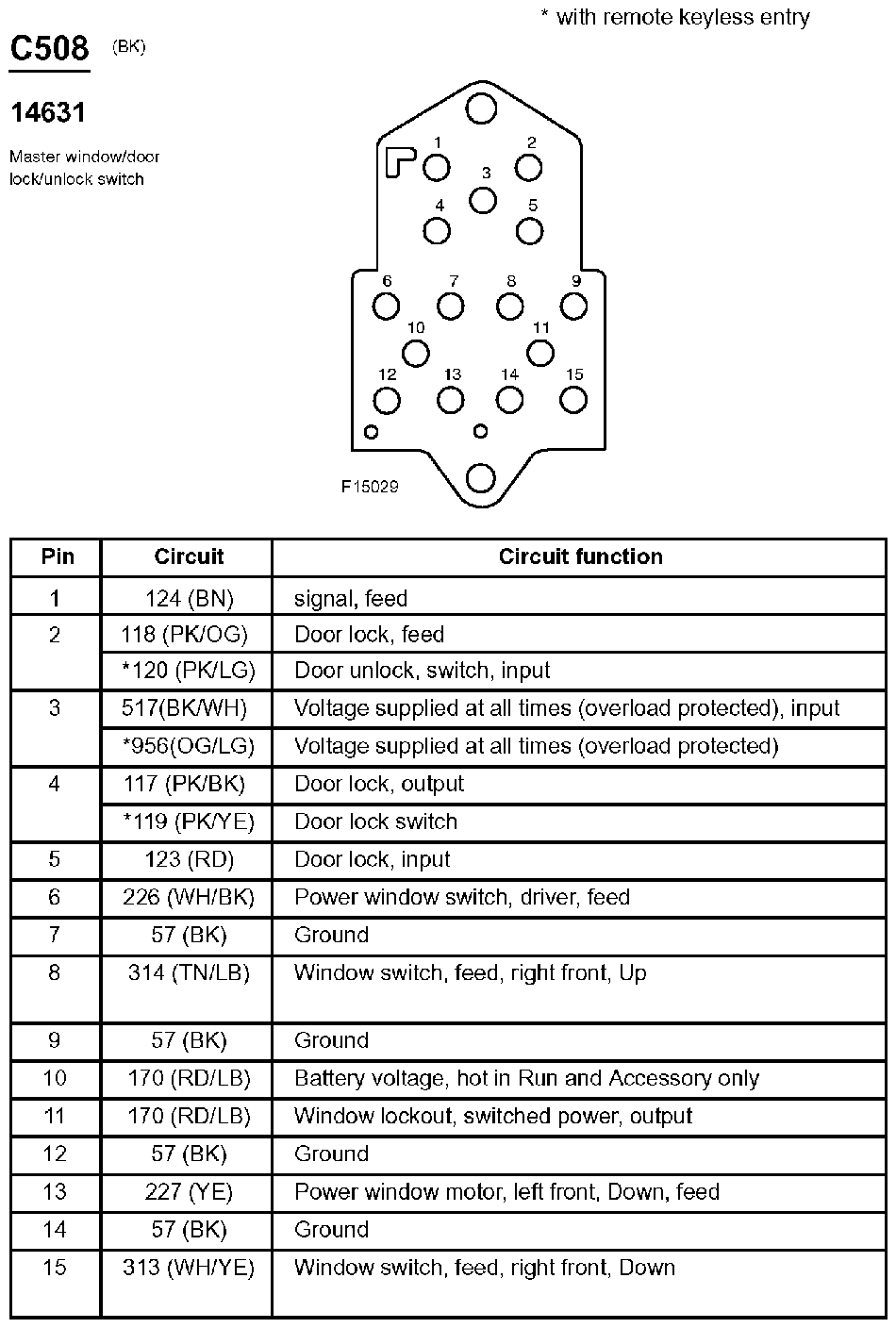

Fig 141: Master Window/Door Lock/Unlock Switch Connector End View (C508)

G07831192

Courtesy of FORD MOTOR CO.

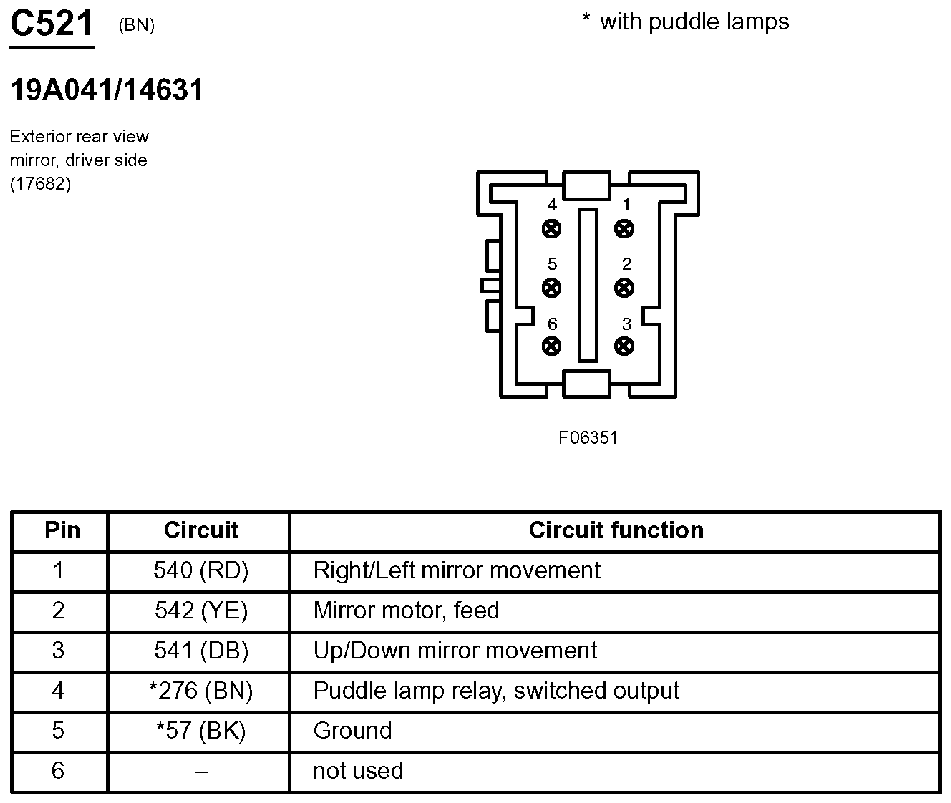

Fig 142: Exterior Rear View Mirror, Driver Side Connector End View (C521)

G07831193

Courtesy of FORD MOTOR CO.

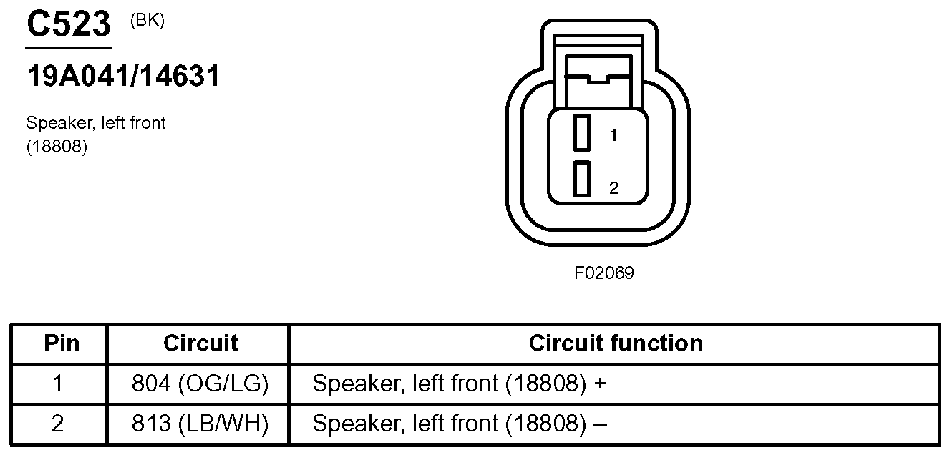

Fig 143: Speaker, Left Front Connector End View (C523)

G07831194

Courtesy of FORD MOTOR CO.

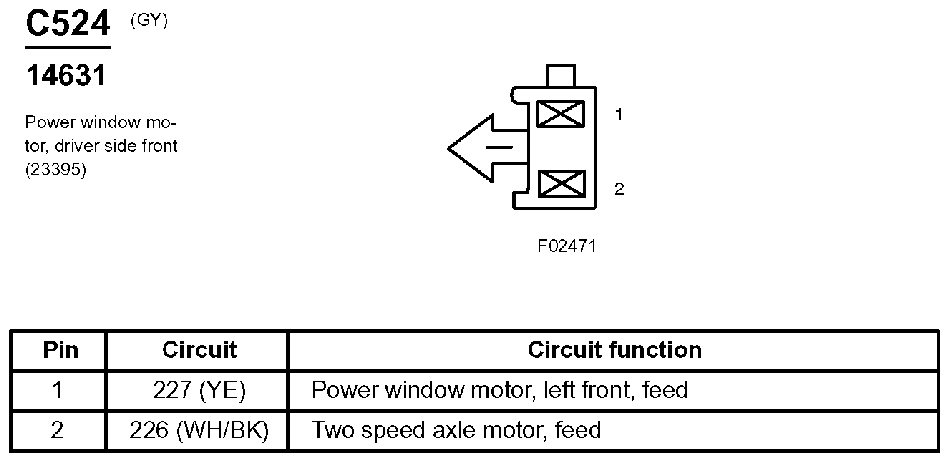

Fig 144: Power Window Motor, Driver Side Front Connector End View (C524)

G07831195

Courtesy of FORD MOTOR CO.

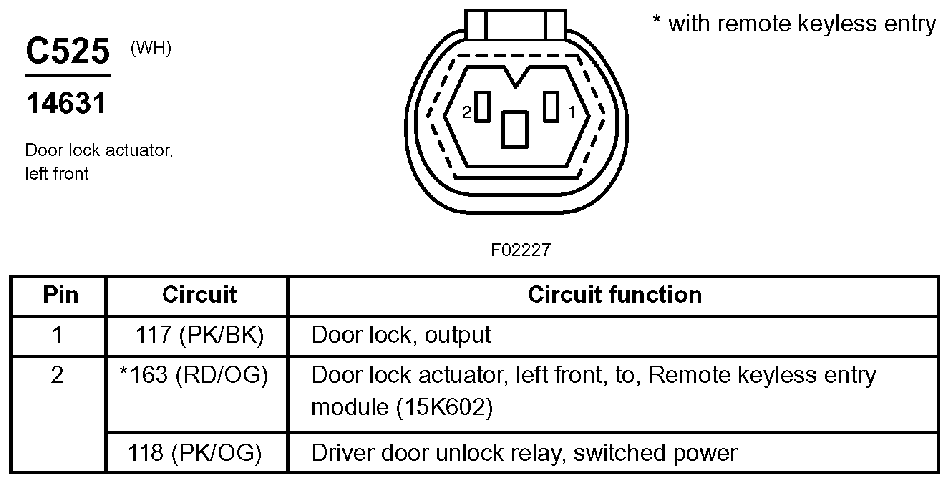

Fig 145: Door Lock Actuator, Left Front Connector End View (C525)

G07831196

Courtesy of FORD MOTOR CO.

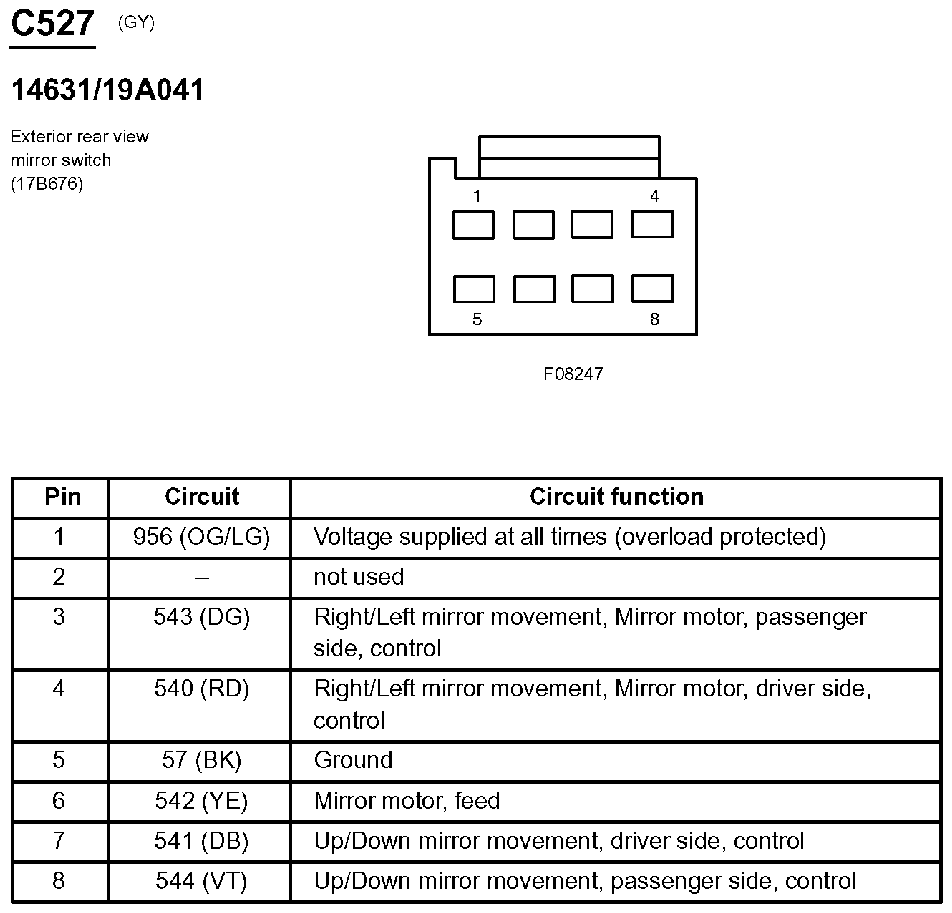

Fig 146: Exterior Rear View Mirror Switch Connector End View (C527)

G07831197

Courtesy of FORD MOTOR CO.

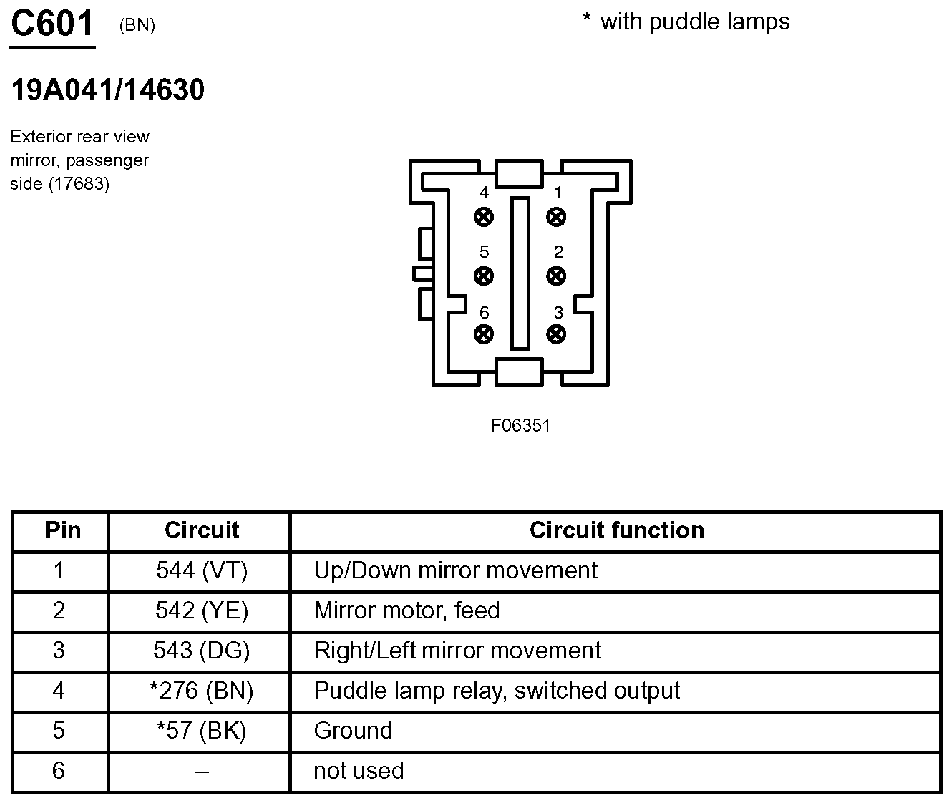

Fig 147: Exterior Rear View Mirror, Passenger Side Connector End View (C601)

G07831198

Courtesy of FORD MOTOR CO.

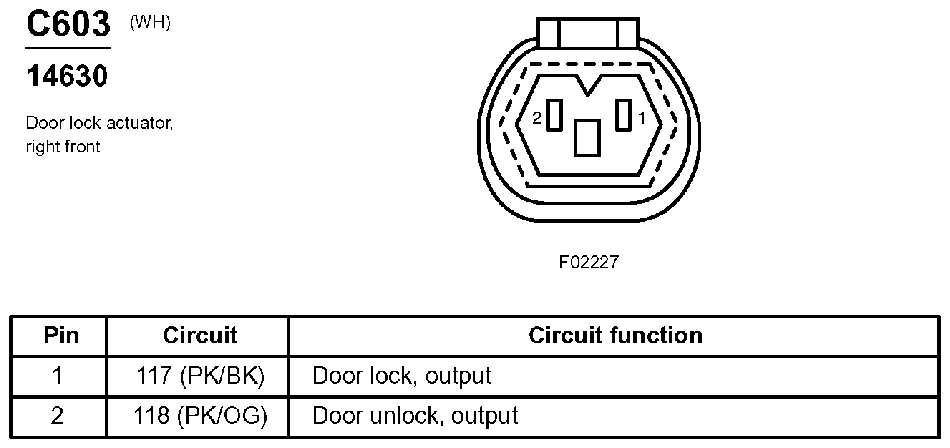

Fig 148: Door Lock Actuator, Right Front Connector End View (C603)

G07831199

Courtesy of FORD MOTOR CO.

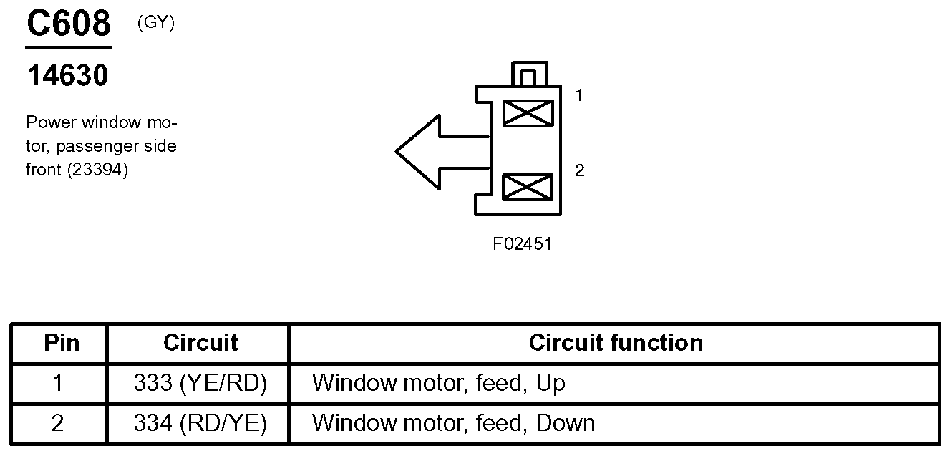

Fig 149: Power Window Motor, Passenger Side Front Connector End View (C608)

G07831200

Courtesy of FORD MOTOR CO.

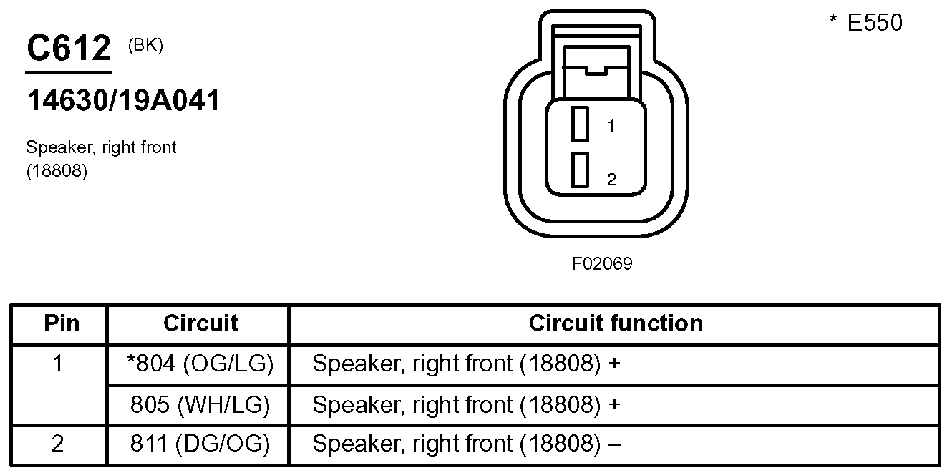

Fig 150: Speaker, Right Front Connector End View (C612)

G07831201

Courtesy of FORD MOTOR CO.

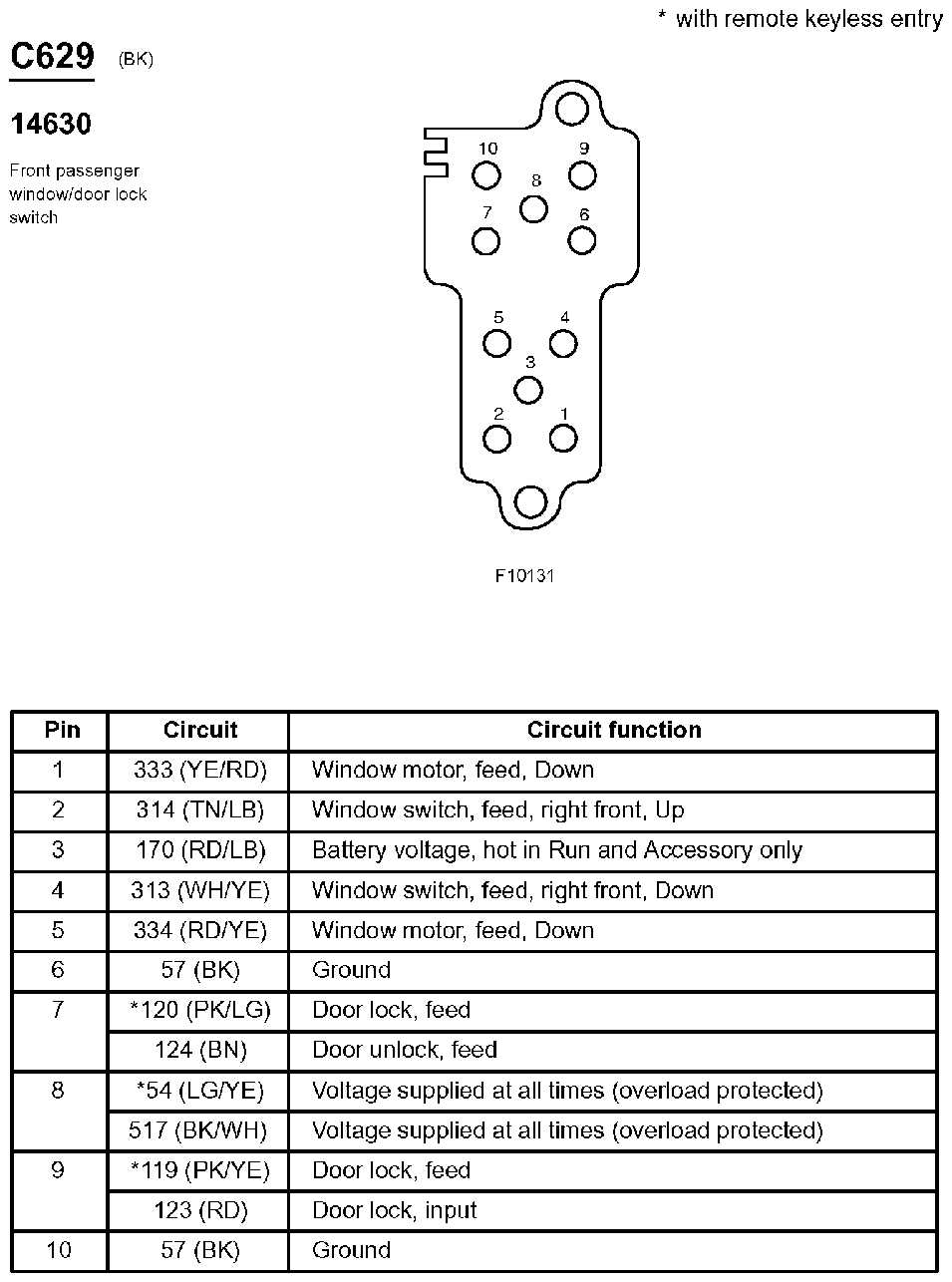

Fig 151: Front Passenger Window/Door Lock Switch Connector End View (C629)

G07831202

Courtesy of FORD MOTOR CO.

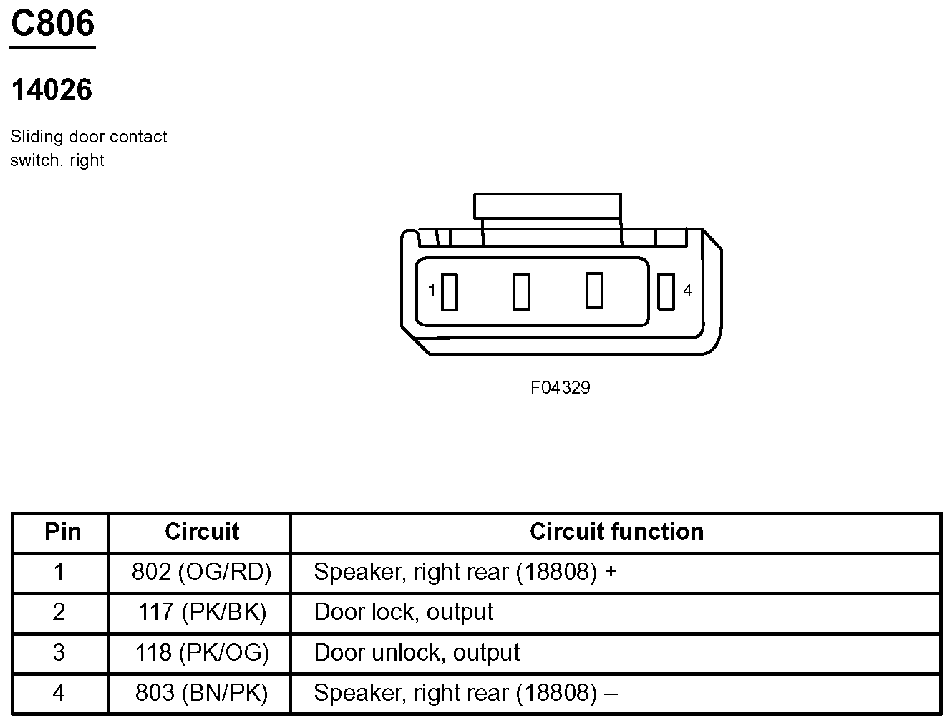

Fig 152: Sliding Door Contact Switch, Right Connector End View (C806)

G07831203

Courtesy of FORD MOTOR CO.

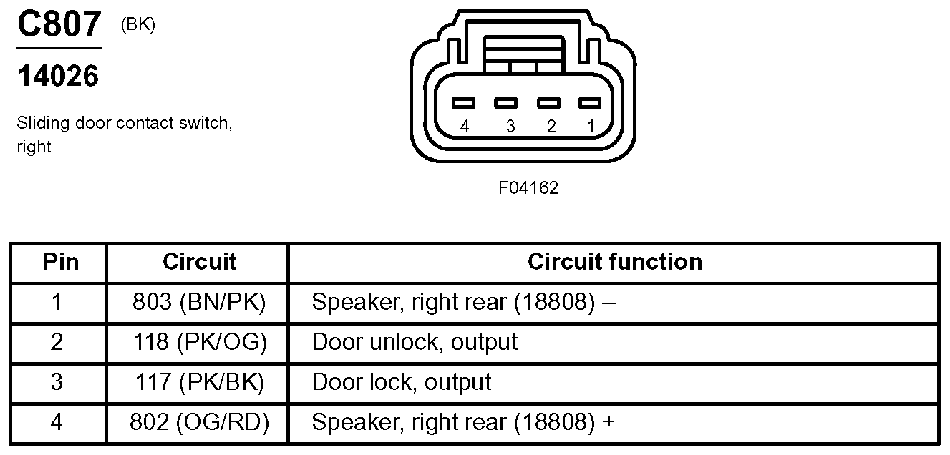

Fig 153: Sliding Door Contact Switch, Right Connector End View (C807)

G07831204

Courtesy of FORD MOTOR CO.

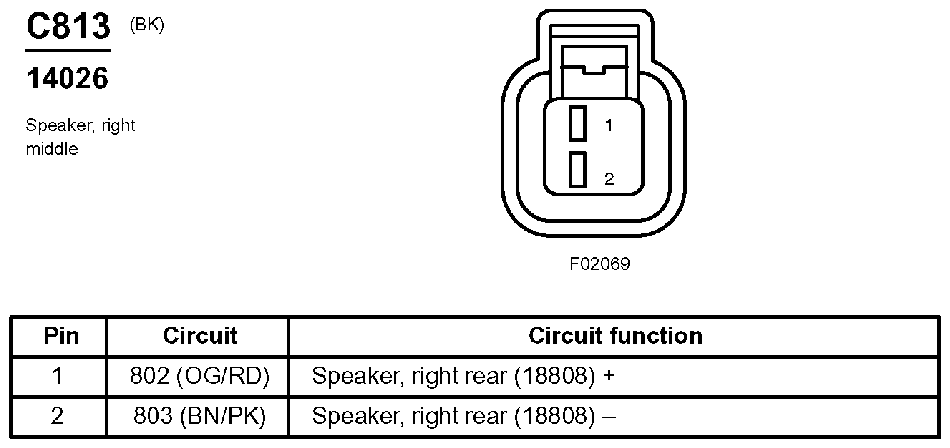

Fig 154: Speaker, Right Middle Connector End View (C813)

G07831205

Courtesy of FORD MOTOR CO.

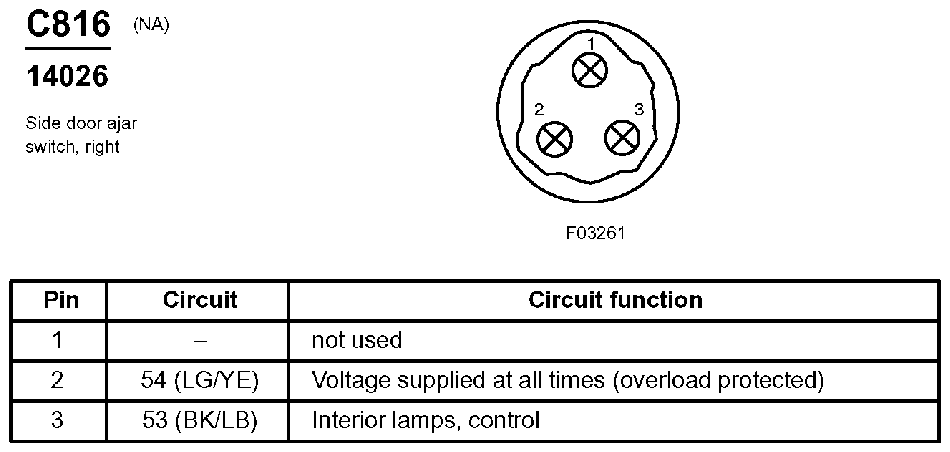

Fig 155: Side Door Ajar Switch, Right Connector End View (C816)

G07831206

Courtesy of FORD MOTOR CO.

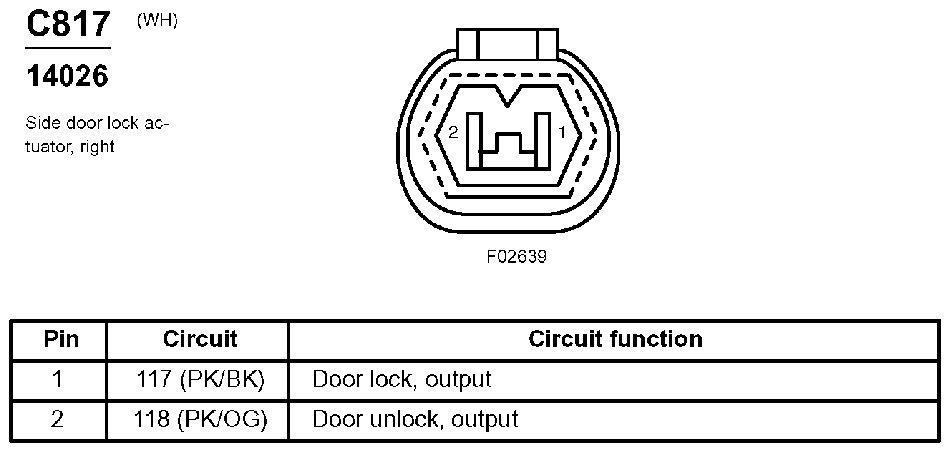

Fig 156: Side Door Lock Actuator, Right Connector End View (C817)

G07831207

Courtesy of FORD MOTOR CO.

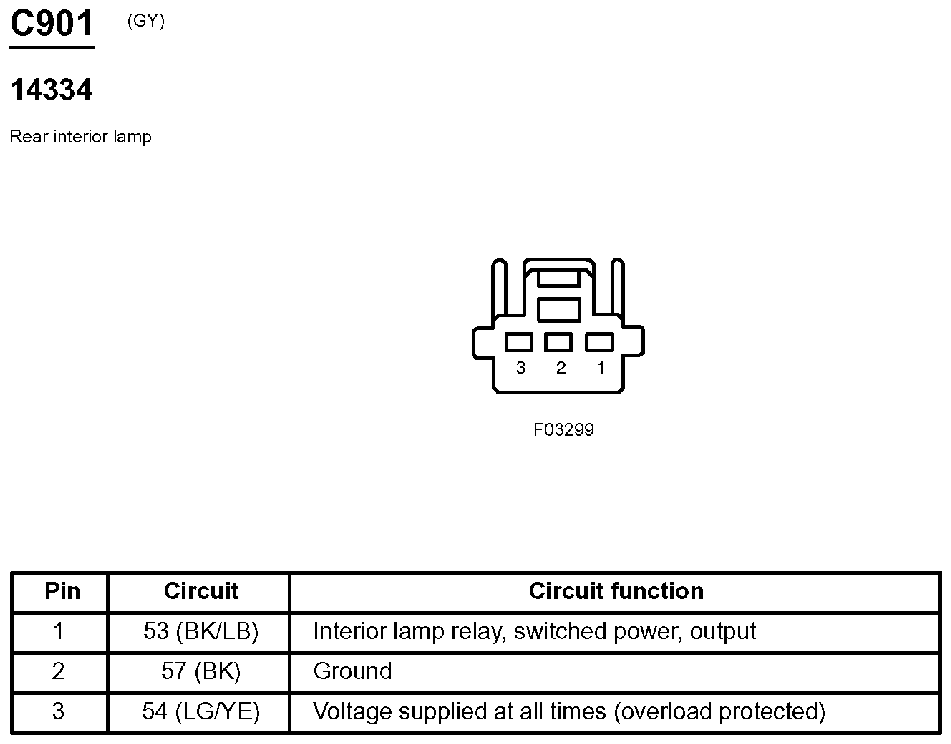

Fig 157: Rear Interior Lamp Connector End View (C901)

G07831208

Courtesy of FORD MOTOR CO.

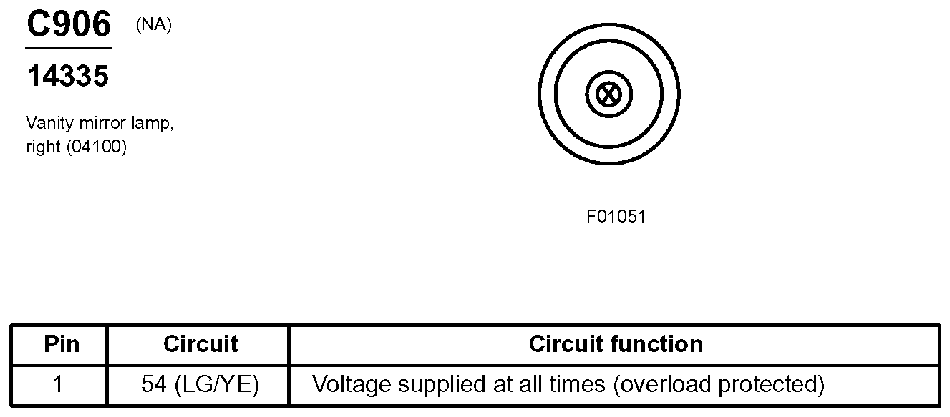

Fig 158: Vanity Mirror Lamp, Right Connector End View (C906)

G07831209

Courtesy of FORD MOTOR CO.

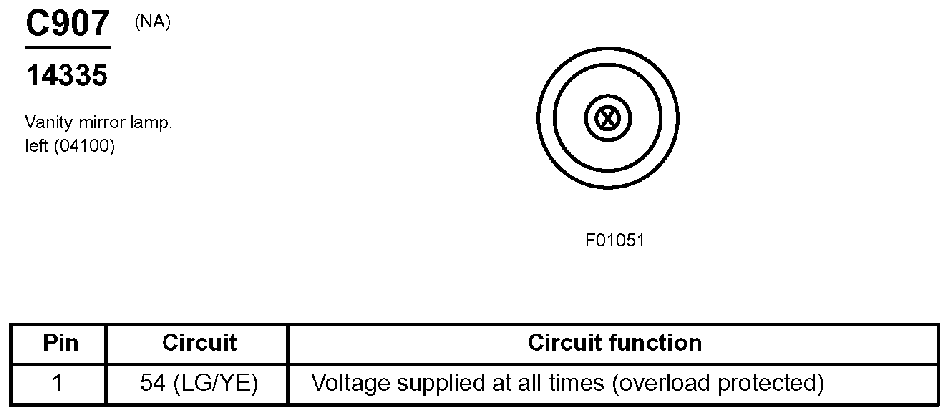

Fig 159: Vanity Mirror Lamp, Left Connector End View (C907)

G07831210

Courtesy of FORD MOTOR CO.

Fig 160: Inline Connector End View (C913)

G07831211

Courtesy of FORD MOTOR CO.

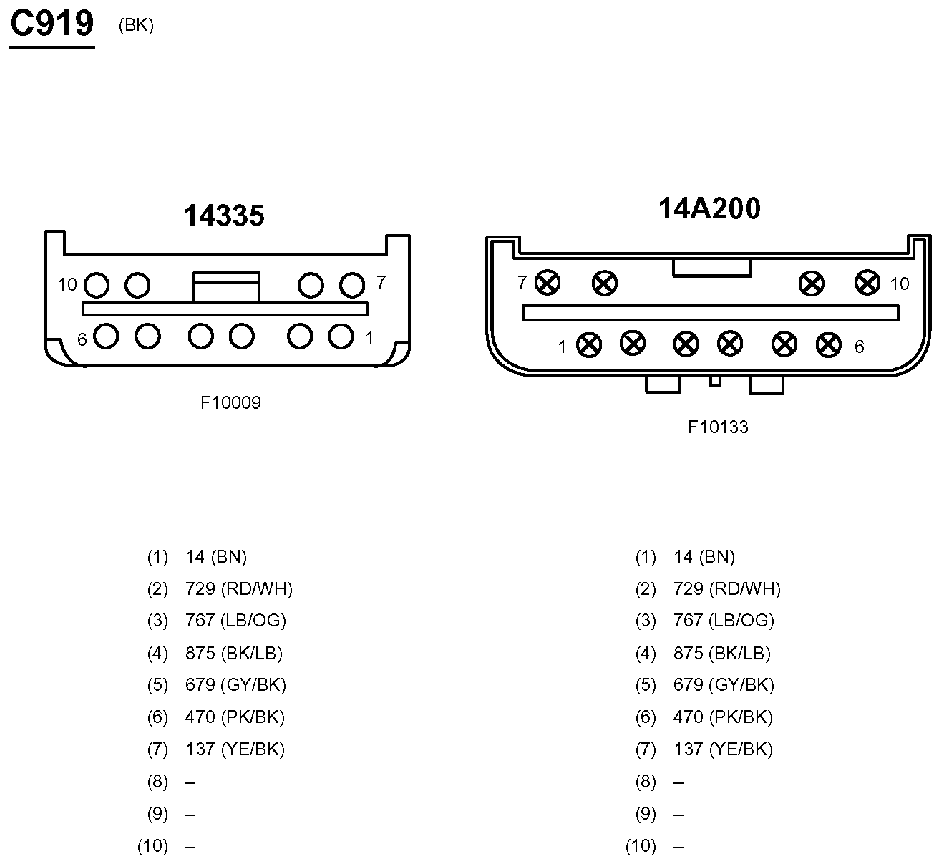

Fig 161: Inline Connector End View (C919)

G07831212

Courtesy of FORD MOTOR CO.

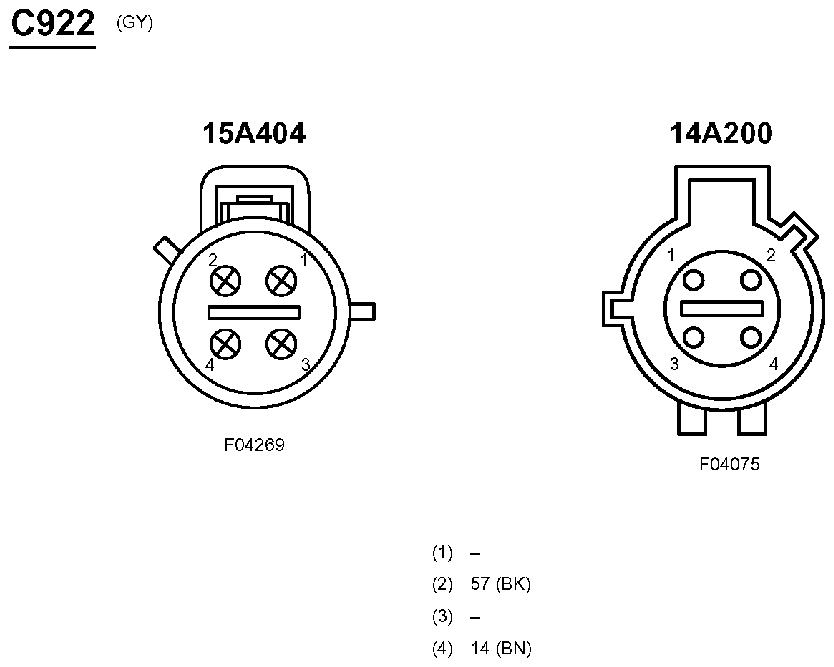

Fig 162: Inline Connector End View (C922)

G07831213

Courtesy of FORD MOTOR CO.

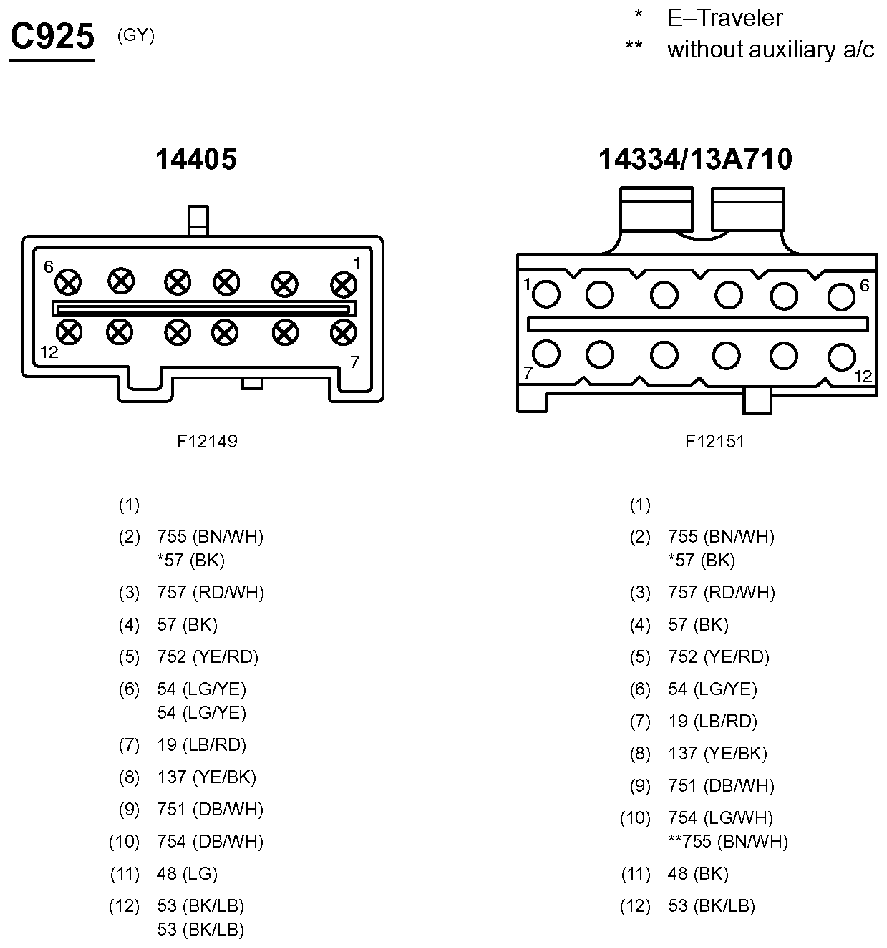

Fig 163: Inline Connector End View (C925)

G07831214

Courtesy of FORD MOTOR CO.

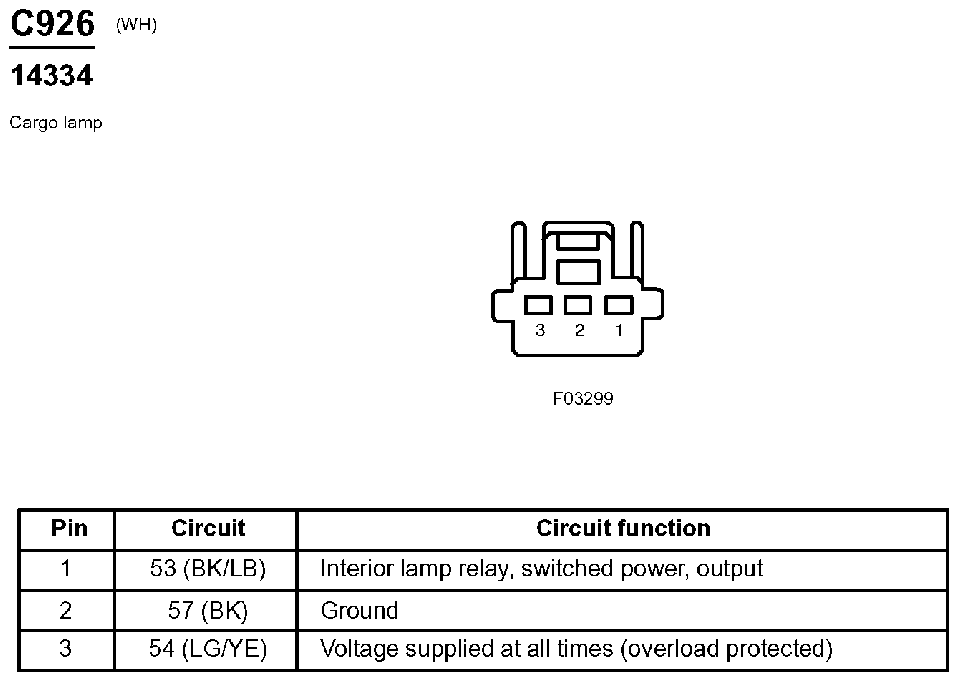

Fig 164: Cargo Lamp Connector End View (C926)

G07831215

Courtesy of FORD MOTOR CO.

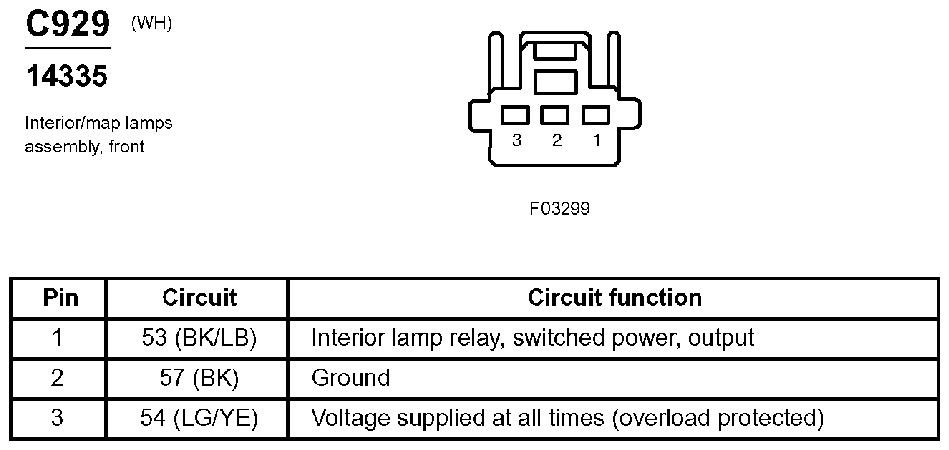

Fig 165: Interior/Map Lamps Assembly, Front Connector End View (C929)

G07831216

Courtesy of FORD MOTOR CO.

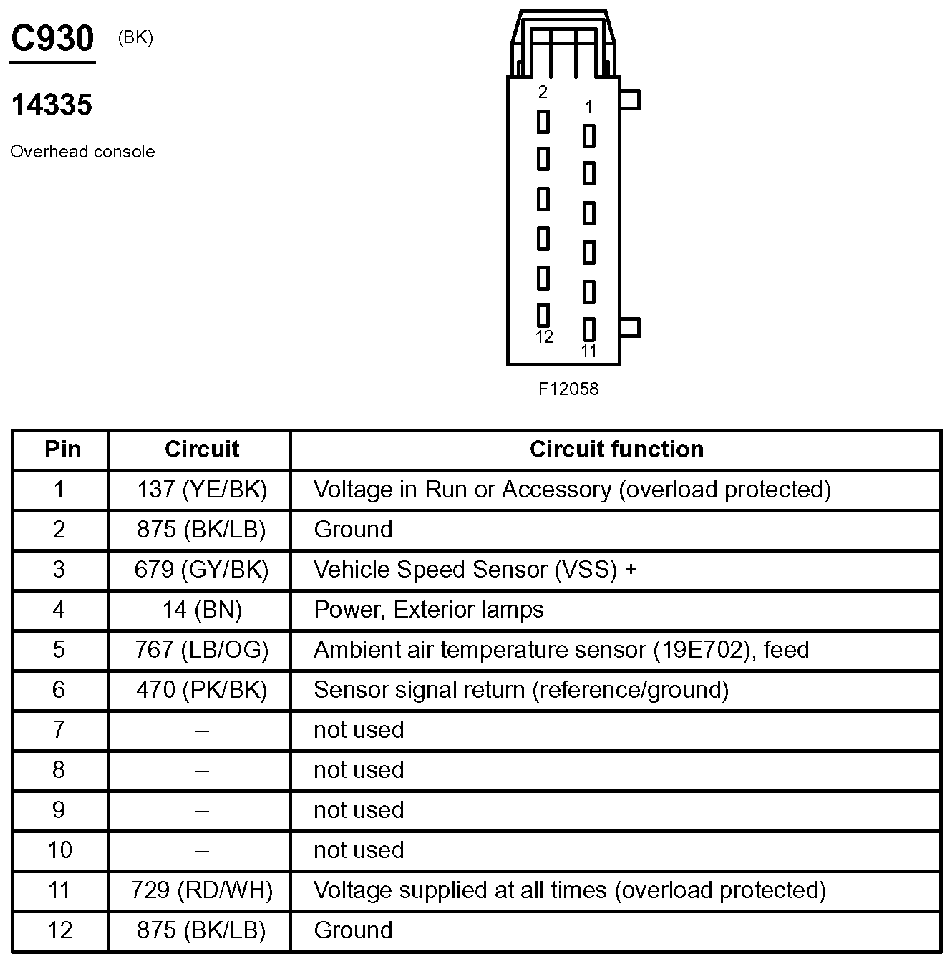

Fig 166: Overhead Console Connector End View (C930)

G07831217

Courtesy of FORD MOTOR CO.

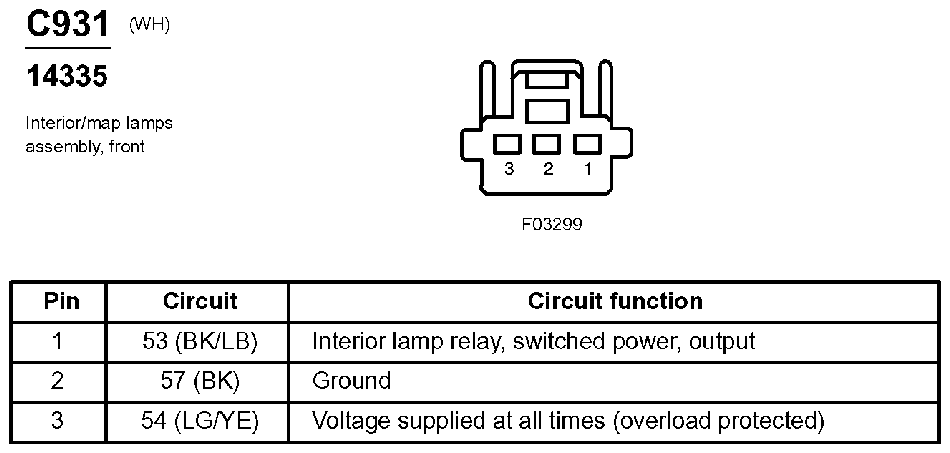

Fig 167: Interior/Map Lamps Assembly, Front Connector End View (C931)

G07831218

Courtesy of FORD MOTOR CO.

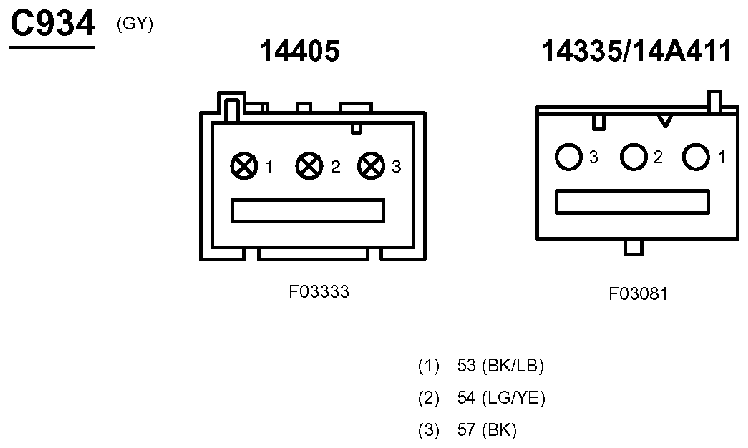

Fig 168: Inline Connector End View (C934)

G07831219

Courtesy of FORD MOTOR CO.

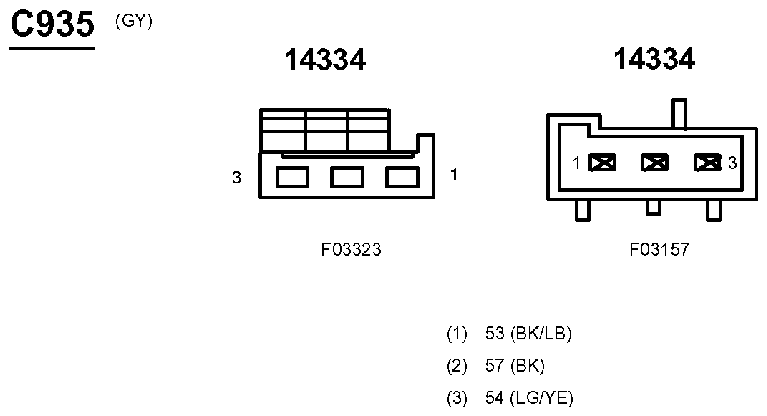

Fig 169: Inline Connector End View (C935)

G07831220

Courtesy of FORD MOTOR CO.

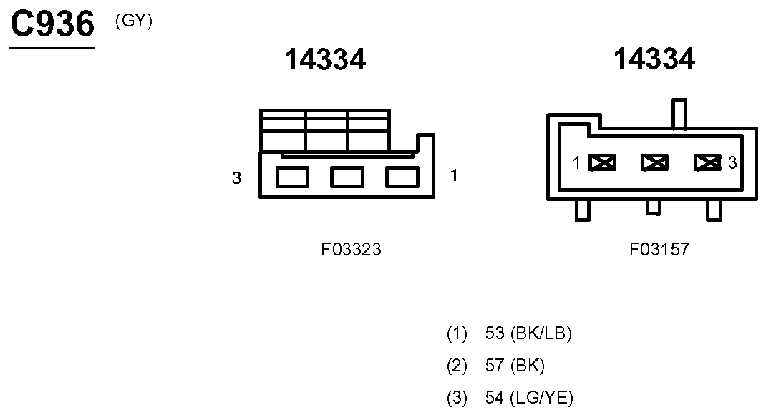

Fig 170: Inline Connector End View (C936)

G07831221

Courtesy of FORD MOTOR CO.

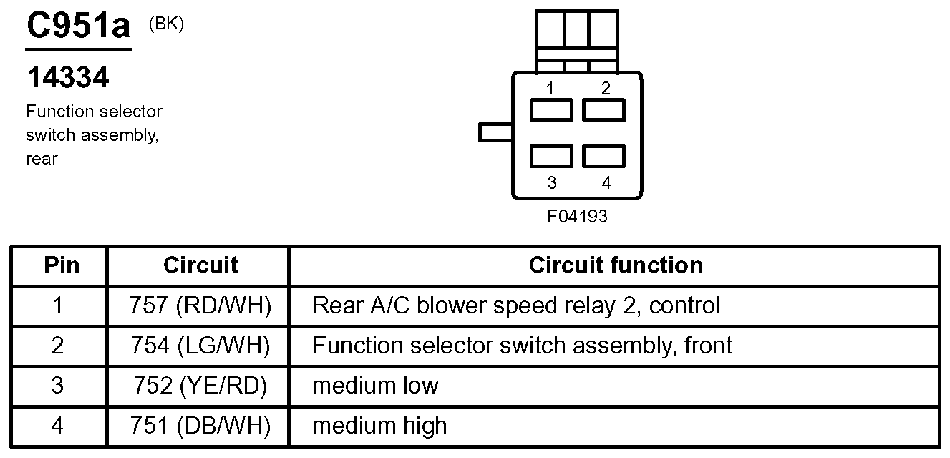

Fig 171: Function Selector Switch Assembly, Rear Connector End View (C951a)

G07831222

Courtesy of FORD MOTOR CO.

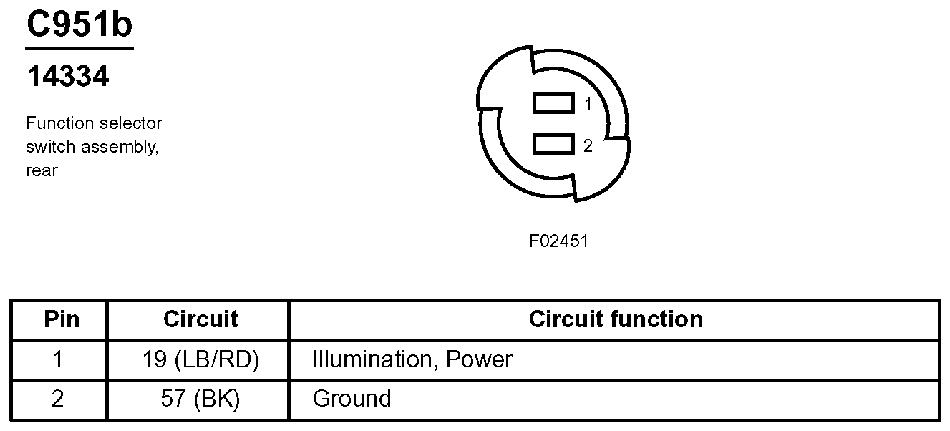

Fig 172: Function Selector Switch Assembly, Rear Connector End View (C951b)

G07831223

Courtesy of FORD MOTOR CO.

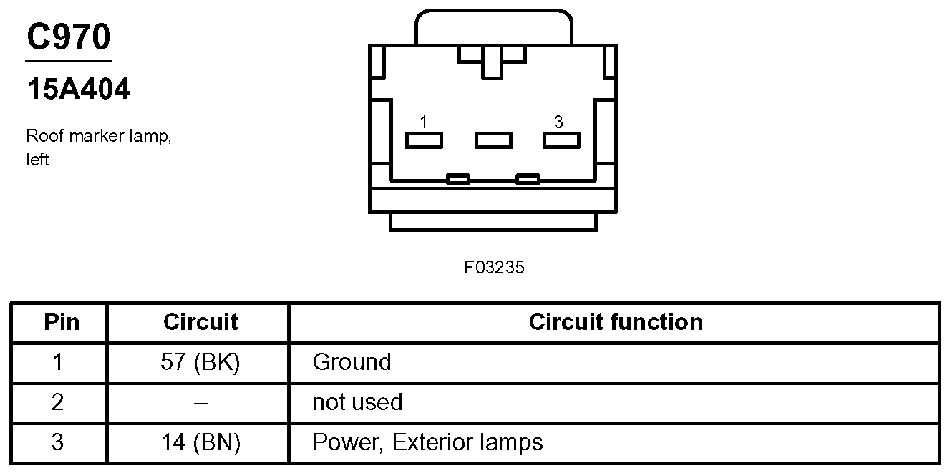

Fig 173: Roof Marker Lamp, Left Connector End View (C970)

G07831224

Courtesy of FORD MOTOR CO.

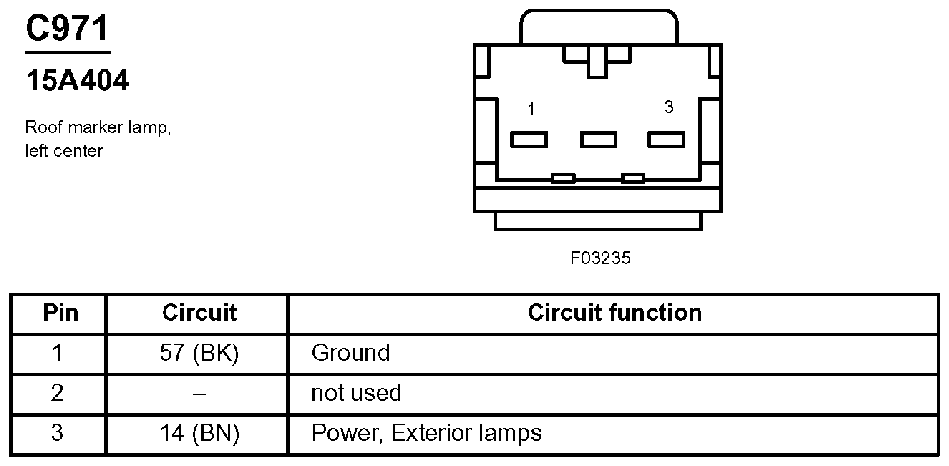

Fig 174: Roof Marker Lamp, Left Center Connector End View (C971)

G07831225

Courtesy of FORD MOTOR CO.

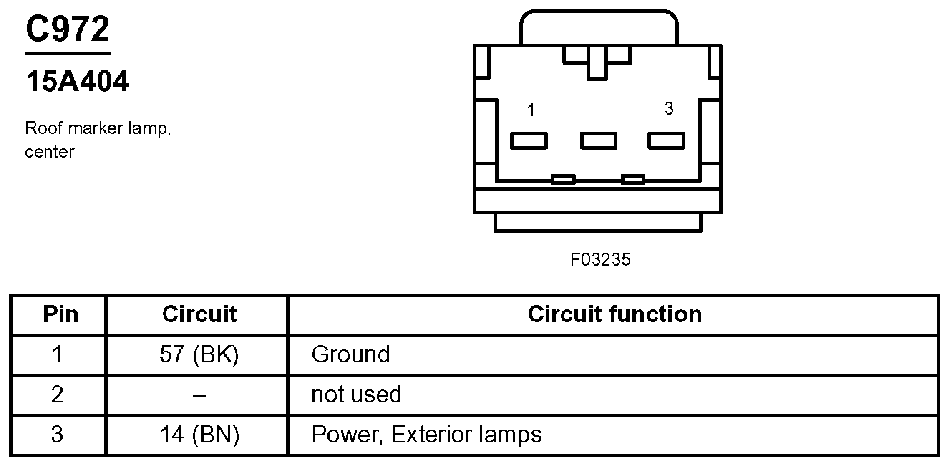

Fig 175: Roof Marker Lamp, Center Connector End View (C972)

G07831226

Courtesy of FORD MOTOR CO.

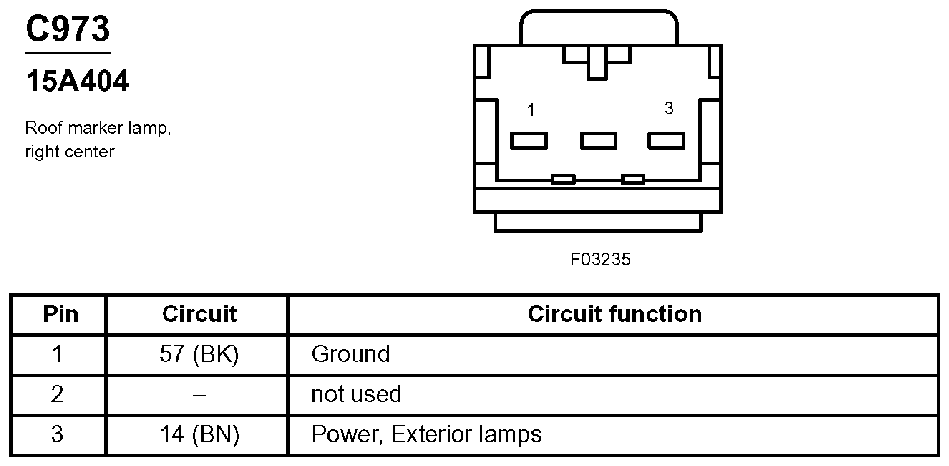

Fig 176: Roof Marker Lamp, Right Center Connector End View (C973)

G07831227

Courtesy of FORD MOTOR CO.

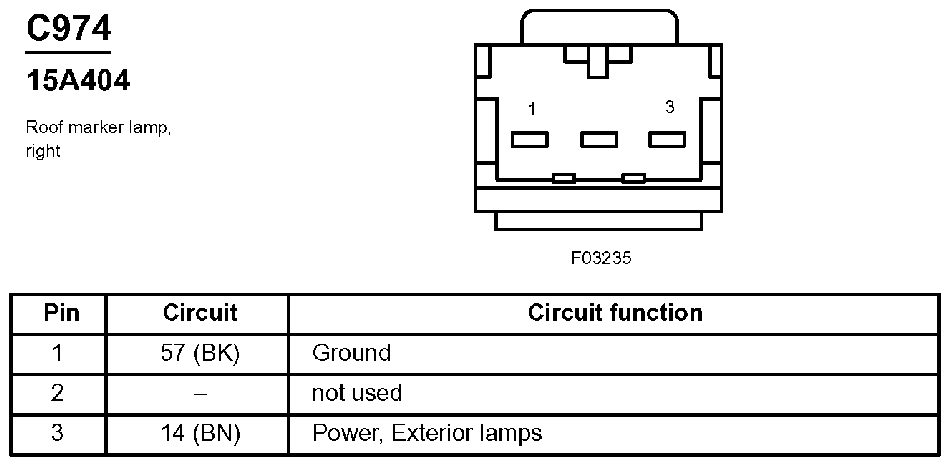

Fig 177: Roof Marker Lamp, Right Connector End View (C974)

G07831228

Courtesy of FORD MOTOR CO.

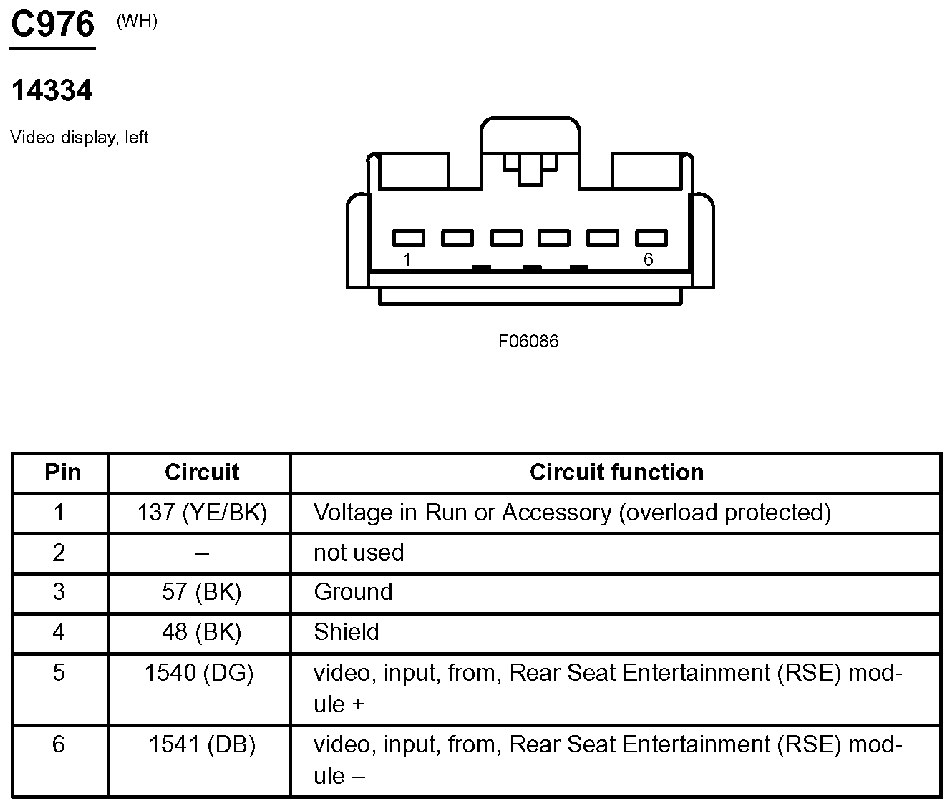

Fig 178: Video Display, Left Connector End View (C976)

G07831229

Courtesy of FORD MOTOR CO.

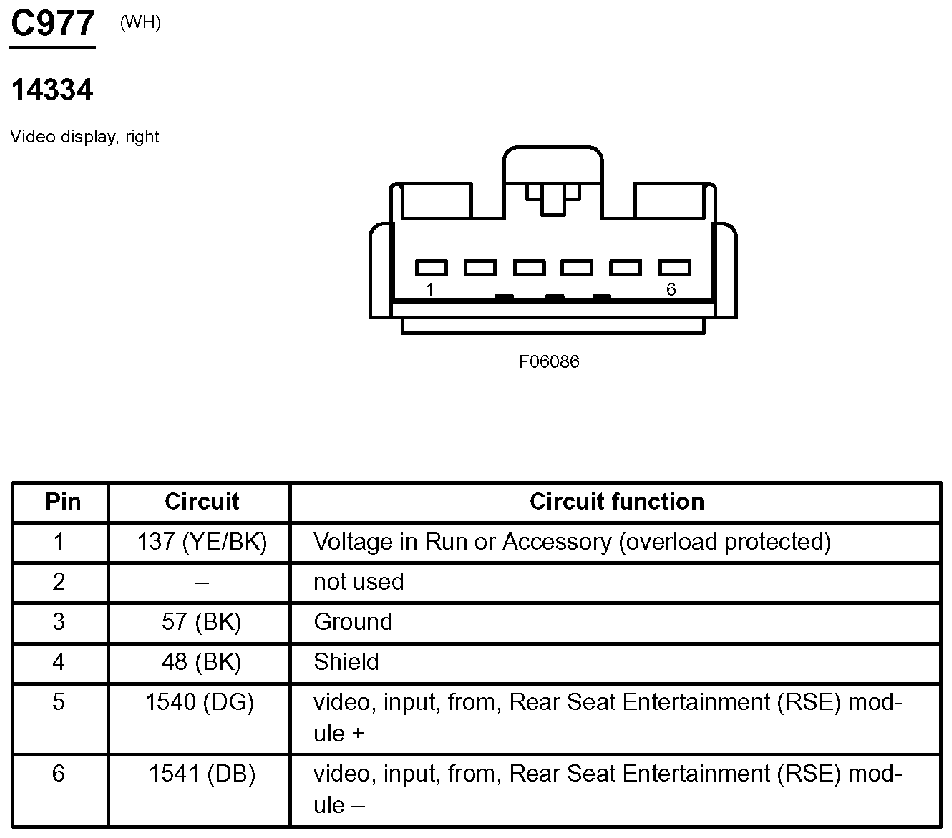

Fig 179: Video Display, Right Connector End View (C977)

G07831230

Courtesy of FORD MOTOR CO.

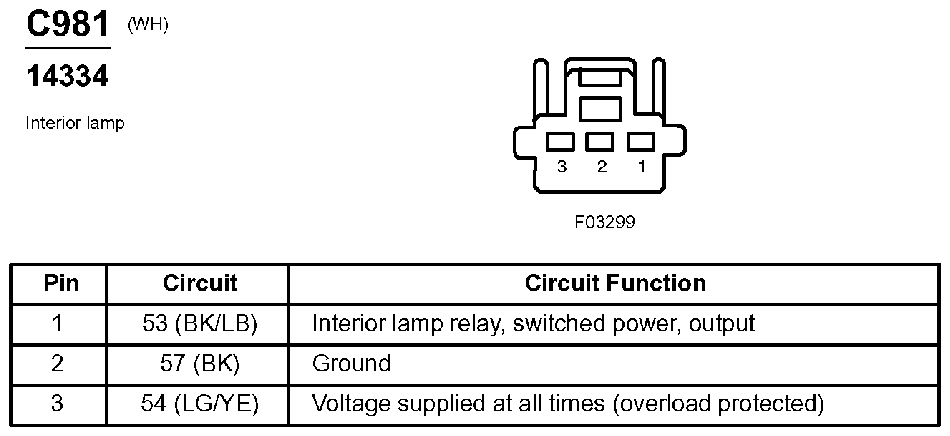

Fig 180: Interior Lamp Connector End View (C981)

G07831231

Courtesy of FORD MOTOR CO.

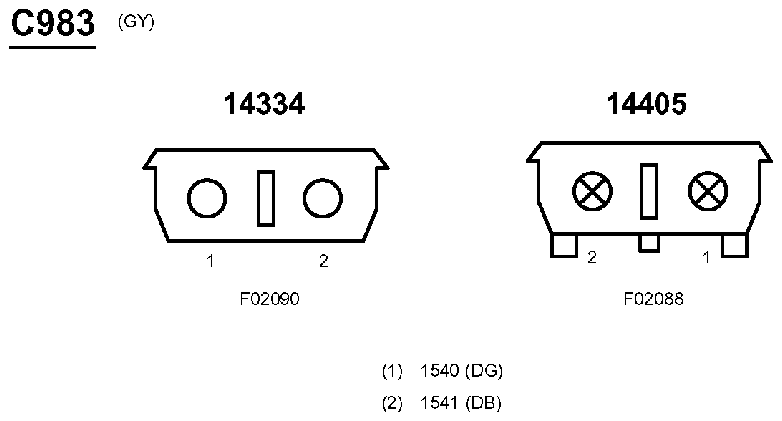

Fig 181: Inline Connector End View (C983)

G07831232

Courtesy of FORD MOTOR CO.

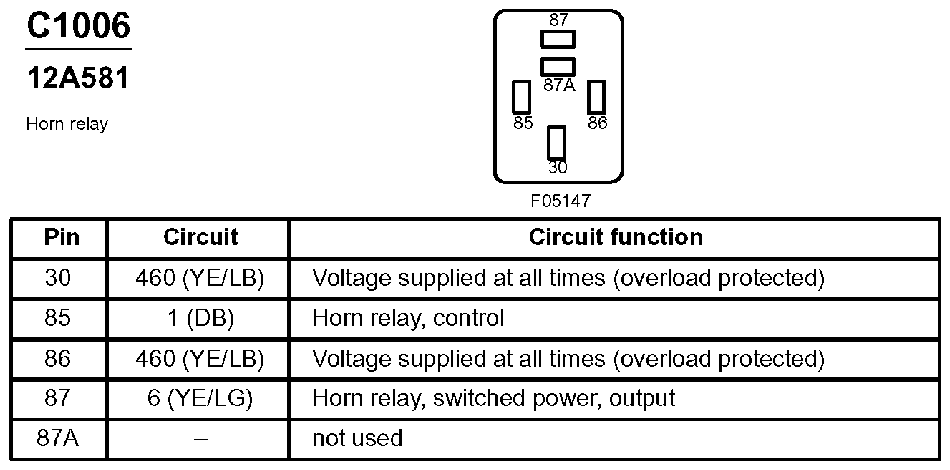

Fig 182: Horn Relay Connector End View (C1006)

G07831233

Courtesy of FORD MOTOR CO.

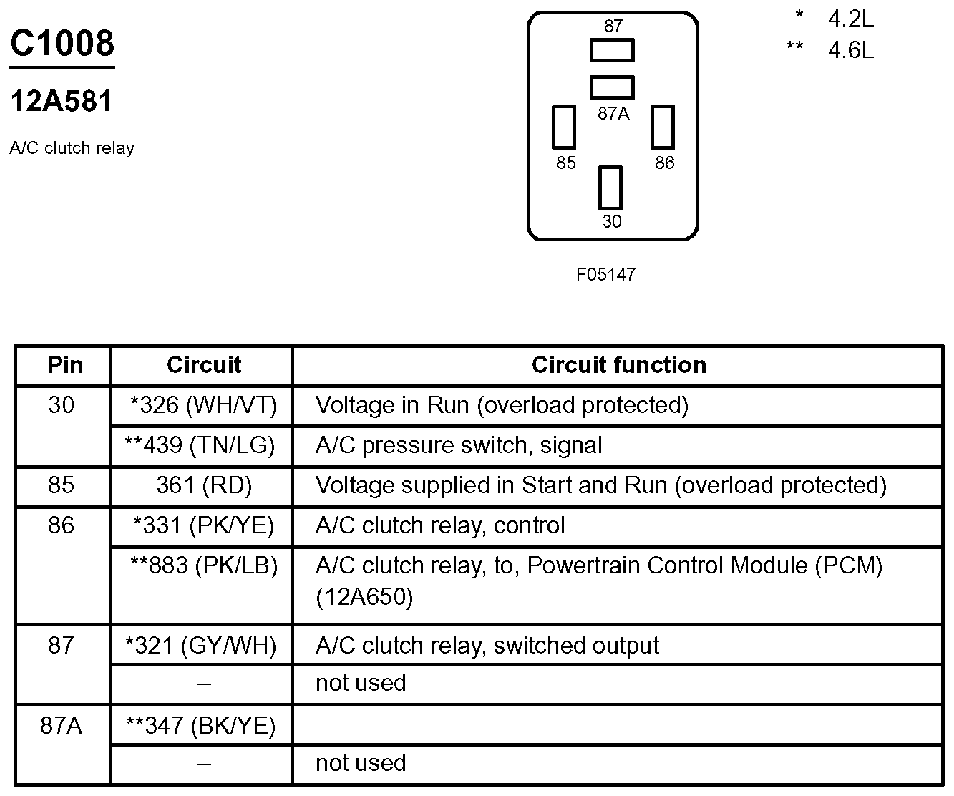

Fig 183: A/C Clutch Relay Connector End View (C1008)

G07831234

Courtesy of FORD MOTOR CO.

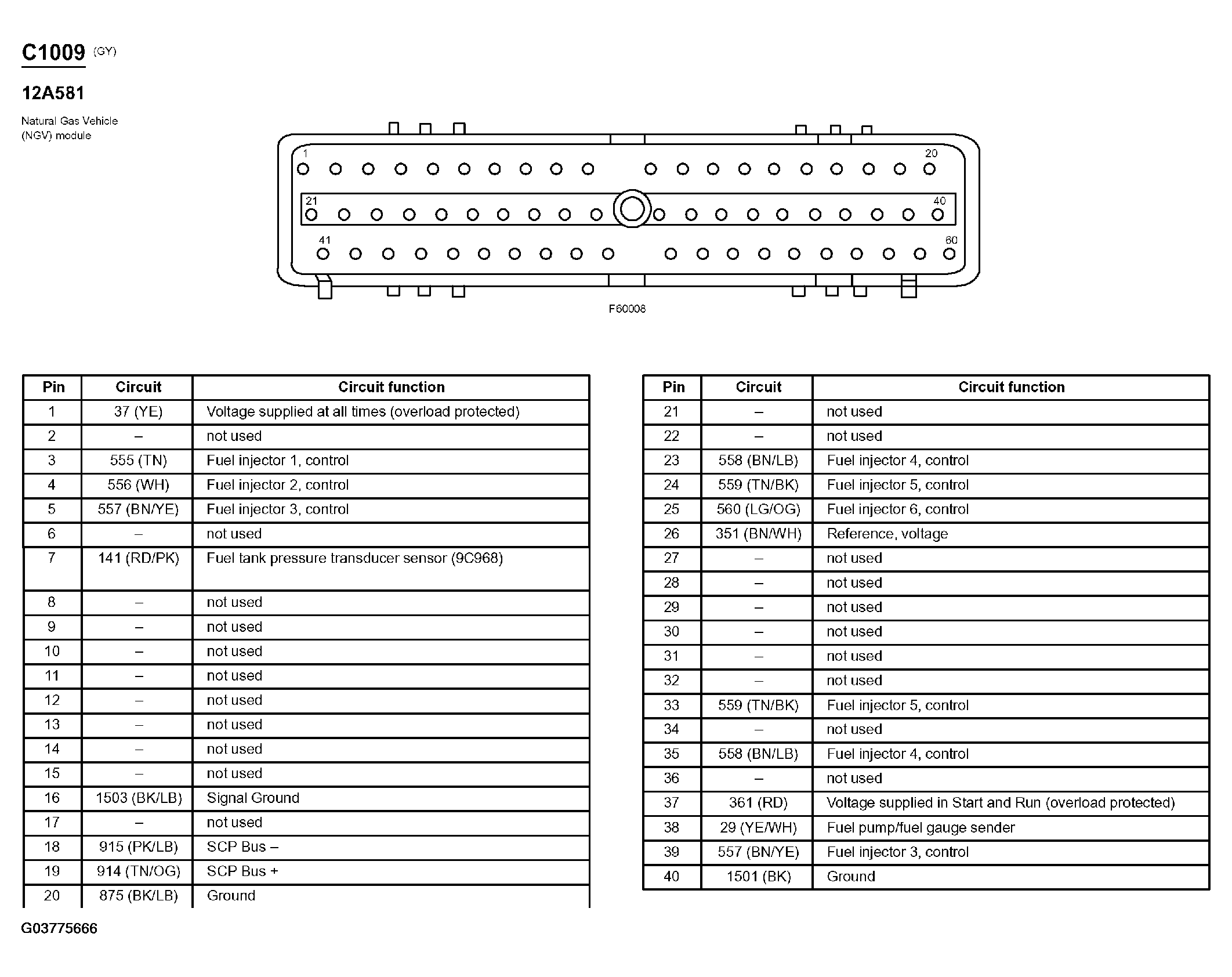

Fig 184: Natural Gas Vehicle (NGV) Module Connector End View (C1009) (1 Of 2)

G03775666

Courtesy of FORD MOTOR CO.

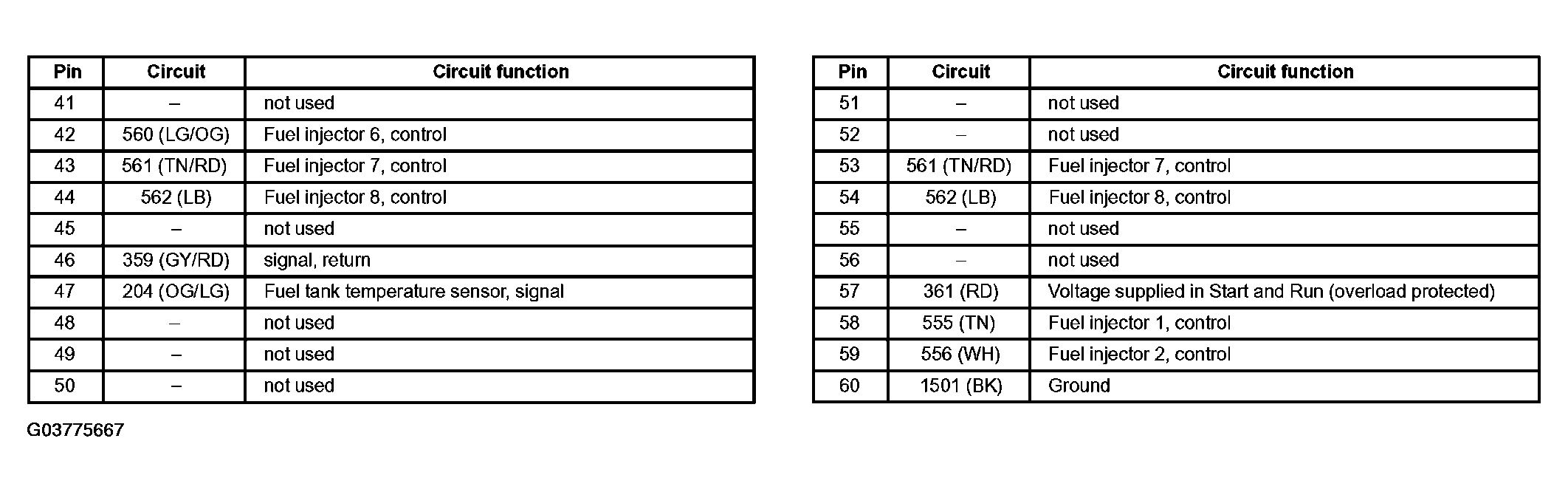

Fig 185: Natural Gas Vehicle (NGV) Module Connector End View (C1009) (2 Of 2)

G03775667

Courtesy of FORD MOTOR CO.

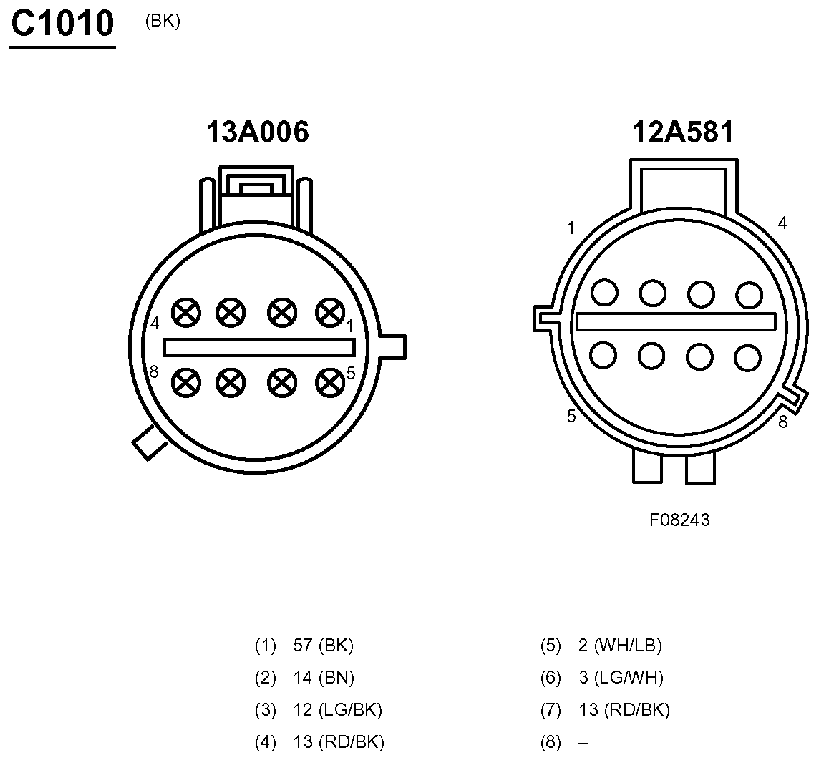

Fig 186: Inline Connector End View (C1010)

G07831235

Courtesy of FORD MOTOR CO.

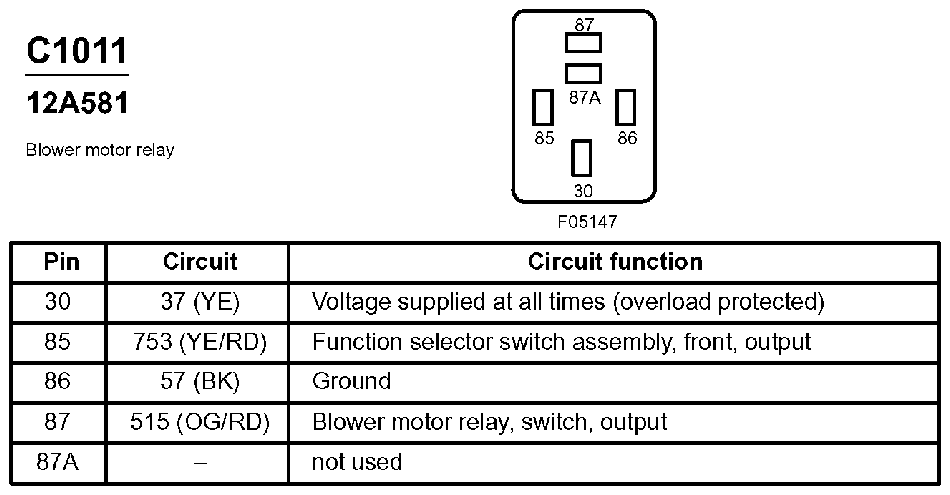

Fig 187: Blower Motor Relay Connector End View (C1011)

G07831236

Courtesy of FORD MOTOR CO.

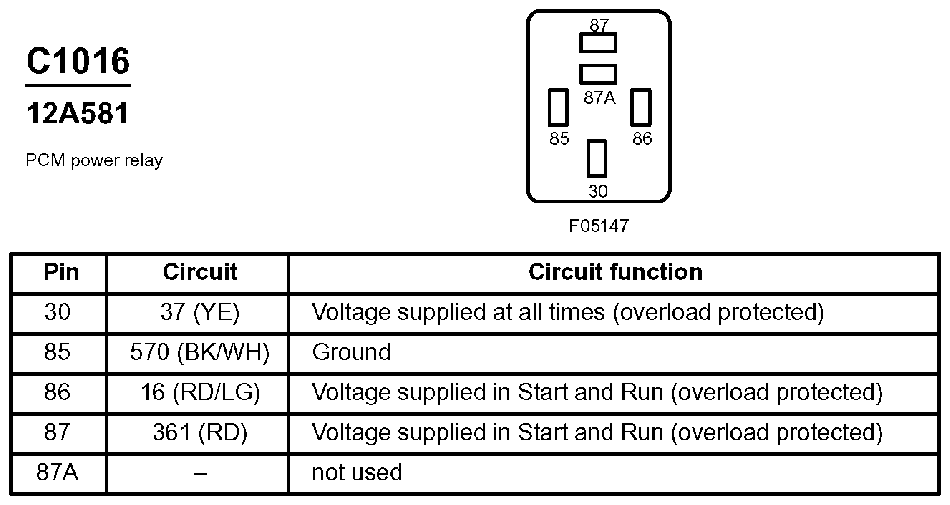

Fig 188: PCM Power Relay Connector End View (C1016)

G07831237

Courtesy of FORD MOTOR CO.

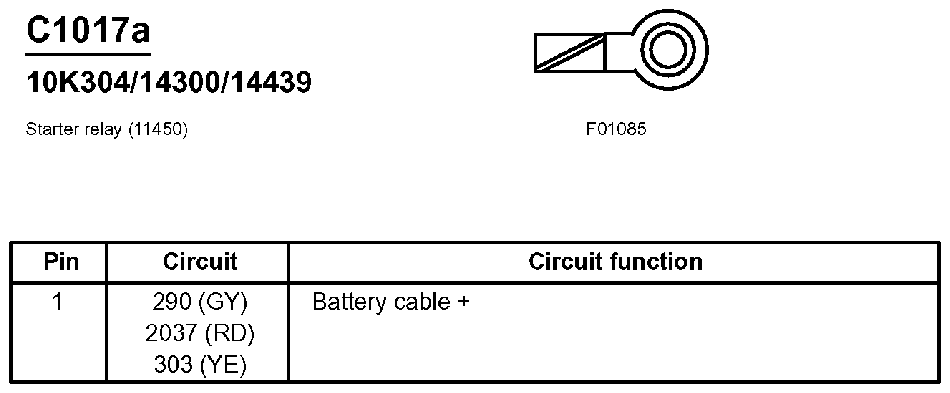

Fig 189: Starter Relay Connector End View (C1017a)

G07831238

Courtesy of FORD MOTOR CO.

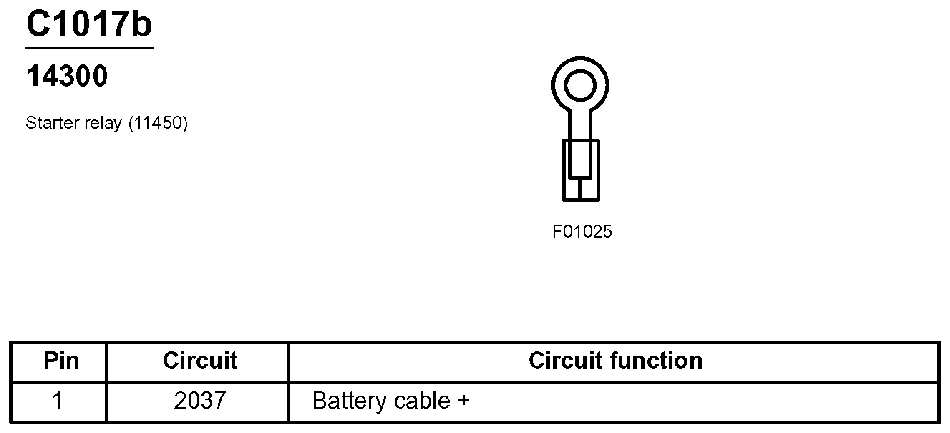

Fig 190: Starter Relay Connector End View (C1017b)

G07831239

Courtesy of FORD MOTOR CO.

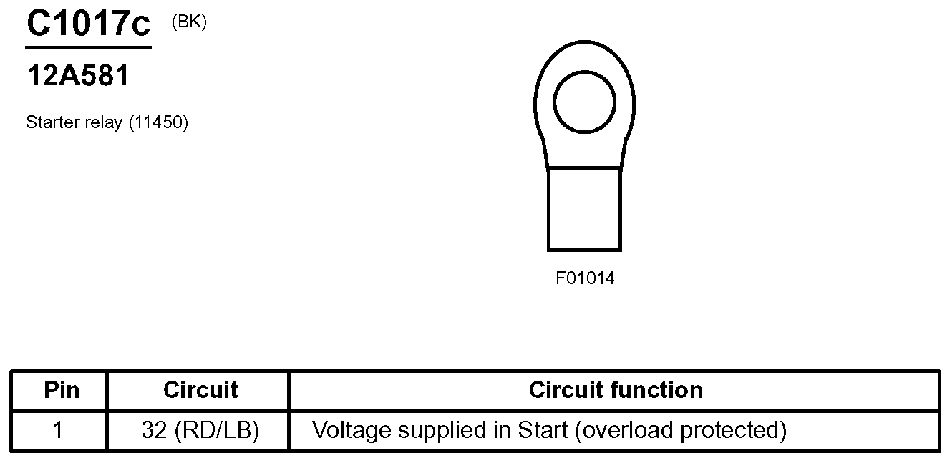

Fig 191: Starter Relay Connector End View (C1017c)

G07831240

Courtesy of FORD MOTOR CO.

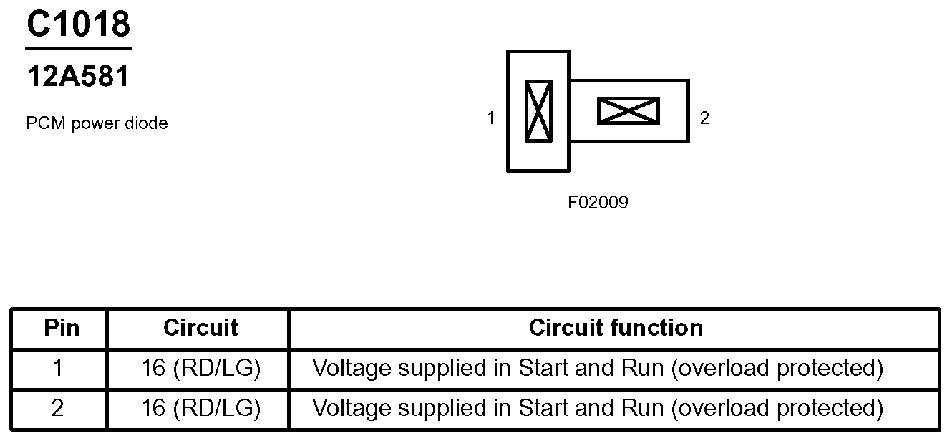

Fig 192: PCM Power Diode Connector End View (C1018)

G07831241

Courtesy of FORD MOTOR CO.

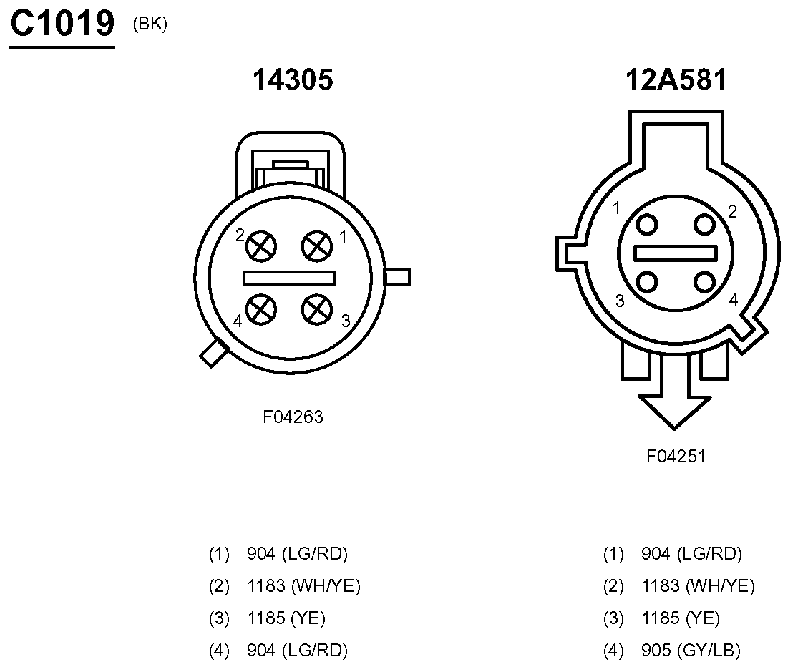

Fig 193: Inline Connector End View (C1019)

G07831242

Courtesy of FORD MOTOR CO.

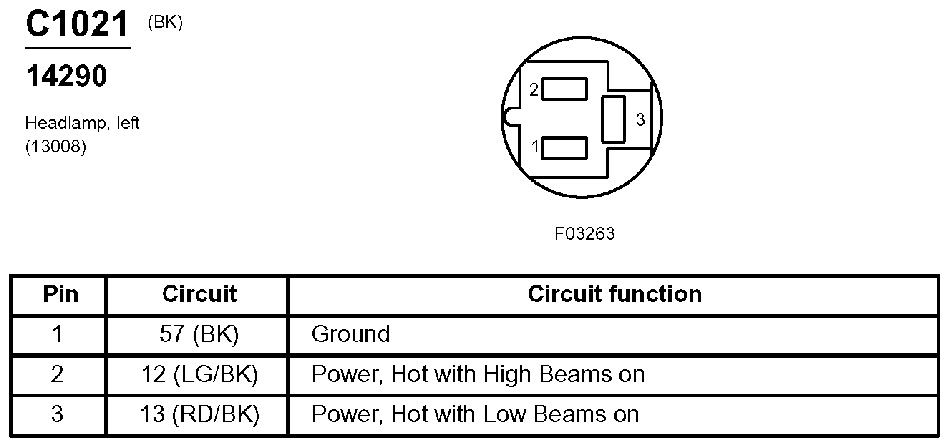

Fig 194: Headlamp, Left Connector End View (C1021)

G07831243

Courtesy of FORD MOTOR CO.

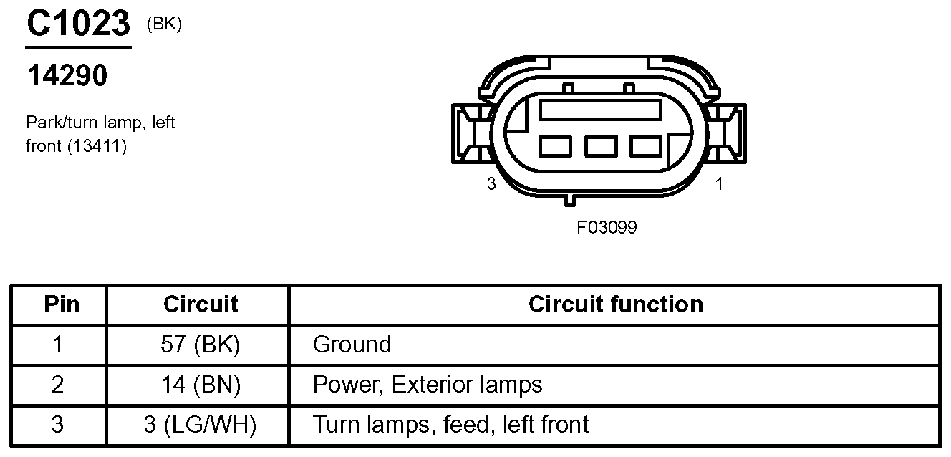

Fig 195: Park/Turn Lamp, Left Front Connector End View (C1023)

G07831244

Courtesy of FORD MOTOR CO.

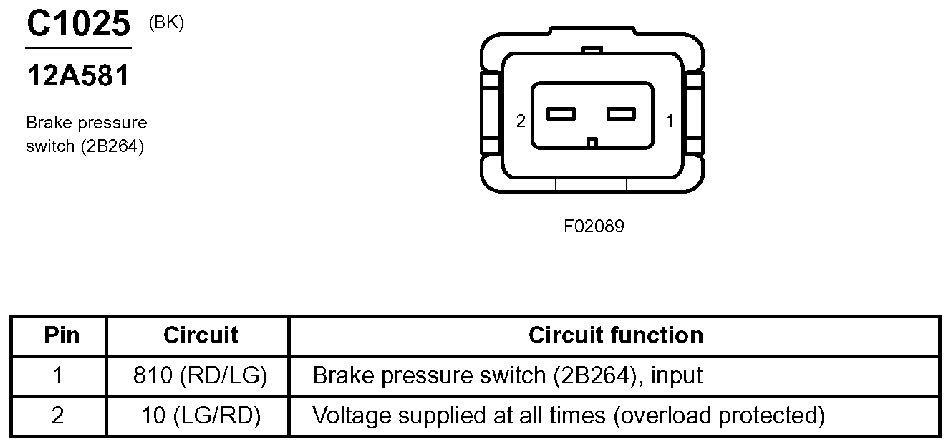

Fig 196: Brake Pressure Switch Connector End View (C1025)

G07831245

Courtesy of FORD MOTOR CO.

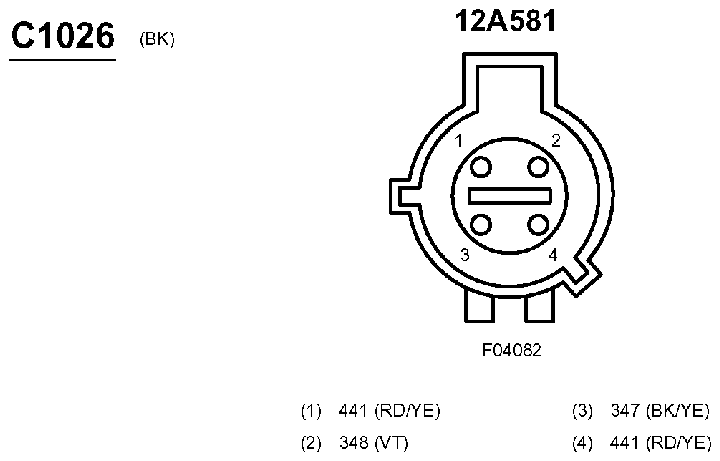

Fig 197: Inline Connector End View (C1026)

G07831246

Courtesy of FORD MOTOR CO.

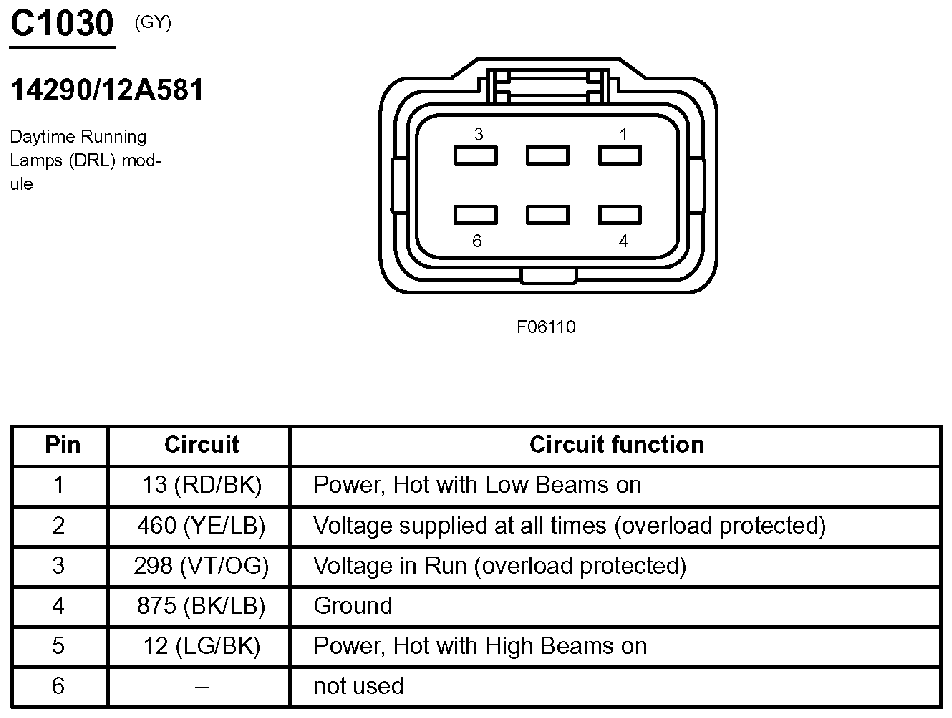

Fig 198: Daytime Running Lamps (DRL) Module Connector End View (C1030)

G07831247

Courtesy of FORD MOTOR CO.

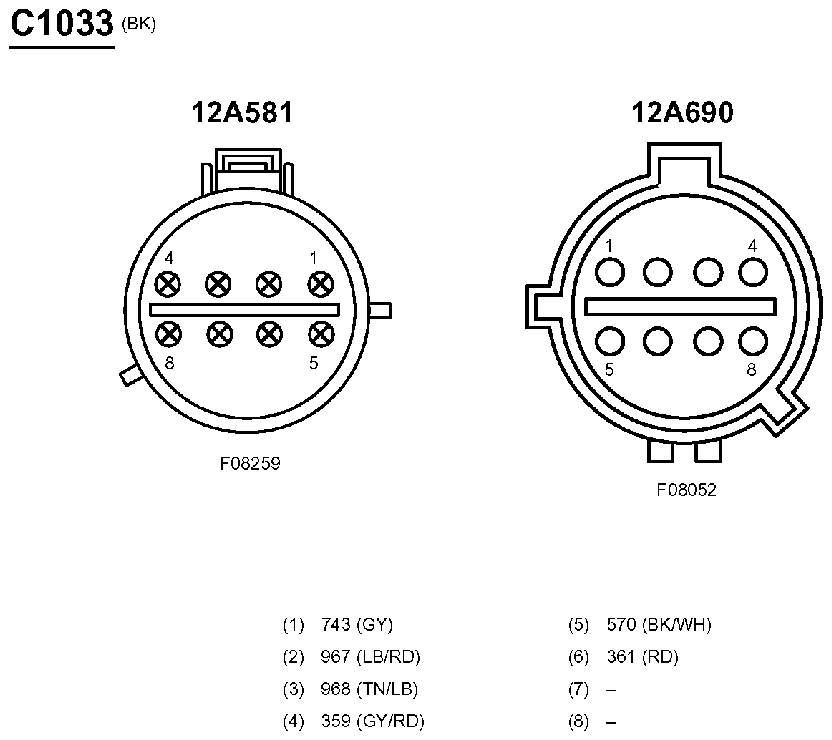

Fig 199: Inline Connector End View (C1033)

G07831248

Courtesy of FORD MOTOR CO.

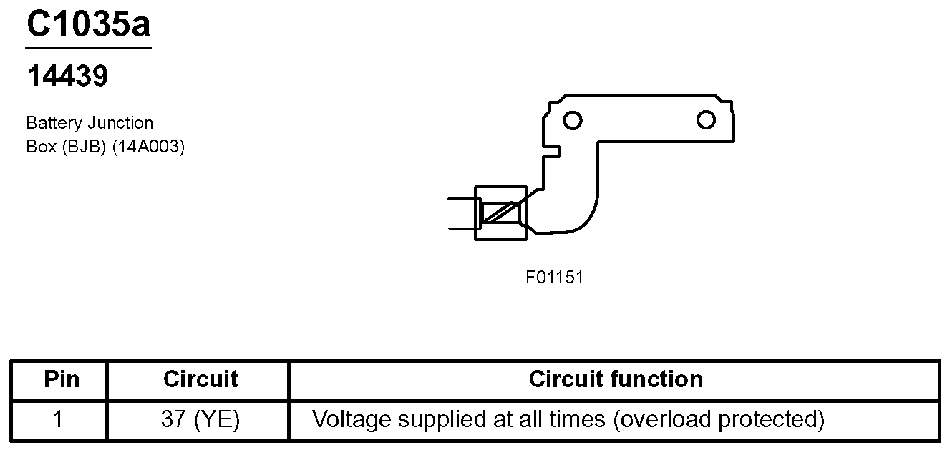

Fig 200: Battery Junction Box (BJB) Connector End View (C1035a)

G07831249

Courtesy of FORD MOTOR CO.

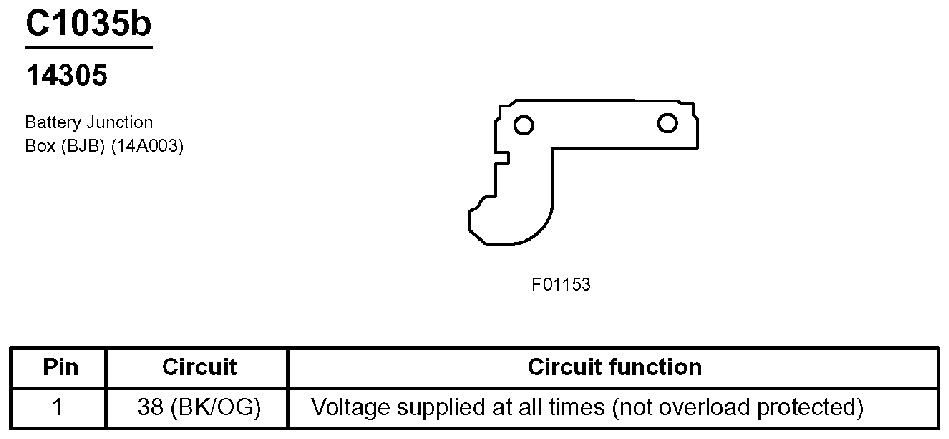

Fig 201: Battery Junction Box (BJB) Connector End View (C1035b)

G07831250

Courtesy of FORD MOTOR CO.

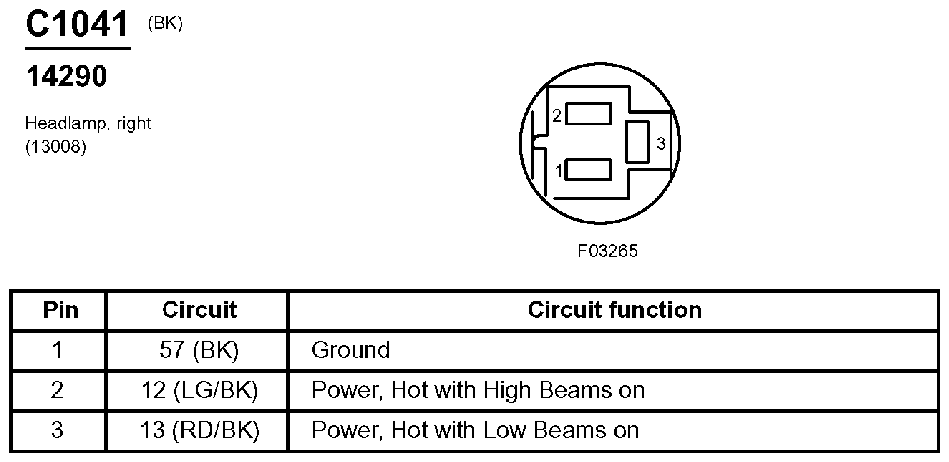

Fig 202: Headlamp, Right Connector End View (C1041)

G07831251

Courtesy of FORD MOTOR CO.

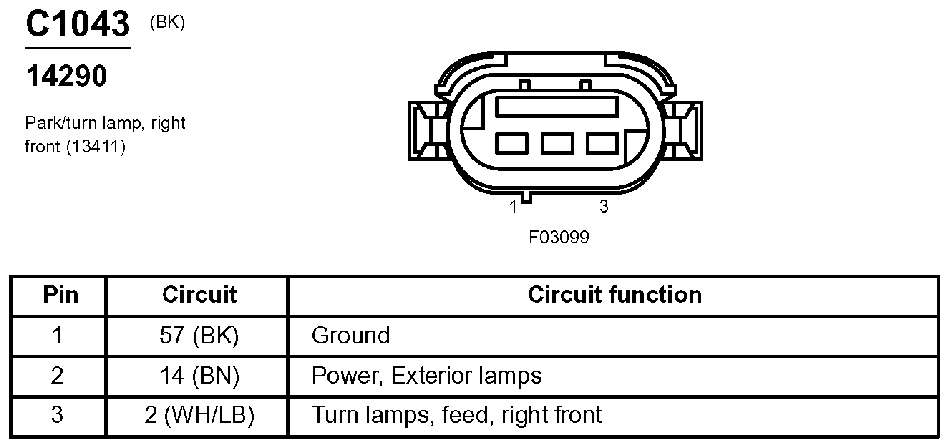

Fig 203: Park/Turn Lamp, Right Front Connector End View (C1043)

G07831252

Courtesy of FORD MOTOR CO.

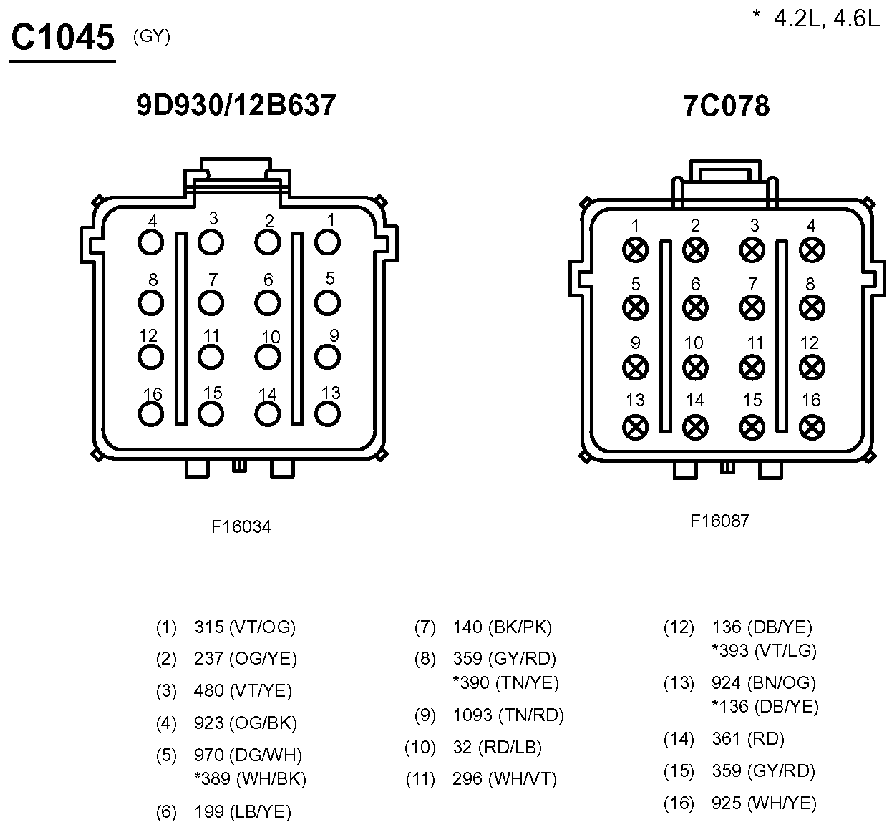

Fig 204: Inline Connector End View (C1045)

G07831253

Courtesy of FORD MOTOR CO.

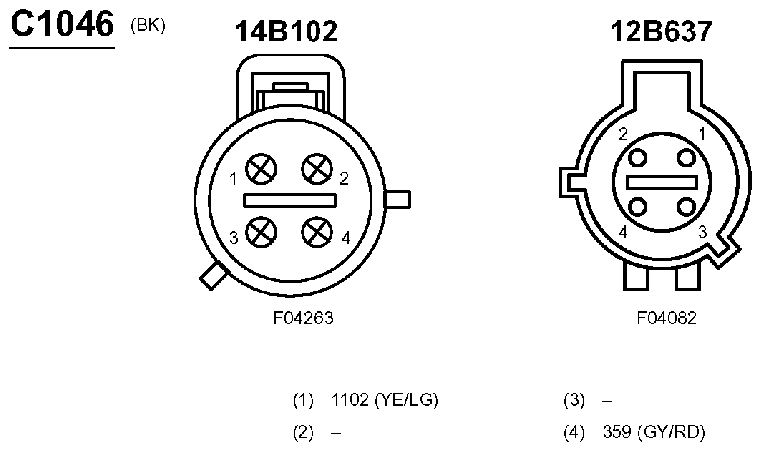

Fig 205: Inline Connector End View (C1046)

G07831254

Courtesy of FORD MOTOR CO.

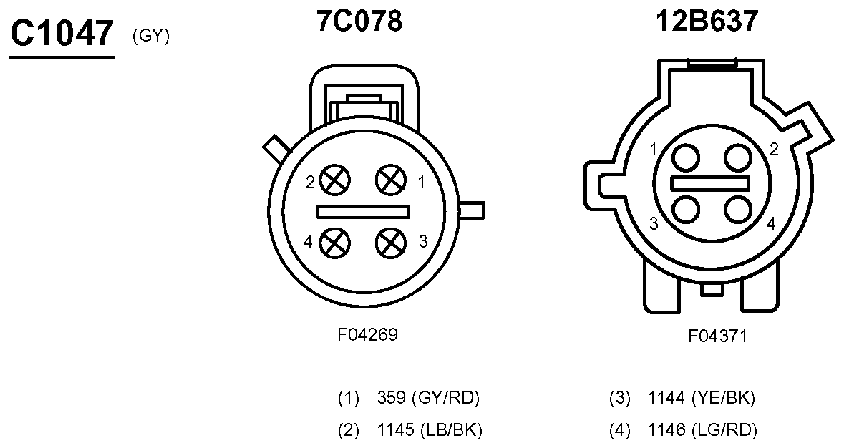

Fig 206: Inline Connector End View (C1047)

G07831255

Courtesy of FORD MOTOR CO.

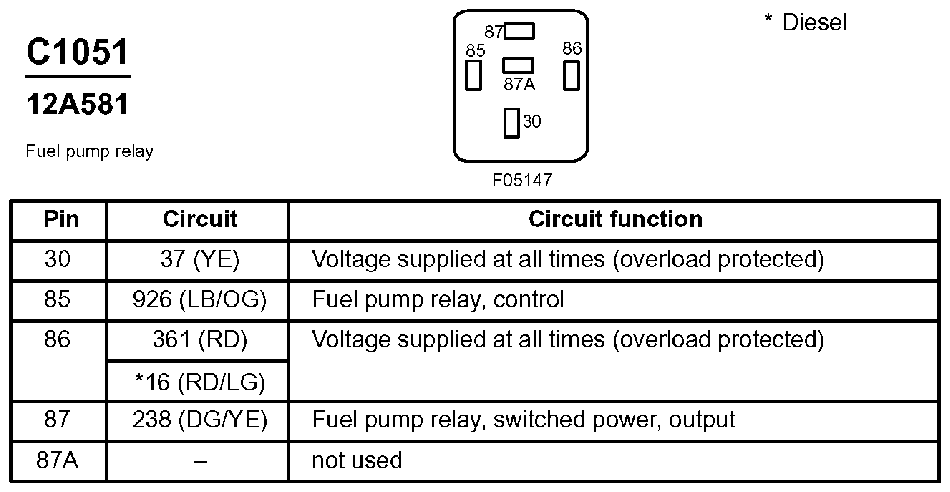

Fig 207: Fuel Pump Relay Connector End View (C1051)

G07831256

Courtesy of FORD MOTOR CO.

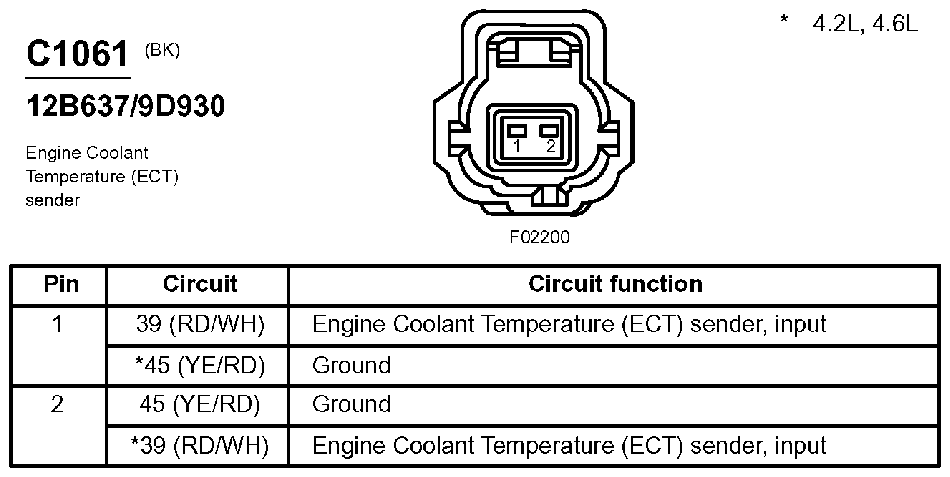

Fig 208: Engine Coolant Temperature (ECT) Sender Connector End View (C1061)

G07831257

Courtesy of FORD MOTOR CO.

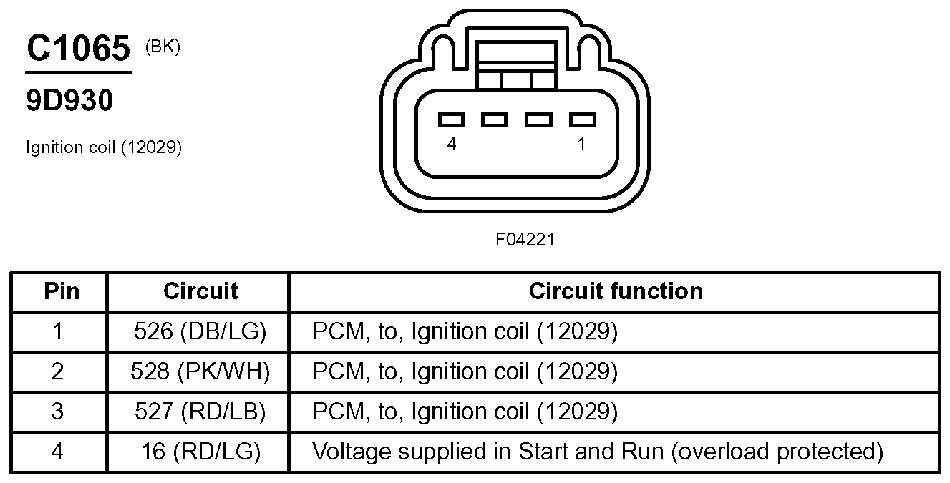

Fig 209: Ignition Coil Connector End View (C1065)

G07831258

Courtesy of FORD MOTOR CO.

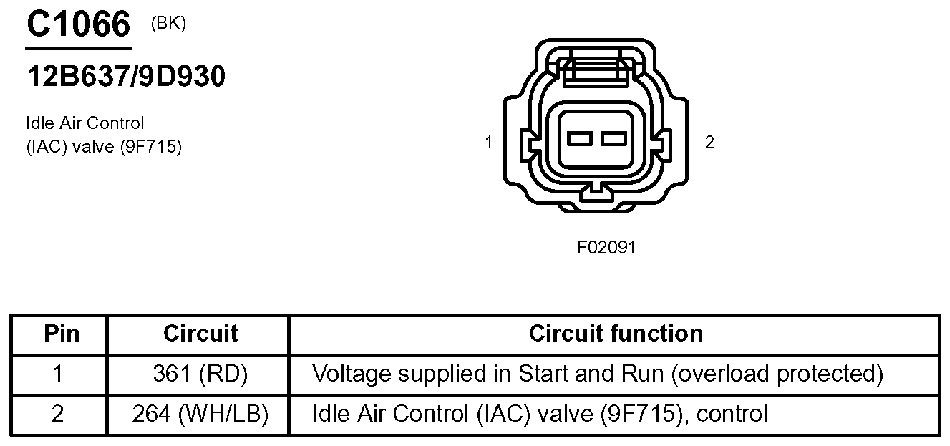

Fig 210: Idle Air Control (IAC) Valve Connector End View (C1066)

G07831259

Courtesy of FORD MOTOR CO.

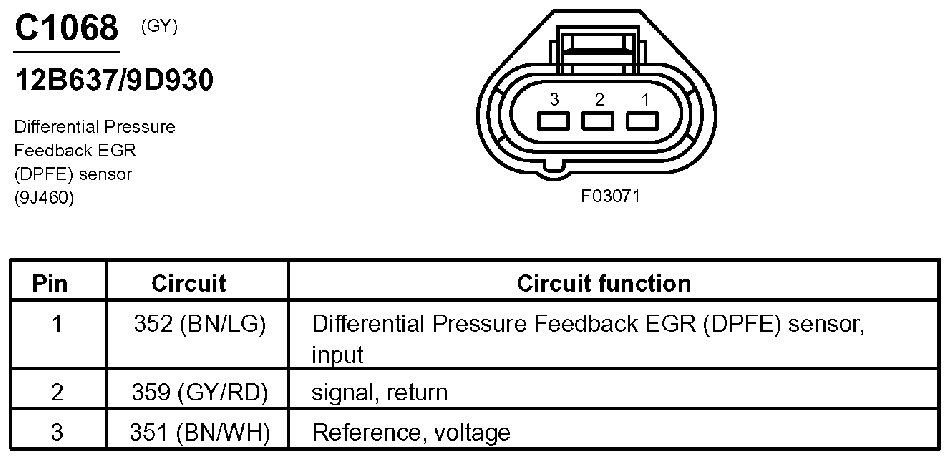

Fig 211: Differential Pressure Feedback EGR (DPFE) Sensor Connector End View (C1068)

G07831260

Courtesy of FORD MOTOR CO.

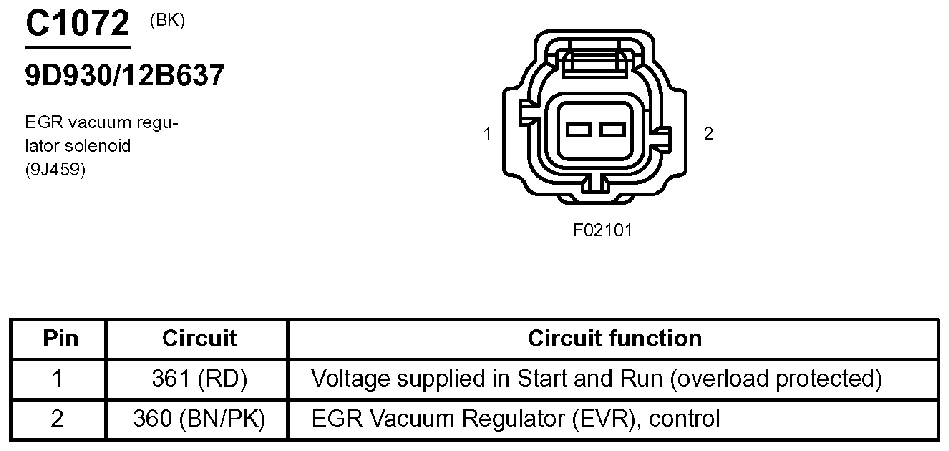

Fig 212: EGR Vacuum Regulator Solenoid Connector End View (C1072)

G07831261

Courtesy of FORD MOTOR CO.

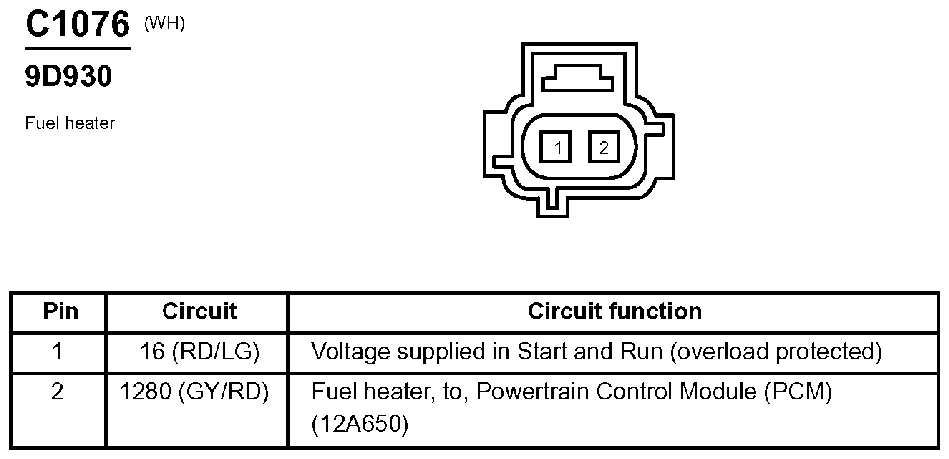

Fig 213: Fuel Heater Connector End View (C1076)

G07831262

Courtesy of FORD MOTOR CO.

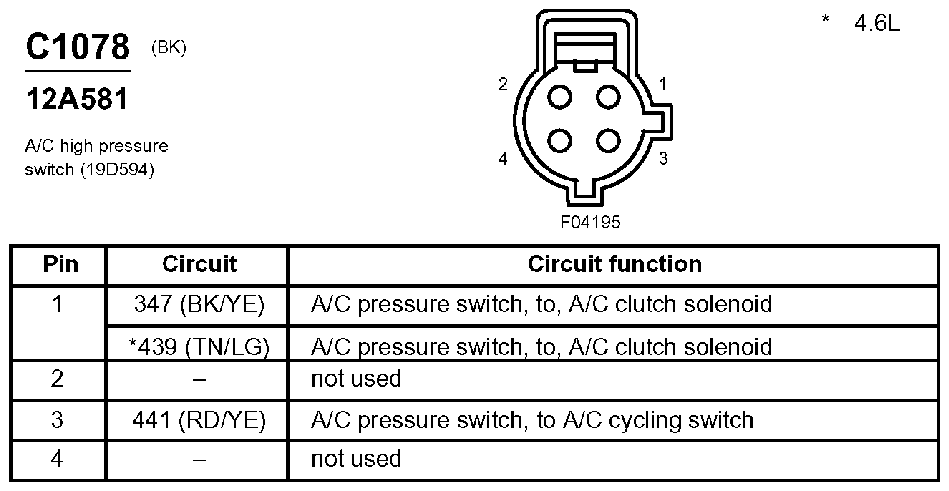

Fig 214: A/C High Pressure Switch Connector End View (C1078)

G07831263

Courtesy of FORD MOTOR CO.

Fig 215: Glow Plug Relay Connector End View (C1084a)

G07831264

Courtesy of FORD MOTOR CO.

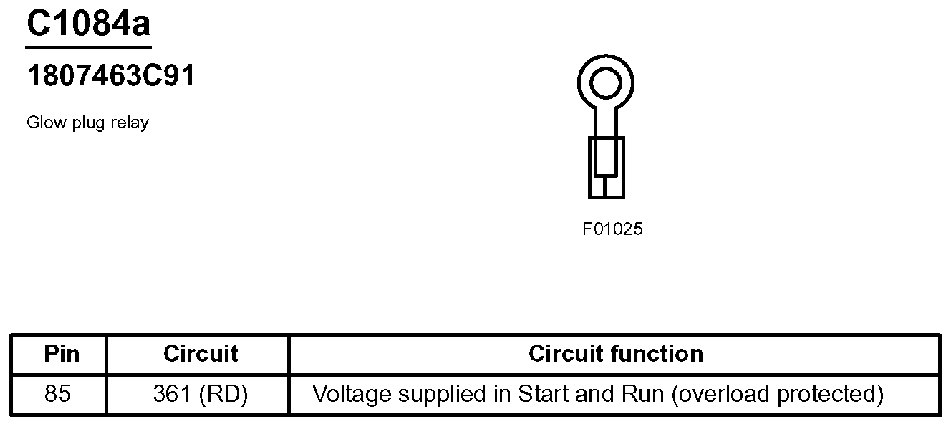

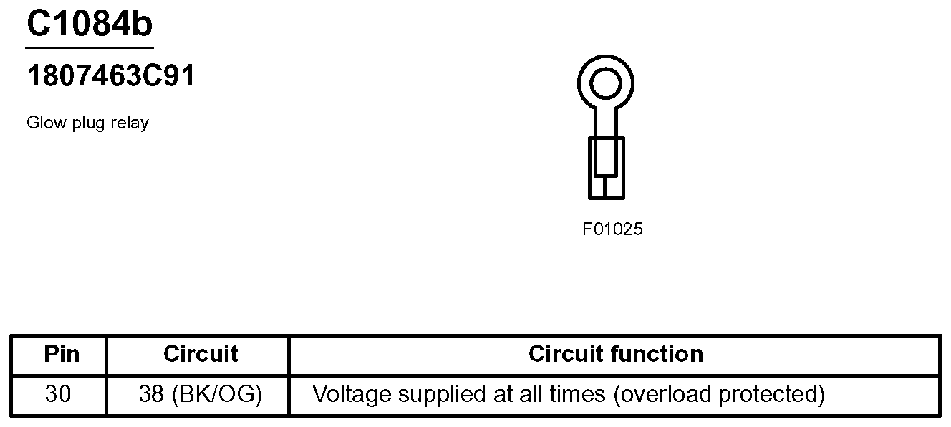

Fig 216: Glow Plug Relay Connector End View (C1084b)

G07831265

Courtesy of FORD MOTOR CO.

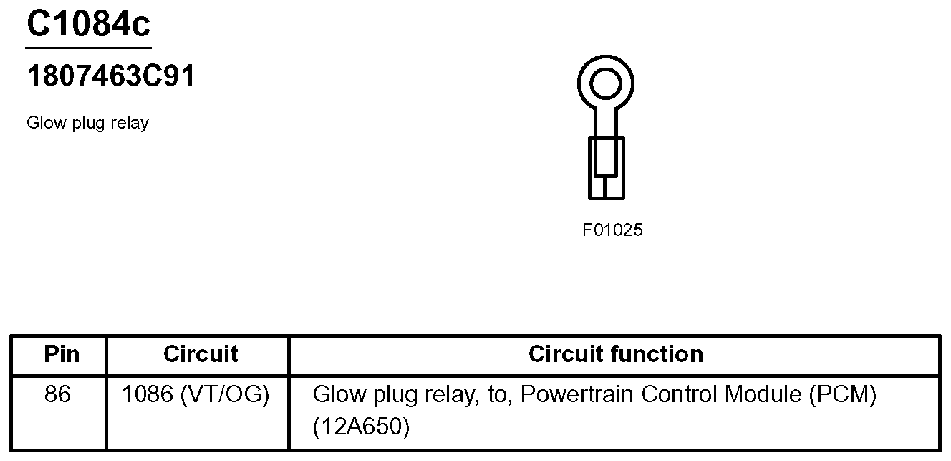

Fig 217: Glow Plug Relay Connector End View (C1084c)

G07831266

Courtesy of FORD MOTOR CO.

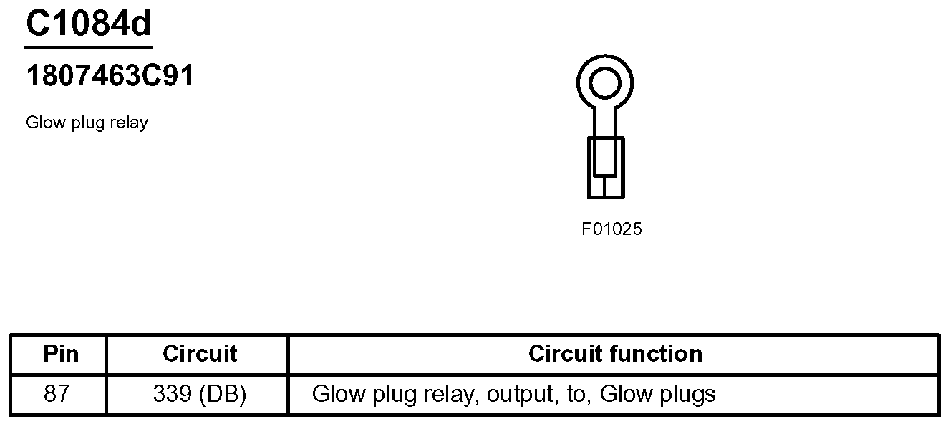

Fig 218: Glow Plug Relay Connector End View (C1084d)

G07831267

Courtesy of FORD MOTOR CO.

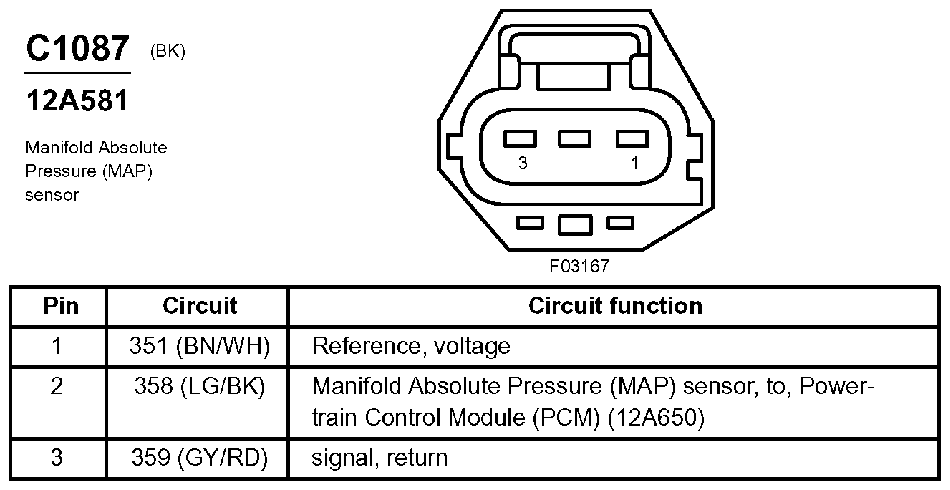

Fig 219: Manifold Absolute Pressure (MAP) Sensor Connector End View (C1087)

G07831268

Courtesy of FORD MOTOR CO.

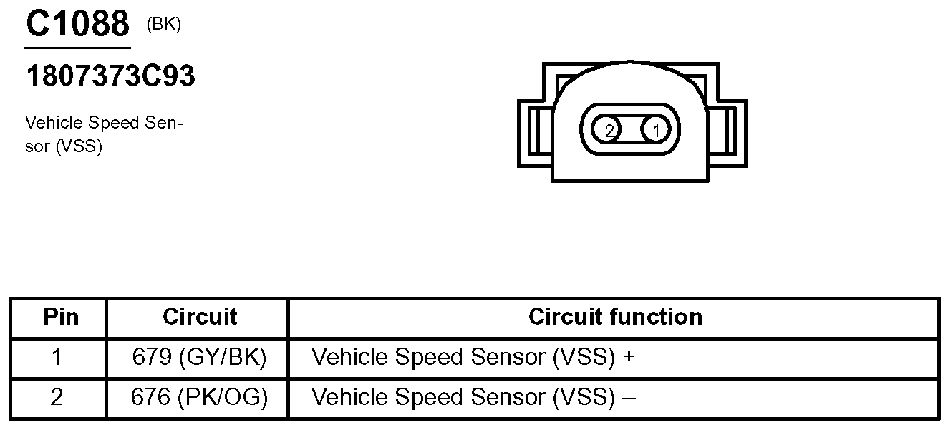

Fig 220: Vehicle Speed Sensor (VSS) Connector End View (C1088)

G07831269

Courtesy of FORD MOTOR CO.

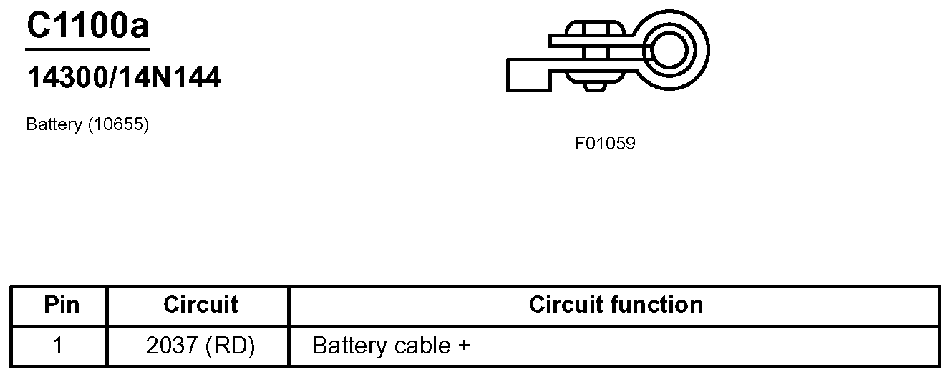

Fig 221: Battery Connector End View (C1100a)

G07831270

Courtesy of FORD MOTOR CO.

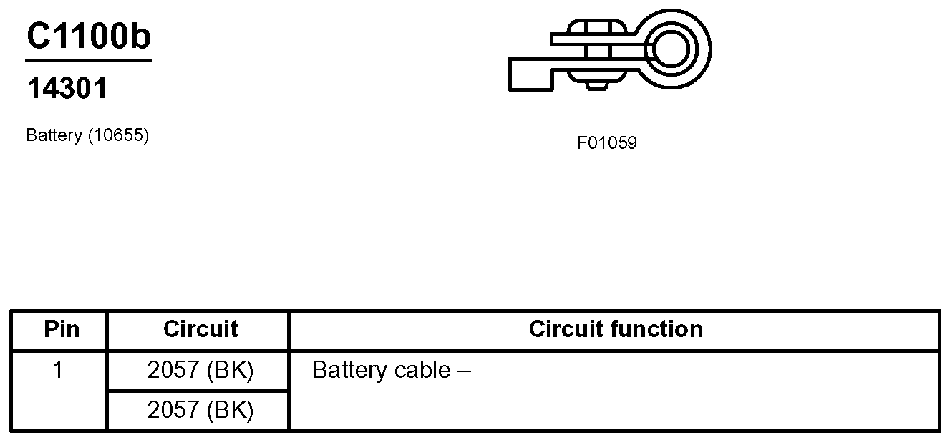

Fig 222: Battery Connector End View (C1100b)

G07831271

Courtesy of FORD MOTOR CO.

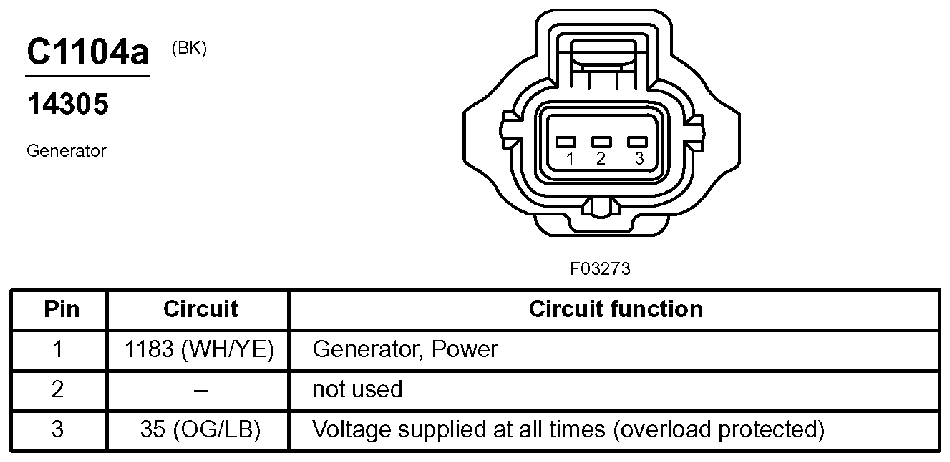

Fig 223: Generator Connector End View (C1104a)

G07831272

Courtesy of FORD MOTOR CO.

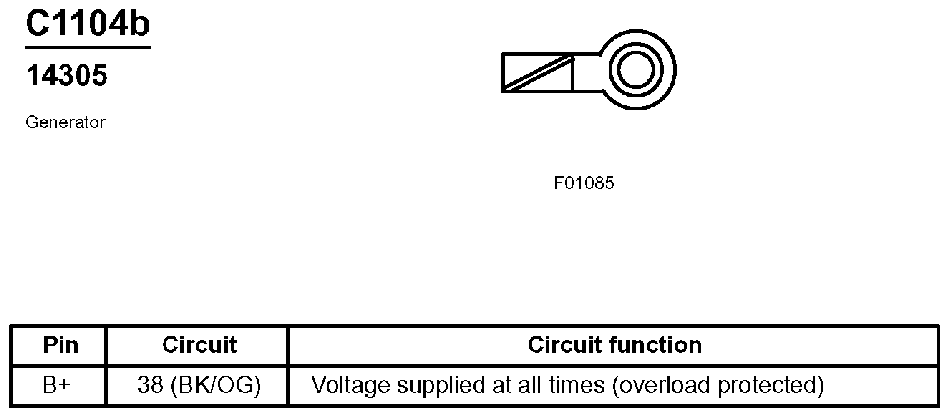

Fig 224: Generator Connector End View (C1104b)

G07831273

Courtesy of FORD MOTOR CO.

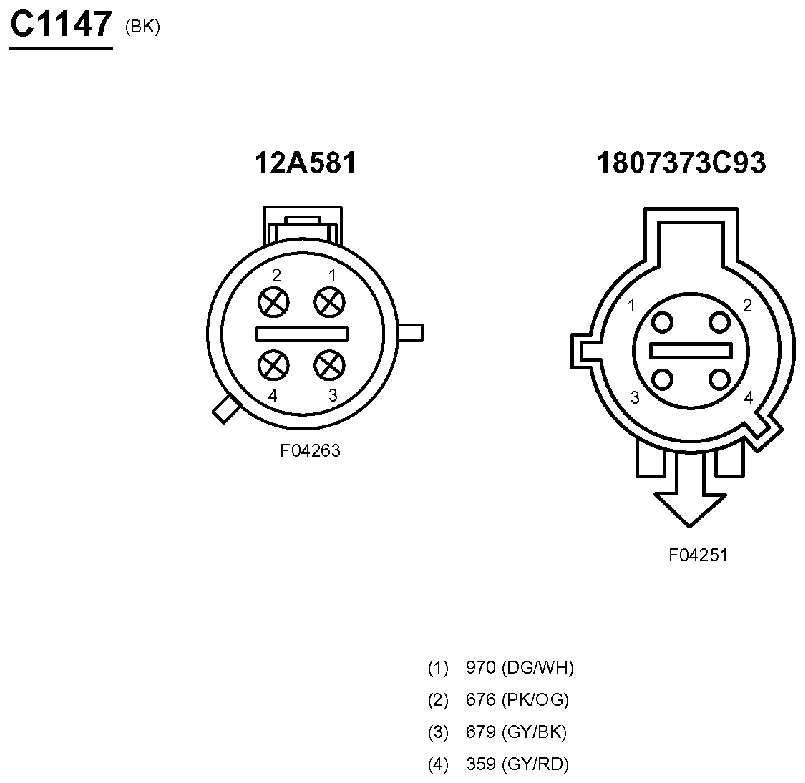

Fig 225: Inline Connector End View (C1147)

G07831274

Courtesy of FORD MOTOR CO.

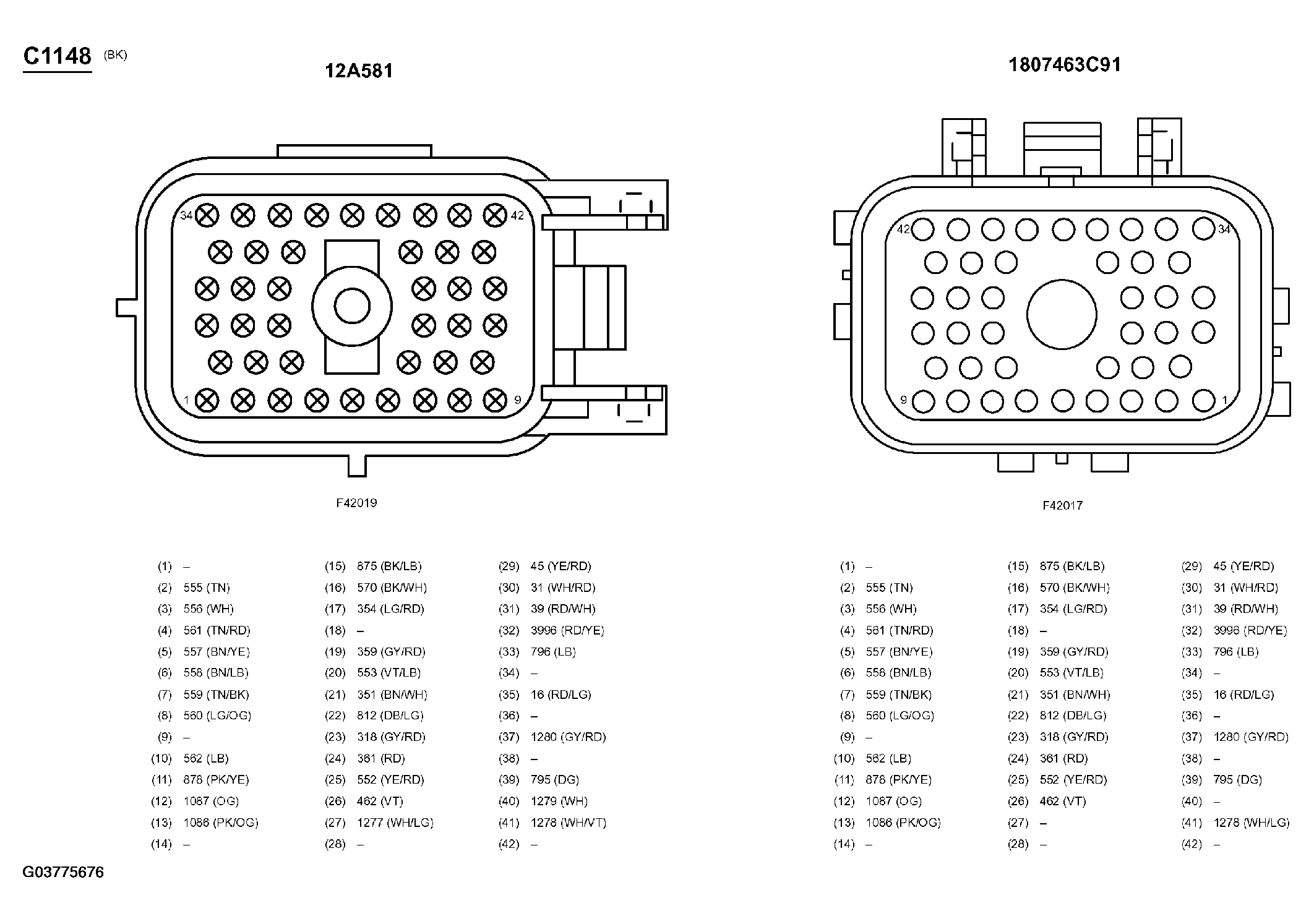

Fig 226: Inline Connector End View (C1148)

G03775676

Courtesy of FORD MOTOR CO.

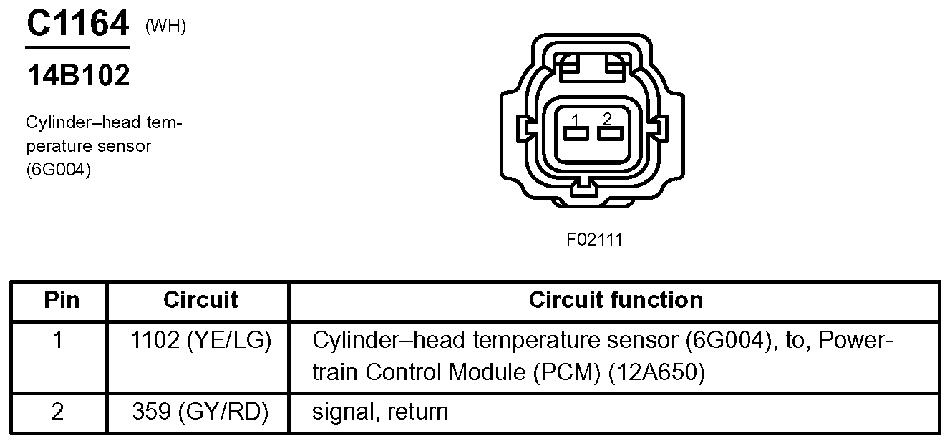

Fig 227: Cylinder-Head Temperature Sensor Connector End View (C1164)

G07831275

Courtesy of FORD MOTOR CO.

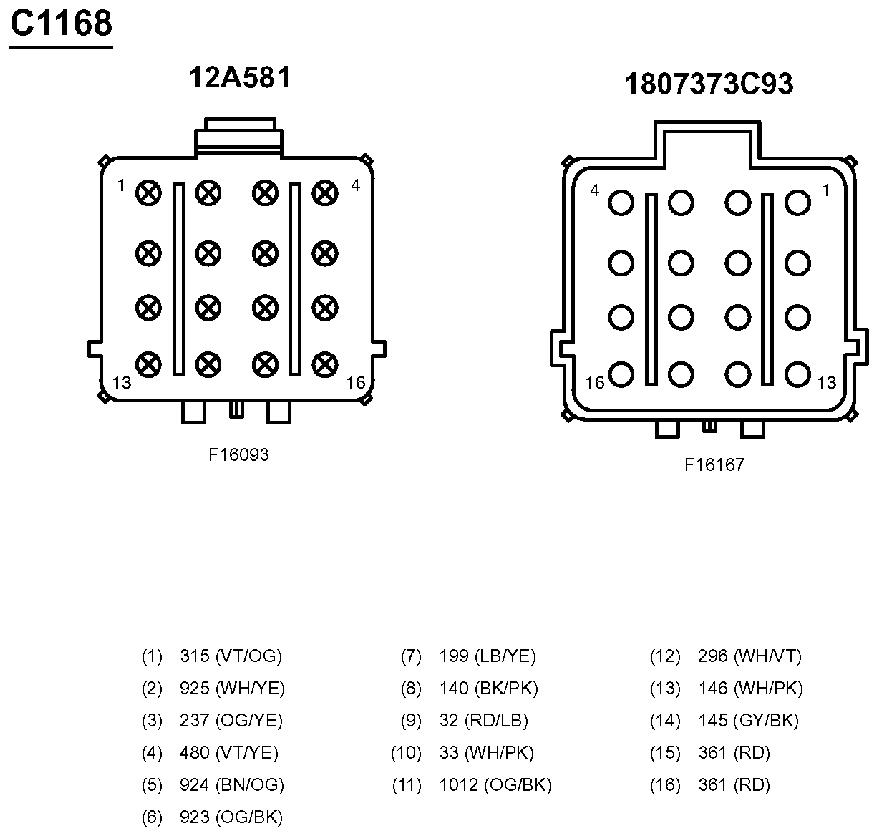

Fig 228: Inline Connector End View (C1168)

G07831276

Courtesy of FORD MOTOR CO.

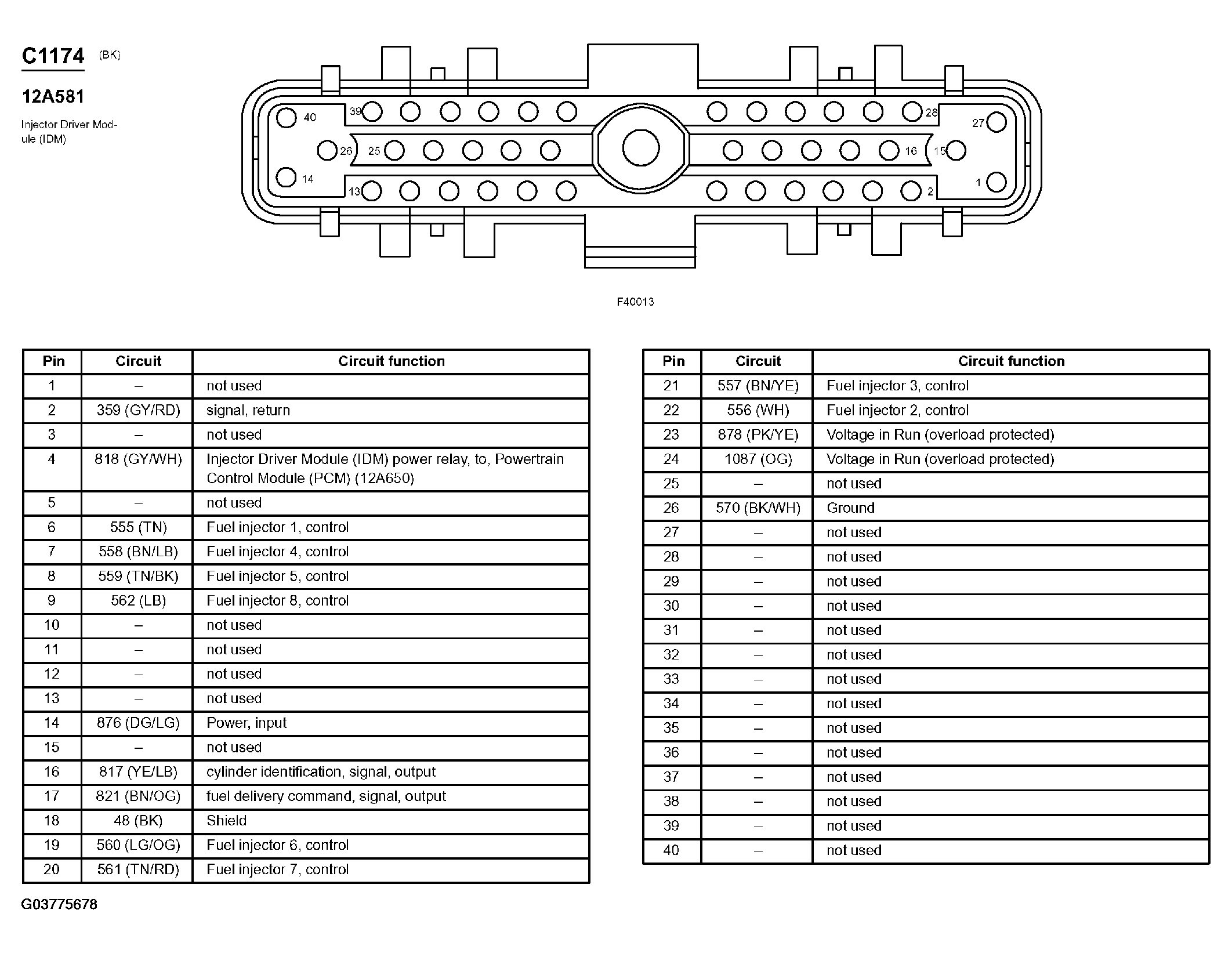

Fig 229: Injector Driver Module (IDM) Connector End View (C1174)

G03775678

Courtesy of FORD MOTOR CO.

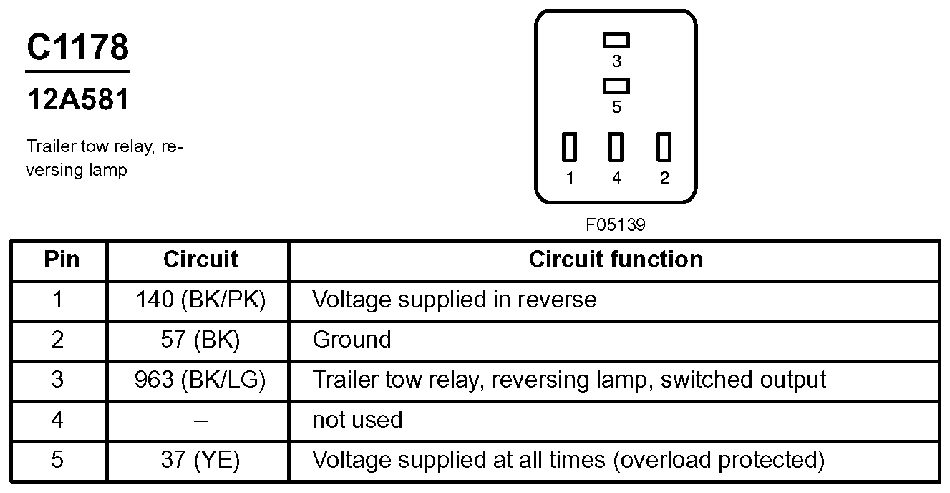

Fig 230: Trailer Tow Relay, Reversing Lamp Connector End View (C1178)

G07831277

Courtesy of FORD MOTOR CO.

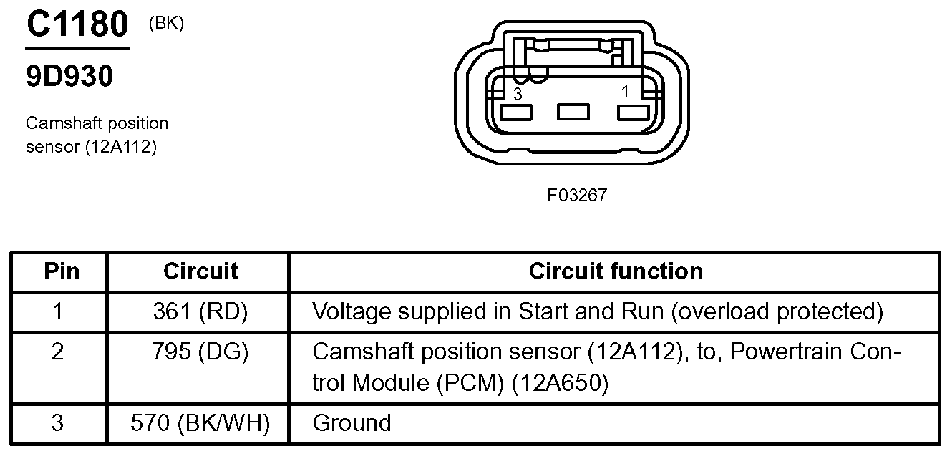

Fig 231: Camshaft Position Sensor Connector End View (C1180)

G07831278

Courtesy of FORD MOTOR CO.

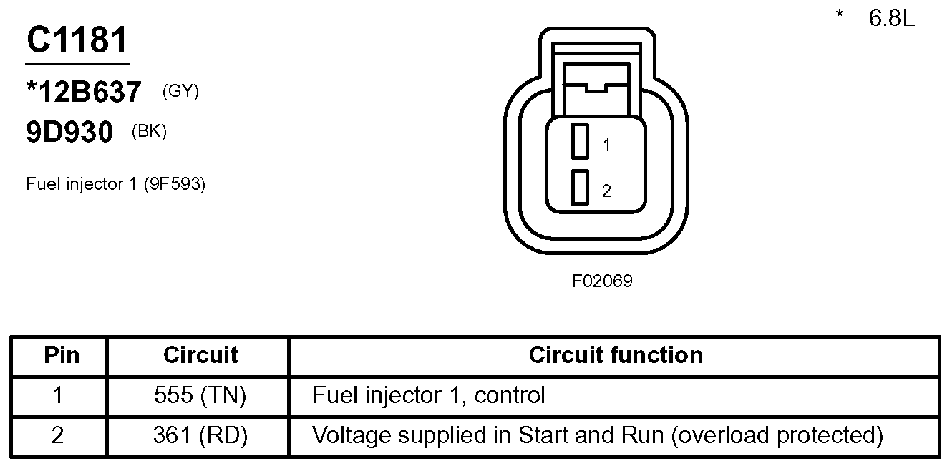

Fig 232: Fuel Injector 1 Connector End View (C1181)

G07831279

Courtesy of FORD MOTOR CO.

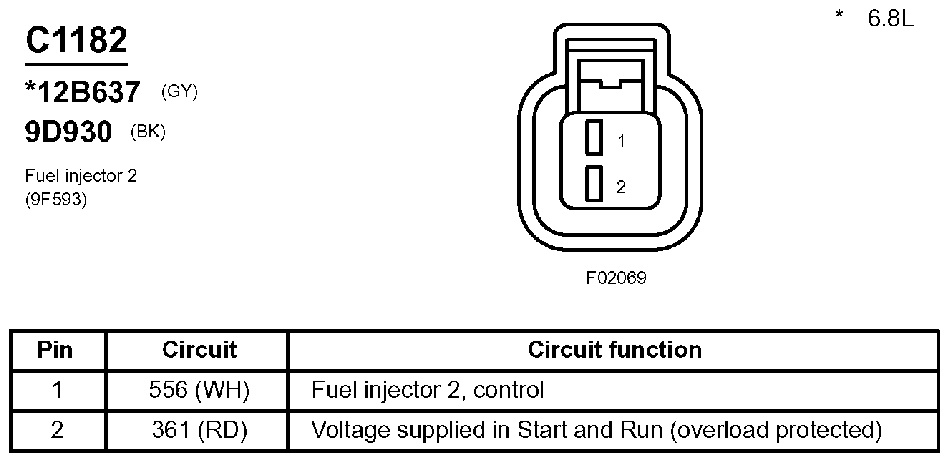

Fig 233: Fuel Injector 2 Connector End View (C1182)

G07831280

Courtesy of FORD MOTOR CO.

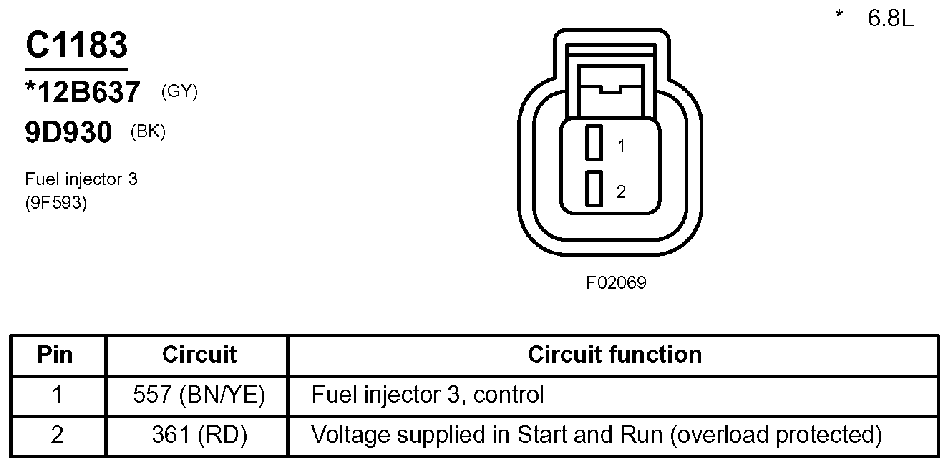

Fig 234: Fuel Injector 3 Connector End View (C1183)

G07831281

Courtesy of FORD MOTOR CO.

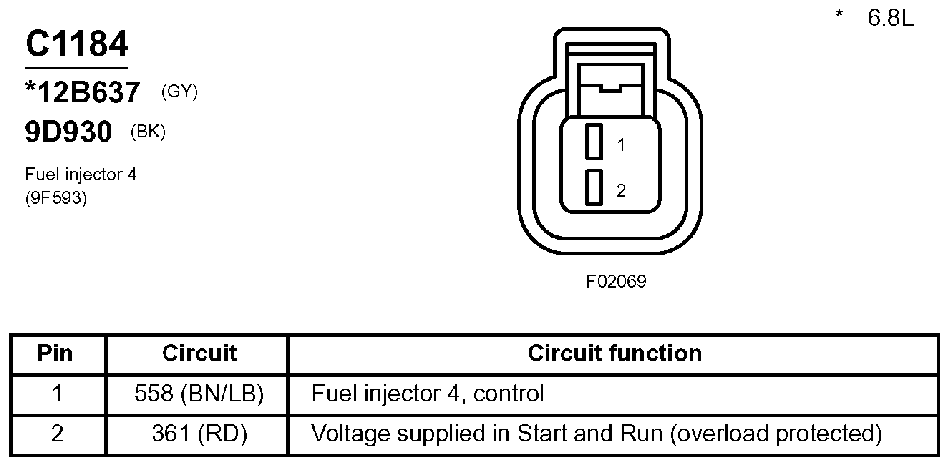

Fig 235: Fuel Injector 4 Connector End View (C1184)

G07831282

Courtesy of FORD MOTOR CO.

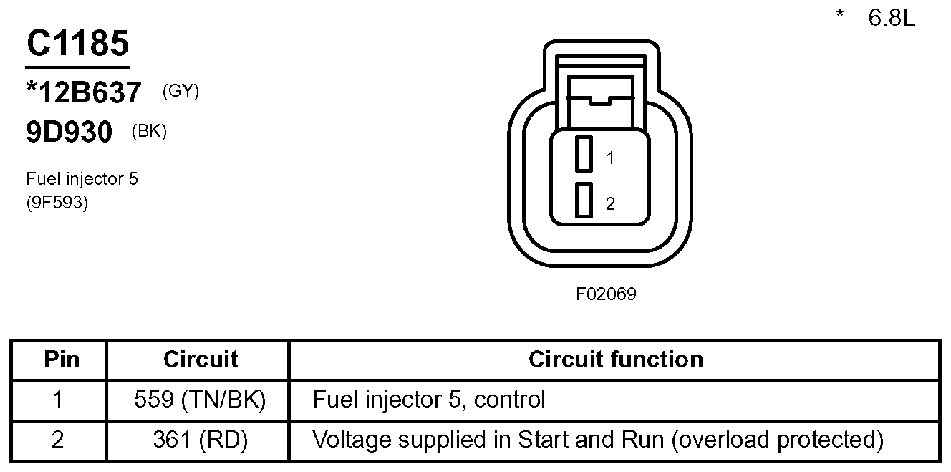

Fig 236: Fuel Injector 5 Connector End View (C1185)

G07831283

Courtesy of FORD MOTOR CO.

Fig 237: Fuel Injector 6 Connector End View (C1186)

G07831284

Courtesy of FORD MOTOR CO.

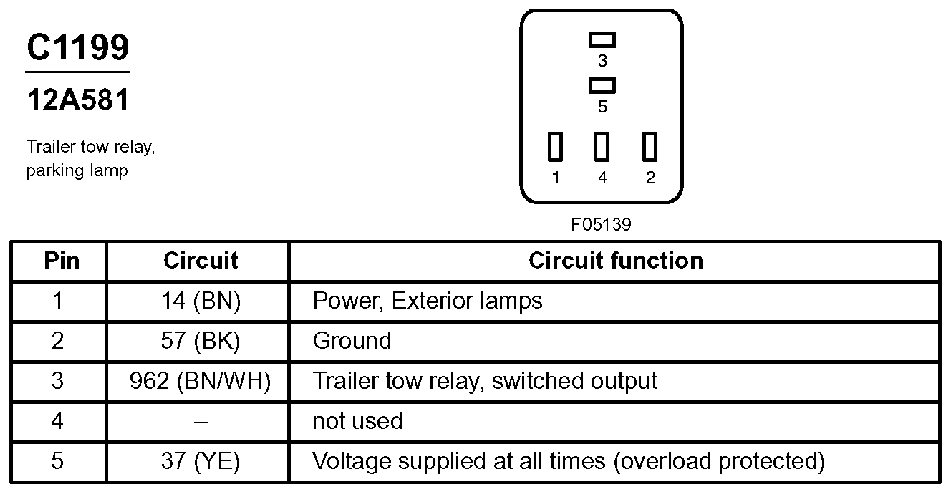

Fig 238: Trailer Tow Relay, Parking Lamp Connector End View (C1199)

G07831285

Courtesy of FORD MOTOR CO.

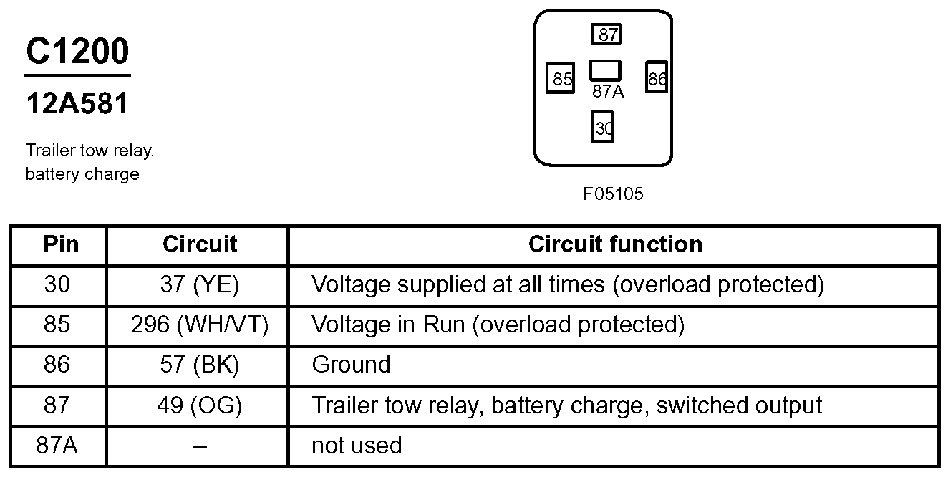

Fig 239: Trailer Tow Relay, Battery Charge Connector End View (C1200)

G07831286

Courtesy of FORD MOTOR CO.

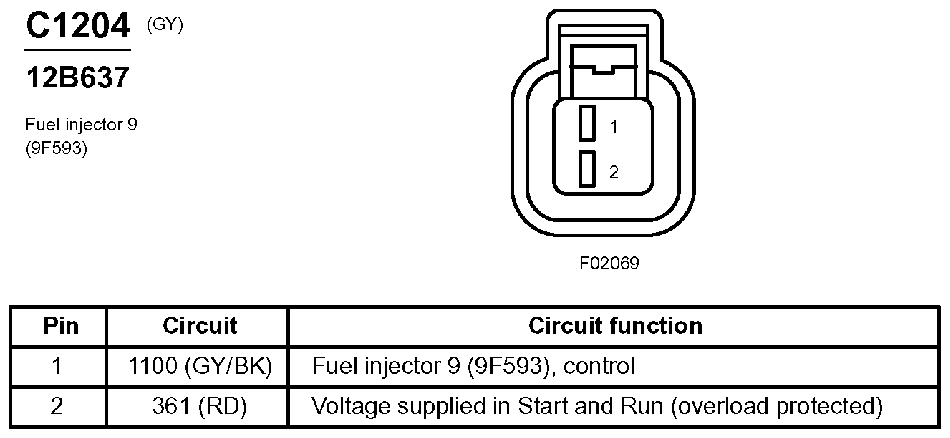

Fig 240: Fuel Injector 9 Connector End View (C1204)

G07831287

Courtesy of FORD MOTOR CO.

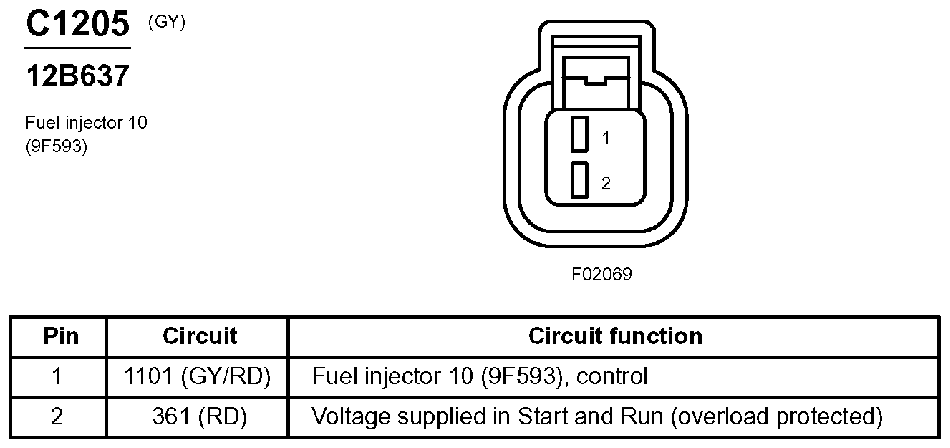

Fig 241: Fuel Injector 10 Connector End View (C1205)

G07831288

Courtesy of FORD MOTOR CO.

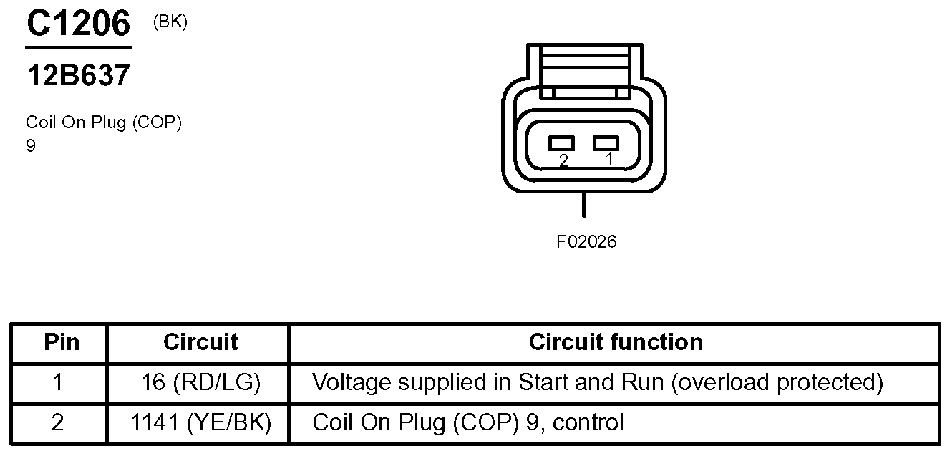

Fig 242: Coil On Plug (COP) 9 Connector End View (C1206)

G07831289

Courtesy of FORD MOTOR CO.

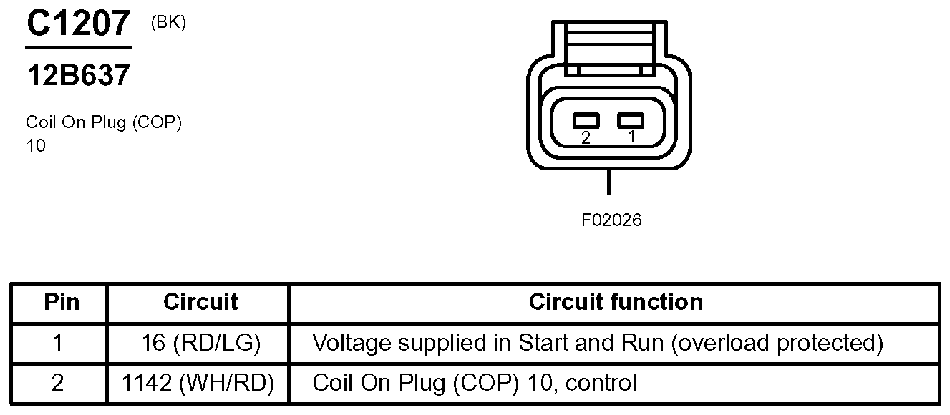

Fig 243: Coil On Plug (COP) 10 Connector End View (C1207)

G07831290

Courtesy of FORD MOTOR CO.

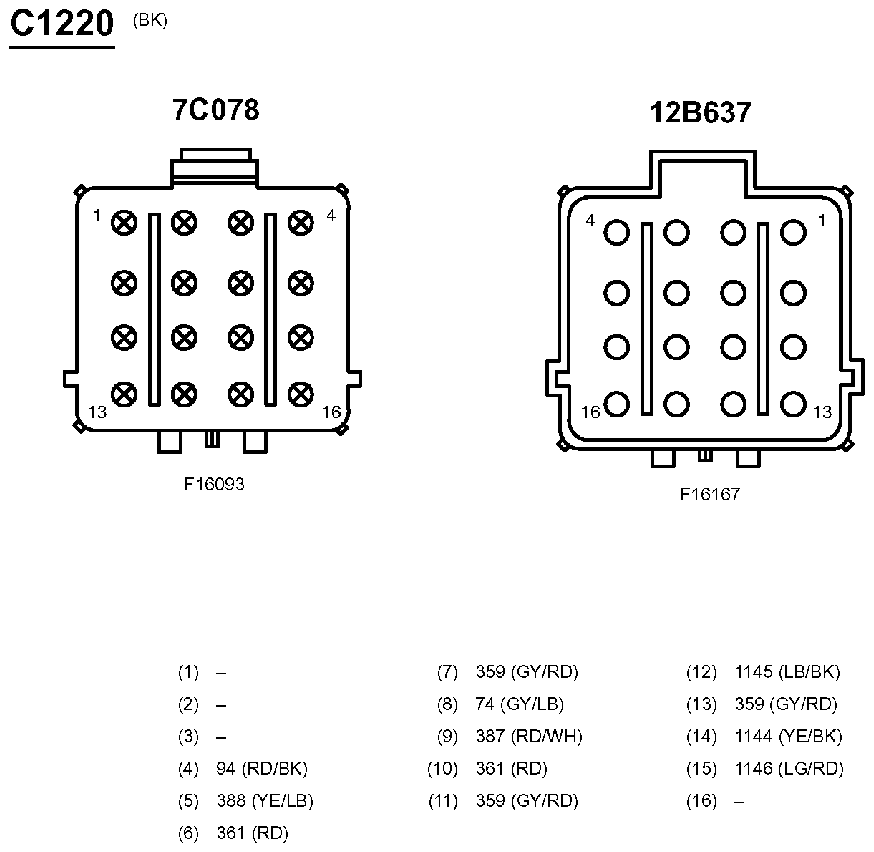

Fig 244: Inline Connector End View (C1220)

G07831291

Courtesy of FORD MOTOR CO.

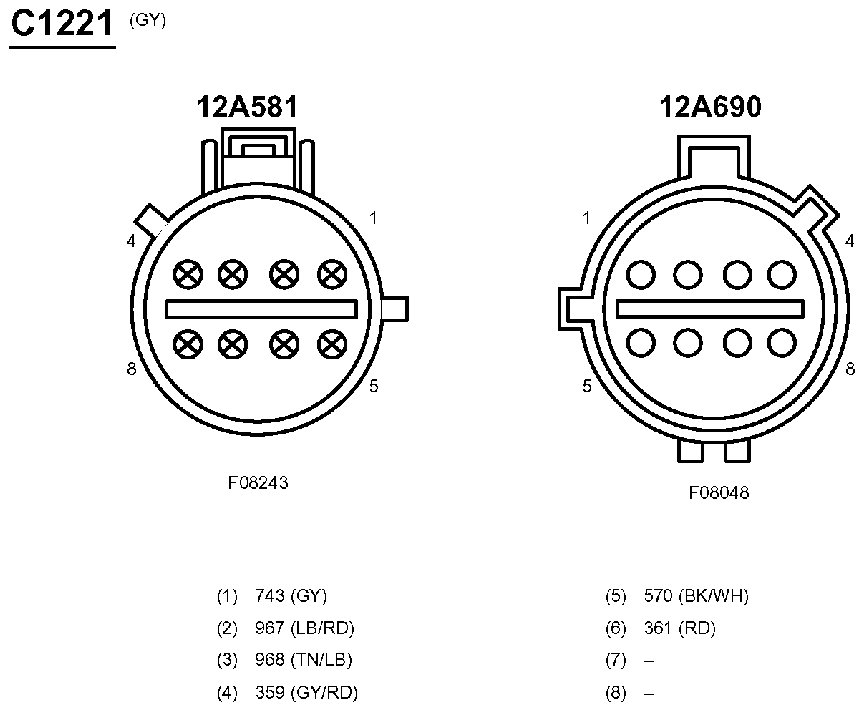

Fig 245: Inline Connector End View (C1221)

G07831292

Courtesy of FORD MOTOR CO.

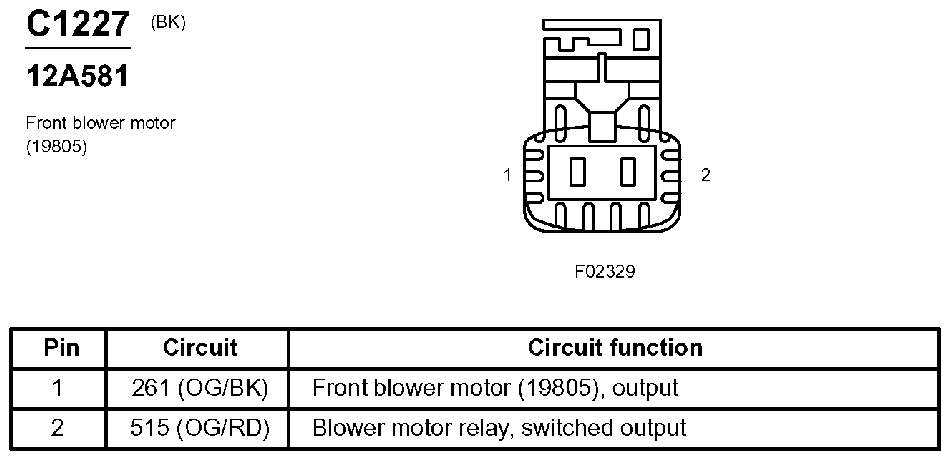

Fig 246: Front Blower Motor Connector End View (C1227)

G07831293

Courtesy of FORD MOTOR CO.

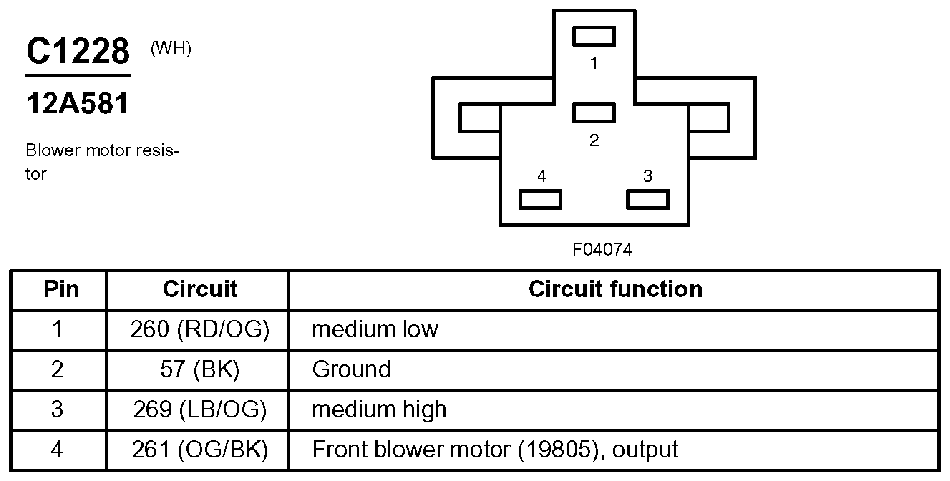

Fig 247: Blower Motor Resistor Connector End View (C1228)

G07831294

Courtesy of FORD MOTOR CO.

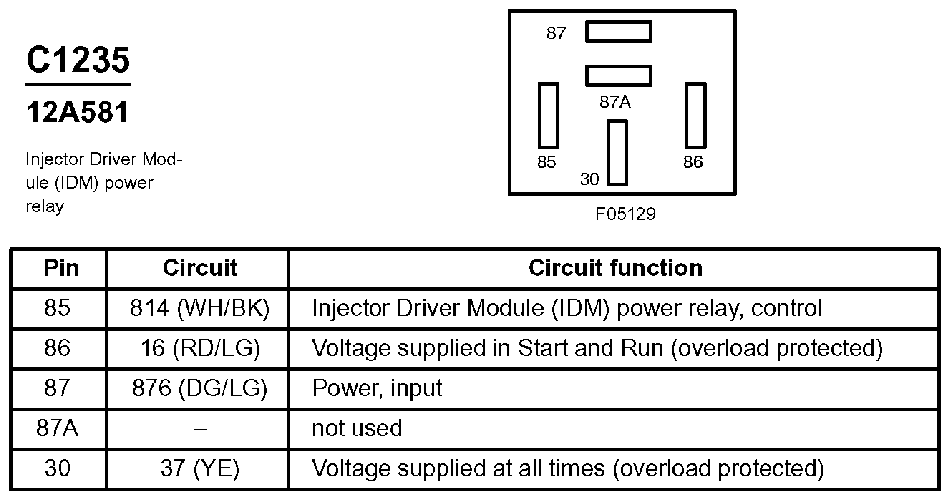

Fig 248: Injector Driver Module (IDM) Power Relay Connector End View (C1235)

G07831295

Courtesy of FORD MOTOR CO.

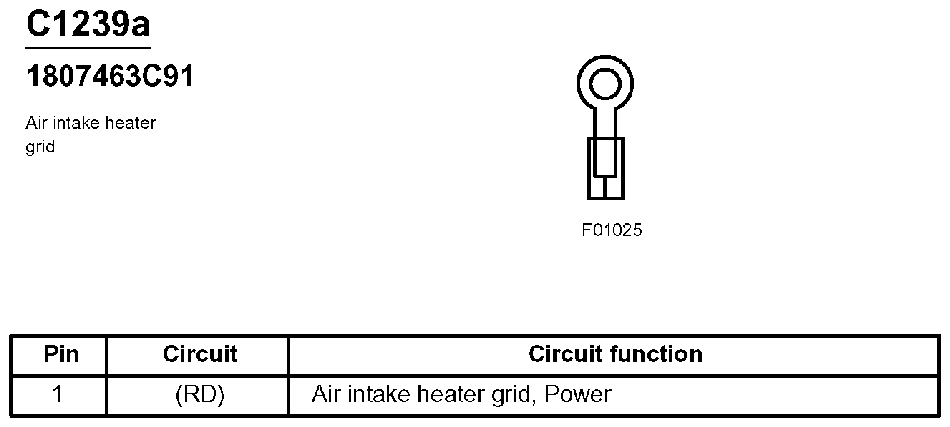

Fig 249: Air Intake Heater Grid Connector End View (C1239a)

G07831296

Courtesy of FORD MOTOR CO.

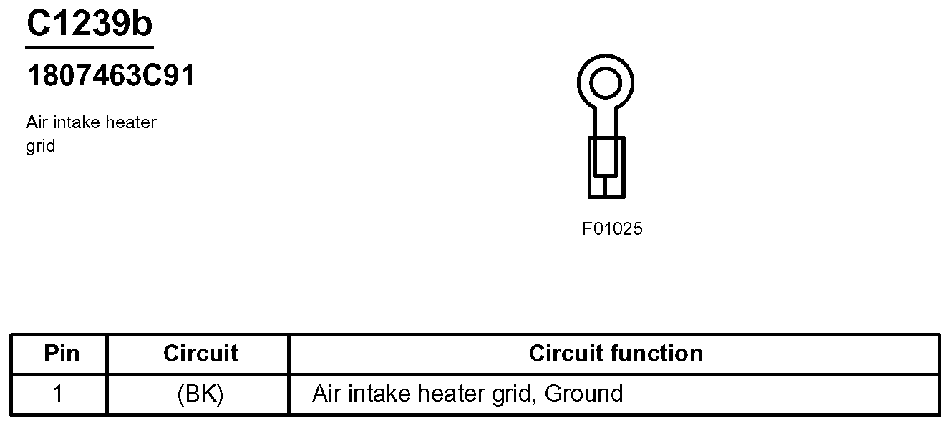

Fig 250: Air Intake Heater Grid Connector End View (C1239b)

G07831297

Courtesy of FORD MOTOR CO.

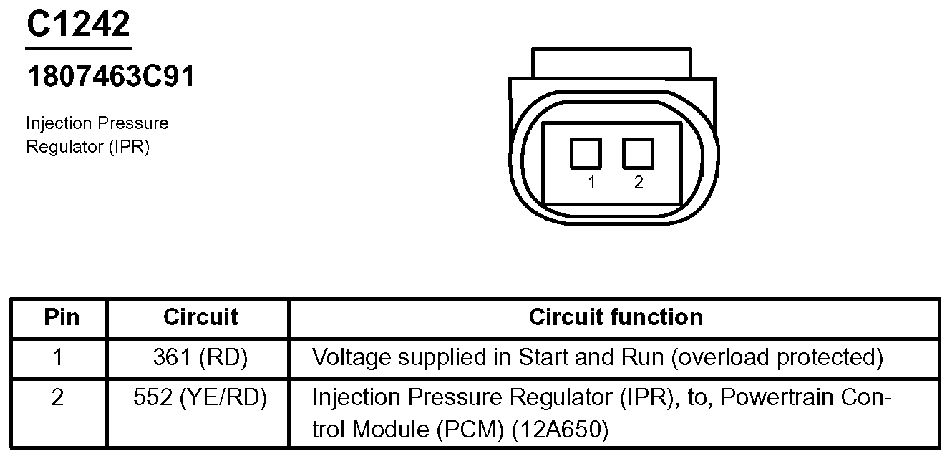

Fig 251: Injection Pressure Regulator (IPR) Connector End View (C1242)

G07831298

Courtesy of FORD MOTOR CO.

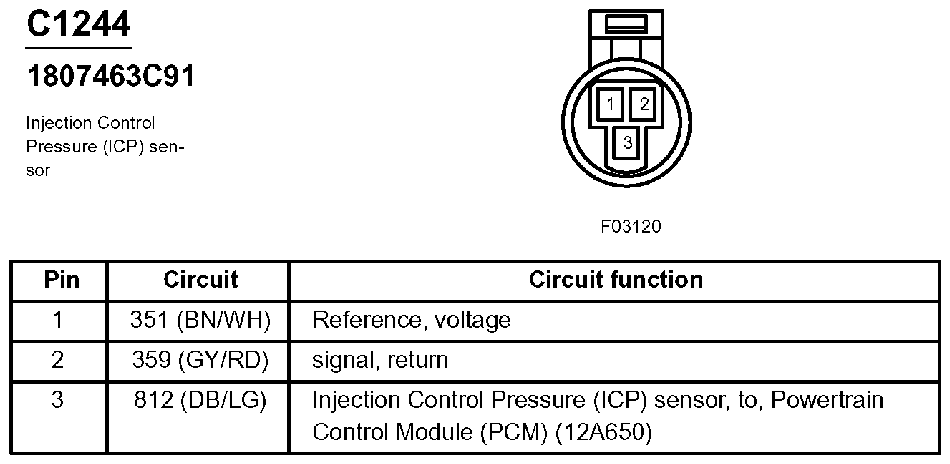

Fig 252: Injection Control Pressure (ICP) Sensor Connector End View (C1244)

G07831299

Courtesy of FORD MOTOR CO.

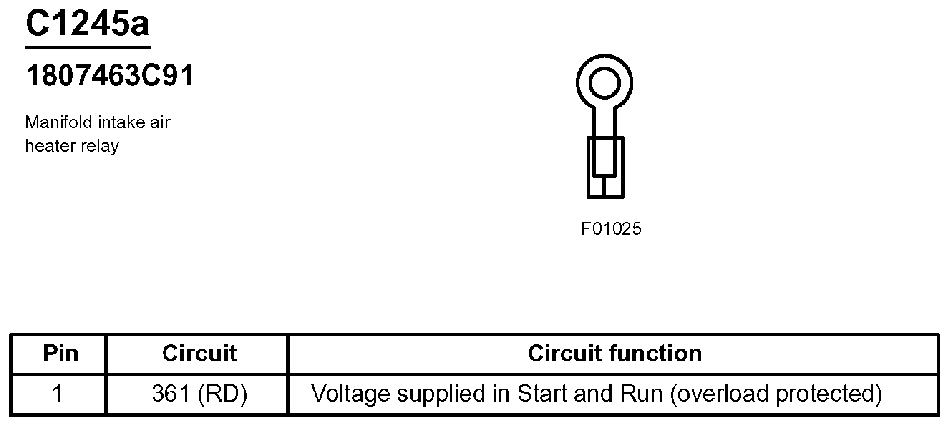

Fig 253: Manifold Intake Air Heater Relay Connector End View (C1245a)

G07831300

Courtesy of FORD MOTOR CO.

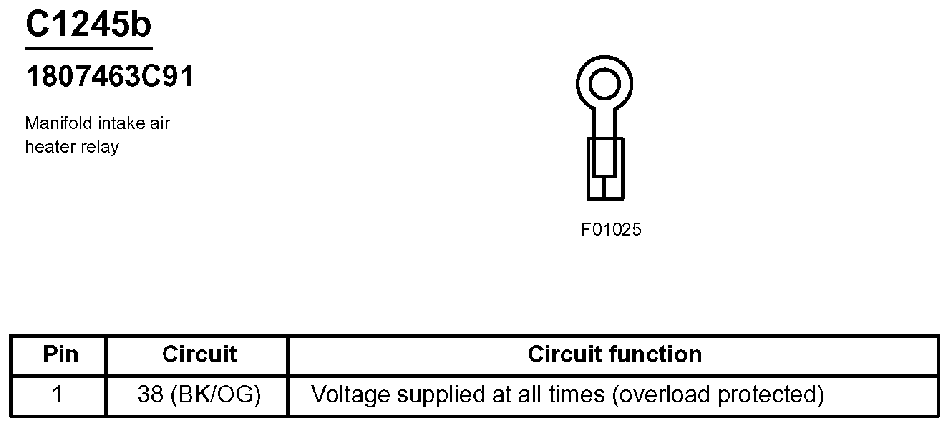

Fig 254: Manifold Intake Air Heater Relay Connector End View (C1245b)

G07831301

Courtesy of FORD MOTOR CO.

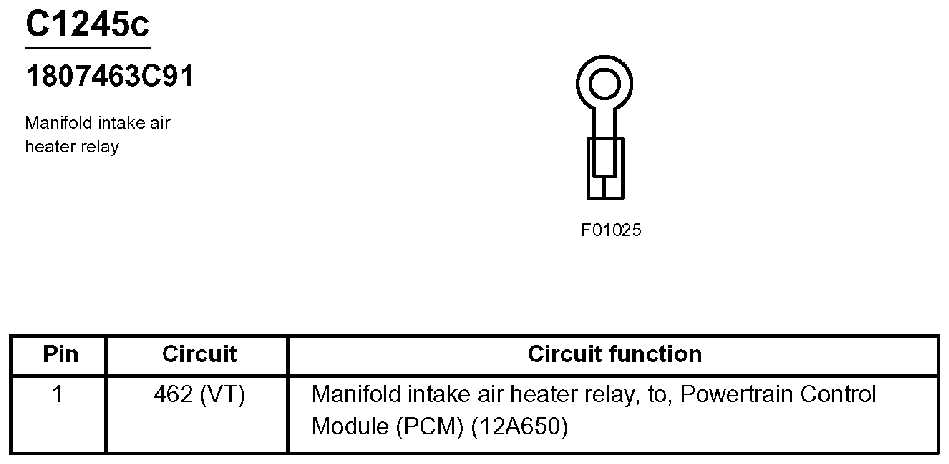

Fig 255: Manifold Intake Air Heater Relay Connector End View (C1245c)

G07831302

Courtesy of FORD MOTOR CO.

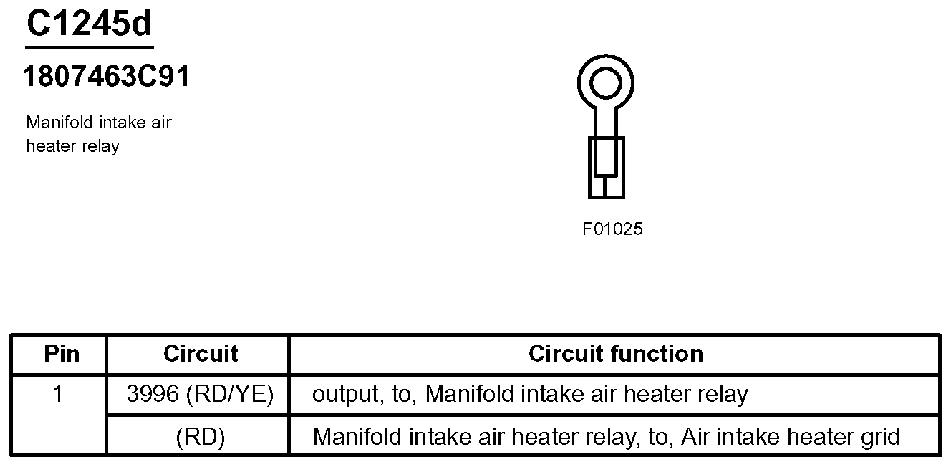

Fig 256: Manifold Intake Air Heater Relay Connector End View (C1245d)

G07831303

Courtesy of FORD MOTOR CO.

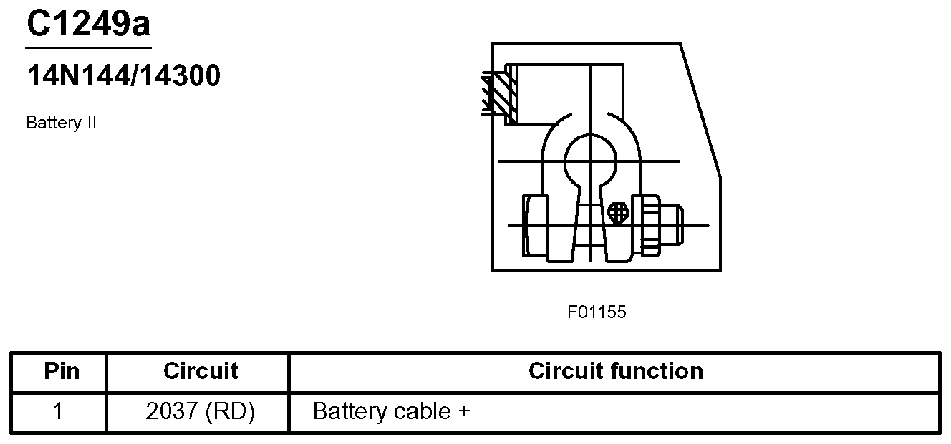

Fig 257: Battery II Connector End View (C1249a)

G07831304

Courtesy of FORD MOTOR CO.

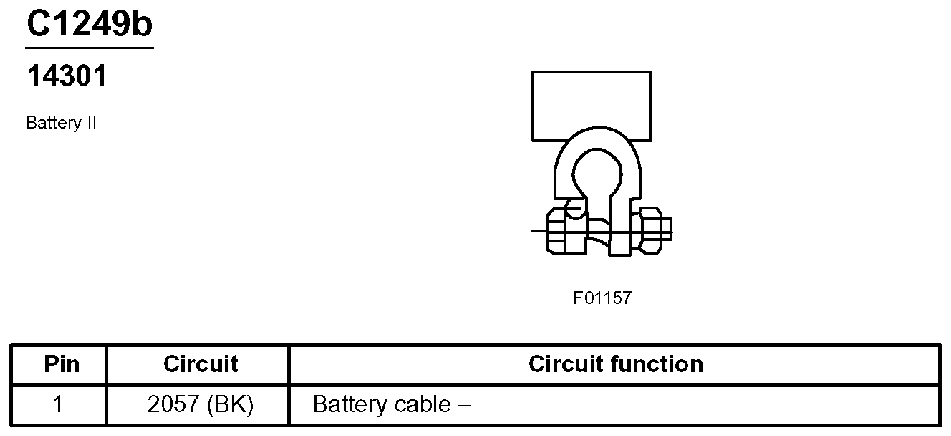

Fig 258: Battery II Connector End View (C1249b)

G07831305

Courtesy of FORD MOTOR CO.

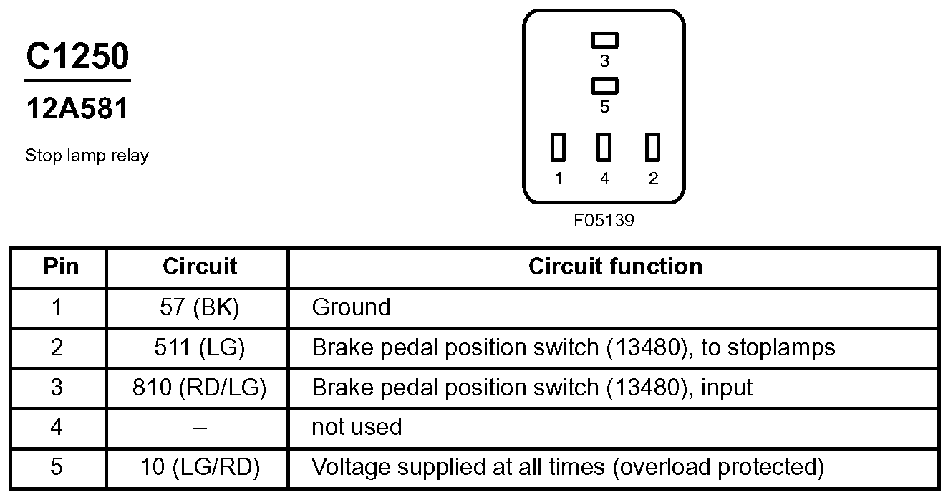

Fig 259: Stop Lamp Relay Connector End View (C1250)

G07831306

Courtesy of FORD MOTOR CO.

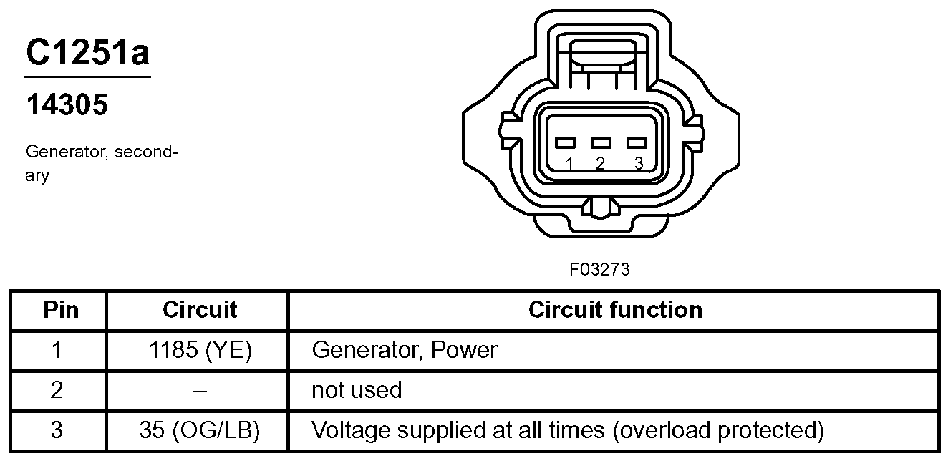

Fig 260: Generator, Secondary Connector End View (C1251a)

G07831307

Courtesy of FORD MOTOR CO.

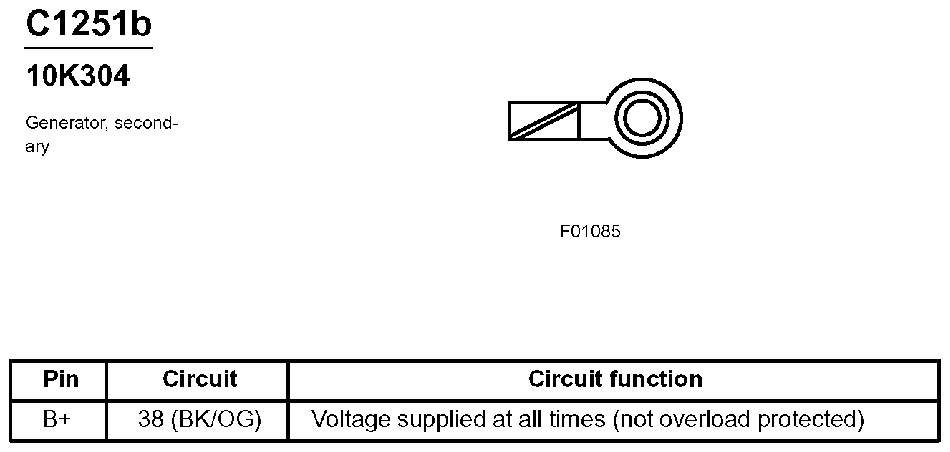

Fig 261: Generator, Secondary Connector End View (C1251b)

G07831308

Courtesy of FORD MOTOR CO.

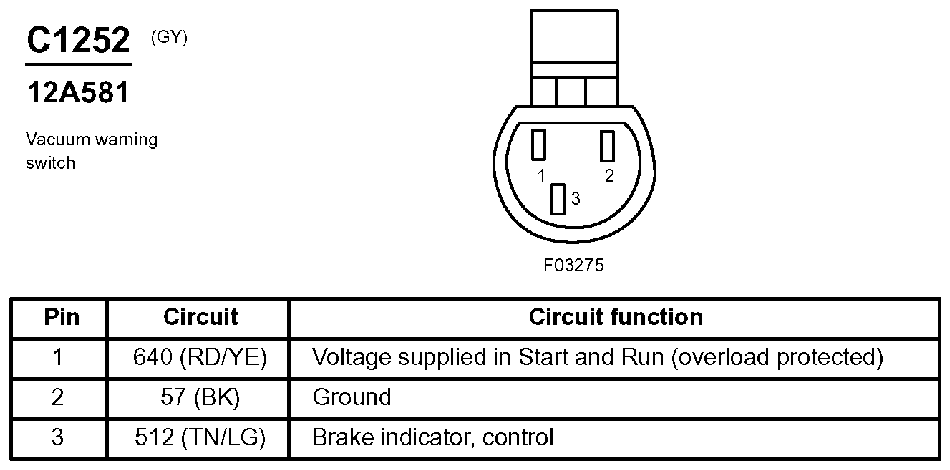

Fig 262: Vacuum Warning Switch Connector End View (C1252)

G07831309

Courtesy of FORD MOTOR CO.

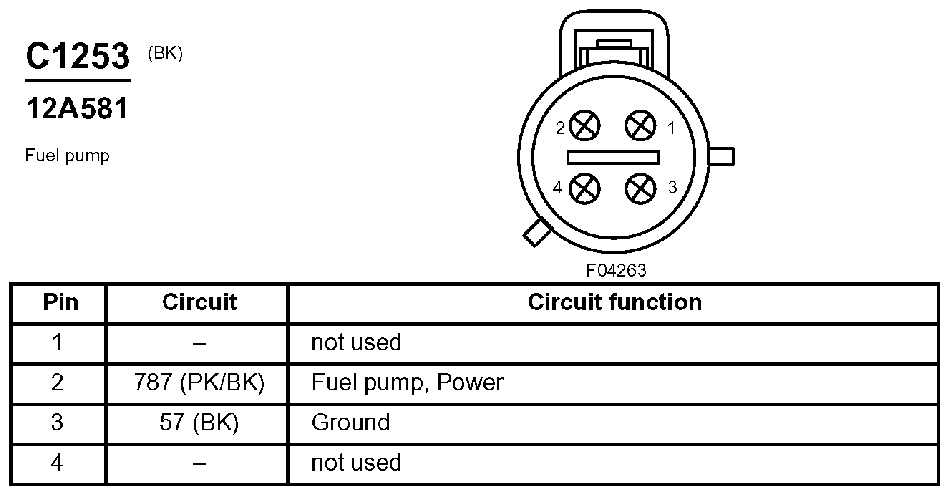

Fig 263: Fuel Pump Connector End View (C1253)

G07831310

Courtesy of FORD MOTOR CO.

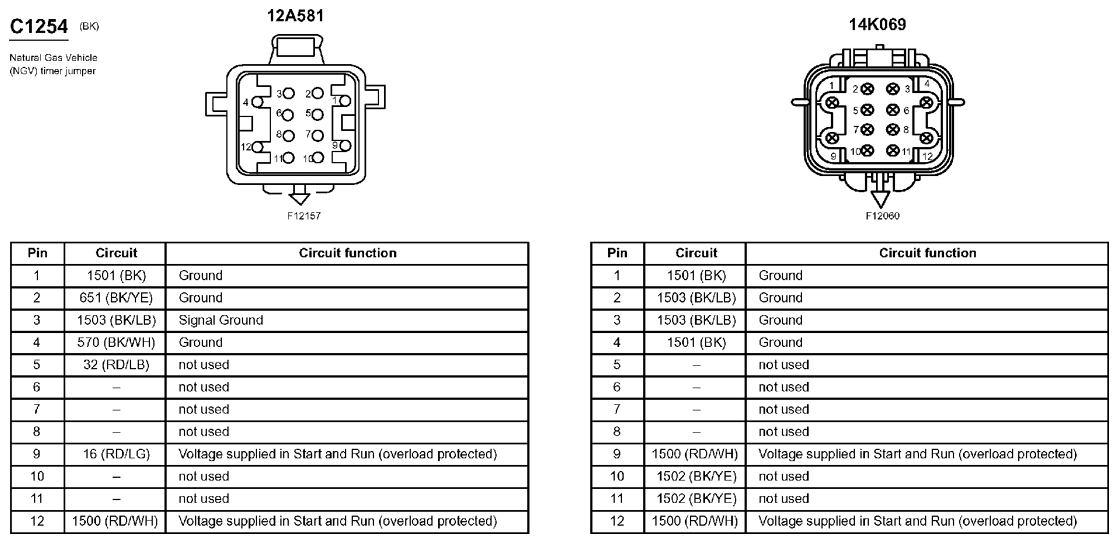

Fig 264: Natural Gas Vehicle (NGV) Timer Jumper Connector End View (C1254)

G07831311

Courtesy of FORD MOTOR CO.

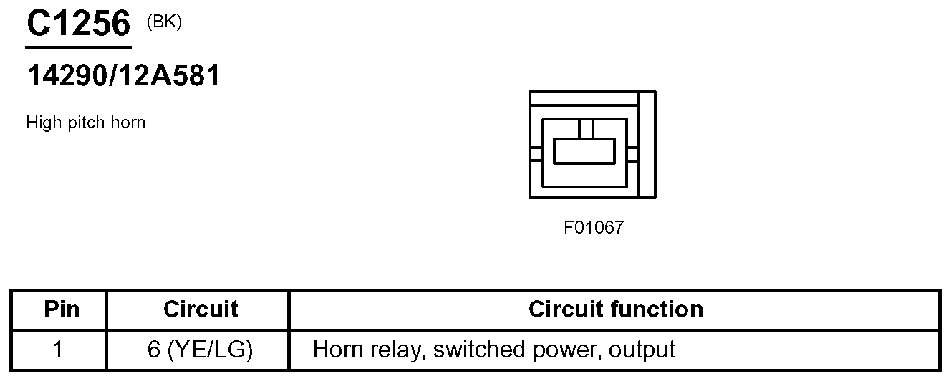

Fig 265: High Pitch Horn Connector End View (C1256)

G07831312

Courtesy of FORD MOTOR CO.

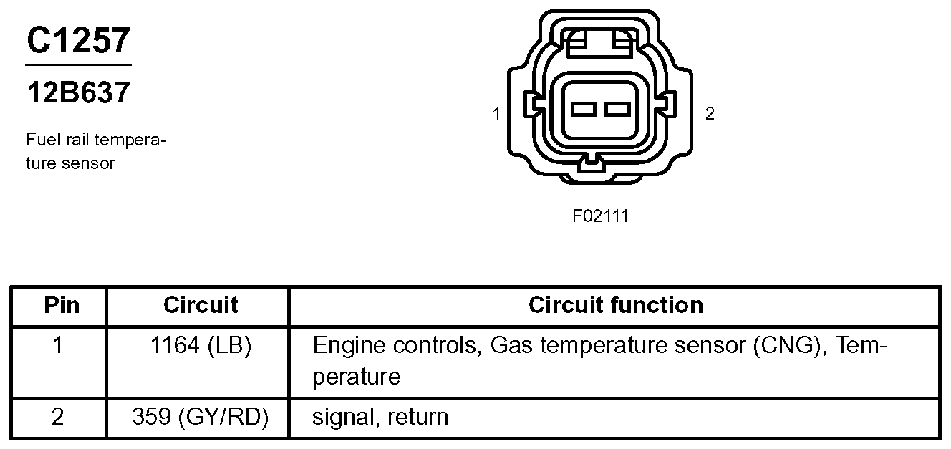

Fig 266: Fuel Rail Temperature Sensor Connector End View (C1257)

G07831313

Courtesy of FORD MOTOR CO.

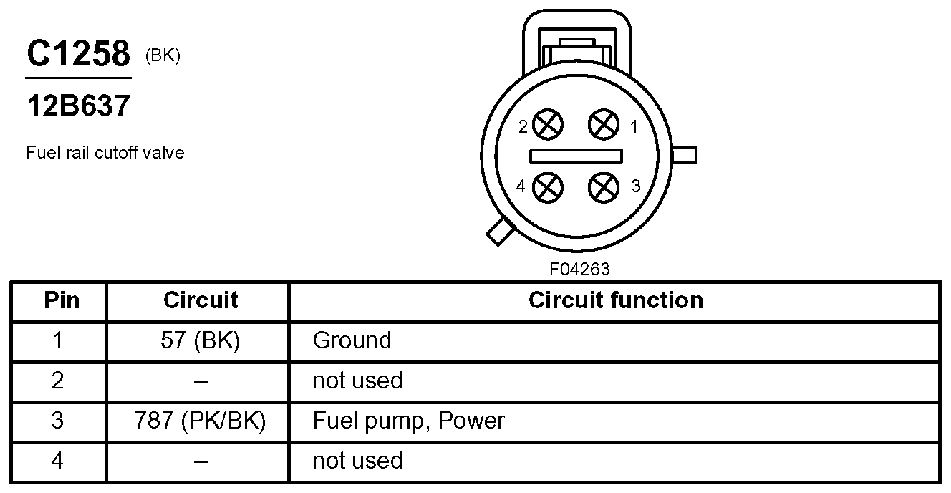

Fig 267: Fuel Rail Cutoff Valve Connector End View (C1258)

G07831314

Courtesy of FORD MOTOR CO.

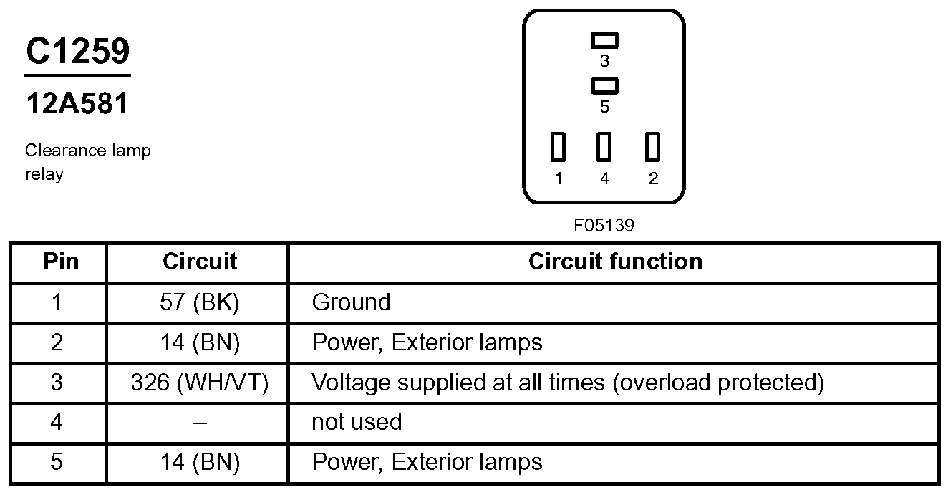

Fig 268: Clearance Lamp Relay Connector End View (C1259)

G07831315

Courtesy of FORD MOTOR CO.

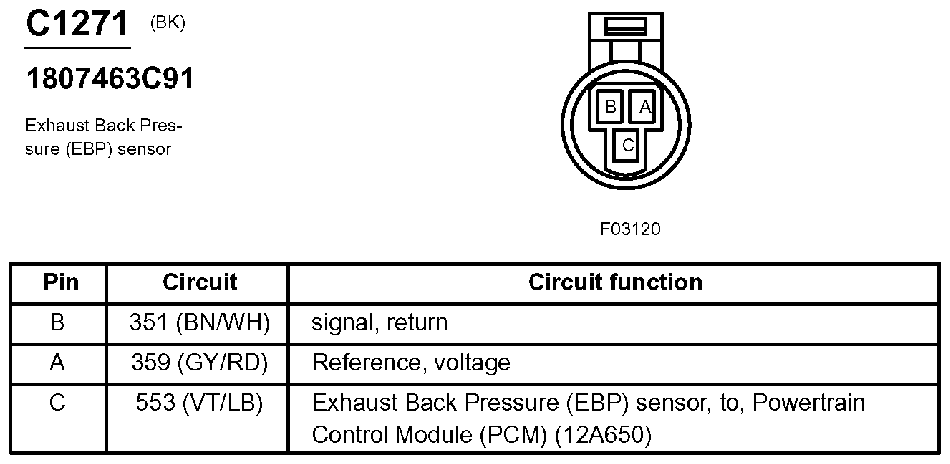

Fig 269: Exhaust Back Pressure (EBP) Sensor Connector End View (C1271)

G07831316

Courtesy of FORD MOTOR CO.

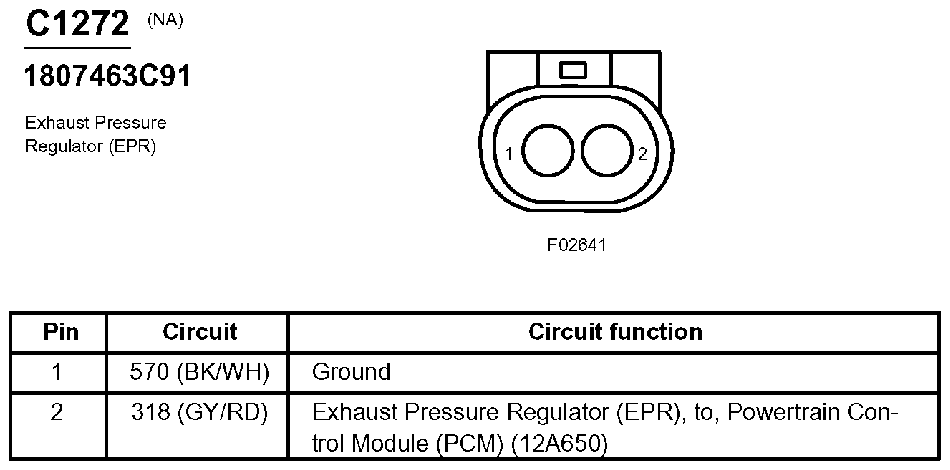

Fig 270: Exhaust Pressure Regulator (EPR) Connector End View (C1272)

G07831317

Courtesy of FORD MOTOR CO.

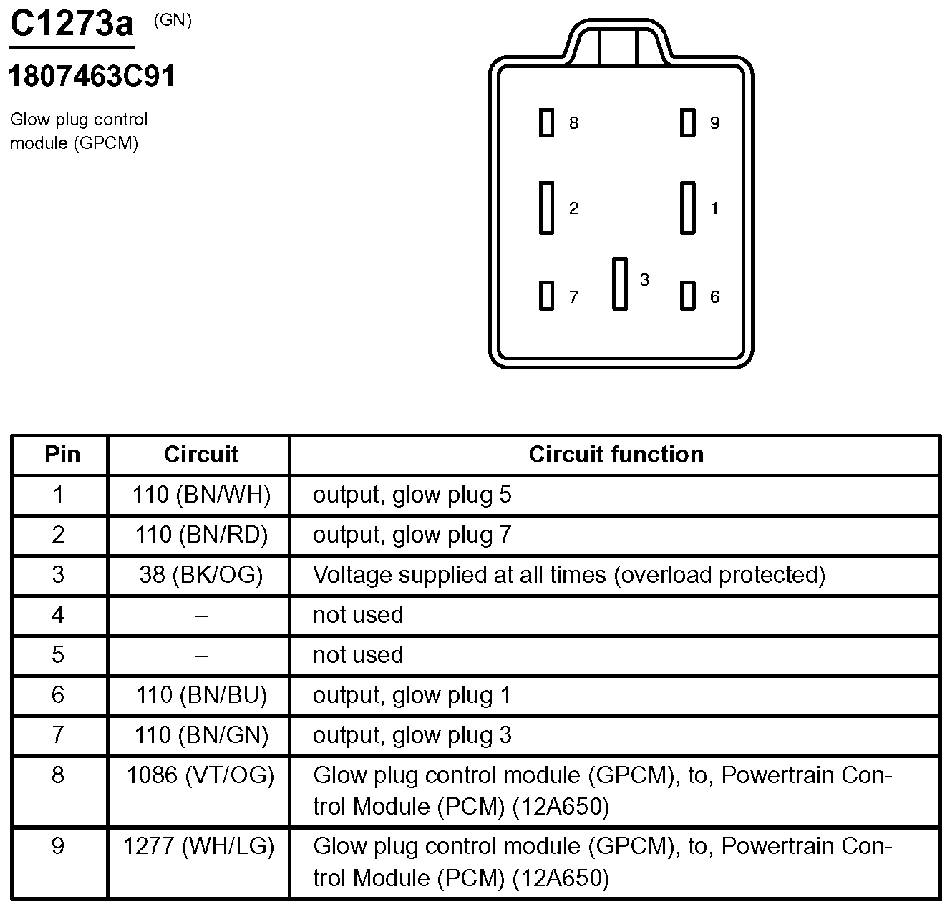

Fig 271: Glow Plug Control Module (GPCM) Connector End View (C1273a)

G07831318

Courtesy of FORD MOTOR CO.

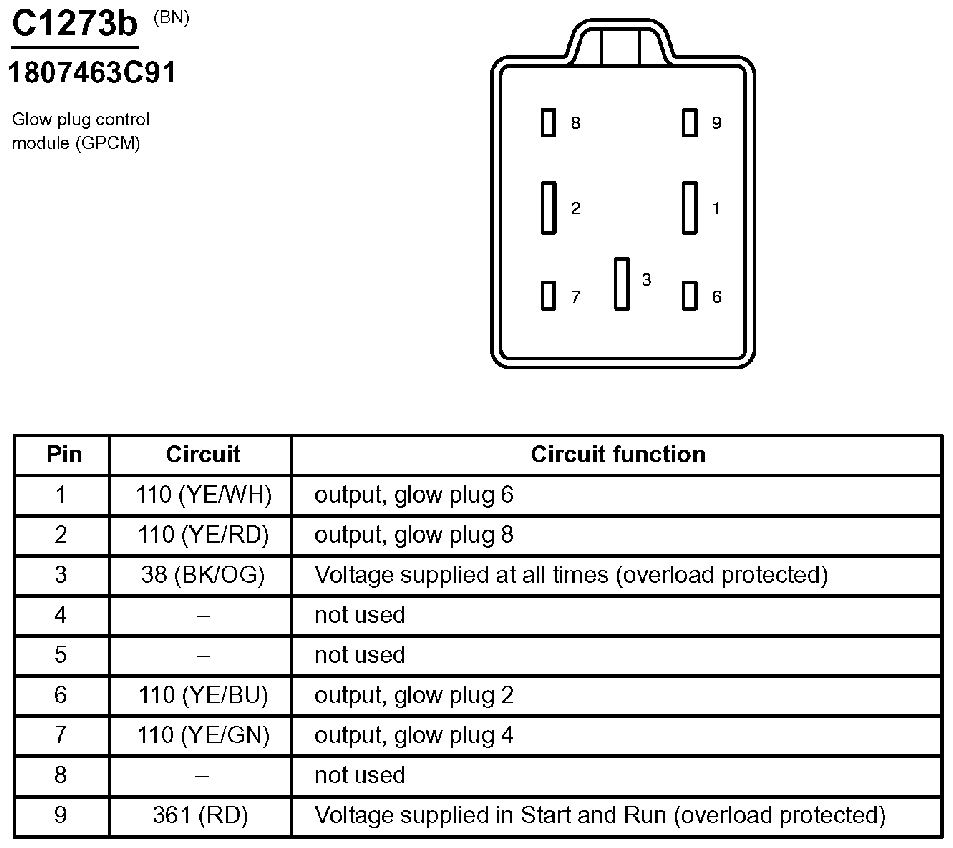

Fig 272: Glow Plug Control Module (GPCM) Connector End View (C1273b)

G07831319

Courtesy of FORD MOTOR CO.

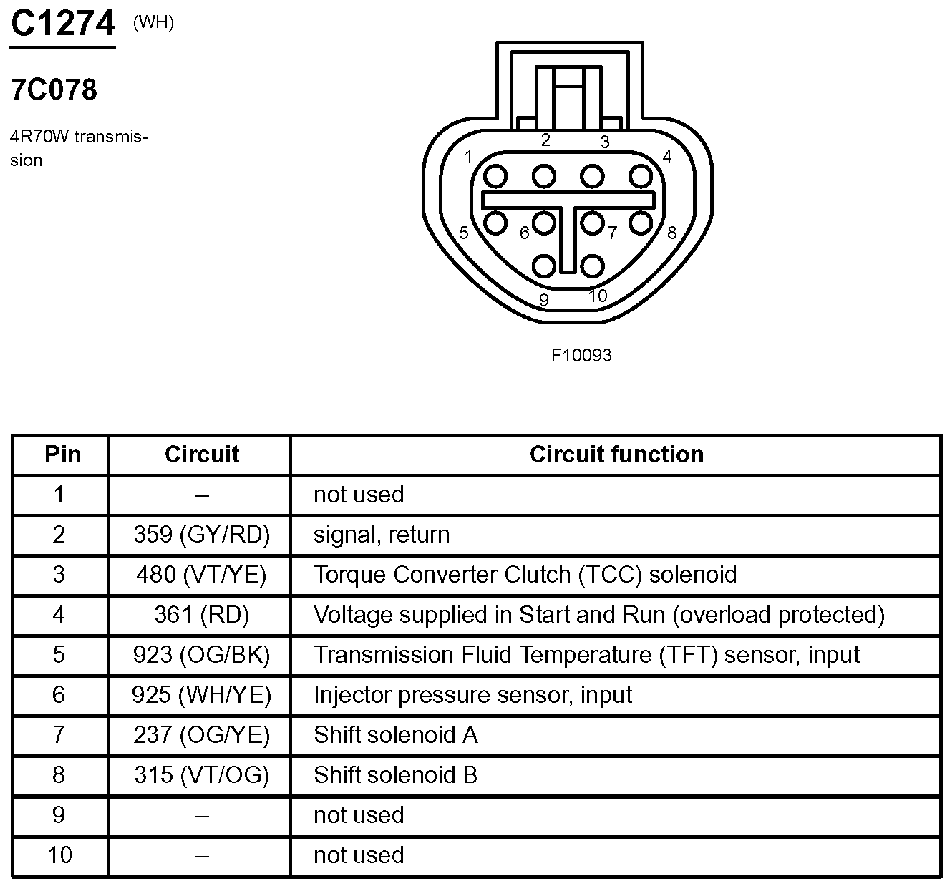

Fig 273: 4R70W Transmission Connector End View (C1274)

G07831320

Courtesy of FORD MOTOR CO.

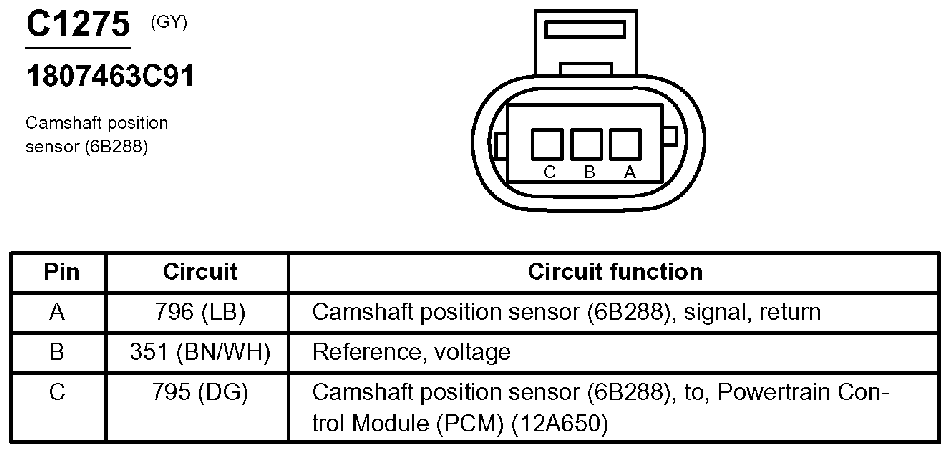

Fig 274: Camshaft Position Sensor Connector End View (C1275)

G07831321

Courtesy of FORD MOTOR CO.

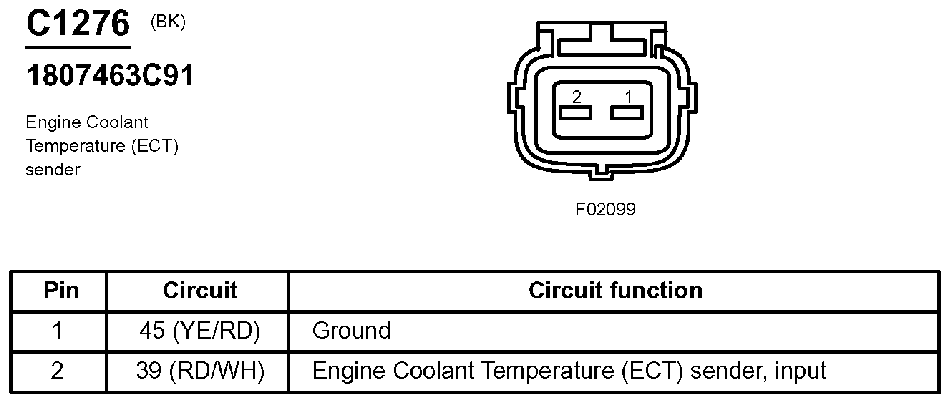

Fig 275: Engine Coolant Temperature (ECT) Sender Connector End View (C1276)

G07831322

Courtesy of FORD MOTOR CO.

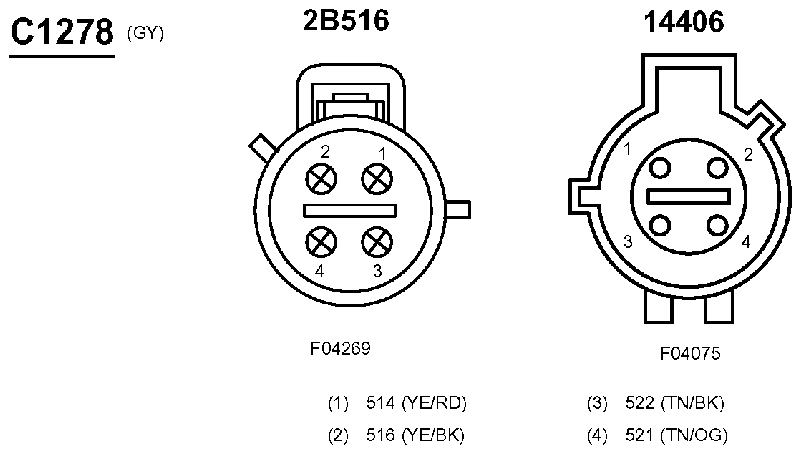

Fig 276: Inline Connector End View (C1278)

G07831323

Courtesy of FORD MOTOR CO.

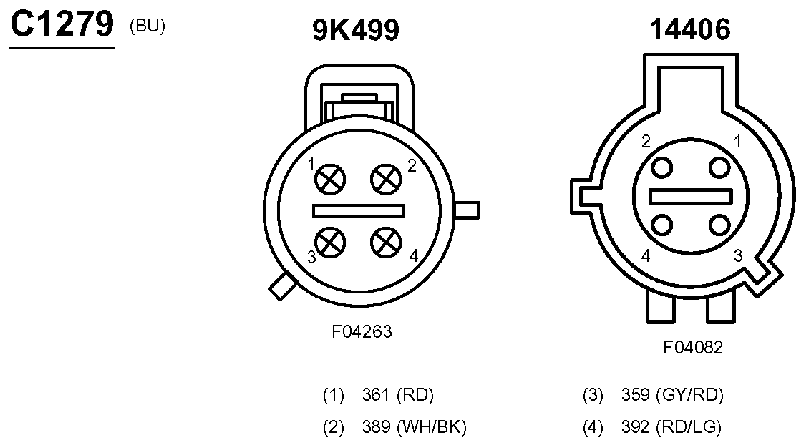

Fig 277: Inline Connector End View (C1279)

G07831324

Courtesy of FORD MOTOR CO.

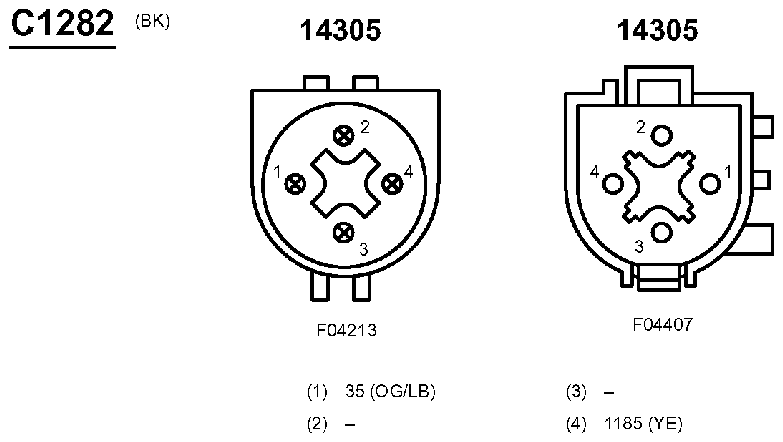

Fig 278: Inline Connector End View (C1282)

G07831325

Courtesy of FORD MOTOR CO.

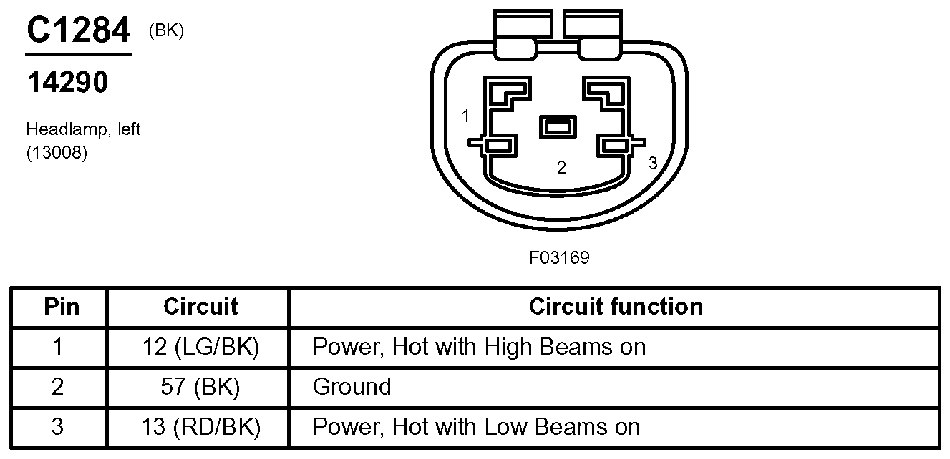

Fig 279: Headlamp, Left Connector End View (C1284)

G07831326

Courtesy of FORD MOTOR CO.

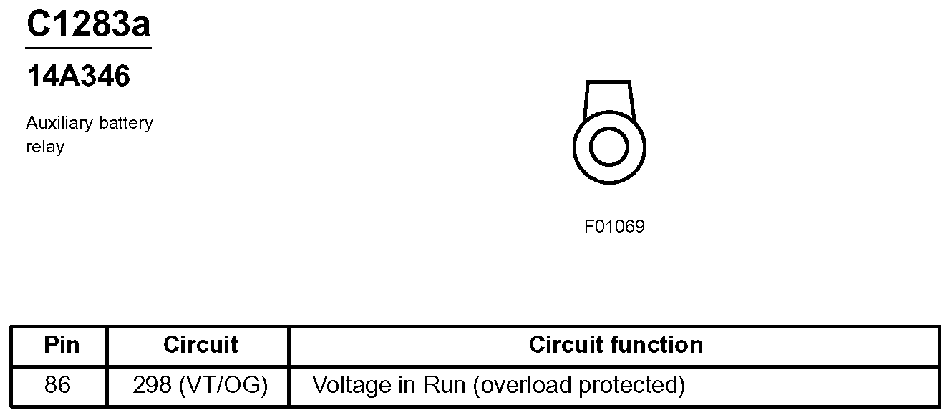

Fig 280: Auxiliary Battery Relay Connector End View (C1283a)

G07831327

Courtesy of FORD MOTOR CO.

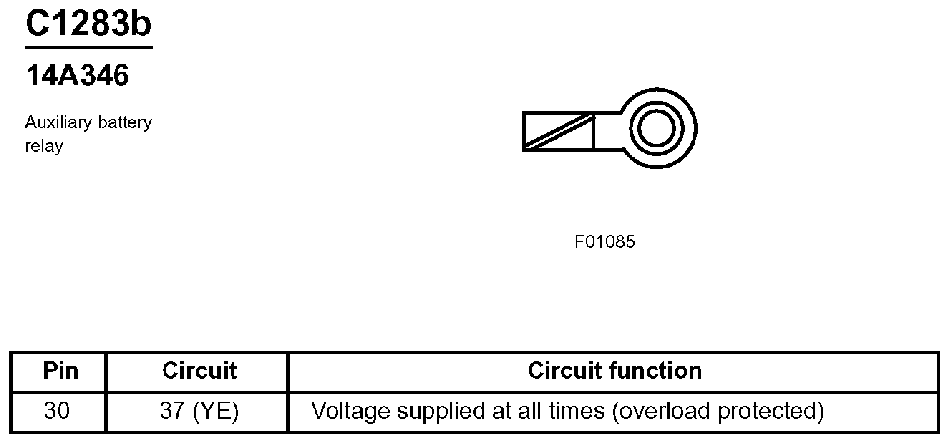

Fig 281: Auxiliary Battery Relay Connector End View (C1283b)

G07831328

Courtesy of FORD MOTOR CO.

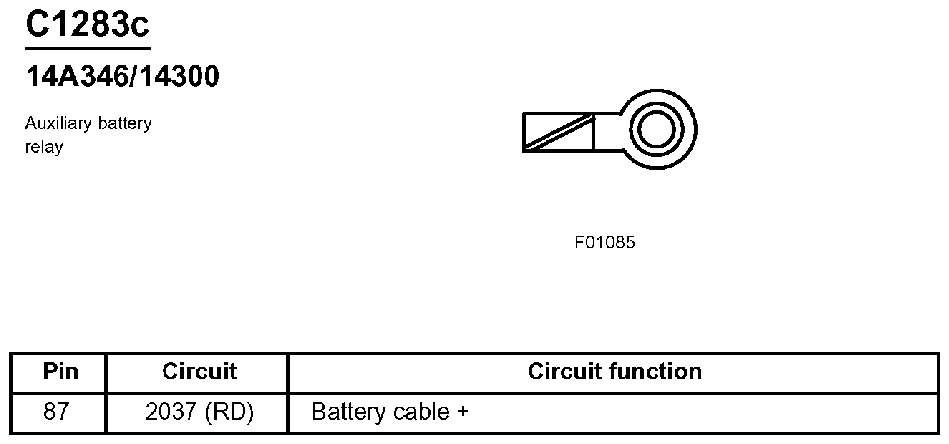

Fig 282: Auxiliary Battery Relay Connector End View (C1283c)

G07831329

Courtesy of FORD MOTOR CO.

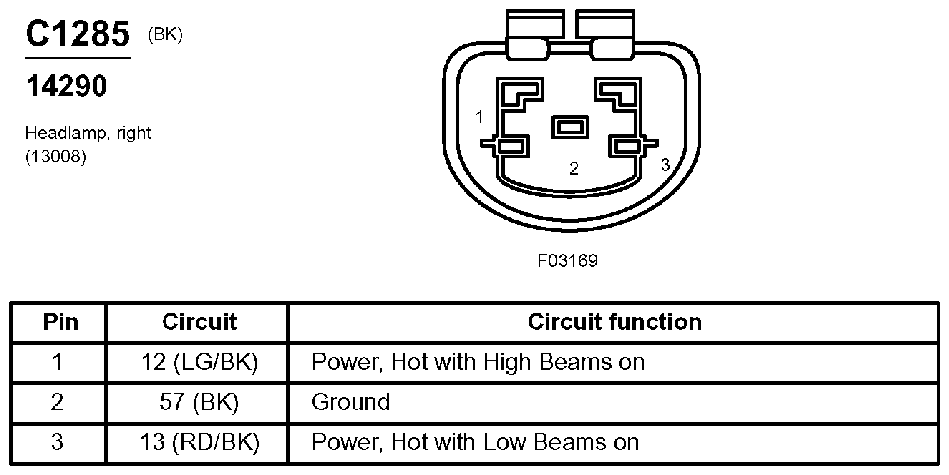

Fig 283: Headlamp, Right Connector End View (C1285)

G07831330

Courtesy of FORD MOTOR CO.

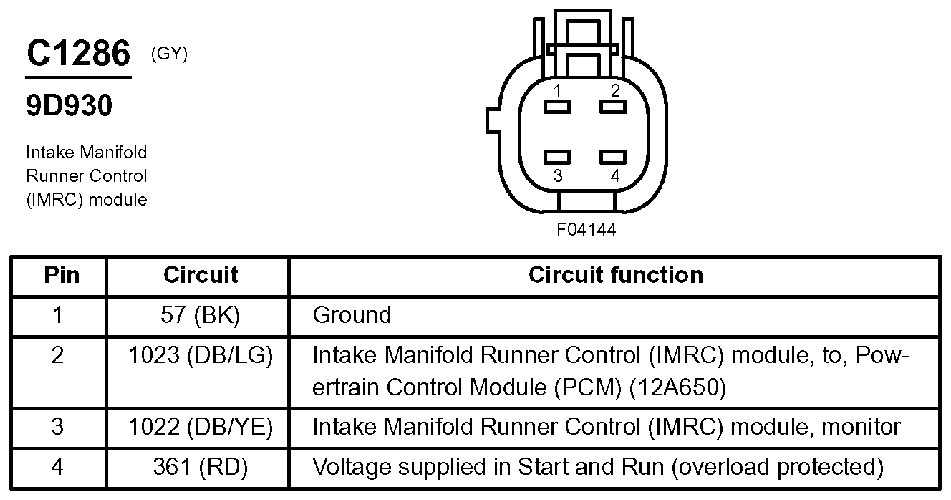

Fig 284: Intake Manifold Runner Control (IMRC) Module Connector End View (C1286)

G07831331

Courtesy of FORD MOTOR CO.

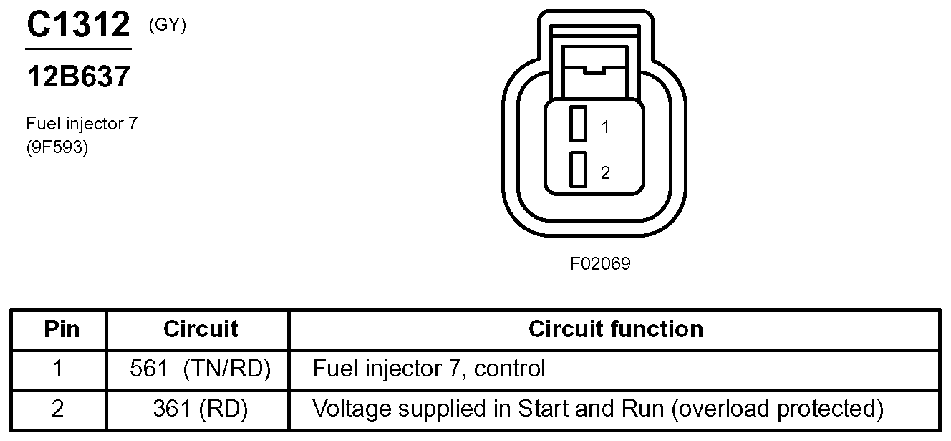

Fig 285: Fuel Injector 7 Connector End View (C1312)

G07831332

Courtesy of FORD MOTOR CO.

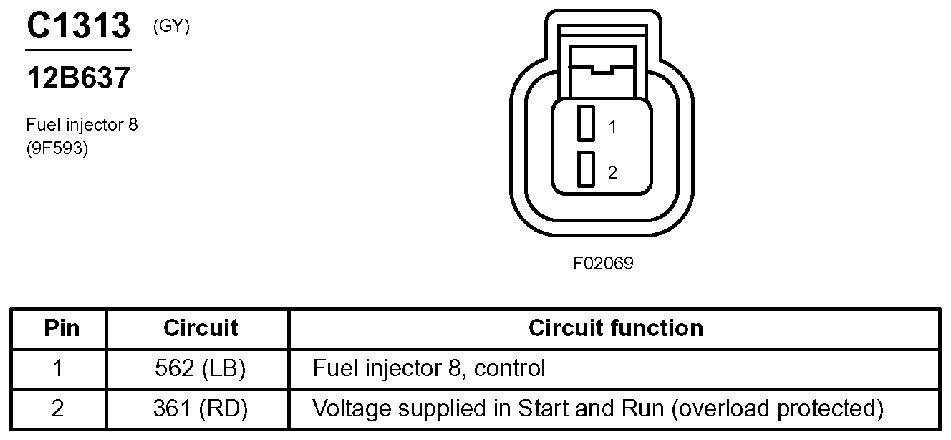

Fig 286: Fuel Injector 8 Connector End View (C1313)

G07831333

Courtesy of FORD MOTOR CO.

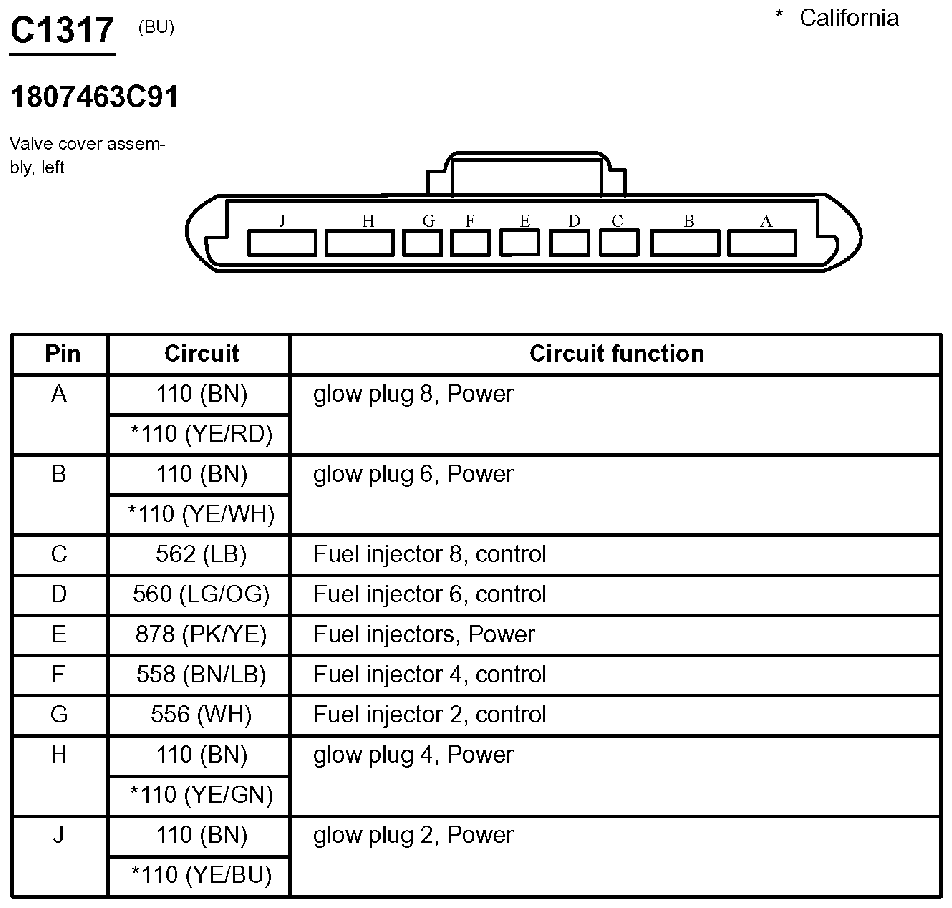

Fig 287: Valve Cover Assembly, Left Connector End View (C1317)

G07831334

Courtesy of FORD MOTOR CO.

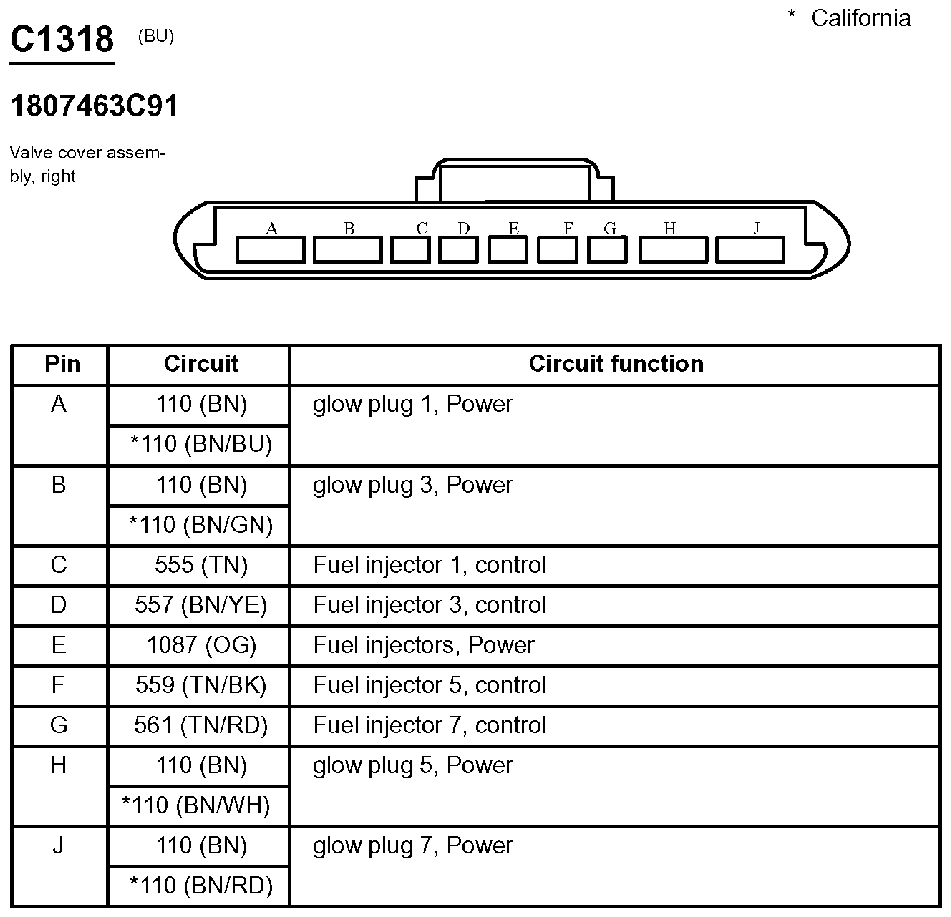

Fig 288: Valve Cover Assembly, Right Connector End View (C1318)

G07831335

Courtesy of FORD MOTOR CO.

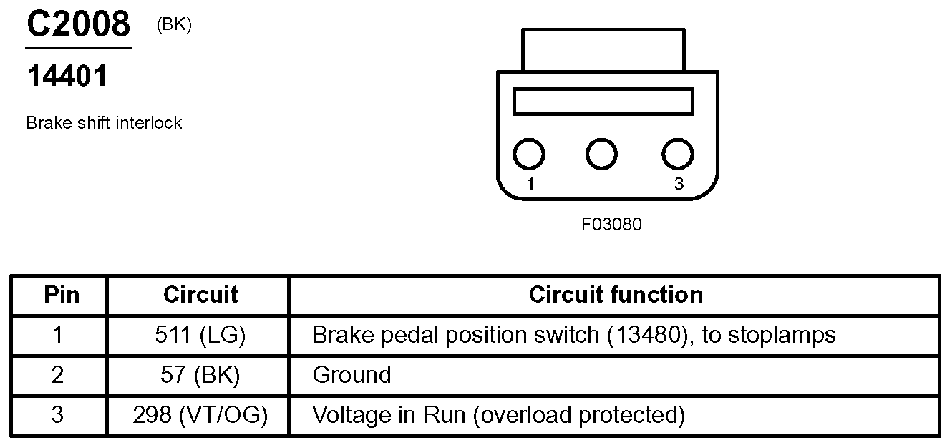

Fig 289: Brake Shift Interlock Connector End View (C2008)

G07831336

Courtesy of FORD MOTOR CO.

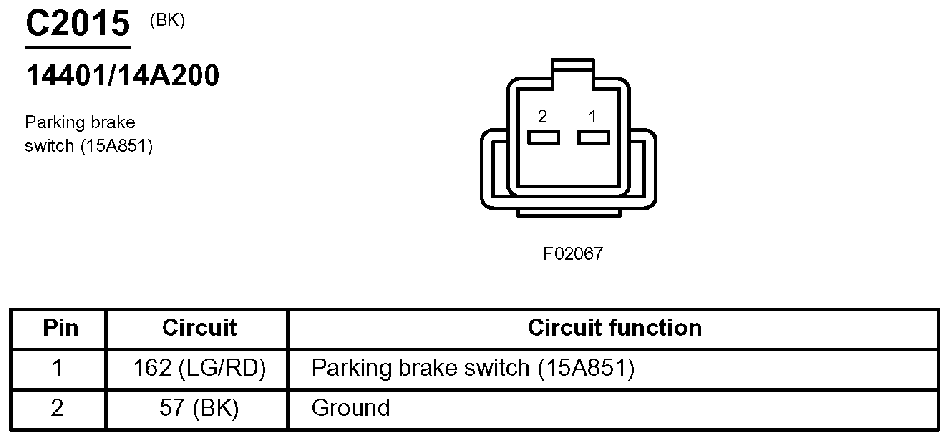

Fig 290: Parking Brake Switch Connector End View (C2015)

G07831337

Courtesy of FORD MOTOR CO.

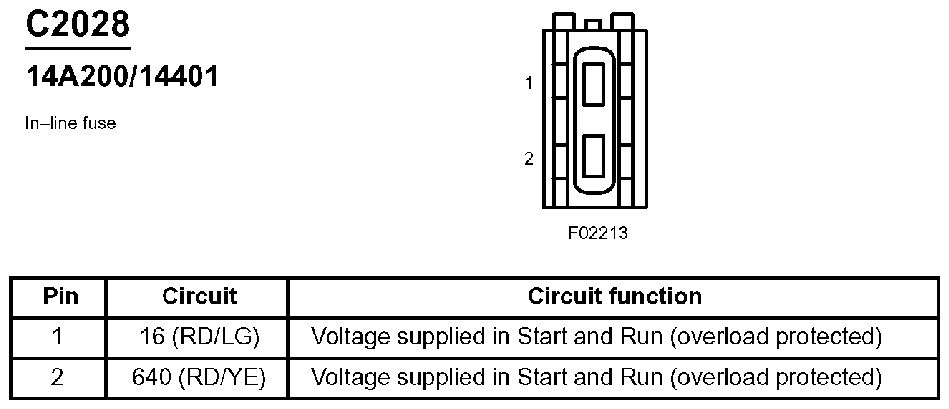

Fig 291: In-Line Fuse Connector End View (C2028)

G07831338

Courtesy of FORD MOTOR CO.

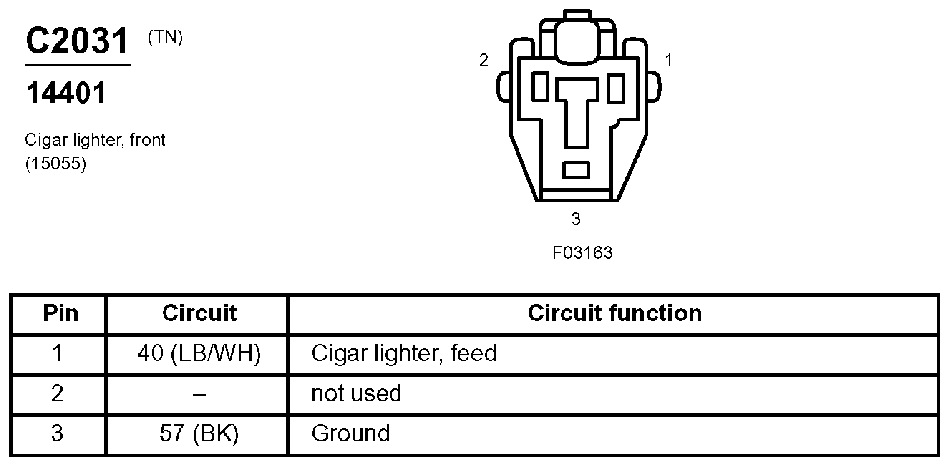

Fig 292: Cigar Lighter, Front Connector End View (C2031)

G07831339

Courtesy of FORD MOTOR CO.

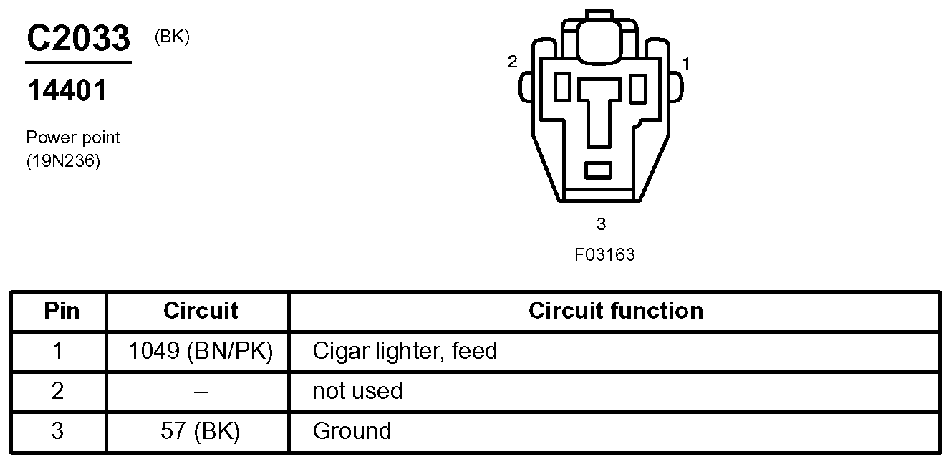

Fig 293: Power Point Connector End View (C2033)

G07831340

Courtesy of FORD MOTOR CO.

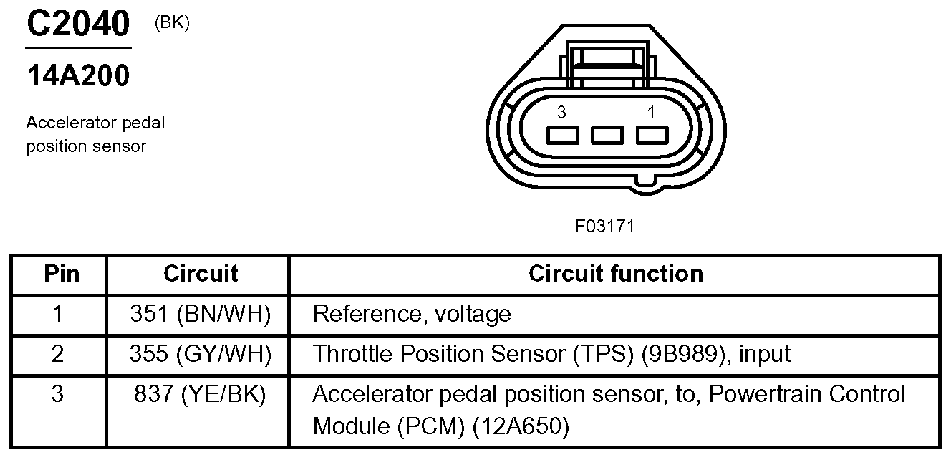

Fig 294: Accelerator Pedal Position Sensor Connector End View (C2040)

G07831341

Courtesy of FORD MOTOR CO.

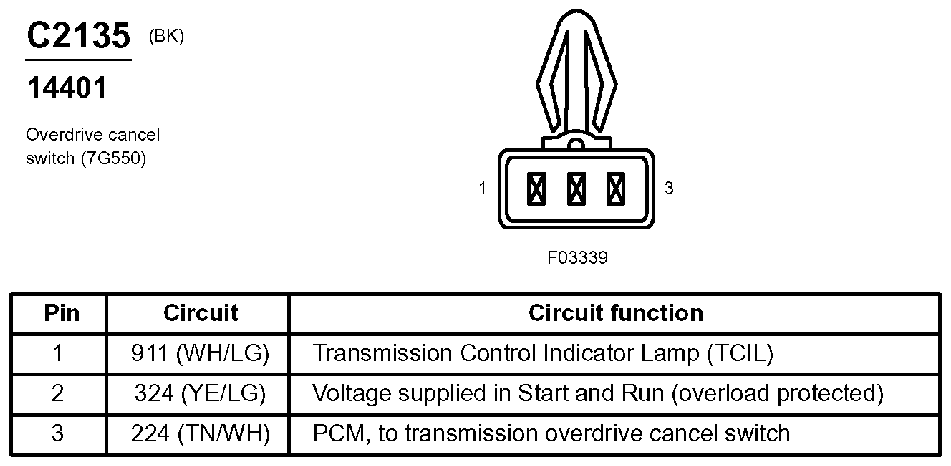

Fig 295: Overdrive Cancel Switch Connector End View (C2135)

G07831342

Courtesy of FORD MOTOR CO.

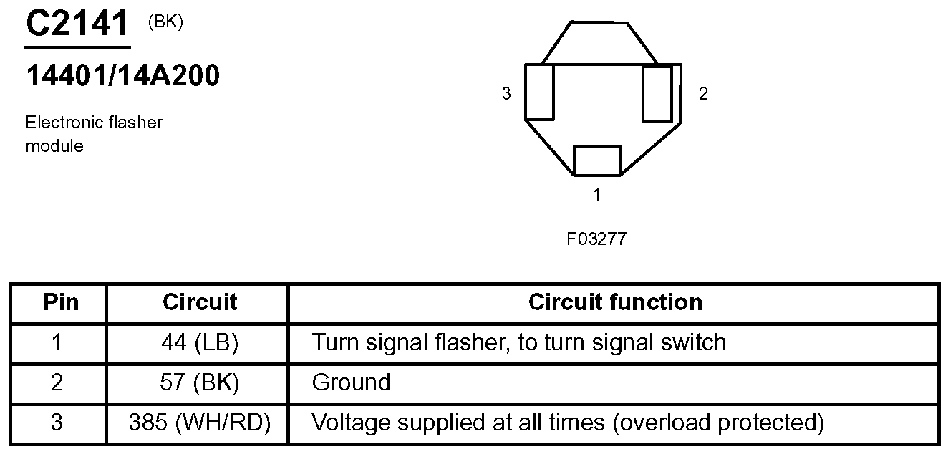

Fig 296: Electronic Flasher Module Connector End View (C2141)

G07831343

Courtesy of FORD MOTOR CO.

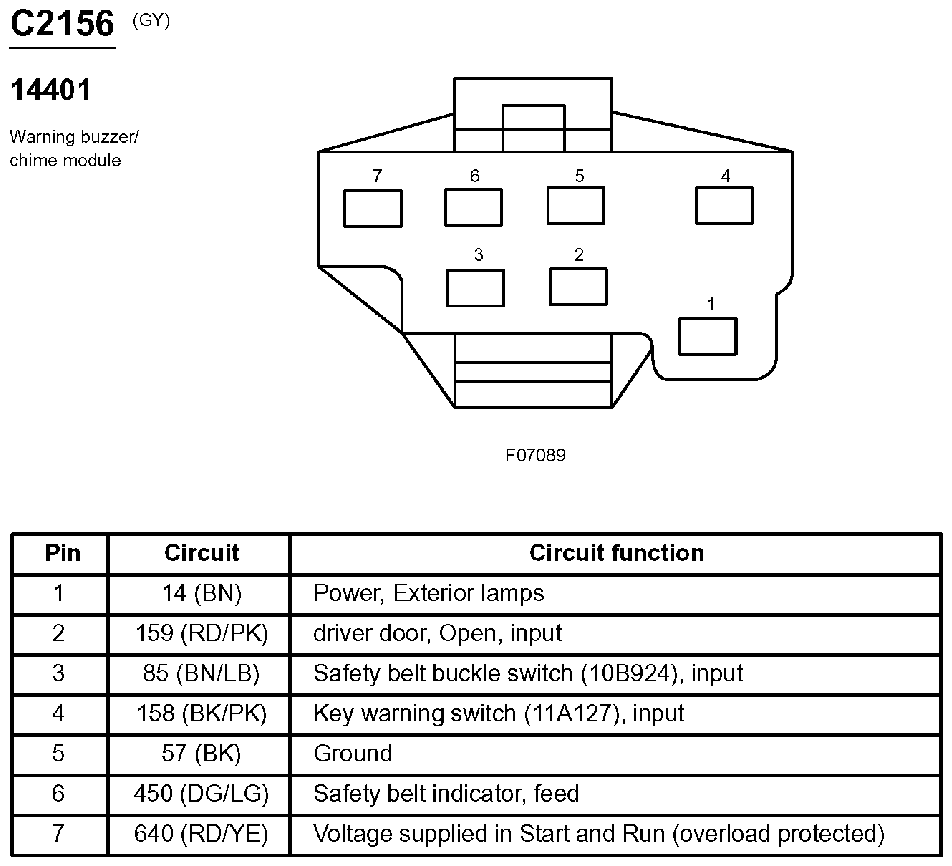

Fig 297: Warning Buzzer/Chime Module Connector End View (C2156)

G07831344

Courtesy of FORD MOTOR CO.

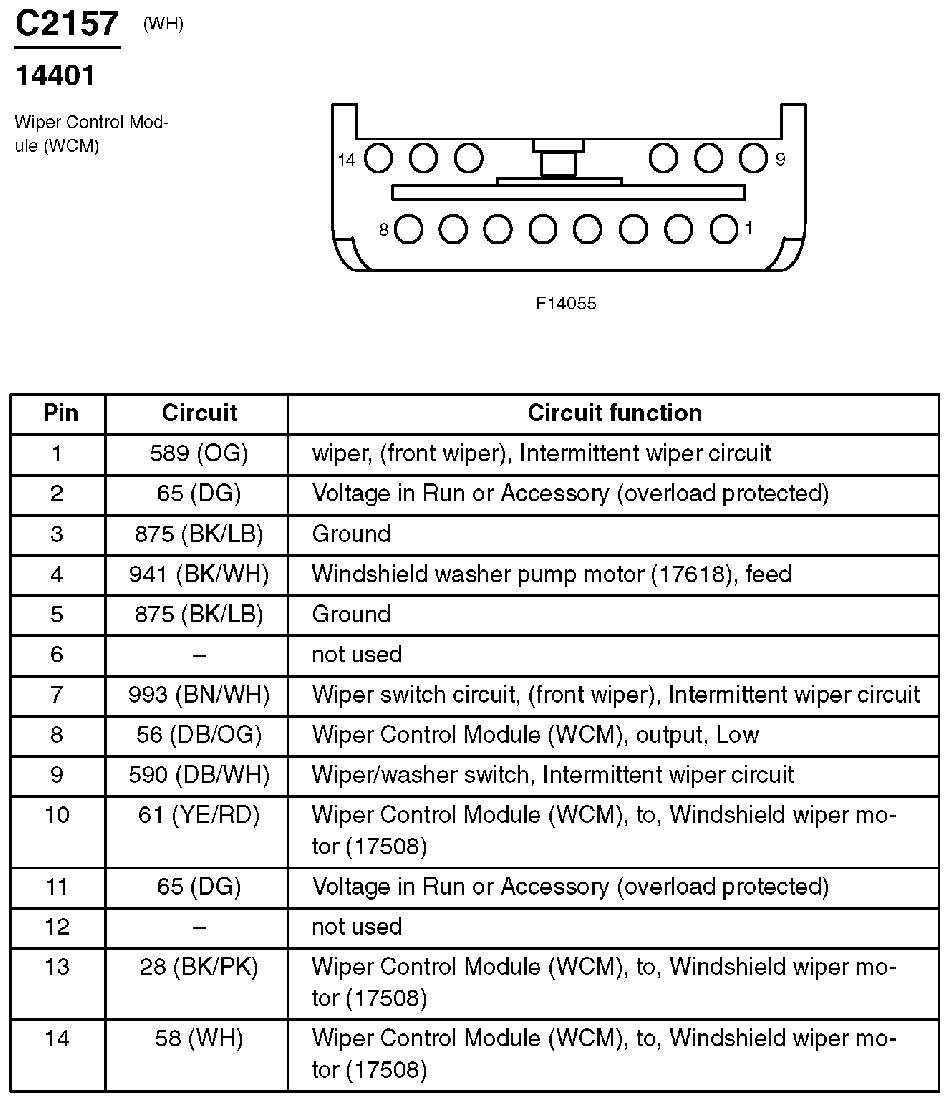

Fig 298: Wiper Control Module (WCM) Connector End View (C2157)

G07831345

Courtesy of FORD MOTOR CO.

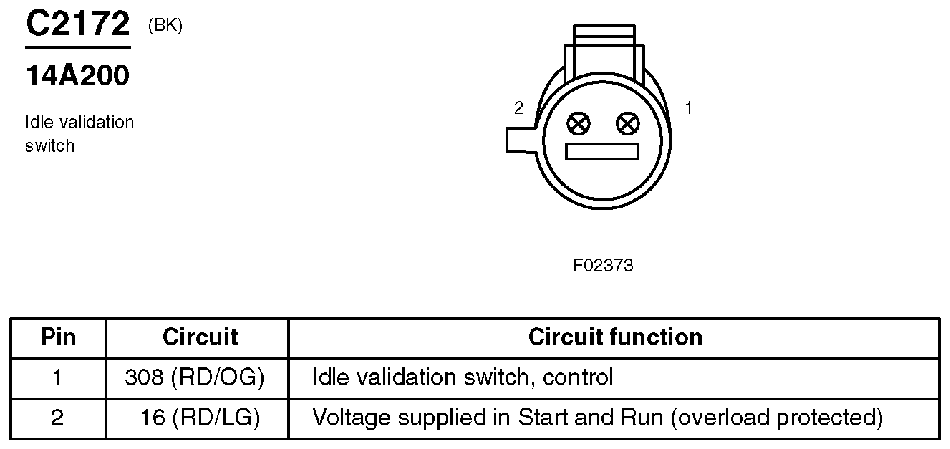

Fig 299: Idle Validation Switch Connector End View (C2172)

G07831346

Courtesy of FORD MOTOR CO.

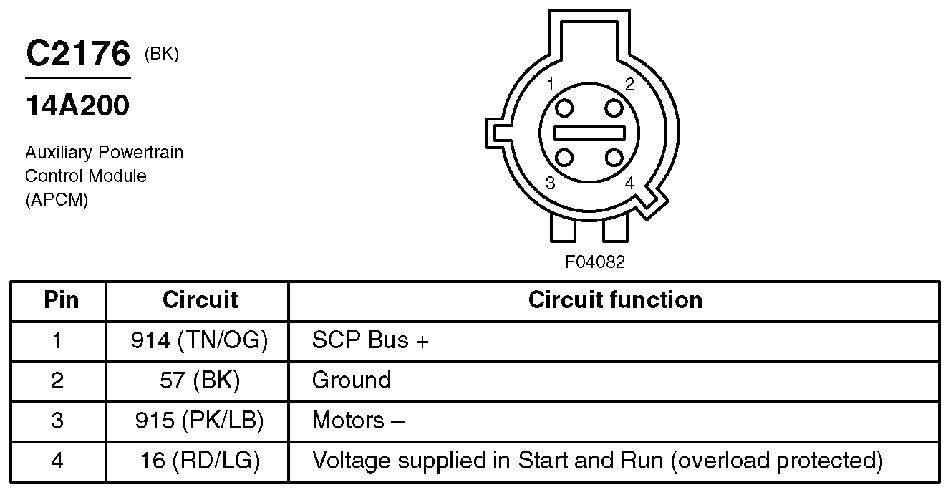

Fig 300: Auxiliary Powertrain Control Module (APCM) Connector End View (C2176)

G07831347

Courtesy of FORD MOTOR CO.

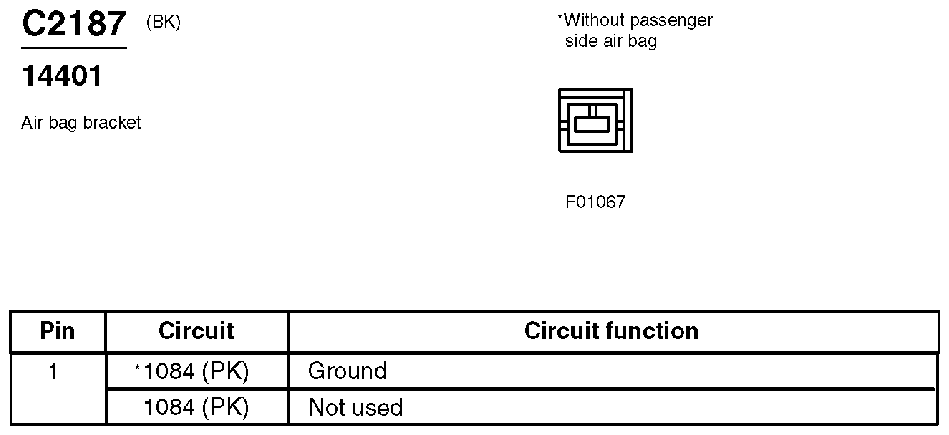

Fig 301: Air Bag Bracket Connector End View (C2187)

G07831348

Courtesy of FORD MOTOR CO.

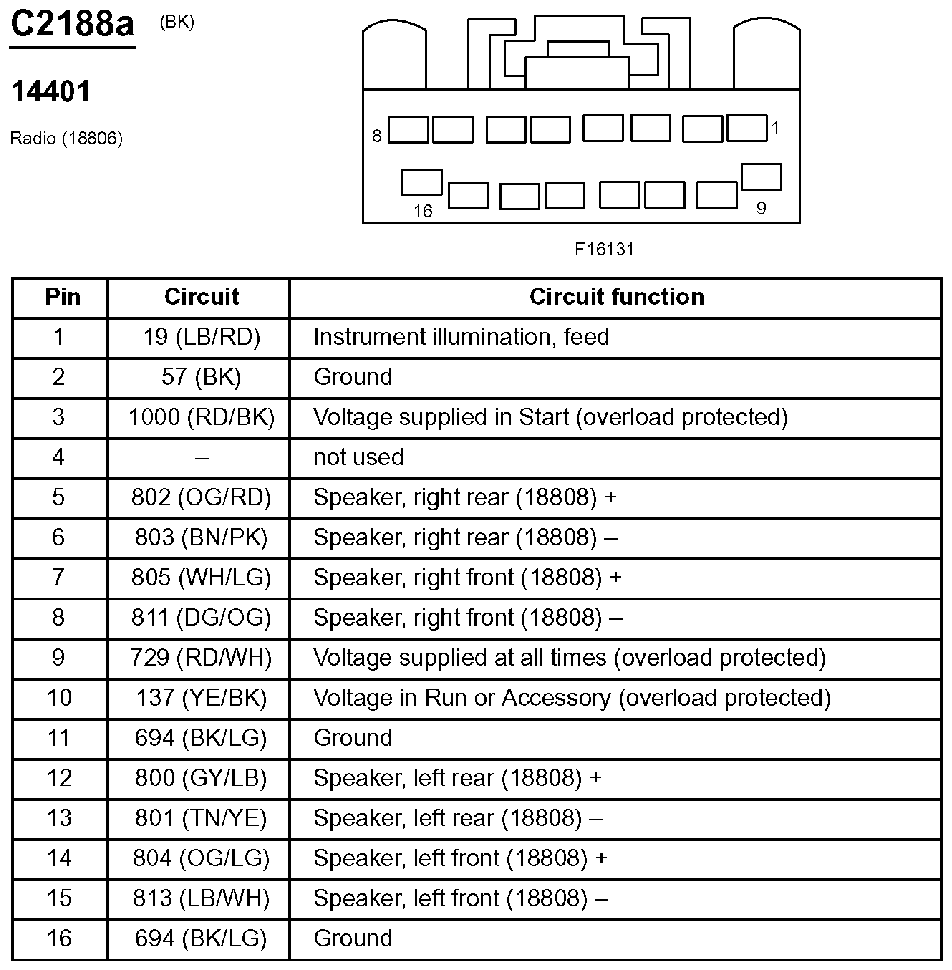

Fig 302: Radio Connector End View (C2188a)

G07831349

Courtesy of FORD MOTOR CO.

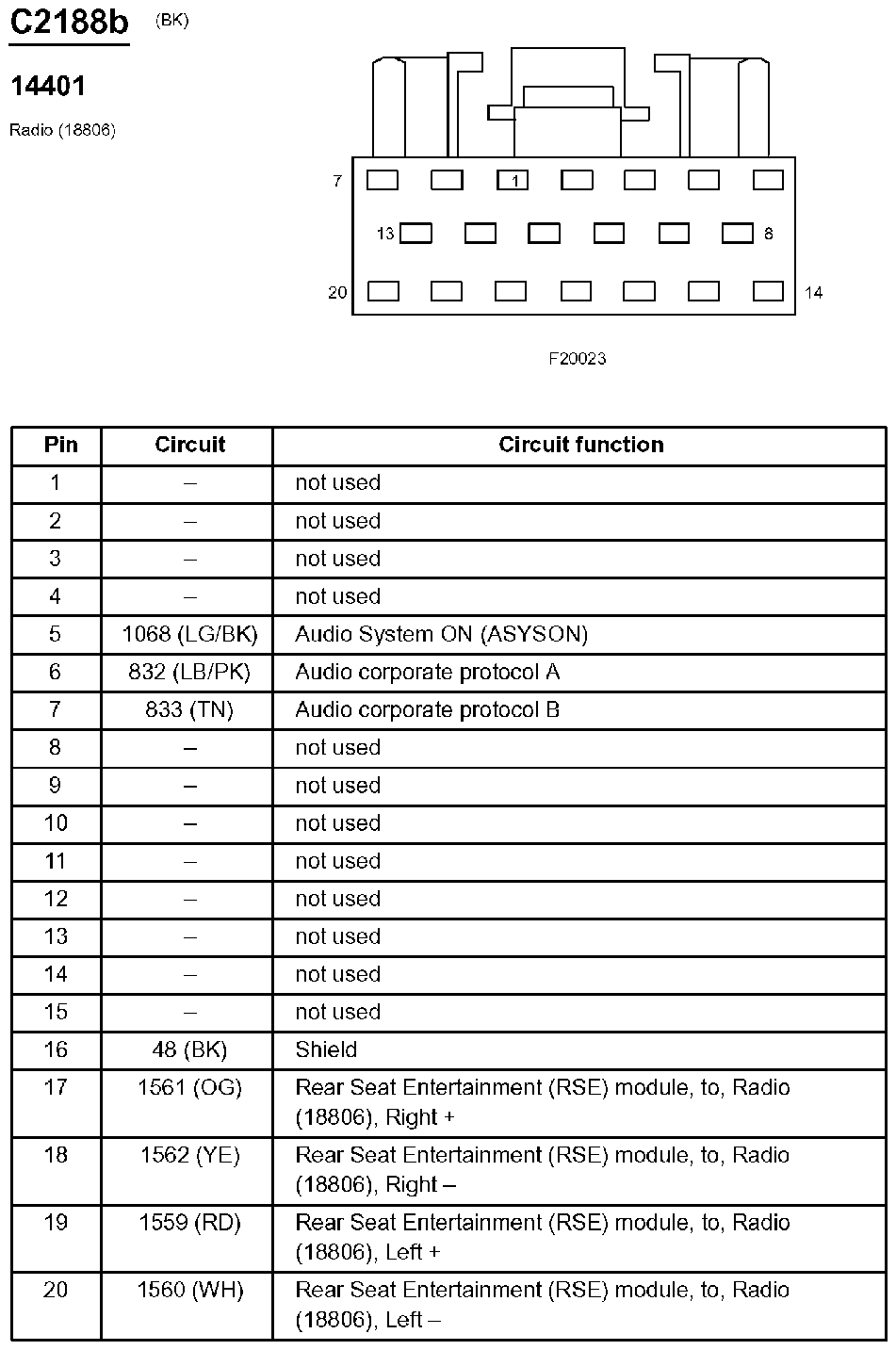

Fig 303: Radio Connector End View (C2188b)

G07831350

Courtesy of FORD MOTOR CO.

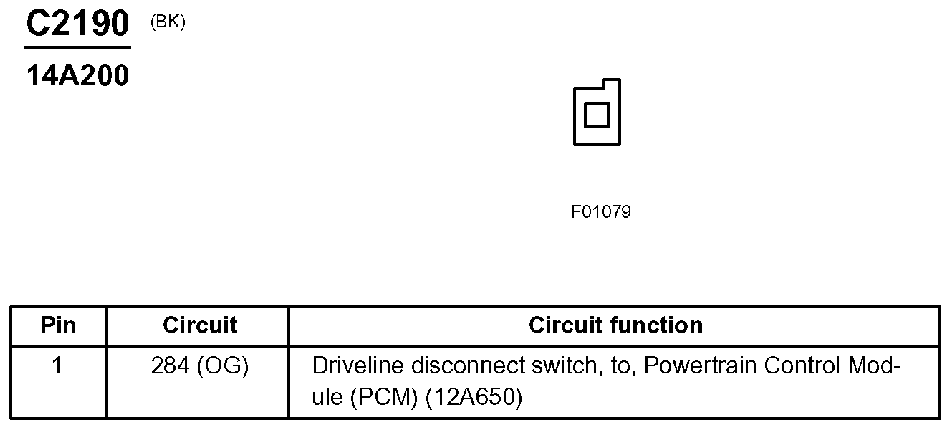

Fig 304: Inline Connector End View (C2190)

G07831351

Courtesy of FORD MOTOR CO.

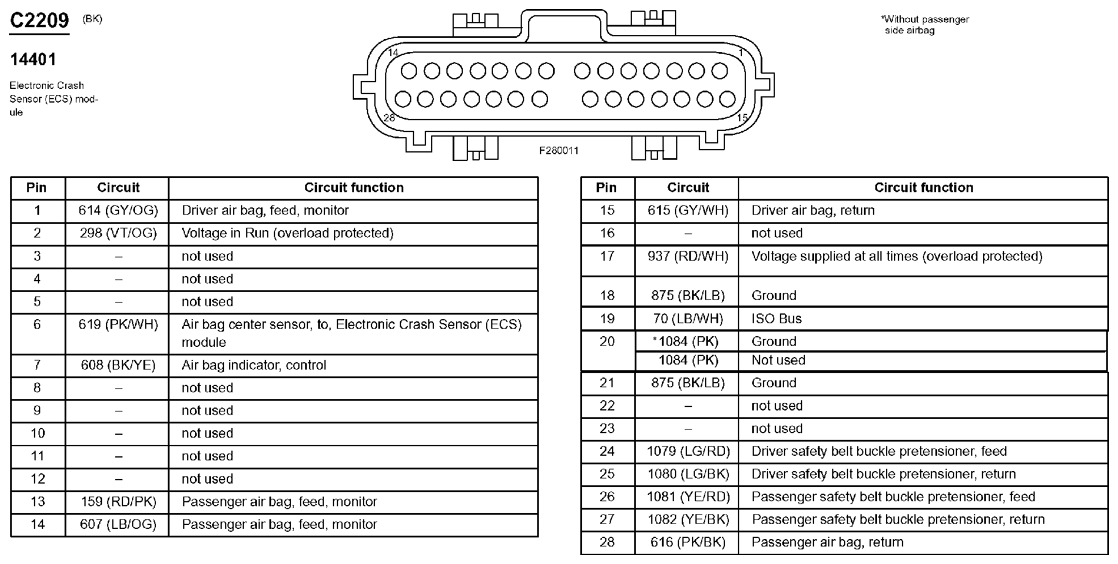

Fig 305: Electronic Crash Sensor (ECS) Module Connector End View (C2209)

G07831352

Courtesy of FORD MOTOR CO.

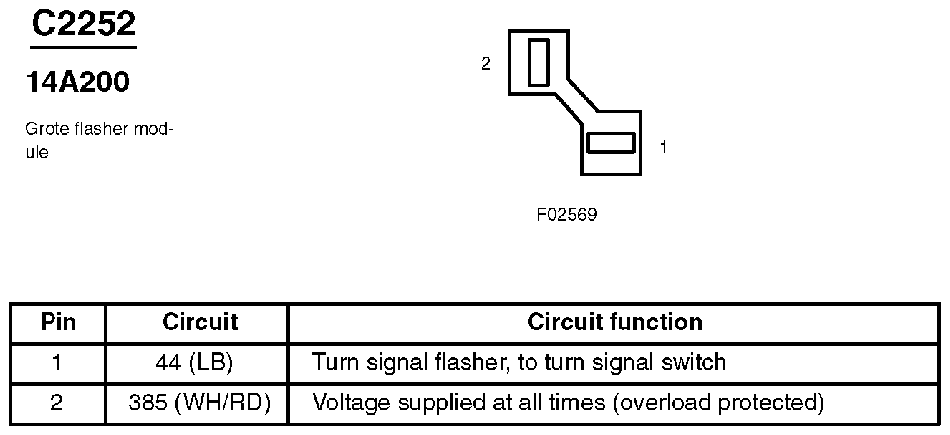

Fig 306: Grote Flasher Module Connector End View (C2252)

G07831353

Courtesy of FORD MOTOR CO.

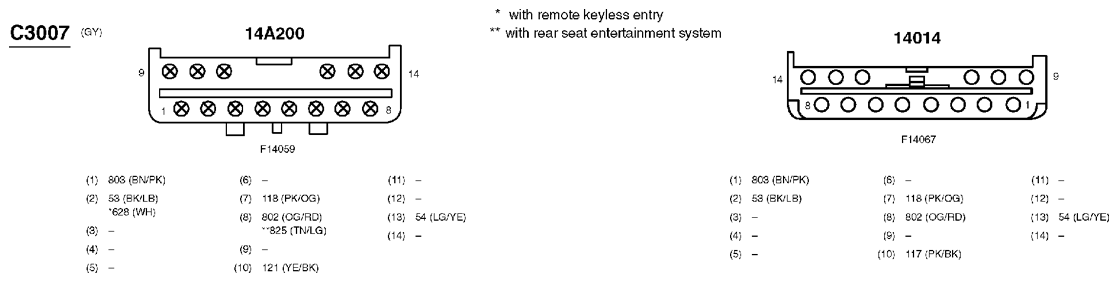

Fig 307: Inline Connector End View (C3007)

G07831354

Courtesy of FORD MOTOR CO.

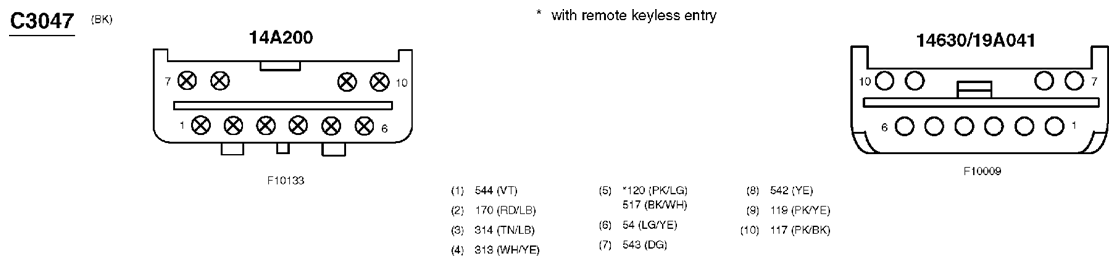

Fig 308: Inline Connector End View (C3047)

G07831355

Courtesy of FORD MOTOR CO.

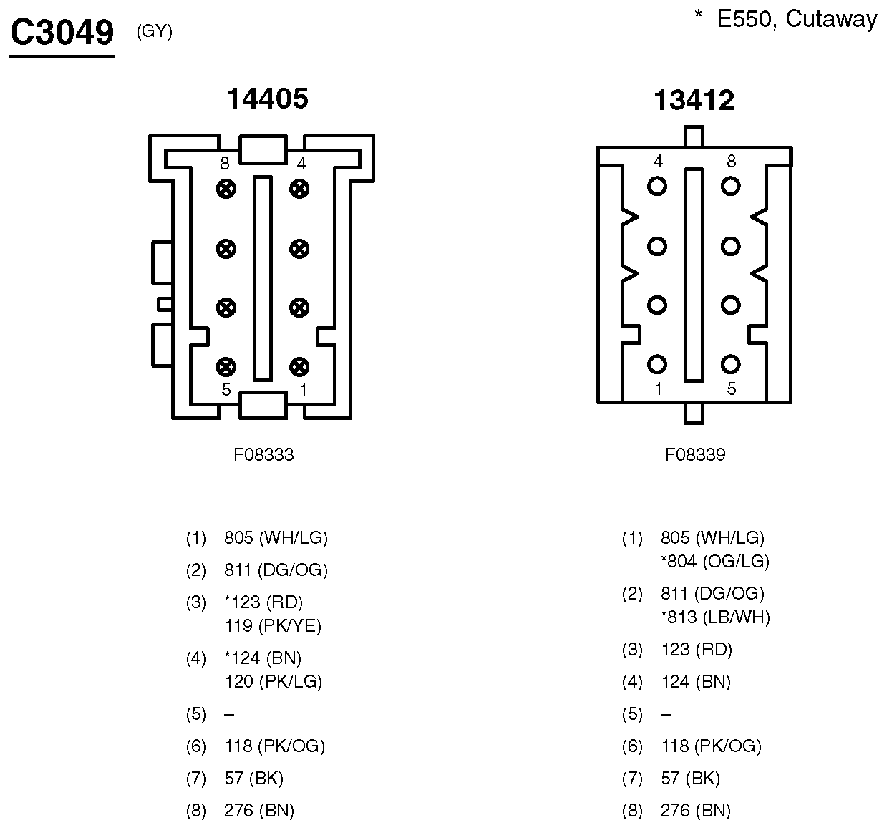

Fig 309: Inline Connector End View (C3049)

G07831356

Courtesy of FORD MOTOR CO.

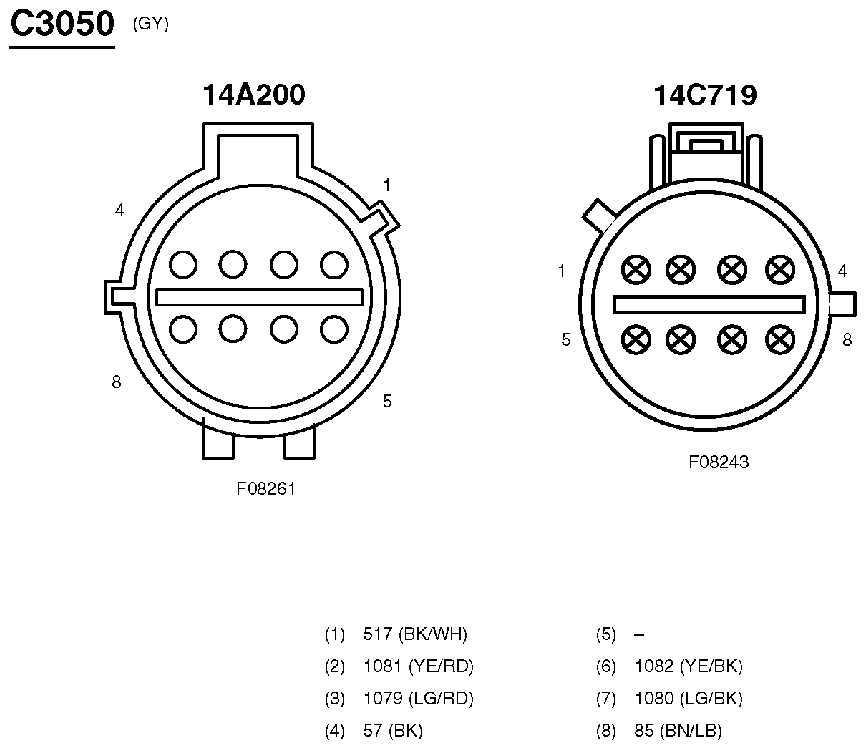

Fig 310: Inline Connector End View (C3050)

G07831357

Courtesy of FORD MOTOR CO.

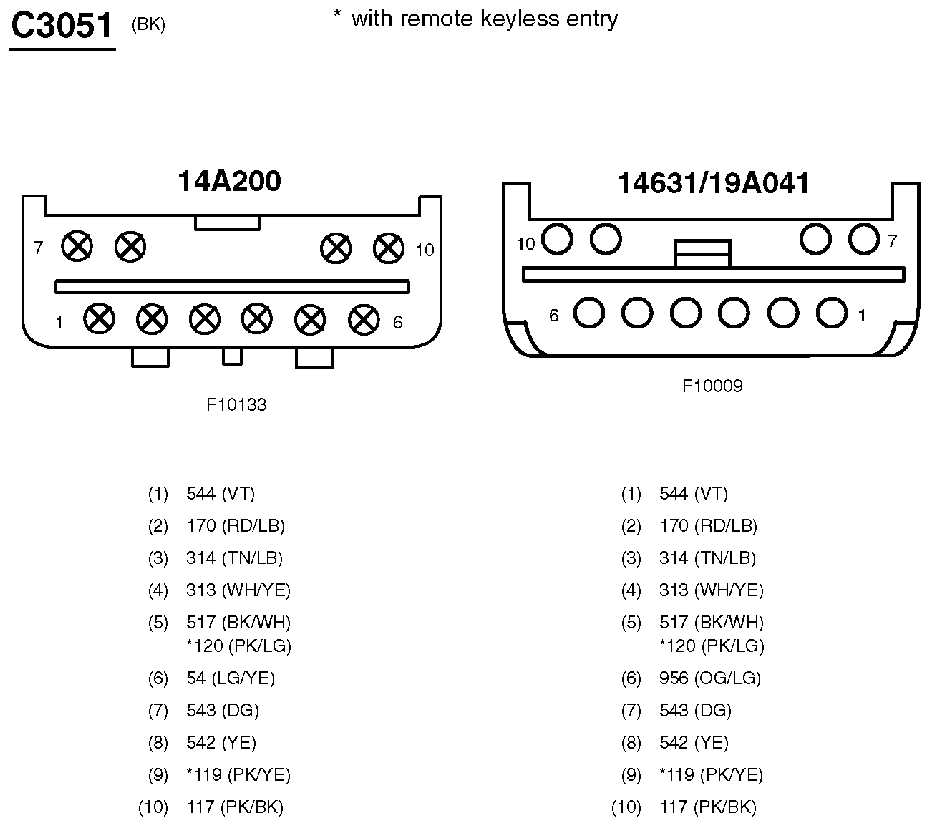

Fig 311: Inline Connector End View (C3051)

G07831358

Courtesy of FORD MOTOR CO.

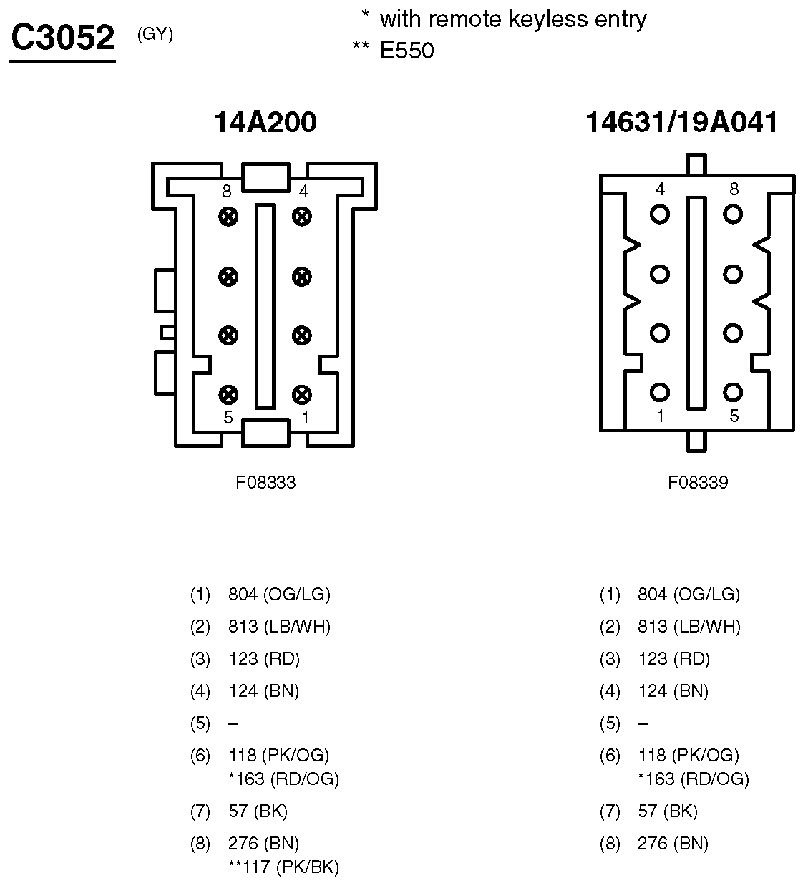

Fig 312: Inline Connector End View (C3052)

G07831359

Courtesy of FORD MOTOR CO.

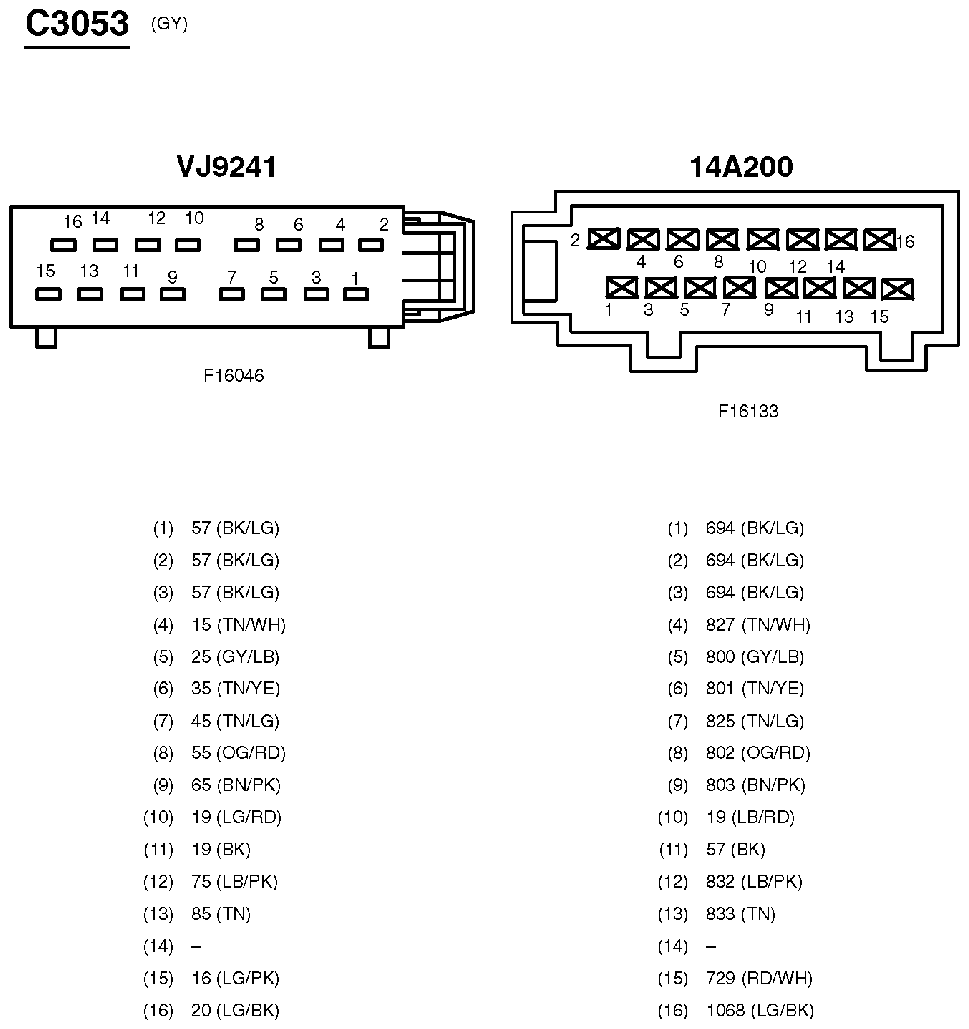

Fig 313: Inline Connector End View (C3053)

G07831360

Courtesy of FORD MOTOR CO.

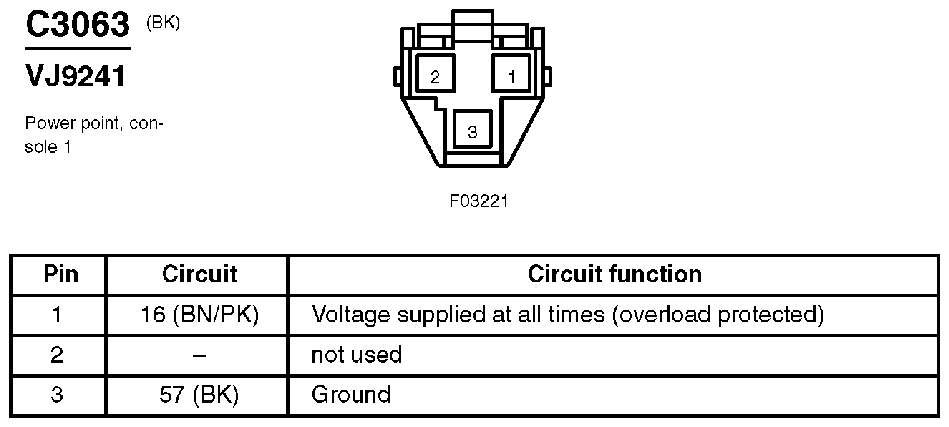

Fig 314: Power Point, Console 1 Connector End View (C3063)

G07831361

Courtesy of FORD MOTOR CO.

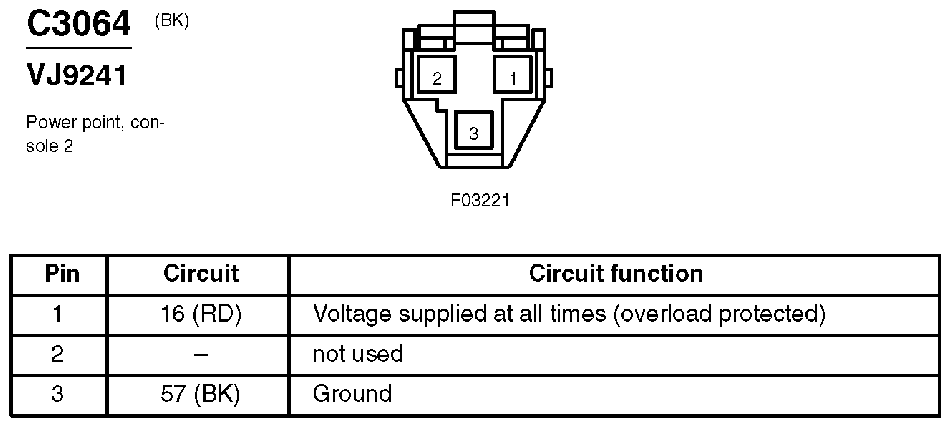

Fig 315: Power Point, Console 2 Connector End View (C3064)

G07831362

Courtesy of FORD MOTOR CO.

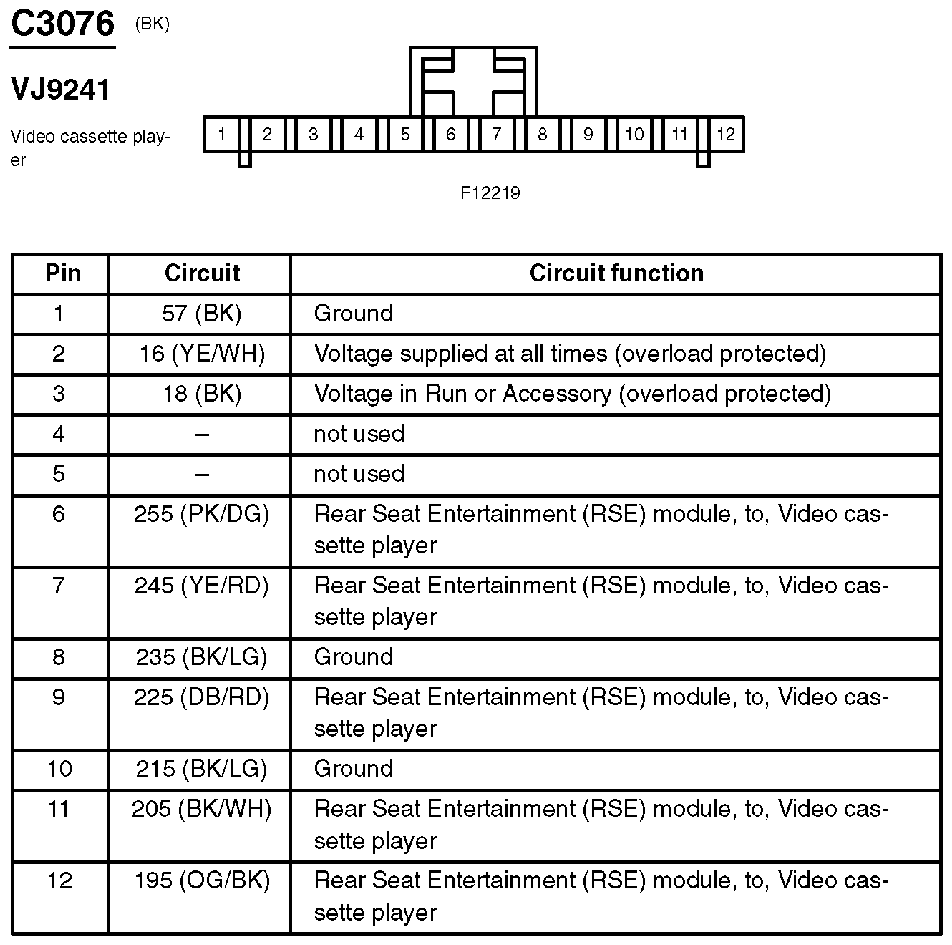

Fig 316: Video Cassette Player Connector End View (C3076)

G07831363

Courtesy of FORD MOTOR CO.

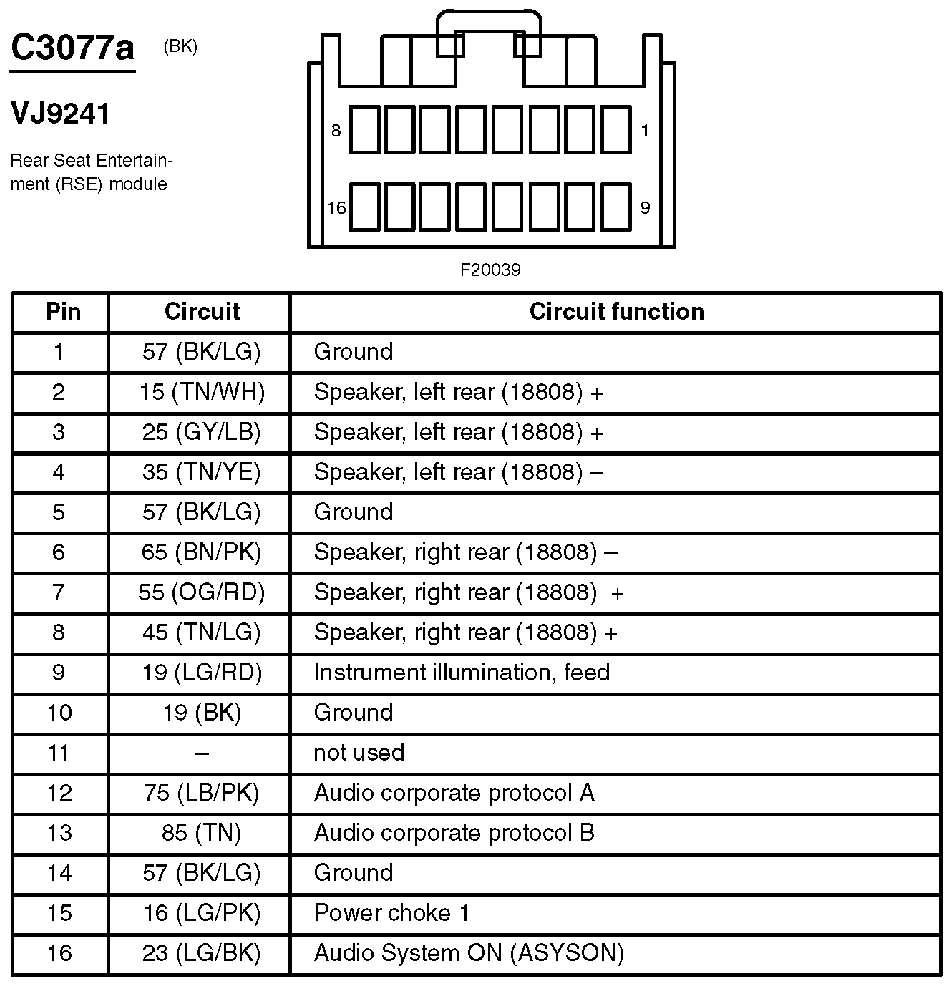

Fig 317: Rear Seat Entertainment (RSE) Module Connector End View (C3077a)

G07831364

Courtesy of FORD MOTOR CO.

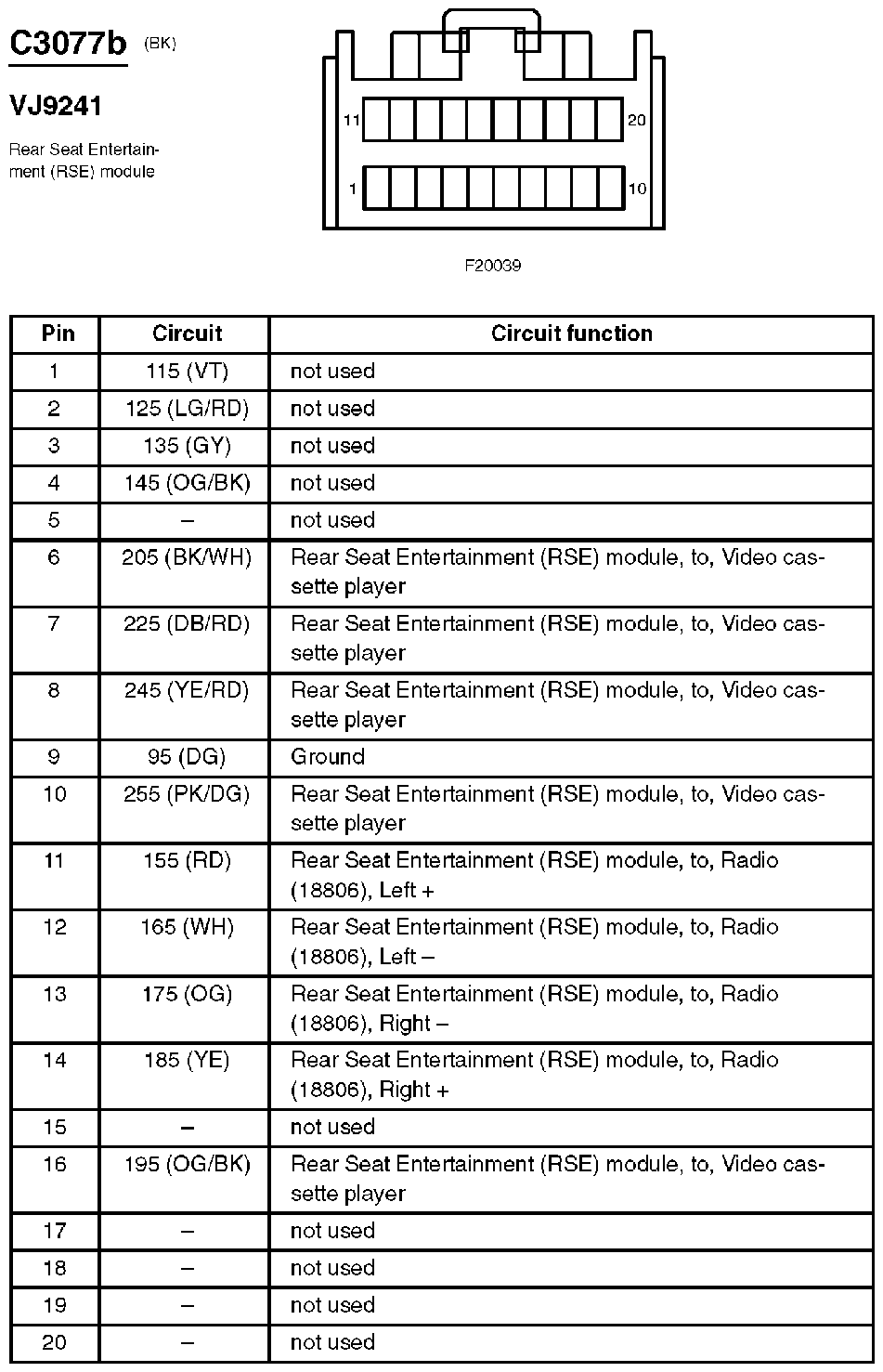

Fig 318: Rear Seat Entertainment (RSE) Module Connector End View (C3077b)

G07831365

Courtesy of FORD MOTOR CO.

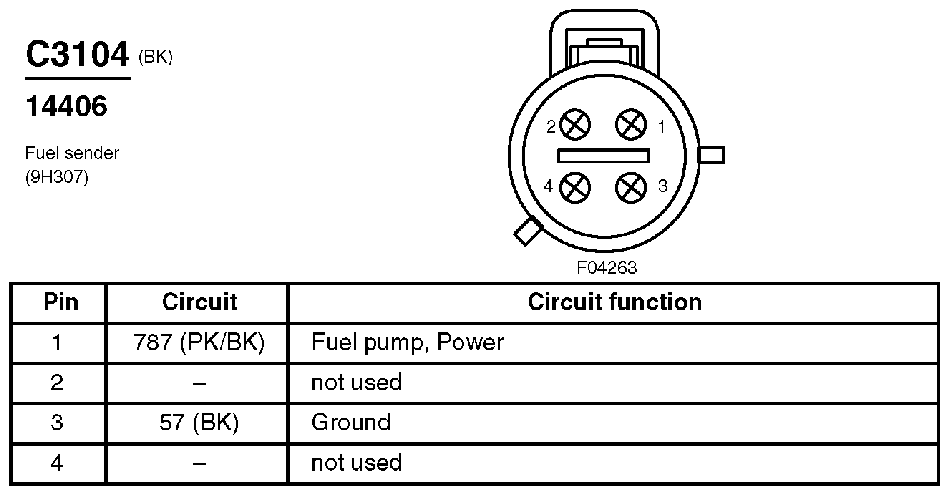

Fig 319: Fuel Sender Connector End View (C3104)

G07831366

Courtesy of FORD MOTOR CO.

Fig 320: Extended Range Fuel Tank Valve 1 Connector End View (C3122)

G07831367

Courtesy of FORD MOTOR CO.

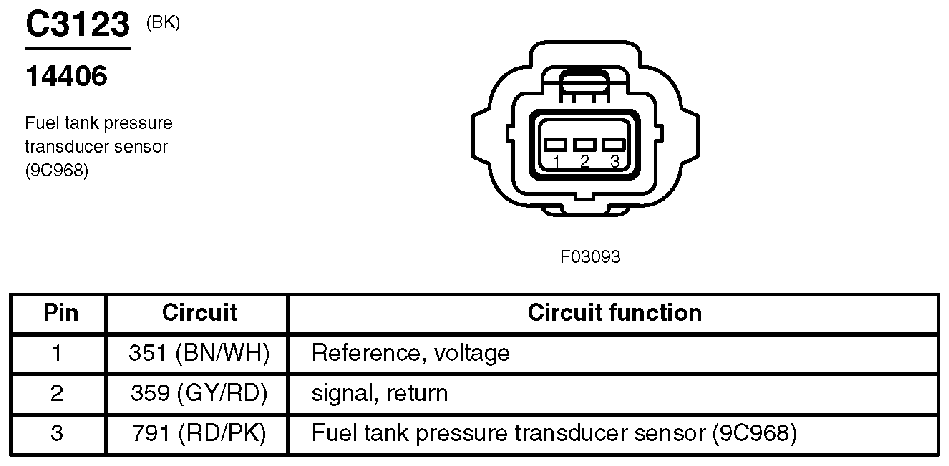

Fig 321: Fuel Tank Pressure Transducer Sensor Connector End View (C3123)

G07831368

Courtesy of FORD MOTOR CO.

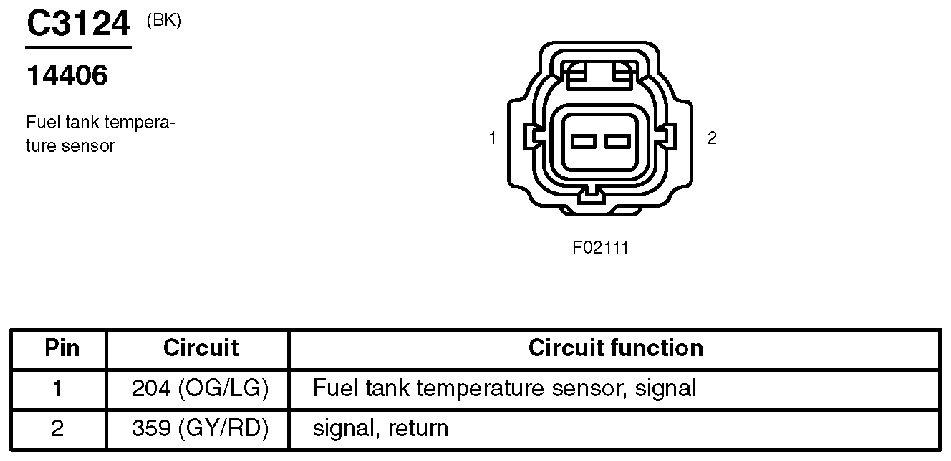

Fig 322: Fuel Tank Temperature Sensor Connector End View (C3124)

G07831369

Courtesy of FORD MOTOR CO.

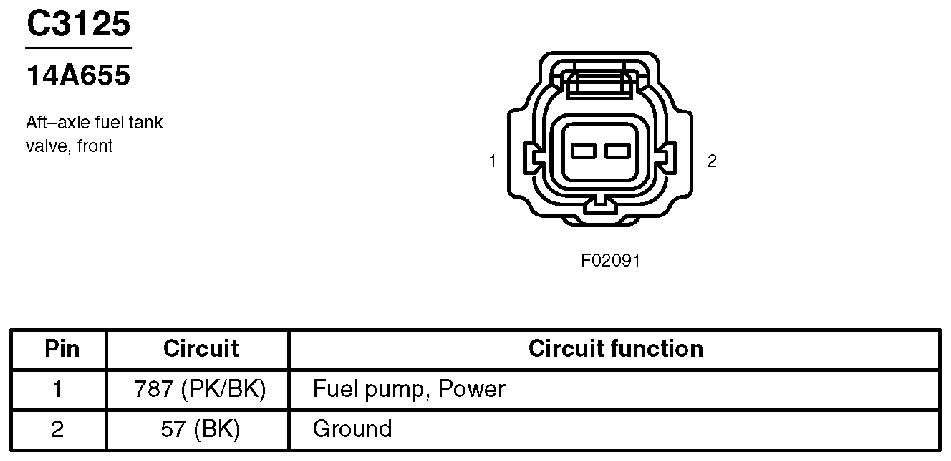

Fig 323: Aft-Axle Fuel Tank Valve, Front Connector End View (C3125)

G07831370

Courtesy of FORD MOTOR CO.

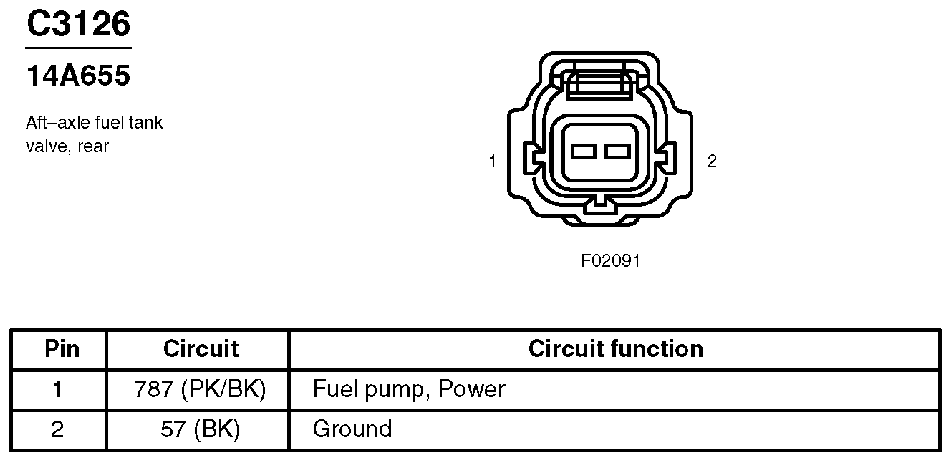

Fig 324: Aft-Axle Fuel Tank Valve, Rear Connector End View (C3126)

G07831371

Courtesy of FORD MOTOR CO.

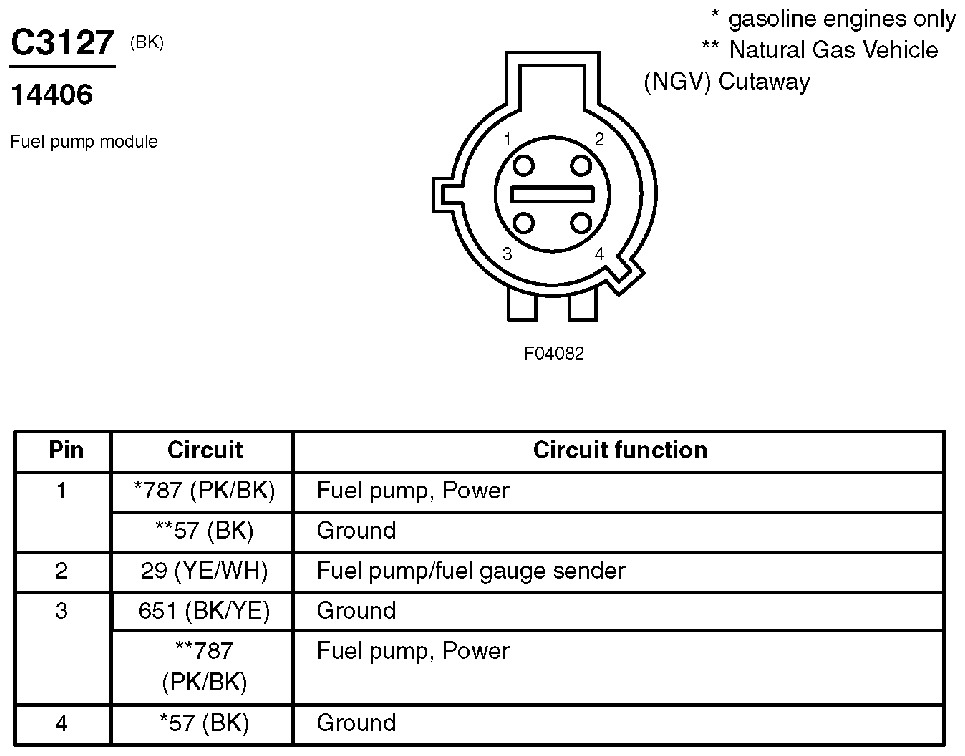

Fig 325: Fuel Pump Module Connector End View (C3127)

G07831372

Courtesy of FORD MOTOR CO.

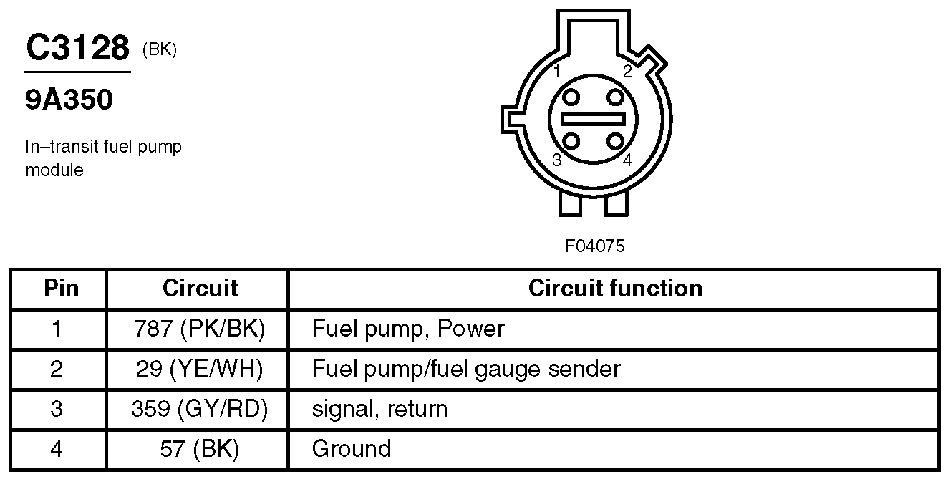

Fig 326: In-Transit Fuel Pump Module Connector End View (C3128)

G07831373

Courtesy of FORD MOTOR CO.

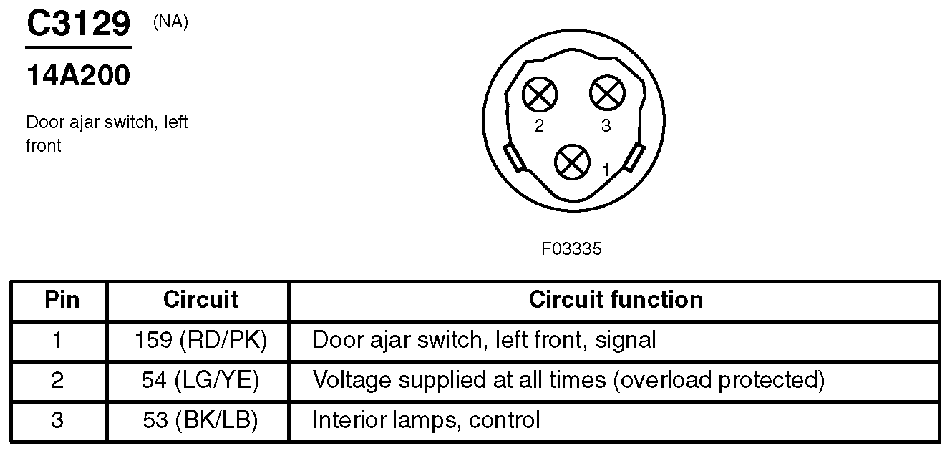

Fig 327: Door Ajar Switch, Left Front Connector End View (C3129)

G07831374

Courtesy of FORD MOTOR CO.

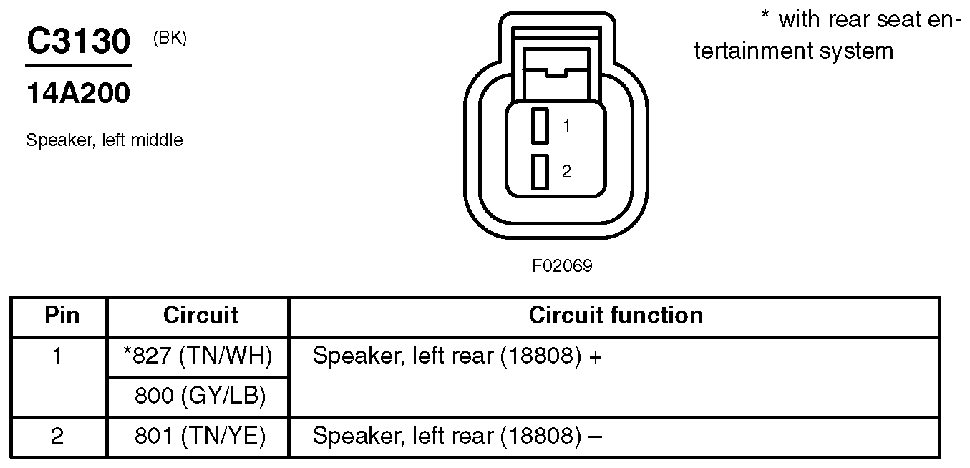

Fig 328: Speaker, Left Middle Connector End View (C3130)

G07831375

Courtesy of FORD MOTOR CO.

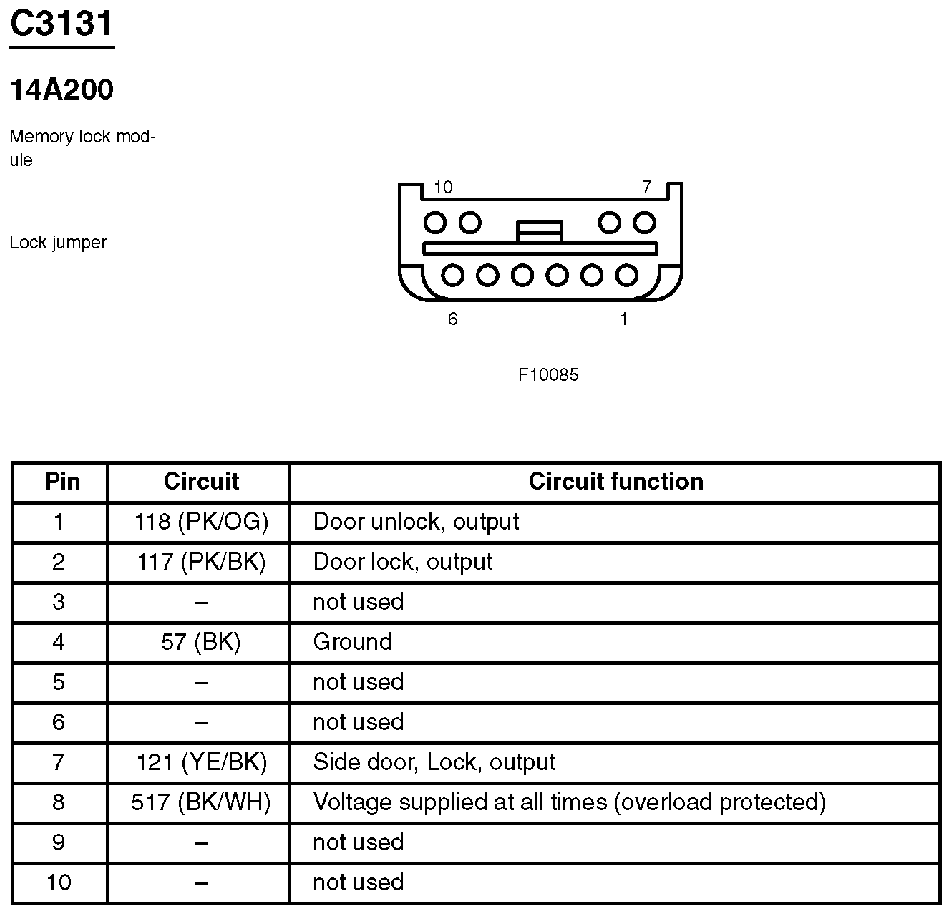

Fig 329: Memory Lock Module And Lock Jumper Connector End View (C3131)

G07831376

Courtesy of FORD MOTOR CO.

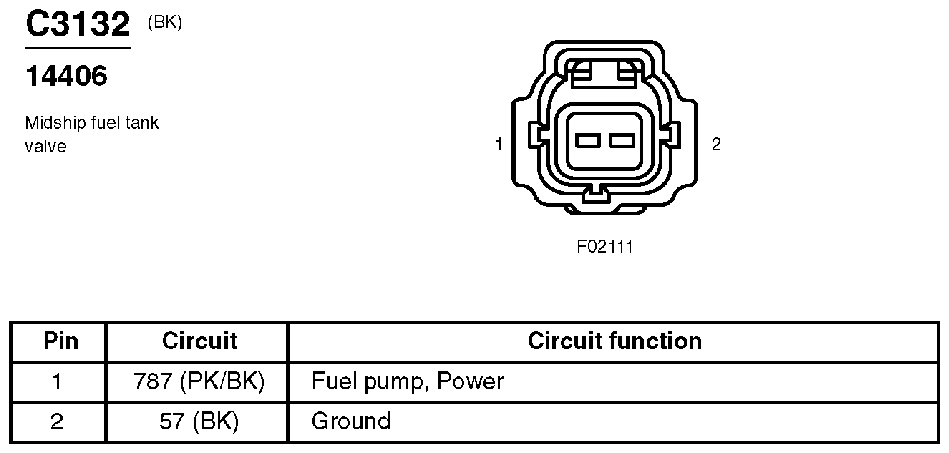

Fig 330: Midship Fuel Tank Valve Connector End View (C3132)

G07831377

Courtesy of FORD MOTOR CO.

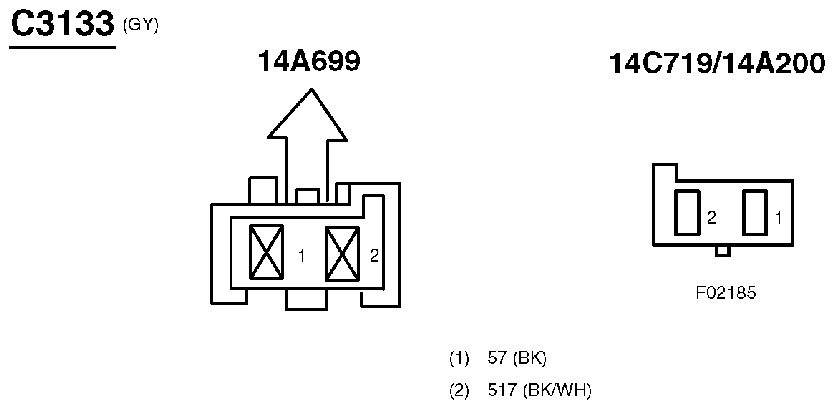

Fig 331: Inline Connector End View (C3133)

G07831378

Courtesy of FORD MOTOR CO.

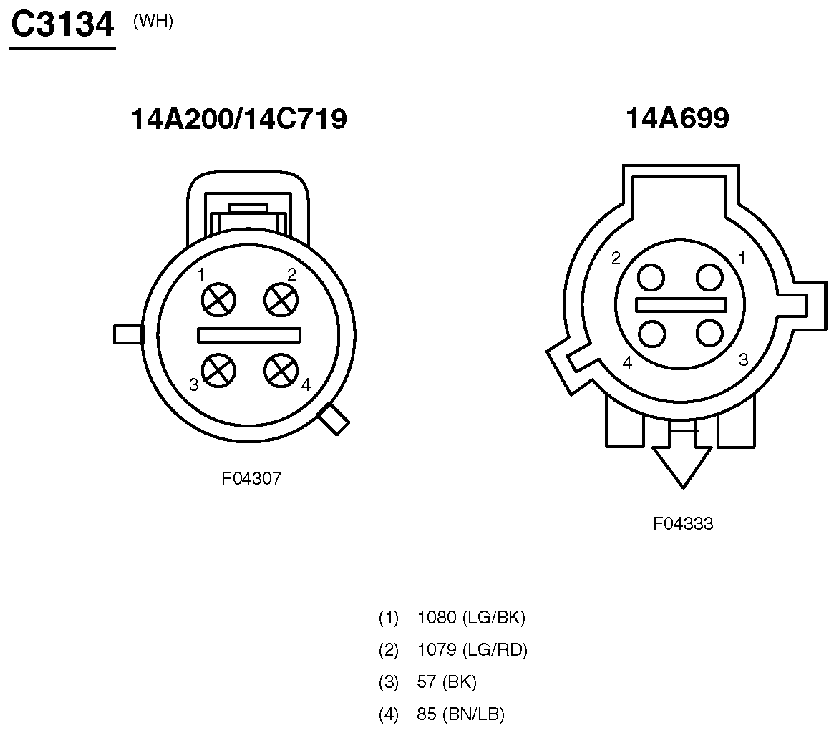

Fig 332: Inline Connector End View (C3134)

G07831379

Courtesy of FORD MOTOR CO.

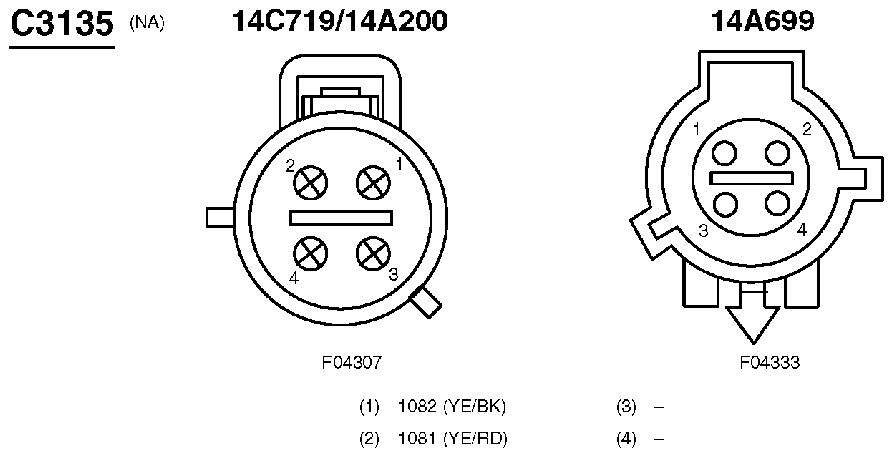

Fig 333: Inline Connector End View (C3135)

G07831380

Courtesy of FORD MOTOR CO.

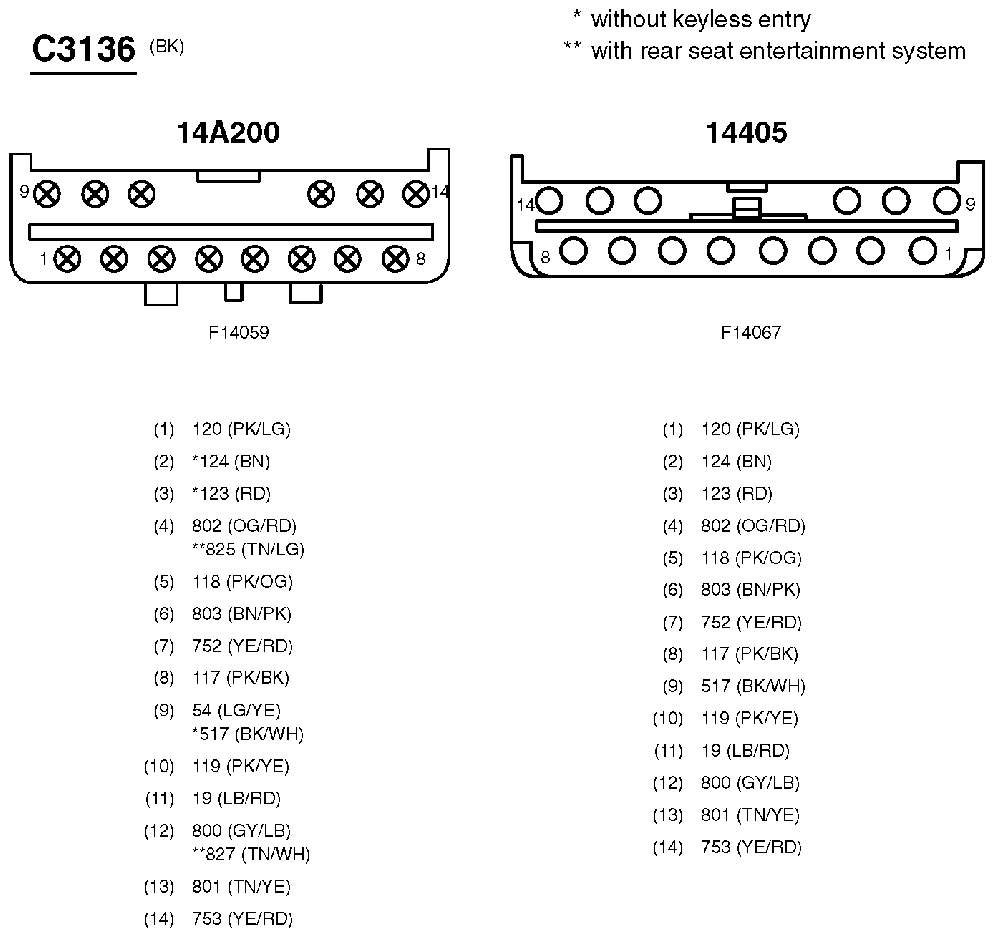

Fig 334: Inline Connector End View (C3136)

G07831381

Courtesy of FORD MOTOR CO.

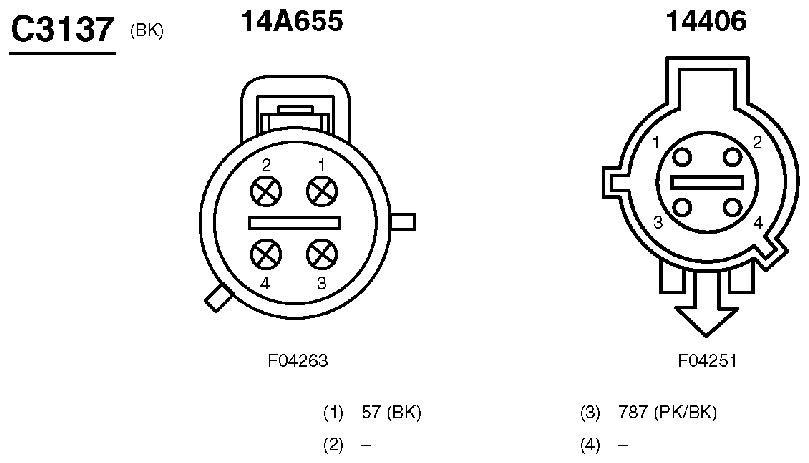

Fig 335: Inline Connector End View (C3137)

G07831382

Courtesy of FORD MOTOR CO.

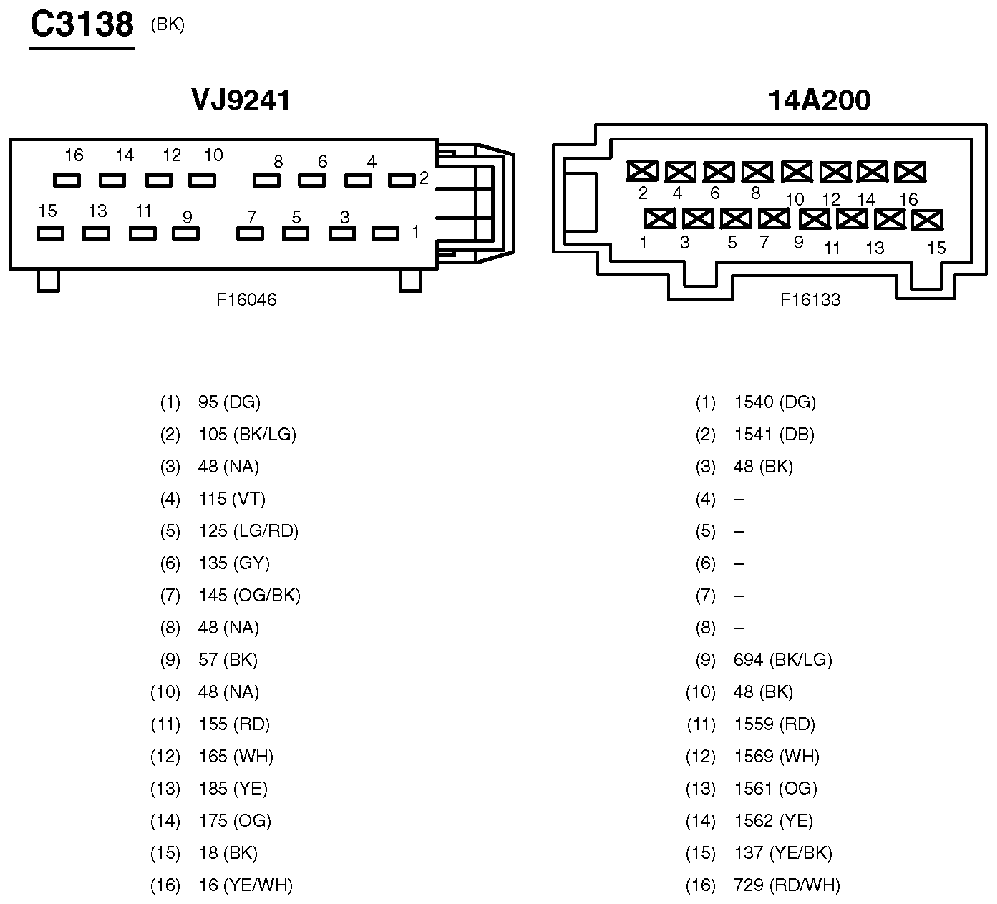

Fig 336: Inline Connector End View (C3138)

G07831383

Courtesy of FORD MOTOR CO.

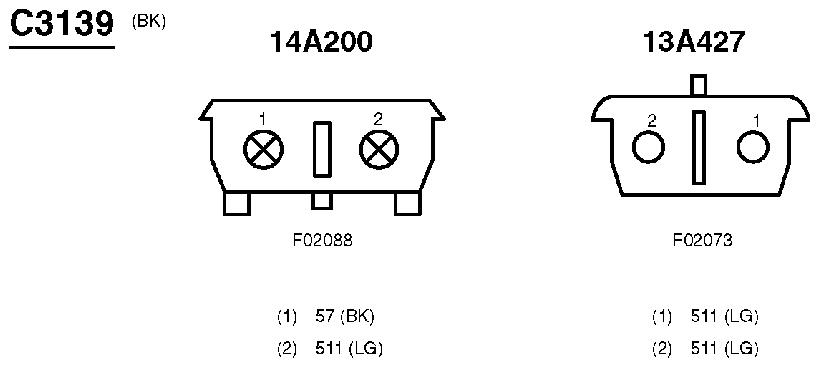

Fig 337: Inline Connector End View (C3139)

G07831384

Courtesy of FORD MOTOR CO.

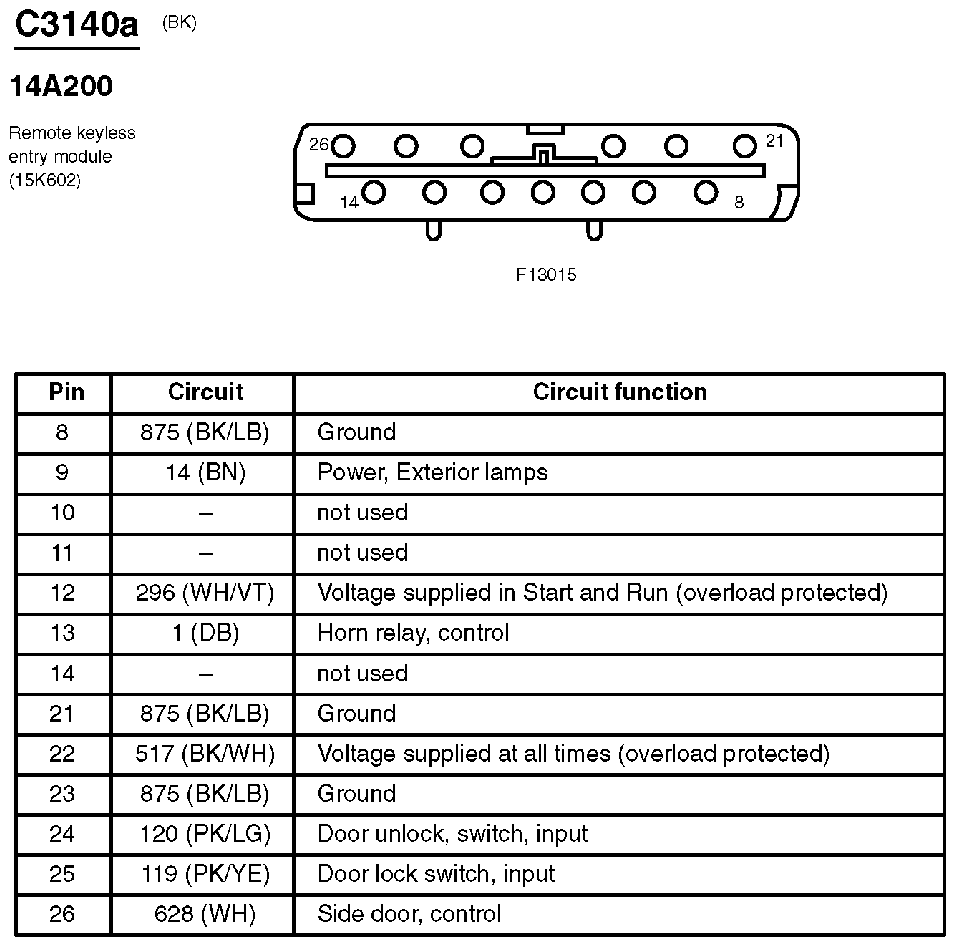

Fig 338: Remote Keyless Entry Module Connector End View (C3140a)

G07831385

Courtesy of FORD MOTOR CO.

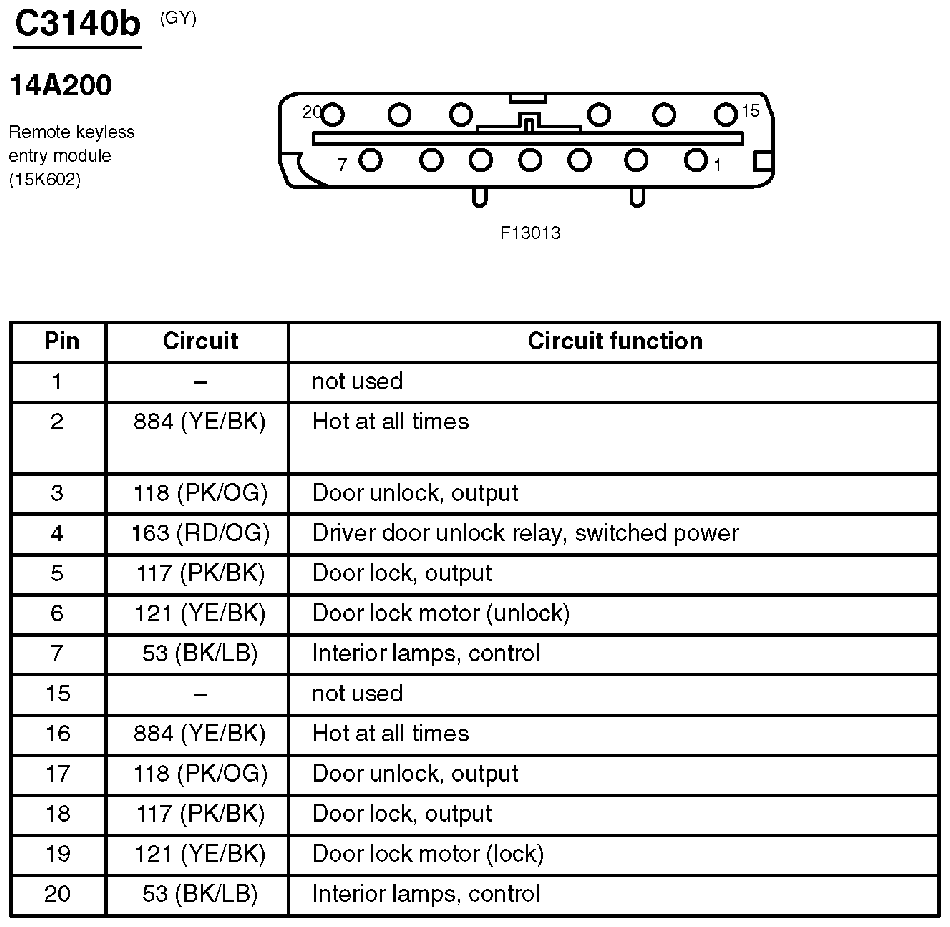

Fig 339: Remote Keyless Entry Module Connector End View (C3140b)

G07831386

Courtesy of FORD MOTOR CO.

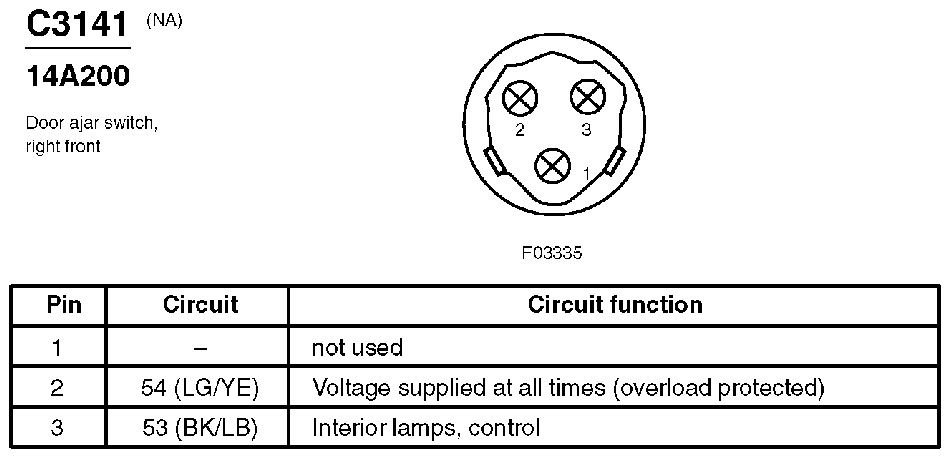

Fig 340: Door Ajar Switch, Right Front Connector End View (C3141)

G07831387

Courtesy of FORD MOTOR CO.

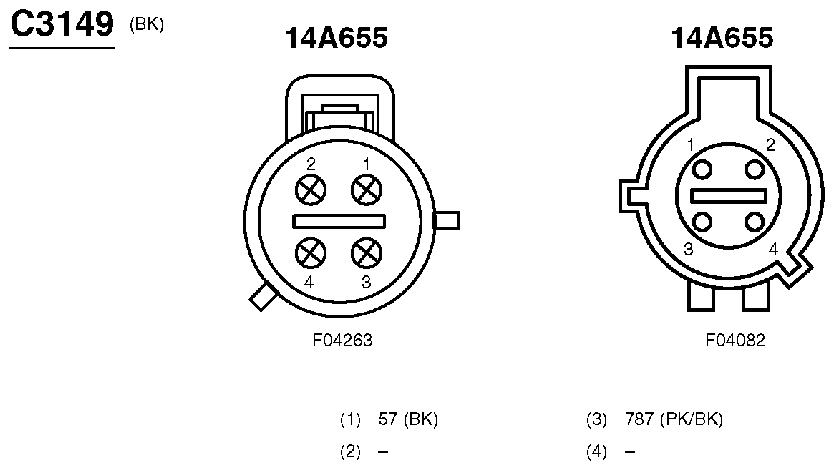

Fig 341: Inline Connector End View (C3149)

G07831388

Courtesy of FORD MOTOR CO.

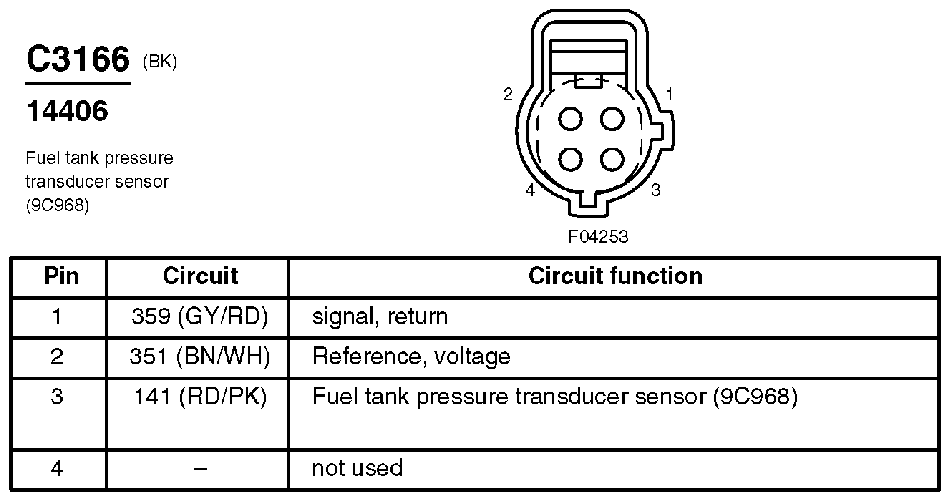

Fig 342: Fuel Tank Pressure Transducer Sensor Connector End View (C3166)

G07831389

Courtesy of FORD MOTOR CO.

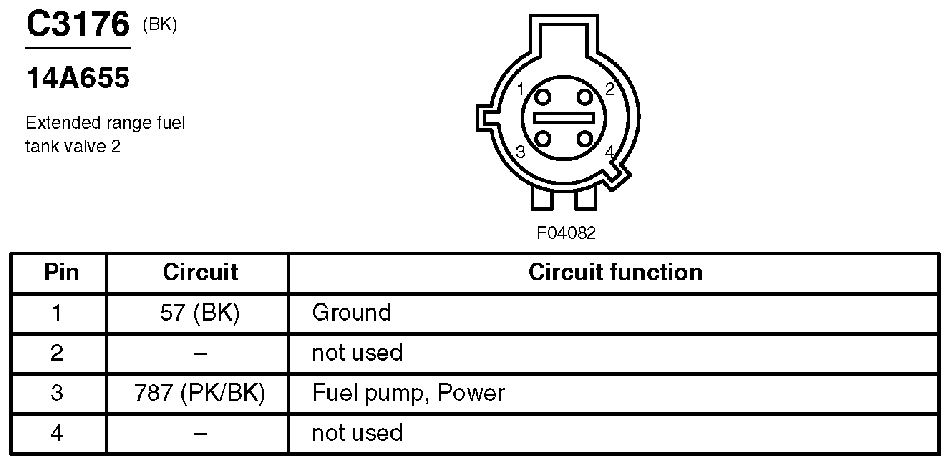

Fig 343: Extended Range Fuel Tank Valve 2 Connector End View (C3176)

G07831390

Courtesy of FORD MOTOR CO.

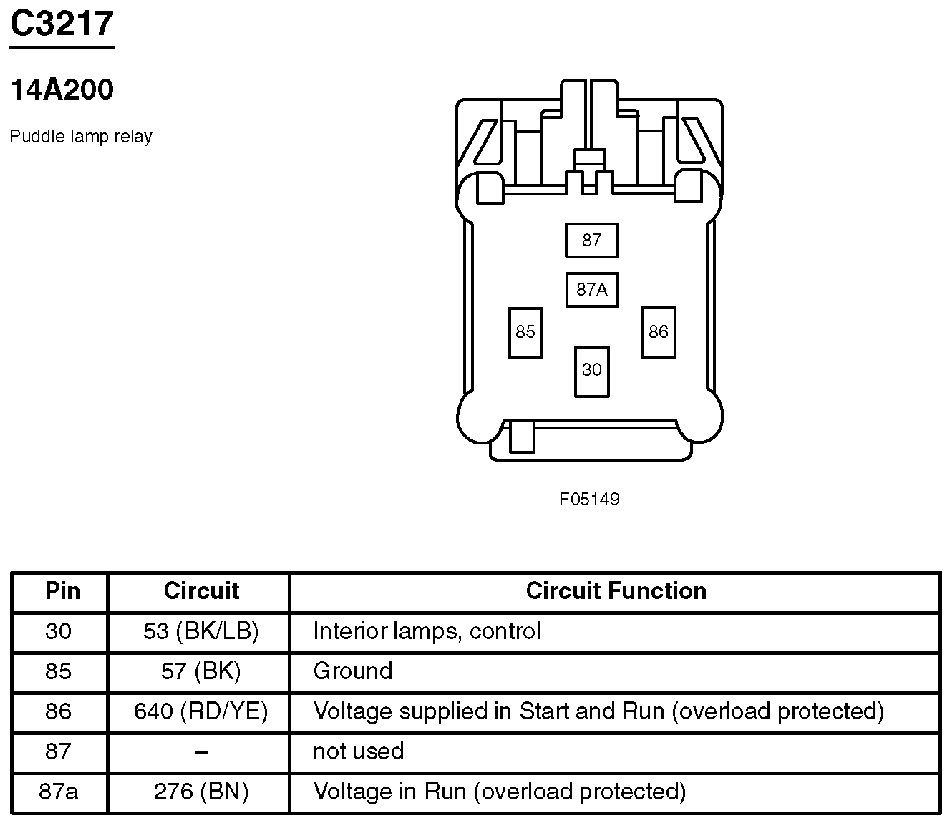

Fig 344: Puddle Lamp Relay Connector End View (C3217)

G07831391

Courtesy of FORD MOTOR CO.

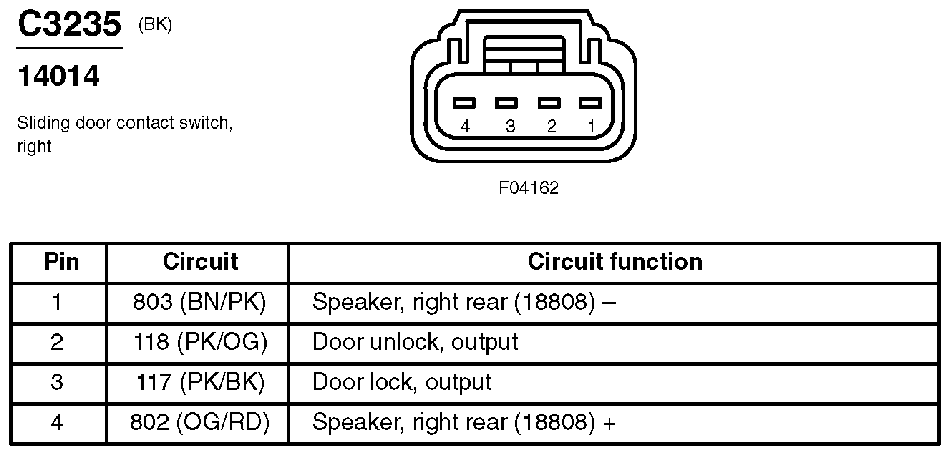

Fig 345: Sliding Door Contact Switch, Right Connector End View (C3235)

G07831392

Courtesy of FORD MOTOR CO.

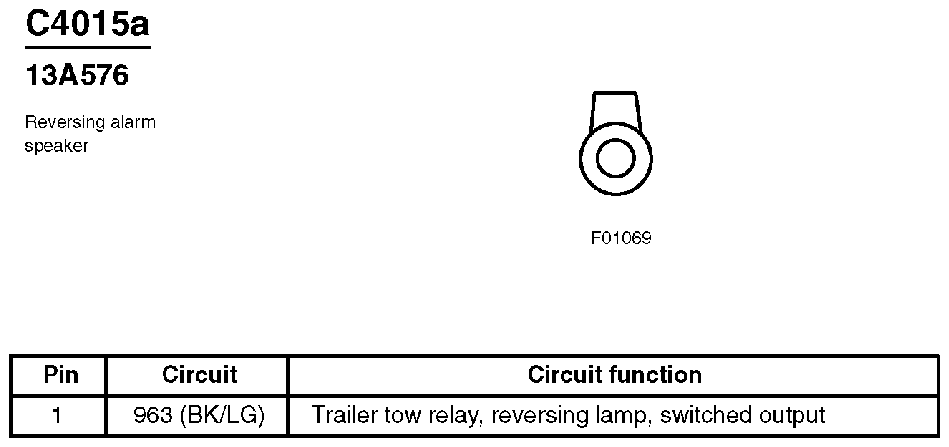

Fig 346: Reversing Alarm Speaker Connector End View (C4015a)

G07831393

Courtesy of FORD MOTOR CO.

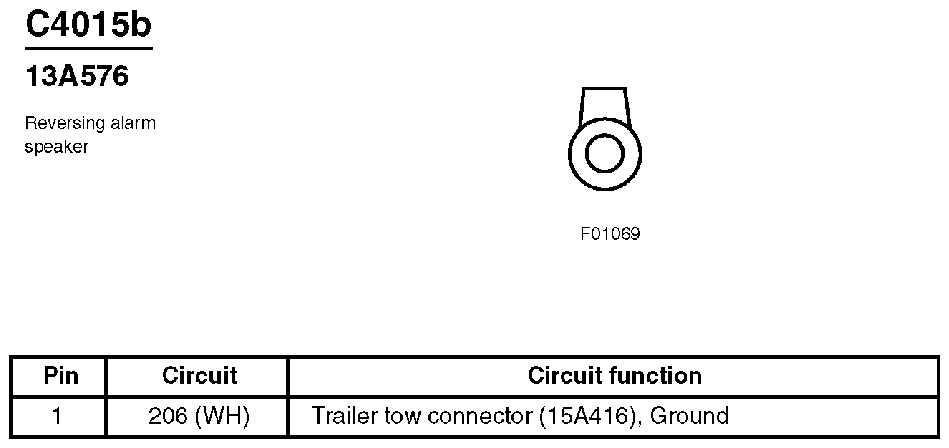

Fig 347: Reversing Alarm Speaker Connector End View (C4015b)

G07831394

Courtesy of FORD MOTOR CO.

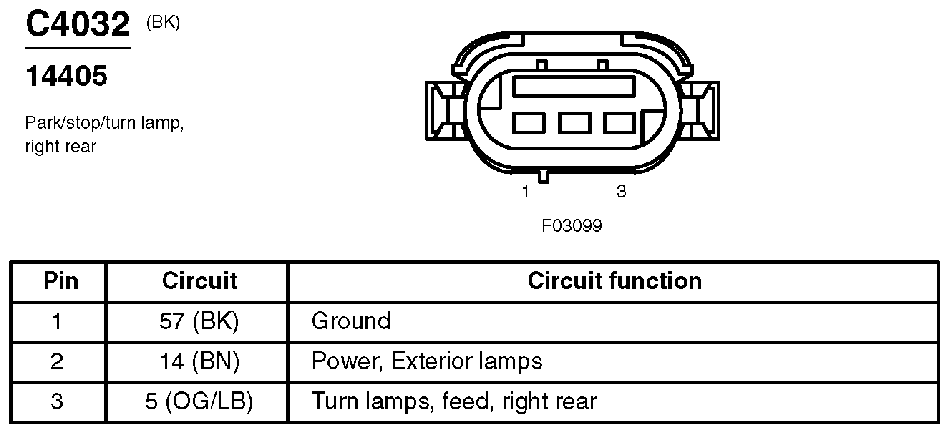

Fig 348: Park/Stop/Turn Lamp, Right Rear Connector End View (C4032)

G07831395

Courtesy of FORD MOTOR CO.

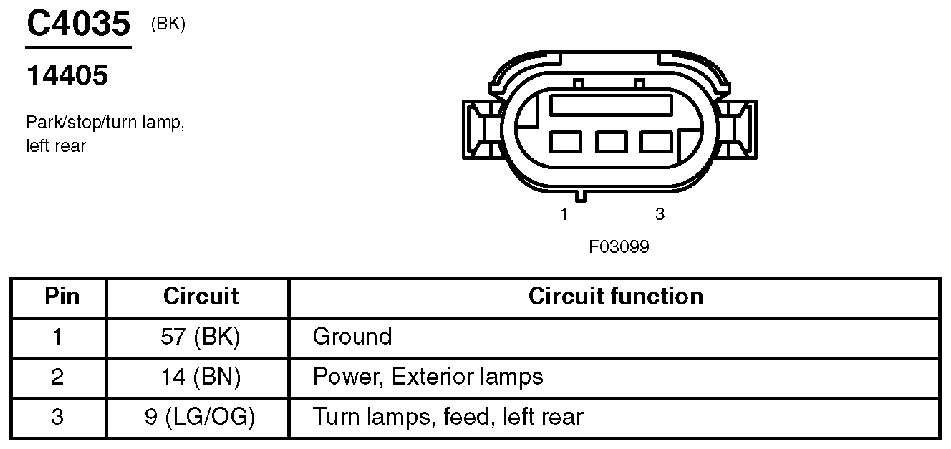

Fig 349: Park/Stop/Turn Lamp, Left Rear Connector End View (C4035)

G07831396

Courtesy of FORD MOTOR CO.

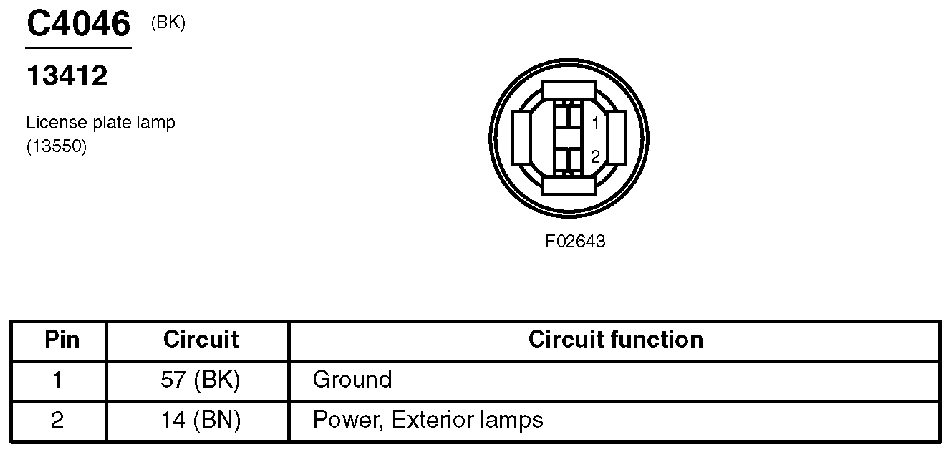

Fig 350: License Plate Lamp Connector End View (C4046)

G07831397

Courtesy of FORD MOTOR CO.

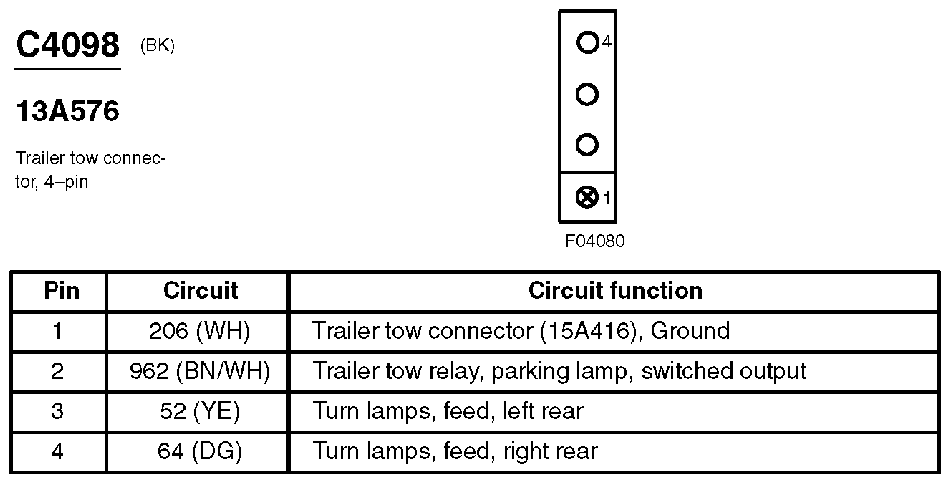

Fig 351: Trailer Tow Connector, 4-Pin Connector End View (C4098)

G07831398

Courtesy of FORD MOTOR CO.

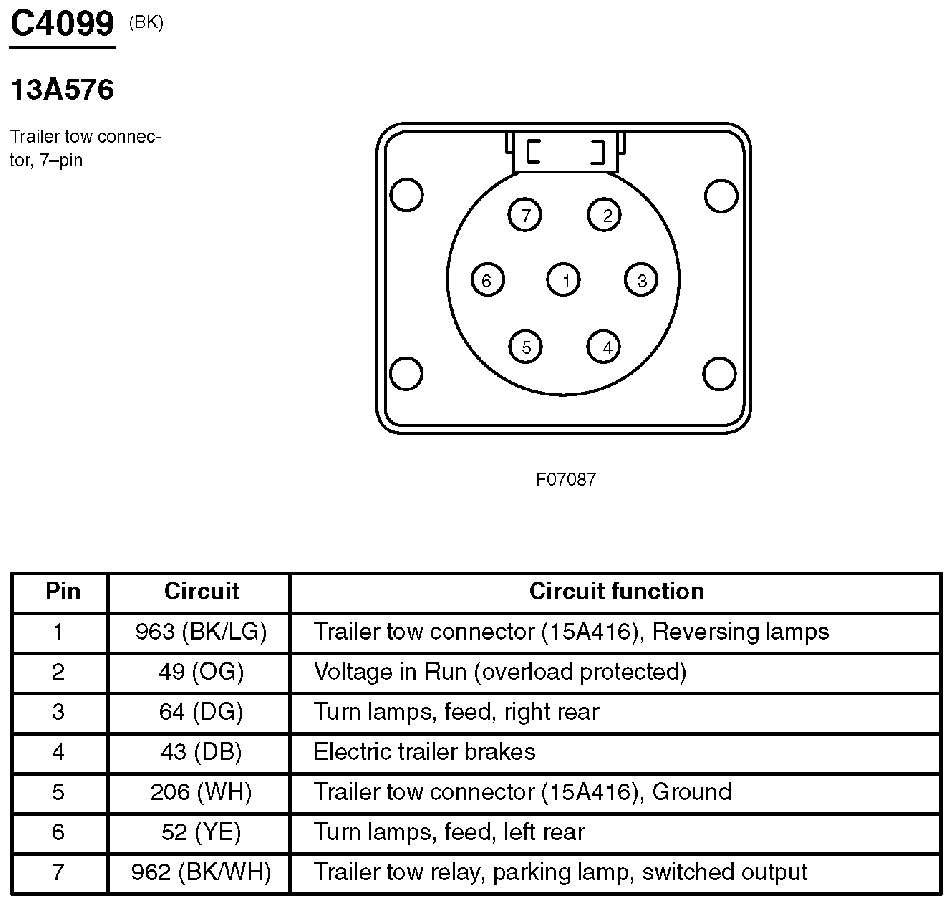

Fig 352: Trailer Tow Connector, 7-Pin Connector End View (C4099)

G07831399

Courtesy of FORD MOTOR CO.

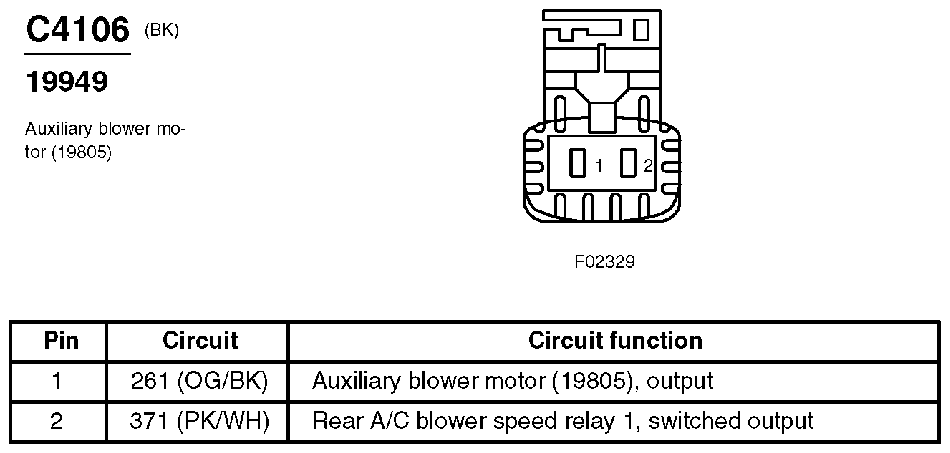

Fig 353: Auxiliary Blower Motor Connector End View (C4106)

G07831400

Courtesy of FORD MOTOR CO.

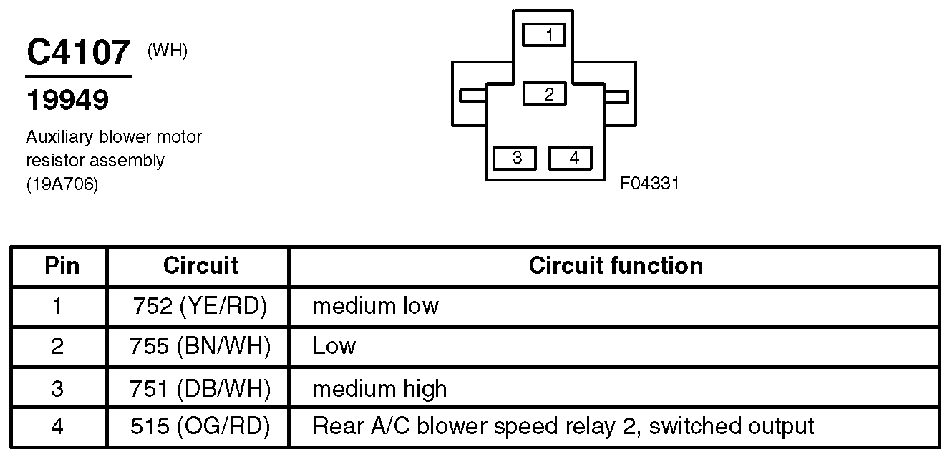

Fig 354: Auxiliary Blower Motor Resistor Assembly Connector End View (C4107)

G07831401

Courtesy of FORD MOTOR CO.

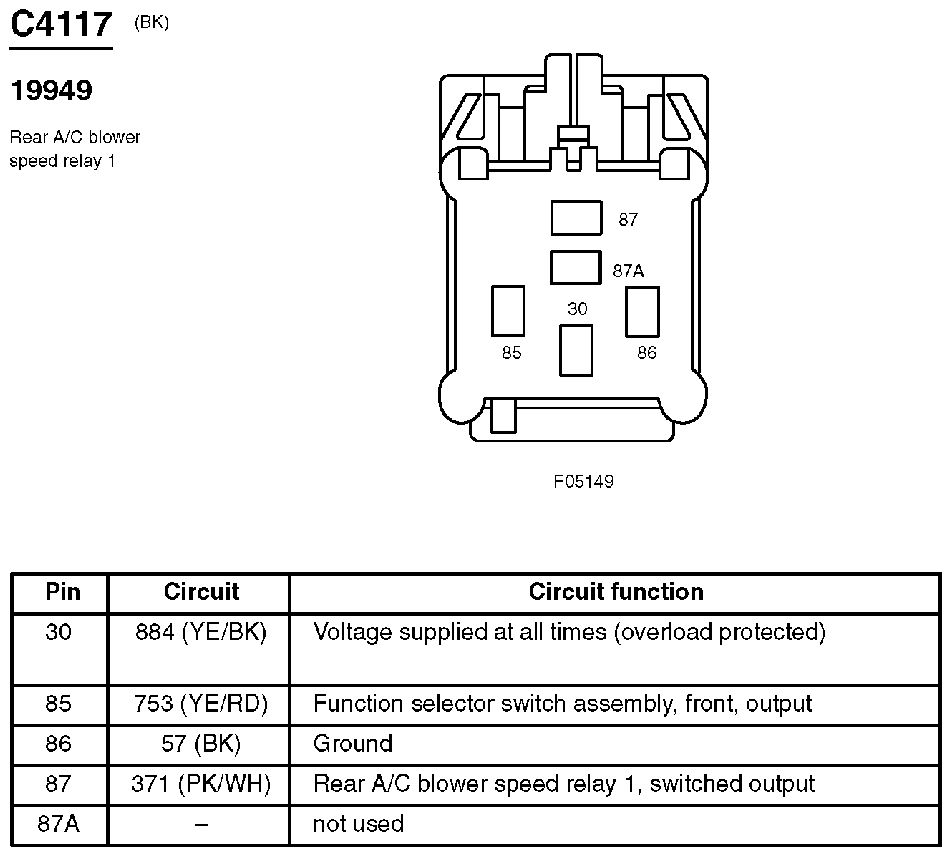

Fig 355: Rear A/C Blower Speed Relay 1 Connector End View (C4117)

G07831402

Courtesy of FORD MOTOR CO.

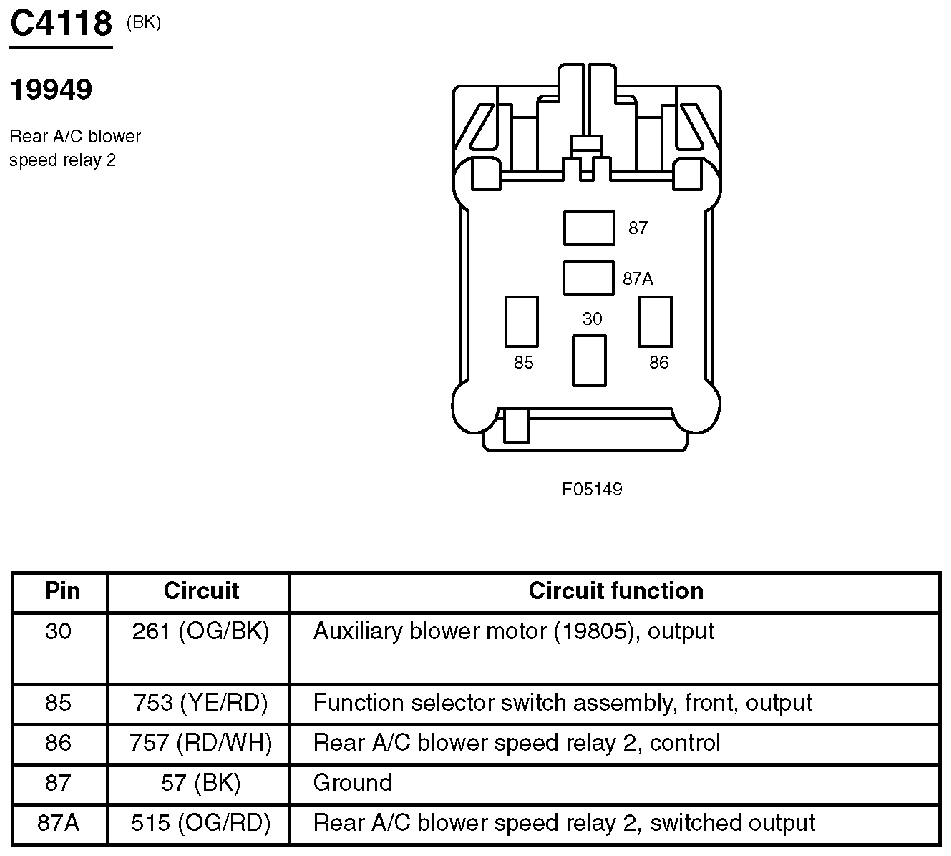

Fig 356: Rear A/C Blower Speed Relay 2 Connector End View (C4118)

G07831403

Courtesy of FORD MOTOR CO.

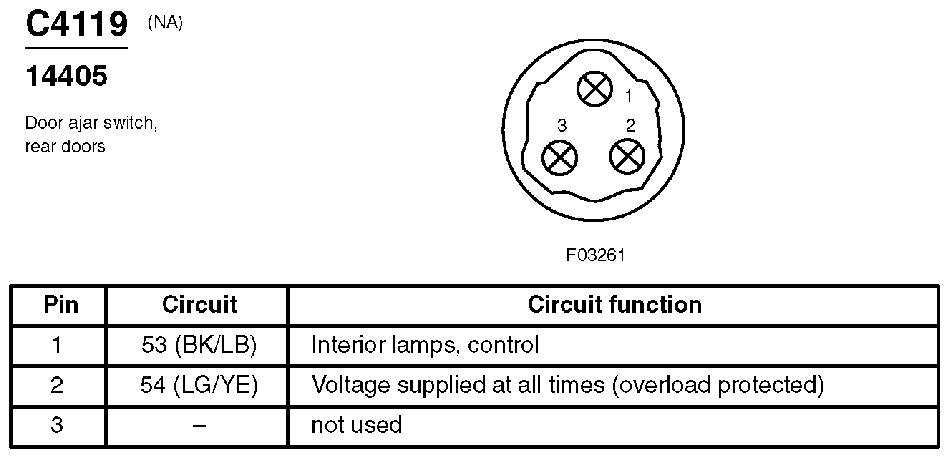

Fig 357: Door Ajar Switch, Rear Doors Connector End View (C4119)

G07831404

Courtesy of FORD MOTOR CO.

Fig 358: Door Lock Actuator, Rear Doors Connector End View (C4120)

G07831405

Courtesy of FORD MOTOR CO.

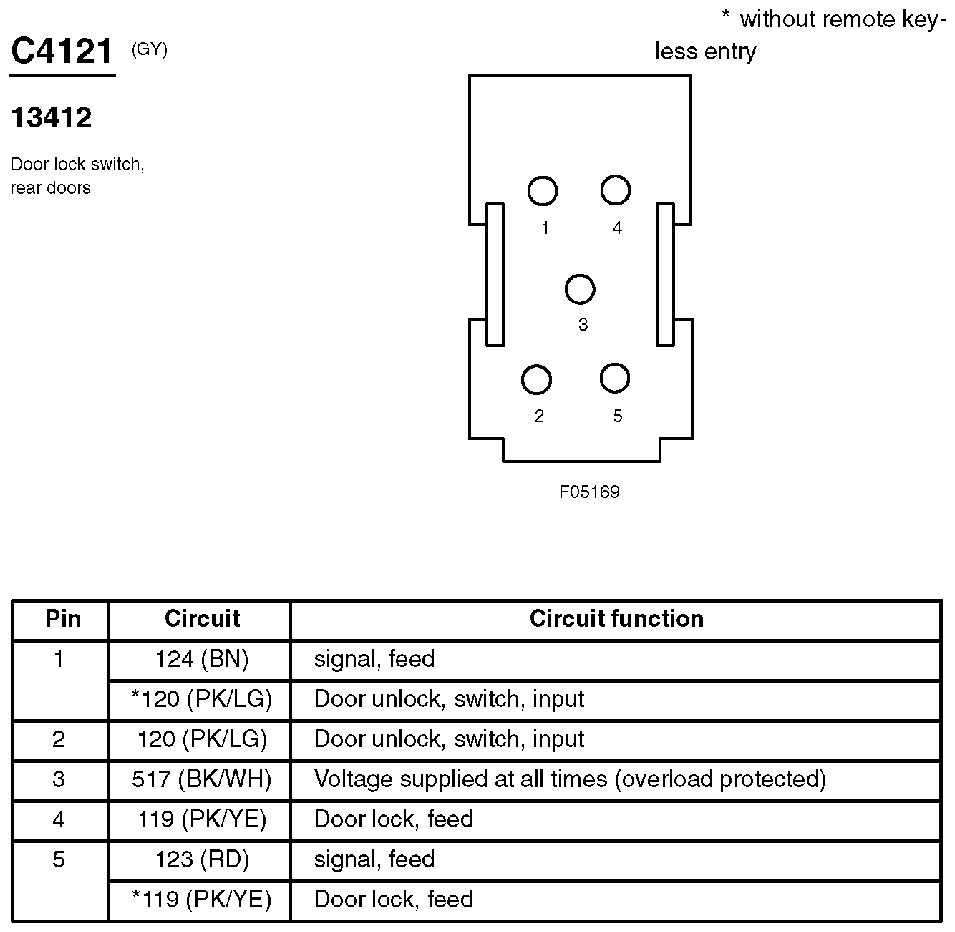

Fig 359: Door Lock Switch, Rear Doors Connector End View (C4121)

G07831406

Courtesy of FORD MOTOR CO.

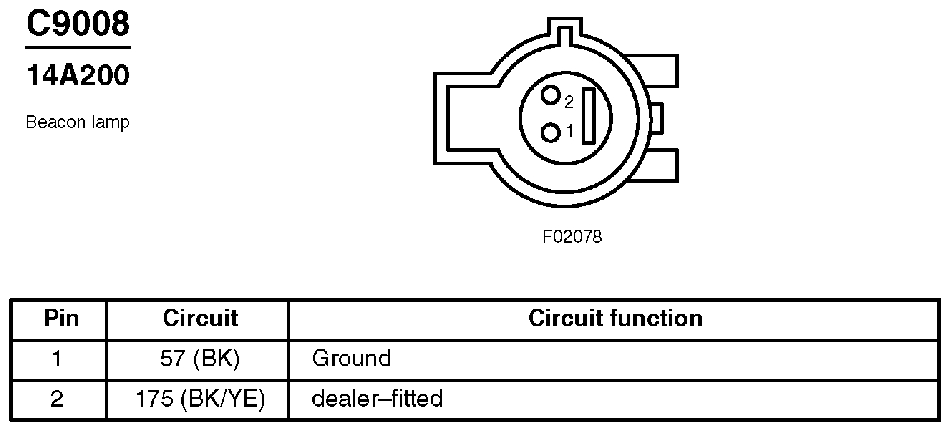

Fig 360: Beacon Lamp Connector End View (C9008)

G07831407

Courtesy of FORD MOTOR CO.
