Pinpoint Test A: Navigation System Function Test

WARNING: This page is about a different car, the 2003 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: To carry out navigation system function test the vehicle must be driven outside of any enclosed structure to an area that is unobstructed by trees, tall buildings, and bridges.

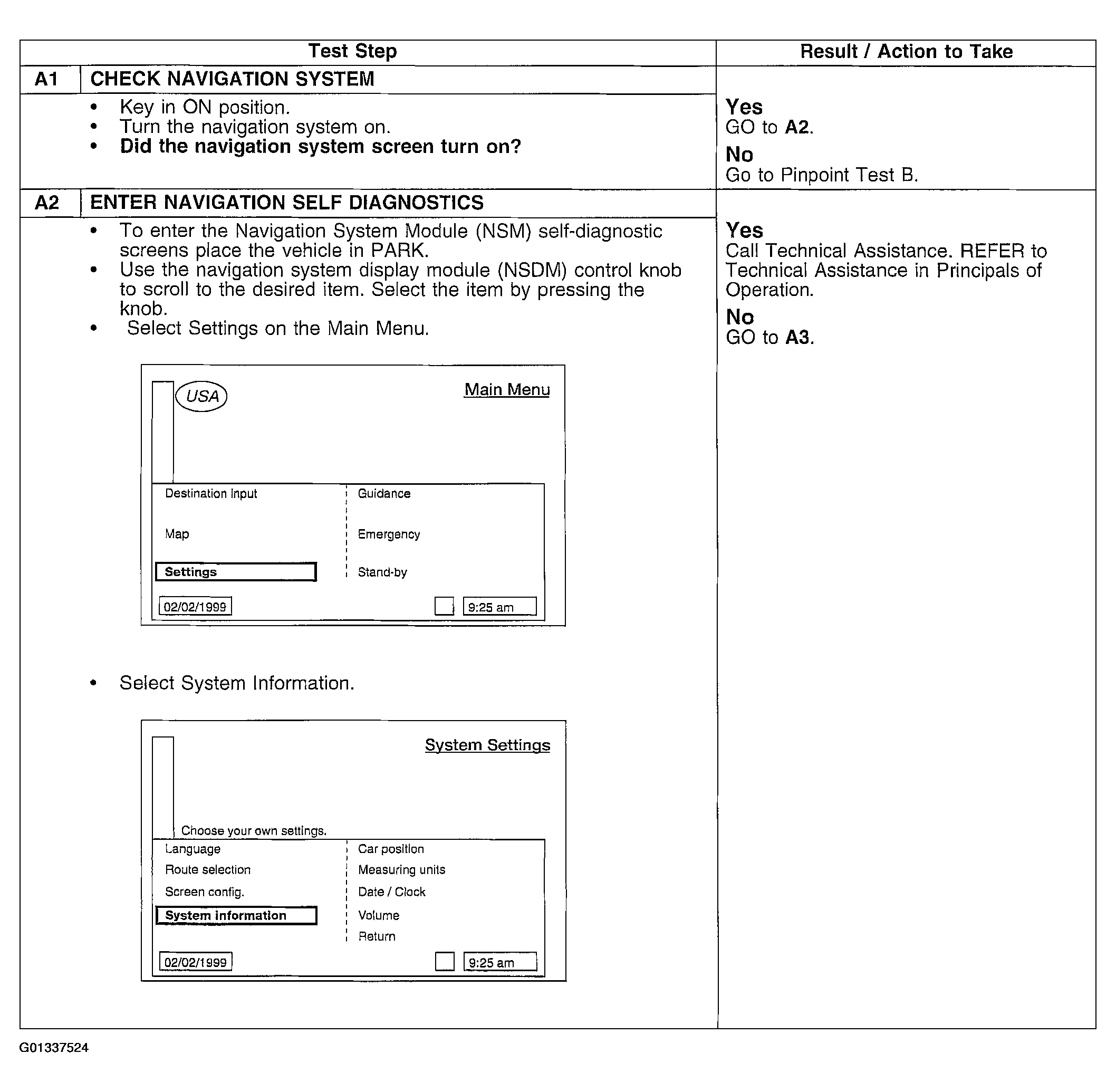

Fig 1: Pinpoint Test A (Steps A1-A2)

Courtesy of FORD MOTOR CO.

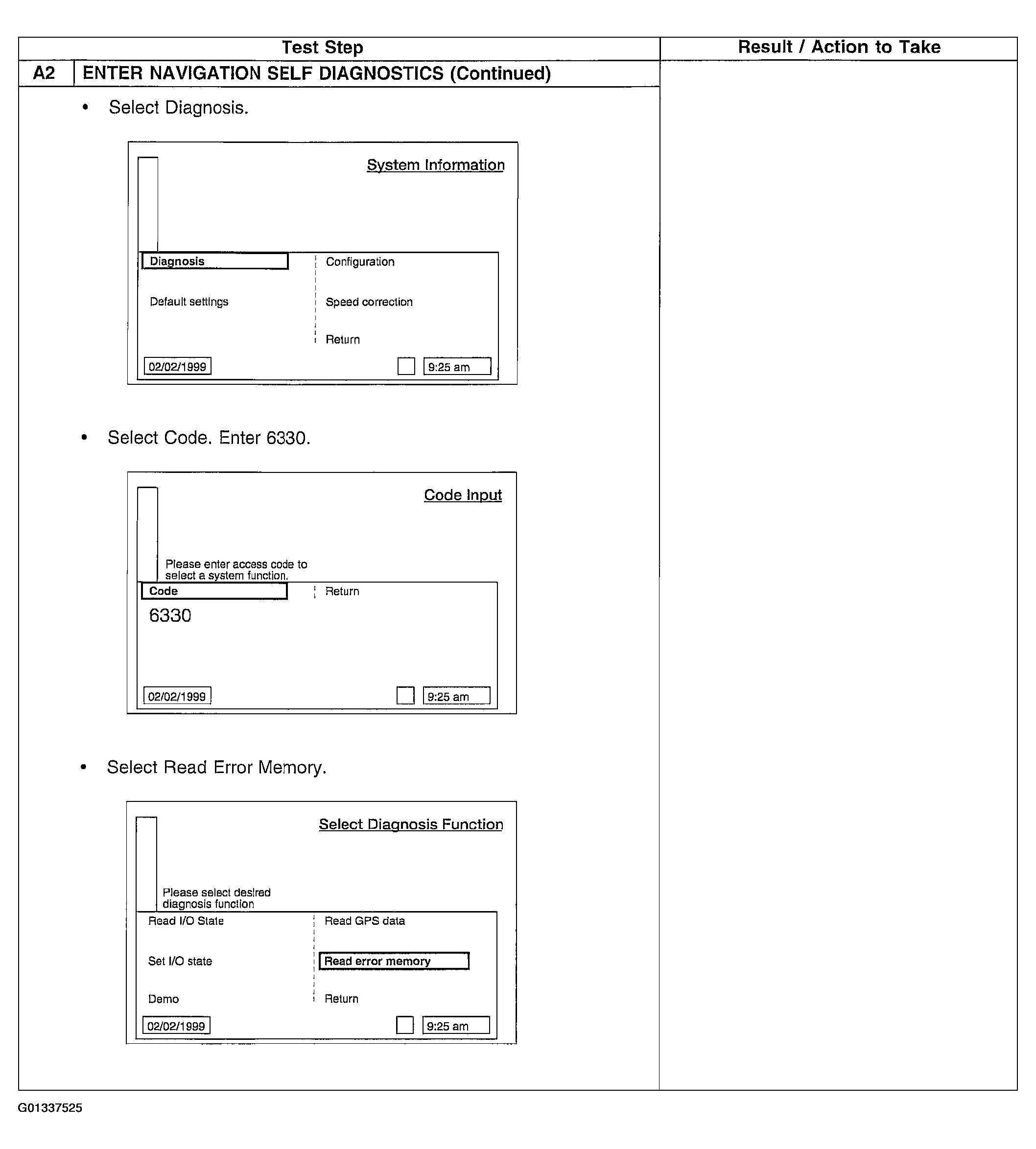

Fig 2: Pinpoint Test A (Step A2 Continued)

Courtesy of FORD MOTOR CO.

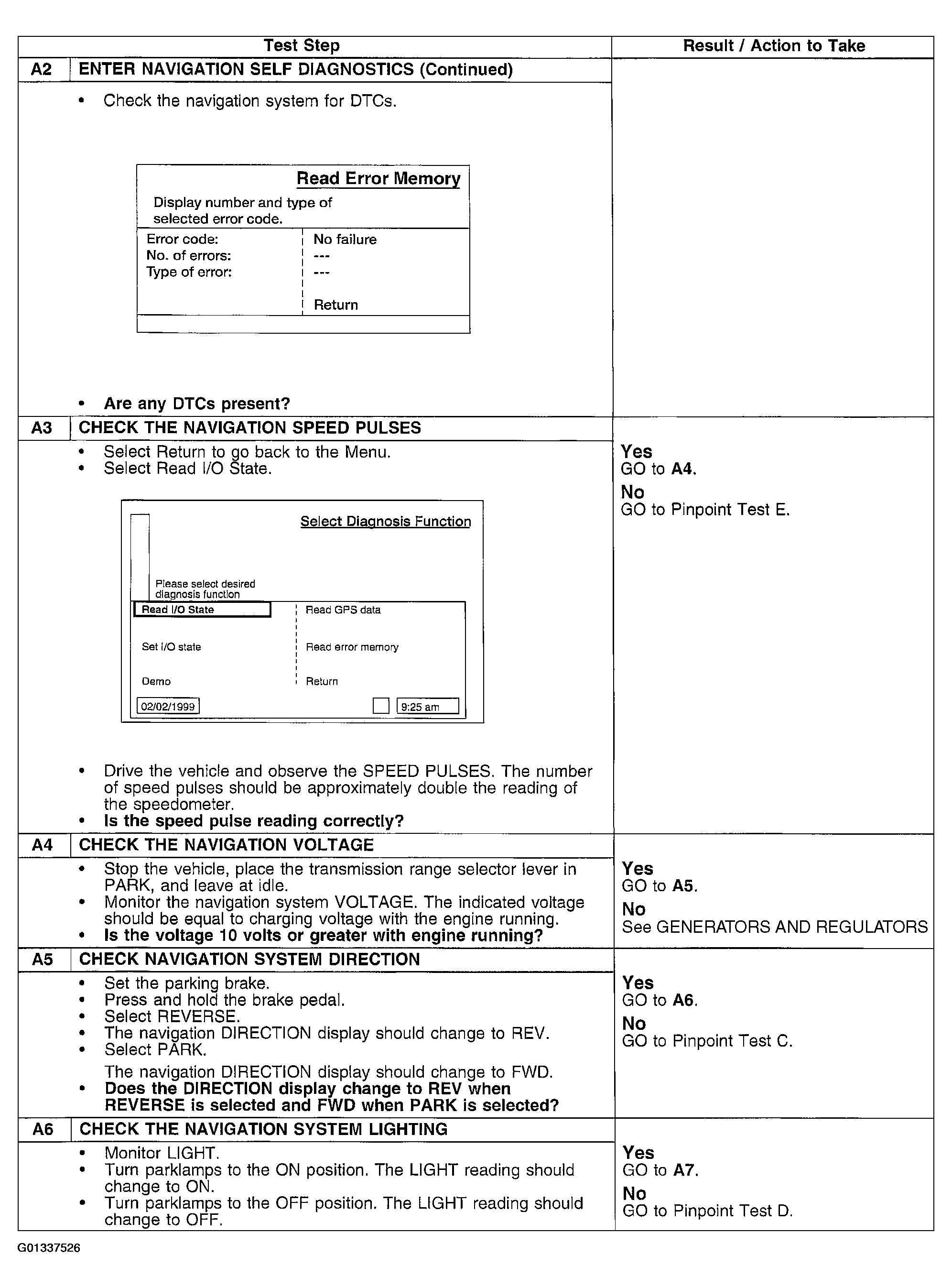

Fig 3: Pinpoint Test A (Steps A2 Continued-A6)

Courtesy of FORD MOTOR CO.

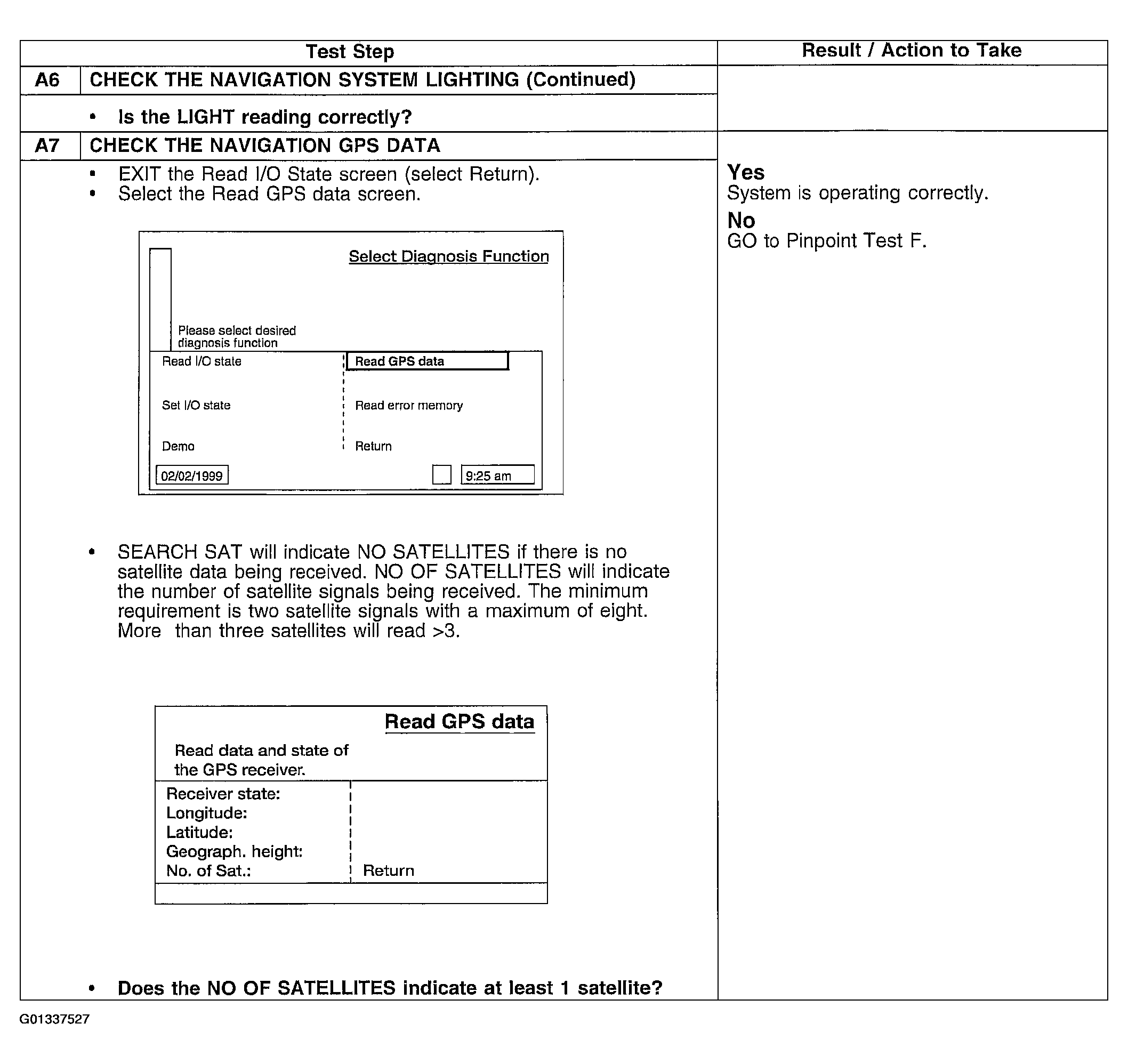

Fig 4: Pinpoint Test A (Steps A6 Continued-A7)

Courtesy of FORD MOTOR CO.
