WARNING: This page is about a different car, the 2003 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

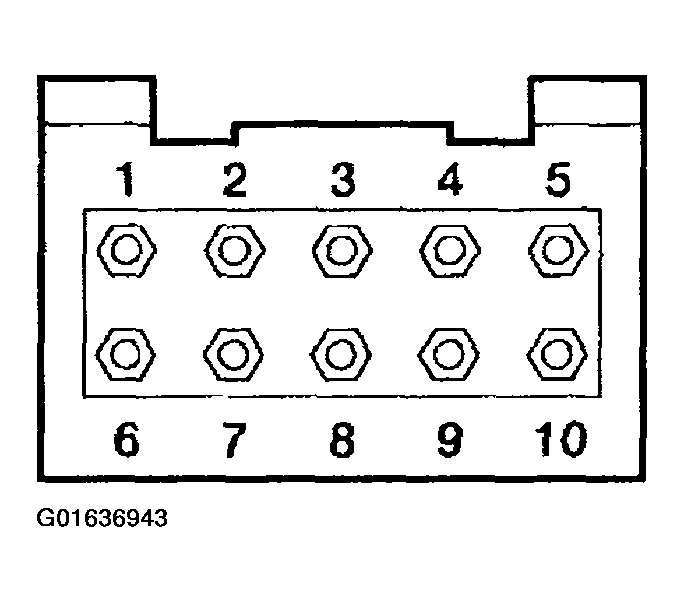

Fig 1: Identifying Front Auxiliary Climate Control Assembly
Courtesy of FORD MOTOR CO.

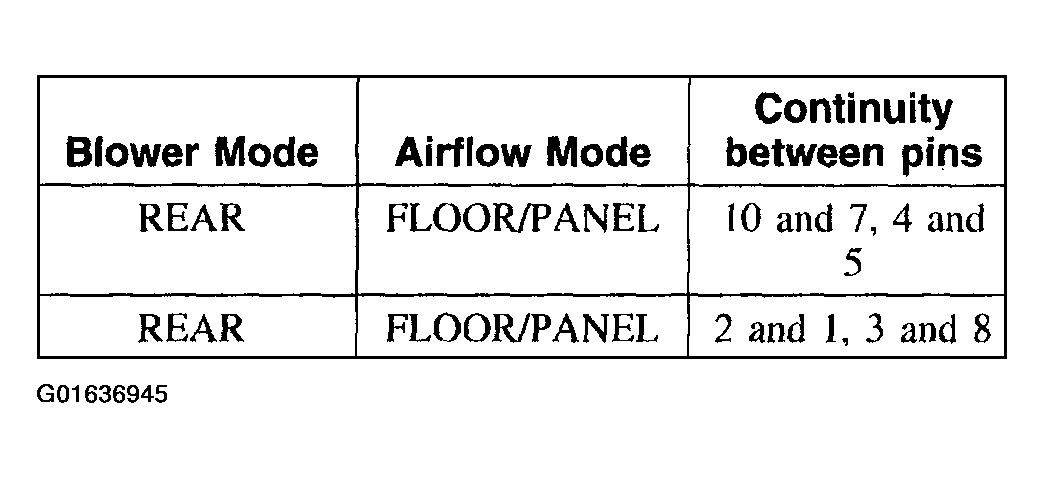

Fig 2: Front Auxiliary Climate Control Assembly Table (1 Of 3)
Courtesy of FORD MOTOR CO.

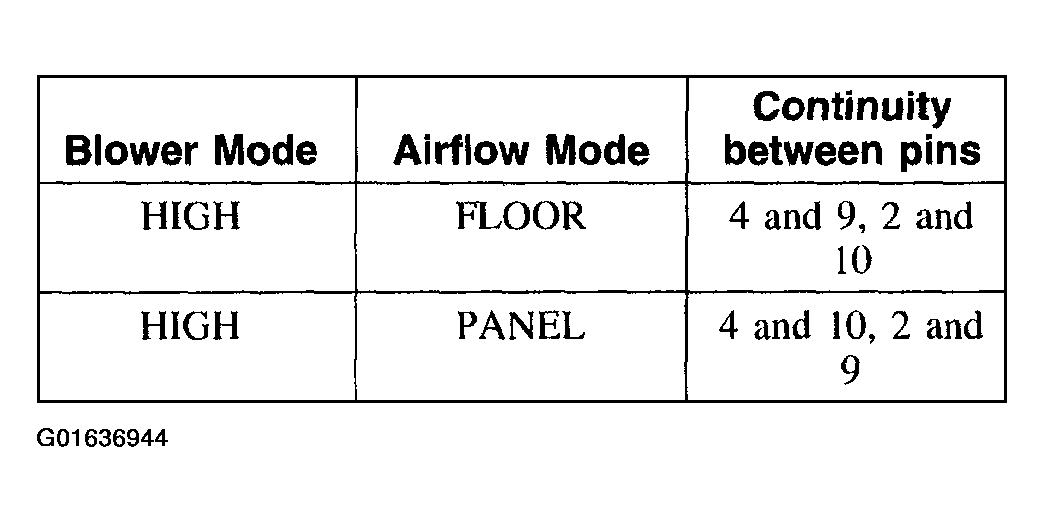

Fig 3: Front Auxiliary Climate Control Assembly Table (2 Of 3)
Courtesy of FORD MOTOR CO.

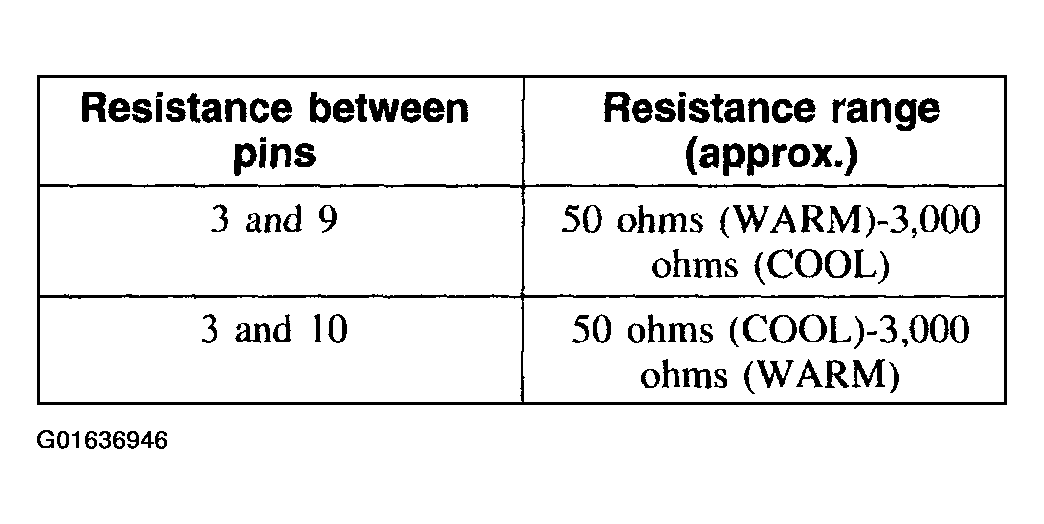

Fig 4: Front Auxiliary Climate Control Assembly Table (3 Of 3)
