In-Vehicle Temperature Sensor

WARNING: This page is about a different car, the 2003 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

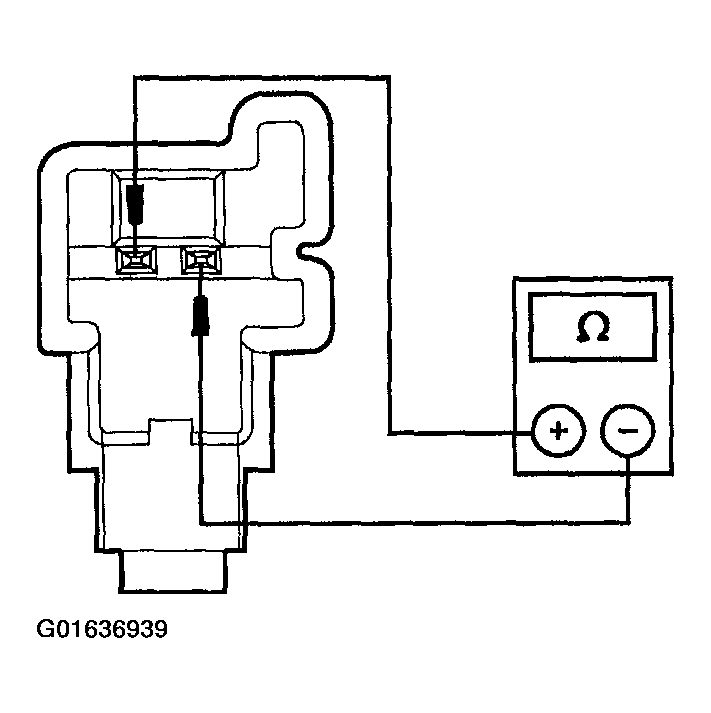

Fig 1: In-Vehicle Temperature Sensor
G01636939Courtesy of FORD MOTOR CO.

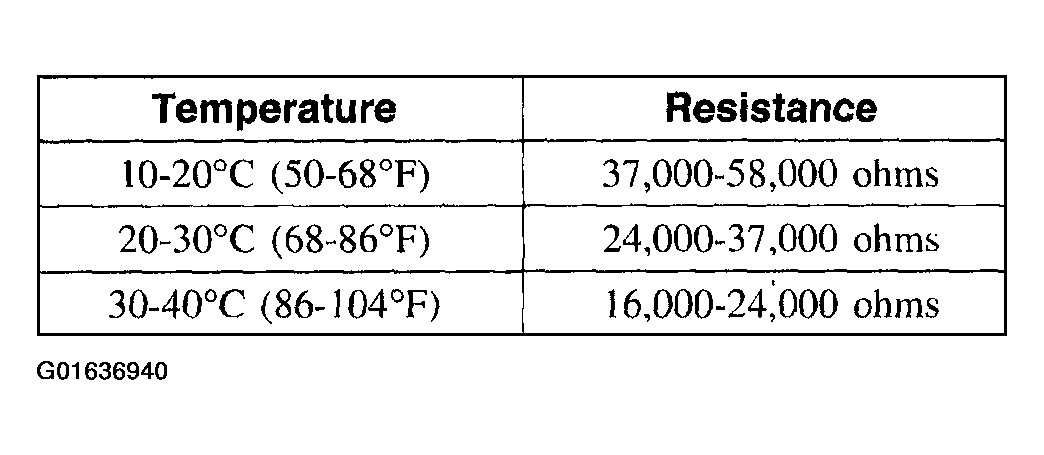

Fig 2: In-Vehicle Temperature Sensor Table
G01636940Courtesy of FORD MOTOR CO.
