Steering Wheel Control Switch

WARNING: This page is about a different car, the 2003 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

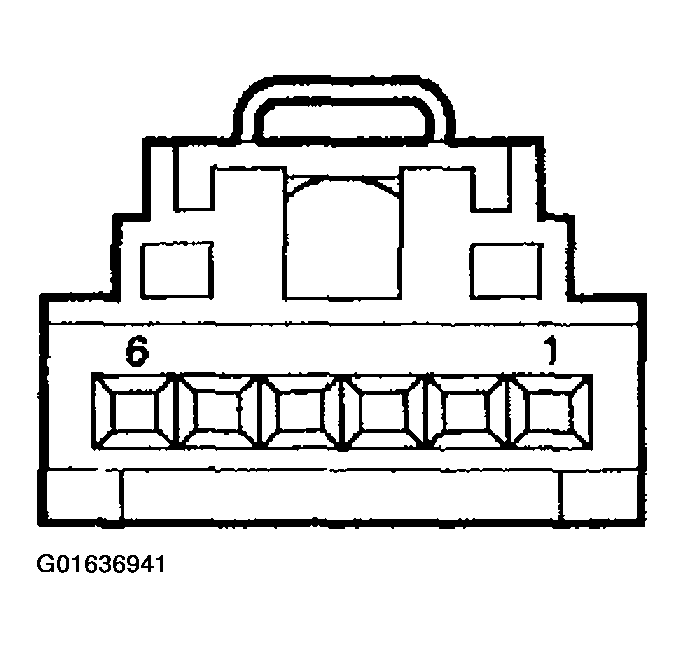

Fig 1: Steering Wheel Control Switch
G01636941Courtesy of FORD MOTOR CO.
  1. Measure the resistance between pins 2 and 4 while pressing the buttons below.

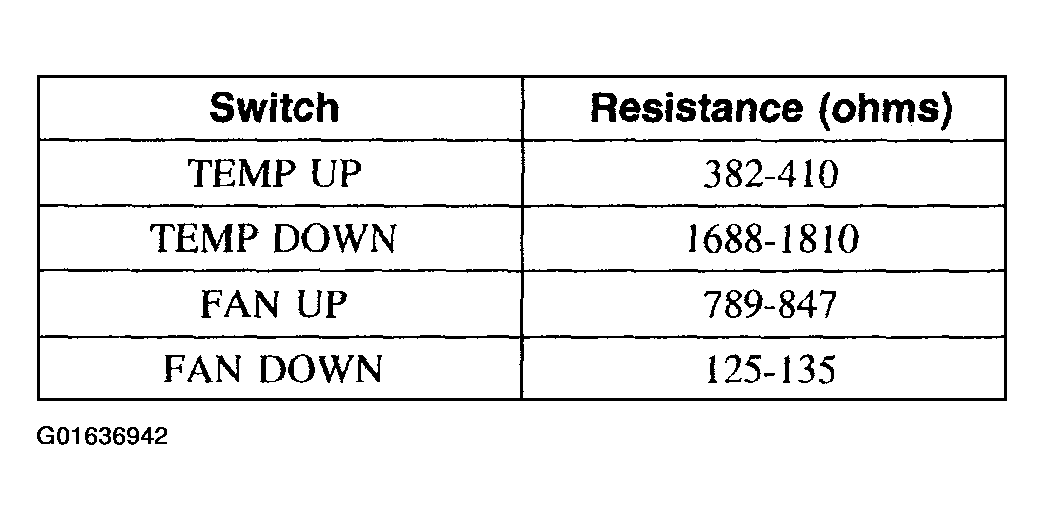

    Fig 2: Steering Wheel Control Switch Table
    G01636942Courtesy of FORD MOTOR CO.
