Climate Control System: Notes

WARNING: This page is about a different car, the 2003 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

Refer to AIR CONDITIONING wiring diagrams for schematic and connector information.

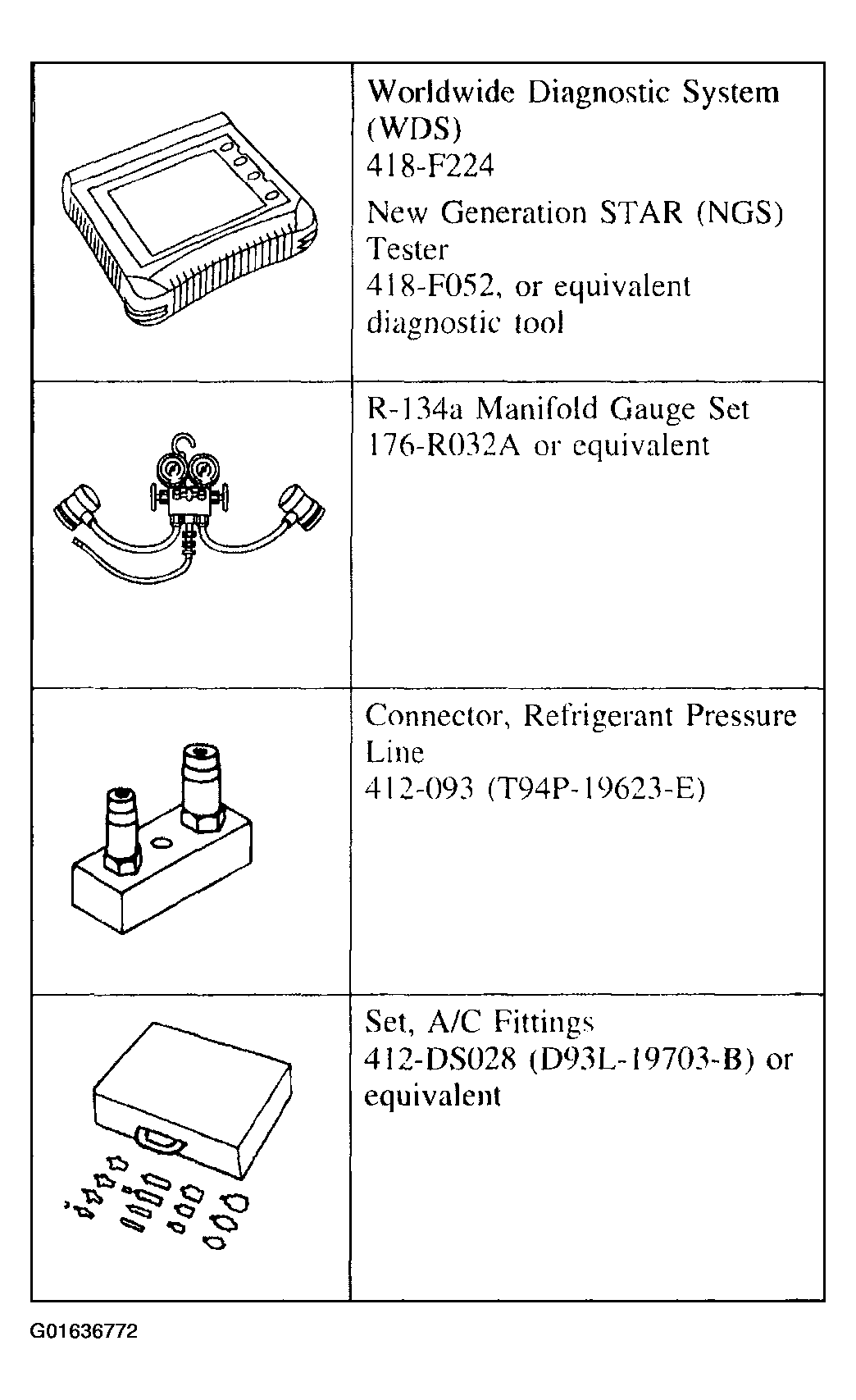

Fig 1: Special Tool (1 Of 2)
G01636772Courtesy of FORD MOTOR CO.

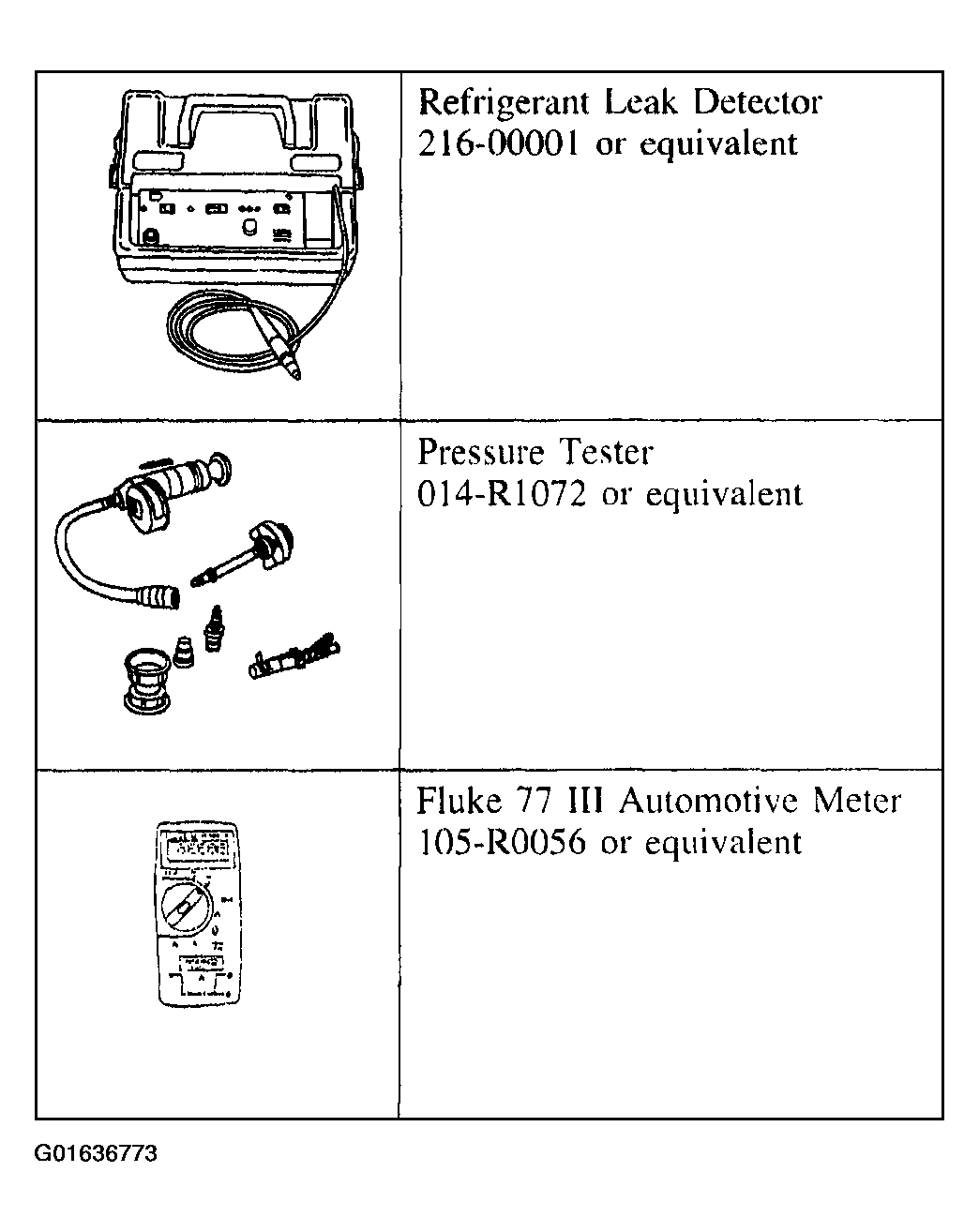

Fig 2: Special Tool (2 Of 2)
G01636773Courtesy of FORD MOTOR CO.
