WARNING: This page is about a different car, the 2003 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

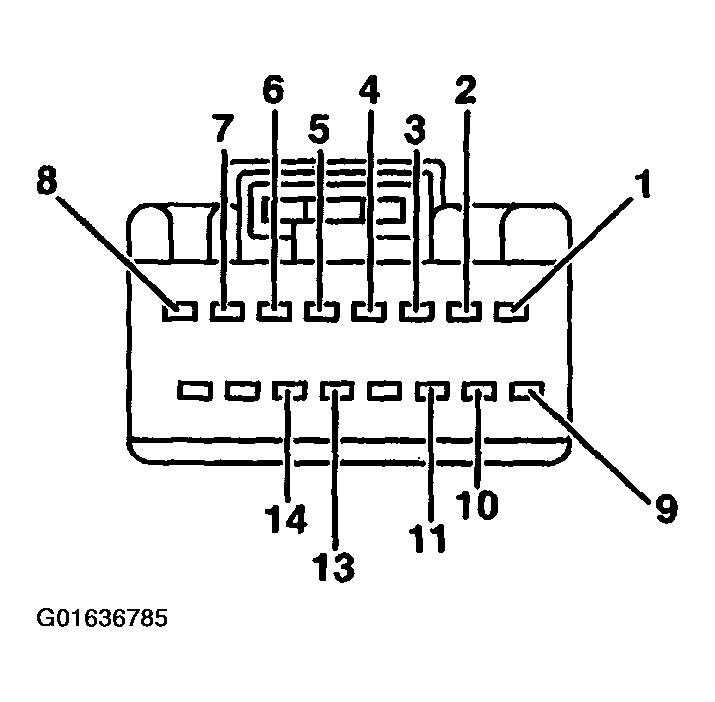

Fig 1: Connector Terminals Of DATC Module C228A
Courtesy of FORD MOTOR CO.

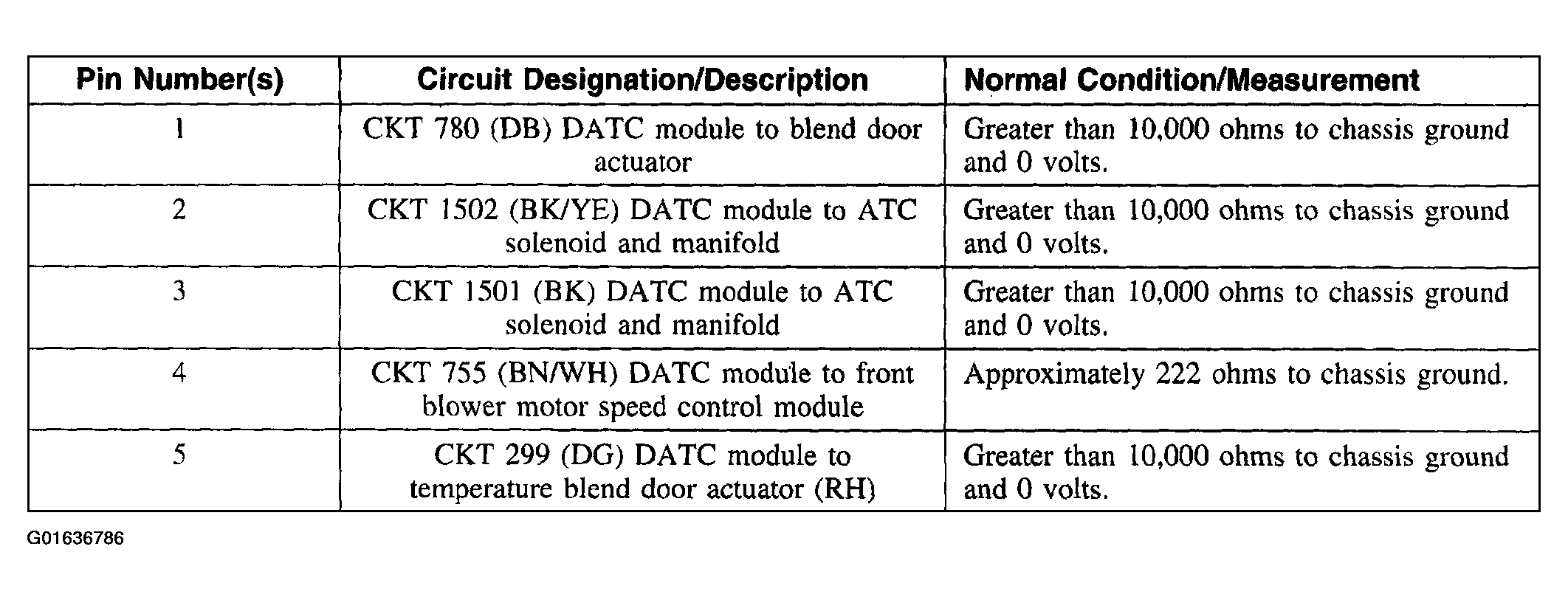

Fig 2: Connector Terminals Of DATC Module C228A Legend (1 Of 2)
Courtesy of FORD MOTOR CO.

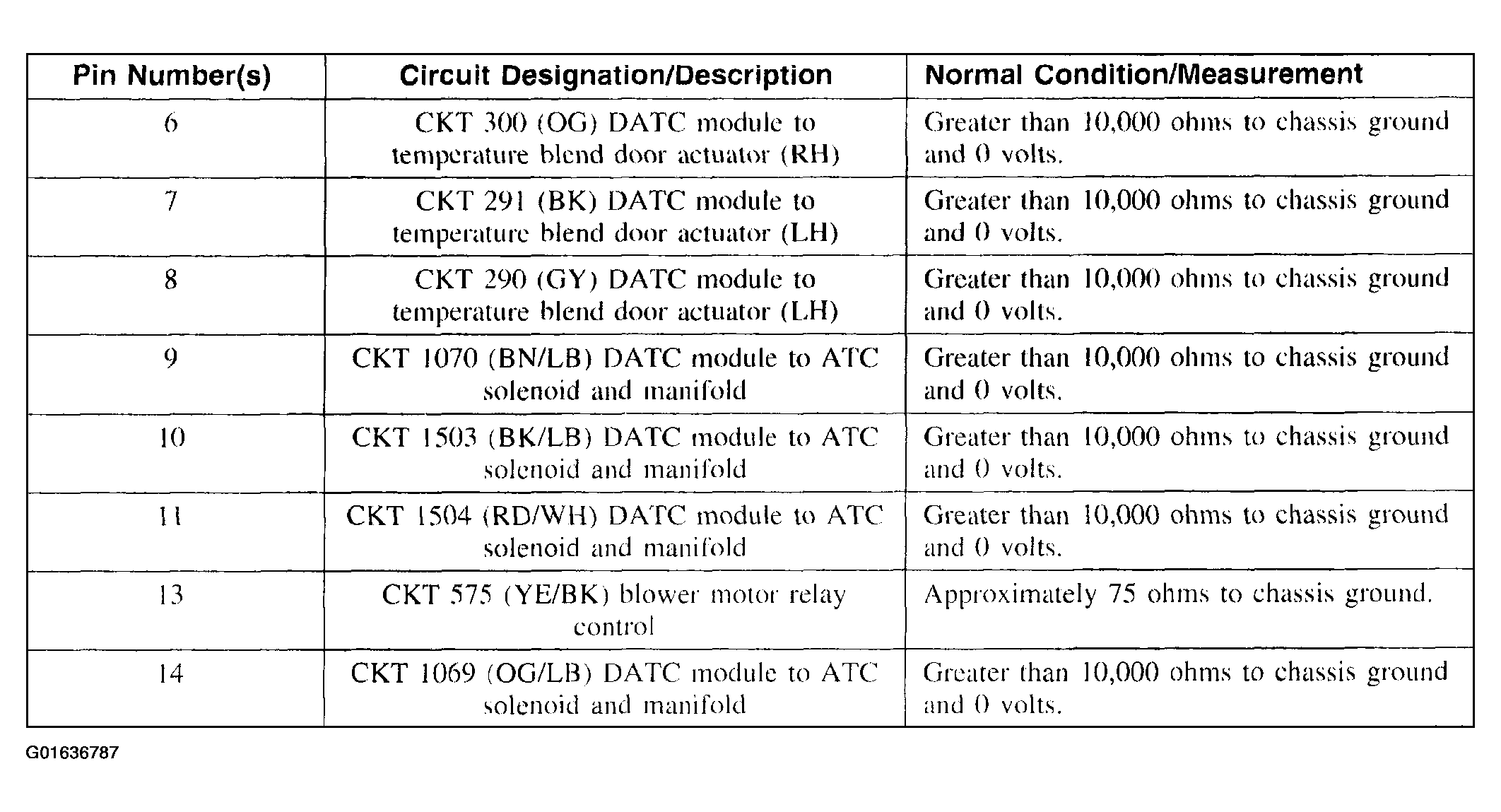

Fig 3: Connector Terminals Of DATC Module C228A Legend (2 Of 2)
