WARNING: This page is about a different car, the 2003 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

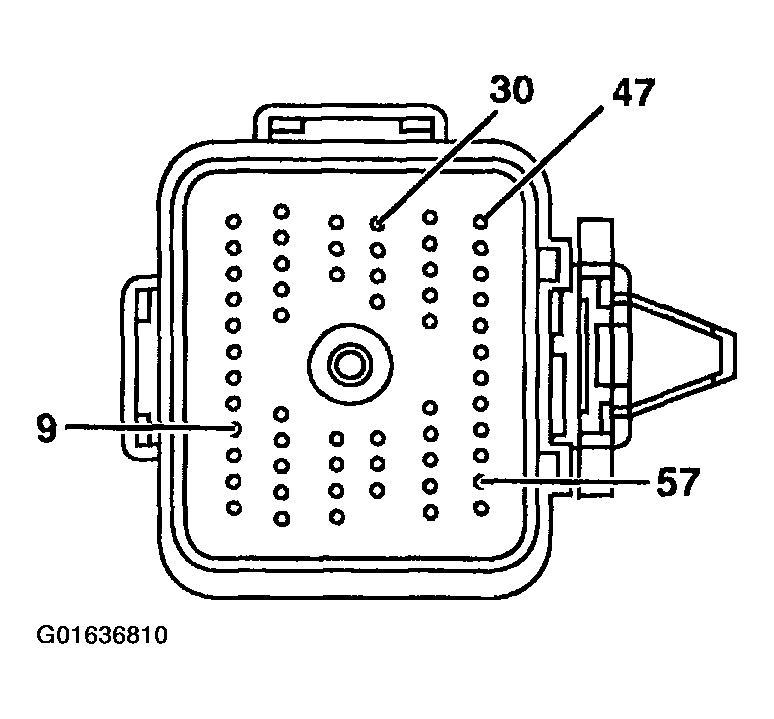

Fig 1: Connector Terminals Of Powertrain Control Module (PCM) C175a
Courtesy of FORD MOTOR CO.

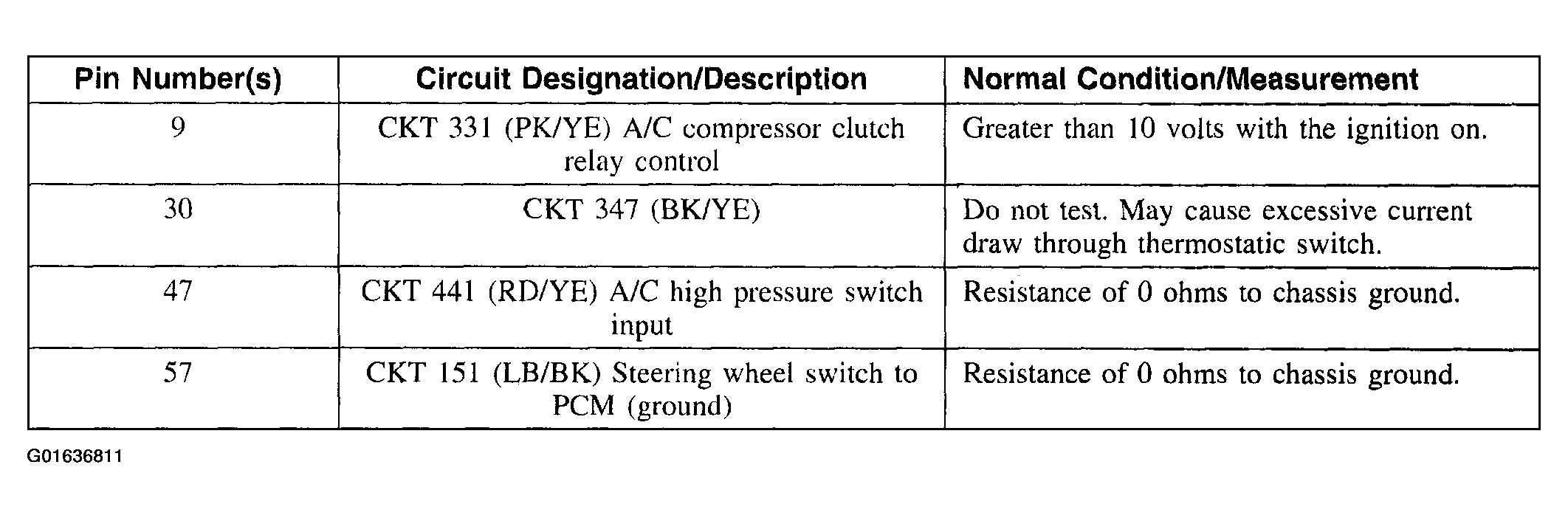

Fig 2: Connector Terminals Of Powertrain Control Module (PCM) C175a Legend
