In-Vehicle Temperature Sensor

WARNING: This page is about a different car, the 2003 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the components in the order indicated in the following illustration.
  2. To install, reverse the removal procedure.

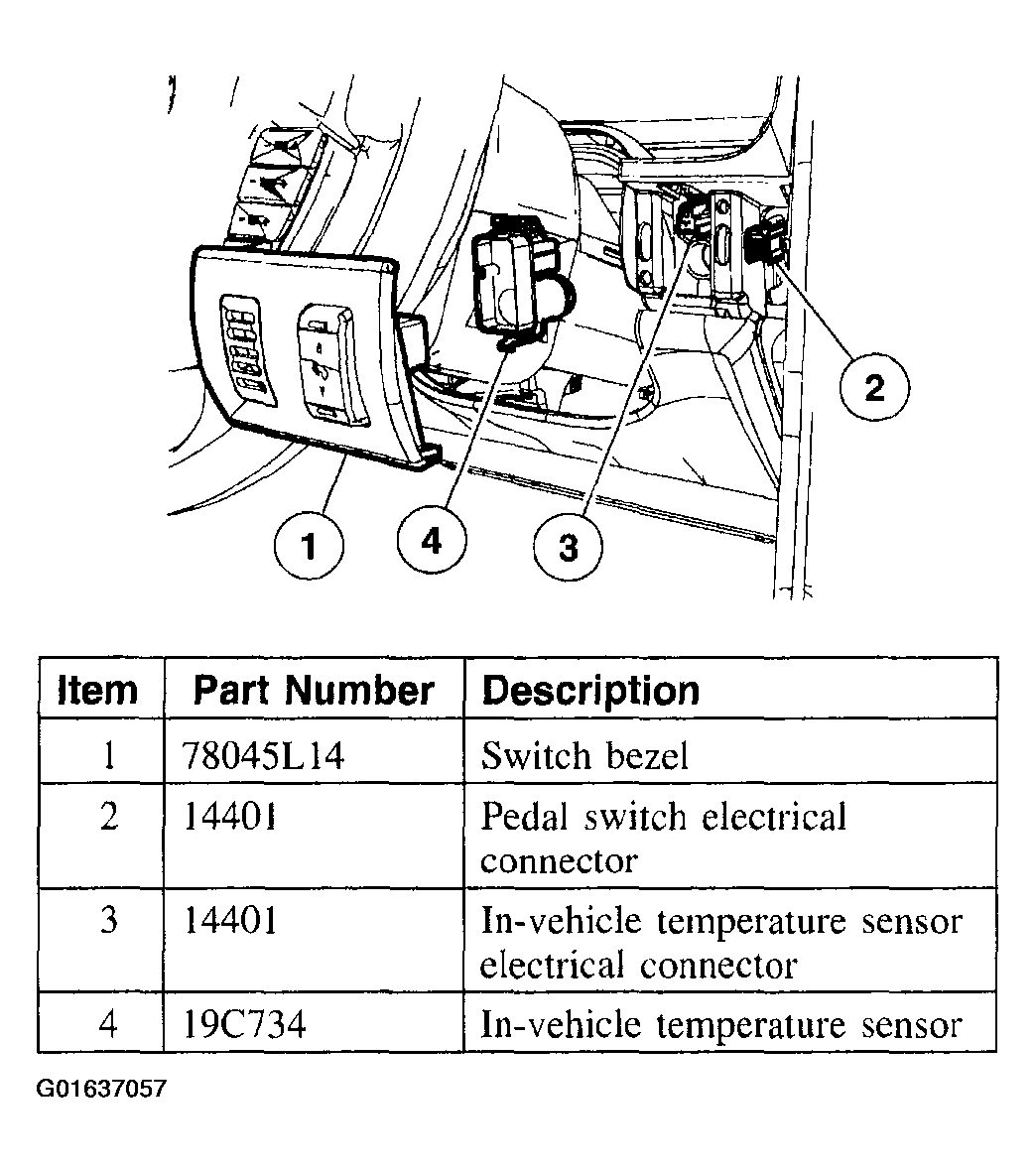

    Fig 1: Removal Sequence Of In-Vehicle Temperature Sensor
    G01637057Courtesy of FORD MOTOR CO.
