General Specifications

WARNING: This page is about a different car, the 2003 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

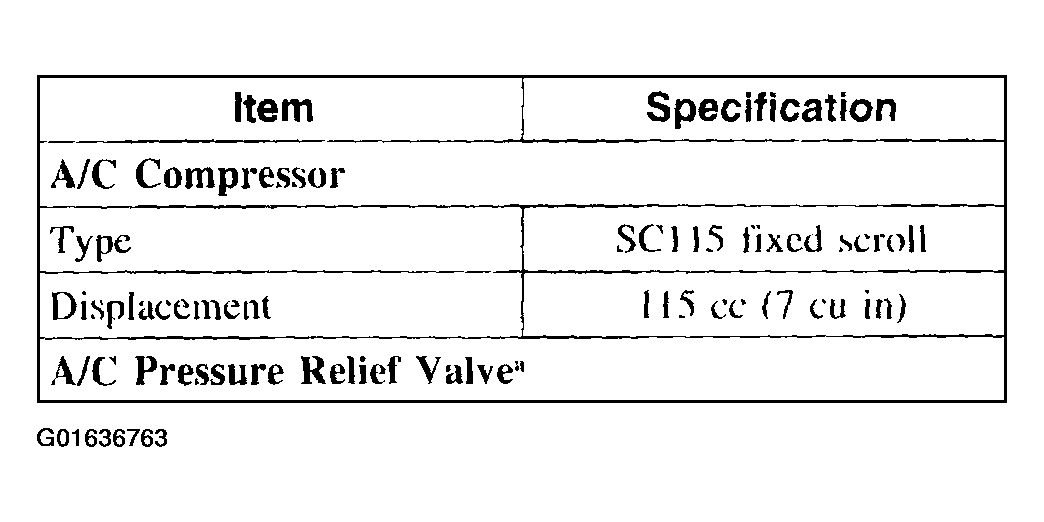

Fig 1: Specifications Table (1 Of 3)
G01636763Courtesy of FORD MOTOR CO.

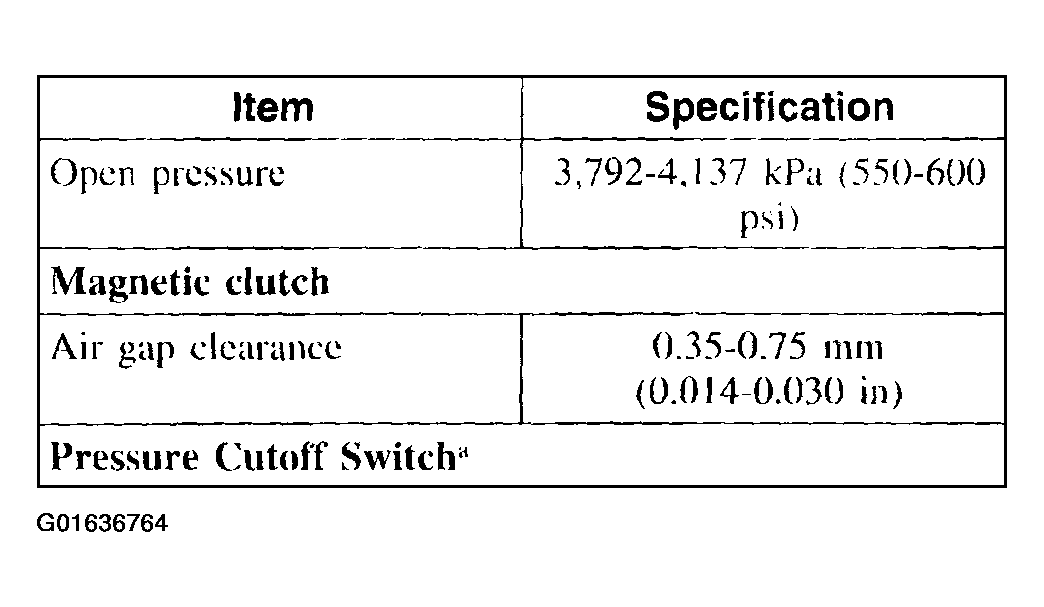

Fig 2: Specifications Table (2 Of 3)
G01636764Courtesy of FORD MOTOR CO.

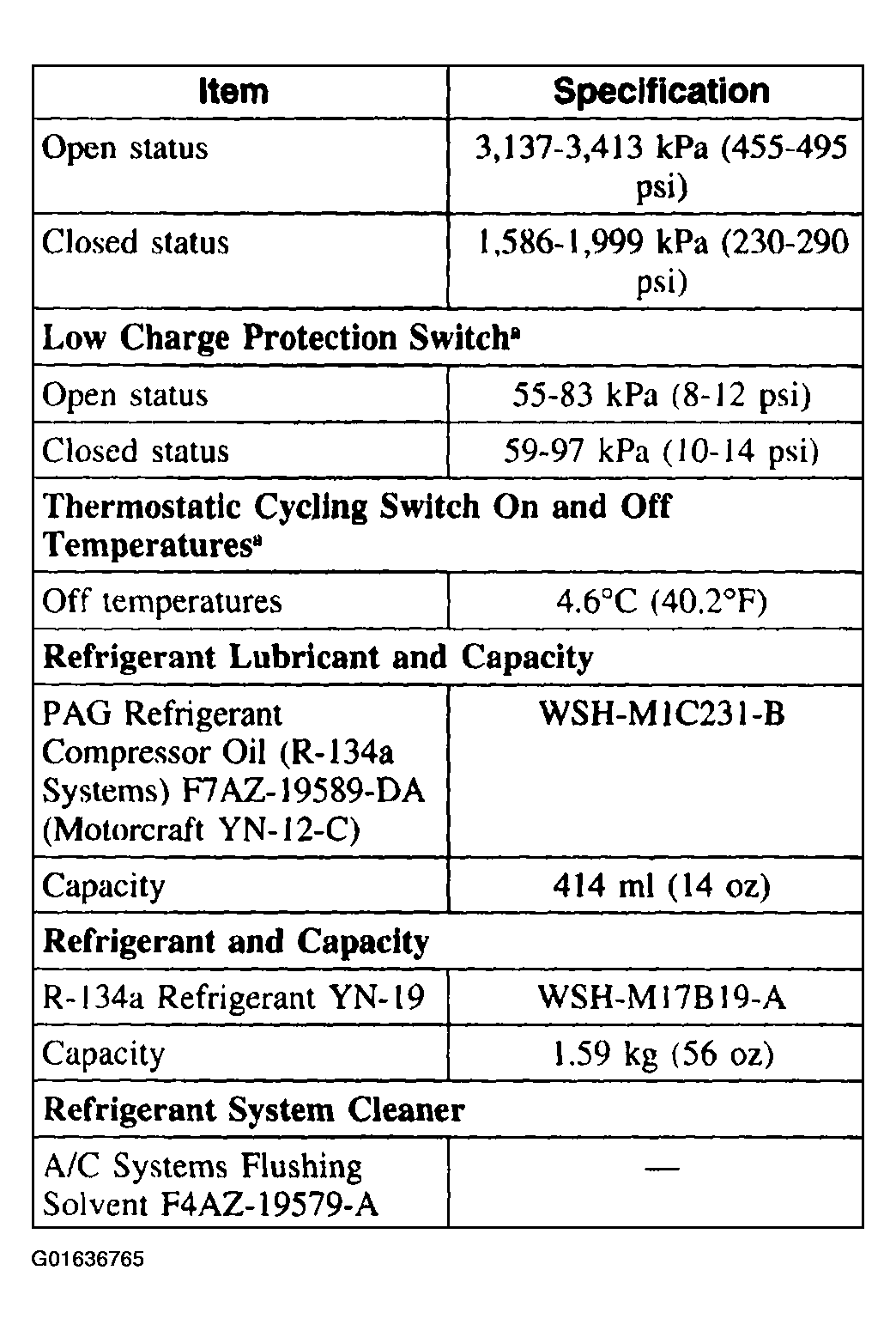

Fig 3: Specifications Table (3 Of 3)
G01636765Courtesy of FORD MOTOR CO.
