Removal and Installation

WARNING: This page is about a different car, the 2004 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

Remove the air cleaner. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .
Disconnect the battery. For additional information, refer to BATTERY, MOUNTING AND CABLES .

NOTE: Clean any foreign debris before removing the ABS module.

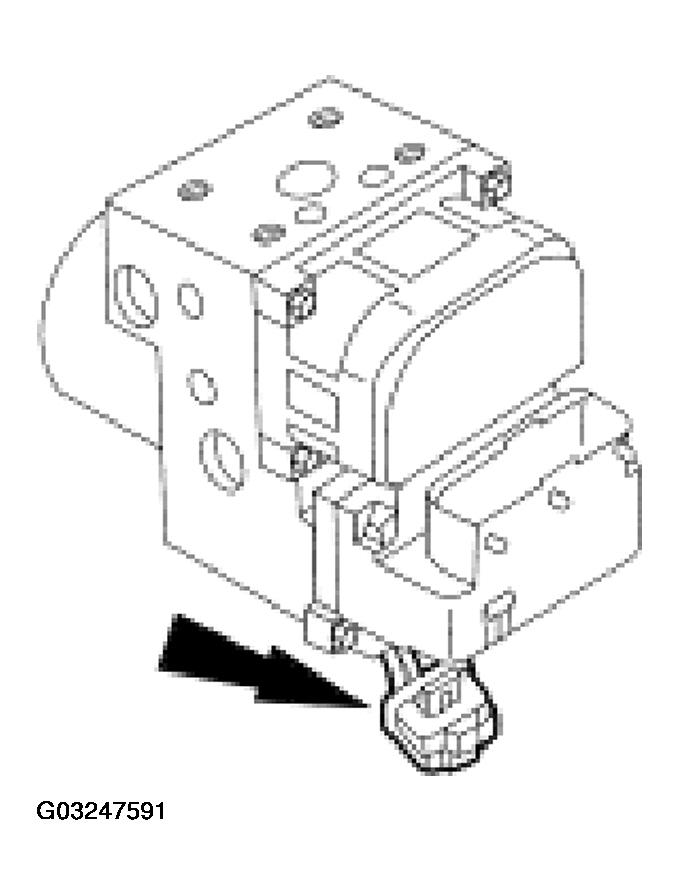

Fig 1: Disconnecting Pump Motor Electrical Connector

Courtesy of FORD MOTOR CO.

Disconnect the ABS module electrical connectors.
- Disconnect the control module electrical connector.
- Disconnect the pump motor electrical connector.

NOTE: Care must be taken when removing the module from the hydraulic control unit (HCU).

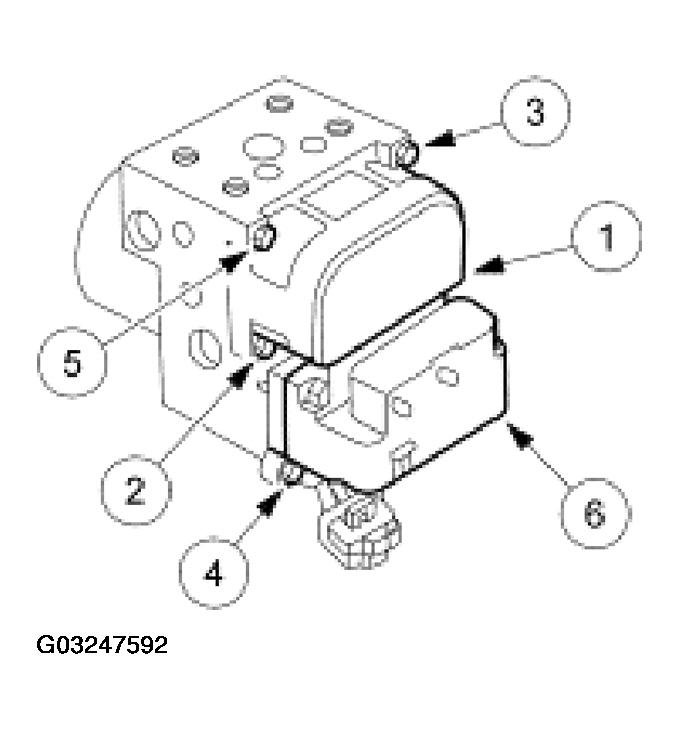

Fig 2: Removing ABS Module

Courtesy of FORD MOTOR CO.

Remove the ABS module.
- Remove the screws in the sequence shown.
- Remove the module.
- To install, tighten to 3 Nm (27 lb-in).

NOTE: Be sure the ABS module-to-HCU gasket is clean and correctly installed.

To install, reverse the removal procedure.
