Pinpoint Test M: The Overhead Console Does Not Respond To The Diagnostic Tool (SCP)

WARNING: This page is about a different car, the 2003 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

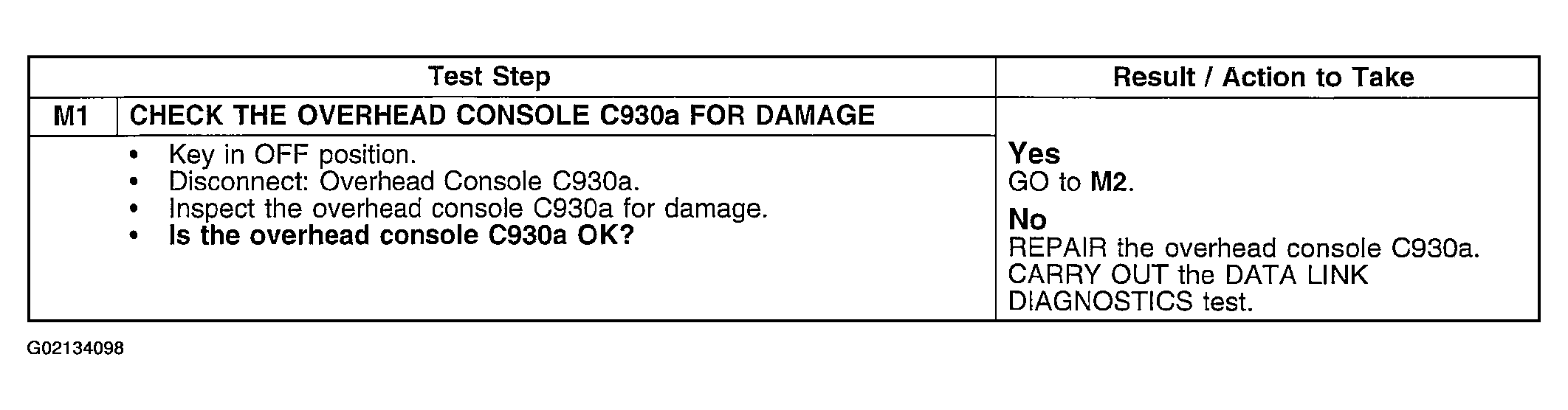

Fig 1: Pinpoint Test M (1 Of 3)

Courtesy of FORD MOTOR CO.

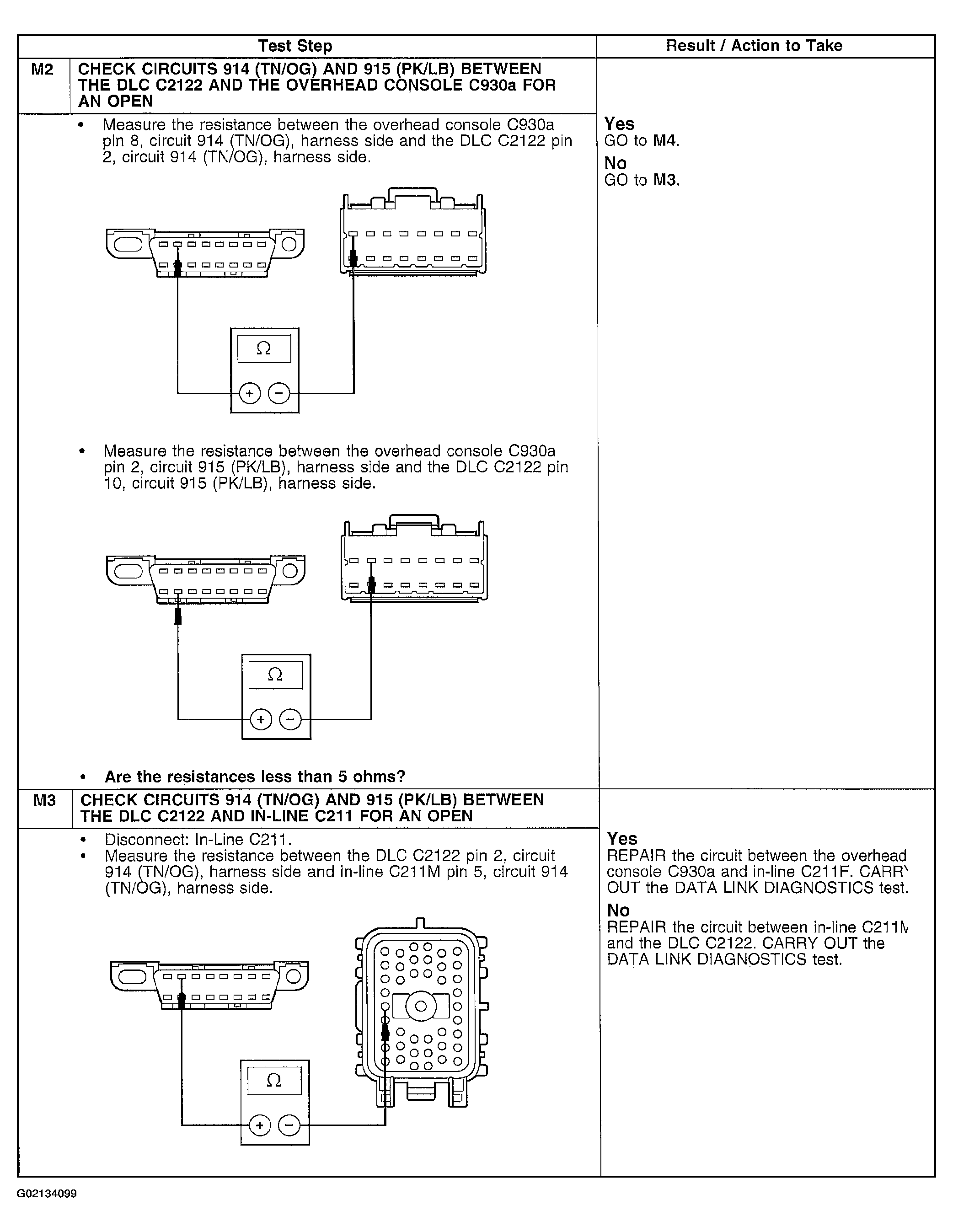

Fig 2: Pinpoint Test M (2 Of 3)

Courtesy of FORD MOTOR CO.

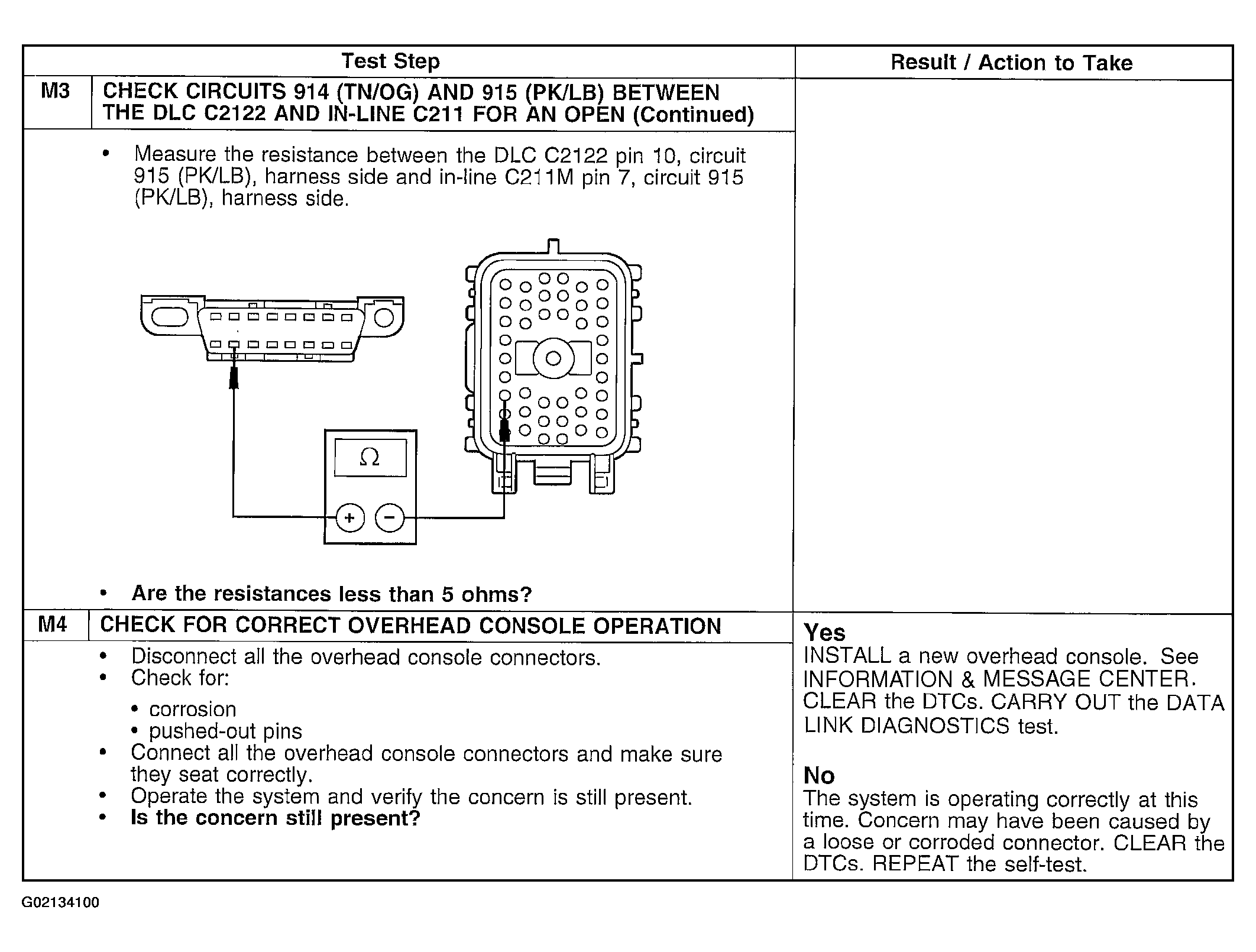

Fig 3: Pinpoint Test M (3 Of 3)

Courtesy of FORD MOTOR CO.
