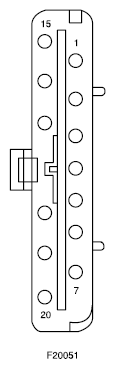

Remote Keyless Entry Module Connector End View (C3140B)
| Pin | Circuit | Circuit function |
|---|---|---|
| 1 | ... | not used |
| 2 | 884 (YE/BK) | Hot at all times |
| 3 | 118 (PK/OG) | Door lock relay, control |
| 4 | 163 (RD/OG) | Driver door unlock relay, switched power |
| 5 | 117 (PK/BK) | Door lock, output |
| 6 | 121 (YE/BK) | key pad common |
| 7 | 53 (BK/LB) | Interior lamp relay, switched power, output |
| 15 | ... | not used |
| 16 | 884 (YE/BK) | Hot at all times |
| 17 | 118 (PK/OG) | Door lock relay, control |
| 18 | 117 (PK/BK) | Door lock, output |
| 19 | 121 (YE/BK) | Drain wire, Lock, output |
| 20 | 53 (BK/LB) | Interior lamp relay, switched power, output |
