Pinpoint Test G: Flash Code 2 - BPP Switch Circuit Failure
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Pinpoint Test G: Flash Code 2 - BPP Switch Circuit Failure

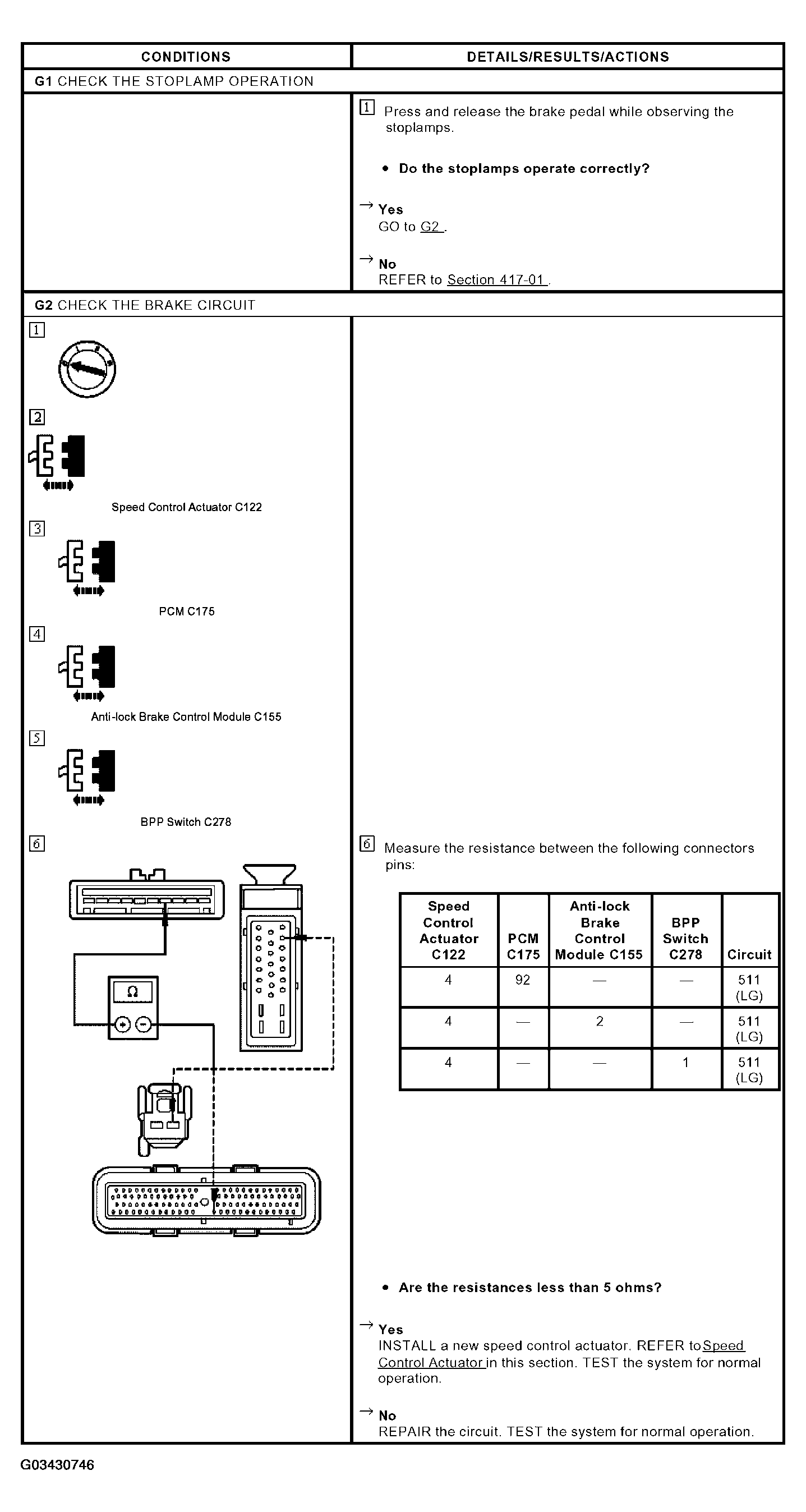

Fig 1: Pinpoint Test G: Flash Code 2 - BPP Switch Circuit Failure (Steps G1 - G2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
