Lead Terminal Repair

  1. Obtain the following repair kit:
    • Repair Kit (50-25-0584-0029).
  2. The vehicle should be allowed to reach 16°C (60°F) or above.
  3. Clean the area with denatured alcohol.
  4. Apply the epoxy to the repair area.
  5. Hold the terminal in place on the bus bar with an appropriate tool.

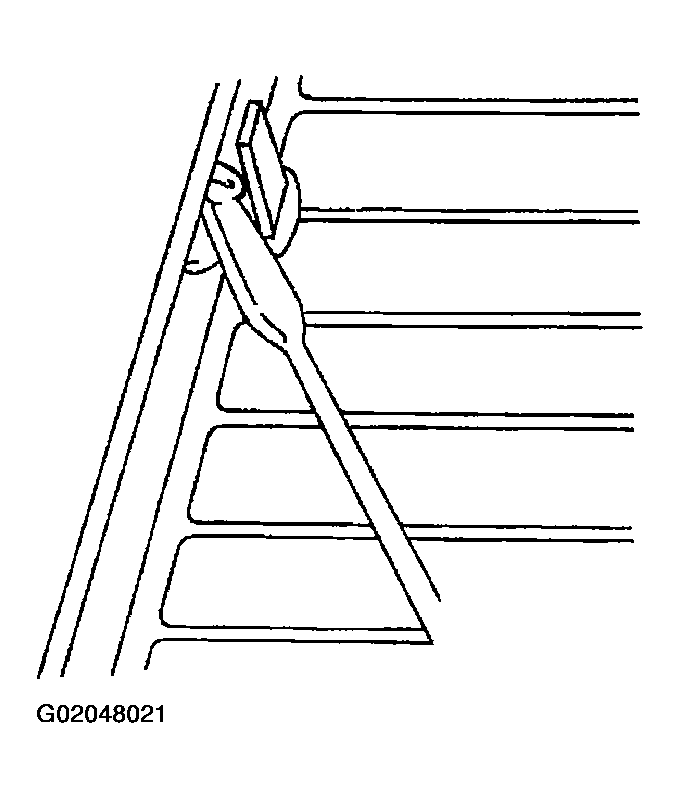

    Fig 1: Holding Terminal In Place On Bus Bar
    G02048021Courtesy of FORD MOTOR CO.
  6. Apply epoxy to the repair area.
