2-4 Band: Disassembly

  1. Remove the servo retainer.
    1. Remove the servo piston snap ring.
    2. Remove the servo retainer.

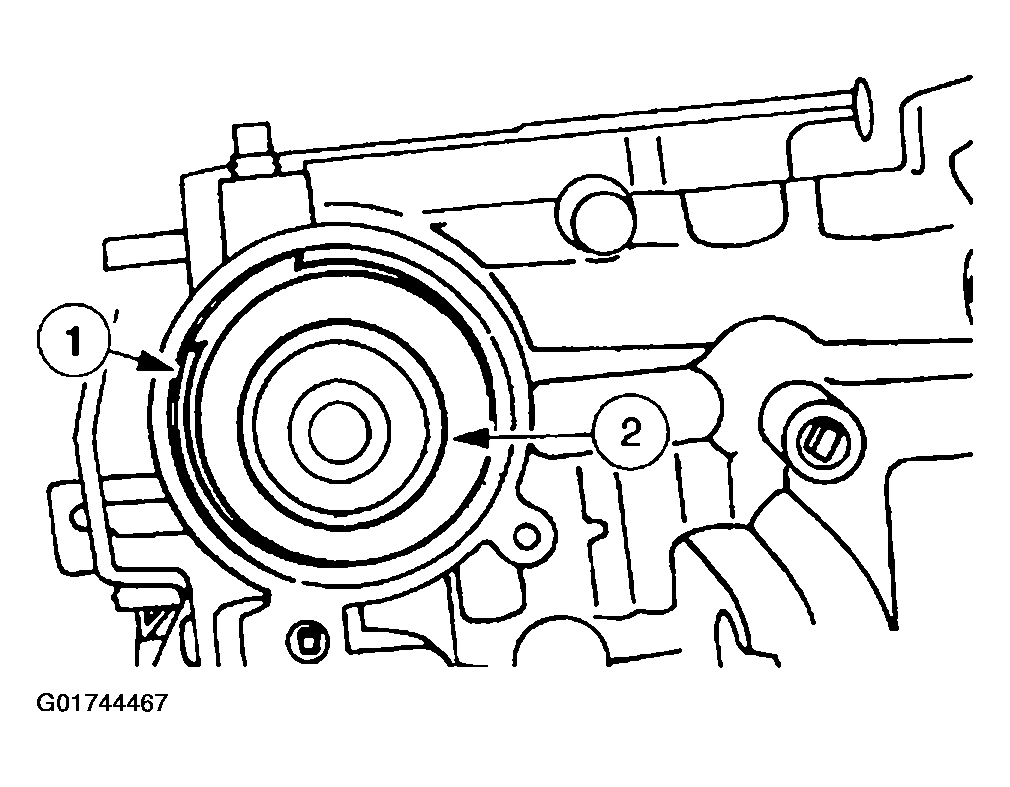

    2. Fig 1: Removing Servo Retainer
    G01744467Courtesy of FORD MOTOR CO.
    NOTE: Use a C-clamp to compress the servo band piston (7D022) before removing the servo piston clip.
  2. Remove the servo band piston.
    1. Remove the servo piston clip.
    2. Remove the servo band piston, spacer, servo piston stem, and servo piston spring (7D028).

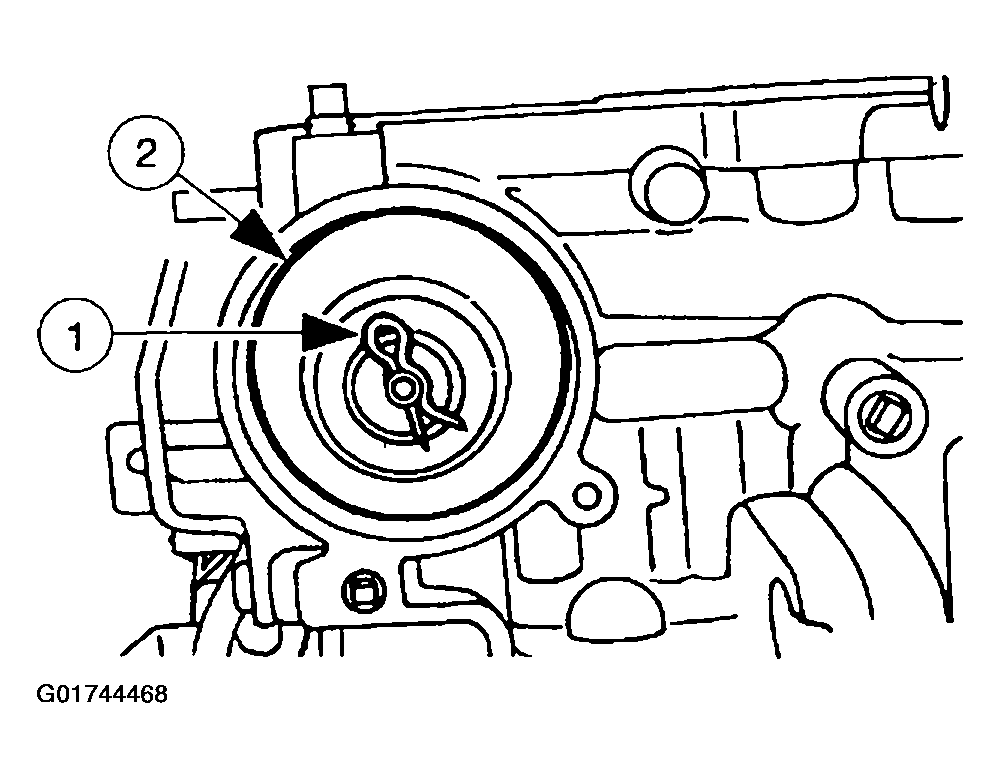

    3. Fig 2: Removing Servo Band Piston
    G01744468Courtesy of FORD MOTOR CO.
  3. Remove the (A) orifice holder, (B) washer, (C) orifice check spring, and (D) orifice valve.

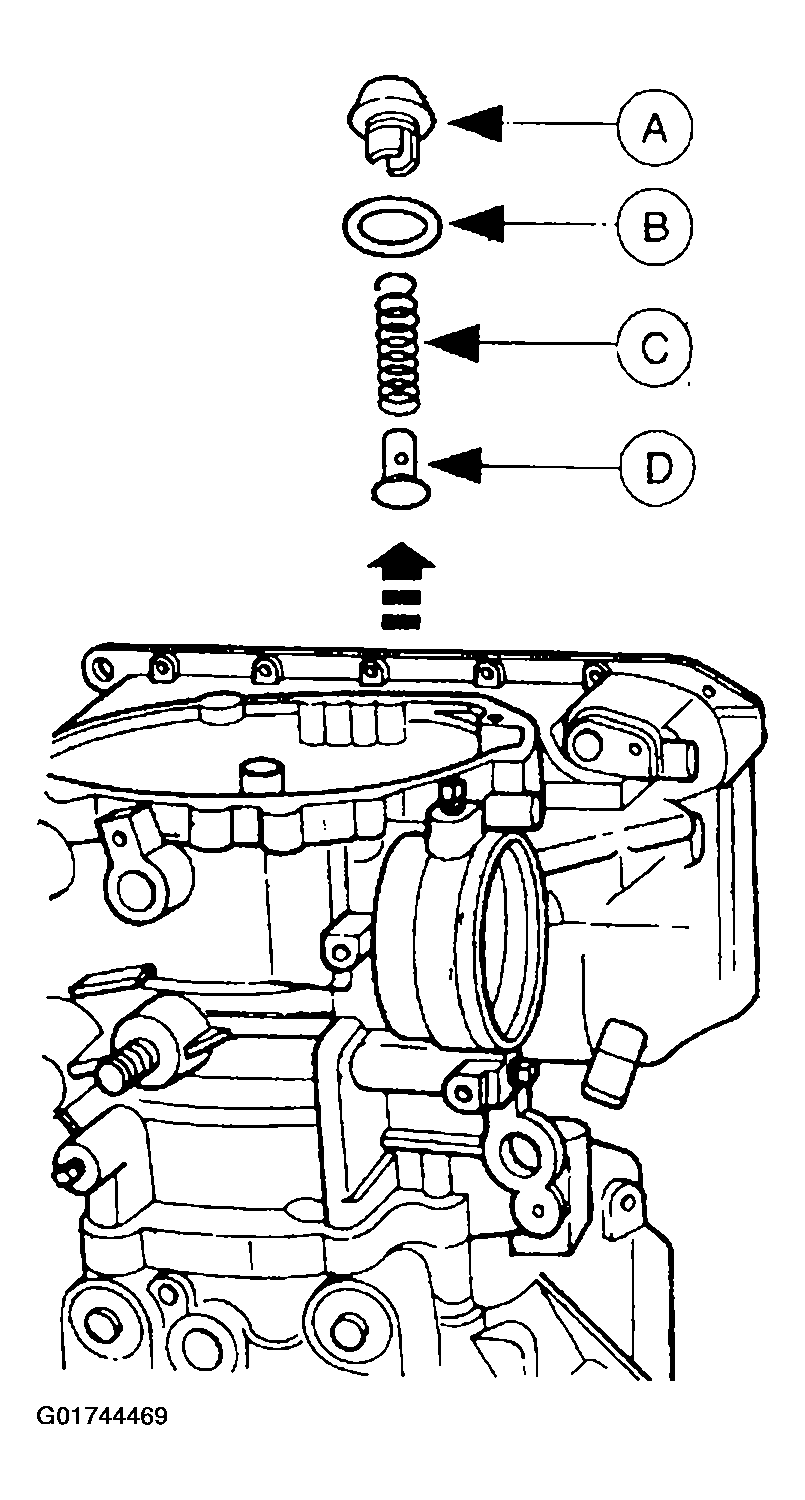

    4. Fig 3: Removing Orifice Holder, Washer, Orifice Check Spring & Orifice Valve
    G01744469Courtesy of FORD MOTOR CO.
  4. Remove the 2-4 band.

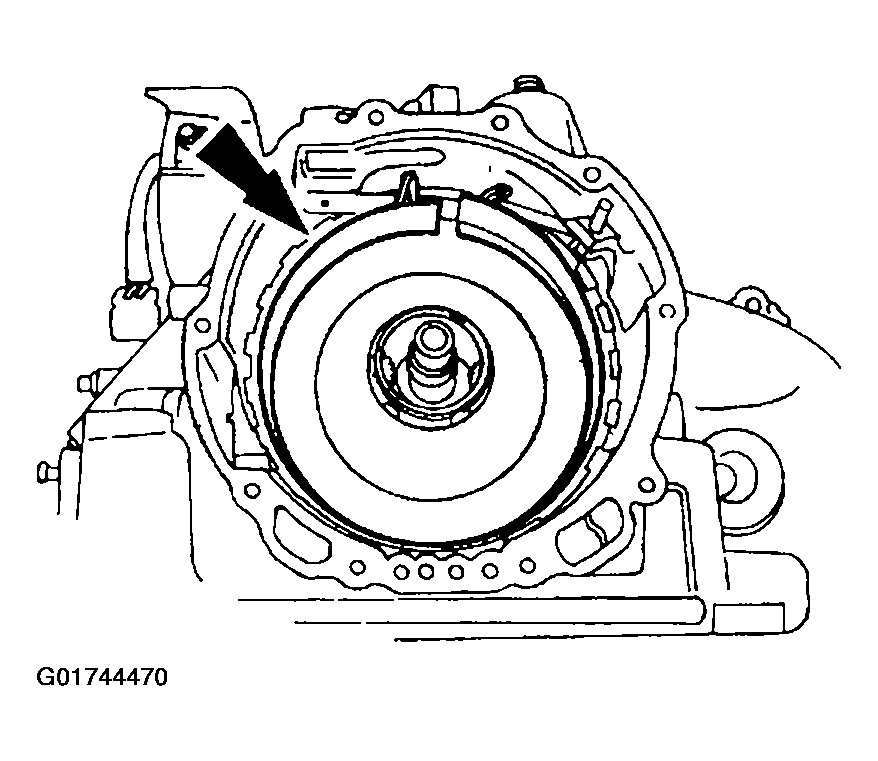

    5. Fig 4: Removing 2-4 Band
    G01744470Courtesy of FORD MOTOR CO.
  5. Secure the 2-4 band with a small piece of wire to keep the 2-4 band from stretching.

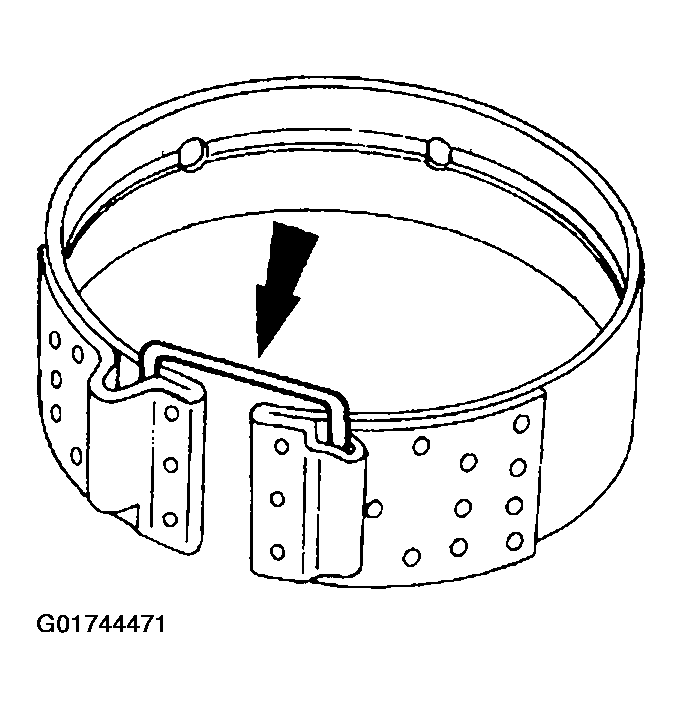

Fig 5: Securing 2-4 Band With A Small Piece Of Wire
G01744471Courtesy of FORD MOTOR CO.
