Front Fender Liner: Service and Repair

FENDER SPLASH SHIELD

Removal and Installation

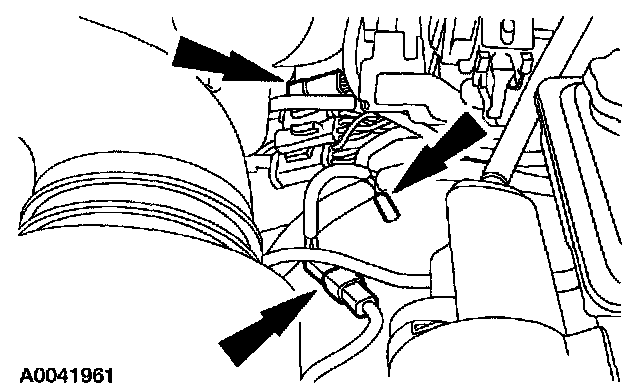

1. Disconnect the electrical connectors (left side only).
2. Remove the wheel and tire assembly.

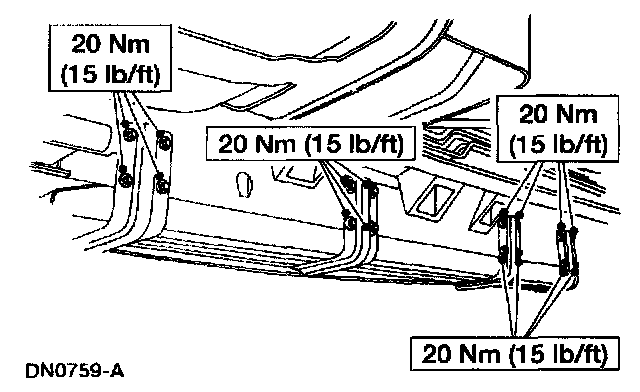

3. If equipped with running boards, loosen the running board bolts.

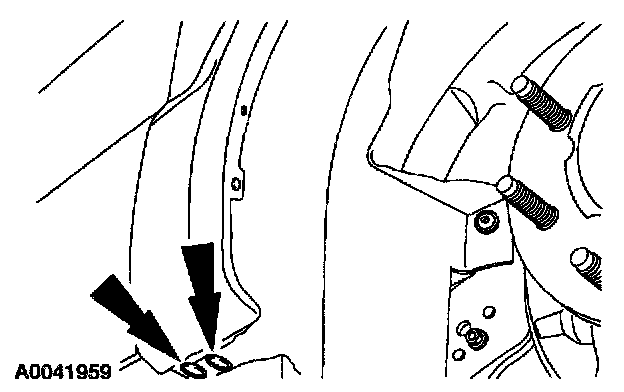

4. Remove the front fender splash shield pin-type retainers.







5. Remove the front fender splash shield.

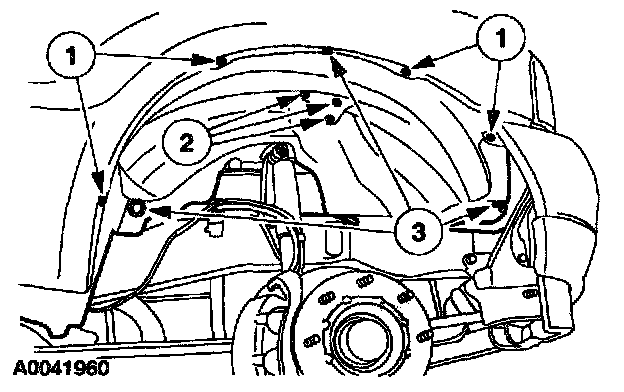

1 Remove the screws.
2 Remove the nuts (right side only).
3 Remove the bolts.

6. To install, reverse the removal procedure.
