Brake Disc Shield

Brake Disc Shield - F-250, F-350 4x2

Removal and Installation
1. Remove the front disc brake rotor.





2. Remove the front disc brake rotor shield.

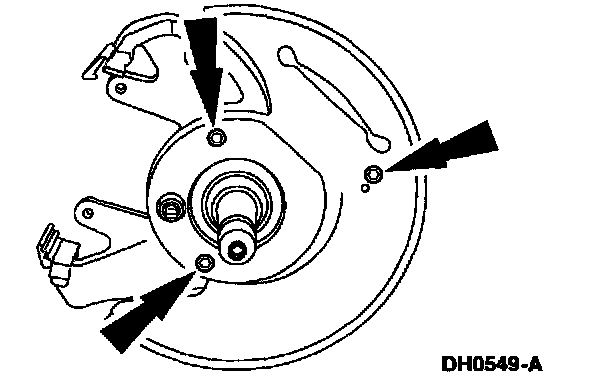

- Remove the front disc brake rotor shield screws, and remove the front disc brake rotor shield.

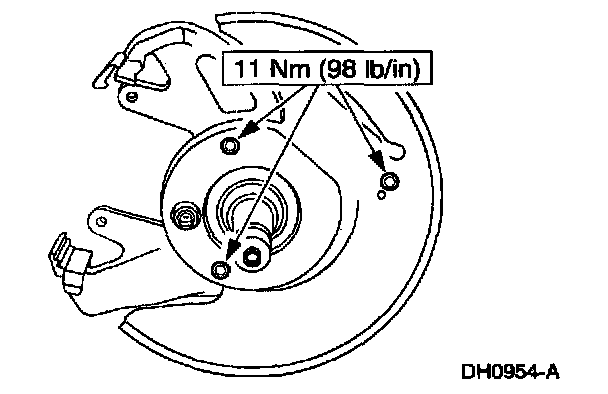

3. To install, reverse the removal procedure.
