Cabin Temperature Sensor / Switch: Service and Repair

REMOVAL

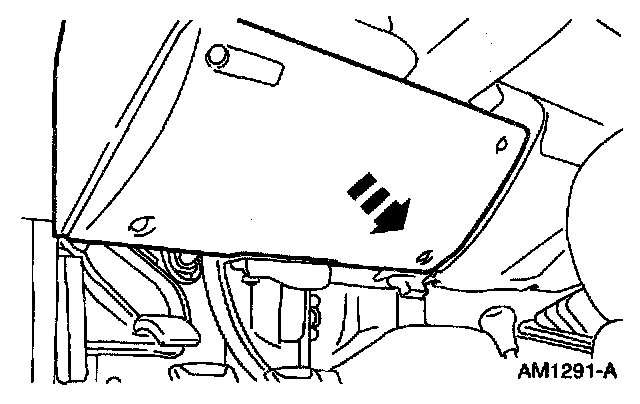

1. Remove the steering column cover.

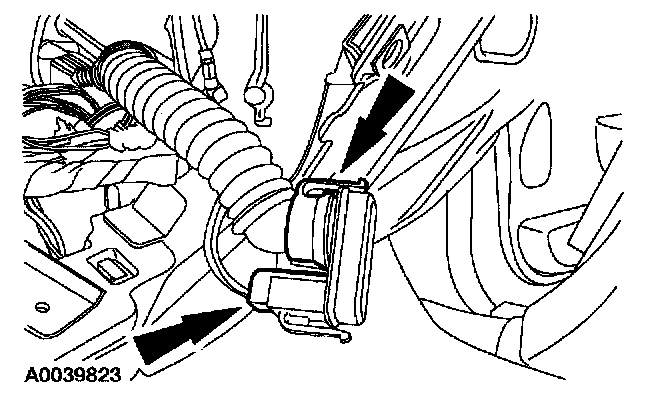

2. Release the clips and detach the in-car temperature sensor.

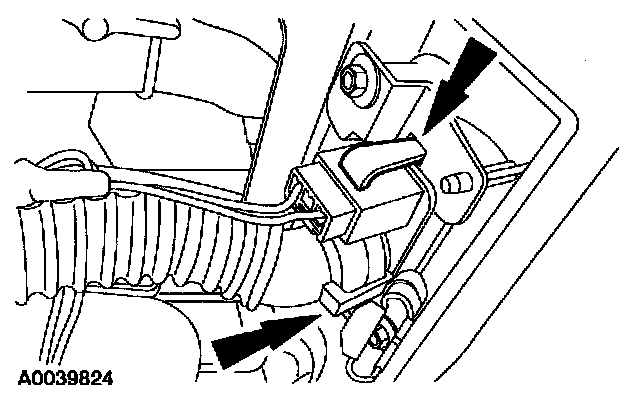

3. Disconnect the electrical connector and the venturi hose and remove the in-car temperature sensor.

INSTALLATION
1. To install, reverse the removal procedure.
