Electrical Accessory Panel: Locations

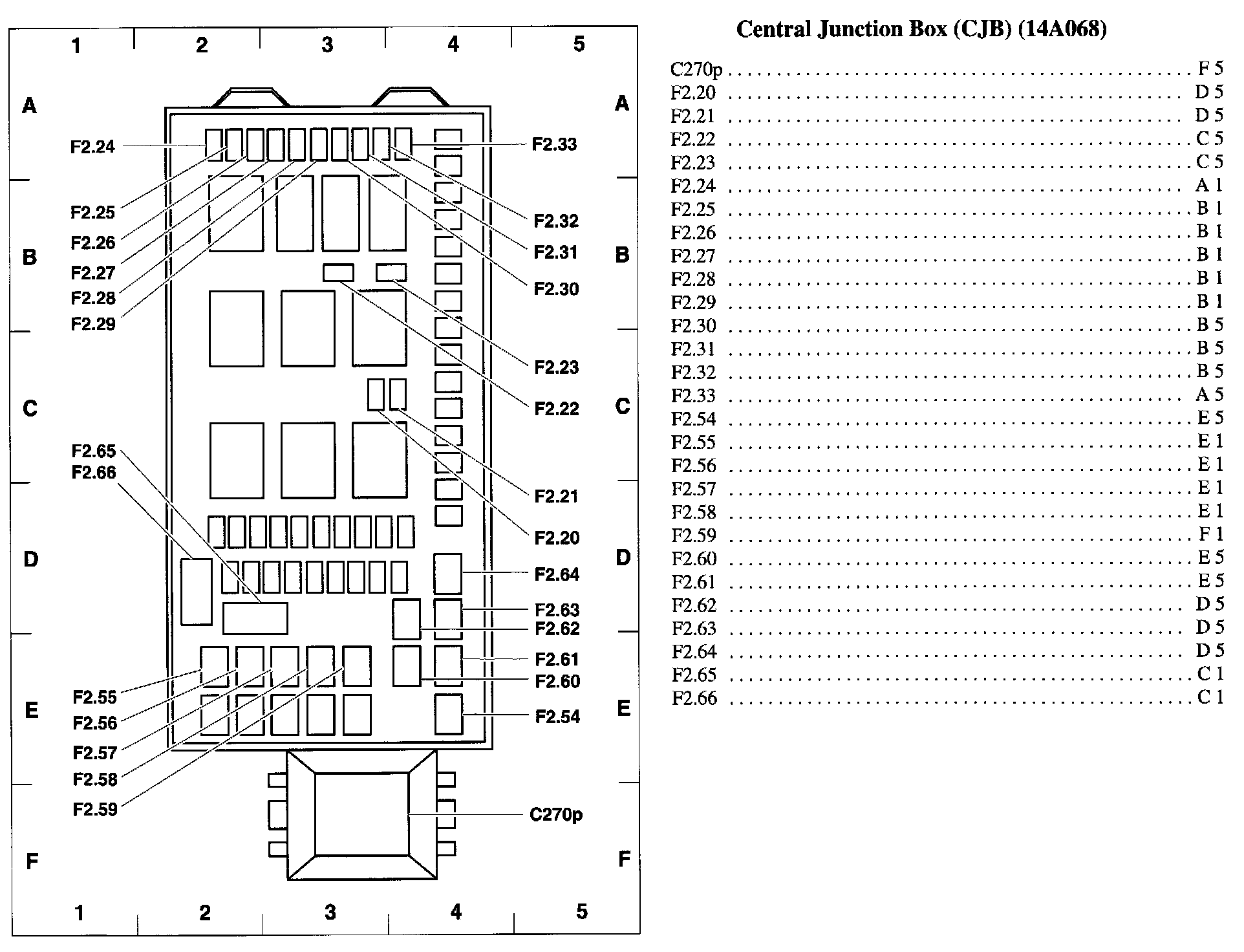

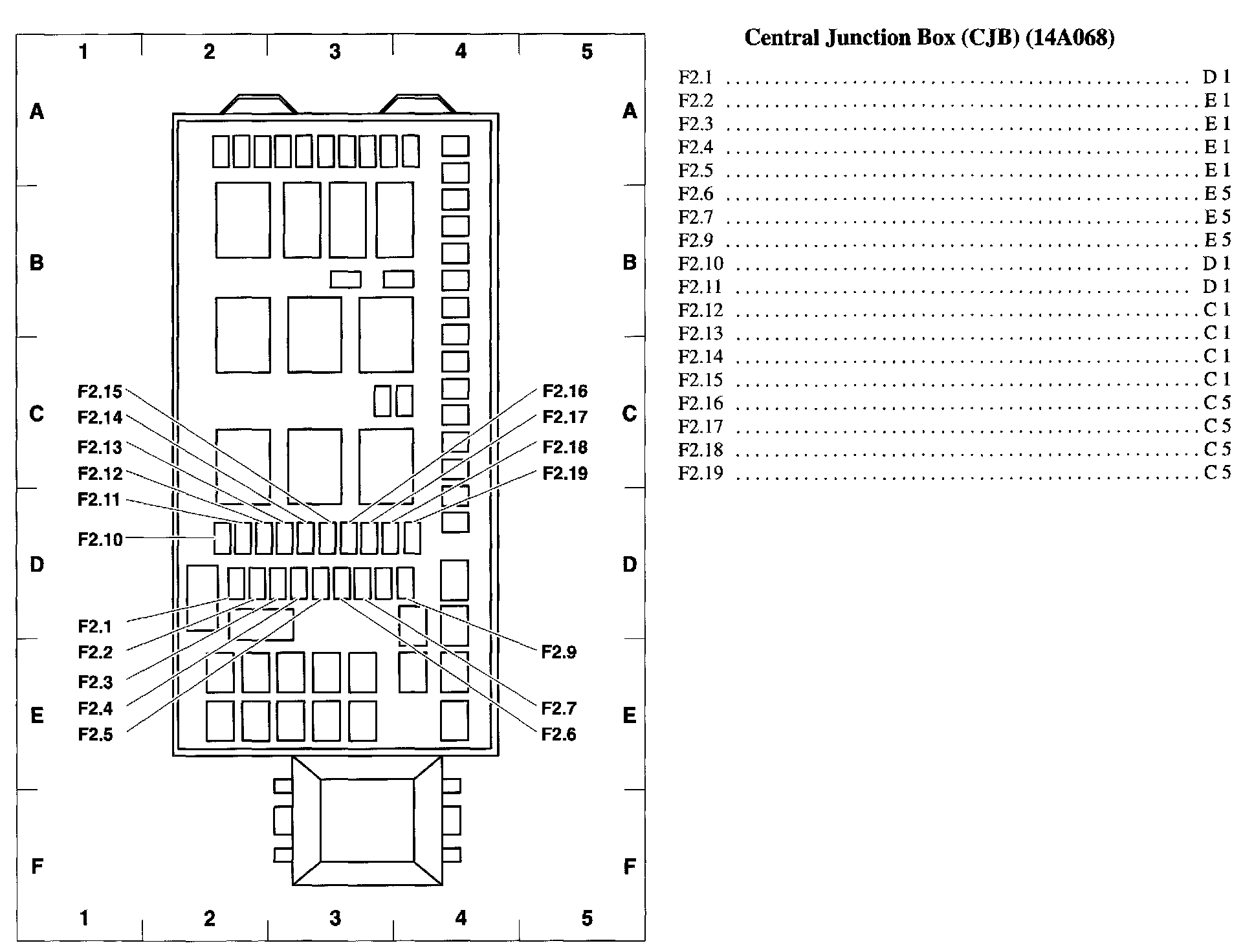

View 151-4:






View 151-34:






View 151-35:






View 151-36:
