EGR Tube: Service and Repair

REMOVAL
1. Remove the air cleaner outlet tube.







2. Remove the EGR valve to exhaust manifold tube (if equipped).

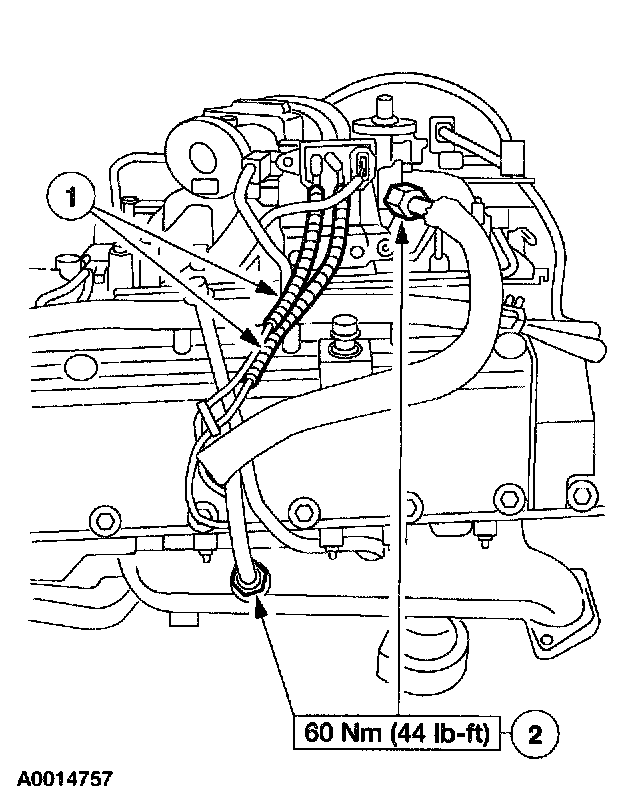

1 Remove the two differential pressure feedback EGR sensor hoses.
2 Disconnect the EGR valve tube fittings.

INSTALLATION
1. To install, reverse the removal procedure.
