Parking Assist Control Module: Service and Repair

REMOVAL
1. Remove the RH cowl kick panel.

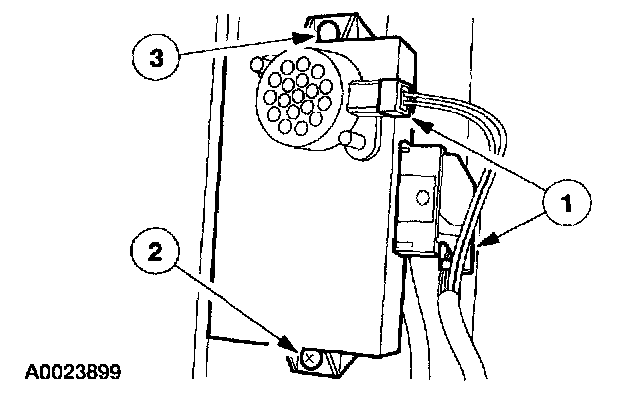

2. Remove the Parking Aid Module (PAM).
1 Disconnect the electrical connectors.
2 Remove the screw.
3 Remove the upper pin-type retainer and the module as an assembly.

INSTALLATION
1. To install, reverse the removal procedure.
