Front Door Window Motor: Service and Repair

REMOVAL
1. Remove the window switch.
2. Remove the front door trim panel and watershield.

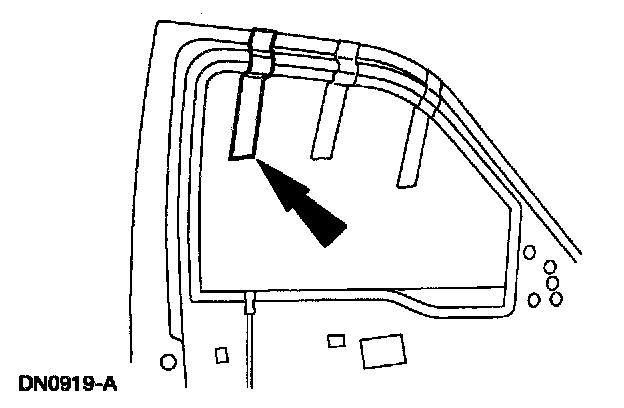

3. Tape the window in the full up position.

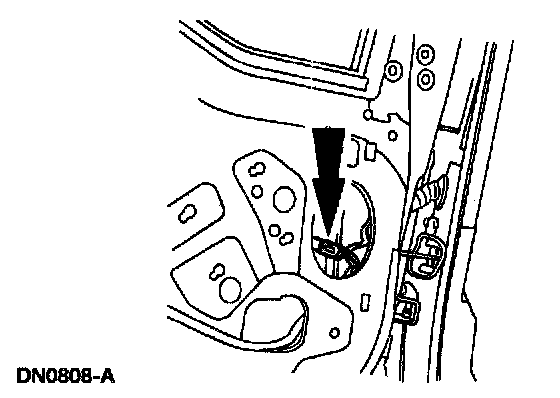

4. Disconnect the window motor electrical connector.

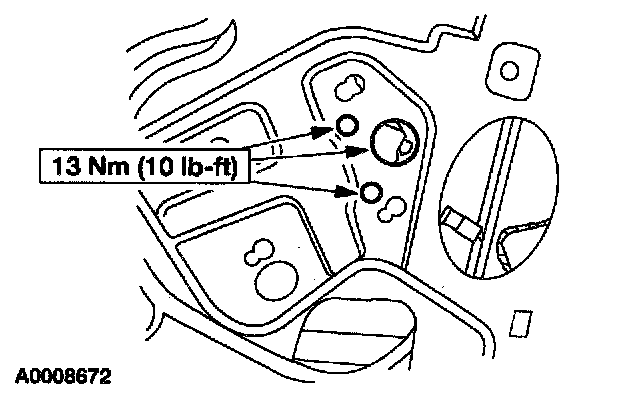

5. Remove the window motor screws and remove the motor.

NOTE: Support the window motor while removing the window motor retaining screws.

INSTALLATION
1. To install, reverse the removal procedure.
