Quarter Window Motor: Service and Repair

REMOVAL
1. Remove the D-pillar trim panel.

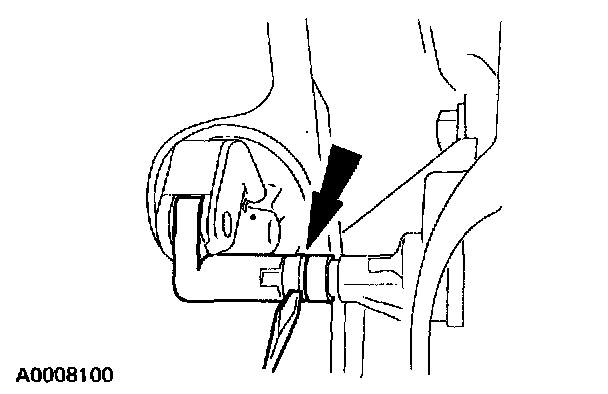

2. Disconnect the vent window actuating arm from the motor shaft.

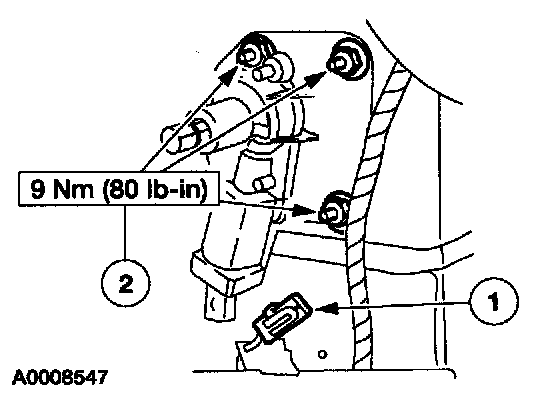

3. Remove the rear quarter glass motor.
1 Disconnect the electrical connector.
2 Remove the nuts and the rear quarter glass motor.

INSTALLATION
1. To install, reverse the removal procedure.
