Front Drive Axle and Differential
Front Drive Axle and Differential

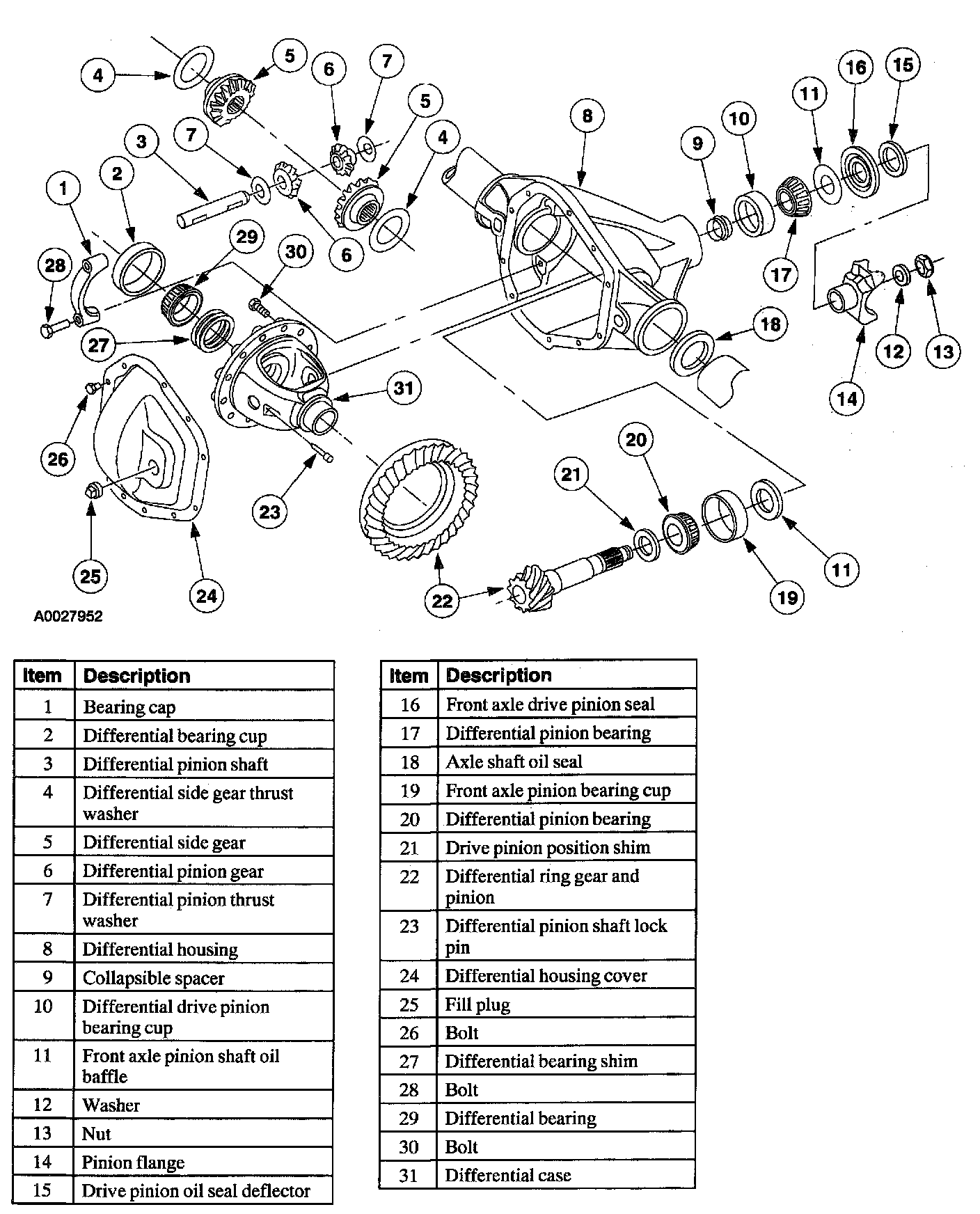

Front Drive Axle, Disassembled View
