System Diagram

Manual Transmission









Item 1 - 43

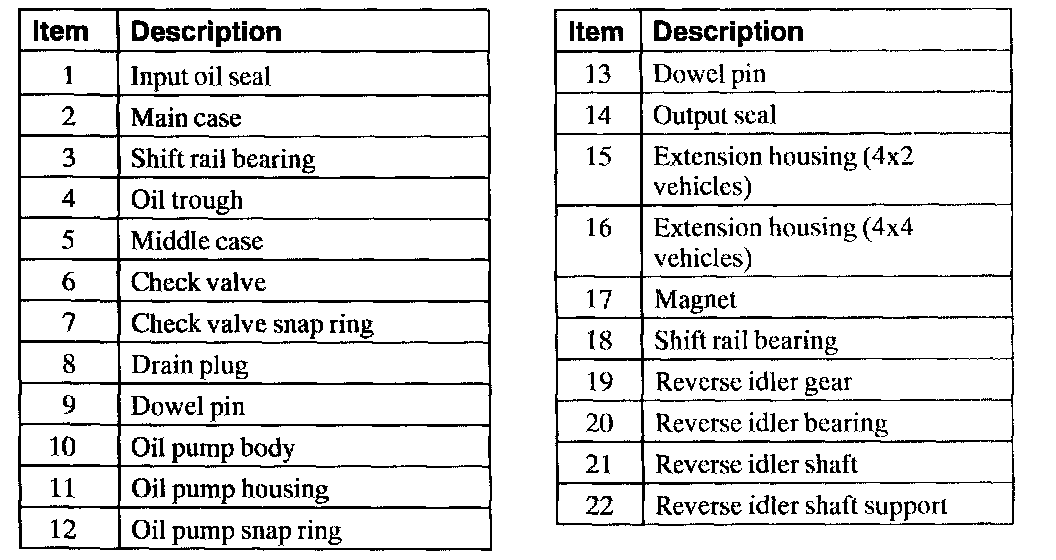

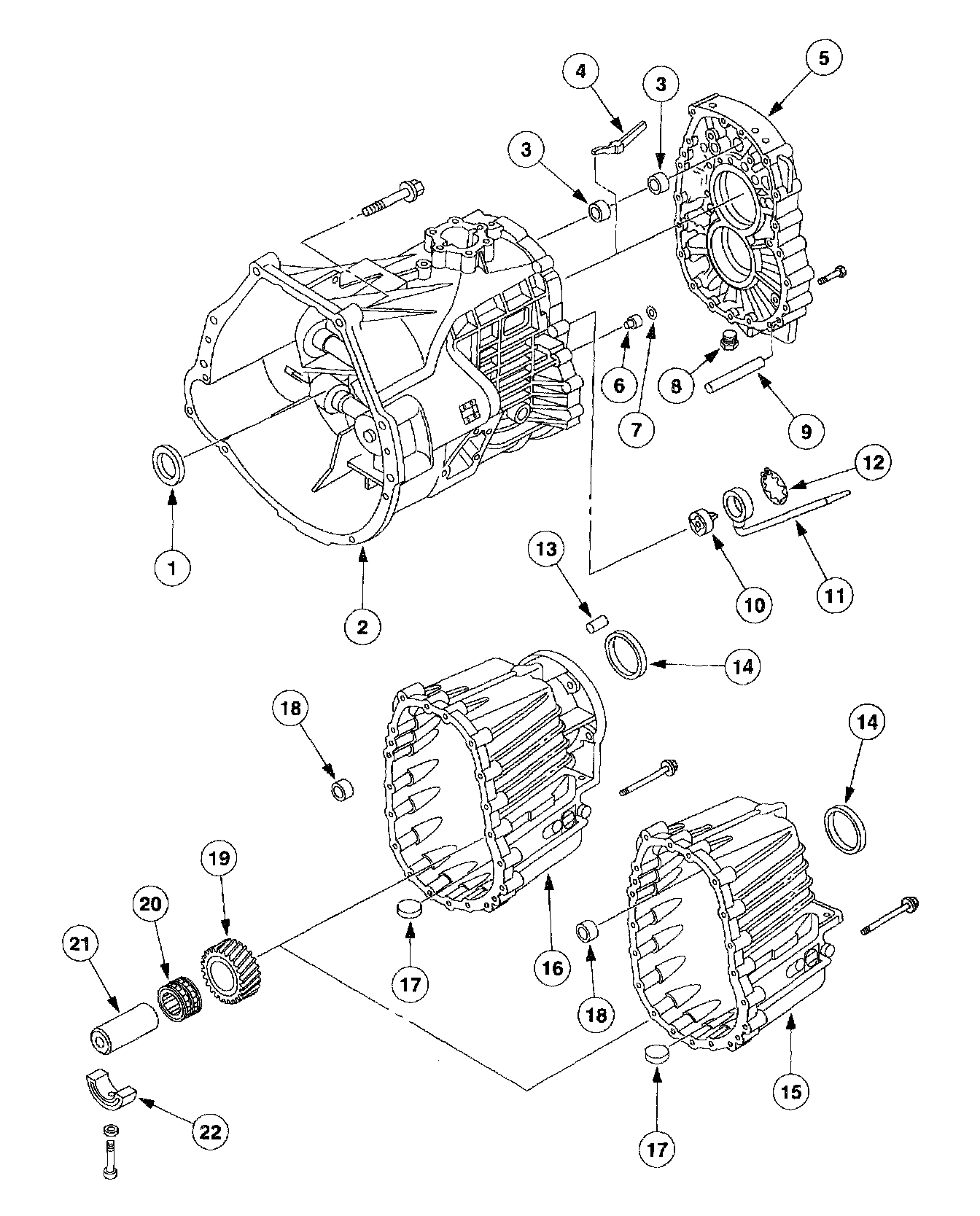

Transmission Internal Components-Disassembled View









Item 1 - 22

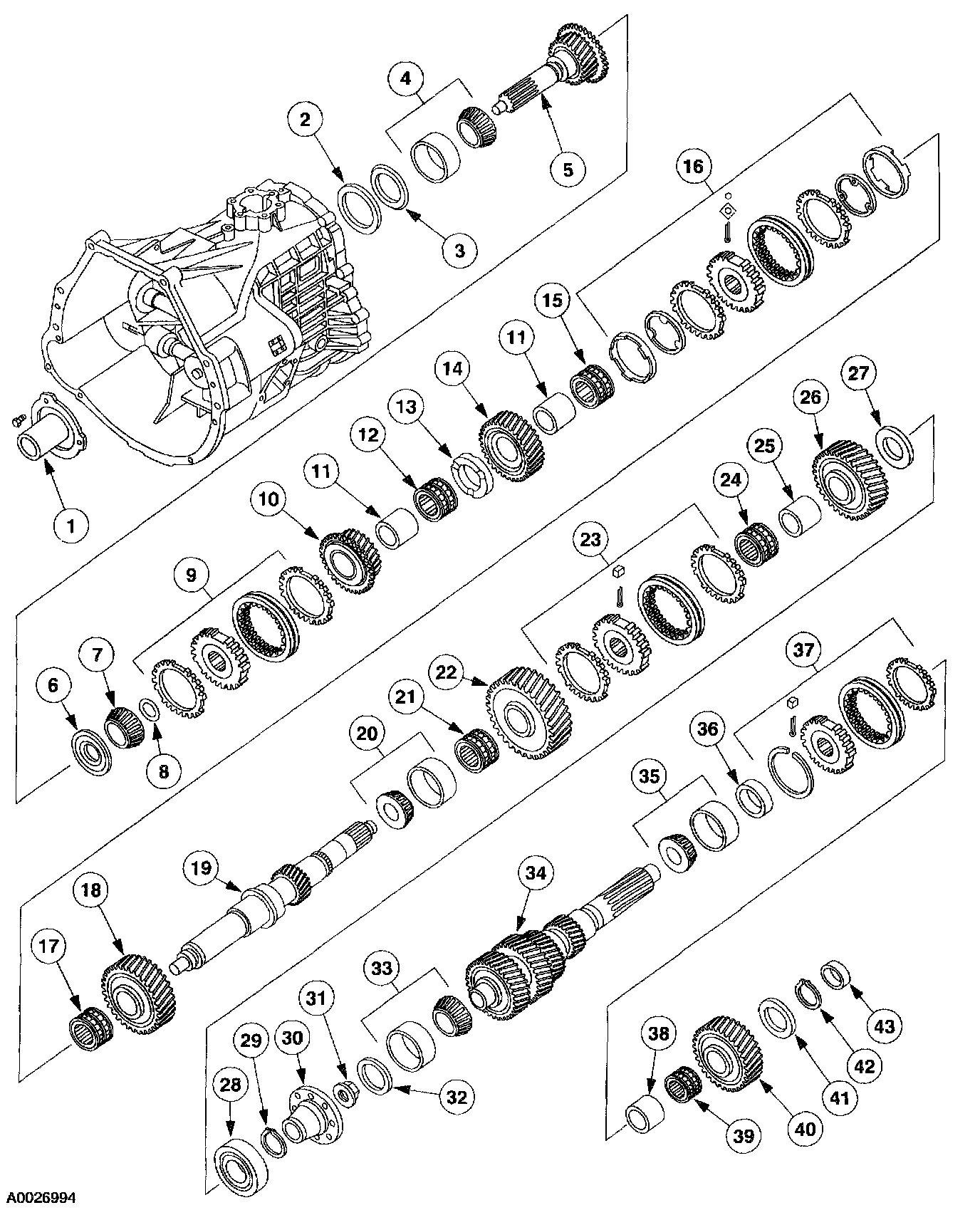

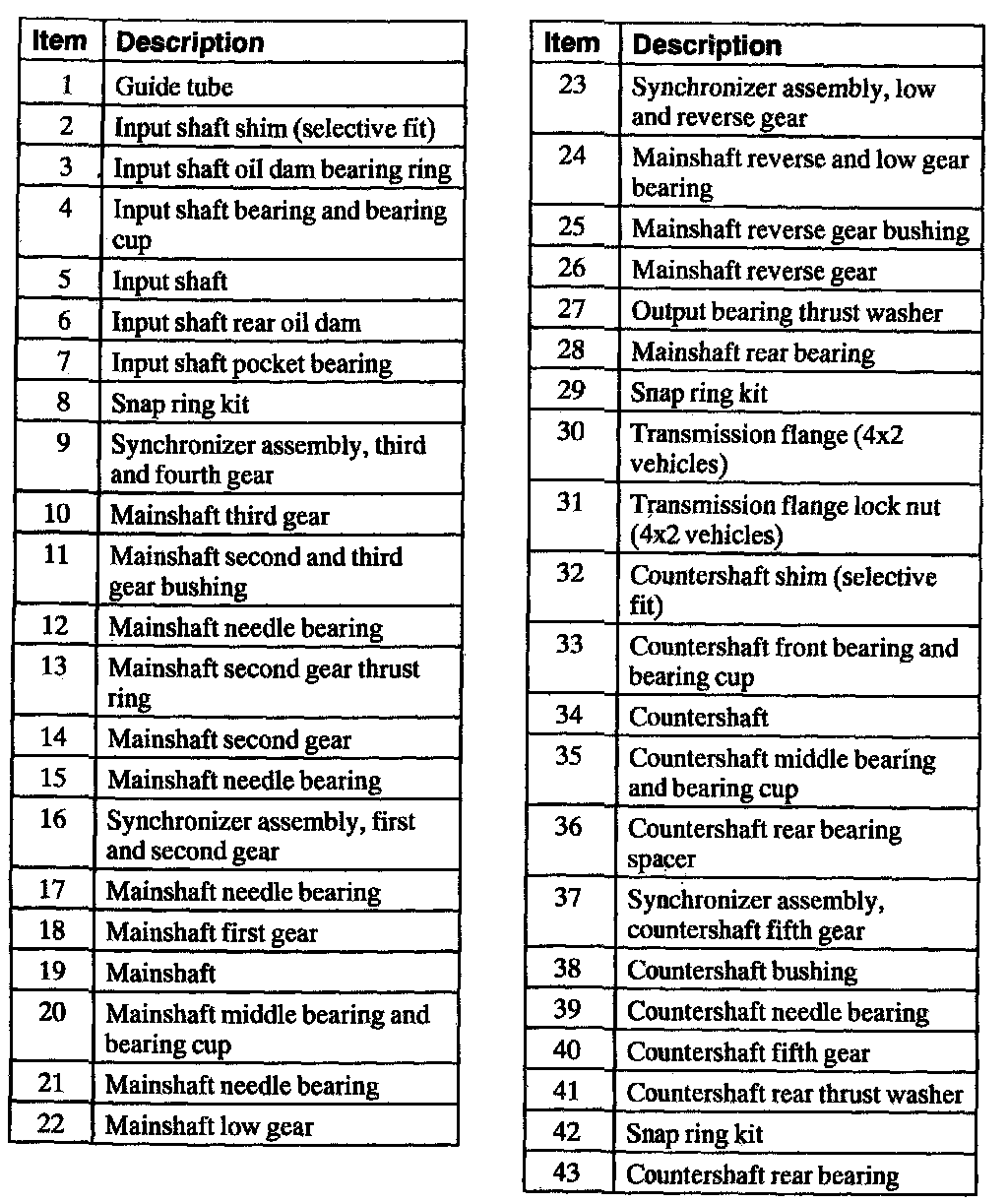

Transmission Internal Components-Disassembled View









Item 1 - 25

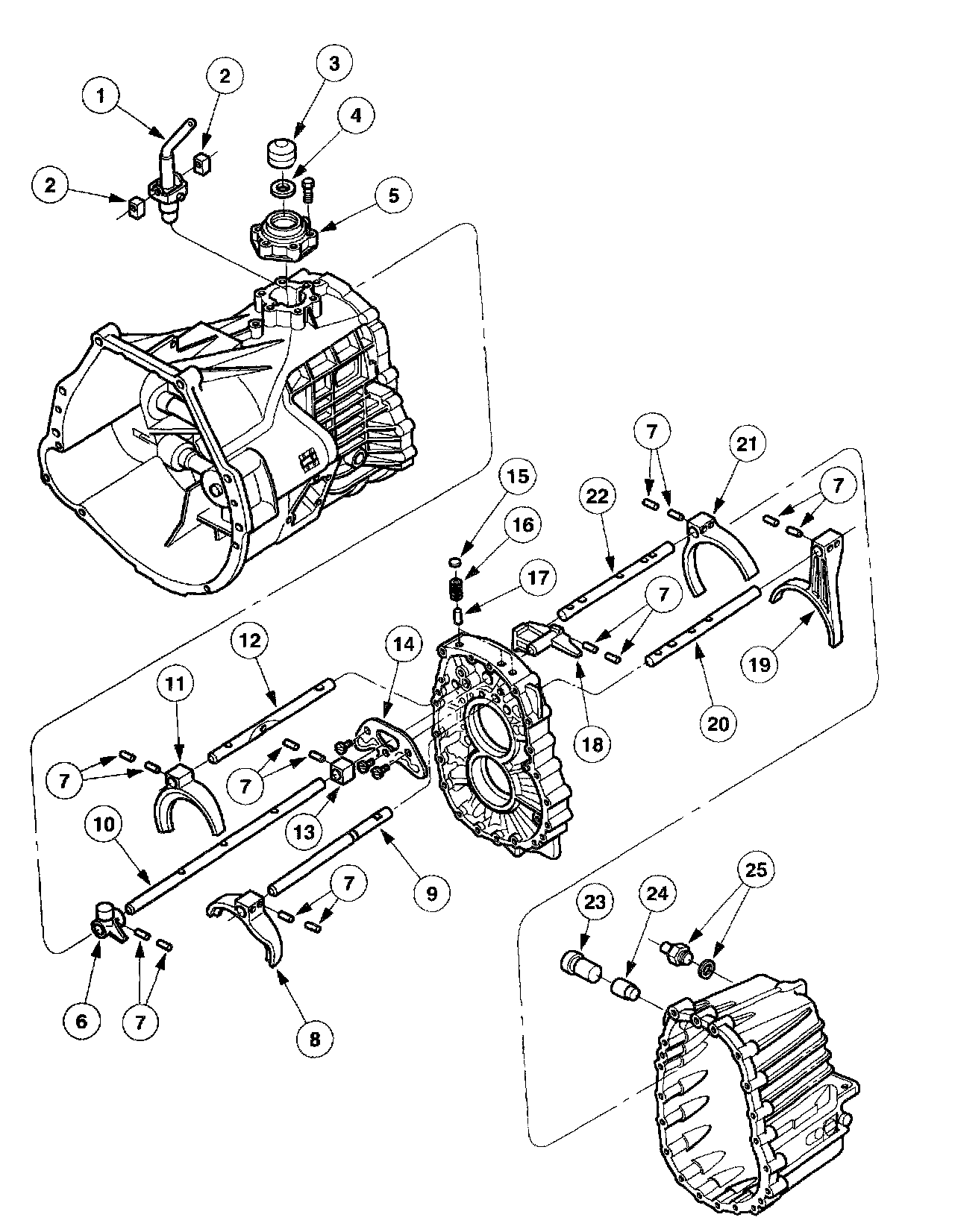

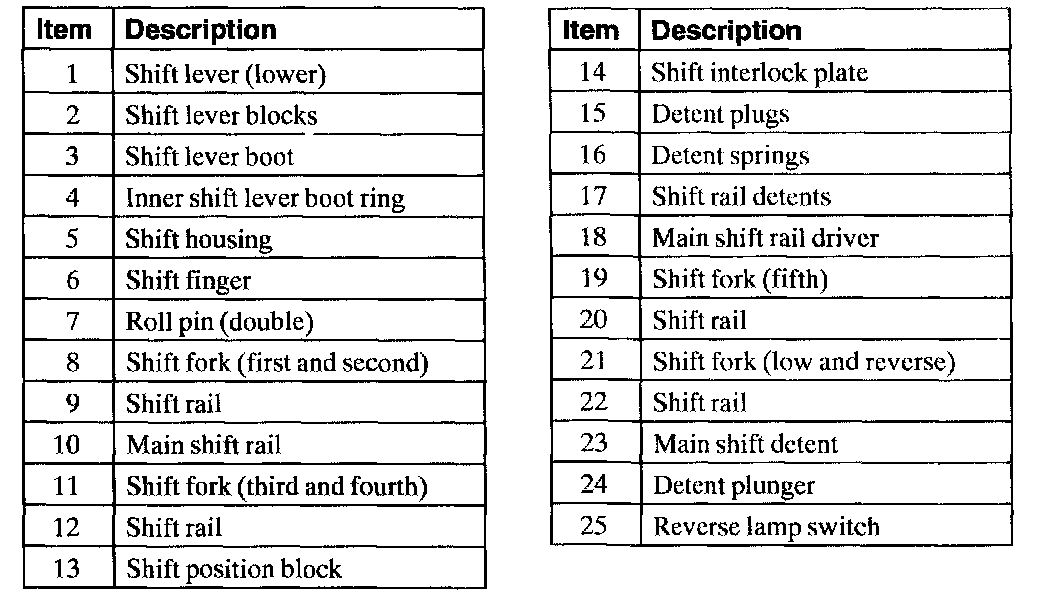

Transmission Shift Components-Disassembled View
