Resistor

REMOVAL

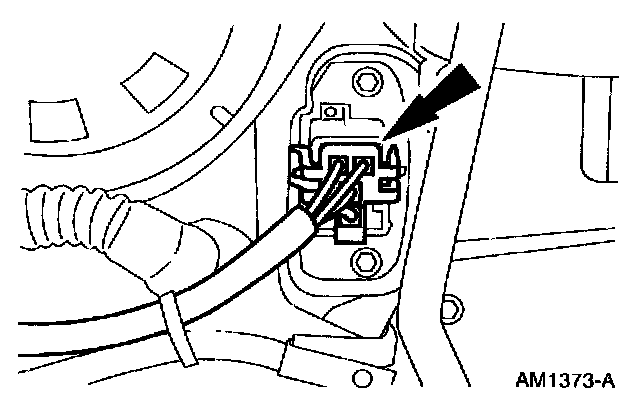

1. Disconnect the electrical connector.

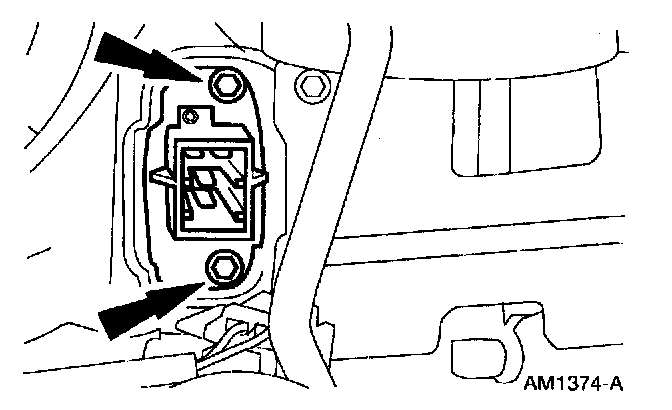

2. Remove the screws and remove the A/C blower motor resistor.

INSTALLATION

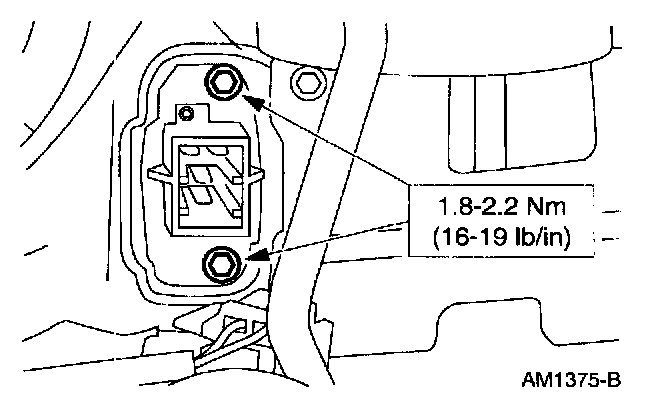

1. Follow the removal procedure in reverse order.
