Tests HD: Misfire Detection Monitor

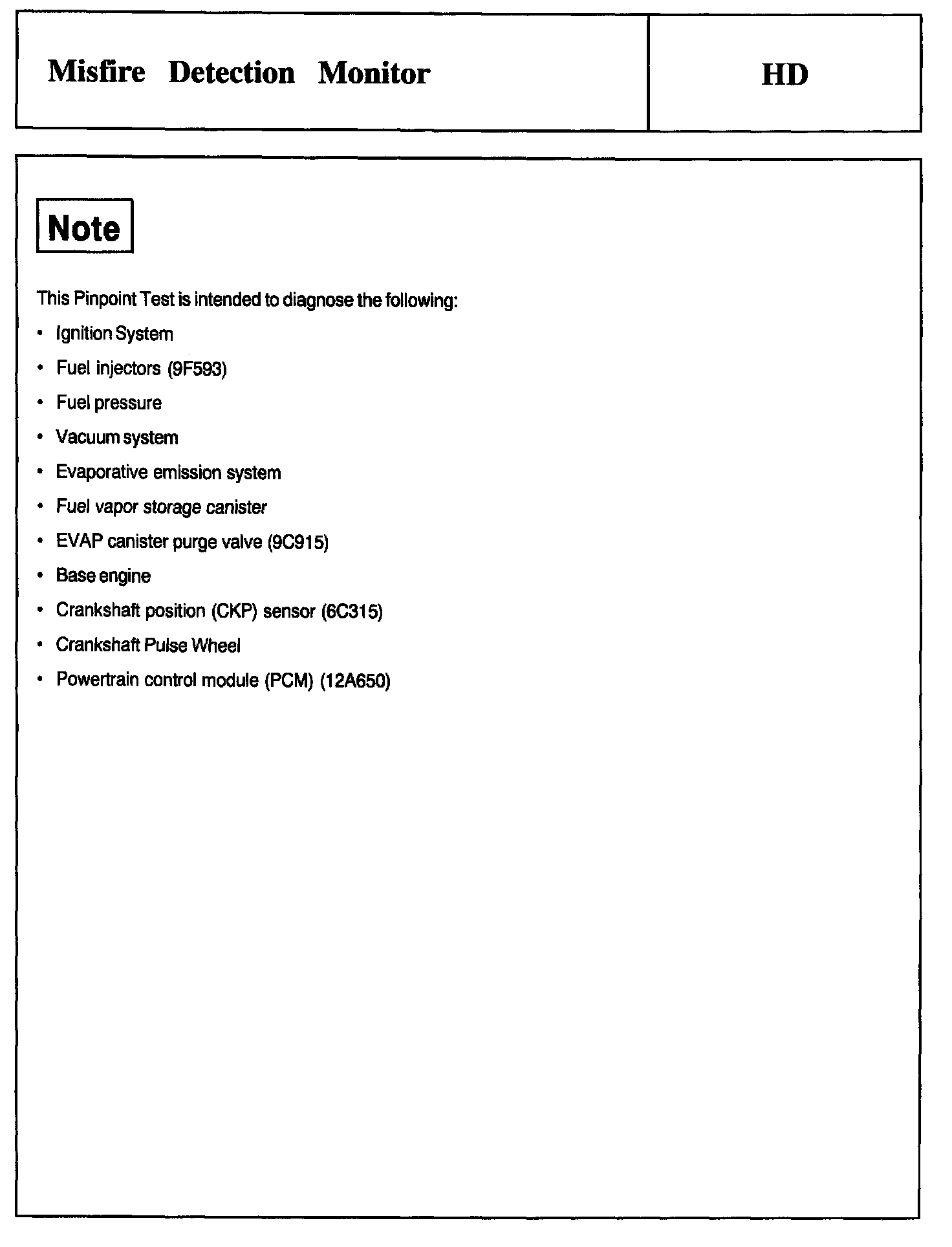

Test Note:

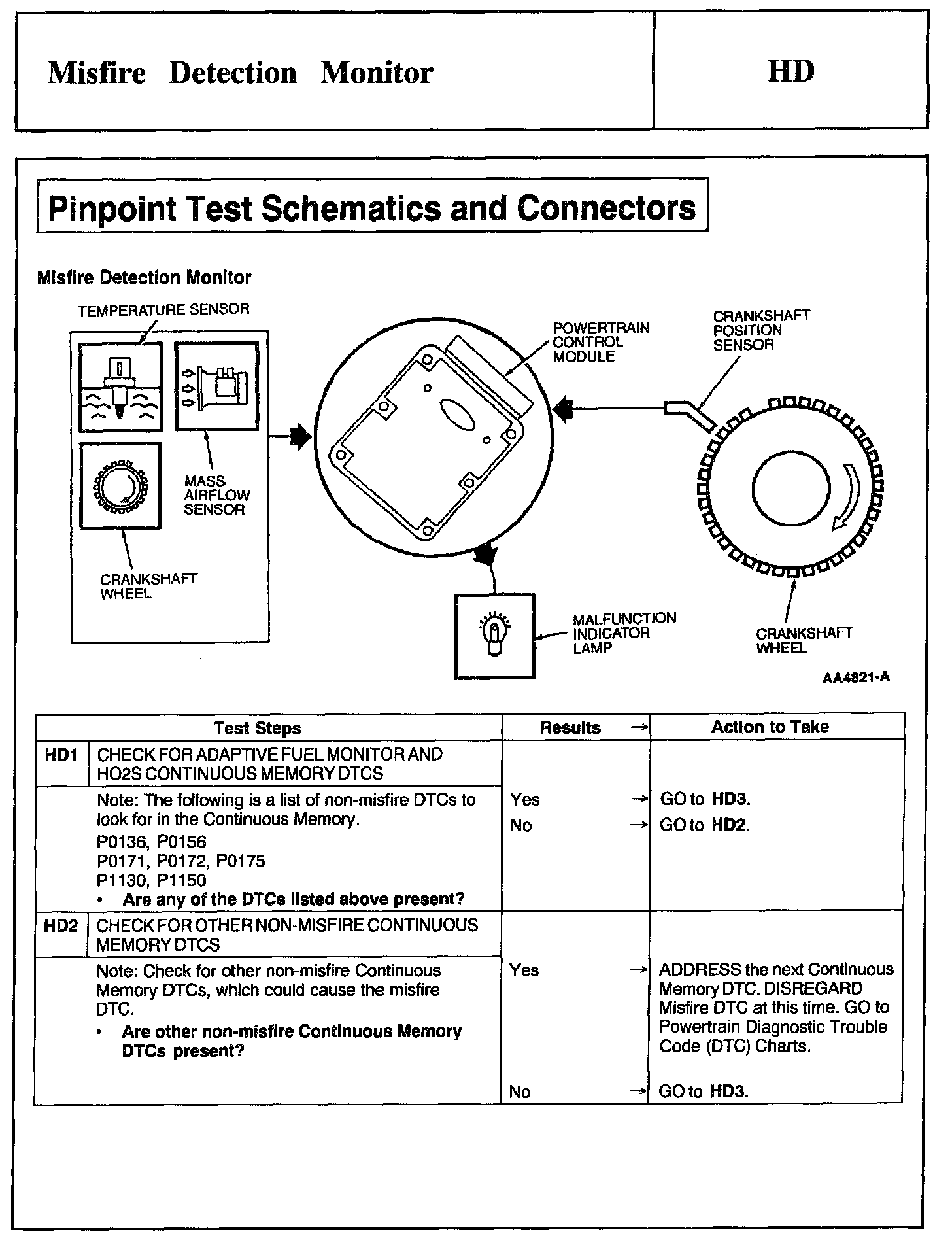

Schematics and Connectors, Test HD1 - HD2:

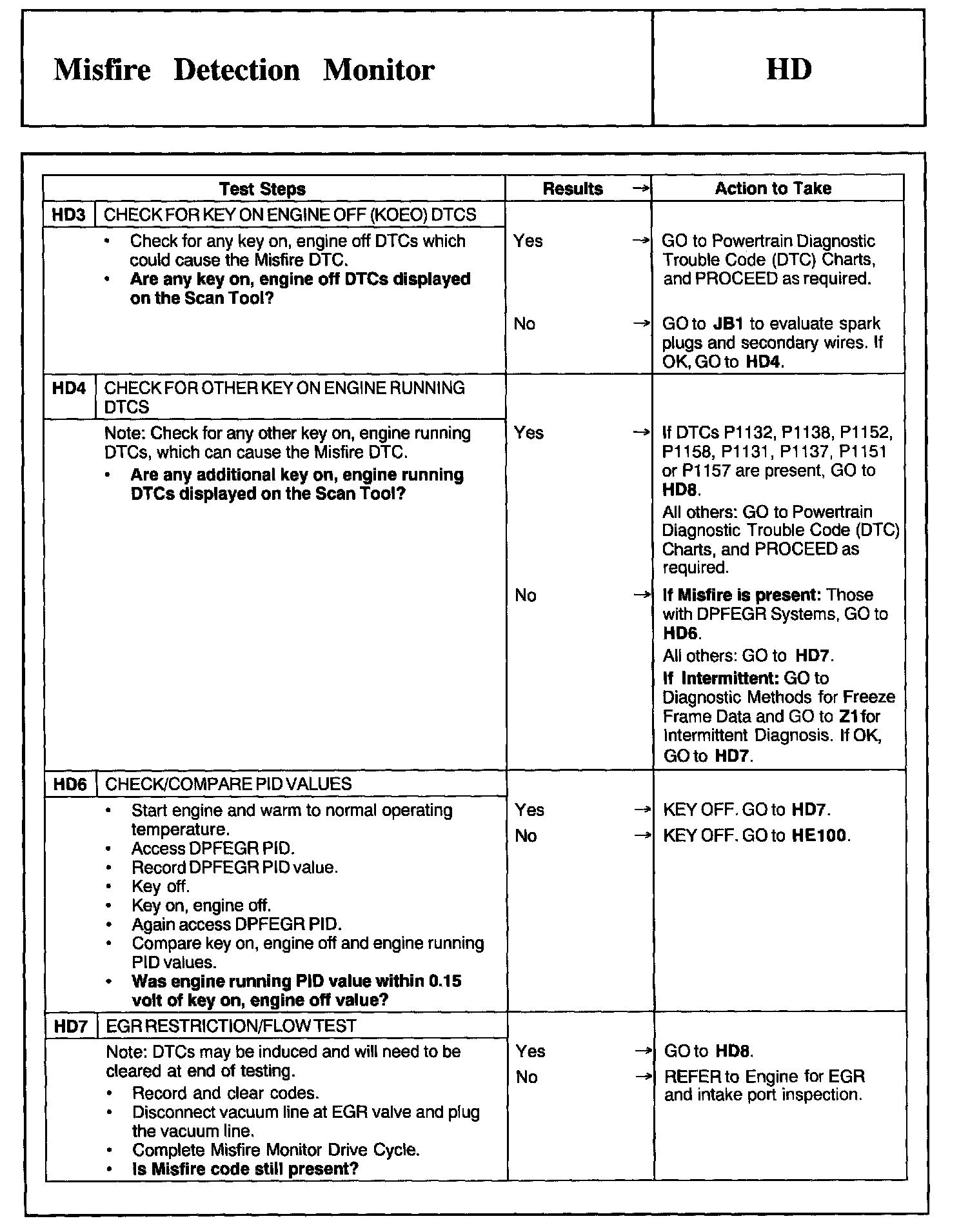

HD3 - HD7:

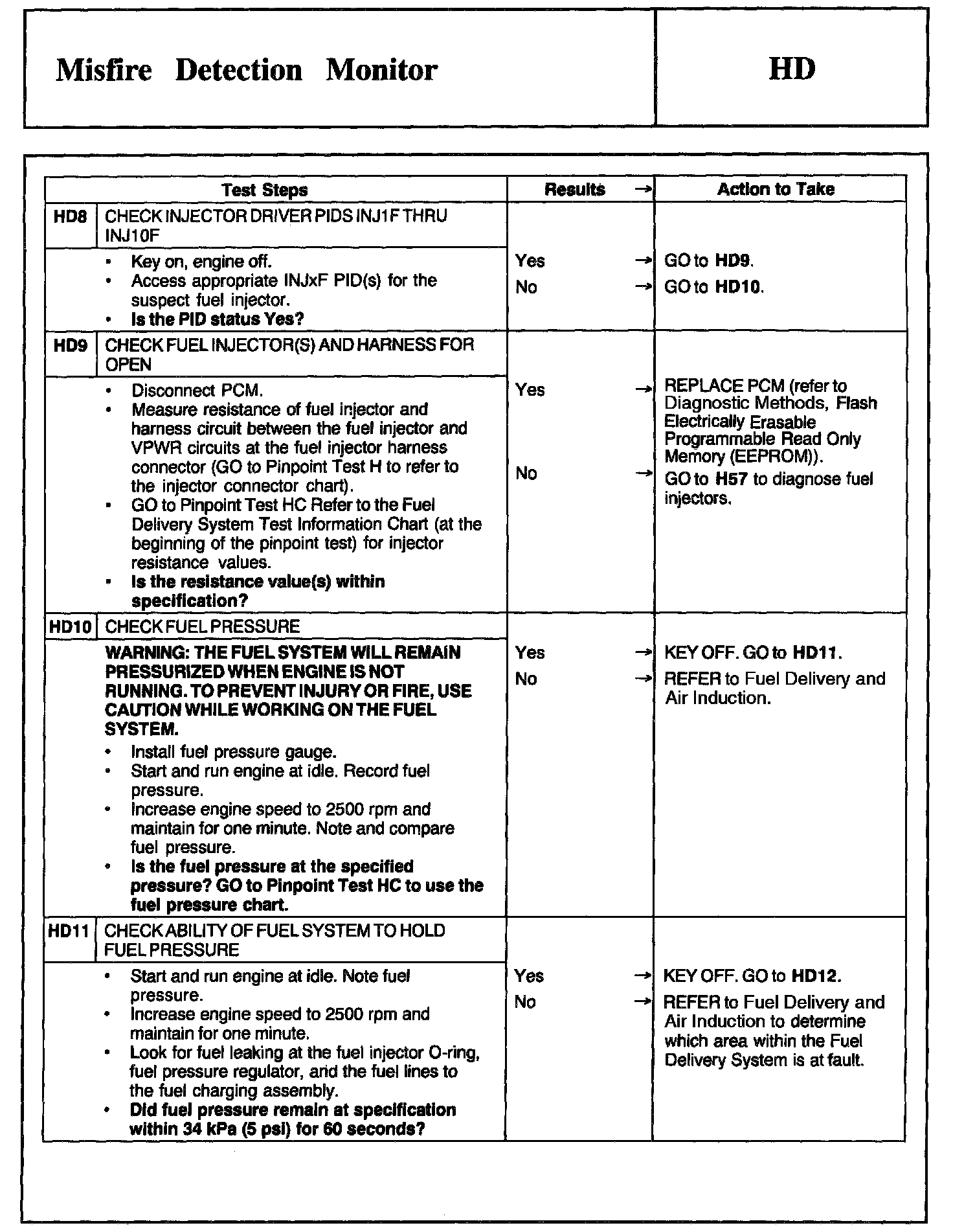

HD8 - HD11:

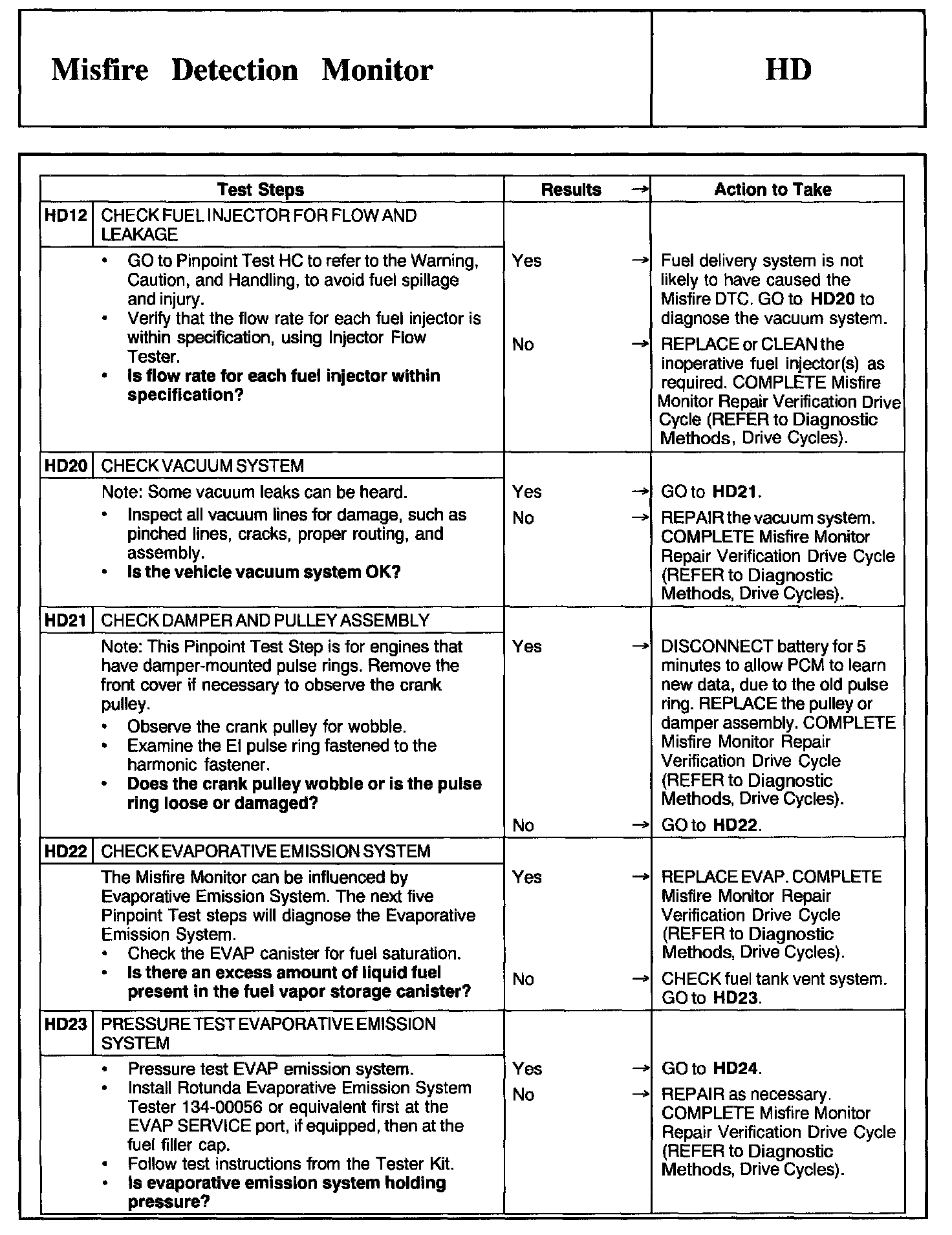

HD12 - HD23:

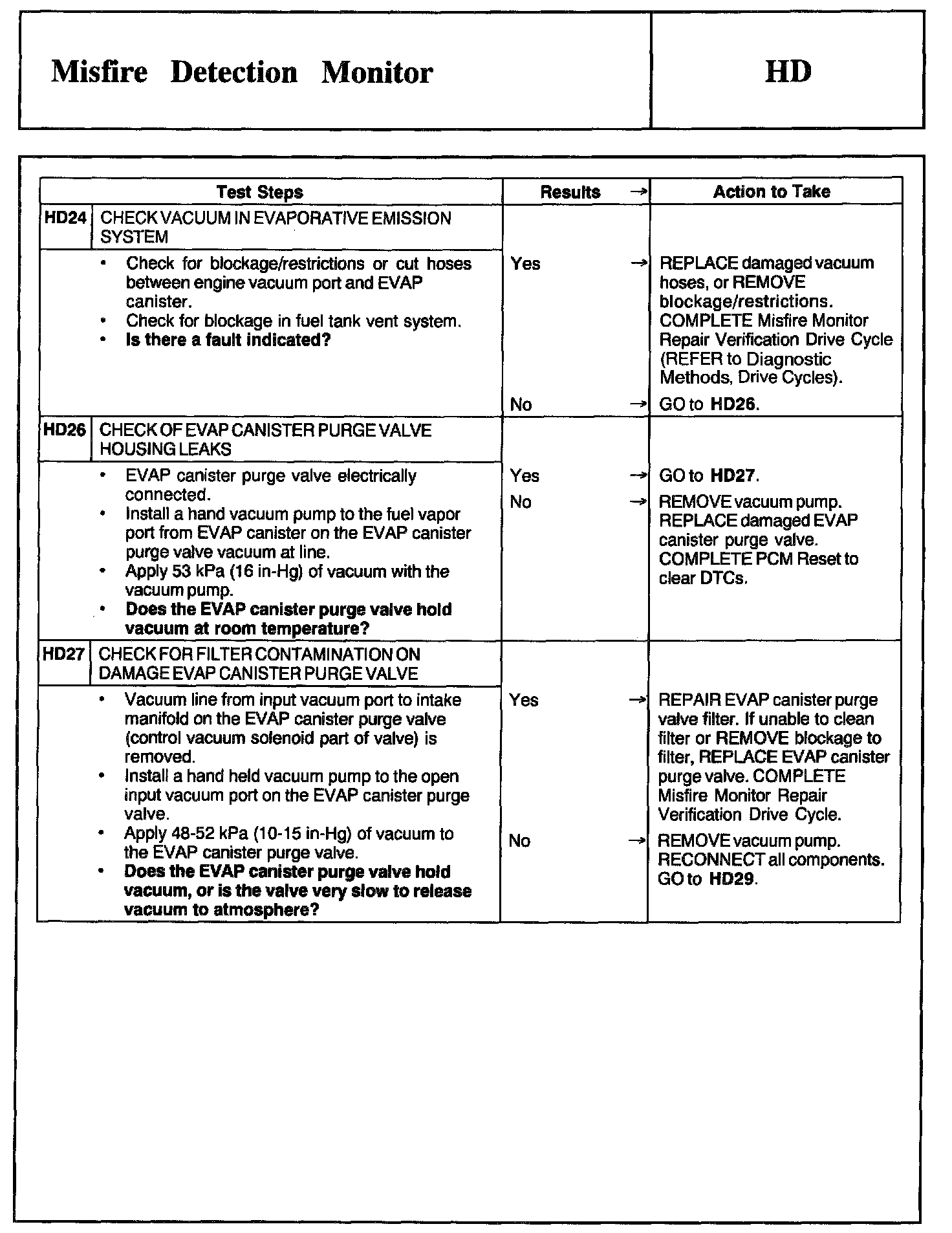

HD24 - HD27:






HD29 - HD32:

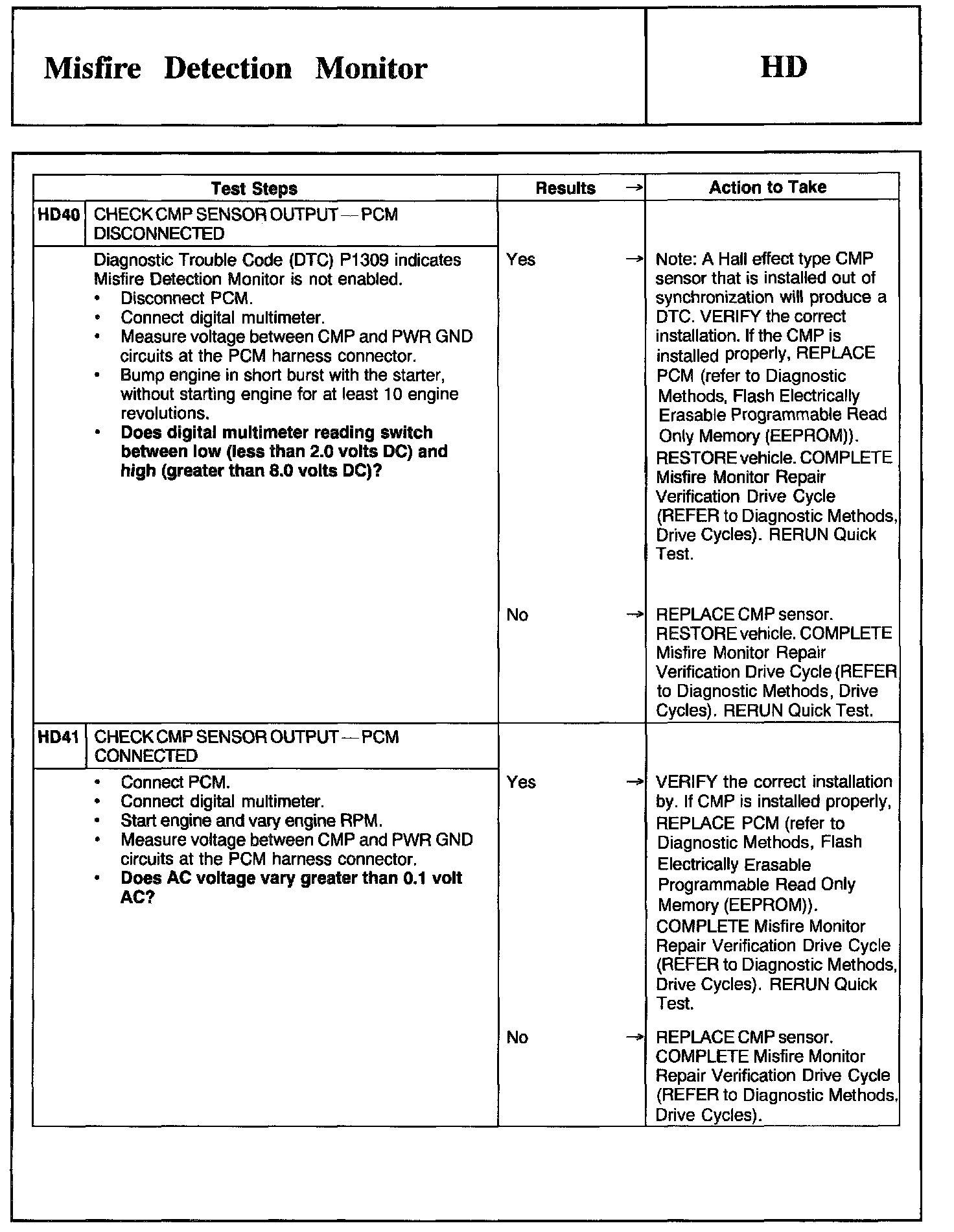

HD40 - HD41:

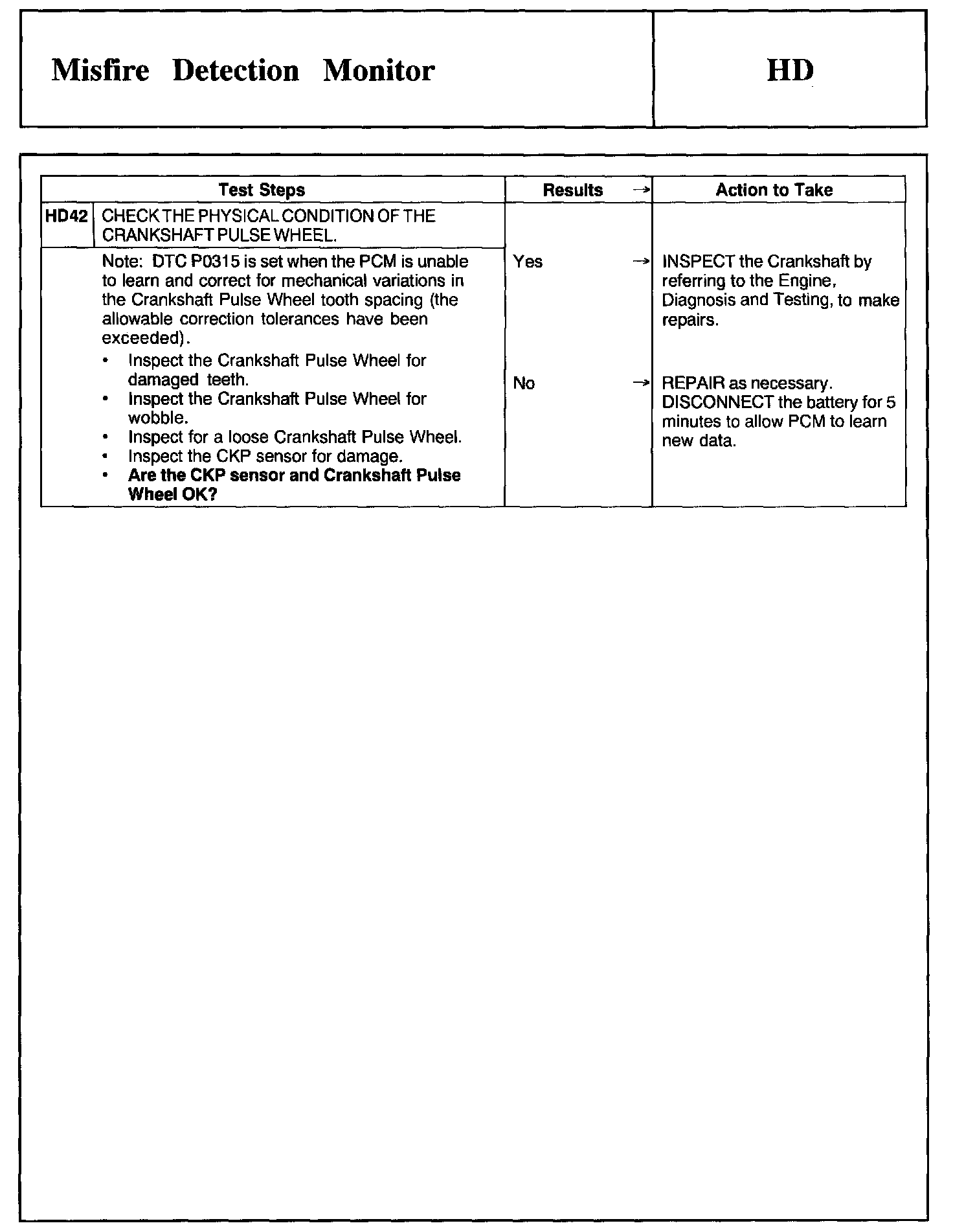

HD42:
