Ignition Coil: Service and Repair

REMOVAL

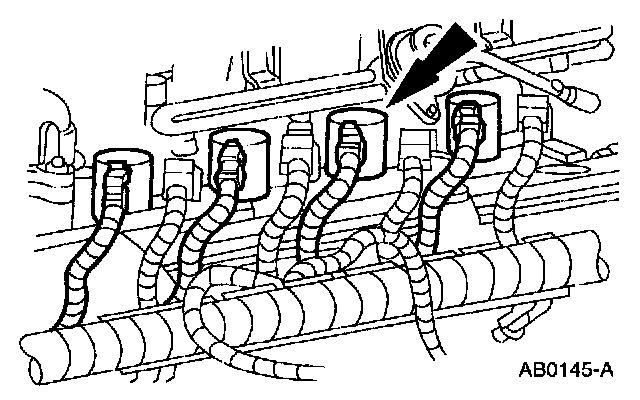

1. Disconnect the wiring at the coil.

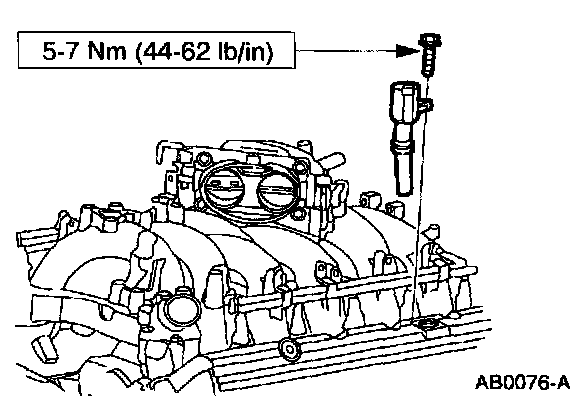

2. Remove the bolt and the coil.

INSTALLATION







1. To install, reverse the removal procedure.

NOTE: Remove any foreign material from spark plug wells with compressed air.
