Flywheel: Specifications

Flywheel TIR 0.203 mm (0.008 inch)
Flywheel bolt--5.4L and 6.8L 80 Nm (59 ft.
lbs.)

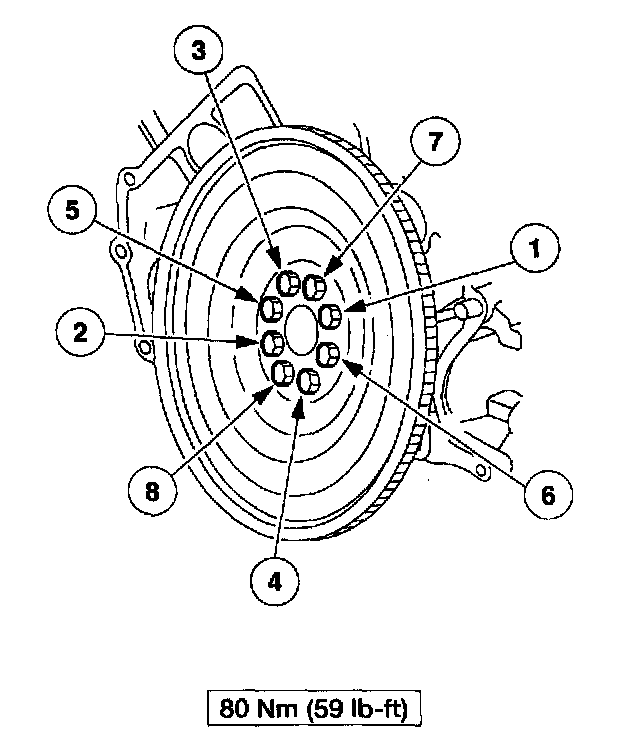

5.4L - Flywheel Bolt Sequence:





Flywheel Tightening Sequence
