Exploded Views

Disassembled View









Item 1 - 83

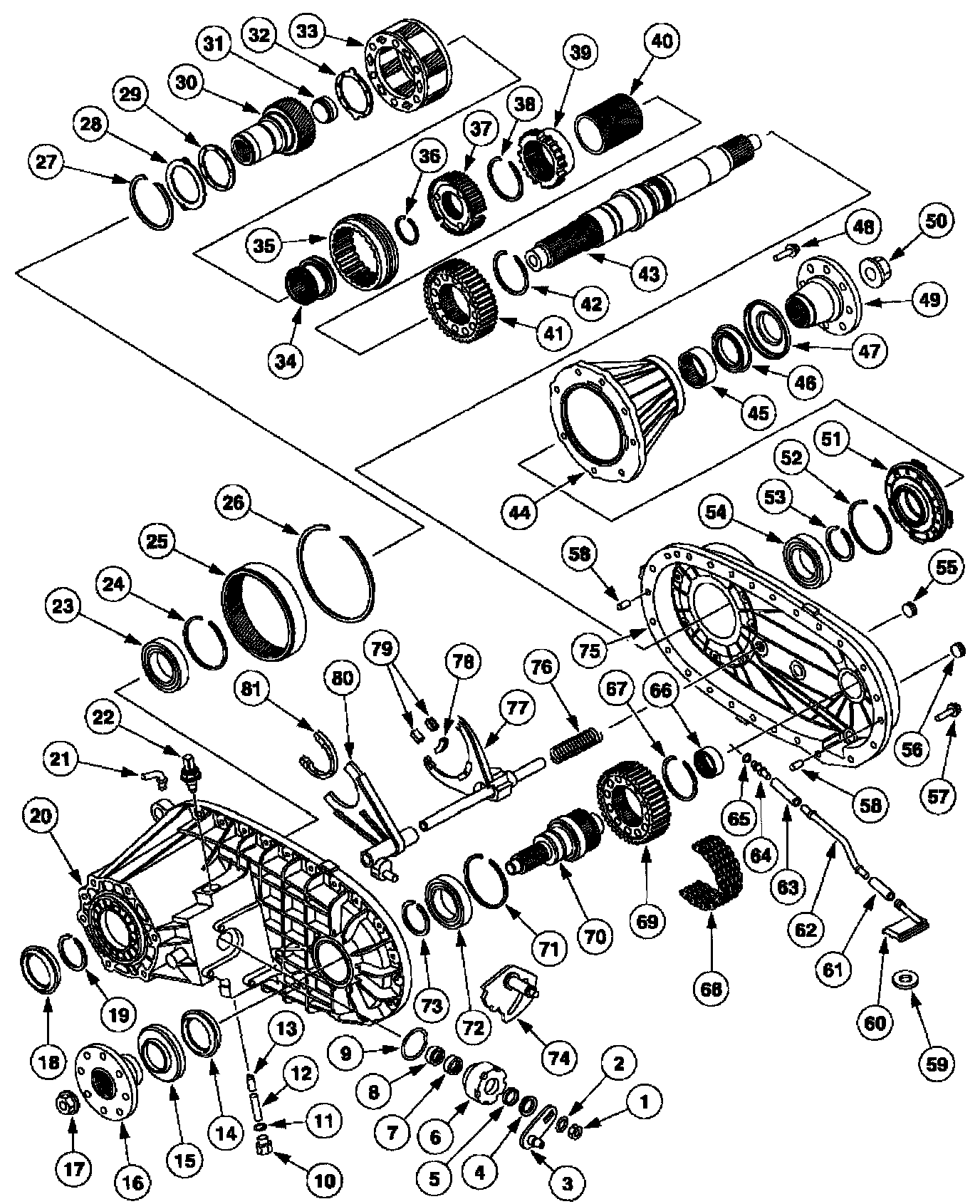

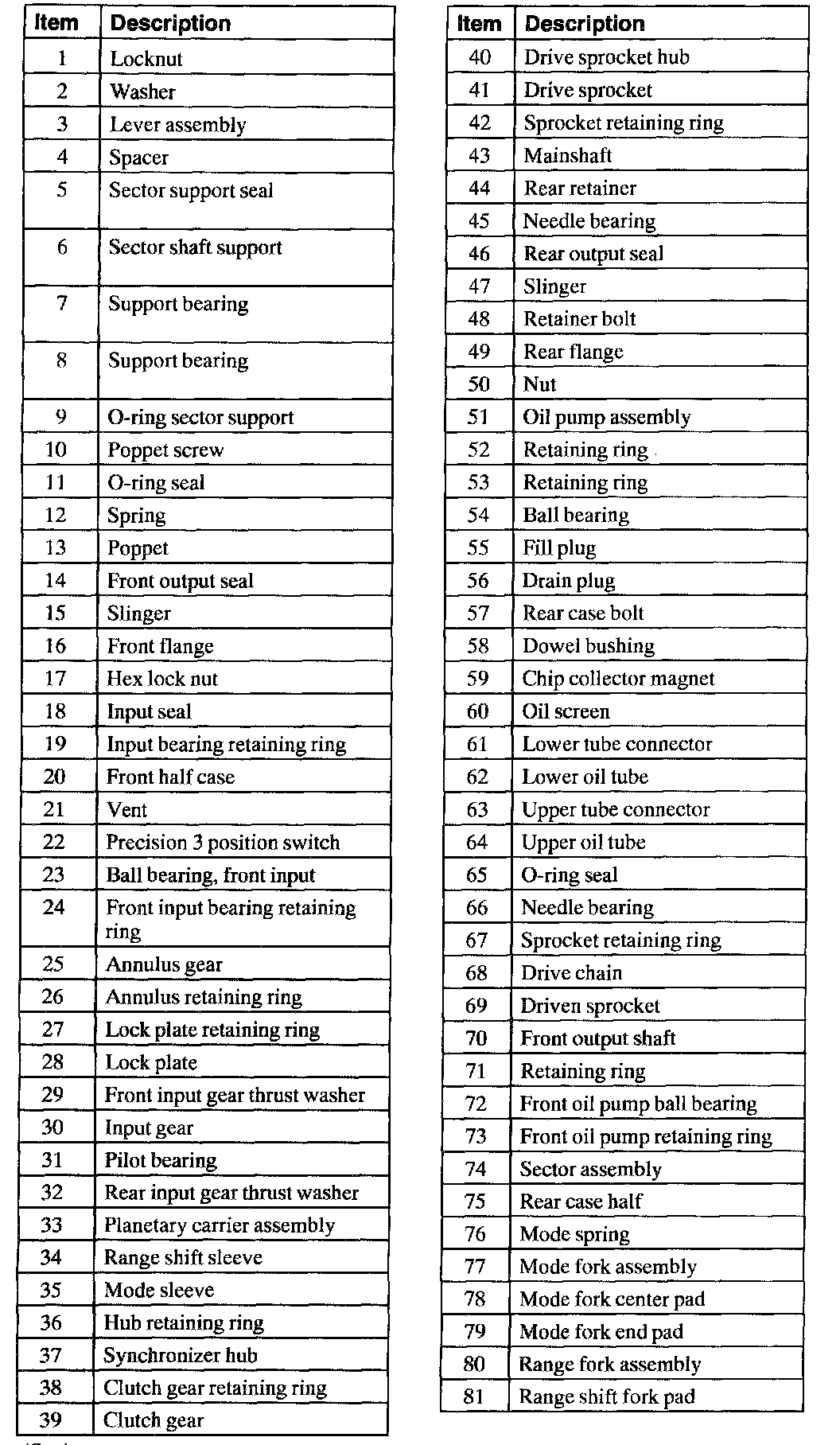

Electric Shift Transfer Case









Item 1 - 81

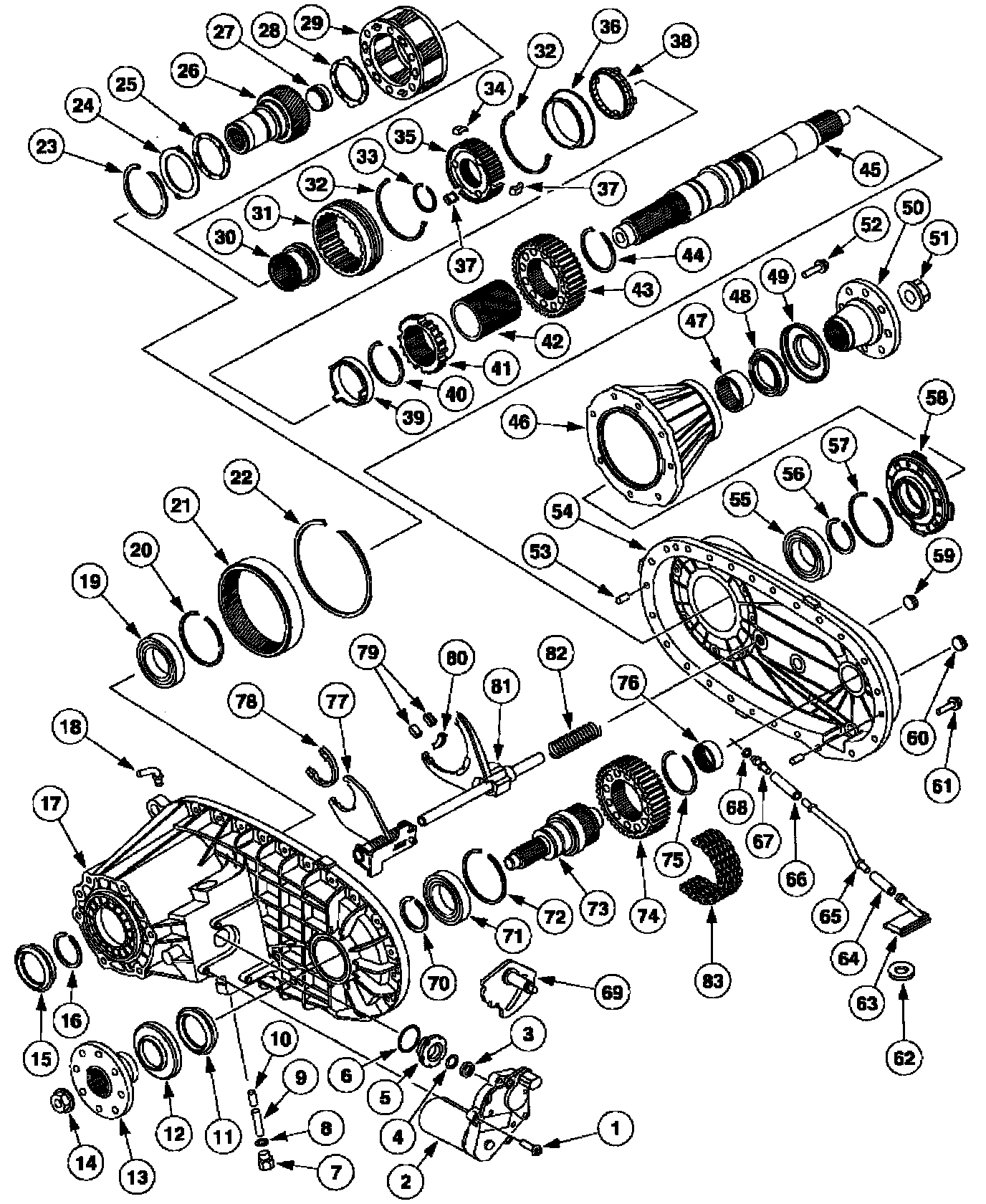

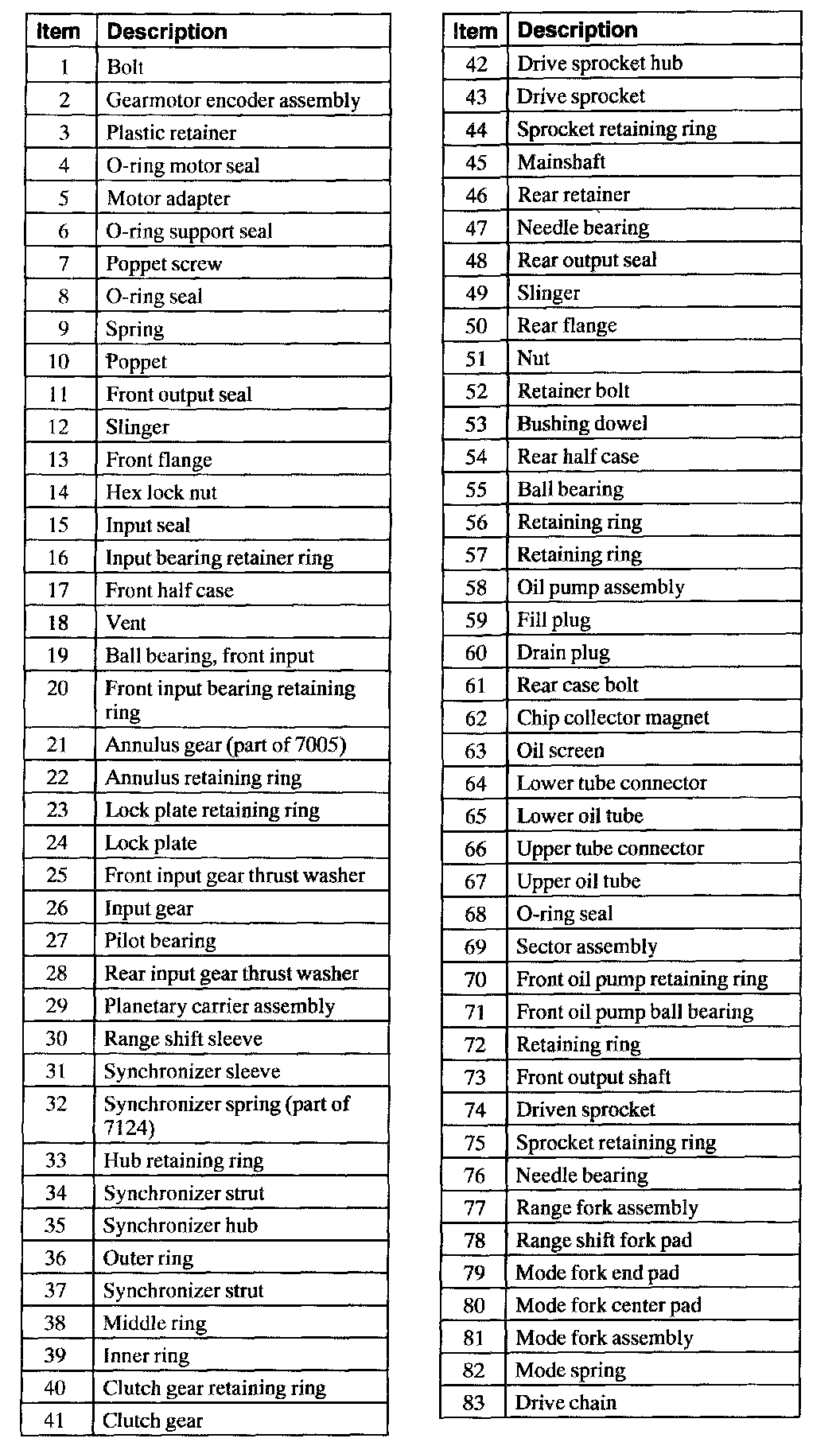

Mechanical Shift Transfer Case
