Wiper Switch: Testing and Inspection

Introduction To Component Testing:

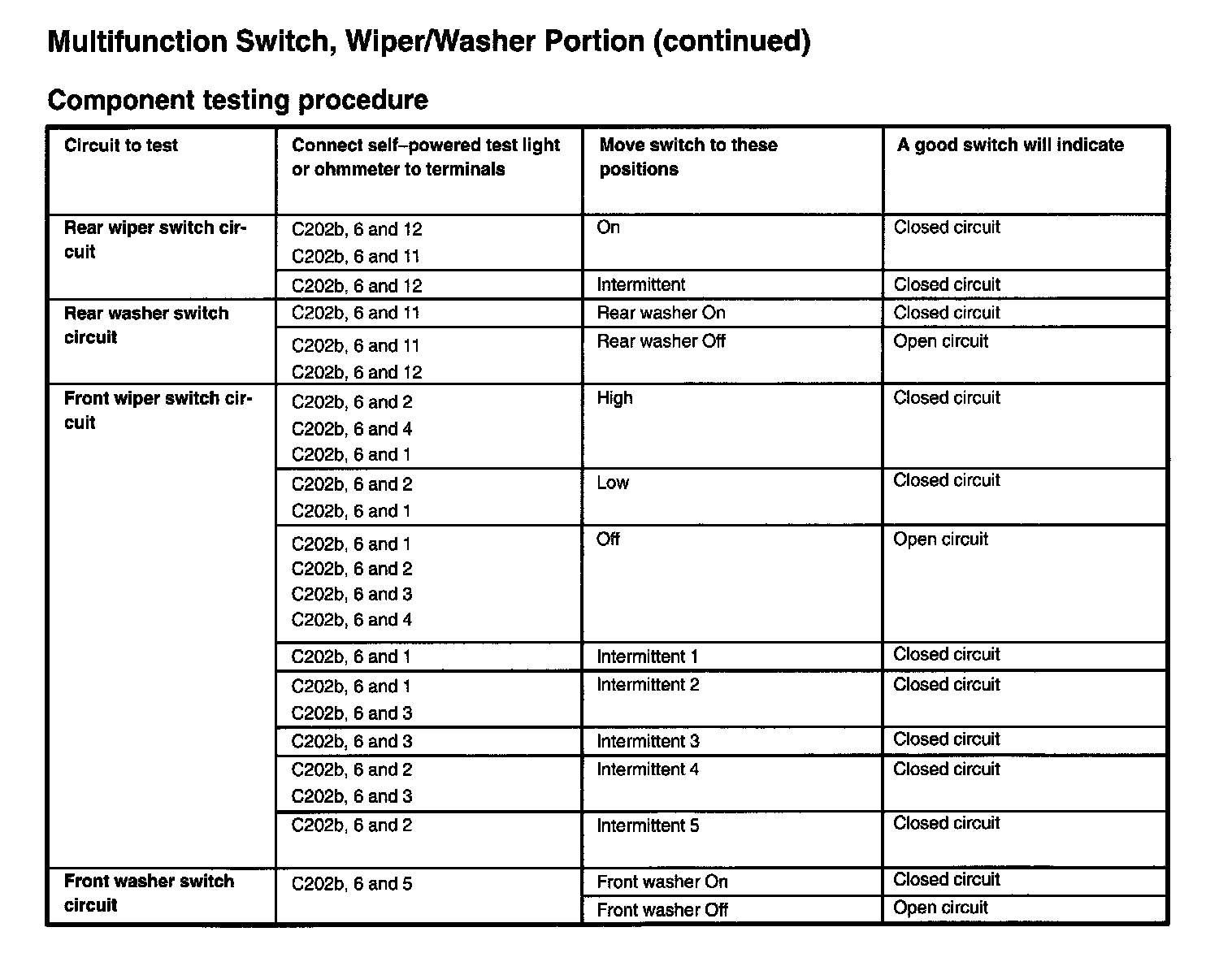

Multifunction Switch, Wiper/Washer Portion:

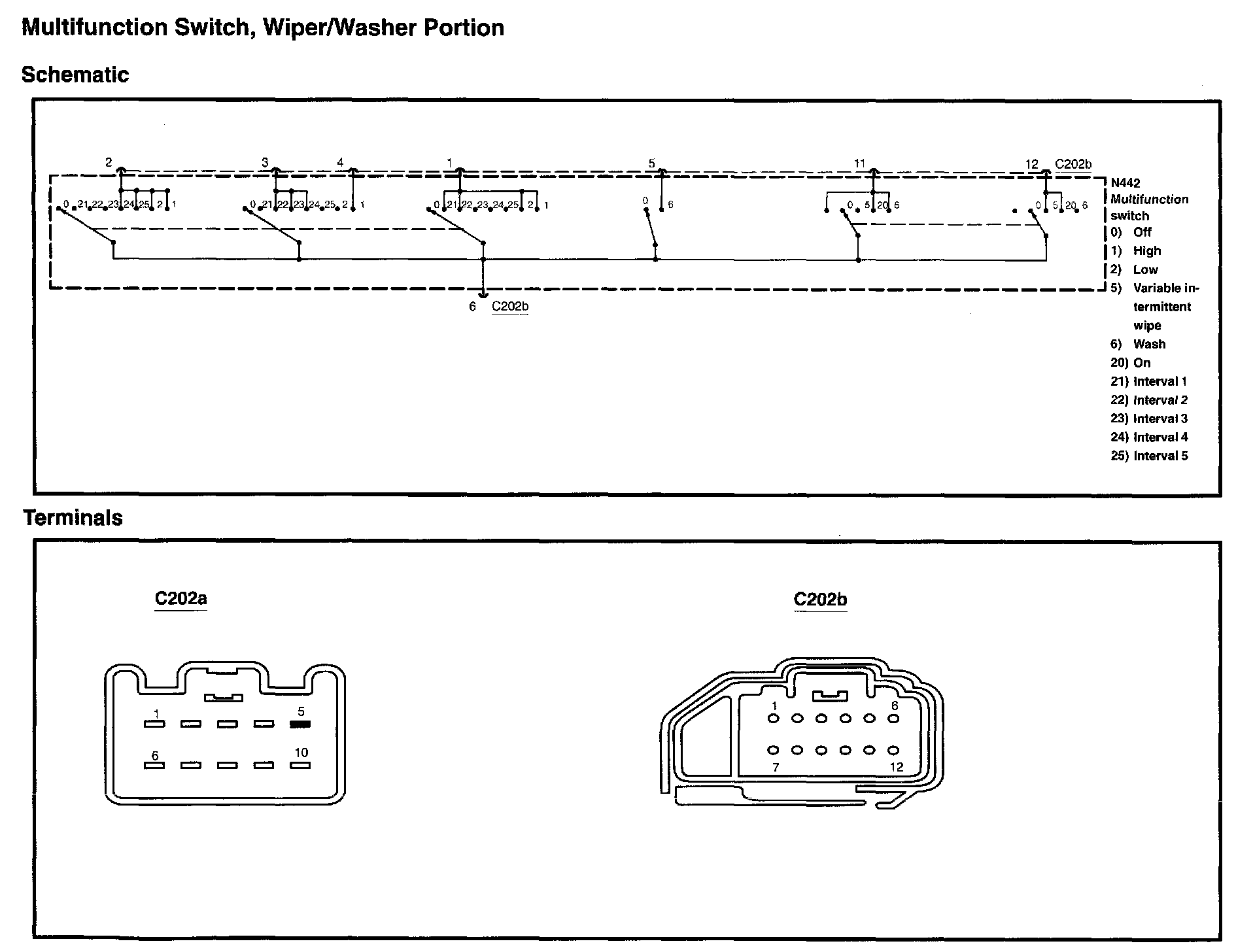

Multifunction Switch, Wiper/Washer Portion:
