Item 5: Retaining Ring Assembly Note
WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

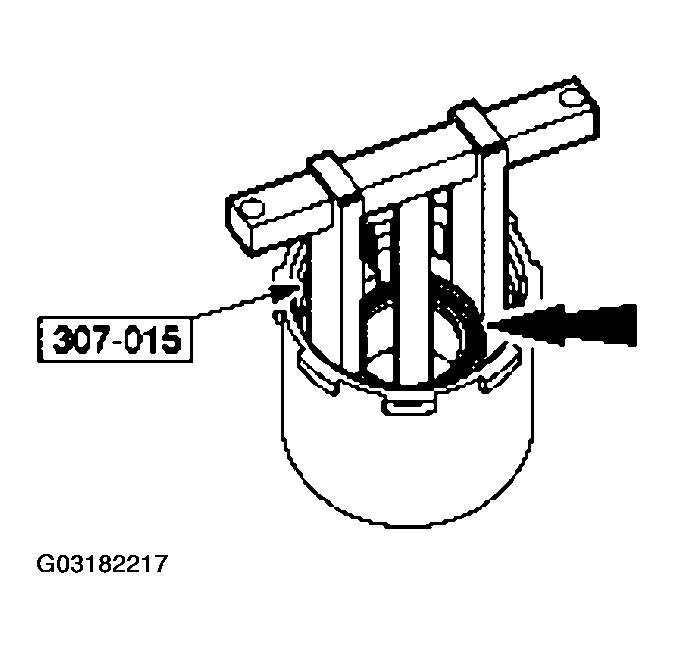

- Using the special tool, install the direct clutch piston retaining ring.
WARNING:
After removing the retaining ring, use care when releasing the pressure on the springs. Failure to follow these instructions may result in personal injury.
CAUTION:
Do not fully compress the special tool or damage to the spring retainer may occur.
