Item 8: Front Pump Support Assembly Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using the special tools, assemble the pump.

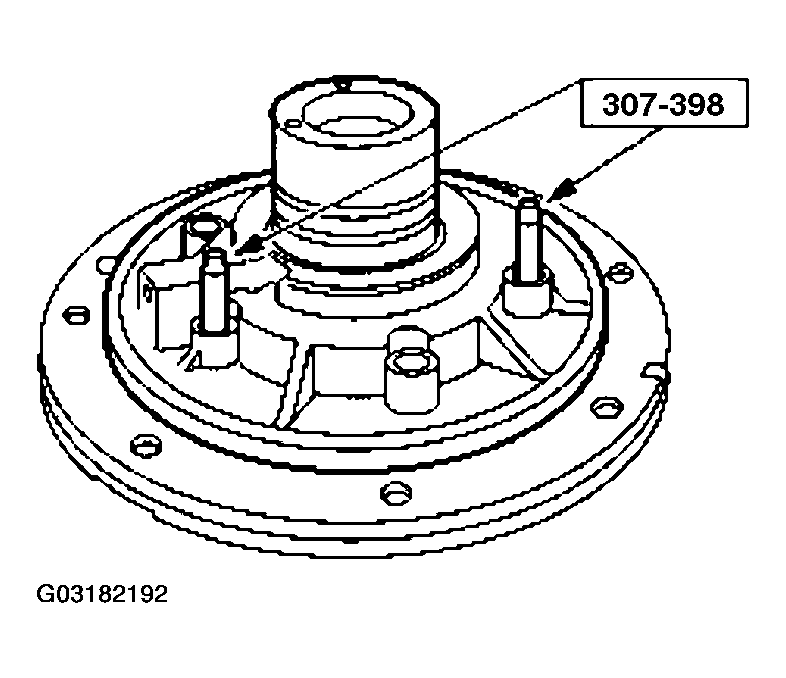

    Fig 1: Assembling Pump
    G03182192Courtesy of FORD MOTOR CO.
