Pinpoint Test F: No Communication With The Electronic Automatic Temperature Control Module
WARNING: This page is about a different car, the 2002 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

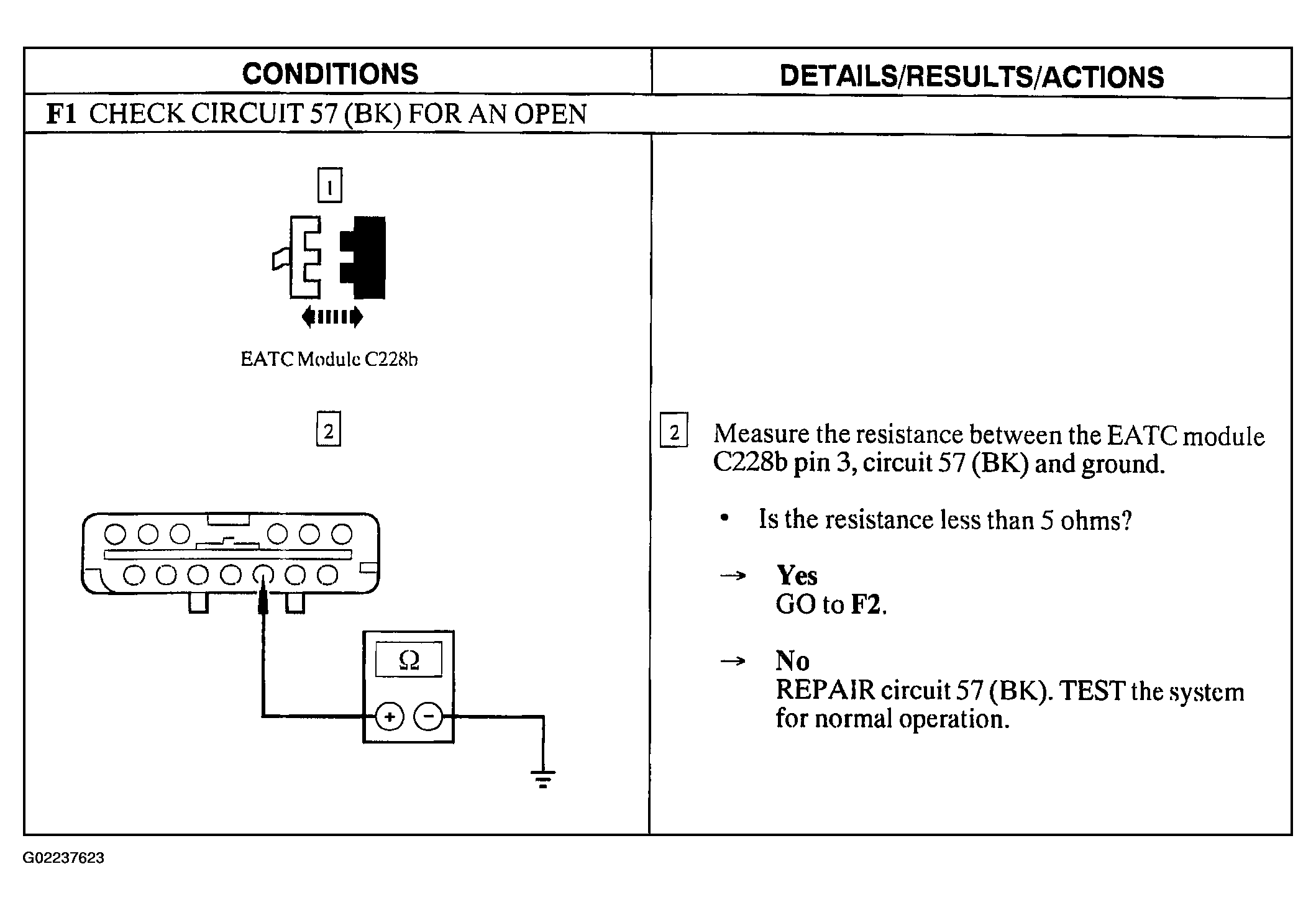

Fig 1: Pinpoint Test F: No Communication With Electronic Automatic Temperature Control Module (F1)
Courtesy of FORD MOTOR CO.

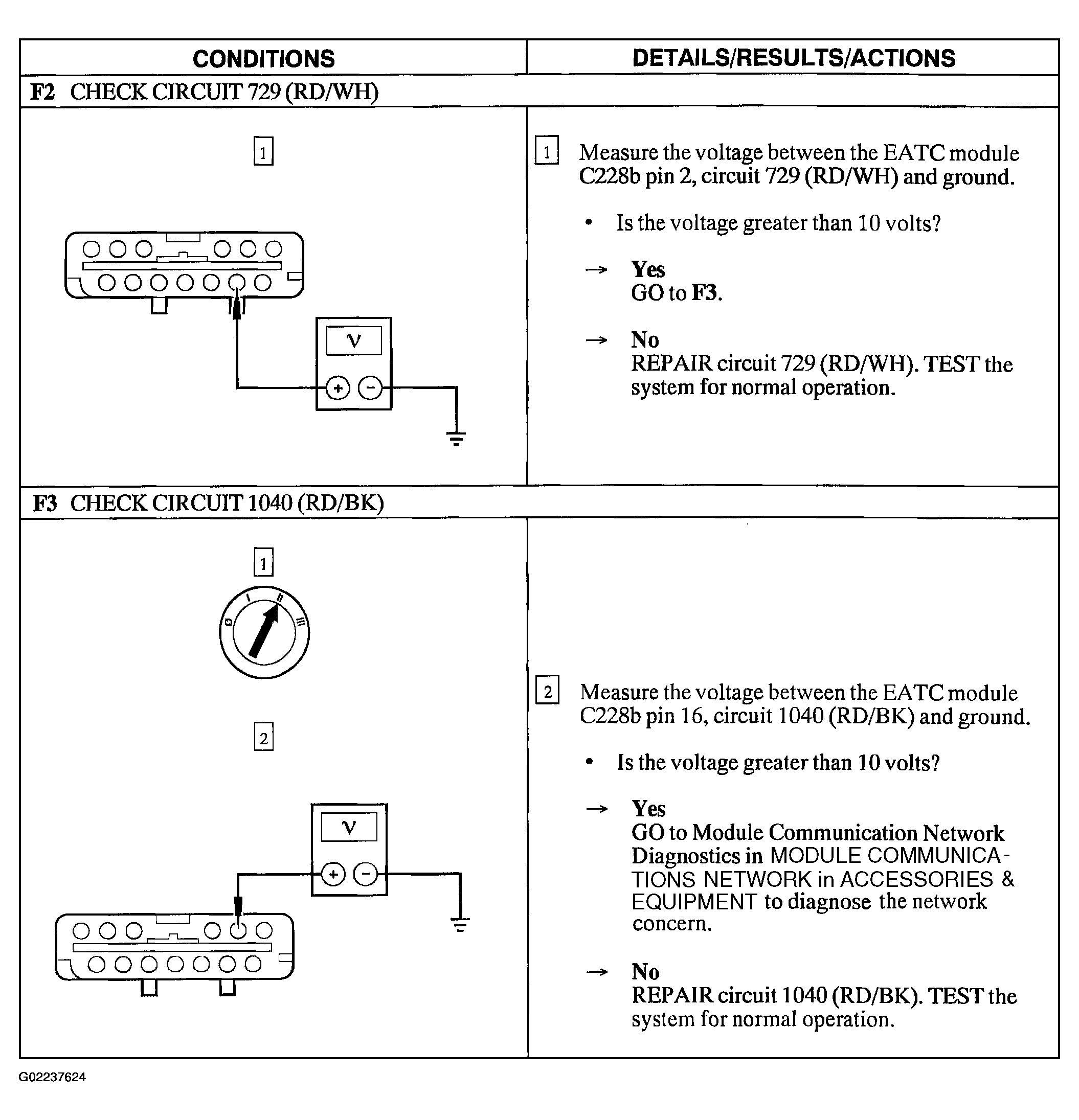

Fig 2: Pinpoint Test F: No Communication With Electronic Automatic Temperature Control Module (F2-F3)
