Manifold Gauge Set Connection

WARNING: This page is about a different car, the 2002 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

Special Tool(s)

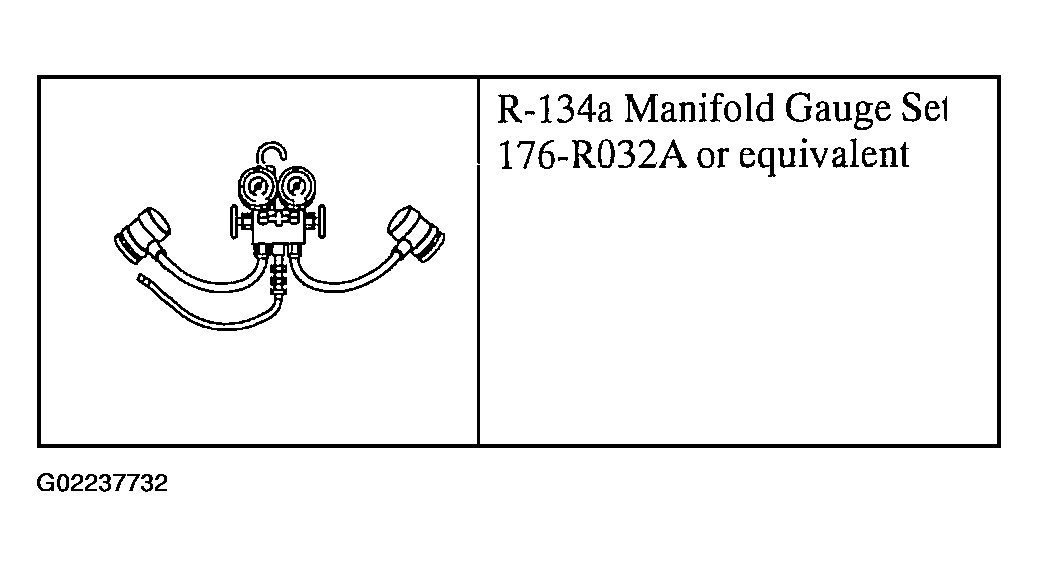

Fig 1: Identifying Special Tool - Manifold Gauge Set Connection

Courtesy of FORD MOTOR CO.

Turn both valves on the R-134a Manifold Gauge Set clockwise to close the low- and high-pressure hoses to the center manifold and center hose.

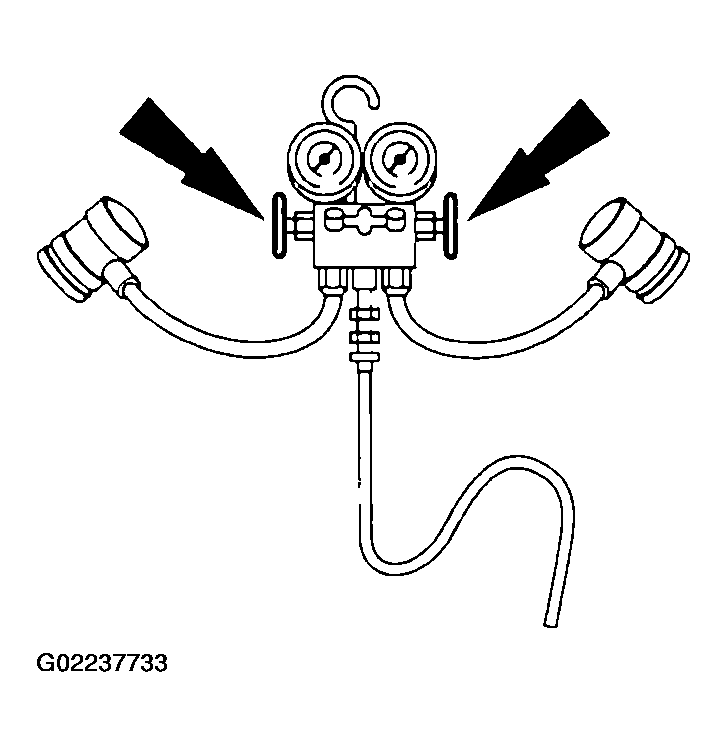

Fig 2: Identifying R-134A Manifold Gauge Set Valves
Courtesy of FORD MOTOR CO.
Remove the A/C charging valve cap (19D702) from the low-pressure service gauge port valve.

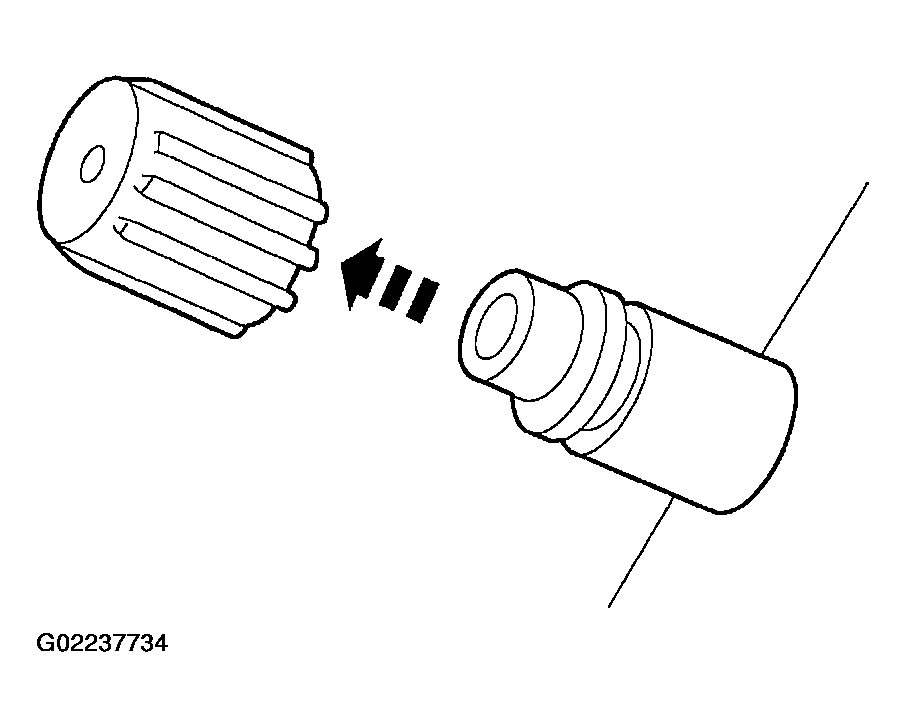

Fig 3: Removing Low-Pressure Service Port Cap
Courtesy of FORD MOTOR CO.
Remove the A/C charging valve cap from the high-pressure service gauge port valve.

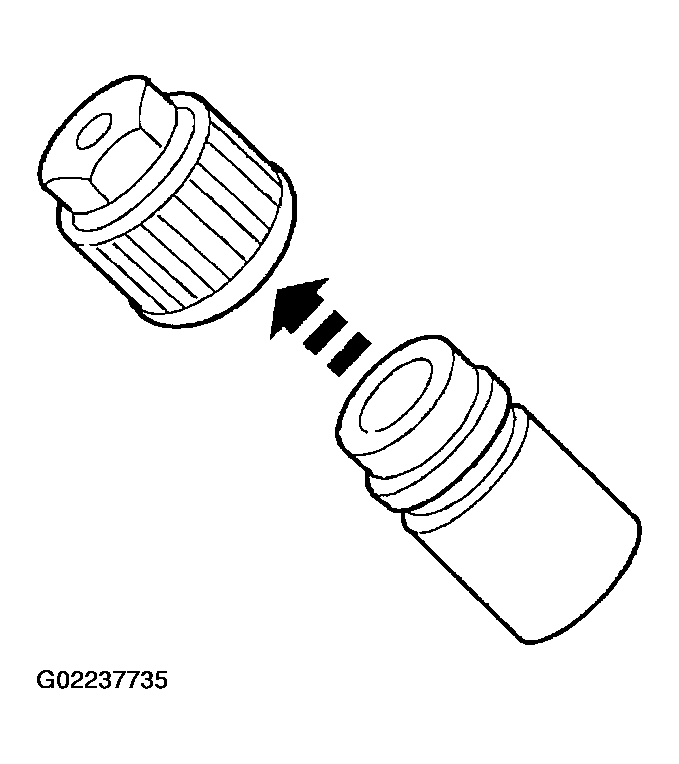

Fig 4: Removing High-Pressure Service Port Cap
Courtesy of FORD MOTOR CO.
Connect the R-134a Manifold Gauge Set low-pressure hose and the R-134a low side quick disconnect to the low-pressure service gauge port valve.

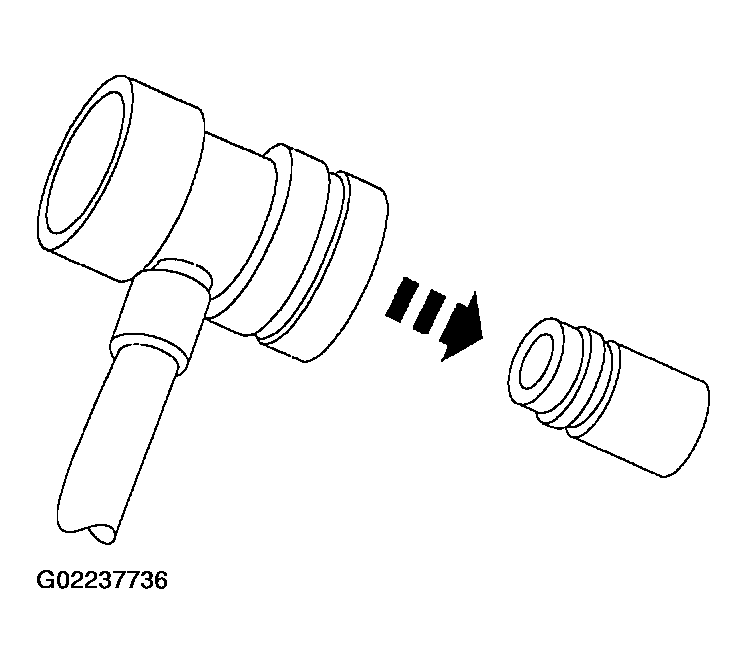

Fig 5: Connecting Manifold Gauge Set Low-Pressure Hose To Low-Pressure Service Port
Courtesy of FORD MOTOR CO.
Connect the R-134a Manifold Gauge Set high-pressure hose and the R-134a high side quick disconnect to the high-pressure service gauge port valve.

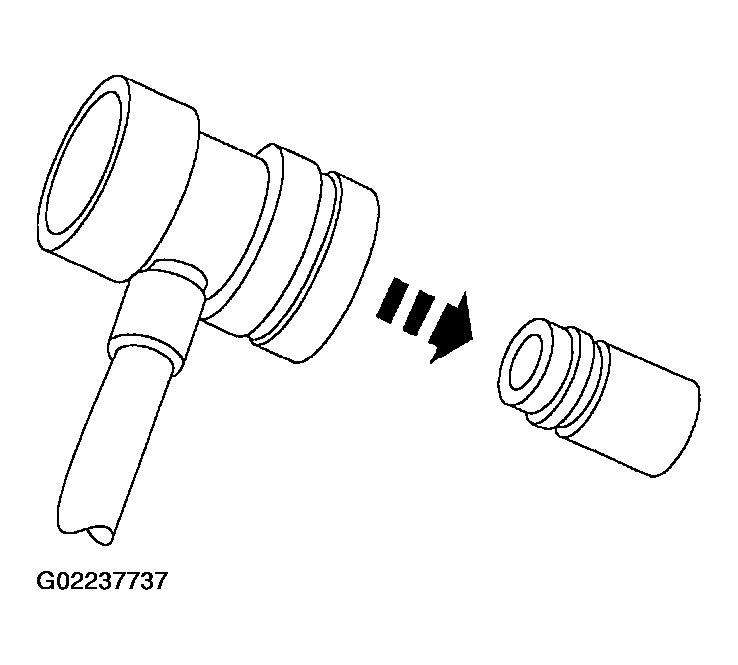

Fig 6: Connecting Manifold Gauge Set High-Pressure Hose To High-Pressure Service Port
