Component Locations

WARNING: This page is about a different car, the 2002 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For additional component locations, refer to illustrations. See Fig 1-Fig 3 .
COMPONENT LOCATIONS

Component Location
Battery Junction Box Left Side Of Engine Compartment
Battery Junction Box Mega Fuses Right Front Corner Of Engine Compartment, Near Battery
Central Junction Box Under Left Side Of Dash
Generator Top Center Of Engine
Internal Voltage Regulator Integral To Generator

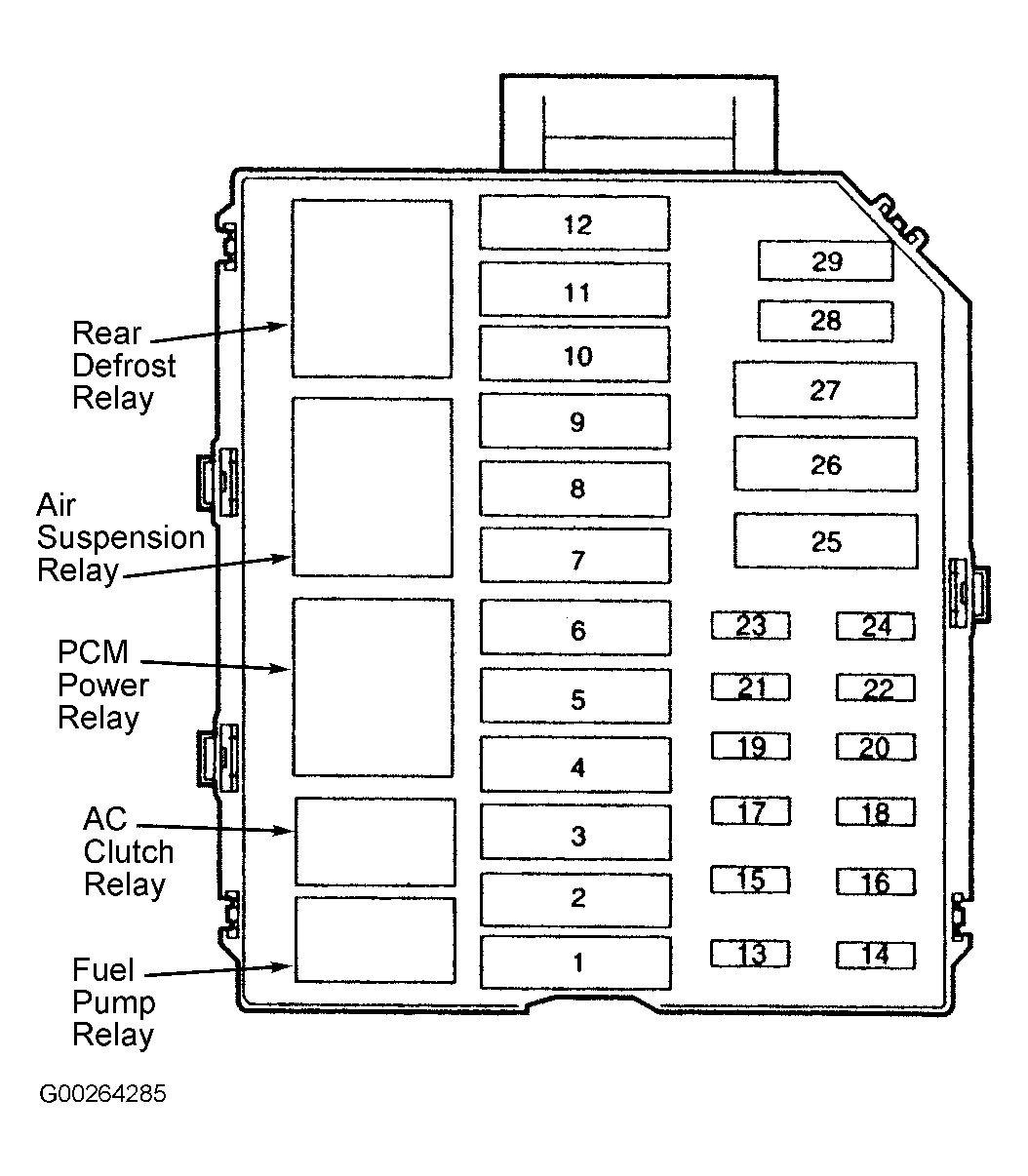

Fig 1: Identifying Battery Junction Box Components
G00264285Courtesy of FORD MOTOR CO.

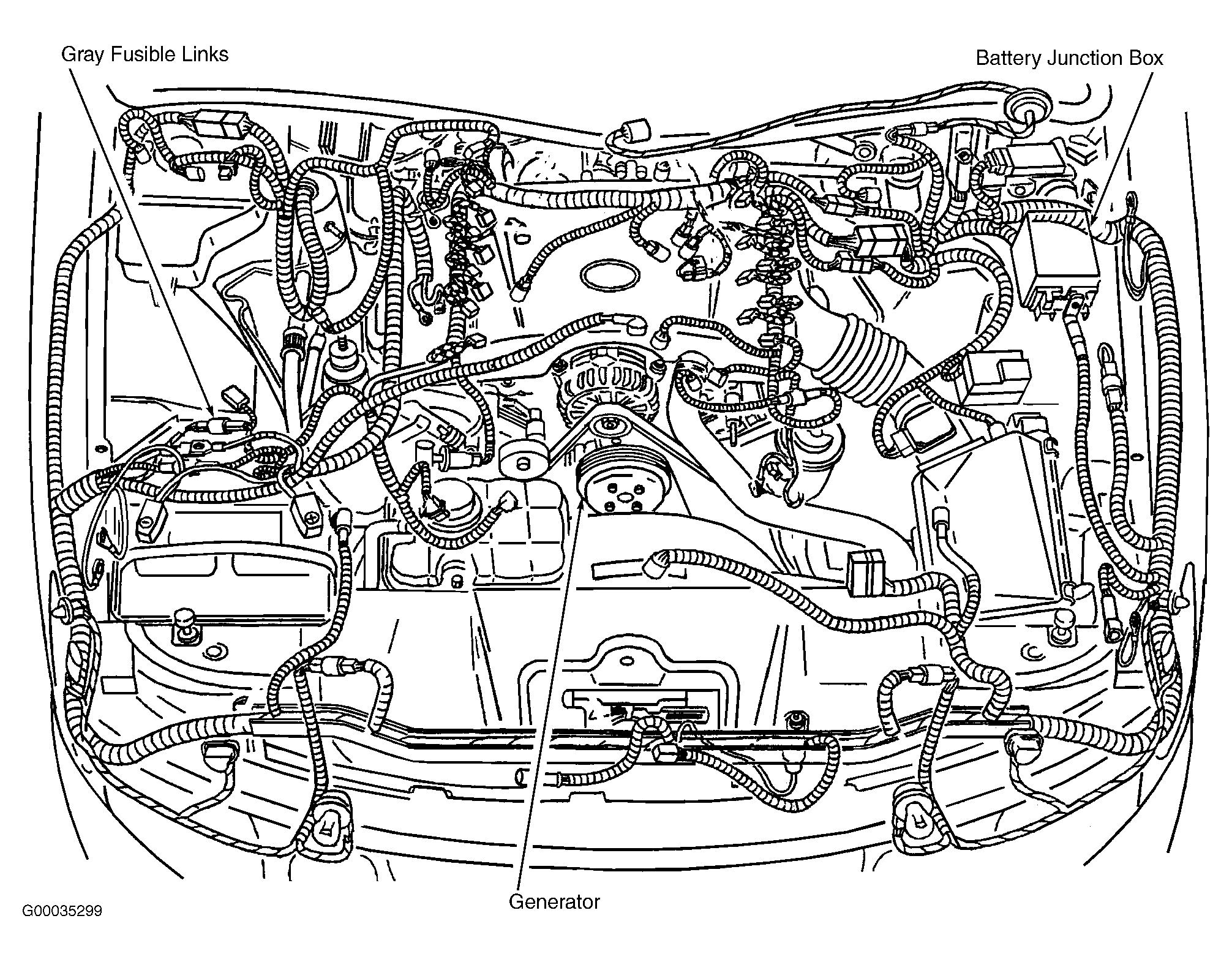

Fig 2: Locating Under Hood Components
G00035299Courtesy of FORD MOTOR CO.
Fig 3: Identifying Central Junction Box Components
G00013623Courtesy of FORD MOTOR CO.
