Inspection and Verification: Notes

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Visually inspect for obvious signs of electrical damage. Refer to the following chart:

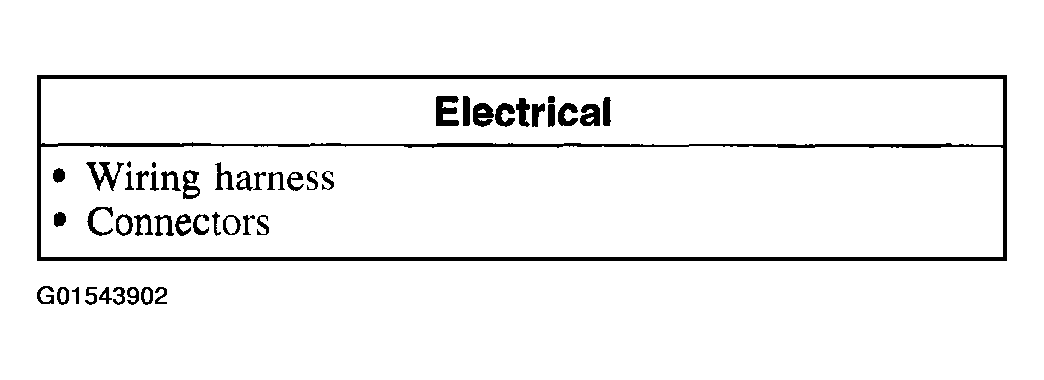

Fig 1: Visual Inspection Chart
G01543902Courtesy of FORD MOTOR CO.
