System Airflow Description - Electronic Automatic Climate Control: Off
WARNING: This page is about a different car, the 2002 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

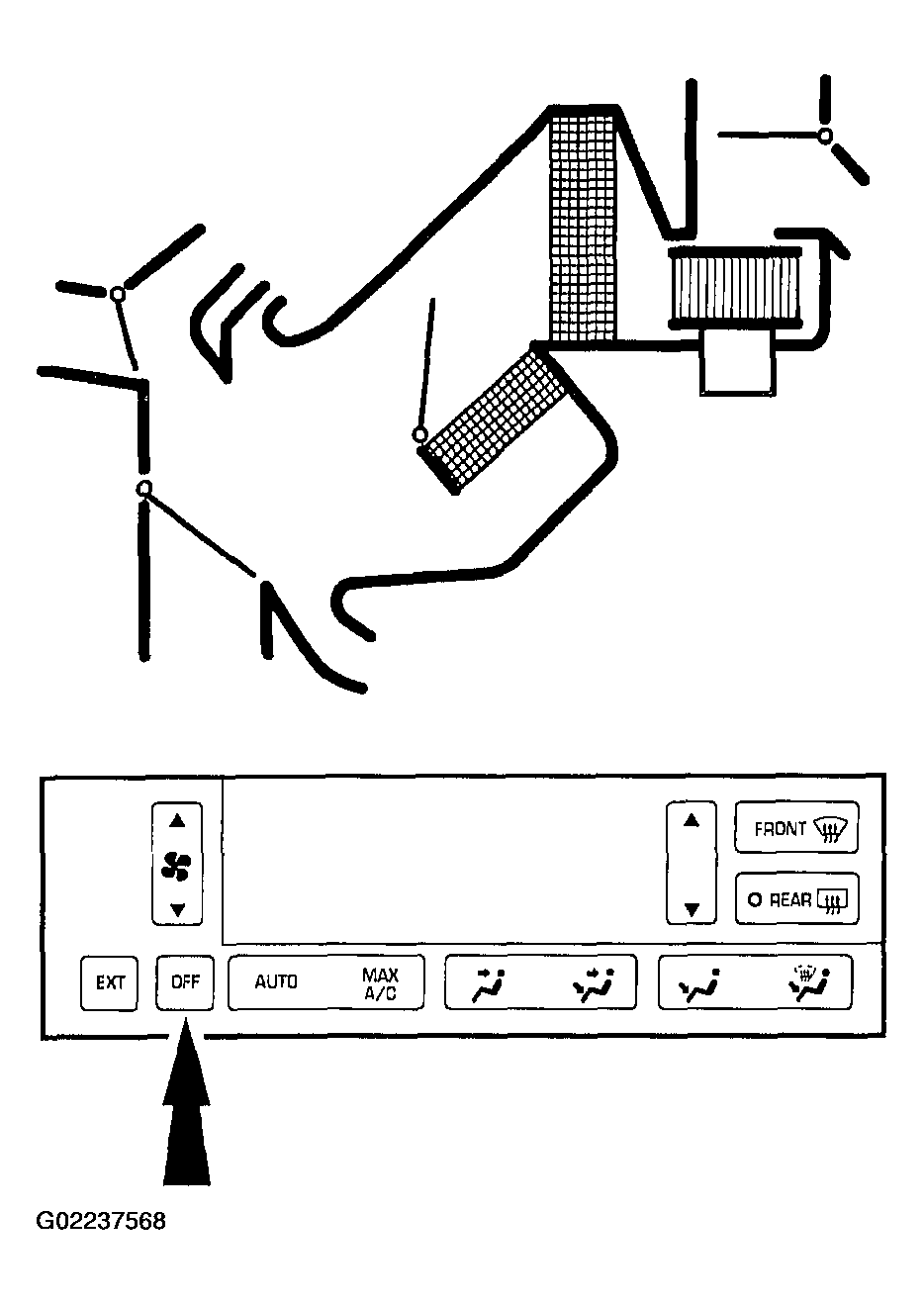

When OFF is selected:
- The air inlet door actuator positions the air inlet door to close off outside air from entering the passenger compartment.
- The panel/defrost door and the panel/floor door vacuum control motors are at no vacuum, closing off airflow to the defrost duct, the side window demisters, the floor duct, the instrument panel A/C registers, and the center console registers (if equipped).
- The A/C compressor will not operate.
- The blower motor is off.
