Component Locations
WARNING: This page is about a different car, the 2002 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

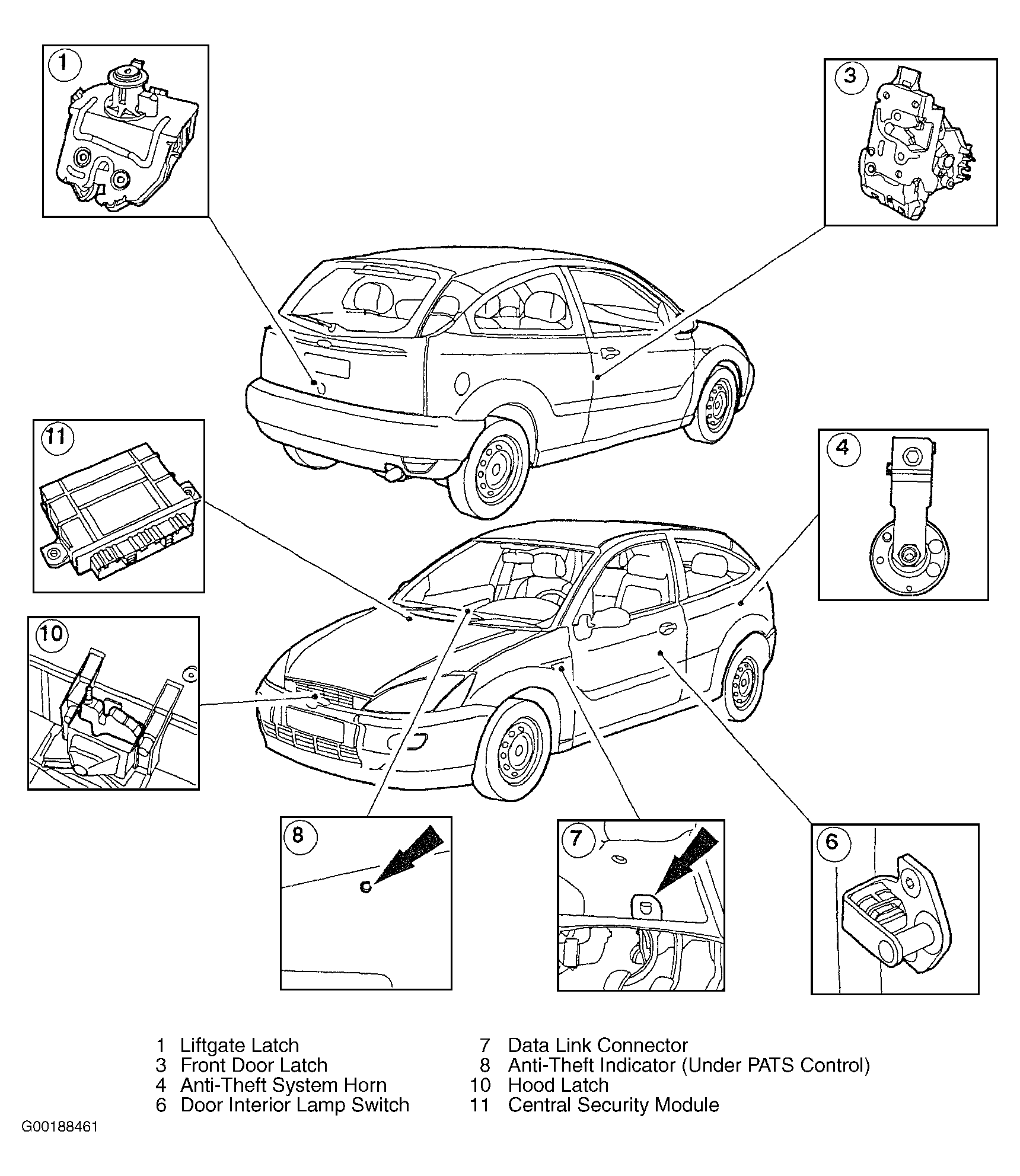

See Fig 1 for additional component location information.
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Anti-Theft Horn | Inside Left Rear Of Vehicle, In Quarter Panel |
| Anti-Theft Indicator | Center Of Instrument Panel |
| Central Junction Box | Behind Left Side Of Instrument Panel |
| Data Link Connector | Below Left Side Of Instrument Panel |
| Generic Electronic Module | Behind Glove Box |
| Hazard Flasher Switch | Center Of Dash |
