Pinpoint Test C: The Transmission Control Switch (TCS) Is Inoperative

WARNING: This page is about a different variant/trim than selected.

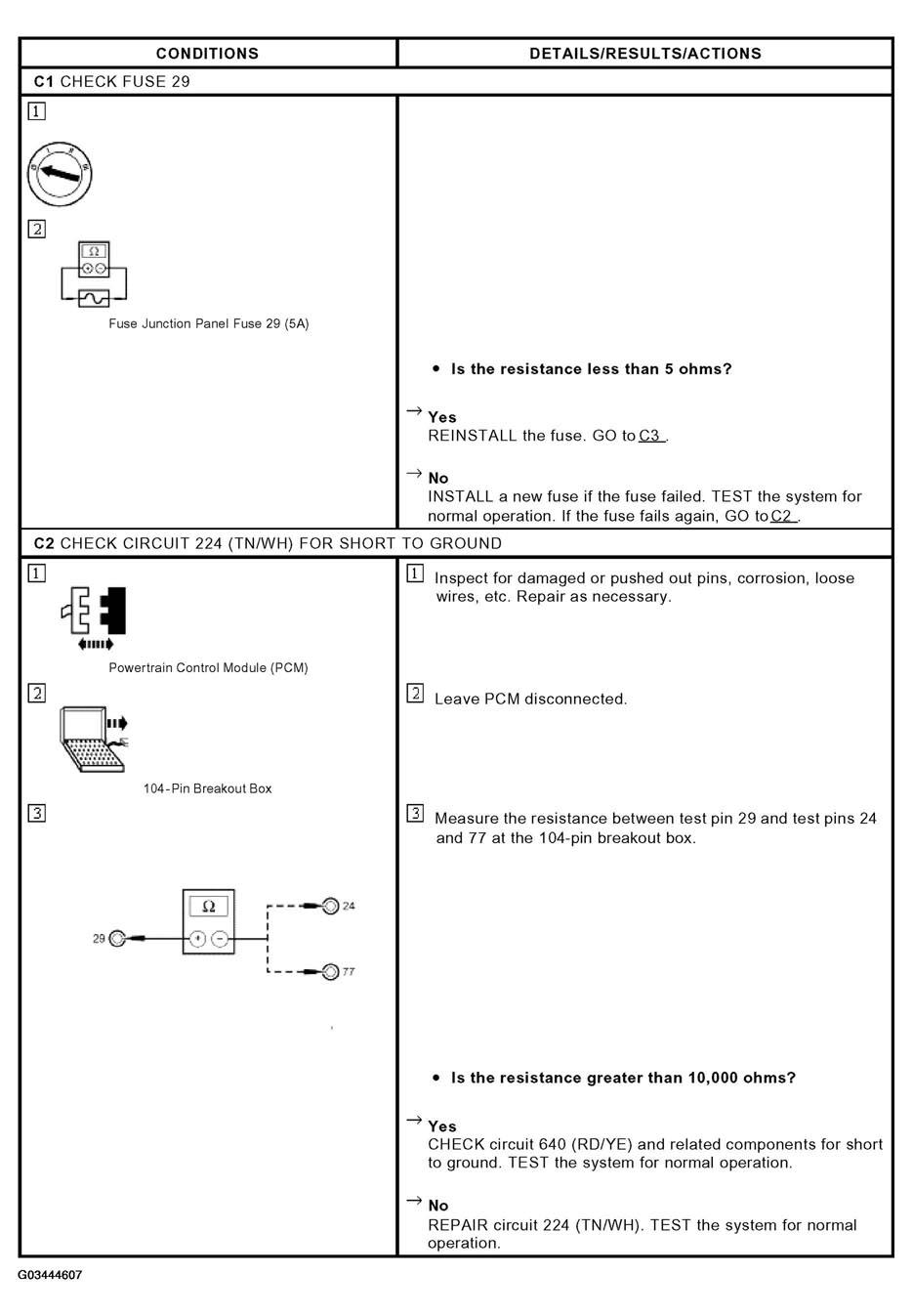

Fig 1: Pinpoint Test C: Transmission Control Switch (TCS) Is Inoperative (C1-C2)

Courtesy of FORD MOTOR CO.

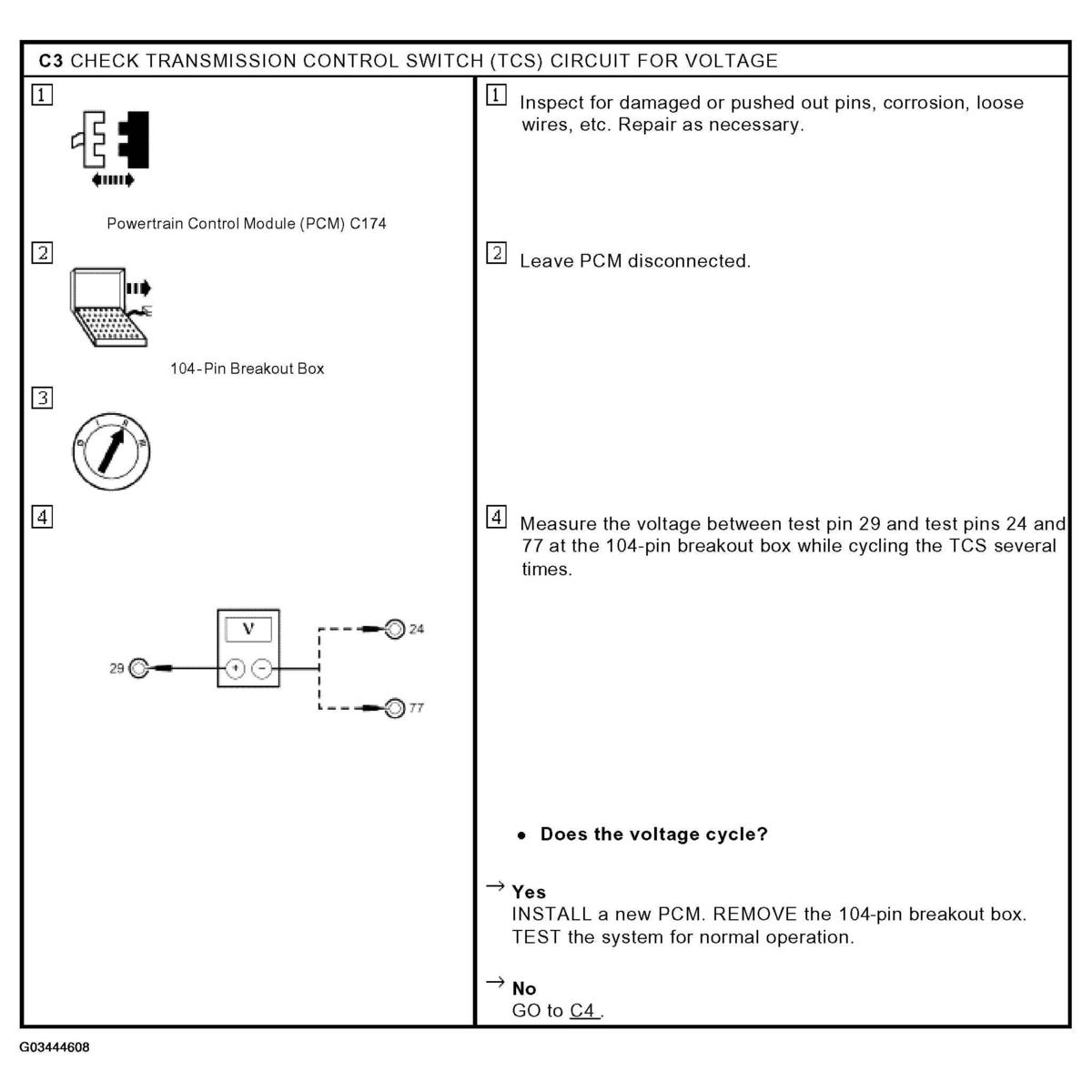

Fig 2: Pinpoint Test C: Transmission Control Switch (TCS) Is Inoperative (C3)

Courtesy of FORD MOTOR CO.

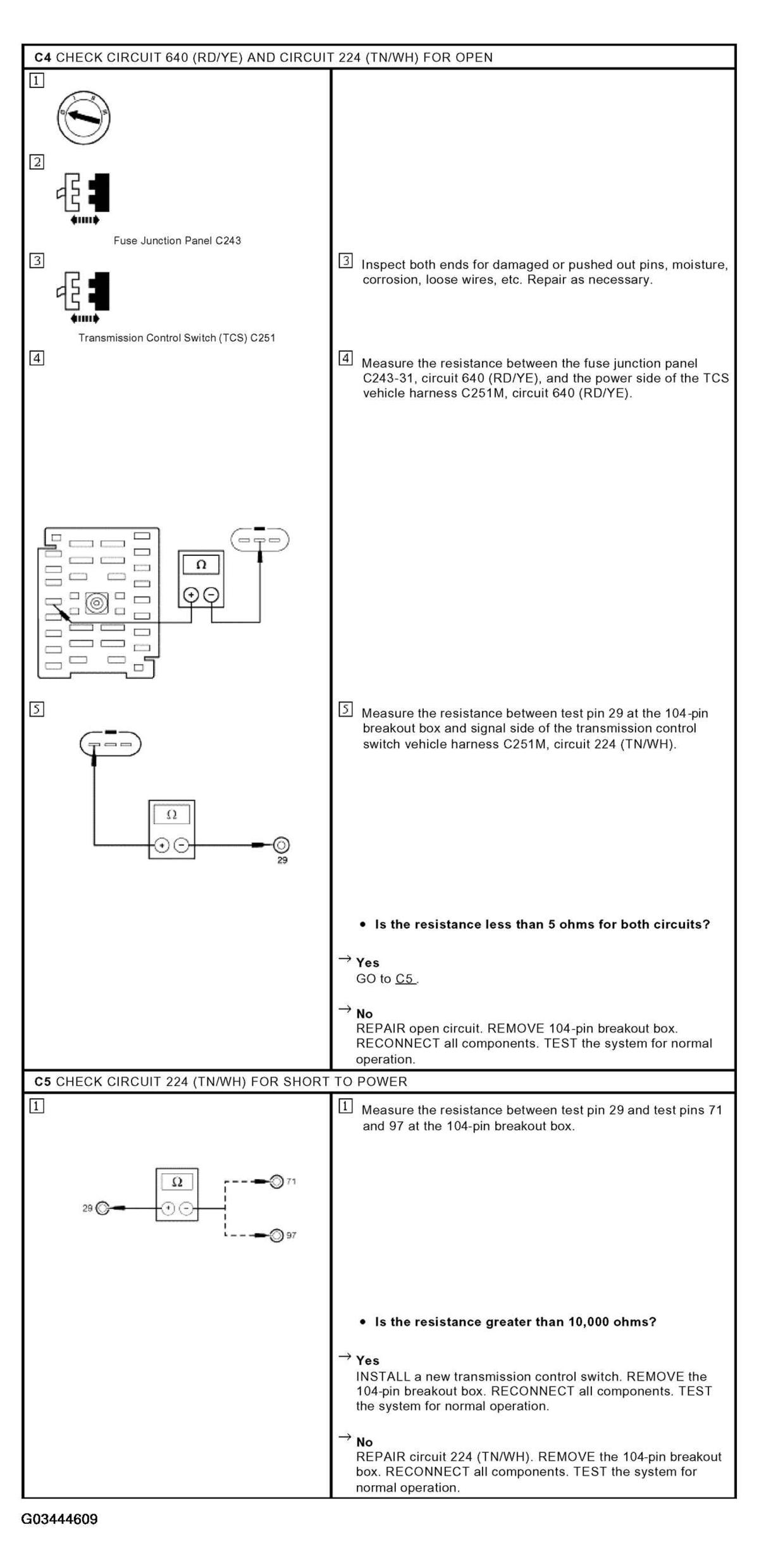

Fig 3: Pinpoint Test C: Transmission Control Switch (TCS) Is Inoperative (C4-C5)

Courtesy of FORD MOTOR CO.
